ADIC FastStor User Manual

FastStor

Advanced Digital Information Corporation

®

1 Quick Installation Guide

Copyright © 2005 ADIC
The information contained in this document is subject to change without notice.
This document contains proprietary information which is protected by copyright. All rights

are reserved. No part of this document may be reproduced, modified, distributed, or
translated to another language without prior written consent of ADIC.

ADIC USA
11431 Willows Road NE
Redmond, Washington
98052-4952
Tel.: [phone]
Fax: [phone]

This document may describe designs for which patents are pending, or have been granted.
By publishing this information, ADIC conveys no license under any patent or any other right.

ADIC shall not be liable for errors contained herein or for incidental or consequential
damages (including lost profits) in connection with the furnishing, performance or use of this
material whether based on warranty, contract, or other legal theory. ADIC makes no
representation or warranty with respect to the contents of this document and specifically
disclaims any implied warranties of merchantability or fitness for any particular purpose.
Further, ADIC reserves the right to revise or change this document without obligation on the
part of ADIC to notify any person or organization of such revision of change.

Every effort has been made to acknowledge trademarks and their owners. All trademarks
within this document are the property of their respective owners. Trademarked names are
used solely for identification or exemplary purposes, and any omissions are unintentional.
ADIC is a registered trademark and of Advanced Digital Information Corporation.

Published: October 2005 Document Number: 6-01497-01 Rev A

Table of Contents

Introduction......................................................................................1

Step 1. Unpacking the FastStor 1....................................................2

Step 2. Installing the FastStor 1 in a Rack.......................................2

Step 3. Connecting Power Cable.....................................................7

Step 4. Removing the Transport Lock.............................................. 8

Step 5. Running Power-On Selftest................................................. 8

Step 6. Setting the SCSI Address....................................................9

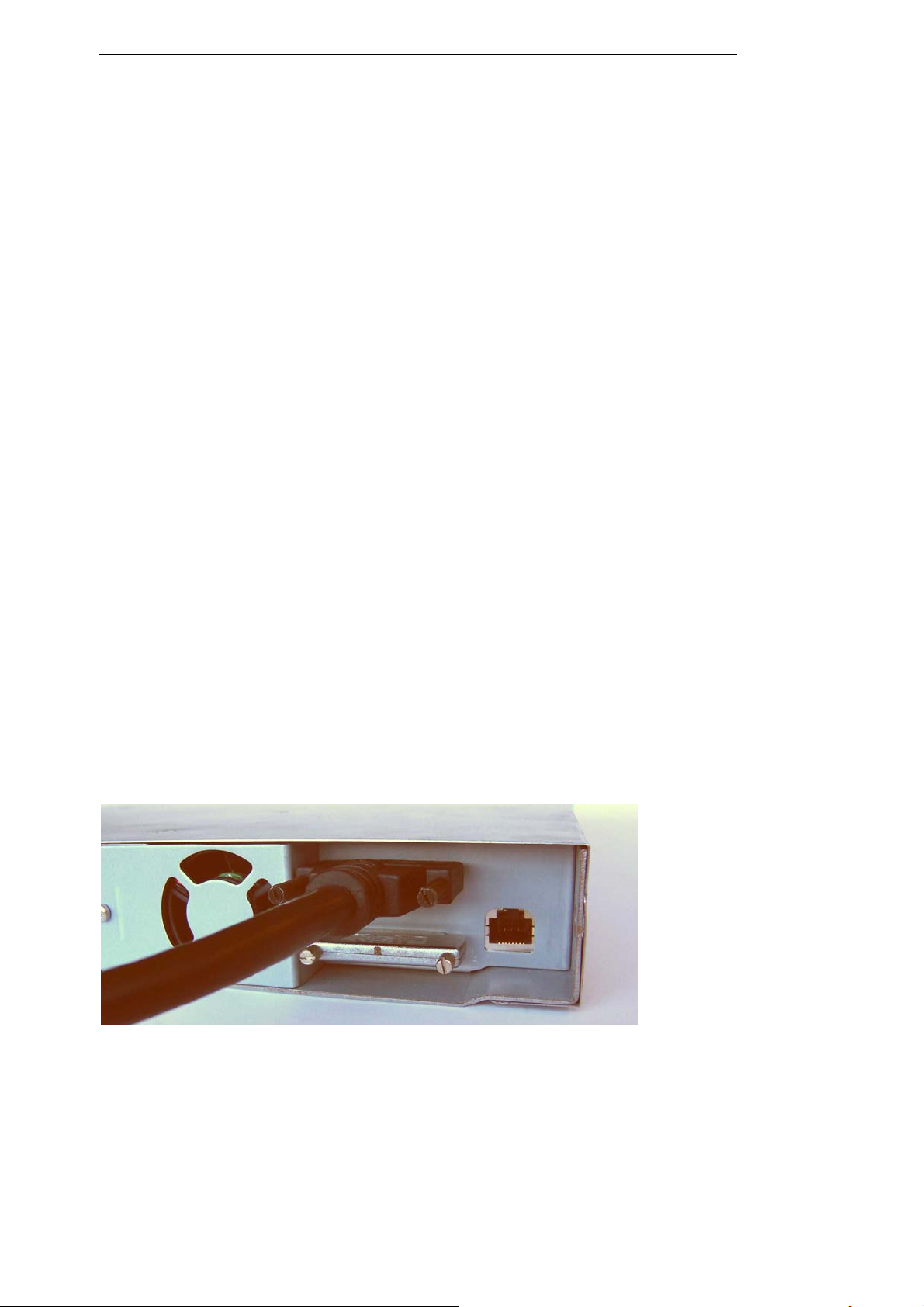

Step 7. Connecting the SCSI Bus Cable..........................................9

Step 8. Connecting the Ethernet Connector...................................11

Step 9. Restarting Your System.....................................................11

Step 10. BCR: Labeling cartridges................................................. 11

FastStor 1 Quick Installation Guide i

Advanced Digital Information Corporation FastStor 1

ii FastStor 1 Quick Installation Guide

Introduction

This guide is designed to enable quick installation of the ADIC FastStor 1
autoloader. For additional product and operation details, please refer to the ADIC
FastStor 1 Installation and User Manual.

The following steps summarize FastStor 1 installation:

• Unpack the FastStor 1

• Install the FastStor 1 in a rack

• Connect the power cable to the FastStor 1

• Turn on the FastStor 1

• Remove the transport lock by following the instructions displayed on the front

panel

• Select the appropriate SCSI IDs and unit options

• Connect the SCSI interface cable, and optionally the Ethernet cable

• Install the backup application software and configure it for use with the

FastStor 1

• Load cartridges into the removable magazines

In order to complete full installation of the FastStor 1, the following additional
materials are required:

• Simple hand tools (small Phillips screwdriver)

• SCSI Host adapter card with 68-pin wide HD or VHDC connector

• Tape application software that is verified with the FastStor 1

• Up to 8 pieces of the appropriate cartridge type to “stock” the FastStor 1 to full

capacity.

FastStor 1 Quick Installation Guide 1
