ADFweb HD67510, HD67510M User guide

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 1 of 14

Industrial Electronic Devices

User Manual

Revision 1.000
English

Gateway / Bridge
Modbus TCP Client to Modbus RTU Slave

to connect a Modbus TCP Server

(Order Code: HD67510 – HD67510M)

for Website information:

www.adfweb.com?Product=HD67510

for Price information:

www.adfweb.com?Price=HD67510

Benefits and Main Features:

INDEX:

Very easy to configure
Low Cost
Rail mountable
Wide supply input range
Opto-isolation for RS485
Industrial temperature range:

-30°C / 70 °C (-22°F / 158°F)

Page
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
INDEX 3
WARRANTIES AND TECHNICAL SUPPORT 4

For others Gateways / Bridges:

Modbus RTU Master / Slave

See also the following links:

www.adfweb.com?Product=HD67001 (CANopen)
www.adfweb.com?Product=HD67002 (CANopen)
www.adfweb.com?Product=HD67011 (CAN)
www.adfweb.com?Product=HD67012 (CAN)

Modbus TCP Client to :

See also the following link :

www.adfweb.com?Product=HD67004 (CANopen)
www.adfweb.com?Product=HD67014 (CAN)

Modbus TCP Server to :

See also the following link :

www.adfweb.com?Product=HD67005 (CANopen)
www.adfweb.com?Product=HD67507 (Modbus RTU Master)
www.adfweb.com?Product=HD67515 (CAN)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 2 of 14

Industrial Electronic Devices

INDEX:

Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
CONNECTION SCHEME 3
CHARACTERISTICS 5
CONFIGURATION 5
USE OF COMPOSITOR SW67510 5
NEW PROJECT / OPEN PROJECT 6
GENERAL PARAMETER 7
TRANSLATE TABLE 8
UPDATE DEVICE VIA TCP 10
UPDATE DEVICE VIA SERIAL 11
CHARACTERISTICS OF THE CABLES 12
MECHANICAL DIMENSIONS 13
ORDER CODE 13
ACCESSORIES 13
WARRANTIES AND TECHNICAL SUPPORT 14
RETURN POLICY 14
PRODUCTS AND RELATED DOCUMENTS 14

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that you
need to check that the following document is:

 Updated
 Related to the product you own

To obtain the most recently updated document, note the “document code” that
appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/ and
search for the corresponding code on the page. Click on the proper “Document
Code” and download the updates.

To obtain the updated documentation for the product that you own, note the
“Document Code” (Abbreviated written "Doc. Code" on the label on the product)
and download the updated from our web site www.adfweb.com/download/

REVISION LIST:

Revision Date Author Chapter Description

1.000 06/02/2009

WARNING:

ADFweb.com reserves the right to change information in this manual about our
product without warning.
ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective owners.

Fl All First release version

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 3 of 14

Figure 1: Connection scheme for HD67510

Industrial Electronic Devices

CONNECTION SCHEME:

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 4 of 14

Figure

2

: Connec

tion scheme for HD67510M

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 5 of 14

Figure

3: Main Window for SW67510

Industrial Electronic Devices

CHARACTERISTICS:

The Modbus TCP to Modbus RTU Gateway allows the following characteristics:

 Power supply 12-24 VAC/DC (3 VA);
 Opto-isolation for RS485 ;
 RS232 ;
 Mountable on Rail DIN ;
 Temperature range -30°C to 70°C.

CONFIGURATION:

You need Compositor SW67510 software on your PC in order to
perform the following:

 Define the parameter of Modbus TCP;
 Define the parameter of Modbus RTU;
 Compile the translate table.

USE OF COMPOSITOR SW67510:

To configure the Gateway, use the available software that runs with
windows, called SW67510. It is downloadable on the site
www.adfweb.com and its operation is described in this document.

When launching the SW67510 the following window appears (Fig. 3):

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 6 of 14

Industrial Electronic Devices

NEW PROJECT / OPEN PROJECT:

The “New Project” button creates the folder which contains the entire device configuration.
A device configuration can also be imported and exported:

 To clone the configurations of the Gateway in order to configure another Gateway device in the same manner, it is necessary to

maintain the folder and all its contents.

 To clone a project in order to obtain a different version of the project, it is sufficient to duplicate the project folder with another name

and open the new folder with the button “Open Project”.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 7 of 14

Figure

4

: “General Parameter” win

dow

Industrial Electronic Devices

GENERAL PARAMETER:

This section defines the fundamental communication parameters of two
buses, Modbus TCP and Modbus RTU.

By pressing the “General parameter” button from the main window for
SW67510 (Fig. 3) the window “General Parameter” appears (Fig. 4).

This window is divided in two sections, one for the Modbus TCP and the other
for the Modbus RTU.

The means of the fields for Modbus TCP are:

 In the field “IP Address” insert the IP address that you want to give to

HD67510 gateway;

 In the field “Subnet Mask” insert the Subnet Mask;
 In the field “Port” insert the number of port;
 If the field “Don’t disconnect the socket” is checked, when the

gateway receive the TCP response doesn’t disconnect the opened
socket (open the socket only at the first RTU request and then the
socket remain opened); otherwise for every RTU request the gateway
open the socket and when receive the TCP response close it;

 If the field “Normal Mode (Translate Table)” is checked, the address of

RTU request is compared with the list of compositor;

 If the field “Work with Fix IP” is checked the gateway doesn’t see the

“Translate Table” but send every request to a fixed IP defined under.

The means of the fields for Moebus RTU are:

 In the field “Address” the address device is defined;
 In the field “Baud Rate”, the velocity of the Modbus RTU is defined;
 In the field “Parity”, the Modbus RTU parity is defined. It is possible to use “NONE” or “EVEN” or “ODD” parity;
 In the field “Timeout (ms)” insert the maximum time that the device attends for the answer from the Slave interrogated;
 If “RS232” is checked the serial line in use for Modbus RTU is the RS232; otherwise is the RS485.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 8 of 14

Figure

5

: “Set Translate Table” window

Industrial Electronic Devices

TRANSLATE TABLE:

By pressing the “Translate Table” button from the
main window for SW67510 (Fig. 3) the window
“Set Translate Table” appears (Fig. 5):

The data of the columns have the following
meanings:

 In the field “Data Type” it is possible to

select the type of data that is being
considered;

 In the field “Address RTU” insert the virtual

address of the present data in a device in
the TCP Modbus;

 In the field “Address Device TCP” insert the address of the device on the Modbus TCP that contains the data;
 In the field “Address TCP” insert the address of the data on the TCP device;
 In the field “N° Point” insert the number of consecutive data that you want to configure. For example, you create Address TCP=150,

Address RTU=100 and N° point = 20, the following gets set-up automatically: addresses TCP 151, 152, 153… …161 and the variables
RTU 101, 102, 103… …161;

 In the field “Mnemonic” it is possible to insert a description.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 9 of 14

Figure

6

: Chart of Request data from Modbus TCP

Industrial Electronic Devices

Example 1:

If you want, from RTU network, read a data in the TCP network on the device at:

 Address 192.168.2.145;
 Through Gateway WORD 151 (Address TCP);
 Address RTU 101.

In the above scenario:

Specify the type of data between:

 Coil Status (bit in read and write);
 Input Status (bit in read);
 Holding Register (word in read and write);
 Input Register (word in read).

From the side of the MODBUS RTU

 Address of data to read.

From the side of the MODBUS TCP:

 Address of the device to interrogate;
 Address of data to read on device.

If the TCP slave responds with an exception, that exception code will be transmitted to the RTU master. In the case where the TCP slave
does not respond within the estimated time defined by the Timeout parameter, an exception response will be given error code $36.

Step 1: Request to the gateway from “Holding Register” in address 101;
Step 2: Request by the gateway from “Holding Register” in address 151 to the

device with 192.168.2.16 ID;

Step 3: Response to the gateway from “Holding register” in address 151;
Step 4: Response to the RTU Master of the device with 192.168.2.16 ID.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 10 of 14

Figure

7

: Update

D

evice Via TCP

Industrial Electronic Devices

UPDATE DEVICE VIA TCP:

Section “Update Via TCP” (Fig. 7):

In order to load the parameters or update the firmware in the gateway, follow these
instructions:

 Connect the Ethernet cable from your PC to the gateway;
 Insert the IP address of the HD67510 gateway;
 If it is necessary make a ping to ensure that the device is present press the

“Ping” button;

 Press the “Next” button;
 Select operations you want to do. It is possible to select only Firmware or

only Project or both;

 Press the “Execute update firmware” to start the upload.

When all operations are “OK” the Configuration / Firmware on the device is correctly
updated.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 11 of 14

Figure

8

: Update

D

evice

Via Serial

Industrial Electronic Devices

UPDATE DEVICE VIA SERIAL:

Section “Update Via Serial” (Fig. 8):

In order to load the parameters or update the firmware in the gateway, follow these
instructions:

 Turn off the device;

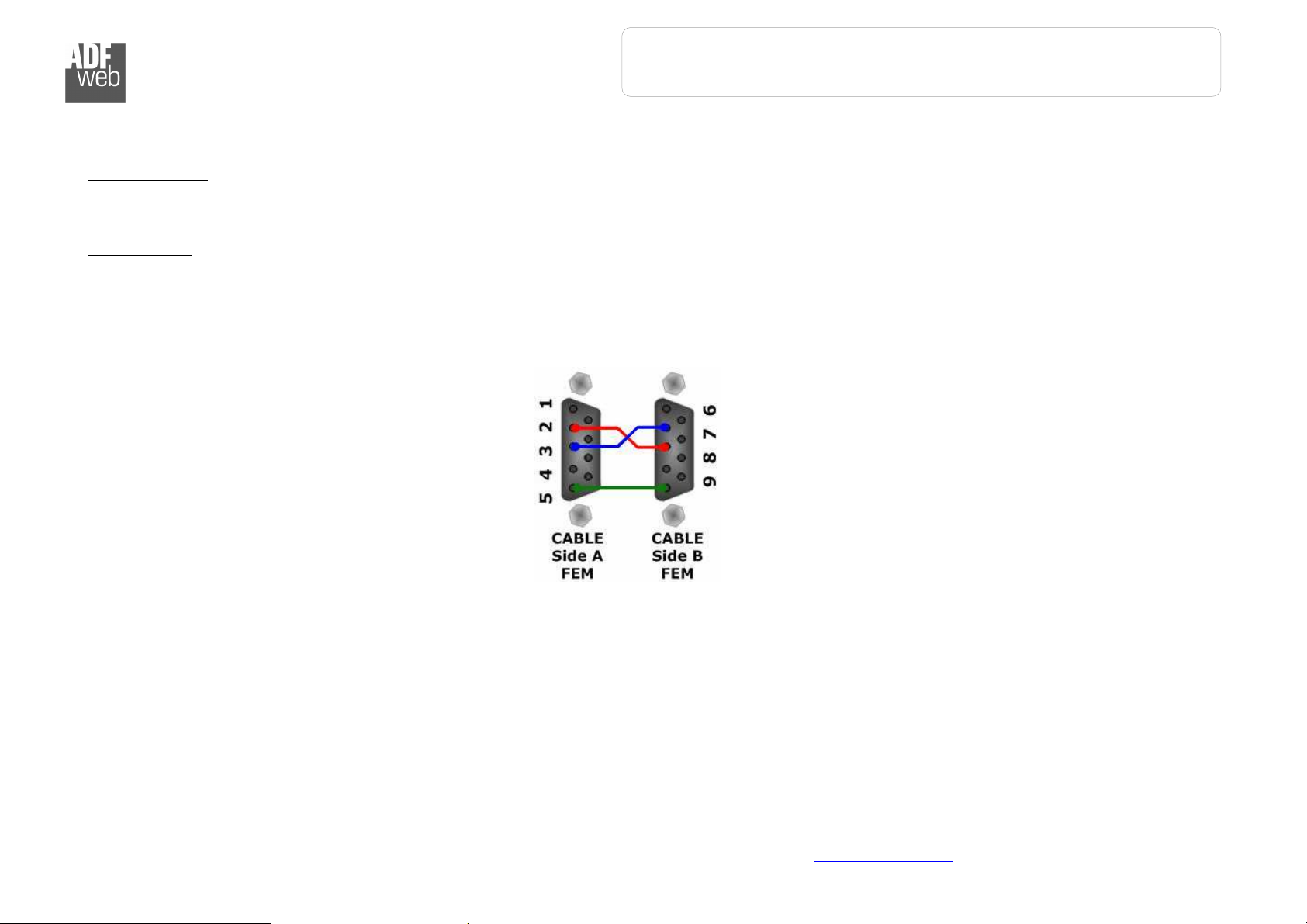

 Connect the Null Modem cable from your PC to the gateway;
 Insert the Boot Jumper (see the Fig. 1 for more info);
 Turn on the device;
 Check the “Boot Led”. It must blink quickly (see the Fig. 3 for more info);

 Select COM port and press the “Connect” button;
 Press the “Next” button;
 Select operations you want to do. It is possible to select only Firmware or only

Project or both;

 Press the “Execute update firmware” to start the upload;
 When all operations are “OK” turn off the device;
 Disconnect the Boot jumper;
 Turn on the device.

At this point the Configuration / Firmware on the device is correctly updated.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 12 of 14

Figure

9: Null Mod

em cable

Industrial Electronic Devices

CHARACTERISTICS OF THE CABLES:

Ethernet cable:

The connection at Ethernet socket must be made with a Ethernet cable with a RJ45 plug.

RS232 cable:

The connection from RS232 socket to a serial port (example one from a personal computer), must be made with a NULL MODEM cable (a
serial cable where the pins 2 and 3 are crossed).

It is recommended that the RS232C Cable not exceed 15 meters.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 13 of 14

Figure

10

: Mechanical dimensions scheme

for HD67510

Figure

11

: Mechanical dimensions scheme

for HD67510M

Industrial Electronic Devices

MECHANICAL DIMENSIONS:

ORDER CODE:

Order Code: HD67510 - Gateway – Modbus TCP Client to Modbus RTU slave
Order Code: HD67510M - Gateway – Modbus TCP Client to Modbus RTU Slave (different enclosure)

ACCESSORIES:

Order Code: AC34107 - Null Modem Cable Fem/Fem DSub 9 Pin 1,5 m
Order Code: AC34114 - Null Modem Cable Fem/Fem DSub 9 Pin 5 m
Order Code: AC34001 - Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC
Order Code: AC34002 - Rail DIN - Power Supply 110V AC 50/60Hz – 12 V AC

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]

User Manual

Modbus TCP Client

to Modbus RTU

Slav

e

Document code: MN67510_ENG Revision 1.000 Page 14 of 14

Industrial Electronic Devices

WARRANTIES AND TECHNICAL SUPPORT:

For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com.
Otherwise contact us at the address [e-mail]

RETURN POLICY:

If while using your product you have any problem and you wish to exchange or repair it, please do the following:

1) Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com. Together with the request, you need to provide detailed information

about the problem.

2) Send the product to the address provided with the PRN, having prepaid the shipping costs (shipment costs billed to us will not be accepted).

If the product is within the warranty of twelve months, it will be repaired or exchanged and returned within three weeks. If the product is no longer under warranty,
you will receive a repair estimate.

PRODUCTS AND RELATED DOCUMENTS:

Part Description URL

HD67118 Converter RS232 to RS485 Isolated www.adfweb.com?Product=HD67118

HD67119 Converter USB 2.0 to RS485 Isolated www.adfweb.com?Product=HD67119

HD67007 Gateway Modbus TCP Server to RTU Master www.adfweb.com?Product=HD67007

HD67010 Gateway Modbus TCP Client to RTU Slave www.adfweb.com?Product=HD67010

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone [phone]
