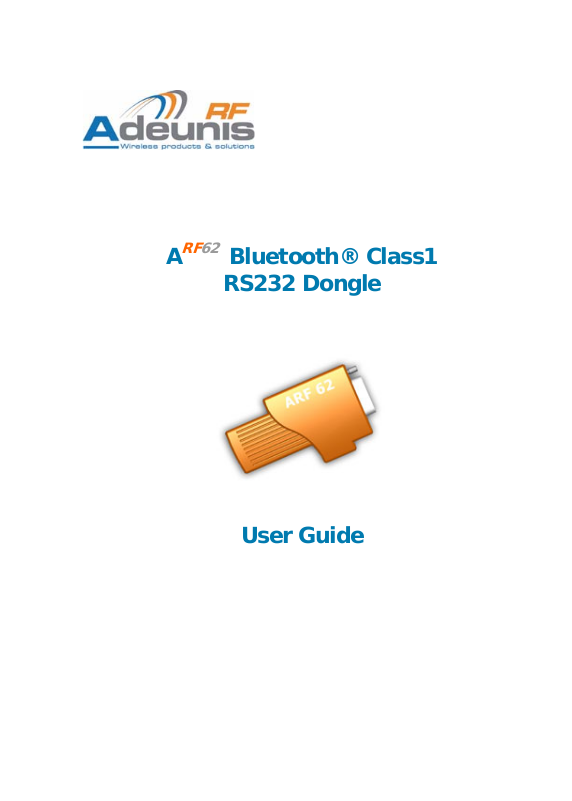

A
RF62
Bluetooth® Class1
RS232 Dongle
User Guide
No part of this document may be reproduced or transmitted (in electronic or
paper version, photocopy) without Adeunis RF consent.
This document is subject to change without notice.
All trademarks mentioned in this guide are the property o f their respective
owner.
ADEUNIS RF
283, rue Louis Néel
38920 Crolles
France
Phone +33 (0)4 76 92 07 77
Fax +33 (0)4 76 08 97 46
Ref. 08-12-V2-pcy
RF62
TOP
A
User Guide
Table of Contents
Table of Contents.............................................................................. 1
About this Document ........................................................................ 2
Declaration of conformity................................................................. 3
Compliance to FCC US/CAN .............................................................. 4
Overview........................................................................................... 5
Interface........................................................................................... 6
Mechanical specification .....................................................................6
Power supply input............................................................................6
External Power Supply & RI Power Supply........................................... 6
Signal description .............................................................................. 7
Profiles.............................................................................................. 7
SPP wiring and configuration..............................................................8
DUN wiring and configuration............................................................. 9
Dongle operating mode .................................................................. 10
Command mode.............................................................................. 10
Transparent mode ........................................................................... 11
Remote control configuration......................................................... 11
AT Commands................................................................................. 12
Description...................................................................................... 12
Set of commands............................................................................. 12
Register description......................................................................... 14
Specifications.................................................................................. 18
Annex 1 : Firmware and document updates ................................... 19
Ref. 08-12-V2-pcy p 1
TOP
About this Document
RF62
A
User Guide
This guide describes the A
RF62
devices, their options and accessories.
Ref. 08-12-V2-pcy p 2
RF62
TOP
A
User Guide
Declaration of conformity
Manufacturer’s name: ADEUNIS R.F.
Manufacturer’s address:Parc Technologique PRE ROUX IV
283 rue Louis NEEL
38920 CROLLES - FRANCE
declares that the product if used and installed according to the user guide available on
our web site www.adeunis-rf.com
Product Name: ARF62
Product Number(s): ARF7501B/ARF7502B/ARF7503C/ARF7509A
is designed to comply with the RTTE Directive 99/5/EC:
EMC: according to the harmonized standard EN 301 489.
Safety: according to the standard EN 60950-1/2001
Radio: according to harmonized standard EN 300-328 covering essential
radio requirements of the RTTE directive.
Notes: - Conformity has been evaluated according to the procedure
described in Annex III of the RTTE directi v e.
- Receiver class (if applicable): 3.
Exposure to radio frequency signals, according to the 1999/519/EC recommendation,
minimum distance between the product and the body could be required depending on
the dongle integration.
Crolles, December 5th, 2008
VINCENT Hervé / Quality manager
Download of the user guide
Thank you for having chosen the ADEUNIS RF products.
User guides can be uploaded directly on our web site www.adeunis-rf.com
Index Products
Paragraph Bluetooth® solutions > 'Ready to use' Bluetooth® products
Print version available upon request
Tel : +33 4 76 92 07 77
Email : arf@adeunis-rf.com
Ref. 08-12-V2-pcy p 3
RF62
TOP
A
User Guide
Compliance to FCC US/CAN
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occ ur in a particu lar
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outle t on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY ADEUNIS RF
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
RF Exposure Warning: During operation, the user may keep a minimum
separation distance of 20 cm with the RF devices.
Ref. 08-12-V2-pcy p 4
RF62
TOP
A
User Guide
Overview
RF62
The A
communications over a 150-meter range in the worldwide 2.45 GHz
frequency band.
Bluetooth class 1 dongle enables Bluetooth® compliant duplex
The A
RF62
dongle fully complies with the V2 Bluetooth® standard and air data
rate goes up to 723 kbps. Data exchange and set-up are only done through
an UART data port, under SPP or DUN profile. A miniature antenna is
integrated.
RF62
A
can be used in two modes: command mode and transparent mode. The
command mode is used to established Bluetooth communications and set/get
parameters. The transparent mode is used for data exchange.
The dongle converts data from a serial link into a Bluetooth
®
radio frame to
be sent to a similar piece of equipment. The communication is half-duplex.
The operating parameters of the Bluetooth dongle (serial link, Bluetooth
®
management…) can be fully updated through AT commands via the serial
link.
We recommend reading the “specification of the Bluetooth
+ EDR” document available at the www.bluetooth.com web site.
®
system core 2.0
Ref. 08-12-V2-pcy p 5
RF62
TOP
A
User Guide
Interface
Mechanical specification
65 x 40 x 25 mm
Power supply input
ARF62 dongles may be supplied using an external power supply through
µJack plug (default) or through RI pin / DB conne ctor. Selectio n is done with
an internal onboard jumper:
External Power Supply RI Power Supply
Ref. 08-12-V2-pcy p 6
RF62
TOP
A
User Guide
NOTE :
ARF62 external power supply is done through a female ∅3.5 mm DC µJack
(Positive on inner pin ∅1.3 mm)
Signal description
ARF750X Bluetooth Dongles pinout.
Interface
Pin
ARF7501
Fem DB9
DCE
5 5 9 GND Ground
3 (I) 3 (O) 2 (O) TXD Serial data transmission
2 (O) 2 (I) 6 (I) RXD Serial data reception
8 (O) 8 (I) 11 (I) CTS Clear To Send
7 (I) 7 (O) 12 (O) RTS Request To Send
4 (I) 4 (O) 8 (O) DTR Data Terminal ready
6 (O) 6 (I) 7 (I) DSR Data Set Ready
9 (O) 9 (I) 13 (I) RI
1 (O) 1 (I) 1 (I) DCD Data Carrier Detect
Interface
Pin
ARF7502
Mal DB9
DTE
Interface
Pin
ARF7503
Mal DB15HD
DTE
Description
Name
Digital interface
Ring Indicator / (DC Supply Input -if
selected-)
Profiles
The dongle supports 2 different profiles: SPP and DUN.
A basic dongle configuration is provided as a guideline for each profile (for
more details or customisation see § AT commands).
The dongle can be configured using a terminal at 9600 baud, 8 bits, 1 stop,
HW flow control (default serial configuration)
Ref. 08-12-V2-pcy p 7
G
G
TOP
SPP wiring and configuration
SPP (Serial Port Profile) is the standard Blue tooth® profile.
ND
PC
(DTE
)
ARF62
Bluetooth
Dongle
Master
ARF62
Bluetooth
Dongle
Slave
SPP configuration guideline : in the following example, the Master is
configured to performed an auto-connection on reset.
Master configuration : enters the command m ode using the A+++ sequen ce.
When the <OK> answer is receive, send the following commands :
ATS202=1 (auto-connect on reset)
ATS220=1 (SPP profil, default value)
ATS203= slave BT address (use ATINQ 0,10 command to discover
the slave @)
AT&W (save the configuration)
Slave configuration : enters the command mode and then send the following
commands :
ATS202=0 (auto-connect disable, default value)
ATS220=1 (SPP profil)
AT&W (save the configuration)
Perform a power cycle on both dongle s. The dongles are now in transparent
mode; the link will be established automatically on reset by the master.
When the link is established data can be exchanged using the serial link.
Ref. 08-12-V2-pcy p 8
ND
RF62
A
User Guide
PC
(DTE)
TOP
PC
(DTE)
RF62
A
User Guide
Caution the BT connection establishment can takes several seconds (you can
check this establishment in command mode using the AT&L command).
DUN wiring and configuration
DUN (Dial up Network) profile is above the SPP profile. Th is profile manages
the 4 lines DTR, DSR, DCD and RI and is dedicated to PSTN or GSM modems.
DUN configuration guideline : in the following example, the Master is
configured to performed an auto-connection on DSR.
Master configuration : enters the command mode using the A+++ sequence.
When the <OK> answer is receive, send the following commands :
ATS202=2 (auto-connect on DTR)
ATS220=2 (Dun profil)
ATS203= slave BT address (use ATINQ 0,10 command to discover
the slave @)
AT&W (save the configuration)
Slave configuration : enters the command mode and then send the following
commands :
ATS202=0 (auto-connect disable, default value)
ATS220=2 (Dun profil) AT&W (save the configuration)
Exit the command mode or perform a power cycle on both dongles. The
dongles are now in transparent mode; the link will be established when the
Ref. 08-12-V2-pcy p 9
ARF62
Bluetooth
Dongle
Master
ARF62
Bluetooth
Dongle
Slave
Modem
(DCE)
RF62
TOP
A
DTR is activated on the master.
When the link is established data can be exchanged using the serial link.
Caution the BT connection establishment can takes several second s (you can
check this establishment either in command mode using the AT&L command
or by checking report of a remote signal).
DTR/DSR/RI and DCD I/O configuration :
These lines are set as inputs while the connection is not established or
released,
And set as input and output according to the DUN illustration and to the
description done in signal description table.
User Guide
Dongle operating mode
Two operating modes are available:
- Command mode (usage of AT commands and SPP_CONFIG mode),
- Transparent mode (serial data are transmitted on radio link).
At power up, the dongle is in transparen t mode according to the registers
configuration. The boot time is about 1s.
Command mode
The command mode is used to read and update the dongle configuration
registers using AT commands.
In command mode, the radio is inhibited (reception and transmission),
excepted when using test command.
Entering command mode : issues on the serial link a A+++ sequence.
The sequence A+++ characters is accepted only if no character has been
seen before and after the A+++ sequence. Register (S214) defines the
silence duration.
Tips : if you are using a terminal (such as Hyperterm), you hav e to send the
A+++ sequence using a text file (first create a text file containing only the
A+++ characters, and then use in Hyperterm the command “Send text file”
in the “Transfer menu”)
Ref. 08-12-V2-pcy p 10
RF62
TOP
A
User Guide
Exiting command mode (return back in transceiver mode) : send the serial
command
ATO <cr>
Transparent mode
In transparent mode, data received from the se rial link are transmitted on
the radio link. When data are received on the radio link, these data are sent
on the serial link.
Remote control configuration
SPP_CONFIG mode is used to remotely configure the slave dongle through
the master dongle serial link.
ARF62
Bluetooth
DCE Dongle
Master
This is done, on master side, in 4 steps:
Activation of the SPP_CONFIG mode us ing the ATC1 command. When this
mode is activated, the command issued on the master will be ignored by the
master and transmitted to the slave by radio.
Slave configuration: send command to the slave using the Master serial link.
When the remote configuration is done, the master must sent an AT&W
command to the slave (the AT&W command is mandatory because the slave
reboots when the master leaves the SPP_CONFIG mode or when the RF link
is loosed).
Leaving of the SPP_CONFIG mode using the ATC0 command.
ARF62
Bluetooth
DTE
Dongle
M1 slave
Ref. 08-12-V2-pcy p 11
RF62
TOP
A
User Guide
AT Commands
Description
AT commands are interpreted only when the dongle is in Command
mode.
Commands : are used to read and update the dongle parameters
A command starts with the 2 ASCII ‘AT’ characters . ‘AT’ means ‘Attention’
follow with one or several characters or other data.
Each command is ended with <cr> (carriage return).
In the same command, the time between 2 characters must be less than 10s.
Response : is sent back for each command on the serial link. The answer is:
• <cr><lf ‘OK’<cr><lf> (ASCII character 0x4F) for accepted
command (or OK command)
• <cr><lf ‘ERROR’<cr><lf> for error
• Specific string when specified
Set of commands
The SPP CONFIG column indicates whether the command is
available or not when the dongle is in SPP CONFIG mode (ATC1
command).
Ref. 08-12-V2-pcy p 12
RF62
TOP
A
User Guide
Commands Description SPP
Operating mode selection
ATO Return back to transparent mode. NO
<silence>A+++
<silence>
Registers management
ATSn? Displays the Sn register content where n represents the register
ATSn=m Sets the Sn register value with ‘m’. n represents the register
AT&W Saves the new register configuration in EEPROM. Each time you
AT&V Displays all register values. The response has the following format:
AT&F Restore register default values (Refer to Annexe 1 – Page 22) YES
BT LINK management
ATINQ<space>Ma
xDevice, TimeOut
ATD<space>Blueto
oth address
ATH Release Bluetooth link NO
AT&L Link connection status. released or established NO
AT&RSSI RSSI indicator
Miscelleanous
ATI Software version display. The response has the following format:
ATC0 Exit SPP Config mode YES
ATC1 Enter SPP Config mode
Test modes
Command mode activation. The A+++ sequence must be preceded
and followed by a calibrated silence (no other character)
number.
The response has the following format:
Sn=y<cr><lf>
number..
switch on the modem, the EEPROM configuration will be loaded in
the modem registers.
Sxxx=y<cr><lf> for each register.
Launch Bluetooth inquiry of devices for a duration d multiple of
1.28s <1..48>, for maximum n (0=unlimited, 1= one device, …)
devices
Return BT address and class of device of each peripheral
Example : ATINQ 0,10
Establish Bluetooth link with device <Bluetooth address>
Link established : answer ‘OK’<cr><lf>
Link not established : answer ‘NO CARRIER’<cr><lf>
Example : ATD 0018B2000110
Link established : answer -xx dBm<cr><lf> (-45 dBm for example)
Link not established : answer ‘LINK RELEASED<cr><lf>’
RSSI > -70 dBm : Excellent receipt
-70 > RSSI > -80 dBm : Good receipt
-80 > RSSI > -90 dBm : Poor receipt
RSSI < -90 dBm : Bad receipt
Adeunis RF : 7456 Vxx.yy<cr><lf>
Ref. 08-12-V2-pcy p 13
CONFIG
NO
YES
YES
YES
YES
NO
NO
NO
YES
NO
RF62
TOP
A
User Guide
AT&T0=xxxx,yyyyy,
zzzzz
AT&T1=xxxx, yyyyy Enables the transmitter at xxxx (2402<=xxxx<=2480) MHz, with a
AT&T2=x, yyyyy Enables the transmitter with a simplified hop sequence designated
AT&T3=xxxx,y,zz Enables the r ec eiver in continuous reception at xxxx
AT&T4=xxxx, yyyyy Test loopback at xxxx (2402<=xxxx<=2480) MHz, with a
Continuous transmission at xxxx (2402<=xxxx<=2480) MHz, with
a designated output power yy (0<=yyyy<=65530) and designated
tone modulation frequency zzzzz (0<=zzzzz<=65535).
Example : AT&T0=2450,65530,0
designated output power yy (0<= yyyyy <=65530). Payload is
PRBS9 data.
Example : AT&T1=2450,65530
by the country code x (0<=x<=3), with a designated output power
yy (0<=yyyy<=65535). Payload is PRBS9 data.
Example : AT&T2=0,65530
(2402<=xxxx<=2480) MHz, with a choice of low (y=0) or high
(y=1) side modulation and a designated attenuation zz
(0<=zz<=15).
Example : ATT&T3=2450,0,0
designated output power yy (0<= yyyyy <=65530).
Example : AT&T4=2450,65530
NO
NO
NO
NO
NO
Register description
The register value could be updated using the ATSn=m<cr> command and
displayed using Aton?<cr> command.
At power-up, the previous dongle configuration is read from E2PROM (non
volatile) and stored in RAM. The registers are located in RAM, any
modification is performed in RA M: To save current register con figurations, it
is necessary to use the AT&W<cr> command (If not, the updated
parameters are lost in case of power shortage).
The registers are shared in 2 types: read only (R) or read/write (R/W)
Ref. 08-12-V2-pcy p 14
RF62
TOP
A
User Guide
Type Register Function Description Default value Link disconnection
Bluetooth
R S200 Local Bluetooth
R/W S201 Local device
R/W S202 Auto-connect
R/W S203 Remote
R/W S204 reconnection
R/W S205 Pin code Pin code of the
R/W S206 Encryption Encryption type :
R/W S207 Security Security type :
R/W S208 Class of device 0xXXXXXX 000000h YES
address
name
mode
Bluetooth
address
management
management
Local Bluetooth
address of the dongle
The local BT address
is read only.
Device name
must be lower or
equal than 32 bytes
Auto-connect mode :
0 = disable
1 = Auto-connect on
reset or power up
2 = Auto-connect on
GPIO (DTR)
Remote Bluetooth
address used with
auto-connect mode
enabled.
Reconnection
management used
with auto-connection
mode
Send ‘NO CARRIER’
<cr><lf> in case of
no connection
0 : no reconnection
N : number of retries
(N<>0 and N <>255)
255 : always
dongle
must equal to 4 digits
‘0’ = disabled
‘1’ = enabled
‘0’ = disabled the pin
code demand
‘1’ = enabled the pin
code demand
NO
“Serial Port
Device”
0 YES
000000000000h YES
255 YES
0000 YES
0 YES
0 YES
if register value
change
YES
Ref. 08-12-V2-pcy p 15
RF62
TOP
A
User Guide
Type Register Function Description Default
R/W S210 Baudrate Serial link rate in bits/s
R/W S211 Data length ‘8’ : 8 bits, see Note 1. 8 NO
R/W S212 Parity see Note 1.
R/W S213 Stop bits see No te 1.
R/W S214 Command
R/W S215 Flow control Flow control management :
Protocol
R/W S220 Protocol ‘1’= SPP
timeout
IMPORTANT see Note 1
‘4’: 9 600
‘5’: 19 200
‘6’: 38 400
‘7’: 57 600
‘8’: 115 200
‘1’ : none
‘2’ : even
‘3’ : odd
‘1 ‘ : 1 stop bit
‘2’ : 2 stop bit
Time out duration for detecting
the A+++ pattern, unit 1/50s
(20ms) : from 1 up to 255x50ms.
0 : disable (RTS/CTS
management)
1 : enable (RTS/CTS
management)
Modifying is enable after ATO
command which reboot the
system.
‘2’= DUN
value
4
(See Note 1)
1 NO
1 NO
50 NO
1
1 YES
Link disconnection
if register value
change
NO
NO
R/W S230 Low power
R/W S231 Sniff
modes
parameter
Max interval
0 : not used
1 : Hold Mode : very low power
and low throughput
2 : Park Mode : low power and
medium throughput
3 : Sniff Mode : low power and
maximum throughput
4 : User sniff mode (Bluetooth
expert only) – use parameters
S231..S234
see Note 2.
6..1344
Wake-up duty cycle (Tsniff) –
multiply 625us
0 YES
800 YES
Ref. 08-12-V2-pcy p 16
RF62
f
T
f
TOP
A
User Guide
R/W S232 Sniff
R/W S233 Sniff
R/W S234 Sniff
parameter
Min interval
parameter
Attempt
parameter
Timeout
see Note 2.
0..1342
Sniff offset (Dsniff) – multiply
625us
Dsniff must be lower or equal to
Tsniff-2
0..672
Number of slots listen by slave
during wake-up
Sniff parameter attempt must be
lower than Tsniff/2
0..40
Number of additional slots listen
by slave during wake-up
80 YES
8 YES
8 YES
The column “link disconnection if register value change” does not apply if the
modification is done remotely ( for a slave configured using the SPP CONFIG
mode).
N
OTE 1
when changing the serial link configuration (rate, parity, stop bit…), the
answer is done using the old serial link format, the next command must be
sent using the new serial format.
IMPORTANT : Firmware version dependant – Refer to Annexe 1 – Pg 22
N
OTE 2
Wake-up duty cycle
snif
Wake-up time
Dsnif
Ref. 08-12-V2-pcy p 17
RF62
TOP
A
User Guide
Specifications
Embedded profiles GAP, SDAP, SPP, DUN
Link set-up and status Through Hayes commands
Radio rough data rate 723 kbps Bluetooth radio rate bps
UART programmable format Serial rate from 9600 bps to 921 600 bps
UART TTL ports TD – RD – RTS – CTS (& DTR-DSR-DCD-RI / DUN
Operating-mode Transparent
RF radiated power 20 dBm (100 mW – Class 1)
Sensitivity Up to -87 dBm for 10
Operating range (outdoor) Integrated antenna : up to 150 m
Operating voltage 3,8 to 20 V
Waiting for connection
consumption
Connected consumption < 25 mA
Burst transmission
consumption (max)
Transmission consumption About 60mA (typical value in file transfer)
Operating temperature -30°C / +70°C
Storage conditions -45°C / +85°C (10 to 80% HR)
Dimensions 65 x 40 x 25 mm
Standards compliance EN 300-328 / EN 301 489
References
ARF7501A: Bluetooth® Class 1 RS233 DB9 DCE Dongle
ARF7502A: Bluetooth® Class 1 RS233 DB9 DTE Dongle
ARF7503A: Bluetooth® Class 1 RS233 DB15HD DTE Dongle
ARF4013Z: DC Bloc for ARF62 external power supply
205058: DC Bloc ARF62 ∅3.5 µJack adapter
Ref. 08-12-V2-pcy p 18
profile)
-3
/PN9
< 22 mA (All RS232 signals used and connected)
< 380 mA
RF62
TOP
A
User Guide
Annex 1 : Firmware and document updates
Firmware Updates
ARF745XXB-V1.06 Firmware default data rate is now 9600 bps.
Default data rate is 9600 bps and “Restore register default
value – AT&F” gives data rate back to 9600 bps
ARF745XXA-V1.05 Original version.
Default data rate is set to 9600 bps but “Restore
register default value – AT&F” will give data rate back
to 115 kbps !!!
Document Updates
V2.0 Defaut data rate is now 9600 bps (Firmware version
V1.0 Documents’ layout and size
V1.0 Original version
dependant!!!)
Ref. 08-12-V2-pcy p 19
Loading...
