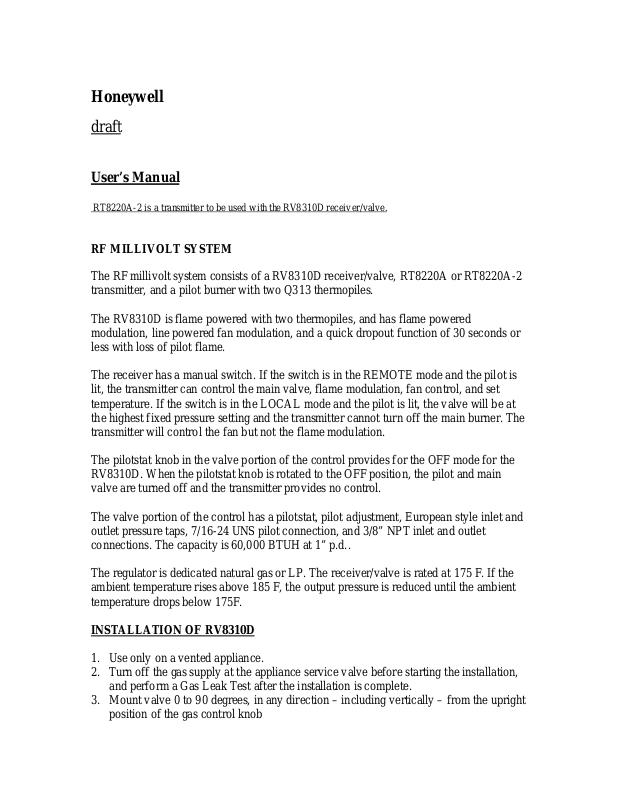

User’s Manual
RT8220A-2 is a transmitter to be used with the RV8310D receiver/valve.
RF MILLIVOLT SYSTEM
The RF millivolt system consists of a RV8310D receiver/valve, RT8220A or RT8220A-2 transmitter, and a pilot burner with two Q313 thermopiles.
The RV8310D is flame powered with two thermopiles, and has flame powered modulation, line powered fan modulation, and a quick dropout function of 30 seconds or less with loss of pilot flame.
The receiver has a manual switch. If the switch is in the REMOTE mode and the pilot is lit, the transmitter can control the main valve, flame modulation, fan control, and set temperature. If the switch is in the LOCAL mode and the pilot is lit, the valve will be at the highest fixed pressure setting and the transmitter cannot turn off the main burner. The transmitter will control the fan but not the flame modulation.
The pilotstat knob in the valve portion of the control provides for the OFF mode for the RV8310D. When the pilotstat knob is rotated to the OFF position, the pilot and main valve are turned off and the transmitter provides no control.
The valve portion of the control has a pilotstat, pilot adjustment, European style inlet and outlet pressure taps, 7/16-24 UNS pilot connection, and 3/8” NPT inlet and outlet connections. The capacity is 60,000 BTUH at 1” p.d..
The regulator is dedicated natural gas or LP. The receiver/valve is rated at 175 F. If the ambient temperature rises above 185 F, the output pressure is reduced until the ambient temperature drops below 175F.
INSTALLATION OF RV8310D
1. Use only on a vented appliance.
2. Turn off the gas supply at the appliance service valve before starting the installation,
and perform a Gas Leak Test after the installation is complete.
3. Mount valve 0 to 90 degrees, in any direction – including vertically – from the upright
position of the gas control knob
4. Attach four thermopile leads. Two leads are white wires with a terminal. They are
attached to the terminals with a white dot on the cover next to them. The two leads with the red wires attach to the remaining terminals.
OPERATION
1. Turn the pilotstat knob counterclockwise from OFF to the PILOT position, push the
knob down, and hold in position. The pilot valve opens and allows gas to flow to the pilot burner.
2. Push the plunger on the piezo until the pilot burner is lit. When the pilot burner is lit,
the LED on the control will come on after approximately 40 seconds and will be continuously red. When the light turns off which will be approximately 10 seconds after it has been continuously red, the receiver/valve is fully powered.
3. Release the knob. The shaft will move upward. The pilot burner should now stay
burning. If the pilot burner goes out, repeat step 2.
4. Turn the knob counterclockwise to the ON position. If the manual switch is in the
LOCAL position, the main burner will turn on immediately.
5. On the initial use of a transmitter, a recognition operation is required between the
receiver/valve and transmitter. Change the switch from LOCAL to REMOTE. Press the fan or flame button on the transmitter within 30 seconds. The LED will blink indicating that the transmitter will now work with the receiver/valve. If the switch continues in the REMOTE position, the transmitter will now control the main valve, flame modulation level, and fan control.
6. If the manual switch is in the LOCAL position, the valve will be at the highest fixed
pressure setting. The transmitter will control the fan only.
SHUT OFF PROCEDURE
1. If the manual switch is in the REMOTE position, the RT8220A transmitter can shut
off the main burner and fan. However, the control is still on and a command from the transmitter can turn on the main burner or fan.
2. To shut off the system, turn the pilotstat knob clockwise to the OFF position. This
action closes the main gas and safety valves. The transmitter cannot turn on the main burner or fan.
TRANSMITTER – RT8220A/RT8220A-2
The transmitter controls the flame level, fan speed, and room temperature. The three basic operating modes are the OFF mode, ON (manual) mode, and AUTO mode.
