Ademco REM5000R01 Users Manual

Wireless Remote Control

For use with RedLINK™devices Para ser utilizado con dispositivos RedLINK

™

À utiliser avec les appareils RedLINK

™

Operating Manual

® U.S. Registered Trademark.

Always press touchscreen buttons with your fingertip. Never use sharp instruments, such as a pencil or pen.

Presione siempre los botones de la pantalla táctil con la punta del dedo. Nunca

utilice objetos con punta, como lápices o

bolígrafos.

Toujours appuyer sur l’écran tactile du bout du doigt. Ne jamais utiliser d’objets pointus, comme la pointe d’un crayon ou d’un stylo.

To clean the screen, lock the display and use a damp cloth. Never use abrasive cleansers.

Para limpiar la pantalla, bloquéela y utilice un paño húmedo. Nunca

utilice limpiadores abrasivos.

Pour nettoyer l’écran, verrouiller l’affichage et utiliser un linge humide. Ne jamais

employer de nettoyants abrasifs.

Read and save these instructions

Lea y conserve estas instrucciones

Veuillez lire et conserver ces instructions

Wireless Remote Control

How it works ..............................................................................2

Quick reference ..........................................................................4

System settings ..........................................................................5

Temperature control options (one thermostat)..........................6

Temperature control options (multiple thermostats) ................7

Temperature “hold” ....................................................................8

Screen lock/unlock ....................................................................9

Customizing features (setup menu) ........................................10

Battery replacement ................................................................12

In case of difficulty....................................................................13

Limited warranty ......................................................................14

Regulatory information ............................................................43

Contents Español: vea la página 15 • Français : voir la page 29

Operating Manual

How it works

Thermostat

Heating/cooling equipment

Optional outdoor air sensor

Wireless

remote control

Thermostat

If you have one thermostat, you can move the remote control around your home (like a mobile thermostat) to make sure the temperature is comfortable in the room you’re using.

If you have multiple thermostats, you can use the remote control to display and adjust temperatures in each room independently. (See next page.)

Wireless Remote Control

How it works

Temperature is measured at thermostat or remote control, as you choose. You can move the remote control as needed, so the room you are using maintains a comfortable temperature (see page 6).

READ TEMP FROM...

THERMOSTAT THIS DEVICE

•

SET TO

TOGGLE ZONE

BEDROOM

Temperature is measured at each thermostat. Press

TOGGLE ZONE

buttons to choose which room to display and adjust (see page 7).

If you have multiple thermostats

If you have only one thermostat

Operating Manual

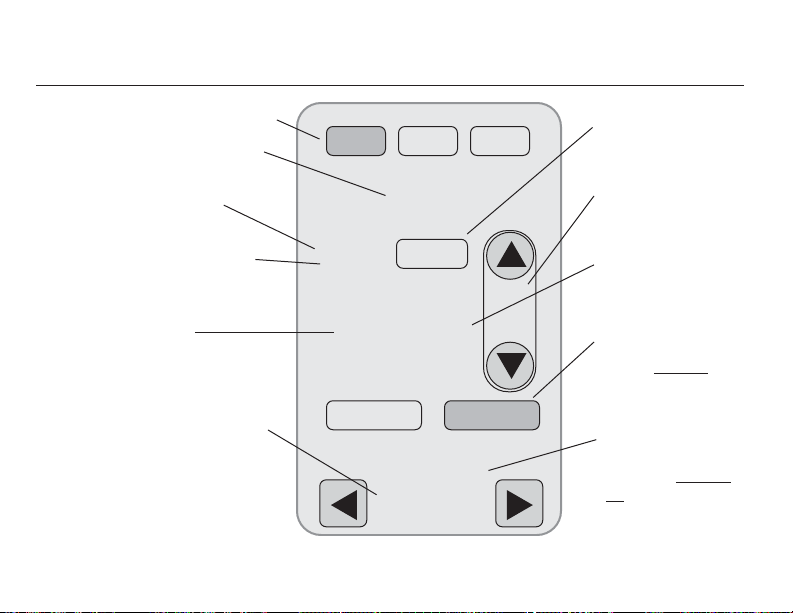

Quick reference to display screen

Inside temperature

Outside humidity (Press to display for 5 seconds)

If “No Signal” appears here, check to make sure there are fresh batteries in the thermostat, and HVAC power is on.

Temperature setting

Replace battery warning

Screen lock/unlock

Temperature sensor source (appears if you have only one thermostat)

System setting

Outside temperature (appears only if outdoor sensor is installed)

Zone control (appears only if you have more than one thermostat)

Current time (set at thermostat)

SCREEN

UNLOCKED

REPLACE BATTERY

OUTDOOR

8:03

READ TEMP FROM...

HEAT COOL OFF

•

THERMOSTAT THIS DEVICE

•

SET TO

TOGGLE ZONE

LIVINGROOM

Note: First press of screen

only turns on backlight.

Wireless Remote Control

System settings

Press a

SYSTEM

button to select:

• Heat: Thermostat controls only the heating system.

• Cool: Thermostat controls only the cooling system.

• Off: Heating and cooling systems are off.

Press and hold

HEAT

COOL

for 3 seconds to select Auto Changeover (thermostat automatically selects heating or cooling depending on the indoor temperature).

In Auto Changeover mode, you can press

HEAT

COOL

to display or adjust the

settings for each system. To exit Auto Changeover mode, press

and hold

HEAT

COOL

for 3 seconds.

Press to select

Press and hold either

to select

AUTO CHANGEOVER

8:03

HEAT COOL OFF

•

8:03

HEAT COOL OFF

•

AUTO

Note: The Auto Changeover option

is available only if programmed by the system installer.

Note: Emergency Heat can only be set at the thermostat.

Operating Manual

Temperature control options (one thermostat)

Both the thermostat and the remote control have built-in temperature sensors. Press a button to choose whether the system responds to temperatures at the thermostat, or at the location of the remote control.

If you use the remote control to measure temperature, keep it in an upright position in an area with good air circulation. Do not place it near sources of heat or cold air. Keep away from air ducts, direct sunlight, appliances and electronic devices.

Press to choose temperature measurement device

OUTDOOR

READ TEMP FROM...

THERMOSTAT THIS DEVICE

•

SET TO

Note: This option will not appear if you have a zone system (more than one thermostat). In zone systems, temperature is always measured at the thermostats.

Display shows temperature at selected device

Wireless Remote Control

Temperature control options (multiple thermostats)

If you have a zone system (more than one thermostat), you can display and adjust the temperature in each zone from the remote control.

Press the arrow buttons until the thermostat zone you want is displayed. After a short delay, the remote will retrieve information, then display the current temperature in that zone.

At the remote control you can change the following settings for each zone independently:

• Temperature

• System setting (heat/cool)

• Temporary hold

• Permanent hold (Fan operation and program schedules can be changed only at the thermostat.)

OUTDOOR

SET TO

TOGGLE ZONE

LIVINGROOM

Press to select a thermostat zone

Display shows temperature in selected zone

Operating Manual

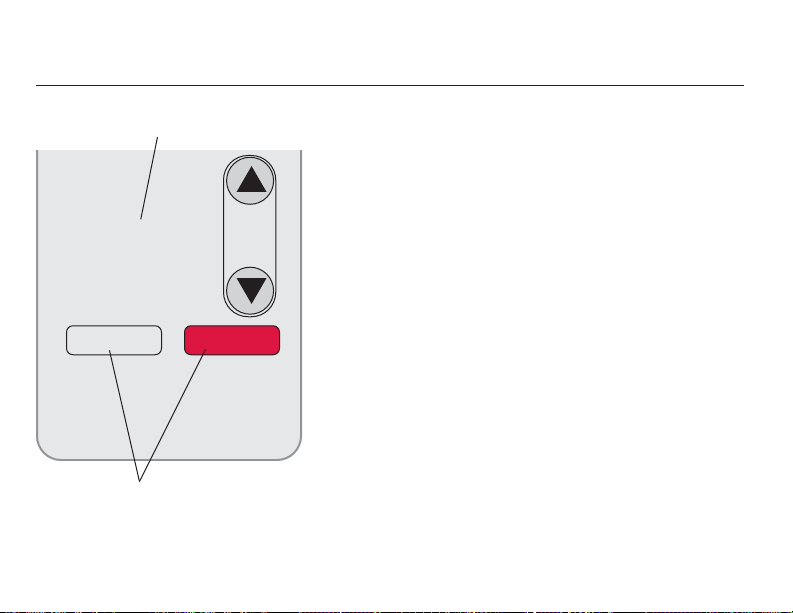

Temperature “hold” (programmable thermostats only)

Press ▲ or ▼ to adjust the temperature.

Temporary hold:

Press ▲ or ▼ to set the “Hold Until” time. When the timer expires (or when you press

CANCEL

), the temperature will revert to the setting you’ve programmed at the thermostat.

Permanent hold:

Press

PERM. HOLD

to maintain the new temperature permanently. The temperature will remain as you set it until you press

CANCEL

to revert to the setting you’ve

programmed at the thermostat.

1 Press to adjust temperature

OUTDOOR

SET TO

10:15

HEAT

•

DONE

CANCEL

PERM. HOLD

HOLD UNTIL

2 Set temporary hold time period

OR press

PERM. HOLD

Note: If you have a zone system (more than one thermostat), Hold will only apply to the zone displayed at the bottom of the screen. Scroll to another zone to change the temperature in that zone (see page 7).

Wireless Remote Control

Screen lock/unlock

Press and hold the

SCREEN LOCK

button for 3

seconds to lock or unlock the screen. If the remote control is set to use Auto

Lock, the screen is re-locked 30 seconds after each use. If set to use Manual Lock, press and hold the

SCREEN LOCK

button to re-lock the screen after use. You can lock the screen to prevent

changes to settings while cleaning. Clean the screen with a soft cloth moistened with warm water or household window cleaner.

OUTDOOR

8:03

HEAT COOL OFF

•

SCREEN LOCKED

SET TO

Press and hold until label appears

Note: The screen lock button will not appear if the remote control has not been set to use manual or auto lock options (see pages 10-11 to activate this feature).

LOCKED

Operating Manual

Customizing features

The remote control has four features that can be turned on or off as desired (see next page).

Press and hold the

OFF

button until the screen changes (about 3 seconds), then press the right arrow button to enter the setup menu.

8:03

HEAT COOL OFF

•

Press and hold until screen changes

SETUP MENU

Press to continue

Wireless Remote Control

MANUAL LOCK

AUTOMATIC LOCK

YES NO

•

Customizing features

Press arrow buttons to select a feature, then

YES

or NOto turn it on or off. When fin-

ished customizing features, press

DONE

exit the menu and restore the home screen.

• Manual Lock: Allows you to lock the screen by pressing and holding the

LOCK

button.

• Automatic Lock: Always locks the screen 30 seconds after each use.

• Button Click: Audible tone sounds to confirm each keypress.

• Temp Offset: The remote control dis- plays actual indoor temperature. If you prefer, you can offset the displayed temperature by up to ± 3 degrees (not displayed when used with more than one thermostat).

Press arrow buttons to select feature, then

YES

or NOto enable or disable

BUTTON CLICK

TEMP OFFSET

Operating Manual

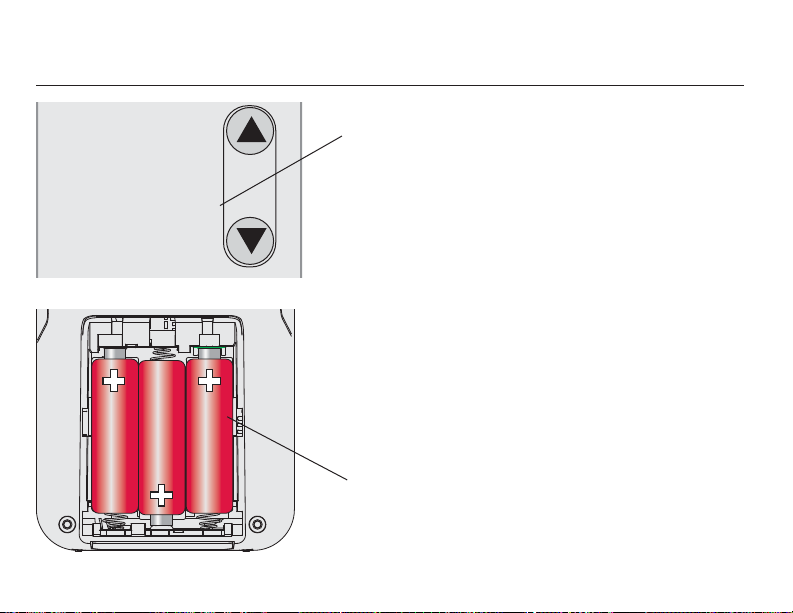

Battery replacement

Install fresh batteries when the

REPLACE BAT-

TERY

warning flashes on the screen. This warning will flash for approximately two months before the batteries fail.

Remove the cover and install 3 fresh AA batteries. Make sure the batteries are inserted properly (see polarity marks on illustration at left).

After batteries are installed, the remote control will automatically restore communication with the wireless network within a few minutes.

Always use 3 fresh AA batteries

REPLACE BATTERY

SET TO

Wireless Remote Control

Heating or cooling system does not respond

• Check circuit breaker and reset if necessary.

• Make sure power switch at heating & cooling system is on.

• Make sure furnace door is closed securely.

• Wait 5 minutes for the system to respond.

In case of difficulty

Screen displays “No Signal”

Remote control has lost radio contact with the wireless network (usually because of a power outage). To restore power:

• Check circuit breaker and reset if necessary.

• Make sure power switch at heating & cooling system is on.

• Make sure furnace door is closed securely.

After power is restored, the remote control will automatically restore wireless communication within a few minutes.

Slow response The thermostat may take up to 15 seconds to respond to commands

entered at the remote control.
