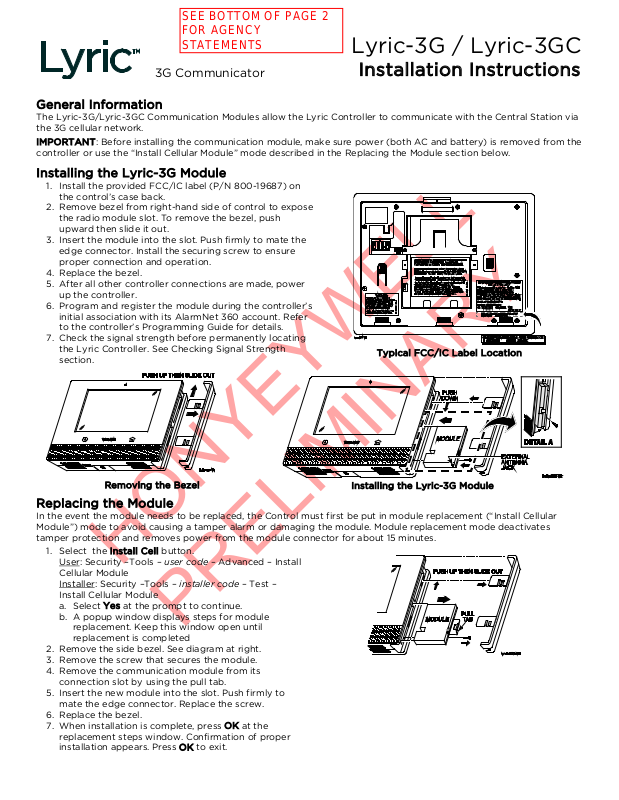

3G Communicator

Installation Instructions

1. Install the provided FCC/IC label (P/N 800-19687) on

section.

Typical FCC/IC Label Location

Removing the Bezel

Installing the Lyric-3G Module

1. Select the Install Cell button.

Yes

installation appears. Press OK to exit.

SEE BOTTOM OF PAGE 2 FOR AGENCY STATEMENTS

Lyric-3G / Lyric-3GC

General Information

The Lyric-3G/Lyric-3GC Communication Modules allow the Lyric Controller to communicate with the Central Station via the 3G cellular network.

IMPORTANT: Before installing the communication module, make sure power (both AC and battery) is removed from the controller or use the “Install Cellular Module” mode described in the Replacing the Module section below.

Installing the Lyric-3G Module

the control’s case back.

2. Remove bezel from right-hand side of control to expose the radio module slot. To remove the bezel, push upward then slide it out.

3. Insert the module into the slot. Push firmly to mate the edge connector. Install the securing screw to ensure proper connection and operation.

4. Replace the bezel.

5. After all other controller connections are made, power up the controller.

6. Program and register the module during the controller’s initial association with its AlarmNet 360 account. Refer to the controller’s Programming Guide for details.

7. Check the signal strength before permanently locating the Lyric Controller. See Checking Signal Strength

Replacing the Module

In the event the module needs to be replaced, the Control must first be put in module replacement (“Install Cellular Module”) mode to avoid causing a tamper alarm or damaging the module. Module replacement mode deactivates tamper protection and removes power from the module connector for about 15 minutes.

User: Security –Tools – user code – Advanced – Install

Cellular Module

Installer: Security –Tools – installer code – Test –

Install Cellular Module

a. Select b. A popup window displays steps for module

replacement. Keep this window open until replacement is completed

2. Remove the side bezel. See diagram at right.

3. Remove the screw that secures the module.

4. Remove the communication module from its connection slot by using the pull tab.

5. Insert the new module into the slot. Push firmly to mate the edge connector. Replace the screw.

6. Replace the bezel.

7. When installation is complete, press OK at the replacement steps window. Confirmation of proper

at the prompt to continue.

HONYEYWELL

PRELIMINARY

2 Corporate Center Drive, Suite 100

P.O. Box 9040, Melville, NY 11747

www.honeywell.com/security

Checking Signal Strength

When choosing a suitable mounting location, check the

Security

Tools – [installer code]

Program

Comm.

Diagnostics – Cellular Information

Cellular Information

Signal Strength Guide

Specifications

Dimensions: ....

Voltage Input

Current

Environmental

External Antenna Kit: Cell-ANTST

SUPPORT & WARRANTY

RF Exposure Warning

Mise en Garde

Exposition aux Frequences Radio:

IMPORTANT NOTE ABOUT EXTERNAL ANTENNAS

communicator’s signal strength to ensure proper operation. For most installations, using the module’s internal antenna, mounting the Lyric controller as high as practical, and avoiding large metal components provides adequate signal strength for proper operation.

Use the Lyric Controller “Cellular Information” screen to display signal strength (in dBm):

–

Compare the RSCP (received signal code power [3G]) or RSSI (received signal strength indicator [2G]) number displayed to the Signal Strength Guide at right to ensure adequate signal strength. If necessary, relocate the Controller to obtain better signal strength (press

again to refresh the reading).

2-5/8”W x 3-1/8”L x 1/2”D

.. 5V (provided by the controller)

Idle ............... 60mA, standby

Transmit ..... 500mA

Operating temperature: -20ºC to +55ºC, (for compliance agency: 0ºC to +49ºC) Storage temperature: -40º to +70ºC Humidity: 0 to 95% relative humidity, non-condensing

(for compliance agency 0% to 85%)

Frequency Bands:

2G GSM/GPRS/EDGE

Quad Band 850/900/1800/1900 MHz

3G UMTS Band

WCDMA HSUPA HSDPA

–

V, Band II 850/1900MHz

–

RSCP (3G) – if module is using the 3G Network

Good ......... -20 to -90 dBm

OK ............. -91 to -100 dBm

Marginal .. -101 to -106 dBm

Bad ............ -107 to -120 dBm

RSSI (2G) – if module is using the 2G Network

Good ......... -20 to -89 dBm

OK ............. -90 to -98 dBm

Marginal .. -99 to -104 dBm

Bad ............ -105 to -120 dBm

If adequate signal strength cannot be achieved, an external antenna should be used. Use external antenna kit model Cell-ANTST.

For the latest documentation and online support, please go to:

https://mywebtech.honeywell.com/

For the latest warranty information, please go to: www.honeywell.com/security/hsc/resources/wa.

MyWebTech Warranty

The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 7.8 in (20 cm) from all persons and must not be co-located or operated in conjunction with any other transmitter except in accordance with FCC multi-transmitter product procedures.

L'antenne (s) utilisée pour cet émetteur doit être installée à une distance de séparation d'au moins 7,8 pouces (20 cm) de toutes les personnes.

FEDERAL COMMUNICATIONS COMMISSION (FCC) & INDUSTRY CANADA (IC) STATEMENTS

The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.

FCC CLASS B STATEMENT

This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information:

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• If using an indoor antenna, have a quality outdoor antenna installed.

• Reorient the receiving antenna until interference is reduced or eliminated.

• Move the radio or television receiver away from the receiver/control.

• Move the antenna leads away from any wire runs to the receiver/control.

• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.

• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA CLASS B STATEMENT

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC / IC STATEMENT

This device complies with Part 15 of the FCC Rules, and RSS-210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation.

Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.

If an external cellular radio antenna is used, the antenna may be installed or replaced ONLY by a professional installer.

Ê800-19181@Š

800-19181 4/15 Rev. A

For the Lyric-3G, the external antenna must not exceed

TO THE INSTALLER

a maximum directional gain (including cable loss) of 6.0 dBi at 850 MHz and 2.5 dBi at 1900 MHz.
