Slim Line Transmitter
Case tamper protection (front and back)
Ideal for double-hung windows
Easy replaceable AAA lithium battery
Easy to open case requires no special tools
ADEMCO 5820L
Sleek design is nearly half the size of competitors
ADEMCO 5820L
Slim Line Transmitter
Slim Line Transmitter
ADEMCO 5820L
MOUNTING
HOLE
BATTERY
(1.5VDC, AAA
LITHIUM.
SEE NOTE
INSIDE.)
TAMPER
PROTECTION
MOUNTING
HOLE
+
TAMPER
SWITCH
Tamper Protection
Front and back-case tamper is
provided using the same switch.
The front-case tamper is always
enabled. Adding the third screw
as shown in the figure enables
the back-case tamper.
ASSEMBLED IN MEXICO
© 2009 Honeywell International Inc.
All Rights Reserved
ADEMCO 5820L
Ideal for casement and
<<< Open Carton Along Perforations >>>
double hung windows
N219
Long Life Battery Included
Easy to open case requires no special tools
Sleek design is nearly half the size of competitors
ADEMCO 5820L
Slim Line Transmitter
Easy replaceable AAA lithium battery
Ideal for double-hung windows
Case tamper protection (front and back)
R
R
LITHIUM
Slim Line Transmitter
ÊK9230V3HŠ
7/11 K9230V3
Ademco
K9230V3

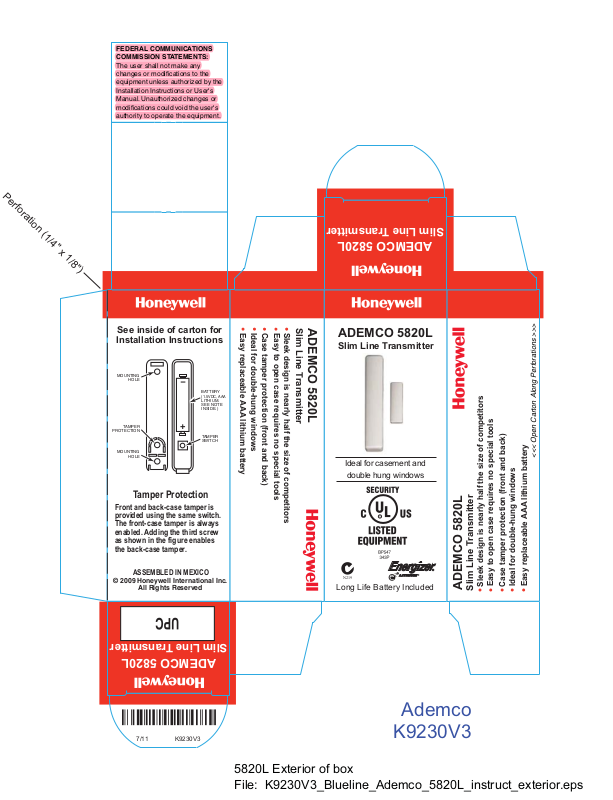

5820L Exterior of box
File: K9230V3_Blueline_Ademco_5820L_instruct_exterior.eps
See inside of
carton for
installation
instructions.
BATTERY CAUTION: Risk of fire,
explosion and burns. Do not
recharge, disassemble, heat above
212 F (100 C) or incinerate.
Dispose of used batteries properly.
Keep away from children.
Battery Information
Replace battery only with:
Energizer L92 AAA Lithium or
AAA Alkaline, Duracell MX2400,
Panasonic AM-4PI,
Eveready Engeriger EN92.
Observe correct polarity.
NOTE
Alkaline Battery Will Yield Less
Battery Life than Lithium
REFER TO THE INSTALLATION
INSTRUCTIONS FOR THE CONTROL
WITH WHICH THIS DEVICE IS USED,
FOR DETAILS REGARDING
LIMITATIONS OF THE ENTIRE
ALARM SYSTEM.
Perforation (1/4 x 1/8)
5820L is a single-zone Slim-Line
Door/Window contact transmitter
that provides wireless notification
of intrusion.
During the programming of the
control panel transmitter must be
enrolled as Input Type 3,
Supervised RF), Loop 1.
Temporarily mount the 5820L
1.
and magnet using the doubleback tape provided.
Before mounting permanently
using the double-back tape or
mounting screws, conduct a
Go/No Go test to verify adequate
signal strength and reorient or
relocate the transmitter if necessary
If the Go/No Go test was
2.
successful, remove the
transmitters cover by inserting
the flat blade of a small screwdriver into the opening slot at
one end of the unit as shown
in the diagram and separate the
two halves.
The 5820L must only be
3.
FOR DOCUMENTATION AND ONLINE SUPPORT
http://www.security.honeywell.com/hsc/resources/MyWebTech
mounted against a flat surface.
A curved surface would cause
undo stress to the unit and
possible failure to operate
properly.
NOTE
Installation
NOTE
4.
Install mounting screws
in the two outside
mounting holes as
shown in the diagram
using a #1 Phillips.
5.
If the case-back tamper
switch will be used,
install a third screw in
the middle hole.
6.
Mount the magnet
(supplied) adjacent to
the two vertical
positioning lines on the
case side (see diagram).
The gap can be one-half
of an inch maximum.
7.
To reinstall the cover,
position the cover so
that it covers the
mounted case-back, and
snap-shut. The two case
halves can only be fitted
together in one direction.
Do NOT attempt to remove
NOTE
the PCB from the plastic
cover for any reason.
MAGNET ALIGNMENT
LOCATORS
MAGNET
GAP
0.5" MAX
FCC / IC Statement:
This device complies with Part 15
of the FCC Rules, and RSS 210 of
IC. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference (2) This device must
accept any interference received,
including interference that may
cause undesired operation.
Cet appareil est conforme à la
partie 15 des règles de la FCC &
de RSS 210 des Industries
Canada. Son fonctionnement est
soumis aux conditions suivantes:
(1) Cet appareil ne doit pas causer
d' interferences nuisibles. (2) Cet
appareil doit accepter toute
interference reçue y compris les
interferences causant une
reception indésirable.
OPENING
SLOT
