Addtron Technology IP Power 9258 User Manual
Quick Start & User Manual
Quick Start Guide
1) Check kit contents
Part # 508000 IP Power 9258T (USA) or
IP Power 9258
2) Install hardware
Connect power cables. For the USA model (NEMA5-15P 100-120V outlets), the individual
max output current per outlet is 6A and the total max output current for the 4 outlets is 15A.
Use a power IN cable with 15A current rating and use power OUT cabless with 10A rating
for each power outlet.
Part # 508001 IP Power 9258S (Europe/Australia)
User Manual/Quick Start Guide and IP Power CD
Optional power cables
Quick Start …… 2
User Manual …… 5
Rev: 1.1
February 16, 2007
_____________________________________________________________________________
IP POWER PAGE 1 OF 24
For the European/Australian model (IEC320-C13 220-250V outlets) the individual max
output current per outlet is 6A and the total max output current for the 4 outlets is 10A. Use a
power IN cable with 10A current rating and use power OUT cable with 10A rating for each
power outlet.
Connect IP Power NETWORK port to your local 10/100 LAN
3) Set IP Power IP address
The IP Power’s default network settings are:
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
To set a new address, either:
Connect your PC directly to the IP Power’s Ethernet
(NETWORK) port and run IPEdit.exe. You first must
copy the IPEdit.exe program from the IP Power CD
on to your PC; or
With a PC in the same subnet as the IP Power (i.e.
IP address of 192.168.0.xxx), open the IP Power
control web pages as detailed in the next step and select System: Setup
_____________________________________________________________________________
IP POWER PAGE 2 OF 24
4) Update IP Power with your browser
Enter http://192.168.0.50 (or the IP address assigned using IPEdit.exe) in the browser of
your locally connected PC and login.
The default username is: admin
The default password is: 12345678
You can now set the password and IP address, and modify the IP Power’s other settings.
5) Control power outlets
Click Set Power under Power to display the current state of each power outlet. Select On
or Off and click Apply to manually control power to each outlet.
Click Power Schedule under System to program when each power outlet is to be
automatically powered on or off.
WARNING
Any changes to this equipment without permission may cause damages to your equipment! This equipment has
been proven by CE & FCC to be prevented from the influence of harmful electronic jamming in normal business
use conditions.
IMPORTANT NOTICE
1. We have no responsibility for possible damage caused by improper usage or abnormal
working environment
2. Do not use IP POWER in strong vibrating condition
3. Please contact the dealer If IP POWER works improperly
Copyright © 2007 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without
the prior written consent of us. All other products mentioned in this document are trademarks of their respective
manufactures. We are exempt to notify any change of our products.
_____________________________________________________________________________
IP POWER PAGE 3 OF 24
_____________________________________________________________________________
IP POWER PAGE 4 OF 24
for US/TW/JP
IP Power 9258 User Manual
Table of Contents
1. Introduction..............................................................................................3
2. Interface Description...............................................................................3
3. Hardware and Software Installation.......................................................3
4. Initial Settings..........................................................................................3
5. Control Using a Browser ........................................................................ 3
Setting the password for IP Power.........................................................3
Setting the IP Power’s IP address..........................................................3
Email settings..........................................................................................3
Power control using the time schedule..................................................3
Default outlet settings .............................................................................3
Clock settings & network time protocol (NTP).......................................3
Wake on LAN (WOL)..............................................................................3
6. Firmware Update ....................................................................................3
7. DDNS Settings........................................................................................3
8. Direct Control Using HTTP Commands ................................................ 3
9. Frequently Asked Questions.................................................................. 3
10. Manual Control Mode...........................................................................3

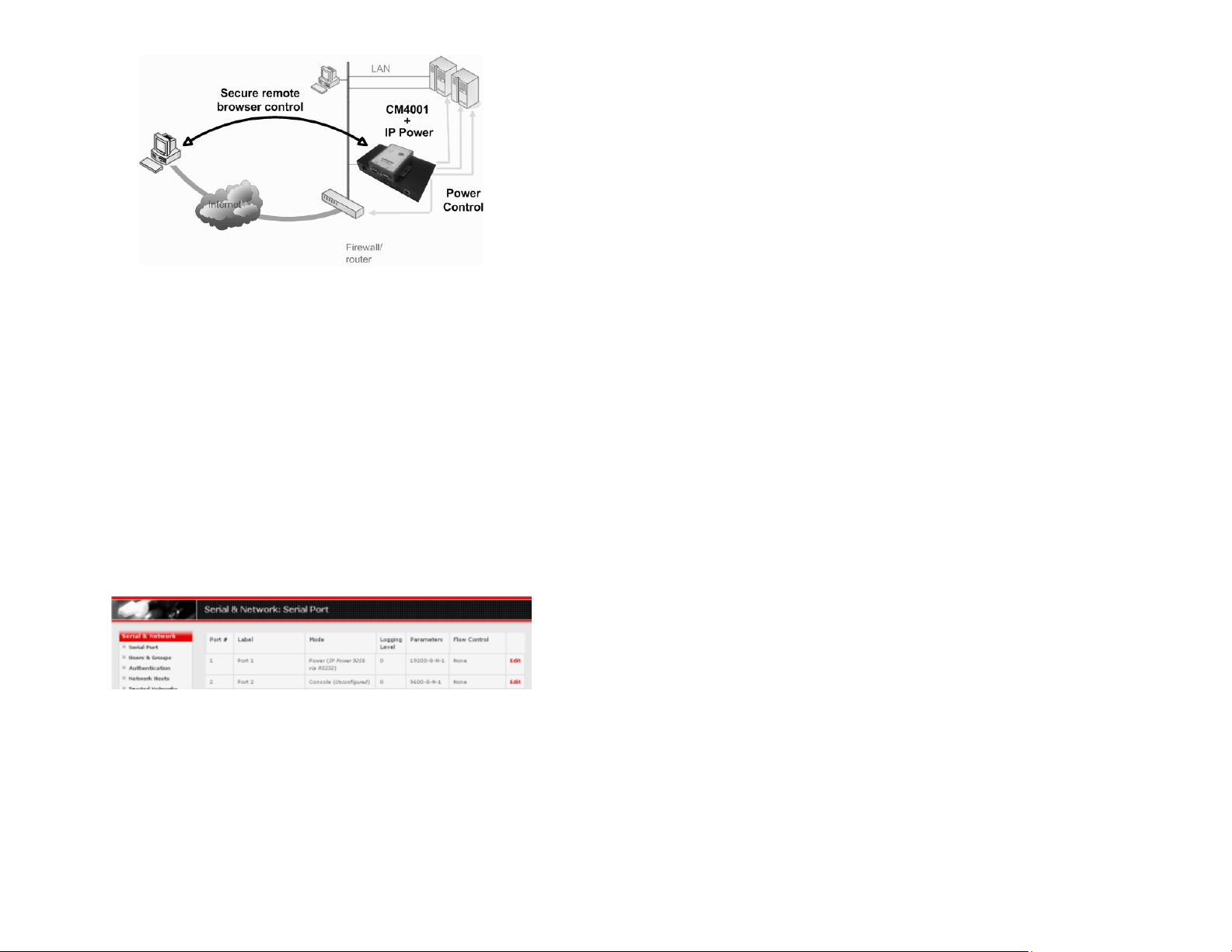

11. Remote Browser Control Using a CM/IM4000 ...................................3
12. Out-of-Band Access Using a CM/IM4000...........................................3
13. Remote Serial Port Control of the IP Power........................................3
_____________________________________________________________________________
IP POWER PAGE 5 OF 24
1. Introduction
The IP power 9258 is a web browser controlled power switch that can be used easily for industrial
or commercial power control.
With the remote network control technology, a user connected to the local area network or Internet
can query and control the power supply of attached equipment. There is no special software
required, and no need to open the external case of the computer.
Maximum rated voltage for each of the 4 outlets: 250V AC, 24V DC
Maximum rated current, total: 15A AC/DC (9258T), 10A AC/DC (9258S)
Maximum rated current, per individual outlet: 6A AC/DC
Action delay: max. 10ms
Operating temperature: 0 ~ 70°C
IP Power model 9258S - for
EU/AU/UK for 220-250V, use power
(IN) cable at 10A current. Max output
current: 10A (total), 6A (individual).
IP Power model 9258T for 100-120V, use power (IN) cable at
15A current. Max output current: 15A
(total), 6A (individual).
2. Interface Description
IP Power 9258 front interface (from left to right):
RESET: Self-protect AC reset button. IP Power 9258 can cut off the power supply of
outlets automatically if there is a short circuit or current overload. After the user
resolves the problem, push the RESET button and the AC power supply will resume.
LED: 4 LED indicator lights. If the LED is on, the corresponding outlet is power on.
RS232 port: During normal operation, displays the power output state. If a firmware
update fails, displays an IP address where the firmware update can be re-applied.
Also used for secure out-of-band control with CM/IM4000 console server.
RJ45 Ethernet port: Connects the IP Power to the network.
_____________________________________________________________________________
IP POWER PAGE 6 OF 24
Rear interface port description (from left to right):
90-240VAC power input port
Power switch: The ON/OFF power switch for the IP Power 9258 itself.
OUT1 - OUT4: 4 individually switched AC outlets
3. Hardware and Software Installation
Before you start to use the IP Power 9258, please follow the steps below:
1) Check the package to make sure the contents are complete
2) Prepare an Ethernet hub or router for accessing the IP Power 9258
3) Check the voltage of the power supply to make sure it is AC 110-240 volt
4) Confirm the specifications of your power cable. (For IP Power 9258S: for 220-250V, use the
10A power cable. For IP Power 9258T: for 100-120V, use the 15A power cable.)
Hardware installation
1. Connect the IP Power to the hub using a Cat5 network cable (for remote control, you
may then connect the hub or router to the Internet)
2. Connect the AC IN power adapter to the IP Power
3. Connect the power adapters of equipment to be controlled to corresponding OUT port
of the IP Power
4. For 220-250V, please use power wire, which can support 10A current. Maximum
output current: (total) 10A, (individual) 6A.
For 100-120V, please use power wire which can support 15A current. Maximum output
current: (total) 15A , (individual) 6A.
5. Power on your PC and the power adapter of IP Power
Software installation
Once you’ve connected the power supply and network cable to the IP Power’s RJ45 network port,
install the software by following the steps below:
1. Start your computer, insert the IP Power CD, and locate the file named ipEdit.exe..
2. Copy the file to your desktop (or another directory if you prefer).
4. Initial Settings
1. Ensure you have installed the ipEdit.exe program as described in
the previous section, Software Installation.
2. Ensure that your PC is connected to the same network as the IP
Power, and that the IP Power is powered on.
3. Run ipEdit.exe by double clicking the ipEdit icon. The default Ethernet address of the
IP Power will be found and displayed. The default name of the IP Power is: IP 9258
_____________________________________________________________________________
IP POWER PAGE 7 OF 24
4. Click IP 9258 in the left of the window and the IP Power’s name and IP address will
display in the right hand fields. You can rename the IP Power or change its IP address
or default gateway address. Click Update to apply the new settings. The new settings
will be working in 20 seconds.
_____________________________________________________________________________
IP POWER PAGE 8 OF 24
