User Guide
Storage Tower III
(ST3HPMRXA)
www.addonics.com
v6.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Removing Cover of Storage Tower III
Loosen the 3 screws at the back of the tower using a Philips screwdriver by turning
counter-clockwise. Separate the metal casing of the tower from the housing by
lifting up the casing.
Installing drives into the Storage Tower
Secure up to three 3.5” SATA hard disk drive into the bay using optional mounting
brackets.
Note: It is recommended to fill up the tower III with SATA drives from top to bottom.
This is to help in identifying which drives connect to which ports for easier
troubleshooting.
Connecting the power cable and tower III to the computer
a. Connect the power cord provided from the wall outlet to the back of
the Tower.
b. Make sure the power is off (power LED light should be off).
c. Connect either the provided USB or eSATA cable from the back of the
Tower to the computer. We recommend connecting the eSATA port for
best performance if this port is available on your computer.
Power on/off control
Turn on the power to the Tower by pressing the power button on the front. The
power LED light should lit indicating the power is on.
www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/
SATA Port 2
SATA Port 3
SATA Port 0
SATA Port 1
Raid Mode 1 2 3 4 5
SATA Port 4
Drive activity LED Jumper Block (J1)
Error LED Jumper Block (J3)
Floppy
Power
Connector
RAID Setting ButtonDip SwitcheSATA Host Port (Port 5)

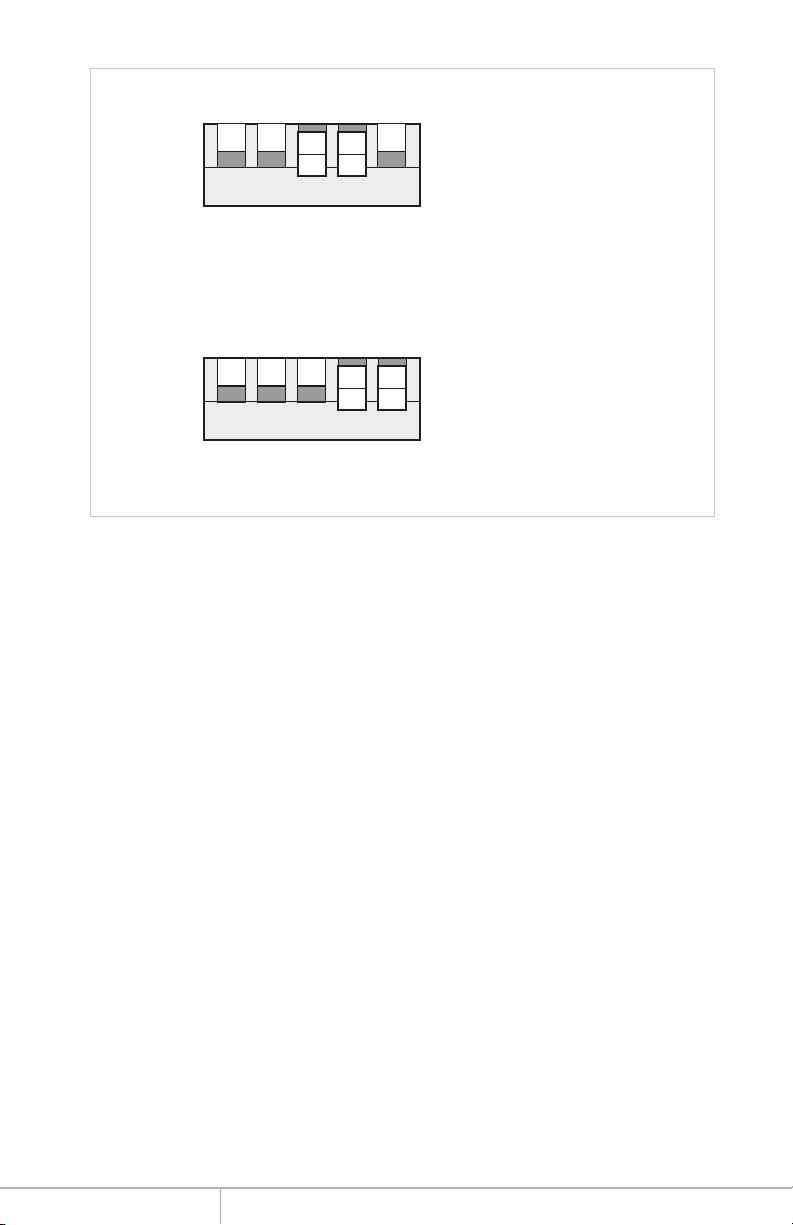

Dip Switch Settings
Individual Drive
(Factory Default)
0
1 and 10
3
5
Clone
Large
www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Enable
ERR Buzzer
Function
OFF
OFF
OFF
OFF
OFF
OFF
OFF
AutoRebuilding
to Spare
Drive
OFF
ON
ON
ON
OFF
OFF
ON
Port Multiplier Mode
OFF
ON
ON
OFF
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
ON
