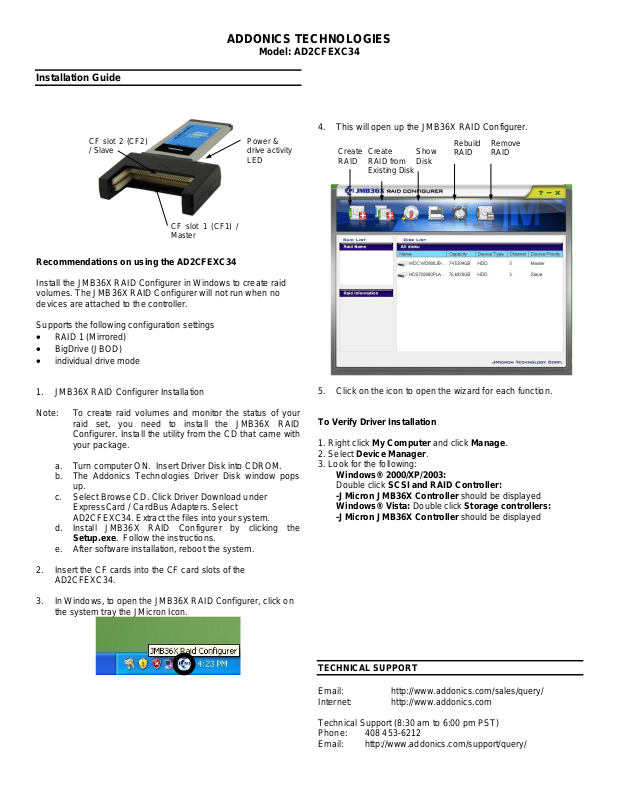

Installation Guide

Power &
drive activity
LED

CF slot 2 (CF2)
/ Slave

Create
RAID

Create
RAID from
Existing Disk

Show
Disk

Rebuild
RAID

Remove
RAID

CF slot 1 (CF1) /
Master

ADDONICS TECHNOLOGIES

Model: AD2CFEXC34

4. This will open up the JMB36X RAID Configurer.

Recommendations on using the AD2CFEXC34

Install the JMB36X RAID Configurer in Windows to create raid
volumes. The JMB36X RAID Configurer will not run when no
devices are attached to the controller.

Supports the following configuration settings

 RAID 1 (Mirrored)
 BigDrive (JBOD)
 individual drive mode

1. JMB36X RAID Configurer Installation
Note: To create raid volumes and monitor the status of your

2. Insert the CF cards into the CF card slots of the

3. In Windows, to open the JMB36X RAID Configurer, click on

raid set, you need to install the JMB36X RAID
Configurer. Install the utility from the CD that came with
your package.

a. Turn computer ON. Insert Driver Disk into CDROM.
b. The Addonics Technologies Driver Disk window pops

up.

c. Select Browse CD. Click Driver Download under

ExpressCard / CardBus Adapters. Select
AD2CFEXC34. Extract the files into your system.

d. Install JMB36X RAID Configurer by clicking the

Setup.exe. Follow the instructions.

e. After software installation, reboot the system.

AD2CFEXC34.

the system tray the JMicron Icon.

5. Click on the icon to open the wizard for each function.

To Verify Driver Installation

1. Right click My Computer and click Manage.

2. Select Device Manager.

3. Look for the following:

Windows® 2000/XP/2003:
Double click SCSI and RAID Controller:

-JMicron JMB36X Controller should be displayed
Windows® Vista: Double click Storage controllers:

-JMicron JMB36X Controller should be displayed

TECHNICAL SUPPORT

Email: http://www.addonics.com/sales/query/
Internet: http://www.addonics.com

Technical Support (8:30 am to 6:00 pm PST)
Phone: [phone]
Email: http://www.addonics.com/support/query/
