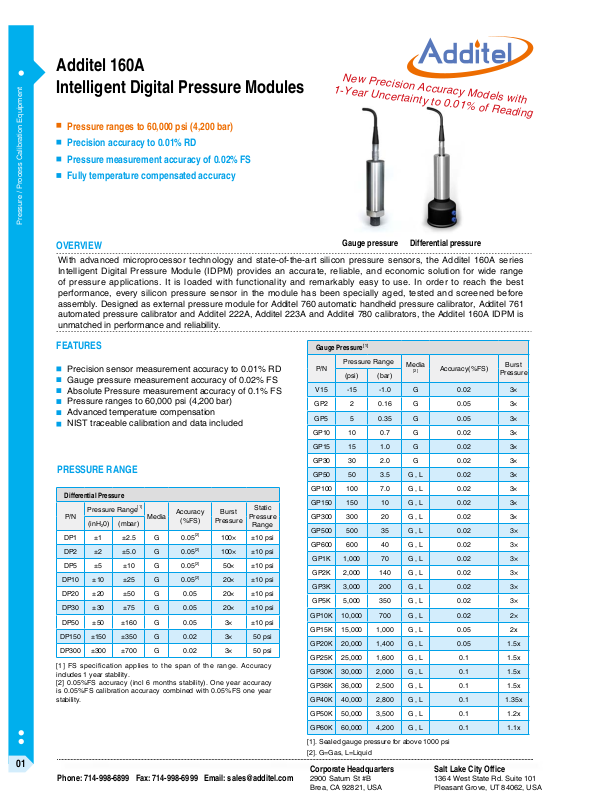

Additel ADT 160, ADT 160A Specifications

Additel 160A
Intelligent Digital Pressure Modules

Pressure ranges to 60,000 psi (4,200 bar)

Precision accuracy to 0.01% RD

Pressure measurement accuracy of 0.02% FS

Fully temperature compensated accuracy

Pressure / Process Calibration Equipment

New Precision Accuracy Models with

1-Year Uncertainty to 0.01% of Reading

01

OVERVIEW

Gauge pressure Differential pressure

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160A series
Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range
of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best
performance, every silicon pressure sensor in the module has been specially aged, tested and screened before
assembly. Designed as external pressure module for Additel 760 automatic handheld pressure calibrator, Additel 761
automated pressure calibrator and Additel 222A, Additel 223A and Additel 780 calibrators, the Additel 160A IDPM is
unmatched in performance and reliability.

FEATURES

Precision sensor measurement accuracy to 0.01% RD
Gauge pressure measurement accuracy of 0.02% FS
Absolute Pressure measurement accuracy of 0.1% FS
Pressure ranges to 60,000 psi (4,200 bar)
Advanced temperature compensation
NIST traceable calibration and data included

PRESSURE RANGE

Differential Pressure

Pressure Range

P/N

(inH

0) (mbar)

2

DP1 ±1 ±2.5 G 0.05

DP2 ±2 ±5.0 G 0.05

DP5 ±5 ±10 G 0.05

DP10 ±10 ±25 G 0.05

DP20 ±20 ±50 G 0.05 20× ±10 psi

DP30 ±30 ±75 G 0.05 20× ±10 psi

DP50 ±50 ±160 G 0.05 3× ±10 psi

DP150 ±150 ±350 G 0.02 3× 50 psi

DP300 ±300 ±700 G 0.02 3× 50 psi

[1] FS specification applies to the span of the range. Accuracy
includes 1 year stability.
[2] 0.05%FS accuracy (incl 6 months stability). One year accuracy
is 0.05%FS calibration accuracy combined with 0.05%FS one year
stability.

[1]

Media

Accuracy

(%FS)

[2]

[2]

[2]

[2]

Burst

Pressure

100× ±10 psi

100× ±10 psi

50× ±10 psi

20× ±10 psi

Phone: [phone] Fax: [phone] Email: [e-mail]

Static

Pressure

Range

Gauge Pressure

P/N

V15 -15 -1.0 G 0.02 3×

GP2 2 0.16 G 0.05 3×

GP5 5 0.35 G 0.05 3×

GP10 10 0.7 G 0.02 3×

GP15 15 1.0 G 0.02 3×

GP30 30 2.0 G 0.02 3×

GP50 50 3.5 G , L 0.02 3×

GP100 100 7.0 G , L 0.02 3×

GP150 150 10 G , L 0.02 3×

GP300 300 20 G , L 0.02 3×

GP500 500 35 G , L 0.02 3×

GP600 600 40 G , L 0.02 3×

GP1K 1,000 70 G , L 0.02 3×

GP2K 2,000 140 G , L 0.02 3×

GP3K 3,000 200 G , L 0.02 3×

GP5K 5,000 350 G , L 0.02 3×

GP10K 10,000 700 G , L 0.02 2×

GP15K 15,000 1,000 G , L 0.05 2x

GP20K 20,000 1,400 G , L 0.05 1.5x

GP25K 25,000 1,600 G , L 0.1 1.5x

GP30K 30,000 2,000 G , L 0.1 1.5x

GP36K 36,000 2,500 G , L 0.1 1.5x

GP40K 40,000 2,800 G , L 0.1 1.35x

GP50K 50,000 3,500 G , L 0.1 1.2x

GP60K 60,000 4,200 G , L 0.1 1.1x

[1]. Sealed gauge pressure for above 1000 psi

[2]. G=Gas, L=Liquid

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

[1]

Pressure Range

(psi) (bar)

Media

[2]

Accuracy(%FS)

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Burst

Pressure

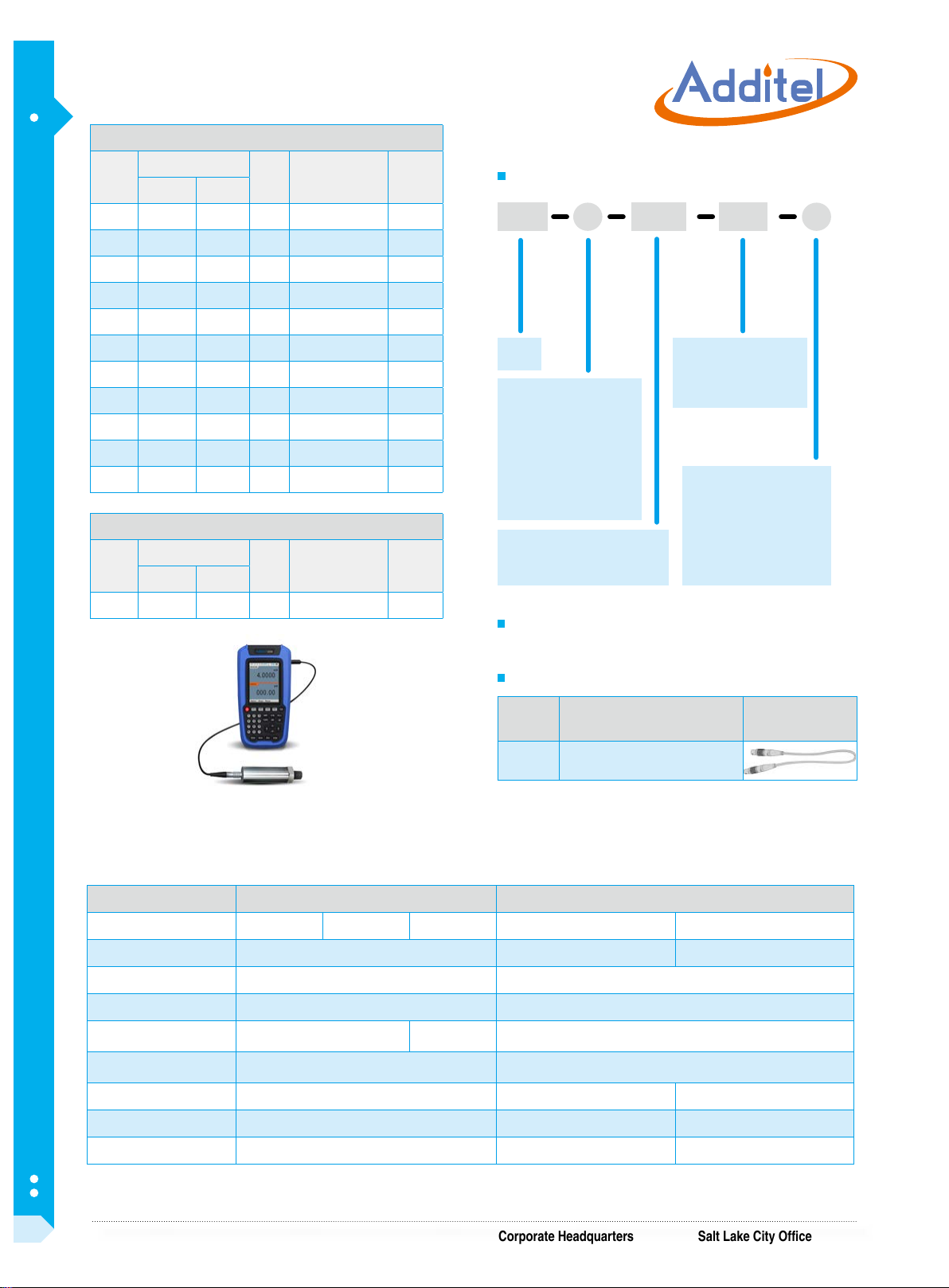

SPECIFICATIONS

Precision Sensors

[1]

- Absolute Pressure

Pressure Range

P/N

psia bar.a Burst Over Pressure

AP15R

AP30R

AP50R

AP100R

Pressure / Process Calibration Equipment

AP300R

AP500R

AP1KR

AP2KQ

AP3KQ

AP6KQ

AP10KQ

AP15KQ

AP20KQ

AP30KQ

AP40KQ

[1] Contact Additel for other range options.
[2] Accuracy includes calibration uncertainty, linearity and long-term stability.

0 to 15 0 to 1 G 0.01% FS 2x 1.2x

0 to 30 0 to 2 G 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 50 0 to 3.5 G 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 115 0 to 8 G,L 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 315 0 to 21 G,L 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 515 0 to 36 G,L 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 1,015 0 to 71 G,L 0.01% rdg or 0.003% FS whichever is greater 2x 1.2x

0 to 2,015 0 to 141 G 0.005% rdg + 0.005% FS 3x 1.1x

0 to 3,015 0 to 201 G 0.005% rdg + 0.005% FS 3x 1.1x

0 to 6,000 0 to 400 G,L 0.01% FS 3x 1.2x

0 to 10,000 0 to 700 G,L 0.01% FS 2x 1.2x

0 to 15,000 0 to 1,000 G,L 0.01% FS 2x 1.2x

0 to 20,000 0 to 1,400 G,L 0.01% FS 2x 1.2x

0 to 30,000 0 to 2,000 G,L 0.02% FS 1.5x 1.1x

0 to 40,000 0 to 2,800 G,L 0.02% FS 1.5x 1.1x

Media Accuracy

[2]

Pressure Rating

Compound Pressure

P/N

CP2

CP5

CP10

CP15

CP30

CP50

CP100

CP300

CP500

CP600

CP1K

CP2K

CP3K

CP5K

CP10K

Pressure Range

Pressure Rating

Media Accuracy

psig bar.g Burst Over Pressure

±2 ±0.16 G 0.05% FS 3x 1.2x

±5 ±0.35 G 0.02% FS 3x 1.2x

±10 ±0.7 G 0.02% FS 3x 1.2x

±15 ±1.0 G 0.02% FS 3x 1.2x

-15 to 30 -1 to 2.0 G 0.02% FS 3x 1.2x

-15 to 50 -1 to 3.5 G 0.02% FS 3x 1.2x

-15 to 100 -1 to 7.0 G,L 0.02% FS 3x 1.2x

-15 to 300 -1 to 20 G,L 0.02% FS 3x 1.2x

-15 to 500 -1 to 35 G,L 0.02% FS 3x 1.2x

-15 to 600 -1 to 40 G,L 0.02% FS 3x 1.2x

-15 to 1,000 -1 to 70 G,L 0.02% FS 3x 1.2x

-15 to 2,000 -1 to 140 G,L 0.02% FS 3x 1.2x

-15 to 3,000 -1 to 200 G,L 0.02% FS 3x 1.2x

-15 to 5,000 -1 to 350 G,L 0.02% FS 3x 1.2x

-15 to 10,000 -1 to 700 G,L 0.02% FS 2x 1.2x
