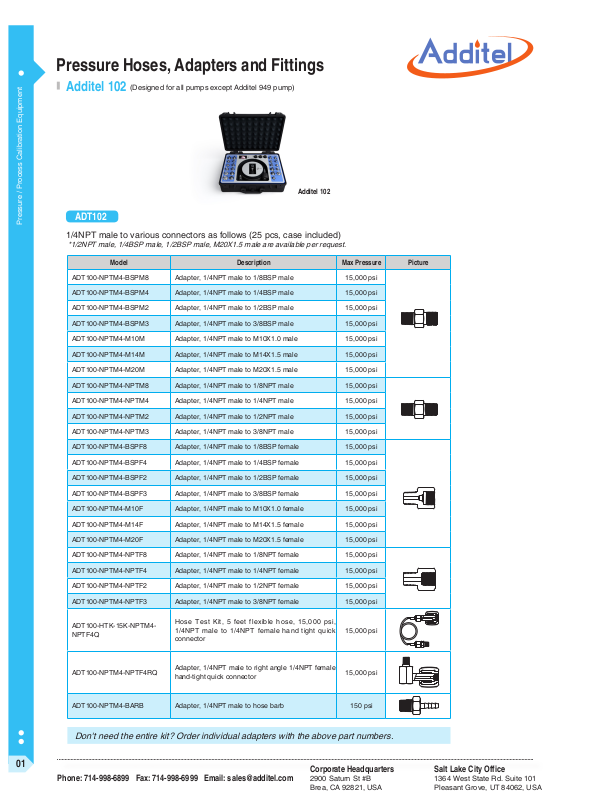

Page 1
Pressure Hoses, Adapters and Fittings
Additel 102
Pressure / Process Calibration Equipment
ADT102
(Designed for all pumps except Additel 949 pump)
1/4NPT male to various connectors as follows (25 pcs, case included)
*1/2NPT male, 1/4BSP male, 1/2BSP male, M20X1.5 male are available per request.
Model Description Max Pressure Picture
ADT100-NPTM4-BSPM8 Adapter, 1/4NPT male to 1/8BSP male 15,000 psi
ADT100-NPTM4-BSPM4 Adapter, 1/4NPT male to 1/4BSP male
ADT100-NPTM4-BSPM2
ADT100-NPTM4-BSPM3 Adapter, 1/4NPT male to 3/8BSP male 15,000 psi
ADT100-NPTM4-M10M Adapter, 1/4NPT male to M10X1.0 male 15,000 psi
ADT100-NPTM4-M14M Adapter, 1/4NPT male to M14X1.5 male 15,000 psi
ADT100-NPTM4-M20M Adapter, 1/4NPT male to M20X1.5 male 15,000 psi
ADT100-NPTM4-NPTM8 Adapter, 1/4NPT male to 1/8NPT male
ADT100-NPTM4-NPTM4 Adapter, 1/4NPT male to 1/4NPT male 15,000 psi
ADT100-NPTM4-NPTM2
ADT100-NPTM4-NPTM3 Adapter, 1/4NPT male to 3/8NPT male 15,000 psi
ADT100-NPTM4-BSPF8 Adapter, 1/4NPT male to 1/8BSP female 15,000 psi
ADT100-NPTM4-BSPF4 Adapter, 1/4NPT male to 1/4BSP female
ADT100-NPTM4-BSPF2 Adapter, 1/4NPT male to 1/2BSP female 15,000 psi
ADT100-NPTM4-BSPF3
ADT100-NPTM4-M10F Adapter, 1/4NPT male to M10X1.0 female 15,000 psi
ADT100-NPTM4-M14F Adapter, 1/4NPT male to M14X1.5 female 15,000 psi
ADT100-NPTM4-M20F Adapter, 1/4NPT male to M20X1.5 female 15,000 psi
ADT100-NPTM4-NPTF8 Adapter, 1/4NPT male to 1/8NPT female 15,000 psi
ADT100-NPTM4-NPTF4 Adapter, 1/4NPT male to 1/4NPT female 15,000 psi
ADT100-NPTM4-NPTF2 Adapter, 1/4NPT male to 1/2NPT female 15,000 psi
ADT100-NPTM4-NPTF3 Adapter, 1/4NPT male to 3/8NPT female 15,000 psi
Additel 102
15,000 psi
Adapter, 1/4NPT male to 1/2BSP male 15,000 psi
15,000 psi
Adapter, 1/4NPT male to 1/2NPT male 15,000 psi
15,000 psi
Adapter, 1/4NPT male to 3/8BSP female
15,000 psi
01
ADT100-HTK-15K-NPTM4NPTF4Q
ADT100-NPTM4-NPTF4RQ
ADT100-NPTM4-BARB Adapter, 1/4NPT male to hose barb 150 psi
Hose Test Kit, 5 feet flexible hose, 15,000 psi,
1/4NPT male to 1/4NPT female hand tight quick
connector
Adapter, 1/4NPT male to right angle 1/4NPT female
hand-tight quick connector
15,000 psi
15,000 psi
Don't need the entire kit? Order individual adapters with the above part numbers.
Corporate Headquarters
Phone: 714-998-6899 Fax: 714-998-6999 Email: [email protected]
2900 Saturn St #B
Brea, CA 92821, USA
Salt Lake City Office
1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA
Page 2
Pressure Hoses, Adapters and Fittings
Additel 103 Series
ADT103-NPT (Hand-tight quick connectors)
1/4NPT male to various hand-tight quick connectors (10pcs, case included)
Pressure / Process Calibration Equipment
Additel 103-NPT
ADT103-BSP (Hand-tight quick connectors)
1/4BSP male to various hand-tight quick connectors (10 pcs, case included)
Additel 103-BSP
(Designed for all pumps except Additel 949 pump)
Model Description Max Pressure Picture
ADT100-NPTM4-NPTF8Q Adapters, 1/4NPT male to 1/8NPT female 15,000 psi
ADT100-NPTM4-NPTF4Q Adapters, 1/4NPT male to 1/4NPT female 15,000 psi
ADT100-NPTM4-NPTF2Q Adapters, 1/4NPT male to 1/2NPT female 15,000 psi
ADT100-NPTM4-BSPF8Q Adapters, 1/4NPT male to 1/8BSP female 15,000 psi
ADT100-NPTM4-BSPF4Q Adapters, 1/4NPT male to 1/4BSP female 15,000 psi
ADT100-NPTM4-BSPF3Q Adapters, 1/4NPT male to 3/8BSP female 15,000 psi
ADT100-NPTM4-BSPF2Q Adapters, 1/4NPT male to 1/2BSP female 15,000 psi
ADT100-NPTM4-M10FQ Adapters, 1/4NPT male to M10×1.0 female 15,000 psi
ADT100-NPTM4-M14FQ Adapters, 1/4NPT male to M14×1.5 female 15,000 psi
ADT100-NPTM4-M20FQ Adapters, 1/4NPT male to M20×1.5 female 15,000 psi
Model Description Max Pressure Picture
ADT100-BSPM4-NPTF8Q Adapter, 1/4BSP male to 1/8NPT female 15,000 psi
ADT100-BSPM4-NPTF4Q
ADT100-BSPM4-NPTF2Q Adapter, 1/4BSP male to 1/2NPT female 15,000 psi
ADT100-BSPM4-BSPF8Q Adapters, 1/4BSP male to 1/8BSP female 15,000 psi
ADT100-BSPM4-BSPF4Q Adapters, 1/4BSP male to 1/4BSP female 15,000 psi
ADT100-BSPM4-BSPF3Q Adapters, 1/4BSP male to 3/8BSP female 15,000 psi
ADT100-BSPM4-BSPF2Q Adapters, 1/4BSP male to 1/2BSP female 15,000 psi
ADT100-BSPM4-M10FQ Adapters, 1/4BSP male to M10×1.0 female 15,000 psi
ADT100-BSPM4-M14FQ Adapters, 1/4BSP male to M14×1.5 female 15,000 psi
ADT100-BSPM4-M20FQ Adapters, 1/4BSP male to M20×1.5 female 15,000 psi
Adapter, 1/4BSP male to 1/4NPT female
15,000 psi
02
ADT103-M20 (Hand-tight quick connectors)
M20×1.5 Male to various hand-tight quick connectors (10pcs, case included)
Model Description Max Pressure Picture
ADT100-M20M-NPTF8Q Adapters, M20×1.5 Male to 1/8NPT female 15,000 psi
ADT100-M20M-NPTF4Q Adapters, M20×1.5 Male to 1/4NPT female 15,000 psi
ADT100-M20M-NPTF2Q Adapters, M20×1.5 Male to 1/2NPT female 15,000 psi
ADT100-M20M-BSPF8Q Adapters, M20×1.5 Male to 1/8BSP female 15,000 psi
ADT100-M20M-BSPF4Q Adapters, M20×1.5 Male to 1/4BSP female 15,000 psi
ADT100-M20M-BSPF3Q Adapters, M20×1.5 Male to 3/8BSP female 15,000 psi
ADT100-M20M-BSPF2Q Adapters, M20×1.5 Male to 1/2BSP female 15,000 psi
Additel 103-M20
Don't need the entire kit? Order individual adapters with the above part numbers.
Phone: 714-998-6899 Fax: 714-998-6999 Email: [email protected]
ADT100-M20M-M10FQ Adapters, M20×1.5 Male to M10×1.0 female 15,000 psi
ADT100-M20M-M14FQ Adapters, M20×1.5 Male to M14×1.5 female 15,000 psi
ADT100-M20M-M20FQ Adapters, M20×1.5 Male to M20×1.5 female 15,000 psi
Corporate Headquarters
2900 Saturn St #B
Brea, CA 92821, USA
Salt Lake City Office
1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA
Page 3
Pressure Hoses, Adapters and Fittings
Additel 104 Hose Test Kits
ADT104-HP
1/4HP male (Autoclave M-250-C) to various connectors as follows (17pcs, case included);
(Designed for Additel 949 pump)
Model Description Max Pressure Picture
ADT100-HPM-M14F Adapter, 1/4HP male to M14X1.5 female 15,000 psi
ADT100-HPM-M20F Adapter, 1/4HP male to M20X1.5 female 15,000 psi
ADT100-HPM-BSPF4 Adapter, 1/4HP male to 1/4BSP female 15,000 psi
Pressure / Process Calibration Equipment
ADT100-HPM-BSPF3 Adapter, 1/4HP male to 3/8BSP female 15,000 psi
ADT100-HPM-BSPF2 Adapter, 1/4HP male to 1/2BSP female 15,000 psi
ADT100-HPM-NPTF4 Adapter, 1/4HP male to 1/4NPT female 15,000 psi
ADT100-HPM-NPTF2 Adapter, 1/4HP male to 1/2NPT female 15,000 psi
ADT100-HPM-M14M Adapter, 1/4HP male to M14X1.5 male 40,000 psi
ADT100-HPM-M20M Adapter, 1/4HP male to M20X1.5 male 40,000 psi
ADT100-HPM-BSPM4 Adapter, 1/4HP male to 1/4BSP male 40,000 psi
ADT100-HPM-BSPM3 Adapter, 1/4HP male to 3/8BSP male 40,000 psi
ADT100-HPM-BSPM2 Adapter, 1/4HP male to 1/2BSP male 40,000 psi
ADT100-HPM-NPTM4 Adapter, 1/4HP male to 1/4NPT male 15,000 psi
ADT100-HPM-NPTM2 Adapter, 1/4HP male to 1/2NPT male 15,000 psi
ADT100-HPM-HPM Adapter, 1/4HP male to 1/4HP male 60,000 psi
Additel 104
High Pressure Hose Test Kits
The Additel 100 series High Pressure Hose Test Kits are designed to extend your pressure calibrations to a convenient
location to adapt from one pressure connection to another. Each test kit has 5 feet of exible hose rated to 15,000 psi
(1,000 bar) which connects a male NPT, BSP, or Metric connector to a variety of female quick connectors. Additel's
specially designed quick connectors allow for hand-tight connection without the need for wrenches or Teon tape. The
Additel 100 series Hose Test Kits are a great accessory to any pressure pump or controller.
SPECIFICATIONS
Max pressure: 15,000 psi (1,000 bar)
Hose length: 5 ft (1.5 m)
ORDERING INFORMATION
Model Number
03
Note: Custom lengths available by request.
ADT100 NPTM4 NPTF4Q
HTK
Pressure port type:
NPTM4-1/4NPT male
NPTM2-1/2NPT male
BSPM4-1/4BSP male
BSPM2-1/2BSP male
M20M-M20x1.5 male
Don't need the entire kit? Order individual adapters with the above part numbers.
Corporate Headquarters
Phone: 714-998-6899 Fax: 714-998-6999 Email: [email protected]
2900 Saturn St #B
Brea, CA 92821, USA
Pressure port type:
NPTF2Q-1/2NPT female quick connect
NPTF3Q-3/8NPT female quick connect
NPTF4Q-1/4NPT female quick connect
NPTF8Q-1/8NPT female quick connect
BSPF2Q-1/2BSP female quick connect
BSPF3Q-3/8BSP female quick connect
BSPF4Q-1/4BSP female quick connect
BSPF8Q-1/8BSP female quick connect
M20FQ-M20x1.5 female quick connect
Salt Lake City Office
1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA
