Additel 9503 Operating Manual

Additel/LogII Wireless Data

Logging Software

User Manual

Additel Corporation

2013-8

Contents

Chapter One: Overview......................................................................................................................... 3

1. Introduction ..............................................................................................................................3

2. System Requirements ...............................................................................................................3

3. Software Installation ................................................................................................................3

Chapter Two: Functions ....................................................................................................................... 5

1. Automatic Scanning ..................................................................................................................6

2. Action Scope of Buttons ..........................................................................................................6

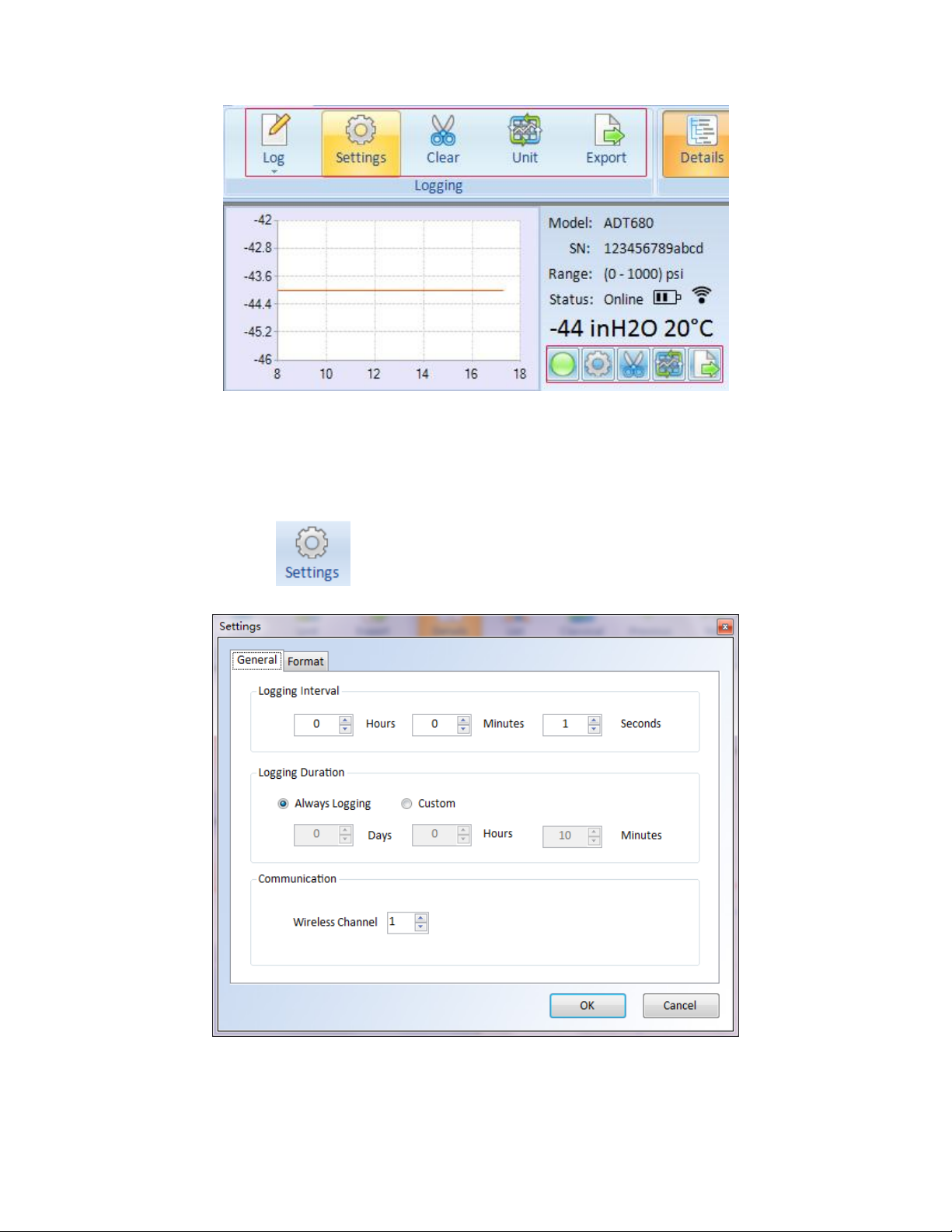

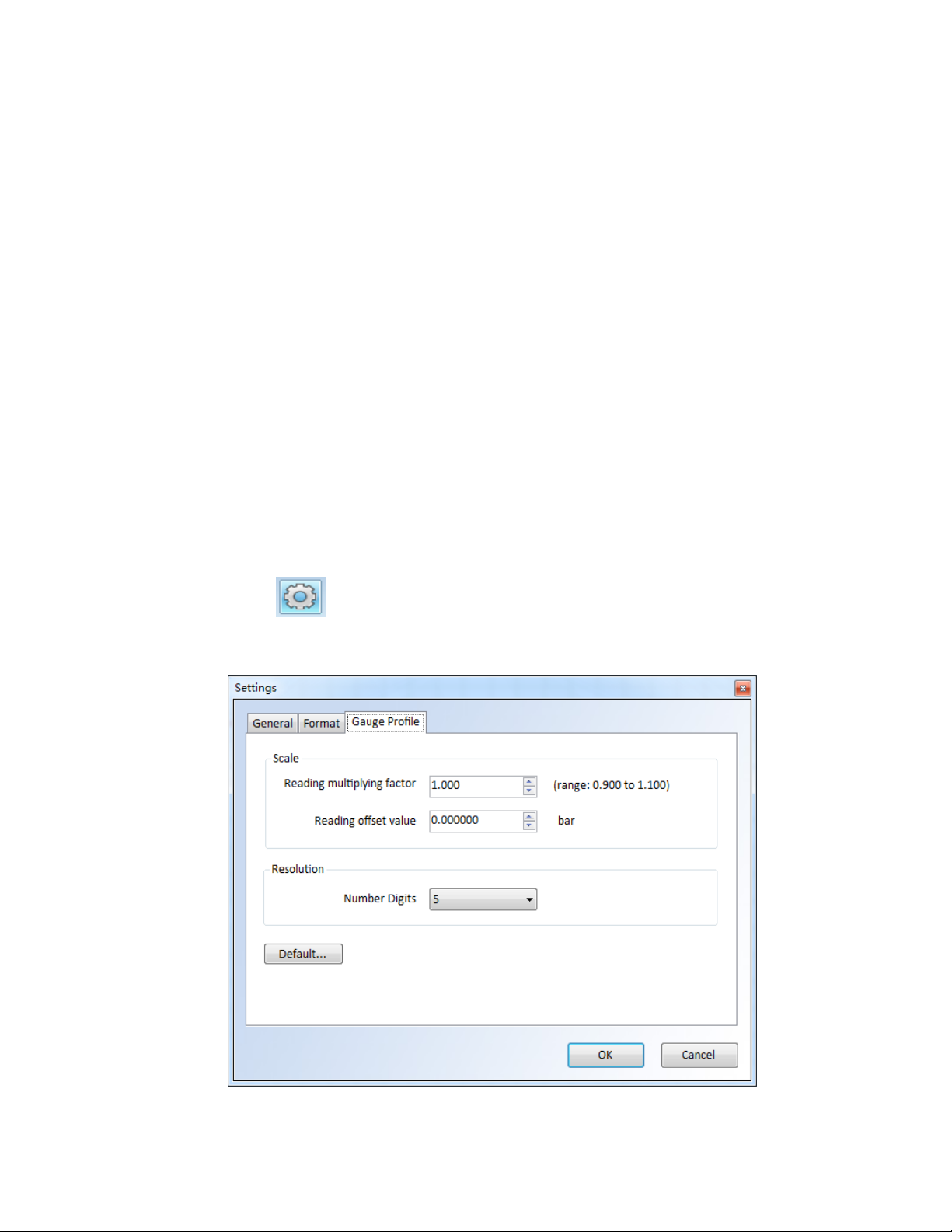

3. Settings .....................................................................................................................................7

4. Logging ......................................................................................................................................9

5. Clear ..........................................................................................................................................9

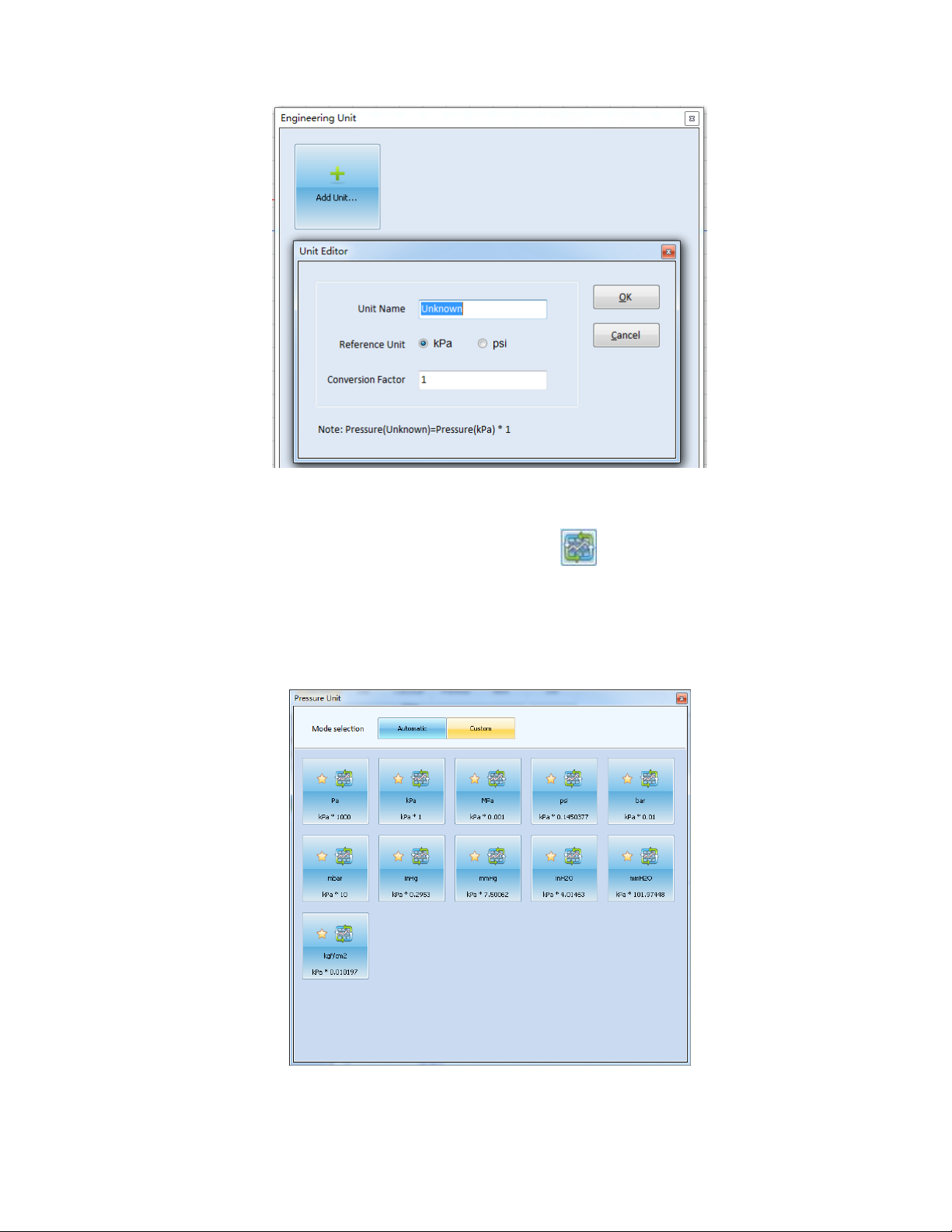

6. Unit ...........................................................................................................................................9

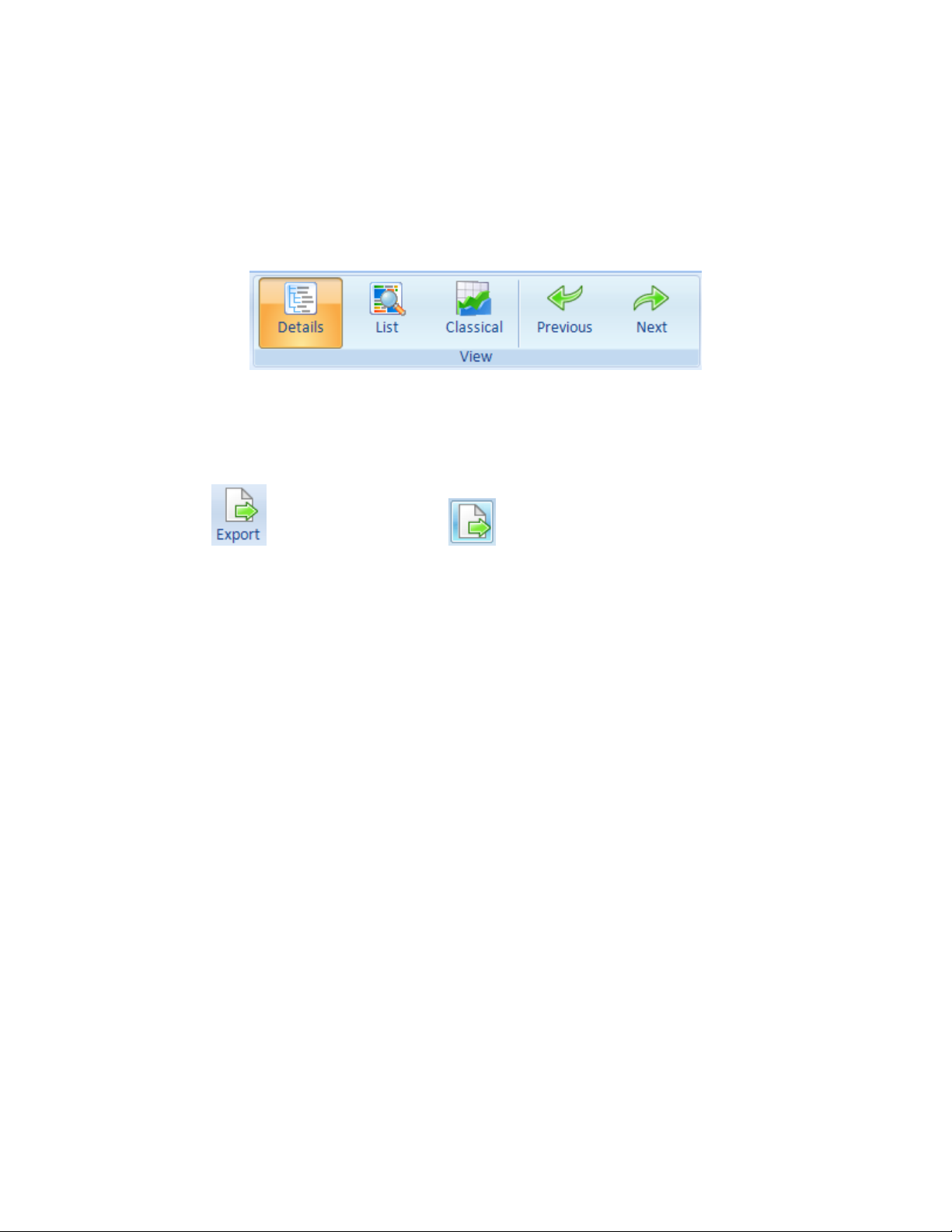

7. View ....................................................................................................................................... 11

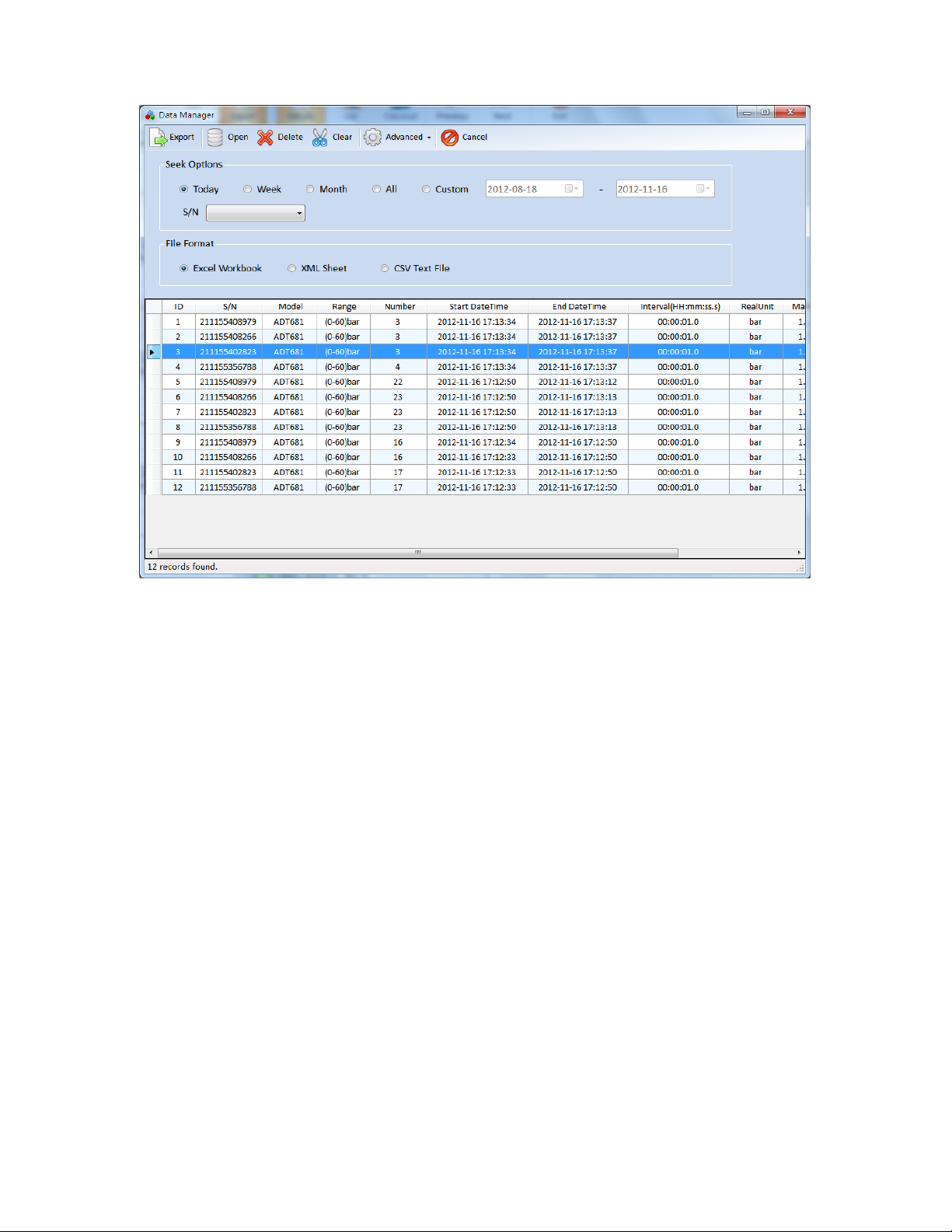

8. Data Manager ........................................................................................................................ 11

2 / 12

Chapter One: Overview

1. Introduction

Additel/LogII Wireless is specially designed to collect real-time data of pressure units

under test (UUT). It is a necessary software in pressure data logging.

The features of Additel/LogII Wireless:

 It can automatically scan pressure gauges connected to the computer.
 Graphical interface can display the real-time pressure value and draw the curve for

UUTS.

 Supports multiple instruments under test at the same time.
 To store pressure value according to the defined time.
 Supports data exporting in 3 formats.

 Multilingual user interface.

2. System Requirements

Hardware Requirements

CPU： Intel Pentium III (At least)

Memory：1GB (At least)

Hard Disk free space：2GB (At least)

Hardware must has serial port

Software Requirements

Operating System：

Windows XP/Windows 2003/Windows Vista/Windows7/Windows8

3. Software Installation

First, Open the file Setup.exe to start the installation.

Second, Install driver will detect whether the following components are installed in system

or not. If not, they will be installed automatically; otherwise it will be skipped.

3 / 12

 Windows Installer 3.1
 Windows Imaging Component
 Microsoft .NET Framework 4

Third, The Wizard interface will appear as shown in below picture. Users can finish the

installation by following this Wizard.

Figure 1-1

When the installation is finished, the following icon will be shown on the desktop. As below

picture 1-2.

Figure 1-2

If your computer could not check out the Wireless Master, please installing the WMD970

driver for the Wireless Master which can be found in the installation CD ‘Tools\WMD970

Driver’ folder.
