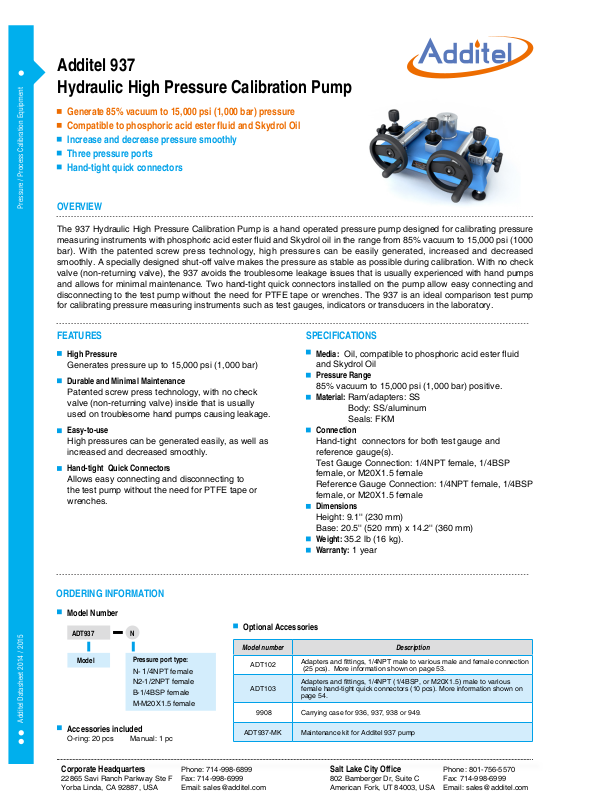

Additel 937 Datasheet

Additel 937
Hydraulic High Pressure Calibration Pump

Generate 85% vacuum to 15,000 psi (1,000 bar) pressure
Compatible to phosphoric acid ester fluid and Skydrol Oil

Increase and decrease pressure smoothly
Three pressure ports
Hand-tight quick connectors

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

OVERVIEW

The 937 Hydraulic High Pressure Calibration Pump is a hand operated pressure pump designed for calibrating pressure

measuring instruments with phosphoric acid ester uid and Skydrol oil in the range from 85% vacuum to 15,000 psi (1000

bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased
smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check

valve (non-returning valve), the 937 avoids the troublesome leakage issues that is usually experienced with hand pumps

and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and
disconnecting to the test pump without the need for PTFE tape or wrenches. The 937 is an ideal comparison test pump
for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.

FEATURES SPECIFICATIONS

High Pressure

Generates pressure up to 15,000 psi (1,000 bar)

Durable and Minimal Maintenance

Patented screw press technology, with no check

valve (non-returning valve) inside that is usually

used on troublesome hand pumps causing leakage.

Easy-to-use

High pressures can be generated easily, as well as
increased and decreased smoothly.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to
the test pump without the need for PTFE tape or
wrenches.

Media: Oil, compatible to phosphoric acid ester uid

and Skydrol Oil

Pressure Range

85% vacuum to 15,000 psi (1,000 bar) positive.

Material: Ram/adapters: SS
Body: SS/aluminum
Seals: FKM

Connection

Hand-tight connectors for both test gauge and

reference gauge(s).

Test Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female

Dimensions

Height: 9.1'' (230 mm)
Base: 20.5'' (520 mm) x 14.2'' (360 mm)

Weight: 35.2 lb (16 kg).
Warranty: 1 year

ORDERING INFORMATION

Model Number

ADT937 N

Model

Accessories included

O-ring: 20 pcs Manual: 1 pc

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Pressure port type:

NPT female

N-

1/4

N2-1/2NPT female
B-1/4BSP female
M-M20X1.5 female

Optional Accessories

Model number Description

ADT102

ADT103

9908 Carrying case for 936, 937, 938 or 949.

ADT937-MK Maintenance kit for Additel 937 pump

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Adapters and ttings, 1/4NPT male to various male and female connection
(25 pcs). More information shown on page 53.

Adapters and ttings, 1/4NPT (1/4BSP, or M20X1.5) male to various
female hand-tight quick connectors (10 pcs). More information shown on

page 54.
