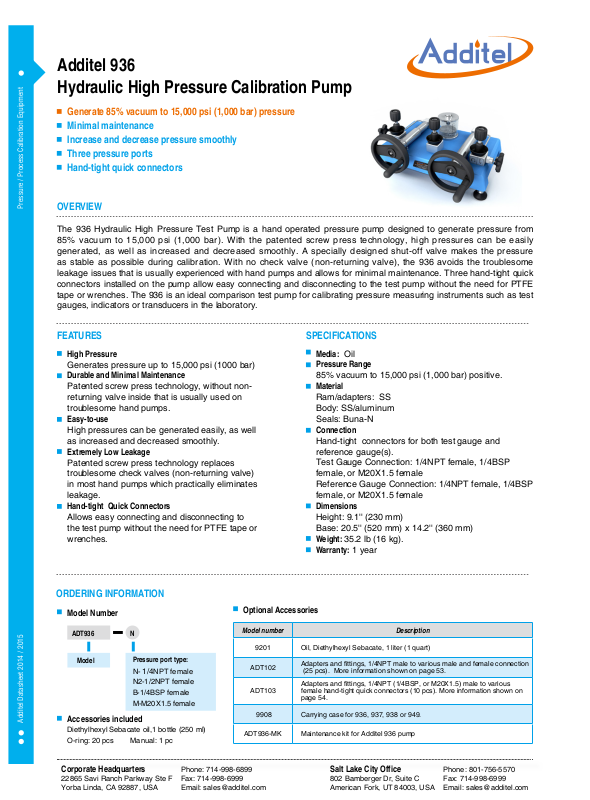

Additel 936 Datasheet

Additel 936
Hydraulic High Pressure Calibration Pump

Generate 85% vacuum to 15,000 psi (1,000 bar) pressure

Minimal maintenance
Increase and decrease pressure smoothly
Three pressure ports
Hand-tight quick connectors

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

OVERVIEW

The 936 Hydraulic High Pressure Test Pump is a hand operated pressure pump designed to generate pressure from
85% vacuum to 15,000 psi (1,000 bar). With the patented screw press technology, high pressures can be easily
generated, as well as increased and decreased smoothly. A specially designed shut-off valve makes the pressure
as stable as possible during calibration. With no check valve (non-returning valve), the 936 avoids the troublesome
leakage issues that is usually experienced with hand pumps and allows for minimal maintenance. Three hand-tight quick
connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE
tape or wrenches. The 936 is an ideal comparison test pump for calibrating pressure measuring instruments such as test
gauges, indicators or transducers in the laboratory.

FEATURES SPECIFICATIONS

High Pressure

Generates pressure up to 15,000 psi (1000 bar)

Durable and Minimal Maintenance

Patented screw press technology, without non­returning valve inside that is usually used on
troublesome hand pumps.

Easy-to-use

High pressures can be generated easily, as well
as increased and decreased smoothly.

Extremely Low Leakage

Patented screw press technology replaces
troublesome check valves (non-returning valve)
in most hand pumps which practically eliminates
leakage.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to
the test pump without the need for PTFE tape or
wrenches.

Media: Oil
Pressure Range

85% vacuum to 15,000 psi (1,000 bar) positive.

Material

Ram/adapters: SS
Body: SS/aluminum
Seals: Buna-N

Connection

Hand-tight connectors for both test gauge and
reference gauge(s).
Test Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female

Dimensions

Height: 9.1'' (230 mm)
Base: 20.5'' (520 mm) x 14.2'' (360 mm)

Weight: 35.2 lb (16 kg).
Warranty: 1 year

ORDERING INFORMATION

Model Number

ADT936 N

Model

Accessories included

Diethylhexyl Sebacate oil,1 bottle (250 ml)
O-ring: 20 pcs Manual: 1 pc

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Pressure port type:

NPT female

N-

1/4

N2-1/2NPT female
B-1/4BSP female
M-M20X1.5 female

Optional Accessories

Model number Description

9201 Oil, Diethylhexyl Sebacate, 1 liter (1 quart)

ADT102

ADT103

9908 Carrying case for 936, 937, 938 or 949.

ADT936-MK Maintenance kit for Additel 936 pump

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Adapters and ttings, 1/4NPT male to various male and female connection

(25 pcs). More information shown on page 53.

Adapters and ttings, 1/4NPT (1/4BSP, or M20X1.5) male to various

female hand-tight quick connectors (10 pcs). More information shown on
page 54.
