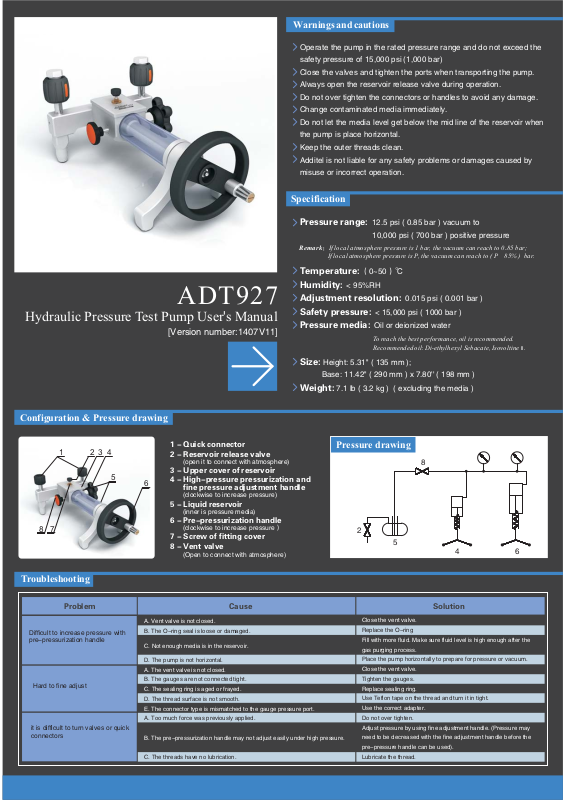

Page 1
Warningsand cautions
Operate the pump in the rated pressure range and do not exceed the
safety pressure of 15,000 psi (1,000 bar)
Close the valves and tighten the ports when transporting the pump.
Always open the reservoir release valve during operation.
Do not over tighten the connectors or handles to avoid any damage.
Change contaminated media immediately.
Do not let the media level get below the mid line of the reservoir when
the pump is place horizontal.
Keep the outer threads clean.
Additel is not liable for any safety problems or damages caused by
misuse or incorrect operation.
Specification
ADT927
Hydraulic Pressure Test Pump User s Manual'
[Version number:1407V11]
Configuration & Pressure drawing
1 23 4
5
78
1 Quick connector2 - Reservoir release valve
()open it to connect with atmosphere
3 - Upper cover of reservoir
4 - High-pressure pressurization and
6
fine pressure adjustment handle
()clockwise to increase pressure
5 - Liquid reservoir
()inner is pressure media
6 - Pre-pressurization handle
(clockwise to increase pressure）
7 - Screw of fitting cover
8 - Vent valve
(Open to connect with atmosphere)
Pressure range:
12.5 psi ( 0.85 bar ) vacuum to
10,000 psi ( 700 bar ) positive pressure
Remark：.If local atmosphere pressure is 1 bar, the vacuum can reach to 0 85 bar;
If local atmosphere pressure is P, the vacuum can reach to bar.( P 85% )
（
Temperature:
Humidity:
Adjustment resolution:
Safety pressure:
Pressure media:
Height: 5.31'' ( 135 mm );
Size:
0~50）℃
< 95%RH
0.015 psi ( 0.001 bar )
< 15,000 psi ( 1000 bar )
Oil or deionized water
Toreach the bestperformance oil is recommended
Recommended oil Di ethylhexyl Sebacate Isovoltine
:- , II.
,.
Base: 11.42'' ( 290 mm ) x 7.80'' ( 198 mm )
Weight:
7.1 lb ( 3.2 kg ) ( excluding the media )
Pressure drawing
8
2
5
4
6
Troubleshooting
Problem
Difficult to increase pressure with
pre-pressurization handle
Hard to fine adjust
it is difficult to turn valves or quick
connectors
Cause
A. Vent valve is not closed.
B. The O-ring seal is loose or damaged.
C. Not enough media is in the reservoir.
D. The pump is not horizontal.
A. The vent valve is not closed.
B. The gauges are not connected tight.
C. The is aged or frayed.
sealing ring
D. The thread surface is not smooth
E. The connector type is mismatched to the gauge pressure port.
A. Too much force was previously applied.
B. The pre-pressurization handle may not adjust easily under high pressure.
C. The threads have no lubrication..
Solution
Close the vent valve.
Replace the O-ring
Fill with more fluid. Make sure fluid level is high enough after the
gas purging process.
Place the pump horizontally to prepare for pressure or vacuum.
Close the vent valve.
Tighten the gauges.
Replace sealing ring.
Use Teflon tape on the thread and turn it in tight.
Use the correct adapter.
Do not over tighten.
Adjust pressure by using fine adjustment handle. (Pressure may
need to be decreased with the fine adjustment handle before the
pre-pressure handle can be used).
Lubricate the thread.
Page 2
Preparation
Open the reservoir
①open
The media level should be 2/3 the height
of the reservoir.
Basic Operation
DIGITALPRESSURE CALIBRATOR
Units
A
0255075100
A
②open the upper cover
Pressure Gauge
k
Filling/emptying the reservoir
B
Fill or empty media
Clean any impurities from the media and reservoir.
Connection
SW V mA COM 24V
SW V mA COM 24VSW V mA COM 24V
A
②close
DIGITALPRESSURE CALIBRATOR
Units
0255075100
②open
Lock the reservoir
①close the upper cover
Zeroing should
A
au
G
re
ressu
P
①open
ge
be operated
under this
condition only.
Vent
C
B
DIGITALPRESSURE CALIBRATOR
Units
DIGITALPRESSURE CALIBRATOR
Units
0255075100
0255075100
Purge process
A
Vacuum displayed on the gauge
③turn it to the smallest degree
①clo se
Pressurizing process
A
①close①clos e
ge
u
a
G
re
ressu
P
③generate high-pressure
dial gauge
C
②Turn all the
way out
F
If necessary,
please generate
high pressure
using #4 handle
and fine adjust pressure
②Pre-pressurization
pressure switch pressure transmitter
Purge process (cont.)
If air is still trapped in the pump
DIGITALPRESSURE CALIBRATOR
Units
0255075100
then repeat the purge process 2
or 3 more times until all the gas
A
is removed from the system.
Wait for gauge to vent to zero
①open
bubble
②open
Vacuum preparation
DIGITALPRESSURE CALIBRATOR
Units
A
0 25 50 75 100
①open
②open
0.06
0.08
-0.1
0.04
auge
G
Vacuum
0.02
0
④turn it to the
mid position
D
③Turn all the way in
G
③turn it to the
smallest
degree
flexible hose
,
DIGITALPRESSURE CALIBRATOR
Units
Units
0255075100
DIGITALPRESSURE CALIBRATOR
0255075100
①open
A
①close
A
②open
ge
au
G
re
ressu
P
Vacuum process
If it is difficult to generate
vacuum pressure then
0.04
0.06
auge
G
Vacuum
repeat the purging
0.02
0.08
process to make sure all
0
-0.1
the gas is removed from
the system.
③fine adjust
Pre-pressure
④turn it to the
mid position
③turn it to
②turn it to approach
the desire value
greatest
degree
,
E
H
Remark:
A Additel has made a concerted effort to provide complete and current information for the proper use of the equipment. The product specifications and other
information contained this manual are subject to change without notice.
B:: Above pictures are just for reference.
