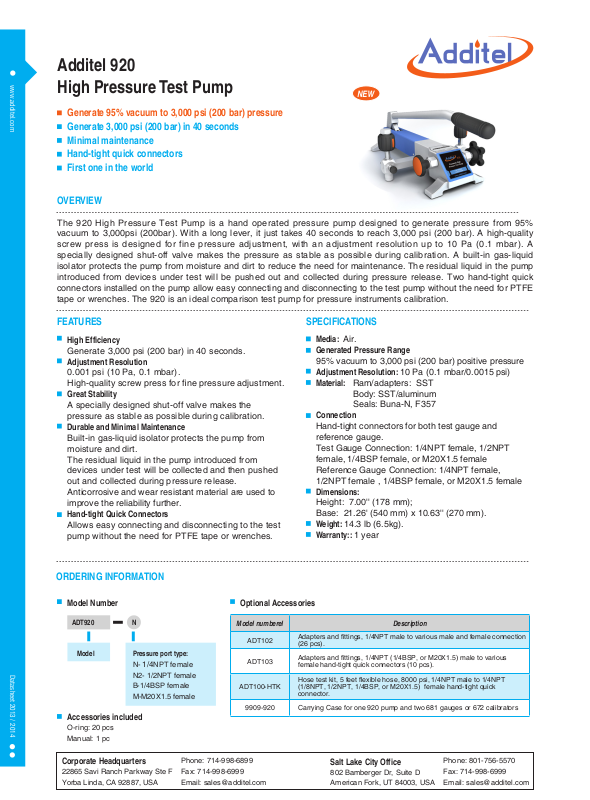

Additel 920-N Data Sheet

www.additel.com

Additel 920
High Pressure Test Pump

Generate 95% vacuum to 3,000 psi (200 bar) pressure

Generate 3,000 psi (200 bar) in 40 seconds
Minimal maintenance
Hand-tight quick connectors
First one in the world

OVERVIEW

The 920 High Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95%
vacuum to 3,000psi (200bar). With a long lever, it just takes 40 seconds to reach 3,000 psi (200 bar). A high-quality
screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A
specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid
isolator protects the pump from moisture and dirt to reduce the need for maintenance. The residual liquid in the pump
introduced from devices under test will be pushed out and collected during pressure release. Two hand-tight quick
connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE
tape or wrenches. The 920 is an ideal comparison test pump for pressure instruments calibration.

FEATURES SPECIFICATIONS

NEW

ORDERING INFORMATION

Datasheet 2013 / 2014

High Efficiency

Generate 3,000 psi (200 bar) in 40 seconds.

Adjustment Resolution

0.001 psi (10 Pa, 0.1 mbar).

High-quality screw press for ne pressure adjustment.

Great Stability

A specially designed shut-off valve makes the
pressure as stable as possible during calibration.

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from
moisture and dirt.
The residual liquid in the pump introduced from
devices under test will be collected and then pushed
out and collected during pressure release.
Anticorrosive and wear resistant material are used to
improve the reliability further.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches.

Model Number

ADT920 N

Model

Pressure port type:

N-

NPT female

1/4

N2- 1/2NPT female
B-1/4BSP female
M-M20X1.5 female

Optional Accessories

Model numberel Description

ADT102

ADT103

ADT100-HTK

9909-920 Carrying Case for one 920 pump and two 681 gauges or 672 calibrators

Accessories included

O-ring: 20 pcs
Manual: 1 pc

Media: Air.
Generated Pressure Range

95% vacuum to 3,000 psi (200 bar) positive pressure

Adjustment Resolution: 10 Pa (0.1 mbar/0.0015 psi)
Material: Ram/adapters: SST

Body: SST/aluminum
Seals: Buna-N, F357

Connection

Hand-tight connectors for both test gauge and
reference gauge.
Test Gauge Connection: 1/4NPT female, 1/2NPT
female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female,
1/2NPT female , 1/4BSP female, or M20X1.5 female

Dimensions:

Height: 7.00'' (178 mm);
Base: 21.26' (540 mm) x 10.63'' (270 mm).

Weight: 14.3 lb (6.5kg).
Warranty:: 1 year

Adapters and ttings, 1/4NPT male to various male and female connection

(26 pcs).

Adapters and ttings, 1/4NPT (1/4BSP, or M20X1.5) male to various

female hand-tight quick connectors (10 pcs).

Hose test kit, 5 feet exible hose, 8000 psi, 1/4NPT male to 1/4NPT

(1/8NPT, 1/2NPT, 1/4BSP, or M20X1.5) female hand-tight quick
connector.
