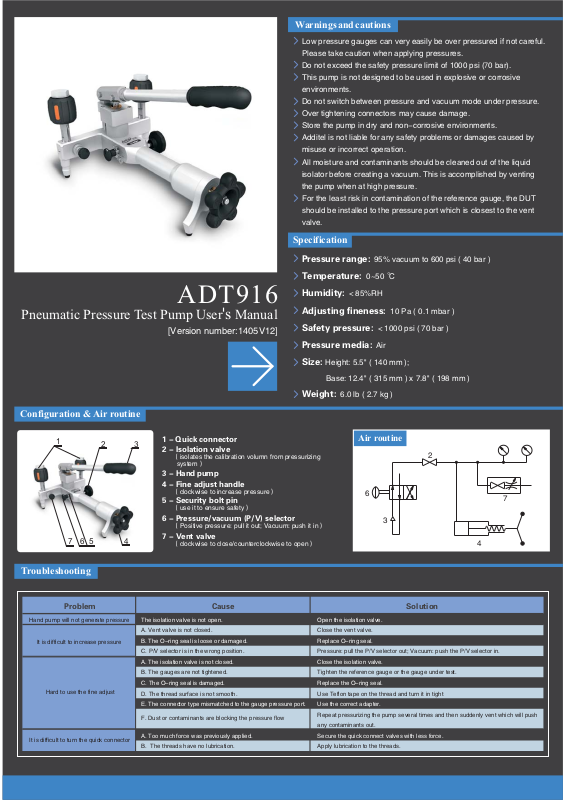

Additel 916 User Manual

Warningsand cautions

Low pressure gauges can very easily be over pressured if not careful.
Please take caution when applying pressures.
Do not exceed the safety pressure limit of 1000 psi ( 0 bar).

7

This pump is not designed to be used in explosive or corrosive
environments.
Do not switch between pressure and vacuum mode under pressure.
Over tightening connectors may cause damage.
Store the pump in dry and non-corrosive environments.
Additel is not liable for any safety problems or damages caused by
misuse or incorrect operation.
All moisture and contaminants should be cleaned out of the liquid
isolator before creating a vacuum. This is accomplished by venting
the pump when at high pressure.
For the least risk in contamination of the reference gauge, the DUT
should be installed to the pressure port which is closest to the vent
valve.

Specification

95%

Pressure range:

Temperature:

vacuum to 600 psi ( 40 bar )

℃

0~50

ADT916

Pneumatic Pressure Test Pump User Manual's

[Version number:1405V12]

Configuration & Air routine

1

7

23

56

4

1 Quick connector­2 - Isolation valve

isolates the calibration volumn from pressurizing

（

system）

3 - Hand pump
4 - Fine adjust handle

（clockwise to increase pressure）

5 - Security bolt pin

（use it to ensure safety）

6 - Pressure/vacuum (P/V) selector

7 - Vent valve

clockwise to clos（ e/counterclockwise to open）

Humidity:

Adjusting fineness:

Safety pressure:

Pressure media:

Size:

< 85%RH

10 Pa ( 0.1 mbar )

< 1000 70

Air

Height: 5.5'' ( 140 mm );

psi ( bar )

Base: 12.4'' ( 315 mm ) x 7.8'' ( 198 mm )

Weight:

6.0 lb ( 2.7 kg )

Air routine

2

6

cuum: push it in）（Positive pressure: pull it out; Va

3

7

4

Troubleshooting

Problem

Hand pump will not generate pressure

It is difficult to increase pressure

Hard to use the fine adjust

It is difficult to turn the quick connector

Cause

The isolation valve is not open

A. Vent valve is not closed.

B. The O-ring seal is loose or damaged.

C. P/V selector is in the wrong position

A. The isolation valve is not closed

B. The gauges are not tightened.

C. The O-ring seal is damaged.

D. The thread surface is not smooth.

E. The connector type mismatched to the gauge pressure port.

F. Dust or contaminants are blocking the pressure flow

A. Too much force was previously applied.

B. The threads have no lubrication..

.

.

Solution

Open the isolation valve

Close the vent valve.

Replace O-ring seal

Pressure: pull the P/V selector out; Vacuum: push the P/V selector in.

Close the isolation valve

Tighten the reference gauge or the gauge under test

Replace the O-ring seal.

Use Teflon tape on the thread and turn it in tight

Use the correct adapter

Repeat pressurizing the pump several times and then suddenly vent which will push

any contaminants out.

Secure the quick connect valves with less force.

Apply lubrication to the threads..

.

.

.

.

Basic Operation

Zeroing should
be operated
under this
condition only

DIGITALPRESSURE CALIBRATOR

Units

.

0255075100

Units

A

DIGITALPRESSURE CALIBRATOR

0255075100

open

Connection

SW V mA COM 24V

Pressure GaugePressure Gauge

k

dial gauge

Vent

A

Pressure Gauge

open

B

close,do not

④

use too much
force

DIGITALPRESSURE CALIBRATOR

Units

pressure switch pressure transmitter

0 25 50 75 100

Pre-pressure

A

ressure G

P

Pressure Gauge

auge

⑤

open

③

C

push down to
pre pressurize to

-

desired value or
until pressurization
stops

set it to the

②

mid position
of its travel

①

SW V mA COM 24VSW V mA COM 24V

DIGITALPRESSURE CALIBRATOR

Units

0 25 50 75 100

flexible hose

Pressurizing process
and fine adjustment

A

e

ug

a

Pressure G

Pressure Gauge

close,do not use

①

too much force

②

pressurize to

higher pressure

by turning the

handle and
make fine
adjustment

A

D

push the security bolt pin in

open it slowly

①

to get the
desiredvalue,
and close!

open it slowly

②

to get the
desired value,
and close!

Decrease pressure process

DIGITALPRESSURE CALIBRATOR

Units

0255075100

A

ressure G

P

Pressure Gauge

auge

Decrease vacuum process

DIGITALPRESSURE CALIBRATOR

Units

0 25 50 75 100

A

0.04

0.06

Vacuum Gauge

0.02

0 8.00 8.0

0

-0.1

①

close

fine adjust

②

③

E

H

fine adjust

Units

close（）but it

must be open
when select
the pressure /
vacuum

DIGITALPRESSURE CALIBRATOR

0255075100

④

pull out

Vacuum process

A

0 8.00 8.0

-0.1

②

③

push in,select
the vacuum
position

Repeat Vacuum process

DIGITALPRESSURE CALIBRATOR

Units

A

0255075100

0 8.00 8.0

-0.1

0.06

Vacuum GaugeVacuum Gauge

0.04

0.020.02

0

①

0.06

Vacuum Gauge

F

0.04

0.02

0

①

⑤

open

operate it to
get the desired
value

Remark:

A Additel has made a concerted effort to provide complete and current

information for the proper use of the equipment. The product
specifications and other information contained this manual are subject
to change without notice.

B:: Above pictures are just for reference.

②

open

G

operate it to
get the desired
value
