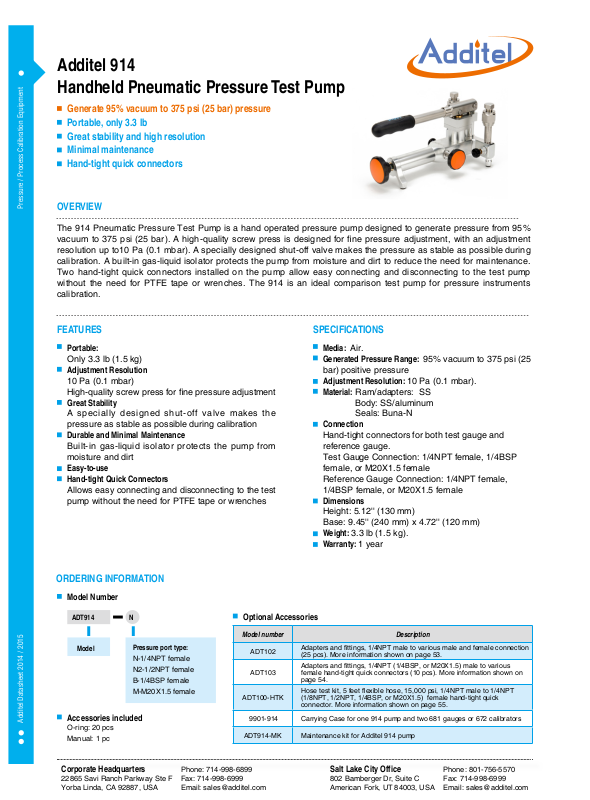

Additel 914 Datasheet

Additel 914
Handheld Pneumatic Pressure Test Pump

Generate 95% vacuum to 375 psi (25 bar) pressure

Portable, only 3.3 lb
Great stability and high resolution
Minimal maintenance
Hand-tight quick connectors

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

OVERVIEW

The 914 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95%

vacuum to 375 psi (25 bar). A high-quality screw press is designed for ne pressure adjustment, with an adjustment

resolution up to10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during
calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance.
Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump
without the need for PTFE tape or wrenches. The 914 is an ideal comparison test pump for pressure instruments
calibration.

FEATURES

Portable:

Only 3.3 lb (1.5 kg)

Adjustment Resolution

10 Pa (0.1 mbar)

High-quality screw press for ne pressure adjustment

Great Stability

A specially designed shut-off valve makes the
pressure as stable as possible during calibration

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from
moisture and dirt

Easy-to-use
Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches

SPECIFICATIONS

Media: Air.
Generated Pressure Range: 95% vacuum to 375 psi (25

bar) positive pressure

Adjustment Resolution: 10 Pa (0.1 mbar).
Material: Ram/adapters: SS

Body: SS/aluminum
Seals: Buna-N

Connection

Hand-tight connectors for both test gauge and
reference gauge.
Test Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female,
1/4BSP female, or M20X1.5 female

Dimensions

Height: 5.12'' (130 mm)
Base: 9.45'' (240 mm) x 4.72'' (120 mm)

Weight: 3.3 lb (1.5 kg).
Warranty: 1 year

ORDERING INFORMATION

Model Number

ADT914 N

Model

Accessories included

O-ring: 20 pcs
Manual: 1 pc

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Pressure port type:

N-1/4NPT female
N2-1/2NPT female
B-1/4BSP female
M-M20X1.5 female

Optional Accessories

Model number Description

ADT102

ADT103

ADT100-HTK

9901-914 Carrying Case for one 914 pump and two 681 gauges or 672 calibrators

ADT914-MK Maintenance kit for Additel 914 pump

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Adapters and ttings, 1/4NPT male to various male and female connection

(25 pcs). More information shown on page 53.

Adapters and ttings, 1/4NPT (1/4BSP, or M20X1.5) male to various

female hand-tight quick connectors (10 pcs). More information shown on
page 54.

Hose test kit, 5 feet exible hose, 15,000 psi, 1/4NPT male to 1/4NPT

(1/8NPT, 1/2NPT, 1/4BSP, or M20X1.5) female hand-tight quick
connector. More information shown on page 55.
