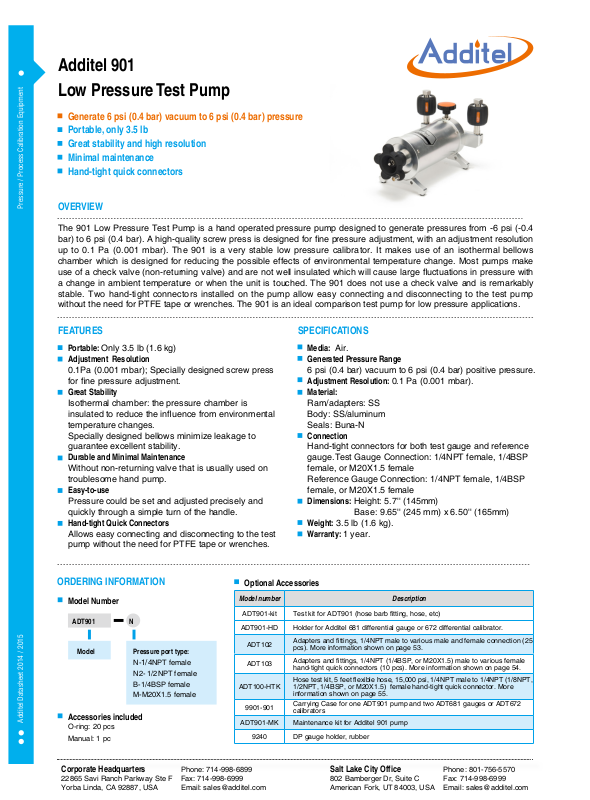

Additel 901 Datasheet

Additel 901
Low Pressure Test Pump

Generate 6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) pressure

Portable, only 3.5 lb
Great stability and high resolution
Minimal maintenance
Hand-tight quick connectors

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

OVERVIEW

The 901 Low Pressure Test Pump is a hand operated pressure pump designed to generate pressures from -6 psi (-0.4

bar) to 6 psi (0.4 bar). A high-quality screw press is designed for ne pressure adjustment, with an adjustment resolution

up to 0.1 Pa (0.001 mbar). The 901 is a very stable low pressure calibrator. It makes use of an isothermal bellows
chamber which is designed for reducing the possible effects of environmental temperature change. Most pumps make

use of a check valve (non-returning valve) and are not well insulated which will cause large uctuations in pressure with

a change in ambient temperature or when the unit is touched. The 901 does not use a check valve and is remarkably
stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump
without the need for PTFE tape or wrenches. The 901 is an ideal comparison test pump for low pressure applications.

FEATURES SPECIFICATIONS

Portable: Only 3.5 lb (1.6 kg)
Adjustment Resolution

0.1Pa (0.001 mbar); Specially designed screw press

for ne pressure adjustment.

Great Stability

Isothermal chamber: the pressure chamber is

insulated to reduce the inuence from environmental

temperature changes.
Specially designed bellows minimize leakage to
guarantee excellent stability.

Durable and Minimal Maintenance

Without non-returning valve that is usually used on
troublesome hand pump.

Easy-to-use

Pressure could be set and adjusted precisely and

quickly through a simple turn of the handle.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches.

Media: Air.
Generated Pressure Range

6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) positive pressure.

Adjustment Resolution: 0.1 Pa (0.001 mbar).
Material:

Ram/adapters: SS
Body: SS/aluminum
Seals: Buna-N

Connection

Hand-tight connectors for both test gauge and reference
gauge.Test Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female, 1/4BSP
female, or M20X1.5 female
Dimensions: Height: 5.7'' (145mm)
Base: 9.65'' (245 mm) x 6.50'' (165mm)

Weight: 3.5 lb (1.6 kg).
Warranty: 1 year.

ORDERING INFORMATION

Model Number

ADT901 N

Model

Accessories included

O-ring: 20 pcs

Manual: 1 pc

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Pressure port type:

N-

NPT female

1/4

N2- 1/2NPT female
B-1/4BSP female
M-M20X1.5 female

Optional Accessories

Model number Description

ADT901-kit Test kit for ADT901 (hose barb tting, hose, etc)

ADT901-HD Holder for Additel 681 differential gauge or 672 differential calibrator.

ADT102

ADT103

ADT100-HTK

9901-901

ADT901-MK Maintenance kit for Additel 901 pump

9240 DP gauge holder, rubber

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Adapters and ttings, 1/4NPT male to various male and female connection (25

pcs). More information shown on page 53.

Adapters and ttings, 1/4NPT (1/4BSP, or M20X1.5) male to various female

hand-tight quick connectors (10 pcs). More information shown on page 54.

Hose test kit, 5 feet exible hose, 15,000 psi, 1/4NPT male to 1/4NPT (1/8NPT,

1/2NPT, 1/4BSP, or M20X1.5) female hand-tight quick connector. More
information shown on page 55.

Carrying Case for one ADT901 pump and two ADT681 gauges or ADT672
calibrators
