Page 1
Additel 761
Automated Pressure Calibrators

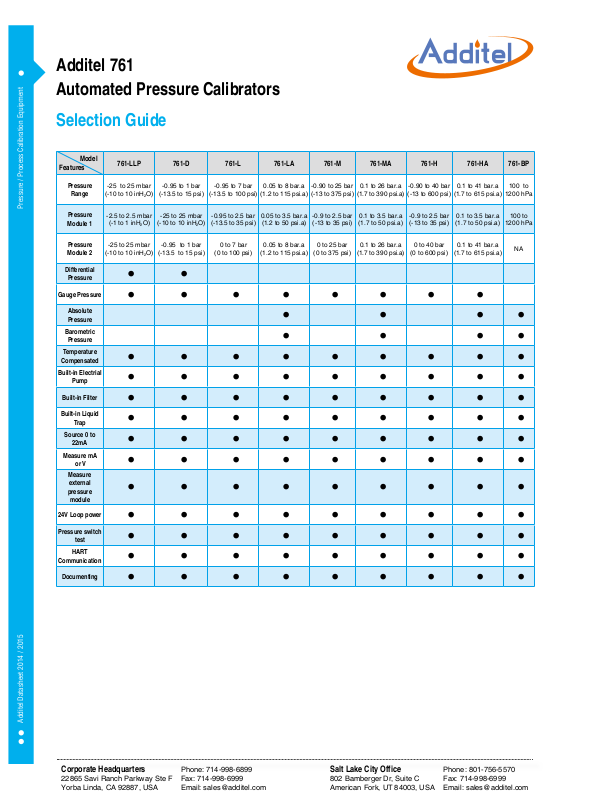

Selection Guide
Model
Features
Pressure
Range
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Pressure
Module 1
Pressure
Module 2
Differential
Pressure
Gauge Pressure
Absolute
Pressure
Barometric
Pressure
Temperature
Compensated
Built-in Electrial
Pump
Built-in Filter
Built-in Liquid
Trap
Source 0 to
22mA
Measure mA
or V
Measure
external
pressure
module
24V Loop power
Pressure switch
test
HART
Communication
Documenting
761-LLP 761-D 761-L 761-LA 761-M 761-MA 761-H 761-HA 761-BP
-25 to 25 mbar
(-10 to 10 inH2O)
-2.5 to 2.5 mbar
(-1 to 1 inH2O)
-25 to 25 mbar
(-10 to 10 inH2O)
-0.95 to 1 bar
(-13.5 to 15 psi)
-25 to 25 mbar
(-10 to 10 inH2O)
-0.95 to 1 bar
(-13.5 to 15 psi)
-0.95 to 7 bar
(-13.5 to 100 psi)
-0.95 to 2.5 bar
(-13.5 to 35 psi)
0 to 7 bar
(0 to 100 psi)
0.05 to 8 bar.a
(1.2 to 115 psi.a)
0.05 to 3.5 bar.a
(1.2 to 50 psi.a)
0.05 to 8 bar.a
(1.2 to 115 psi.a)
-0.90 to 25 bar
(-13 to 375 psi)
-0.9 to 2.5 bar
(-13 to 35 psi)
0 to 25 bar
(0 to 375 psi)
0.1 to 26 bar.a
(1.7 to 390 psi.a)
0.1 to 3.5 bar.a
(1.7 to 50 psi.a)
0.1 to 26 bar.a
(1.7 to 390 psi.a)
-0.90 to 40 bar
(-13 to 600 psi)
-0.9 to 2.5 bar
(-13 to 35 psi)
0 to 40 bar
(0 to 600 psi)
0.1 to 41 bar.a
(1.7 to 615 psi.a)
0.1 to 3.5 bar.a
(1.7 to 50 psi.a)
0.1 to 41 bar.a
(1.7 to 615 psi.a)
• •
• • • • • • • •
• • • •
• • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
• • • • • • • • •
100 to
1200 hPa
100 to
1200 hPa
NA
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 2
Additel 761
Automated Pressure Calibrators
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Fully automated pressure calibrator with built-in pressure generator / controller
to as high as 600 psi (40 bar) or as low as 0.01 Pa (0.00004 inH
O)
2
0.02%FS accuracy
Dual pressure modules
Built-in filter and liquid trap with venting system prevents contamination of the
calibrator
Portable (12.4 lb)
OVERVIEW
With a built-in high performance electronic pump and precision pressure controller,
the 761 series portable automated pressure calibrators provide a turnkey solution for
calibration of gauges, transmitters, and switches both in the eld and in the laboratory.
In a portable package, this calibrator can automatically generate pressures from 90%
vacuum to 600 psi (40 bar) with 0.005% FS pressure control stability and 0.02% FS
accuracy. To improve the calibrator accuracy, two pressure modules with differing
ranges are built-in and integrated with the internal pump and controller.
The 761-LLP is specially designed for low pressure calibration, and pressures can be
set to as low as 0.01 Pa (0.00004 inH
(0.0002 inH
The 761-BP is designed for barometric gauge calibration. With a quartz pressure
sensor, the accuracy of 761-BP can achieve 0.01%FS accuracy.
With optional external pressure modules (160 series), the 761 can measure pressures
up to 10,000 psi (700 bar) with 0.025%FS accuracy. In addition to the pressure
generation, control, and measurement capabilities, the 761 also features HART
communication capability, supplies 24V loop power, and reads the current or voltage
produced by the pressure transducers. The 761 is a state of the art automated
pressure calibrator which brings automated pressure calibration to the eld.
O).
2
O) with a control stability better than 0.05 Pa
2
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 3

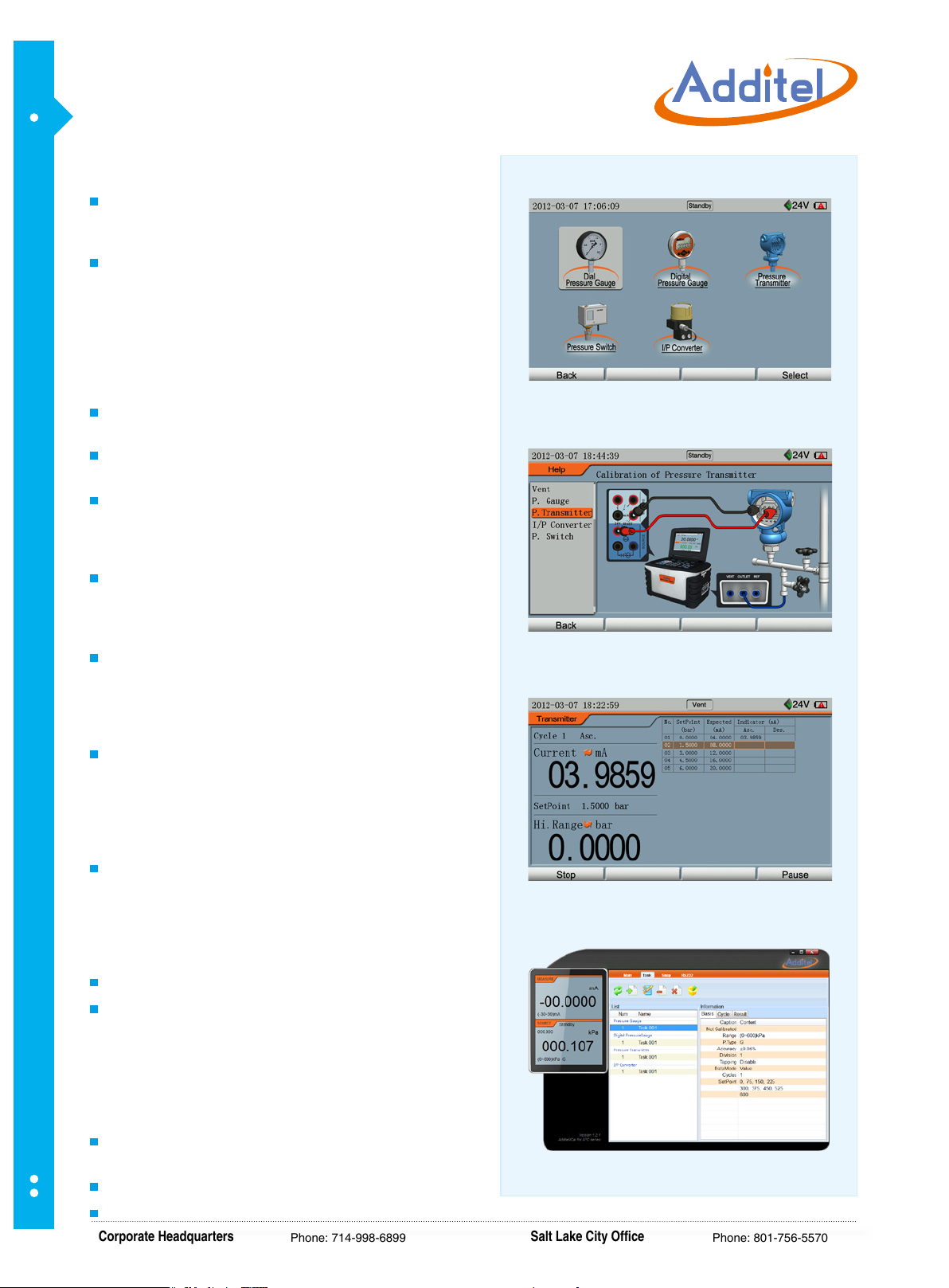

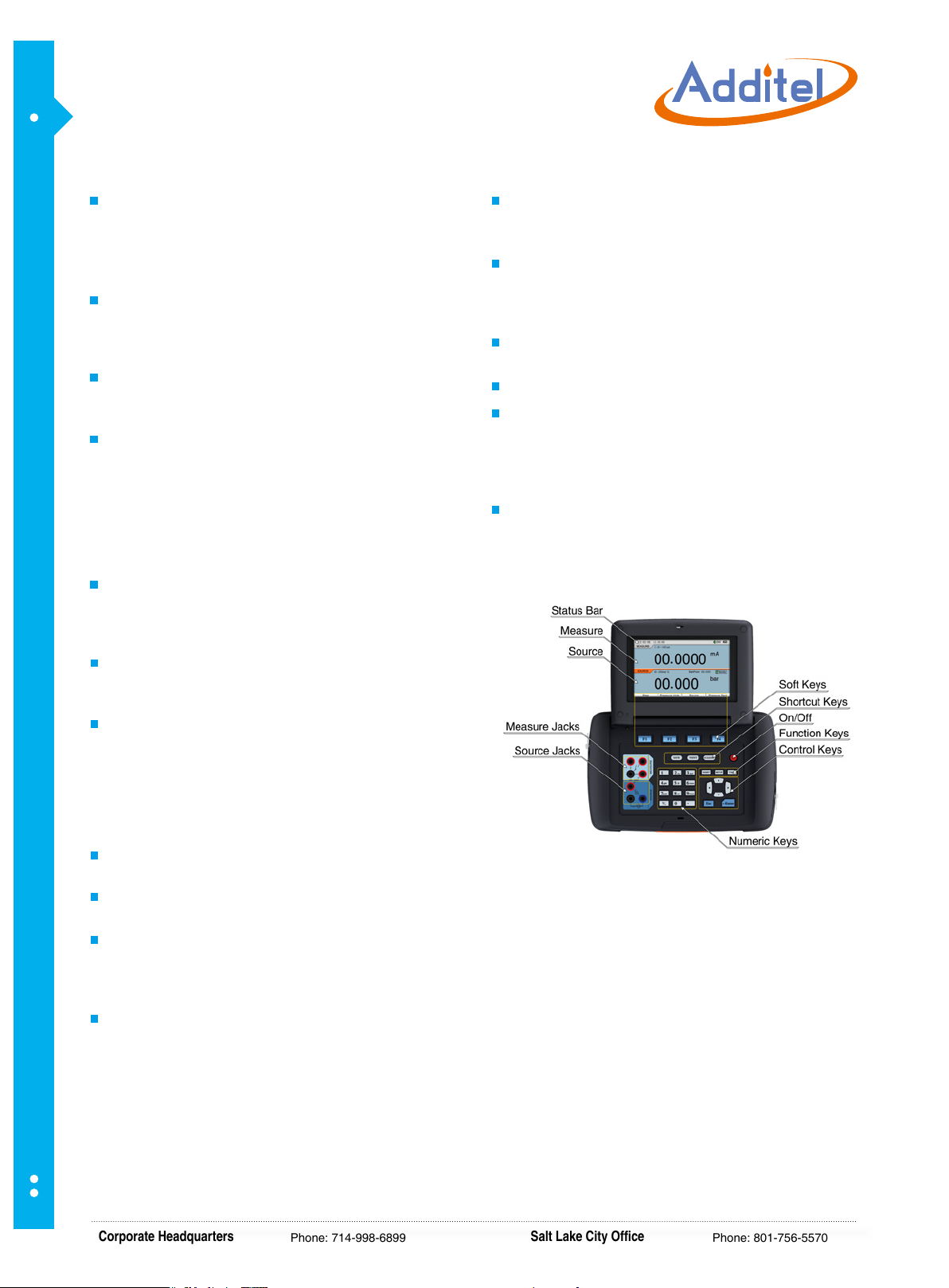

FEATURES
Pressure Range
Pressure generated by built-in pump and controlled
automatically from 90% vacuum to 600 psi (40 bar)
Pressure measured with external pressure modules (160
series) to 10,000 psi (700 bar)
Accuracy (Fully temperature compensated)
0.02%FS
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
0.05%FS (ADT761-LLP)
0.01%FS (ADT761-BP)
Control Stability
<0.005%FS
ADT761-LLP: < 0.05 Pa (0.0002 inH
Contamination prevention system
Built-in lter and liquid trap with venting system prevent
contamination of the calibrator
Solid particles can be blocked by built-in lter
A small amount of liquid can be collected by the built-in
liquid trap
Both solid particles and liquid can be blown out through
the venting system
Automation and Test Program
Fully Automated pressure calibration
Task preset and auto run
Auto step
Easy to Use
User friendly interface
Intuitive icon driven menu structure
Sourcing and Measuring electrical signals
Measure mA with 0.01% RD + 1.5μA accuracy
Measure V with 0.01% RD + 1.5mV accuracy
Source/sink 0 to 22mA current
24 VDC loop power supplied to pressure transmitter
during test
Automated switch test
Misuse Protection
Up to 30V misuse protection on any two sockets
Display
7" LCD color screen (800X480)
Documenting and data logging
Task management capability
Internal memory stores 200 tasks
Download tasks and upload results
HART Communication capability
Support HART instrumentation
2
O)
Rechargeable battery:
Rechargeable battery with up to 8 hours operation
between charges
Leak testing:
Apply leak test to an external pressure system to
determine the magnitude of pressure variations due to
leaks
Pipeline Protection: Special design the pipeline layout to
avoid possible blockage and leakage
Portable: Only 12.4 lb
Multi Lingual Interface
English, German, French, Italian, Spanish, Portuguese,
Simplied Chinese
(Traditional Chinese, Japanese and Russian are
available per request)
NIST Traceable: NIST traceable calibration with data
(included)
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 4
SPECIFICATIONS
Control Stability
<0.005%FS;
ADT761-LLP: < 0.05 Pa (0.0002 inH
Pressure Connections
Pressure connection: ADT761-L/M/H/LA/MA/HA
One ADT100-761 Hose Test Kit with quick connector
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
1/8 BSP Female on calibrator
Two 1/4NPT(or 1/2NPT, 1/4BSP, M20×1.5) female
hand-tight connectors on the external pressure manifold
Pressure connection: ADT761-LLP/BP
Stainless steel hose barb tting
External Pressure Module Connection
Accepts Intelligent Pressure Module
Electrical Connection
0.156 inch (Ø4mm) banana sockets
Documenting and data logging
Task management capability
Internal memory stores 200 tasks
Download tasks and upload results
Display
7" LCD color screen (800×480)
Display rate: 5 readings per second
Resolution 4, 5 or 6 digit, user selectable
Pressure Units
Pa, kPa, MPa, psi, bar, mbar, inH
mmH
O@4°C, inH2O@20°C, mmH2O@20°C,
2
inHg@0°C, mmHg@0°C, kgf/cm
BP)
Power
Battery: Rechargeable Li-ion Polymer battery (included)
Li-Battery working time: ~8 hours
Recharge time: ~3 hours
External Power: 110/220V Power adapter (DC 27 V)
(Included)
Environmental Specification:
Operating temperature: 32°F to 122°F (0°C to 50°C)
Compensated Temperature: 32°F to 122°F (0°C to
50°C)
Storage temperature: -20°C to 60°C
Humidity: <90%, non-condensing
European Compliance: CE Marked
Communication
RS232 (DB9/F, environmentally sealed)
Baud rate: 2400, 4800, 9600, 19200, 38400, 57600,
115200
Data length: 7 Bits, 8 Bits
Stop bit: 1 Bit, 2 Bits
Address: from 1 to 121
Dimension
11.65" X 7.32" X 7.09"(296mm X186mm X180mm)
Weight: 16.3 lb (7.4 kg)
Warranty: 18 months
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
O)
2
O@4°C,
2
2
, and hPa (ADT761-
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Task Manual
Built-in User's Manual
Pressure gauge / transmitter / switch calibration
Documenting
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 5
Additel 761
Automated Pressure Calibrators
SPECIFICATIONS
Pressure Ranges
Type Model Pressure Range
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Low/Differential
Pressure
Gauge Pressure
Gauge/Absolute
Pressure
Barometric pressure ADT761-BP 100 to 1,200 hPa 100 to 1,200 hPa 0.01%FS NA NA
* One year accuracy (including yearly stability) except ADT761-LLP which is 0.05%FS calibration accuracy and 0.05%FS yearly stability.
* * Additel 761 calibrators support 160 series intelligent digital pressure modules that are available for gauge, vacuum and absolute pressure
from -15 psi to 10,000 psi (-1 bar to 700 bar). Accuracy from 0.025%FS includes operation over 14°F to 122°F (-10°C to 50°C), one year
stability and calibration uncertainty. For detailed specication refer to 160 series pressure modules datasheet.
ADT761-LLP
ADT761-D
ADT761-L
ADT761-M
ADT761-H
ADT761-LA
ADT761-MA
ADT761-HA
-25 to 25 mbar
(-10 to 10 inH
-0.95 to 1 bar
(-13.5 to 15 psi)
-0.95 to 7 bar
(-13.5 to 100 psi)
-0.90 to 25 bar
(-13 to 375 psi)
-0.90 to 40 bar
(-13 to 600 psi)
-0.95 to 7 bar
(-13.5 to 100 psi)
0.05 to 8 bar.a
(1.2 to 115 psi.a)
-0.90 to 25 bar
(-13 to 375 psi)
0.1 to 26 bar.a
(1.7 to 390 psi.a)
-0.90 to 40 bar
(-13 to 600 psi)
0.1 to 41 bar.a
(1.7 to 615 psi.a)
O)
2
Pressure Module 1 Pressure Module 2
Range Accuracy Range Accuracy
-2.5 to 2.5 mbar
(-1 to 1 inH2O)
-25 to 25 mbar
(-10 to 10 inH
-0.95 to 2.5 bar
(-13.5 to 35 psi)
-0.9 to 2.5 bar
(-13 to 35 psi)
-0.9 to 2.5 bar
(-13 to 35 psi)
-0.95 to 2.5 bar
(-13.5 to 35 psi)
0.05 to 3.5 bar.a
(1.2 to 50 psi.a)
-0.9 to 2.5 bar
(-13 to 35 psi)
0.1 to 3.5 bar.a
(1.7 to 50 psi.a)
-0.9 to 2.5 bar
(-13 to 35 psi)
0.1 to 3.5 bar.a
(1.7 to 50 psi.a)
0.05%FS
O)
2
0.05%FS
0.02%FS
0.02%FS
0.02%FS
0.02%FS
0.03%FS
0.02%FS
0.03%FS
0.02%FS
0.03%FS
-25 to 25 mbar
(-10 to 10 inH2O)
-0.95 to 1 bar
(-13.5 to 15 psi)
0 to 7 bar
(0 to 100 psi)
0 to 25 bar
(0 to 375 psi)
0 to 40 bar
(0 to 600 psi)
-0.95 to 7 bar
(-13.5 to 100 psi)
0.05 to 8 bar.a
(1.2 to 115 psi.a)
-0.9 to 25 bar
(-13 to 375 psi)
0.1 to 26 bar.a
(1.7 to 390 psi.a)
-0.9 to 40 bar
(-13 to 600 psi)
0.1 to 41 bar.a
(1.7 to 615 psi.a)
0.05%FS
0.02%FS
0.02%FS
0.02%FS
0.02%FS
0.02%FS
0.025%FS
0.02%FS
0.025%FS
0.02%FS
0.025%FS
Electrical Measurement and Source Accuracy
Range Resolution Accuracy
Voltage Measurement ±30.0000V 0.1mV ±(0.01%RD + 1.5mV)
Current Measurement ±30.0000mA 0.1μA ±(0.01%RD + 1.5μA)
Current Source 0.000 to 22.000mA 1μA ±(0.02%RD + 2.2μA)
Switch Test If the switch has detective Voltage, the range is from 3V to 24V
DC 24V output 24V ± 0.5V, max: 50mA
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]

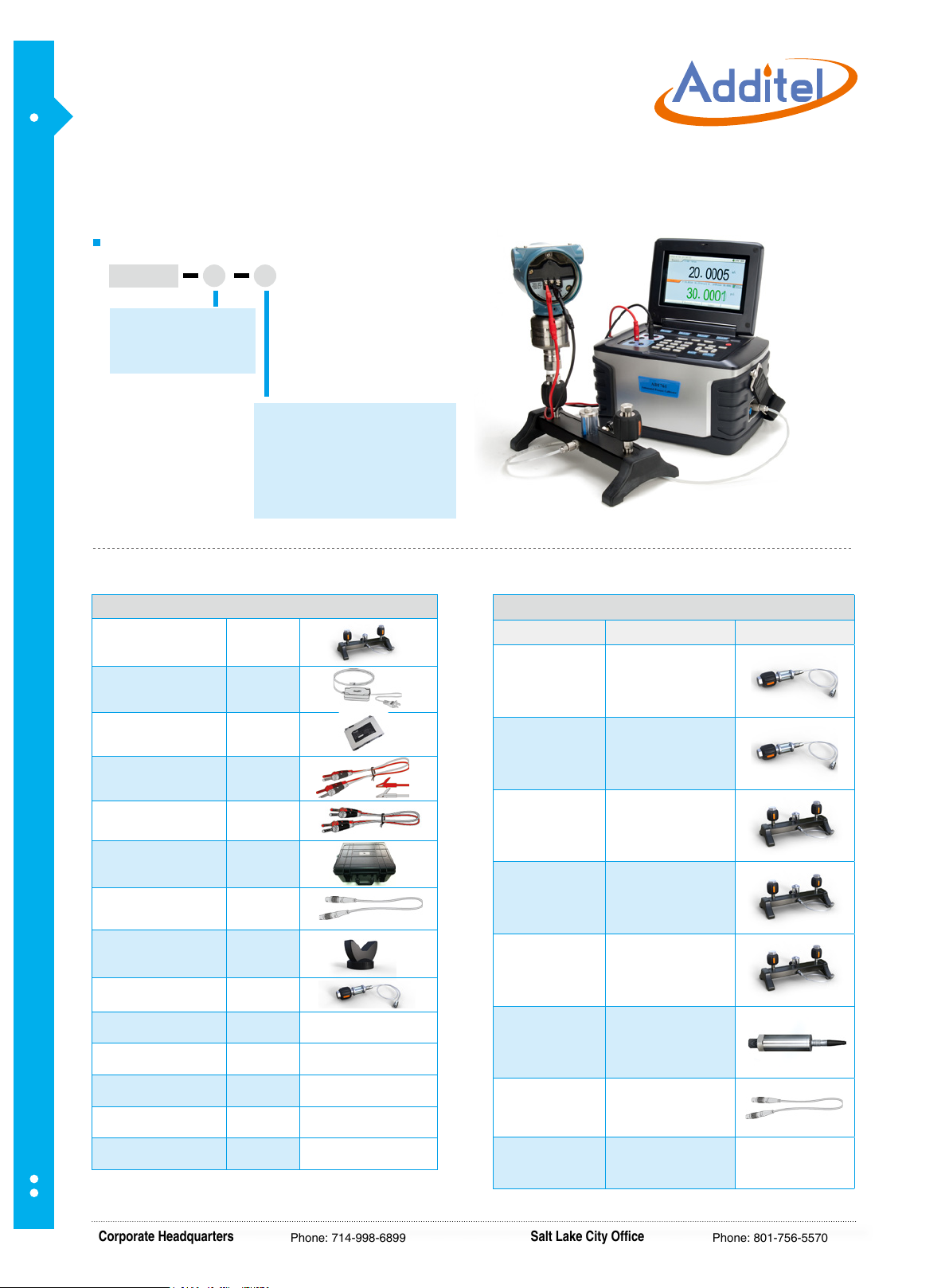

Page 6
Additel 761
Automated Pressure Calibrators
ORDERING INFORMATION
Model Number
ADT761 L N
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Pressure range:
See pressure range
table.
Accessories (included)
External Pressure
Manifold (ADT106)
(Except 761-LLP)
9818
110V/220V external
Power adapter
9722
Chargeable Li-ion
battery
Test Leads for calibrator
calibrator and accessory
DP gauge holder, rubber
9022
9020
Short circuit cable
9907
Carrying case for 761
9060
Pressure module
connection cable
9240
(Only for ADT761-LLP)
ADT100-761
(Except 761-LLP)
O-rings(Except 761-LLP) 20 pcs
Manual 1 pc
Pressure port type on External
Pressure Manifold:
N- 1/4NPT female
N2- 1/2NPT female
B- 1/4BSP female
M-M20X1.5 female
1 pc
1 pc
1 pc
2 sets
(4 pcs)
1 set
(2 pcs)
1 pc
1 pc
1 pc
1 pc
Optional Accessories
Model Number Description Picture
Hose Test Kit, 5 feet
ADT100-761-4N
ADT100-761-4B
ADT106-N
ADT106-B
ADT106-M
ADT160
exible hose, 0.156"
(Ø4mm) tube to 1/4NPT
hand-tight quick
connector
Hose Test Kit, 5 feet
exible hose, 0.156"
(Ø4mm) tube to 1/4BSP
hand-tight quick
connector
External Pressure
Manifold (with two
1/4NPT hand-tight quick
connectors)
External Pressure
Manifold (with two
1/4BSP hand-tight quick
connectors)
External Pressure
Manifold (with two
M20X1.5 hand-tight
quick connectors)
Pressure modules
(please check Additel
160 datasheet)
Allen wrench 1 set
Hose
(Except 761-LLP: 2 pcs)
NIST traceable
calibration certicate
* Additel/Land software could be downloaded for free at www.additel.com
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
1 pcs
1 pc
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
9060
9510
Pressure module
connection cable
Additel/Cal task
management software
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Loading...
