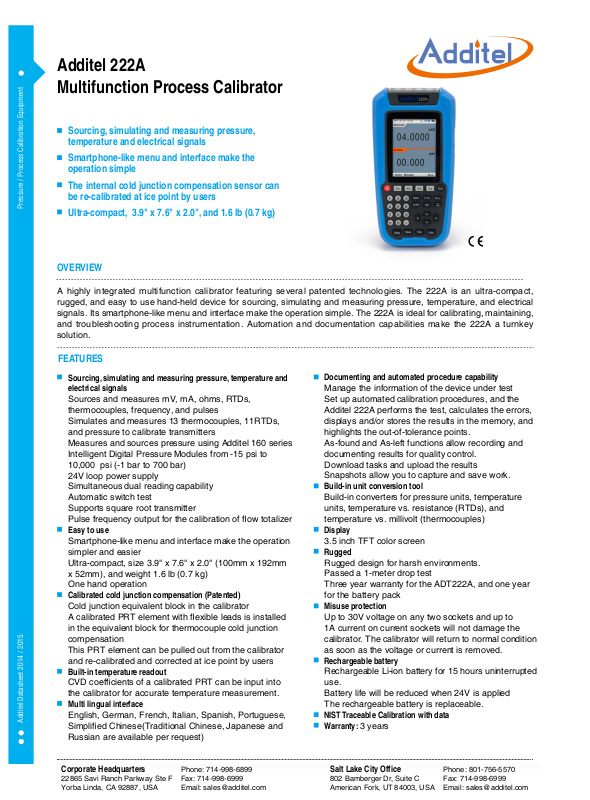

Page 1
Additel 222A
Multifunction Process Calibrator
Sourcing, simulating and measuring pressure,
temperature and electrical signals
Smartphone-like menu and interface make the
operation simple
The internal cold junction compensation sensor can
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
be re-calibrated at ice point by users
Ultra-compact, 3.9" x 7.6" x 2.0", and 1.6 lb (0.7 kg)
OVERVIEW
A highly integrated multifunction calibrator featuring several patented technologies. The 222A is an ultra-compact,
rugged, and easy to use hand-held device for sourcing, simulating and measuring pressure, temperature, and electrical
signals. Its smartphone-like menu and interface make the operation simple. The 222A is ideal for calibrating, maintaining,
and troubleshooting process instrumentation. Automation and documentation capabilities make the 222A a turnkey
solution.
FEATURES
Sourcing, simulating and measuring pressure, temperature and
electrical signals
Sources and measures mV, mA, ohms, RTDs,
thermocouples, frequency, and pulses
Simulates and measures 13 thermocouples, 11RTDs,
and pressure to calibrate transmitters
Measures and sources pressure using Additel 160 series
Intelligent Digital Pressure Modules from -15 psi to
10,000 psi (-1 bar to 700 bar)
24V loop power supply
Simultaneous dual reading capability
Automatic switch test
Supports square root transmitter
Pulse frequency output for the calibration of ow totalizer
Easy to use
Smartphone-like menu and interface make the operation
simpler and easier
Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm
x 52mm), and weight 1.6 lb (0.7 kg)
One hand operation
Calibrated cold junction compensation (Patented)
Cold junction equivalent block in the calibrator
A calibrated PRT element with exible leads is installed
in the equivalent block for thermocouple cold junction
compensation
This PRT element can be pulled out from the calibrator
and re-calibrated and corrected at ice point by users
Built-in temperature readout
CVD coefcients of a calibrated PRT can be input into
the calibrator for accurate temperature measurement.
Multi lingual interface
English, German, French, Italian, Spanish, Portuguese,
Simplied Chinese(Traditional Chinese, Japanese and
Russian are available per request)
Documenting and automated procedure capability
Manage the information of the device under test
Set up automated calibration procedures, and the
Additel 222A performs the test, calculates the errors,
displays and/or stores the results in the memory, and
highlights the out-of-tolerance points.
As-found and As-left functions allow recording and
documenting results for quality control.
Download tasks and upload the results
Snapshots allow you to capture and save work.
Build-in unit conversion tool
Build-in converters for pressure units, temperature
units, temperature vs. resistance (RTDs), and
temperature vs. millivolt (thermocouples)
Display
3.5 inch TFT color screen
Rugged
Rugged design for harsh environments.
Passed a 1-meter drop test
Three year warranty for the ADT222A, and one year
for the battery pack
Misuse protection
Up to 30V voltage on any two sockets and up to
1A current on current sockets will not damage the
calibrator. The calibrator will return to normal condition
as soon as the voltage or current is removed.
Rechargeable battery
Rechargeable Li-ion battery for 15 hours uninterrupted
use.
Battery life will be reduced when 24V is applied
The rechargeable battery is replaceable.
NIST Traceable Calibration with data
Warranty: 3 years
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 2
APPLICATIONS
The 222A multifunction calibrator is a process tool for measuring, sourcing and simulating mA, mV, V, RTDs,
thermocouples, ohms, frequency, pulses and pressure, captures switch values and provides 24 V loop power.
Electrical
Resistance measurement / simulation
Voltage measurement / generation
Current measurement /generation
Frequency measurement / generation
Pulse counting/generation
24 VDC loop supply
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Switch sensing
SPECIFICATIONS
Electrical Specifications
Measurement Accuracy
Voltage DC
Current DC ± 30.0000 mA 0.1μA 0.01%RD + 1.5 μA
Two-wire 0 to 400.000 Ω 1mΩ 0.02%RD + 0.02 Ω
Three-wire 0 to 400.000 Ω 1mΩ 0.02%RD + 0.02 Ω
Resistance
Source Accuracy
Voltage DC
Current DC 0 to 22.000 mA 1μA 0.02%RD + 1.1 μA
Resistance
Frequency 0 to 50000.0 Hz 0.1Hz 0.005%RD + 1 Hz
Environmental Specifications
Safety Specifications
Mechanical Specifications
Electrical Connection Ø4mm sockets and at mini-jack thermocouple socket
Safety Specifications
The 160 series Intelligent Digital Pressure Modules are available for
gauge, vacuum and absolute pressure from -15 psi to 10,000 psi (-1 bar to
700 bar). Accuracy from 0.025% FS includes operation over 14°F to 122°F
(-10°C to 50°C), one year stability and calibration uncertainty. For detail
specication refer to pressure modules datasheet.
Four-wire 0 to 400.000 Ω 1mΩ 0.01%RD + 0.02 Ω
Two-wire 0 to 4000.00 Ω 10mΩ 0.02%RD + 0.2 Ω
Three-wire 0 to 4000.00 Ω 10mΩ 0.02%RD + 0.2 Ω
Four-wire 0 to 4000.00 Ω 10mΩ 0.01%RD + 0.2 Ω
Frequency 1 to 50000.0 Hz 0.1Hz 0.005%RD + 1 Hz
Pulse 0 to 999999 1 N/A
Limit Switch
Pulse 0 to 999999 1 N/A
DC24V N/A N/A 0.5V
General Specifications
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Humidity <90%, non-condensing
European Compliance CE Mark
Display 3.5 inch TFT color screen
RS232 Interface Standard RS232-DB9 socket
Size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm)
Weight 1.6 lb (0.7 kg)
Power Supply
Battery Rechargeable Li-ion battery (included)
Battery Life
Battery Charge 110V/220V external power adapter (included)
Range Resolution Accuracy
±75.0000 mV 0.1μV 0.01%RD + 3.75 μV
±30.0000 V 0.1 mV 0.01%RD + 15 μV
For the contact with potential, the voltage within the
range 3V to 24V.
-10.000 to 75.000mV 1μV 0.02%RD + 4.25 μV
0 to 12.0000 V 0.1mV 0.02%RD + 0.6 mV
1 to 400.00 Ω 10mΩ 0.02%RD + 0.02 Ω
1 to 4000.0 Ω 100mΩ 0.03%RD + 0.4 Ω
Polymer Li-ion rechargeable battery,or 10V DC
15 hours uninterrupted use
Battery life will be reduced when 24V is applied
adaptor
Temperature
RTD measurement /simulation
TC measurement /simulation
Pressure
Gauge pressure measurement
Absolute pressure measurement
Temperature Specification
Thermocouple Measurement and Source Accuracy
Measure
and Simulate
Standard Temperature Range(
S IEC 584
R IEC 584
B IEC 584 0 to 1820
K IEC 584
N IEC 584
E IEC 584
J IEC 584
T IEC 584
C
D
G
L DIN43710
U DIN43710
ASTM
E988
ASTM
E988
ASTM
E1751
-50 to
1768
-50 to
1768
-270 to
1372
-270 to
1300
-270 to
1000
-270 to
1200
-270 to
400
0 to 2315
0 to 2320
0 to 2315
-200 to
900
-200 to
600
o
C)
-50 to 400 1.0 1.1
400 to 1000 0.6 0.6
1000 to 1768 0.7 0.8
-50 to 200 1.4 1.4
200 to 500 0.6 0.6
500 to 1768 0.6 0.7
50 to 450 3.8 3.8
450 to 800 0.9 0.9
800 to 1820 0.7 0.7
-250 to -200 1.0 1.1
-200 to -100 0.4 0.5
-100 to 600 0.3 0.3
600 to 1372 0.4 0.5
-250 to -200 1.5 1.6
-200 to -100 0.5 0.6
-100 to 1300 0.4 0.5
-250 to -200 0.6 0.7
-200 to -100 0.3 0.3
-100 to 0 0.2 0.2
0 to 700 0.2 0.3
700 to 1000 0.2 0.4
-210 to -100 0.3 0.3
-100 to 1200 0.3 0.4
-250 to -200 0.8 0.9
-200 to 0 0.4 0.4
0 to 400 0.2 0.2
0 to 1000 0.5 0.5
1000 to 1800 0.7 0.9
1800 to 2315 1.0 1.4
0 to 100 0.5 0.5
100 to 1100 0.4 0.5
1100 to 2000 0.6 0.9
2000 to 2320 0.9 1.3
0 to 200 2.4 2.4
200 to 400 0.5 0.5
400 to 1400 0.4 0.5
1400 to 2315 0.7 1.0
-200 to -100 0.2 0.3
-100 to 400 0.2 0.2
400 to 900 0.2 0.3
-200 to 0 0.4 0.4
0 to 600 0.2 0.3
o
Accuracy(
Measure Source
C)
Corporate Headquarters
22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA
Phone: 714-998-6899
Fax: 714-998-6999
Email: [email protected]
Salt Lake City Office
802 Bamberger Dr, Suite C
American Fork, UT 84003, USA
Phone: 801-756-5570
Fax: 714-998-6999
Email: [email protected]
Page 3
Additel 222A
Multifunction Process Calibrator
SPECIFICATIONS
Measurement Accuracy
Measure and Simulate Standard Temperature Range (°C)
Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015
Pt10(385) IEC 751 -200 to 850
Pt100(385) IEC 751 -200 to 850
Pt100(3916) JIS 1604 -200 to 850
Pt100(3926) Minco Application Aid #18 -200 to 850
Pt500(385) IEC 751 -200 to 850
Pt1000(385) IEC 751 -200 to 850
Cu10(427) Minco Application Aid #18 -100 to 260 -100 to 260 0.61 0.56 0.61
Accuracy (°C)
Measure (2W/3W) Measure (4W) Source
-100 to 200 0.65 0.60 0.65
200 to 600 0.82 0.72 0.82
600 to 850 0.96 0.82 0.96
-100 to 200 0.15 0.1 0.15
200 to 600 0.26 0.16 0.26
600 to 850 0.34 0.20 0.34
-100 to 200 0.15 0.1 0.15
200 to 600 0.26 0.16 0.26
600 to 850 0.33 0.20 0.33
-100 to 200 0.15 0.1 0.15
200 to 600 0.26 0.16 0.26
600 to 850 0.33 0.20 0.33
-100 to 200 0.20 0.16 0.36
200 to 600 0.32 0.22 0.54
600 to 850 0.40 0.27 0.67
-100 to 200 0.1 0.05 0.25
200 to 600 0.2 0.10 0.42
600 to 850 0.27 0.14 0.54
Cu50(428) GOST 6651-94 -50 to 150 -50 to 150 0.17 0.13 0.17
Cu100(428) GOST 6651-94 -50 to 150 -50 to 150 0.12 0.09 0.12
Ni120(672) Edison curve #7 -100 to 260 -100 to 260 0.07 0.05 0.07
Ni100(618) DIN 43760 -100 to 260 -100 to 260 0.08 0.06 0.08
ORDERING INFORMATION
Model Number
Additel 222A
Accessories (included)
110V/220V external power adapter 1 pc
Chargeable Li-ion battery 1 pc
Test leads 3 sets(6 pcs)
Short circuit cable 1 sets(2 pcs)
9060 Pressure module connection cable 1 pc
Manual 1 pc
NIST traceable calibration certicate 1 pc
* Additel/Land software can be downloaded for free at www.additel.com
Optional Accessories
Model number Description
ADT160 Intelligent Digital Pressure Modules
9060 Pressure module connection cable
9050 USB to RS232 (DB-9 Male) Adapter
9080
9712
9816
9906 Carrying case for multifunction calibrator
9510
Cable kit (including TC plug, compensation cable,
S,R,B,K,J,T,E,N)
Spare chargeable Li-ion battery for multifunction
calibrator
110V/220V external power adapter for multifunction
calibrator
Additel/Cal Task management software for multifunction
calibrator
