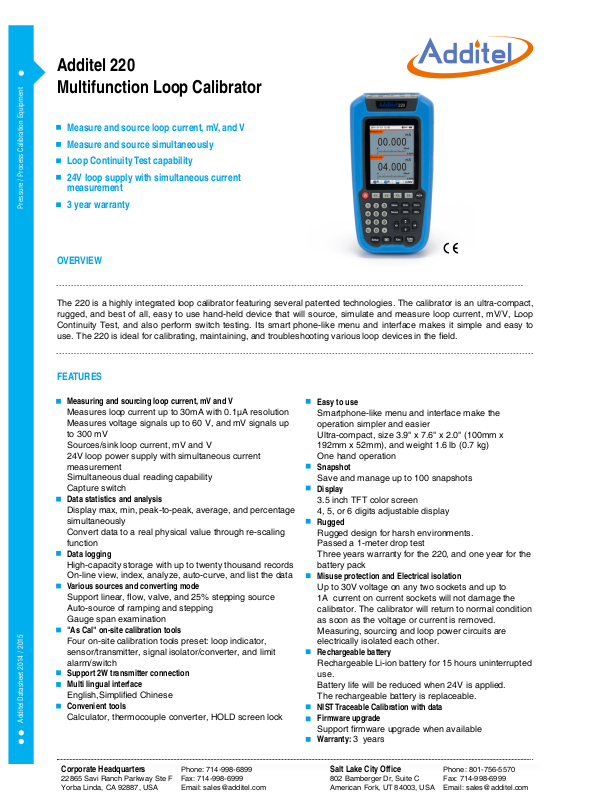

Additel 220 Datasheet

Additel 220
Multifunction Loop Calibrator

Measure and source loop current, mV, and V

Measure and source simultaneously

Loop Continuity Test capability

24V loop supply with simultaneous current
measurement

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

3 year warranty

OVERVIEW

The 220 is a highly integrated loop calibrator featuring several patented technologies. The calibrator is an ultra-compact,
rugged, and best of all, easy to use hand-held device that will source, simulate and measure loop current, mV/V, Loop
Continuity Test, and also perform switch testing. Its smart phone-like menu and interface makes it simple and easy to

use. The 220 is ideal for calibrating, maintaining, and troubleshooting various loop devices in the eld.

FEATURES

Measuring and sourcing loop current, mV and V

Measures loop current up to 30mA with 0.1µA resolution
Measures voltage signals up to 60 V, and mV signals up
to 300 mV
Sources/sink loop current, mV and V
24V loop power supply with simultaneous current
measurement
Simultaneous dual reading capability
Capture switch

Data statistics and analysis

Display max, min, peak-to-peak, average, and percentage
simultaneously
Convert data to a real physical value through re-scaling
function

Data logging

High-capacity storage with up to twenty thousand records
On-line view, index, analyze, auto-curve, and list the data

Various sources and converting mode

Support linear, ow, valve, and 25% stepping source

Auto-source of ramping and stepping
Gauge span examination

"As Cal" on-site calibration tools

Four on-site calibration tools preset: loop indicator,
sensor/transmitter, signal isolator/converter, and limit
alarm/switch

Support 2W transmitter connection
Multi lingual interface

English,Simplied Chinese

Convenient tools

Calculator, thermocouple converter, HOLD screen lock

Easy to use

Smartphone-like menu and interface make the
operation simpler and easier
Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x
192mm x 52mm), and weight 1.6 lb (0.7 kg)
One hand operation

Snapshot

Save and manage up to 100 snapshots

Display

3.5 inch TFT color screen
4, 5, or 6 digits adjustable display

Rugged

Rugged design for harsh environments.
Passed a 1-meter drop test
Three years warranty for the 220, and one year for the
battery pack

Misuse protection and Electrical isolation

Up to 30V voltage on any two sockets and up to
1A current on current sockets will not damage the
calibrator. The calibrator will return to normal condition
as soon as the voltage or current is removed.
Measuring, sourcing and loop power circuits are
electrically isolated each other.

Rechargeable battery

Rechargeable Li-ion battery for 15 hours uninterrupted
use.
Battery life will be reduced when 24V is applied.
The rechargeable battery is replaceable.

NIST Traceable Calibration with data
Firmware upgrade

Support rmware upgrade when available

Warranty: 3 years

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Salt Lake City Office

802 Bamberger Dr, Suite C
American Fork, UT 84003, USA

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Additel 220

Multifunction Loop Calibrator

APPLICATIONS

The 220 loop calibrator is a process tool for measuring, sourcing and simulating mA, mV and V, captures switch values
and provides 24V loop power. It is a high performance solution for calibration, repair and maintenance of various loops
devices, Loop Continuity Test, and switch capture.

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

SPECIFICATIONS ORDERING INFORMATION

Electrical Specifications

Measurement Accuracy

Voltage DC

Current DC -30.0000 to 30.0000 mA 0.1µA 0.01%RD+1.5µA

Loop

Continuity

Switch Test

Source Accuracy

Voltage DC

Current DC 0 to 22.000 mA 1µA 0.02%RD+1.1µA

DC24V N/A N/A 0.5V

General Specifications

Environmental Specifications

Temperature

Storage Temperature -20°C to 60°C

Safety Specifications

Compliance

-300.000 to 300.000 mV 1µV 0.01%RD+15µV

For the contact with potential, the voltage within the range
3V to 24V.

Operating

Humidity <90%, non-condensing

European

Range Resolution Accuracy

-60.0000 to 60.0000 V 0.1mV 0.01%RD+3mV

0 to 2000.0 ohm 0.1 Ω 0.02%RD+0.2 Ω

-10.00 to 200.00 mV 0.01mV 0.02%RD+10.5µV

0 to 12.000 V 1mV 0.02%RD+0.6mV

-10°C to 50°C

CE Mark

Model Number
ADT220

Accessories (included)

110V/220V external power adapter 1 pc

Chargeable Li-ion battery 1 pc

Test leads 2 sets(4 pcs)

Short circuit cable 1 sets(2 pcs)

Manual 1 pc

NIST traceable calibration certicate 1 pc

* Additel/Land software could be downloaded for free at www.additel.com

Optional Accessories

Model number Description

9050 USB to RS232 (DB-9 Male) Adapter

9712

9816

9906 Carrying case for multifunction calibrator

Spare chargeable Li-ion battery for multifunction
calibrator

110V/220V external power adapter for multifunction
calibrator

Mechanical Specifications

Display 3.5 inch TFT color screen

Electrical Connection

RS232 Interface Standard RS232-DB9 socket

Size 3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm)

Weight 1.6 lb (0.7 kg)

Power Supply

Battery Rechargeable Li-ion battery (included)

Battery Life

Battery Charge 110V/220V external power adapter (included)

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Ø4mm sockets and at mini-jack thermocouple

Polymer Li-ion rechargeable battery,or 10V DC

Battery life will be reduced when 24V is applied

15 hours uninterrupted use

socket

adaptor
