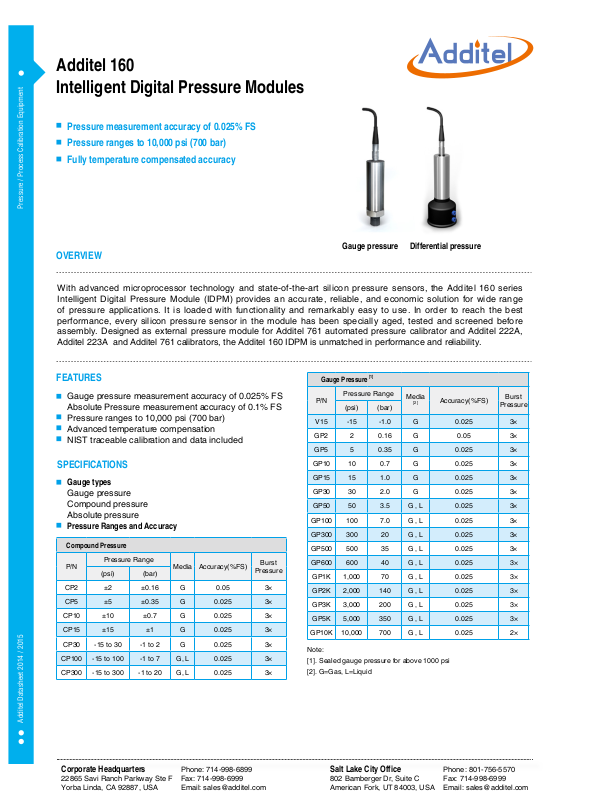

Additel 160 Datasheet

Additel 160
Intelligent Digital Pressure Modules

Pressure measurement accuracy of 0.025% FS

Pressure ranges to 10,000 psi (700 bar)

Fully temperature compensated accuracy

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

OVERVIEW

Gauge pressure Differential pressure

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160 series
Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range
of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best
performance, every silicon pressure sensor in the module has been specially aged, tested and screened before
assembly. Designed as external pressure module for Additel 761 automated pressure calibrator and Additel 222A,
Additel 223A and Additel 761 calibrators, the Additel 160 IDPM is unmatched in performance and reliability.

FEATURES

Gauge pressure measurement accuracy of 0.025% FS
Absolute Pressure measurement accuracy of 0.1% FS
Pressure ranges to 10,000 psi (700 bar)
Advanced temperature compensation
NIST traceable calibration and data included

SPECIFICATIONS

Gauge types

Gauge pressure
Compound pressure
Absolute pressure

Pressure Ranges and Accuracy

Compound Pressure

P/N

CP2 ±2 ±0.16 G 0.05 3×

CP5 ±5 ±0.35 G 0.025 3×

CP10 ±10 ±0.7 G 0.025 3×

CP15 ±15 ±1 G 0.025 3×

CP30 -15 to 30 -1 to 2 G 0.025 3×

CP100 -15 to 100 -1 to 7 G, L 0.025 3×

CP300 -15 to 300 -1 to 20 G, L 0.025 3×

Pressure Range

(psi) (bar)

Media Accuracy(%FS)

Pressure

Burst

Gauge Pressure

P/N

V15 -15 -1.0 G 0.025 3×

GP2 2 0.16 G 0.05 3×

GP5 5 0.35 G 0.025 3×

GP10 10 0.7 G 0.025 3×

GP15 15 1.0 G 0.025 3×

GP30 30 2.0 G 0.025 3×

GP50 50 3.5 G , L 0.025 3×

GP100 100 7.0 G , L 0.025 3×

GP300 300 20 G , L 0.025 3×

GP500 500 35 G , L 0.025 3×

GP600 600 40 G , L 0.025 3×

GP1K 1,000 70 G , L 0.025 3×

GP2K 2,000 140 G , L 0.025 3×

GP3K 3,000 200 G , L 0.025 3×

GP5K 5,000 350 G , L 0.025 3×

GP10K 10,000 700 G , L 0.025 2×

Note:

[1]. Sealed gauge pressure for above 1000 psi

[2]. G=Gas, L=Liquid

[1]

Pressure Range

(psi) (bar)

Media

[2]

Accuracy(%FS)

Burst

Pressure

Corporate Headquarters

22865 Savi Ranch Parkway Ste F
Yorba Linda, CA 92887, USA

Phone: [phone]
Fax: [phone]
Email: [e-mail]

Salt Lake City Office

802 Bamberger Dr, Suite C
American Fork, UT 84003, USA

Phone: [phone]
Fax: [phone]
Email: [e-mail]

SPECIFICATIONS

Absolute Pressure

P/N

AP5 5 0.35 G 0.1 3×

AP10 10 0.7 G 0.1 3×

AP15 15 1.0 G 0.1 3×

Pressure / Process Calibration EquipmentAdditel Datasheet 2014 / 2015

AP30 30 2.0 G 0.1 3×

AP50 50 3.5 G 0.1 3×

AP100 100 7.0 G , L 0.1 3×

AP300 300 20 G , L 0.1 3×

AP500 500 35 G , L 0.1 3×

AP1K 1,000 70 G , L 0.1 3×

AP3K 3,000 200 G , L 0.1 3×

AP5K 5,000 350 G , L 0.1 3×

Pressure Range

(psi) (bar)

Media Accuracy(%FS)

Burst

Pressure

Additel 223A with ADT160 Pressure Module

Differential Pressure

Pressure Range

P/N

(inH

0) (mbar)

2

DP1 ±1 ±2.5 G 0.05 100× ±10 psi

DP2 ±2 ±5.0 G 0.05 100× ±10 psi

DP5 ±5 ±10 G 0.05 50× ±10 psi

DP10 ±10 ±25 G 0.05 20× ±10 psi

DP20 ±20 ±50 G 0.05 20× ±10 psi

DP30 ±30 ±75 G 0.05 20× ±10 psi

DP50 ±50 ±160 G 0.05 3× ±10 psi

DP150 ±150 ±350 G 0.025 3× 50 psi

DP300 ±300 ±700 G 0.025 3× 50 psi

* One year accuracy (including yearly stability) except DP1 and DP2
range which is 0.05%FS calibration accuracy and 0.05%FS yearly
stability.

Media

Accuracy

(%FS)

Burst

Pressure

Static

Pressure

Range

Environmental

Compensated Temperature: 14°F to 122°F(-10°C to

°

50

C )
Operating Temperature: 14°F to 122°F(-10C to 50C )
Storage Temperature: -4°F to 158°F (-20°C to 70°C )
Humidity: <95%

Pressure Connections

1/4NPT male, 1/4BSP male, M20X1.5 male
Other Connections available per request

Enclosure

Case material: SS
Wetted parts: 316L SS
Dimension: Ø1.3" x 4.84" (Ø33mm x 123mm)
Weight: 0.99 lb (0.4kg)

ORDERING INFORMATION

Model Number

ADT160 GP300 PSI N02

Model

Accuracy:

02-0.025% of full scale
05-0.05% of full scale
10-0.1% of full scale

Pressure range P/N:

See pressure range table

Accessories included

NIST Traceable Calibration Certicate

Optional Accessories

Model

number

Description Picture

Range type:

PSI - range by psi
BAR - range by bar

Pressure port type:

N – 1/4NPT male
N2 - 1/2NPT male
B -1/4BSP male
M- M20 X 1.5 male

Warranty: 1 Year
