AdderLink XD150FX
Experts in
Connectivity
Solutions
Extender
Solutions
User Guide
Contents
Introduction
Welcome ................................................................................................................ 2
AdderLink XD150FX features ..........................................................................3
Supplied items ....................................................................................................... 4
Optional extras .....................................................................................................5
Installation
Locations ................................................................................................................ 6
Connections .......................................................................................................... 6
Fiber optic link ................................................................................................ 7

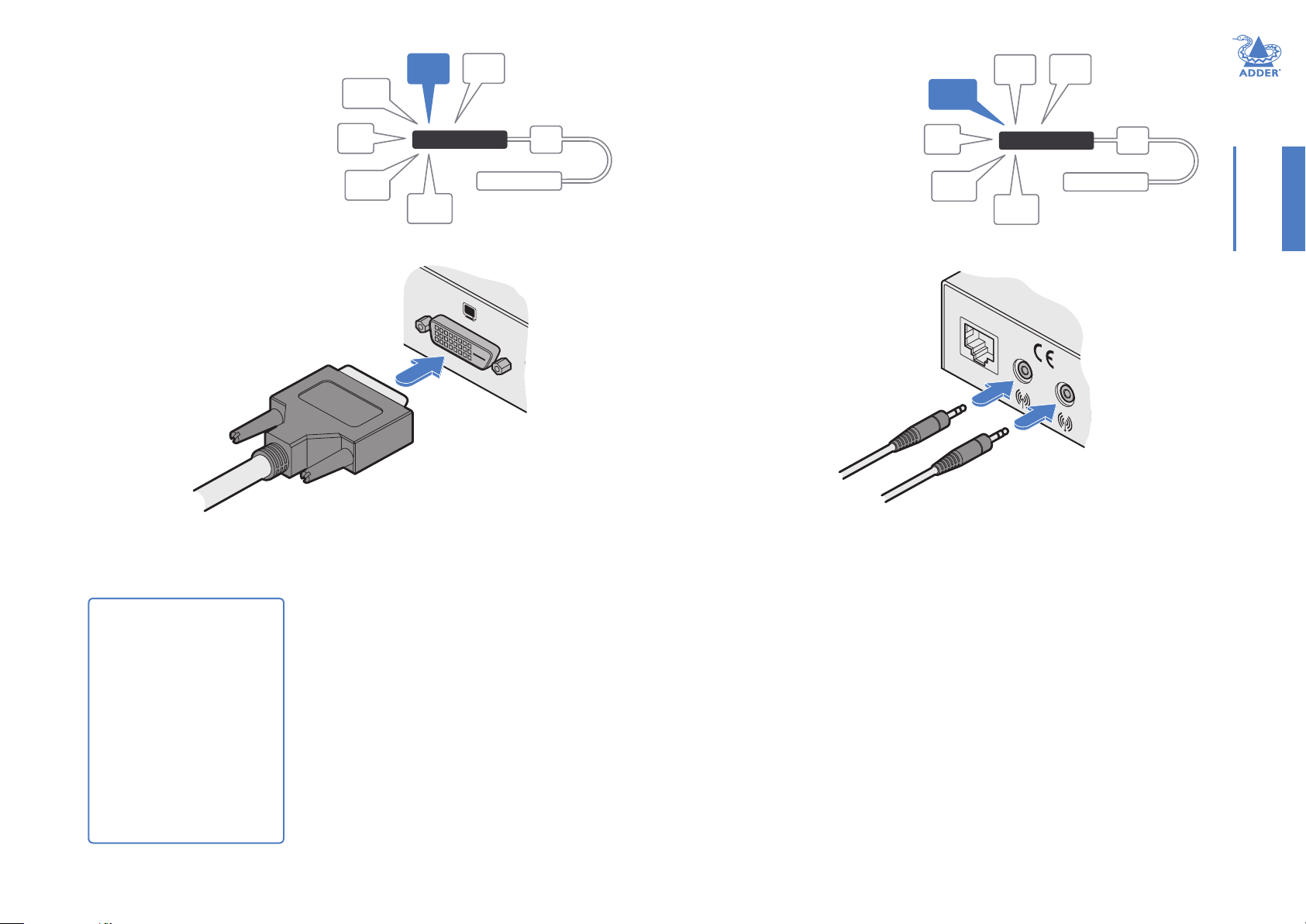

Transmitter video link ...................................................................................8
Transmitter audio links .................................................................................8
Transmitter USB link .....................................................................................9
Transmitter serial link ....................................................................................9
Transmitter management port link ..........................................................10

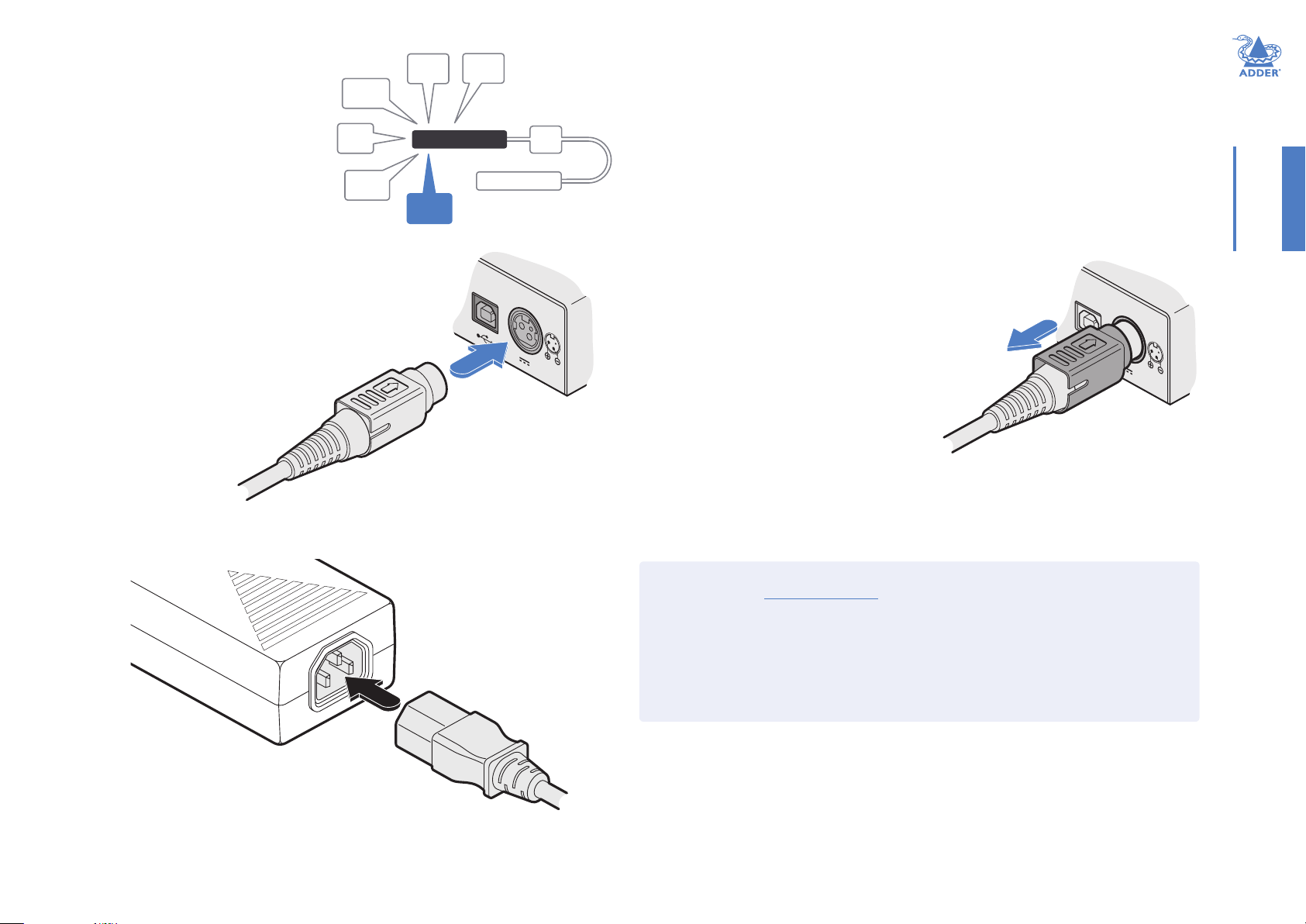

Transmitter power connection .................................................................11
Receiver video display .................................................................................12
EDID management .................................................................................12
Receiver audio devices ................................................................................12
Receiver USB devices ..................................................................................13
Receiver serial link .......................................................................................13
Receiver power connection .......................................................................14
Conguration
Accessing the management application .........................................................15

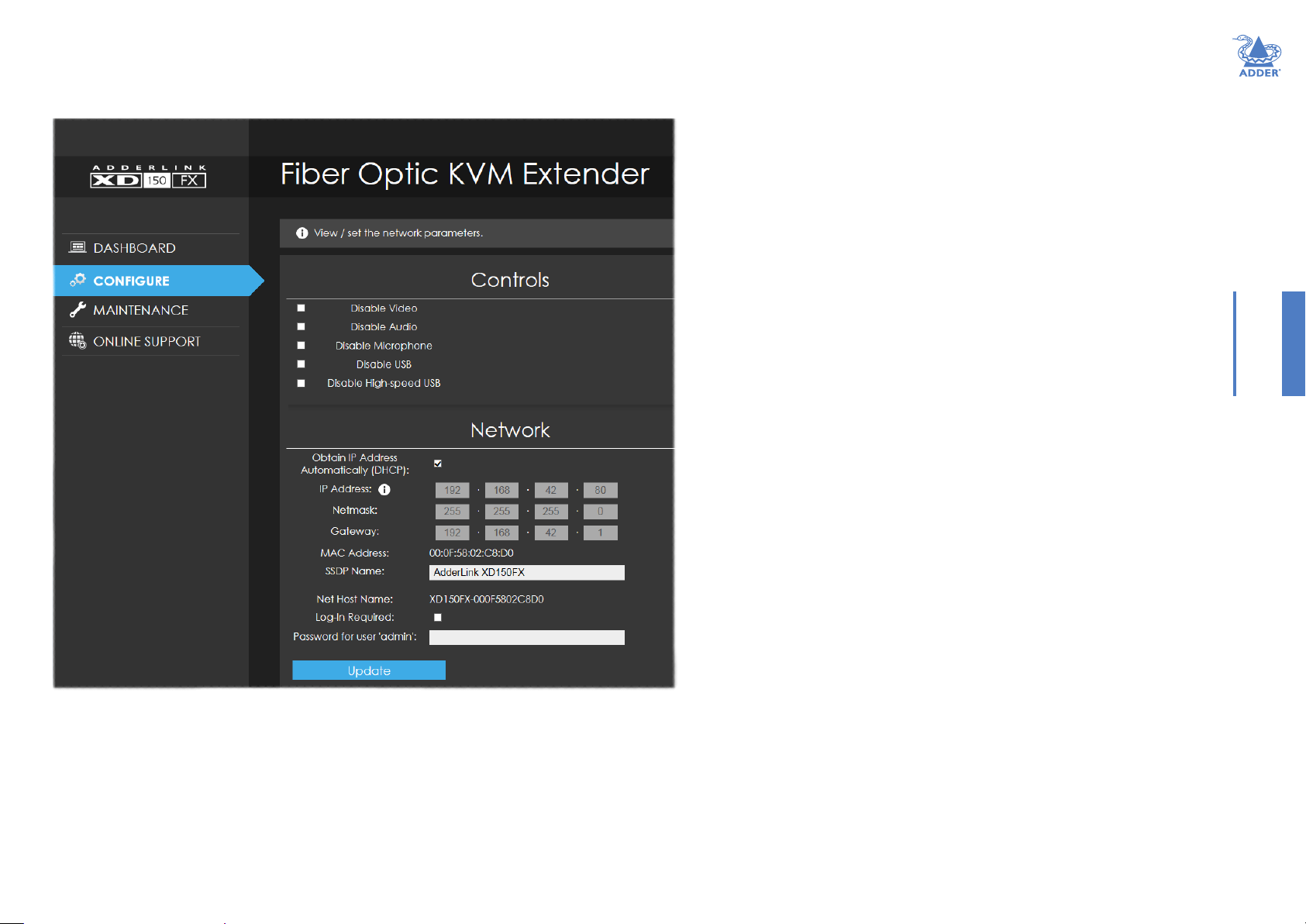

The Congure page .....................................................................................16

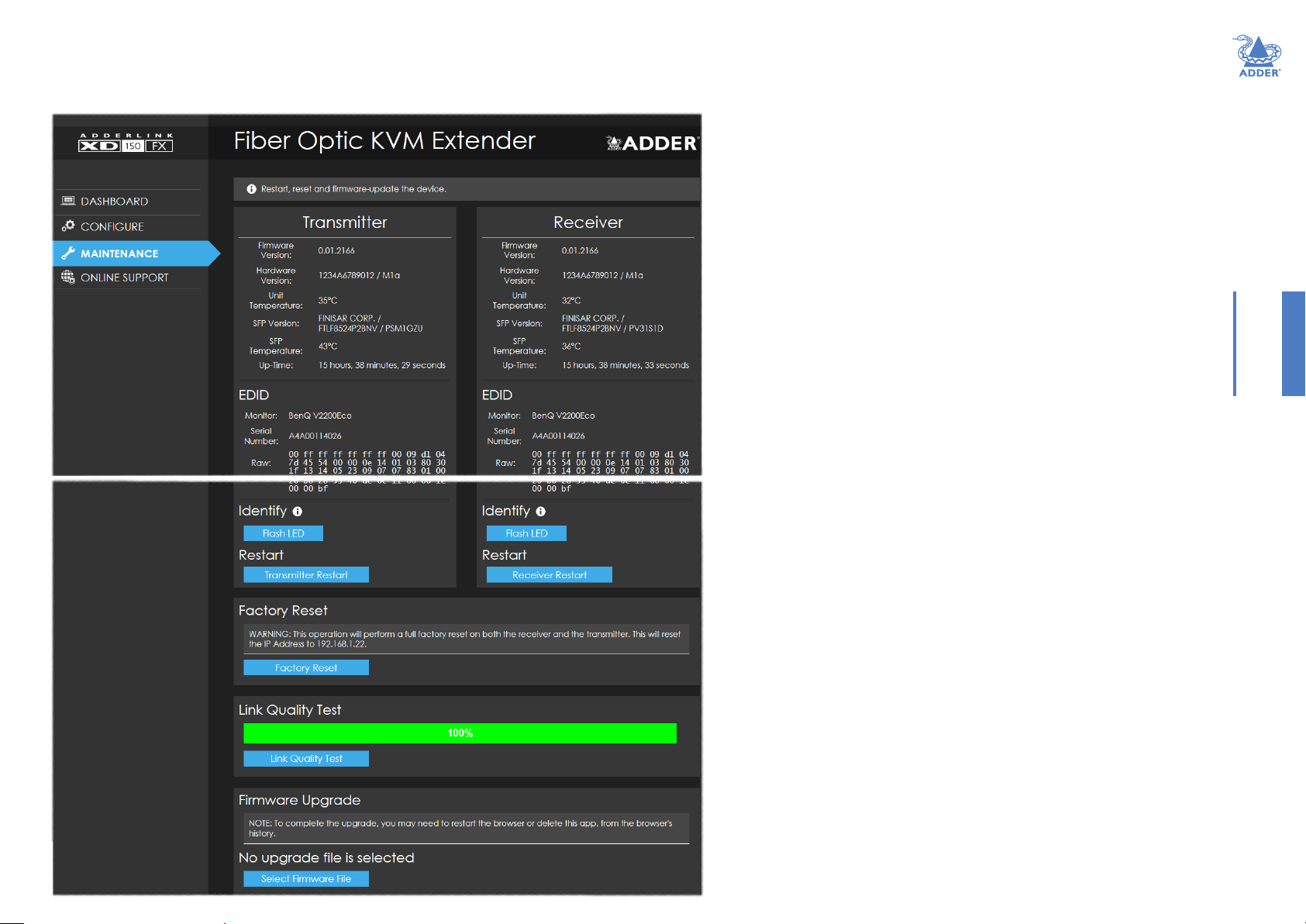

The Maintenance page ................................................................................17
Operation
Indicators .............................................................................................................18

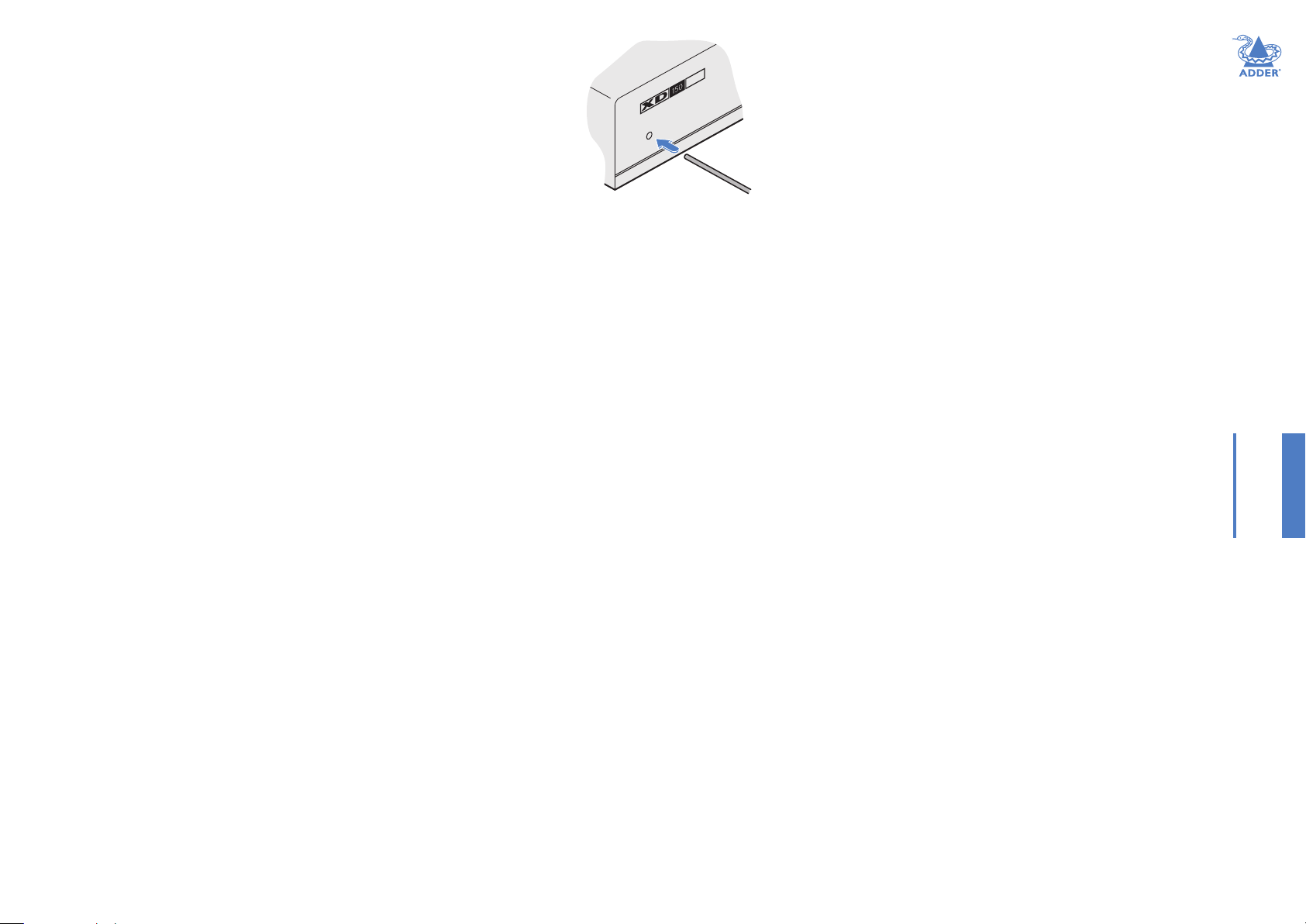

Resetting a module ............................................................................................19
Further information
Getting assistance ..............................................................................................20
Appendix 1 - Options port pin-out ...............................................................21
Appendix 2 - Open source licenses ...............................................................22
Warranty ..................................................... .........................................................23
Safety information ..............................................................................................23
Radio frequency energy ....................................................................................24
Index
INSTALLATION
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
1
Introduction
WELCOME
Thank you for choosing the AdderLink XD150FX extender modules. Using ber optic
links, these compact modules allow you to transfer the multiple connections listed
below up to 4 kilometers from a host computer (see Transmission distances on the
right).
The high grade screening employed within the metal cased enclosures combined with
the immunity from interference of the ber optic links make the AdderLink XD150FX
modules highly suitable for use in ‘noisy’ industrial environments.
AdderLink XD150FX extender modules provide support for:
• High quality single- or dual-link DVI digital video (up to 2560 x 2048 @60Hz),
• USB keyboard and mouse plus two other USB devices (up to USB 2.0),
• An RS232 serial device at speeds up to 115200 baud,
• Mono microphone,
• Stereo speakers,
• Line-level audio in/out connections.
Transmission distances
The choice of ber used with the AdderLink XD150FX modules has a considerable
effect on the distance over which operation can take place. Using multi-mode ber you
can achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and
accompanying SFP modules), the achievable maximum distance is increased to 4km (2.5
miles):
Distance Fiber type Fiber color code SFP module SFP bar color
70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-4G Black
150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-4G Black
380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-4G Black
400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-4G Black
4km OS1 (TIA-492C000) Yellow SFP-SM-LC-4G Blue
OS2 (TIA-492E000) Yellow SFP-SM-LC-4G Blue
SFP bar
color
INSTALLATION
CONFIGURATIONOPERATION
Transmitter
XD150FX
Transmitter
module
The AdderLink XD150FX extender modules
are totally transparent in operation, leaving
you free to use your computer as though
you’re still sitting next to it.
Fiber optic link
(up to 4km)
Fiber
color
Receiver
XD150FX
Receiver
module
SFP
module
One dual-link DVI-D display
Four USB devices
One RS232 serial device
Stereo speakers plus microphone
FURTHER
INFORMATION
INDEX
2

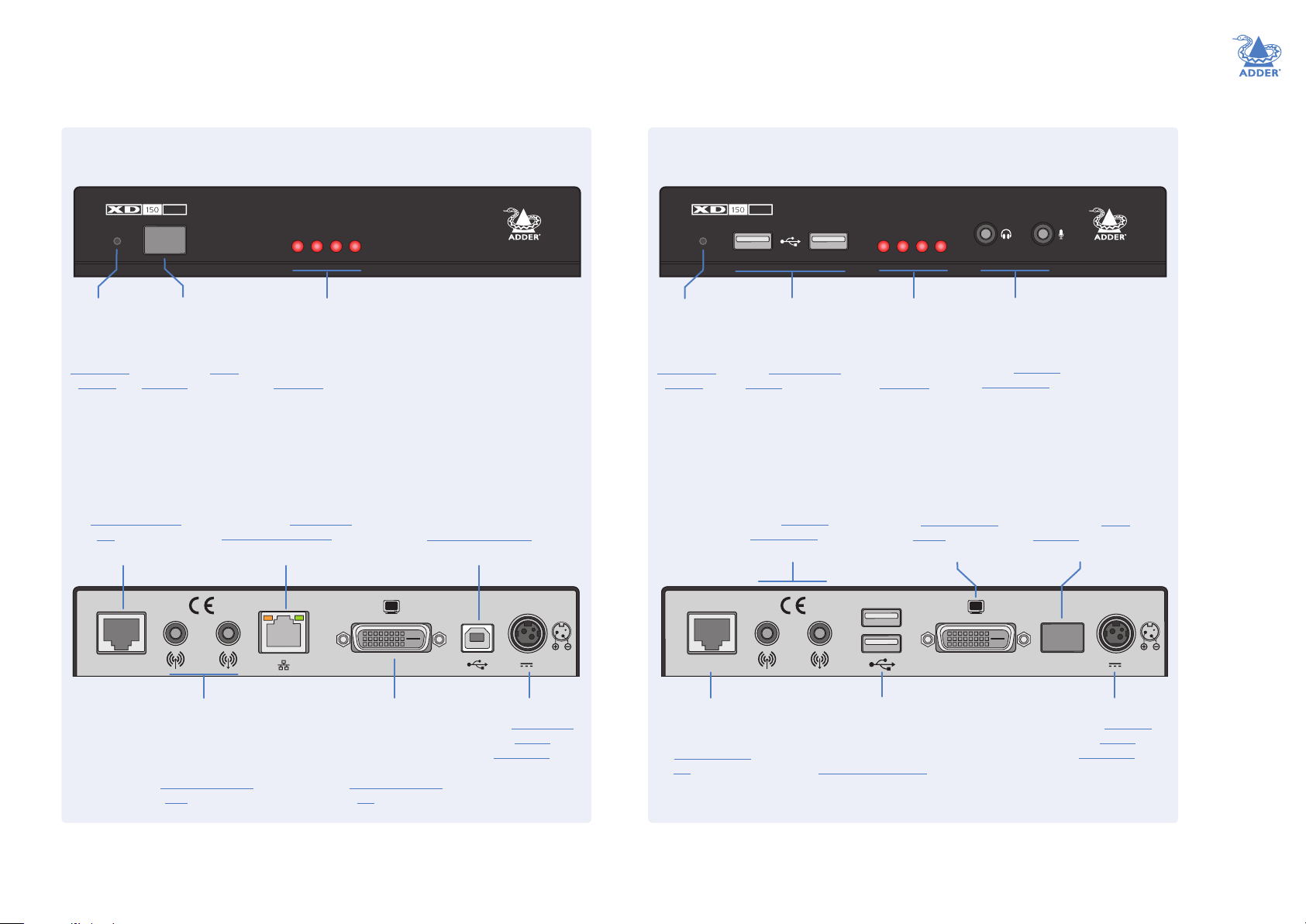

ADDERLINK XD150FX FEATURES
The transmitter and receiver modules are contained within slimline metal casings that
measure just 169 x 120 x 31mm.
A DDERLINK
LINK
Recessed
reset
button
See
Resetting a
module.
Options port
Used for RS232
serial devices. See
Transmitter serial
link for further
details.
FX
SFP slot
Accommodates
a ber optic SFP
module of your
choice. See Fiber
optic link for further
details.
Management port
This Ethernet connection
allows remote management
modules. See Transmitter
management port link for
Transmitter module
PWR
USB VIDLNK
Status indicators
These provide
visual conrmation
of various system
functions. See
Indicators for further
details.
of the XD150FX
further details.
www.adder.com
USB port
Connects to a
USB port on your
computer. See
Transmitter USB link
for further details.
INDOOR USEONLY
A DDERLINK
Recessed
reset
button
See
Resetting a
module.
FX
USB ports
Connect your USB
keyboard, mouse
and other devices.
See Receiver USB
devices for further
details.
Audio ports
Connect your
microphone
and speakers.
See Receiver
audio devices for
further details.
Receiver module
PWR
USB VIDLNK
Status indicators
These provide
visual conrmation
of various system
functions. See
Indicators for
further details.
Video port
Connects to
your DVI-D
video display. See
Receiver video
display for further
details.
Audio ports
Connect your
microphone and
headphones.
See Receiver
audio devices for
further details.
Accommodates
a ber optic SFP
module of your
choice. See Fiber
optic link for further
INDOOR USEONLY
INSTALLATION
www.adder.com
CONFIGURATIONOPERATION
SFP slot
details.
OPTIONS
Audio ports
Connects to the
audio output/
input ports of your
computer. See
Transmitter audio
links for further
details.
Video port
Connects to the
DVI-D video
output port of
your computer. See
Transmitter video
link for further
details.
12V 1.5A
Power input
See Transmitter
power
connection for
further details.
OPTIONS
Options port
Used for RS232
serial devices. See
Receiver serial
link for further
details.
USB ports
Connect your USB
keyboard, mouse and
other devices. See
Receiver USB devices for
further details.
LINK
12V 1.5A
Power input
See Receiver
power
connection for
further details.
FURTHER
INFORMATION
INDEX
3
SUPPLIED ITEMS
A D D ER L I N K
LINK
.adder.com
www
PWR
USB VIDLNK
FX
AdderLink XD150FX
transmitter module
2 x Power adapter with
locking connectors and
country-specic power
cords
INSTALLATION
CONFIGURATIONOPERATION
PWRUSB VIDLNK
FX
A D D ER L I N K
2 x SFP modules with LC connectors
(single- or multi-mode)
Either:
Multi mode: SFP-MM-LC-4G
Single mode: SFP-SM-LC-4G
or
AdderLink XD150FX
receiver module
.adder.com
www
2 x audio cable 3m (3.5mm stereo jacks)
Combined Dual-Link DVI-D
video and USB cable 2m
FURTHER
INFORMATION
Information wallet
containing:
Quick setup guide
Eight self-adhesive rubber feet
Safety document
INDEX
4
OPTIONAL EXTRAS
USB cable 2m (type A to B)
Part number: VSC24
Audio cable 2m (3.5mm stereo jacks)
Part number: VSC22
Serial cable 44cm
Part number: VSC45
Replacement power adapter
with locking connector
Part number: PSU-IEC-12VDC-1.5A
Country-specic power cords
CAB-IEC-AUS (Australia)
CAB-IEC-EURO (Central Europe)
CAB-IEC-UK (United Kingdom)
CAB-IEC-USA (United States)
CAB-IEC-JAPAN (Japan)
4G SFP module with LC connectors
Multi mode: SFP-MM-LC-4G
Single mode: SFP-SM-LC-4G
INSTALLATION
CONFIGURATIONOPERATION
Dual link DVI-D to DVI-D video cable
Part number: VSCDV3
Dual XD150FX rack mount bracket
plus four retaining clamps and bolts
Part number: RMK8
Wall/desk mounting kit (plus screws)
VESA mount kit (plus screws)
Part number: RMK5V
Part number: RMK10
FURTHER
INFORMATION
INDEX
5
Installation
LOCATIONS
Please consider the following important points when planning the position of the
AdderLink XD150FX modules:
• Situate the transmitter module close to the system to which it will be connected and
near to a source of mains power. Place the receiver module in similar close proximity
to the peripherals that it will connect with, plus a source of mains power.
• Consult the precautions listed within the Safety information section.
• Connections do not need to be carried out in the order given within this guide,
however, where possible connect the power in as a nal step.
CONNECTIONS
Installation involves linking the AdderLink XD150FX Transmitter module to various ports
on the host computer, while the AdderLink XD150FX Receiver module is attached to
your peripherals:
INSTALLATIONCONFIGURATIONOPERATION
AUDIO
LINKS
page8
USB
LINK
page9
SERIAL
LINK
page9
VIDEO
LINK
page8
TRANSMITTER RECEIVER
POWER
IN
page11
MANAGEMENT
PORT LINK
page10
VIDEO
DISPLAY
page12
FIBER
LINK
page7
POWER
IN
page14
Click a connection to see details
AUDIO
DEVICES
page12
USB
DEVICES
page13
FURTHER
INFORMATION
SERIAL
LINK
page13
INDEX
6
Fiber optic link
PWR
A D D E R L I N K
FX
USB VIDLNK
LINK
12V 1.5
INDOOR USE ONLY
LINK
A D D E R L I N K
FX
LINK
12V 1.5
INDOOR USE ONLY
LINK
Each pair of AdderLink XD150FX modules are supplied together with SFP ber optic
modules of your choice (single or multi-mode). The ber optic cable used must match
the SFP type and also be of a suitable type for the distance being covered. See see
Transmission distances for details.
To make the ber optic link
IMPORTANT: Ensure the power supply is off/disconnected before inserting or removing
an SFP module.
1 Remove the SFP module from its protective packing and insert it fully into the empty
slot on the AdderLink XD150FX. The XD150FX transmitter slot is located on the
front panel; the XD150FX receiver slot is situated on the rear panel.
Transmitter
front panel
2 Repeat for the other SFP module on the other XD150FX.
3 For each SFP module, remove the black rubber insert that protects the sensors.
4 If tted, remove the dual inserts that protect the ber optic connector.
5 Insert the ber optic connector into the SFP module so that it clicks into place.
Receiver
rear panel
AUDIO
LINKS
USB
LINK
SERIAL
LINK
VIDEO
LINK
TRANSMITTER
POWER
MGMT
LINK
FIBER
LINK
IN
VIDEO
DISPLAY
RECEIVER
POWER
AUDIO
DEVICES
USB
DEVICES
SERIAL
LINK
IN
Note: In order to maintain a high level of condence in the ber
optic link, the SFP’s used must be those supplied by Adder: (SFPMM-LC-4G or SFP-SM-LC-4G).
If alternative parts are used, the system will detect this and will
ash the front panel LNK indicator.
To remove an SFP module
1 If tted, remove the ber optic connector from the SFP
module (press down on the upper tab of the ber optic
connector to release it).
2 Unclip the small wire extraction lever and open it out
(this action releases a locking tab and also provides a
grip point).
INSTALLATIONCONFIGURATIONOPERATION
Transmitter
6 Repeat steps 4 and 5 at the other end.
front panel
Receiver
rear panel
3 Gently pull on the extraction lever to withdraw the SFP
module from the slot.
4 If the SFP module and/or ber optic connector will
remain unused for any period of time, be sure to t the
protective inserts to keep the optical interfaces clean.
FURTHER
INFORMATION
INDEX
7
Transmitter video link
INDOOR
OPTIONS
AdderLink XD150FX can support various
high resolution video modes via the DualLink DVI-D port, see Video resolutions below
for details.
To connect the video port
1 Connect the supplied digital video (plus
USB) link cable between the DVI-D socket
on the transmitter module rear panel and
the DVI-D video output socket of the host
computer.
AUDIO
LINKS
USB
LINK
SERIAL
LINK
VIDEO
LINK
TRANSMITTER
POWER
MGMT
LINK
IN
RECEIVER
FIBER
LINK
Transmitter audio links
The AdderLink XD150FX modules support
stereo audio in and out connections.
Where necessary, make connections
between the audio input and/or output
ports of the host computer and the
transmitter module.
To connect the audio ports
1 For the line in and/or line out ports,
connect the supplied audio link
cable between the audio port on the
transmitter module rear panel and the
line in or line out socket of the host
computer.
From the audio output
on the host computer
AUDIO
LINKS
USB
LINK
SERIAL
LINK
VIDEO
LINK
TRANSMITTER
POWER
MGMT
LINK
IN
FIBER
LINK
RECEIVER
INSTALLATIONCONFIGURATIONOPERATION
From video output
port on the host
computer
The XD150FX supports, but
is not limited to, the following
common video resolutions:
Video resolutions
1920 x 1080 (HD)
1920 x 1200 (WUXGA)
2560 x 1080
2560 x 1440 (WQHD)
2560 x 1600 (WQXGA)
2560 x 2048 (QSXGA)
2048 x 2160
To the audio input on
the host computer
FURTHER
INFORMATION
INDEX
8
OPTIONS
Transmitter USB link
12V 1.5A
INDOOR USE ONLY
The transmitter module requires a single
USB connection to the host computer; this
allows the receiver module to operate as a
USB 2.0 hub with four ports.
To connect the USB port
1 Connect the type B connector of the
supplied USB/video cable to the USB
port on the rear panel of the transmitter
module.
USB link from the
host computer
AUDIO
LINKS
USB
LINK
SERIAL
LINK
VIDEO
LINK
TRANSMITTER
POWER
MGMT
LINK
IN
RECEIVER
FIBER
LINK
Transmitter serial link
The Options port provides an RS232 serial
connection with the receiver module.
AUDIO
LINKS
VIDEO
LINK
MGMT
LINK
When serial devices are attached to the
Options ports on the transmitter and
receiver modules, the units transparently
convey the signals between them, via the
ber optic link, at rates up to 115200 baud
- no serial conguration is required. An
USB
LINK
SERIAL
LINK
TRANSMITTER
POWER
IN
FIBER
LINK
RECEIVER
optional serial cable (part number: VSC45)
is available from Adder.
To connect the serial port
1 Use the optional serial cable (VSC45) to link the Options port on the rear panel of
the transmitter module with a vacant RS232 serial port on your host computer.
INSTALLATIONCONFIGURATIONOPERATION
2 Connect the type A connector of the cable to a vacant USB port on the host
computer.
From the serial port of
your host computer
Please see Appendix 1 for pin-out details of the Options port.
FURTHER
INFORMATION
INDEX
9
Transmitter management port link
The management port, located on the
transmitter, allows the module to be
connected to a standard Ethernet 10/100
network in order to allow remote
monitoring and management functions to
take place.
LINK
AUDIO
LINKS
USB
VIDEO
LINK
TRANSMITTER
MGMT
LINK
FIBER
LINK
To connect the management port
1 Connect a standard CATx patch lead
between the port on the rear panel of
SERIAL
LINK
RECEIVER
POWER
IN
the transmitter module and a standard
network switch.
From a
standard
network switch
By default, the IP address is set to 192.168.1.22. If required, you can change the default
IP address or alternatively, choose automated address selection by DHCP server. For
details, please see the Conguration section.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
10
INDEX
12V 1.5A
INDOOR USE ONLY
Transmitter power connection
12V 1.5A
INDOOR USE ONLY
There is no on/off switch on either of
the AdderLink XD150FX modules, so
AUDIO
LINKS
VIDEO
LINK
operation begins as soon as power is
applied. The power adapters supplied with
the modules use locking-type plugs to help
prevent accidental disconnections; please
follow the instructions shown on the right
whenever disconnecting a power adapter.
USB
LINK
SERIAL
LINK
TRANSMITTER
POWER
IN
To connect the power adapter
1 Attach the output plug of the supplied power adapter to the
power input socket on the right side of the rear panel.
From the
power adapter
MGMT
LINK
RECEIVER
FIBER
LINK
To disconnect the power adapter
1 Isolate the power adapter from the mains supply.
2 Grasp the outer body of the power adapter plug
where it connects with the module.
3 Gently pull the body of the outer plug away from
the module. As the body of the plug slides back,
it will release from the socket and you can fully
withdraw the whole plug.
INSTALLATIONCONFIGURATIONOPERATION
Gently pull back the plug outer
body to release the lock
2 Connect the IEC connector of the supplied country-specic power cord to the socket
of the power adapter.
3 Connect the power cord to a nearby mains supply socket.
IMPORTANT: Please read and adhere to the electrical safety information
given within the Safety information section of this guide. In particular, do not
use an unearthed power socket or extension cable.
Note: Both the modules and the power supplies generate heat when in operation and will
become warm to the touch. Do not enclose them or place them in locations where air cannot
circulate to cool the equipment. Do not operate the equipment in ambient temperatures
exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose
surface temperature exceeds 40 degrees Centigrade.
FURTHER
INFORMATION
INDEX
11
Receiver video display
INDO
PWR
www.adder.com
OPTIONS
A Dual-Link DVI-D port is provided on
the rear panel of the receiver module.
AdderLink XD150FX can support various
high resolution video modes, see Video
resolutions for details.
To connect the video display
1 Connect the DVI-D video cable from
your video display to the video output
port on the rear panel of the receiver
module.
TRANSMITTER
FIBER
LINK
VIDEO
DISPLAY
RECEIVER
POWER
AUDIO
DEVICES
Receiver audio devices
The AdderLink XD150FX receiver module
can support multiple audio devices, such as
TRANSMITTER
VIDEO
DISPLAY
AUDIO
DEVICES
stereo headphones, a mono microphone
USB
DEVICES
or line-level in/out connections.
FIBER
LINK
RECEIVER
USB
DEVICES
To connect audio devices
SERIAL
LINK
IN
1 Connect stereo headphones and/or a
mono microphone to the 3.5mm jack
audio sockets on the front panel of the
POWER
IN
receiver module.
From mono microphone
From stereo headphones
SERIAL
LINK
INSTALLATIONCONFIGURATIONOPERATION
From your
video display
EDID management
The EDID (Extended Display Identication Data) is read from the connected video
display at the receiver module; it is then transferred to, and stored within, the transmitter
module and then declared to the host computer. If the video display is removed then
the cloned EDID stored at the transmitter module will still be presented to the video
source.
2 Optionally use the rear panel 3.5mm jack audio sockets to connect line-level in or out
connections from audio devices, such as powered speakers.
From line out port of audio device
To line in port of audio device
Note: If the microphone port on the front panel is used, the module will disconnect the Line In
port on the rear panel.
FURTHER
INFORMATION
INDEX
12
Receiver USB devices
LN
A D D E R L I N K
FX
OPTIONS
The receiver module contains a USB hub
that can support up to four v2.0 or v1.1
USB devices (in any combination). All four
USB sockets are identical in operation.
To connect USB devices
1 Connect your USB keyboard, mouse and any
other two USB devices to the four sockets
distributed on the front and rear panels of the
receiver module.
From USB
devices
TRANSMITTER
FIBER
LINK
VIDEO
DISPLAY
RECEIVER
POWER
Rear panel
AUDIO
DEVICES
Receiver serial link
The Options port provides an RS232
serial connection with the transmitter
TRANSMITTER
VIDEO
DISPLAY
AUDIO
DEVICES
module. When serial devices are attached
USB
DEVICES
SERIAL
LINK
IN
to the Options ports on the transmitter
and receiver modules, the units
transparently convey the signals between
them, via the ber optic link, at rates up
to 115200 baud - no serial conguration
FIBER
LINK
RECEIVER
POWER
IN
is required. An optional serial cable (part
number: VSC45) is available from Adder.
USB
DEVICES
SERIAL
LINK
INSTALLATIONCONFIGURATIONOPERATION
To connect the serial port
1 Use the optional serial cable (VSC45) to link the Options port on the rear panel of
the receiver module with your RS232 serial device.
Front panel
From your serial device
Please see Appendix 1 for pin-out details of the Options port.
FURTHER
INFORMATION
From USB
devices
INDEX
13
12V 1.5A
INDOOR USE ONLY
LINK
Receiver power connection
12V 1.5A
INDOOR USE ONLY
LINK
There is no on/off switch on either of
the AdderLink XD150FX modules, so
operation begins as soon as power is
applied. The power adapters supplied with
the modules use locking-type plugs to help
prevent accidental disconnections; please
follow the instructions shown on the right
whenever disconnecting a power adapter.
To connect the power adapter
1 Attach the output plug of the supplied power
adapter to the power input socket on the right
side of the rear panel.
From the
power adapter
TRANSMITTER
FIBER
LINK
VIDEO
DISPLAY
RECEIVER
POWER
AUDIO
DEVICES
USB
DEVICES
SERIAL
LINK
IN
To disconnect the power adapter
INSTALLATIONCONFIGURATIONOPERATION
1 Isolate the power adapter from the mains supply.
2 Grasp the outer body of the power adapter plug
where it connects with the module.
3 Gently pull the body of the outer plug away from
the module. As the body of the plug slides back,
it will release from the socket and you can fully
withdraw the whole plug.
Gently pull back the plug outer
body to release the lock
2 Connect the IEC connector of the supplied country-specic power cord to the socket
of the power adapter.
3 Connect the power cord to a nearby mains supply socket.
IMPORTANT: Please read and adhere to the electrical safety information
given within the Safety information section of this guide. In particular, do not
use an unearthed power socket or extension cable.
Note: Both the modules and the power supplies generate heat when in operation and will
become warm to the touch. Do not enclose them or place them in locations where air cannot
circulate to cool the equipment. Do not operate the equipment in ambient temperatures
exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose
surface temperature exceeds 40 degrees Centigrade.
FURTHER
INFORMATION
INDEX
14
Conguration
ACCESSING THE MANAGEMENT APPLICATION
AdderLink XD150FX modules generally congure themselves automatically, collecting EDID information from the attached
monitor and passing it to the host computer. In most cases the modules will begin working together correctly as soon as they are
connected. Where conguration changes are required (or remote monitoring is required), the management application provides
an intuitive user interface.
To access the management application
1 Use a computer that is directly or indirectly (i.e. via a network switch) connected to the XD150FX transmitter module. If you
need to make a temporary connection, see right Ü
2 Run a web browser on your computer and enter the IP address of the transmitter module. By default, the IP address is set to
192.168.1.22. If required, you can change the default IP address or alternatively, choose automated address selection by DHCP
server. See the Congure page.
3 If requested, enter the
registered password to log
on.
Note: The default user and
password are ‘admin’ and
‘password’ respectively.
The Dashboard page should
be displayed
The Dashboard page shows
a real-time representation of
the XD150FX installation.
Use the menu on the left side
to display other pages.
Use the Online Support option
to make contact with Adder
through the main website.
A lost
ber link
is shown
by a
broken
red line.
Ü
To temporarily connect a computer
to the network port
1 If you need to make a temporary
connection for conguration purposes,
use a standard patch cable (crossover or straight connections are both
supported) to link the Ethernet 10/100
network port ( ) on the rear panel
of the XD150FX transmitter module to
your computer’s network port.
Temporary
link from
your computer
The appearance of the icons changes:
• White: Port is in use.
• Gray: Port not used.
• Gray with cross: Port is disabled.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
15
The Congure page
The Congure page allows you to control the various peripheral feeds and also
determine the network addressing details.
Controls
All peripheral feeds are enabled by default. However, this section allows each
feed to be disabled as required.
• Disable High-speed USB - this option needs to be ticked when connecting to
Adder CCS4-USB and/or CCS-PRO4 devices.
Network
• Obtain IP Address automatically (DHCP) - When ticked, the transmitter module
will use the DHCP (Dynamic Host Conguration Protocol) to automatically
determine all network settings. When DHCP is used, the next three options
are not manually editable.
• IP Address - set the IP address for the module.
• Netmask - set a subnet mask to accompany the IP address.
• Gateway - optionally dene a suitable address for a gateway device.
• MAC Address - displays the unique (and xed) MAC address for the module.
• SSDP Name - optionally add an identier for this module.
• Log-in Required - when ticked, you will be requested to enter a user name and
password.
• Password for user ‘admin’ - dene a password here to be used when the ‘Log In
Required’ option above is ticked.
Note: The default user name and password are ‘admin’ and ‘password’ respectively.
Once changes are made, click the Update button to apply them.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
16
INDEX
The Maintenance page
The Maintenance page contains numerous features used for monitoring, restarting and
upgrading the modules.
Transmitter and receiver details
These twin sections list numerous details for each module:
• Firmware, hardware and SFP (optical module) versions.
• Unit (main circuit board) and SFP (optical module) temperatures.
• Up-time.
• EDID - lists the currently registered video monitor, together with its
serial number and a full raw hex listing of the declared EDID signature.
• Identify - Click the Flash LED button to ash the front panel indicators
of the chosen module. Click once for ve ashes, twice for indenite
ashing and a third time to stop the ashing.
• Restart - If a module becomes unresponsive, click the relevant Restart
button to reboot the required module.
Factory Reset
Click this button to perform a full factory reset on both modules. All
settings will be returned to their default values; the transmitter module
will default to use the IP address of 192.168.1.22.
INSTALLATIONCONFIGURATIONOPERATION
Link Quality Test
This section tests and displays the quality of the data link between the
two modules.
Firmware Upgrade
Use this section to perform a rmware upgrade on both modules using
les available on request from Adder technical support.
Note: Firmware upgrades must be performed in pairs, i.e. the transmitter and
receiver together. If one of the modules is not connected, the upgrade will not
be carried out.
Download the API description
Click here to view the API description in YAML format.
FURTHER
INFORMATION
INDEX
17
Operation
The AdderLink XD150FX modules are designed to be transparent in operation; all
peripherals should respond exactly as they would when situated next to your host
computer.
INDICATORS
The transmitter and receiver modules contain various indicators to provide you with
status information. Both modules have four red indicators on their front panels.
INSTALLATIONCONFIGURATIONOPERATION
Red status indicators
The red status indicators on the front panels of each module mostly behave in the same
manner at the same time:
PWRUSB VIDLNK
LNK
This indicator will
be on once the
link between the
transmitter and
receiver modules is
established.
Flashes to warn that
a non-approved SFP
module has been
tted.
USB
This indicator will
be on once the USB
extender and hub
located within the
receiver module have
been successfully
enumerated by the
USB host on your
computer.
Flashes to indicate
the USB system has
entered suspend
mode. Ensure
that one or more
USB devices are
attached to the
receiver module
and a valid USB link
is made between
the transmitter
module and the host
computer.
VID
This indicator will
be on (on both
modules) when a
valid video signal
is detected.
PWR
This indicator
will be on when
power is supplied
to each module.
Green and amber status indicators (transmitter module only)
The green and amber status indicators on the network management port connector of
the transmitter module (rear panel) provide further status information:
This indicator will ash
Amber
when data is being
transferred.
Green
This indicator will be on
whenever there is a valid
link between the transmitter
module and a network
switch.
FURTHER
INFORMATION
INDEX
18
RESETTING A MODULE
A D D E R L I N K
FX
On the left side of the front panel of each module, you will nd a small hole
which is used to invoke special functions. Use a thin implement, such as a
straightened paperclip to press and hold the button concealed behind the
smaller hole. Depending on when you release the button, the module will
either perform a normal reset or completely reset itself to factory defaults:
Time (seconds): 0 . . . . 5 . . . . 10 . . . . 15 . . . .
Indicator(s): PWR: On All: Alternate ashing All: Rapid ashing together All: Normal
Release button for: Normal restart Special conguration option Reset to factory defaults Return to normal operation
(not currently used)
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
19
Further information
This chapter contains a variety of information, including the following:
• Getting assistance - see right
• Appendix 1 - Options port pin-out
• Appendix 2 - Open source licenses
• Safety information
• Warranty
• Radio frequency energy statements
GETTING ASSISTANCE
If you are still experiencing problems after checking the information contained within this
guide, then we provide a number of other solutions:
• Online solutions and updates – www.adder.com/support
Check the Support section of the adder.com website for the latest solutions and
rmware updates.
• Technical support – www.adder.com/contact-support-form
For technical support, use the contact form in the Support section of the
adder.com website - your regional ofce will then get in contact with you.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
20
INFORMATION
INDEX
16
OPTIONS
APPENDIX 1 - OPTIONS PORT PIN-OUT
The OPTIONS port uses a 6p6c socket. The pin-out is listed below.
Note: Although the pin labeled ‘Not used’ is inactive, it is still connected internally and so no links
should be made at all to this pin.
Pin Signal Direction
1 CTS1 / RXD2 Input to the module
2 RXD1 Input to the module
3 TXD1 Output from the module
4 RTS1 / TXD2 Output from the module
5 Not used
6 GND Reference for all signals
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
21
APPENDIX 2 - OPEN SOURCE LICENSES
This product includes binaries that are derived from the open source community.
======
lwIP is licenced under the BSD licence:
Copyright (c) 2001-2004 Swedish Institute of Computer Science.
All rights reserved.
Redistribution and use in source and binary forms, with or without modication, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived
from this software without specic prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
======
jsmn is licenced under the MIT license:
Copyright (c) 2010 Serge A. Zaitsev
Permission is hereby granted, free of charge, to any person obtaining a copy of this
software and associated documentation les (the “Software”), to deal in the Software
without restriction, including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons
to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or
substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
22
INFORMATION
INDEX
SAFETY INFORMATION
• For use in dry, oil free indoor environments only.
• Warning - live parts contained within power adapter(s).
• No user serviceable parts within power adapter(s) - do not dismantle.
• Plug the power adapter(s) into socket outlets close to the module that they are
powering.
• Do not use an unearthed power socket or extension cable.
• Do not use a power adapter if its case becomes damaged, cracked or broken or if you
suspect that it is not operating properly.
• Replace the power adapter(s) with a manufacturer approved type only.
• If you use a power extension cord with the module, make sure the total ampere rating
of the devices plugged into the extension cord does not exceed the cord’s ampere
rating. Also, make sure that the total ampere rating of all the devices plugged into the
wall outlet does not exceed the wall outlet’s ampere rating.
• Do not attempt to service the modules yourself.
WARRANTY
Adder Technology Ltd warrants that this product shall be free from defects in
workmanship and materials for a period of two years from the date of original purchase.
If the product should fail to operate correctly in normal use during the warranty period,
Adder will replace or repair it free of charge. No liability can be accepted for damage due
to misuse or circumstances outside Adder’s control. Also Adder will not be responsible
for any loss, damage or injury arising directly or indirectly from the use of this product.
Adder’s total liability under the terms of this warranty shall in all circumstances be
limited to the replacement value of this product.
If any difculty is experienced in the installation or use of this product that you are
unable to resolve, please see the Getting assistance section.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
23
INFORMATION
INDEX
RADIO FREQUENCY ENERGY
All cables used with this equipment must be shielded in order to maintain compliance
with radio frequency energy emission regulations and ensure a suitably high level of
immunity to electromagnetic disturbances.
European EMC directive 2014/30/EU
This equipment has been tested and found to comply with the limits for a class A
computing device in accordance with the specications in the European standard
EN55032. These limits are designed to provide reasonable protection against harmful
interference. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions may cause harmful
interference to radio or television reception. However, there is no guarantee that
harmful interference will not occur in a particular installation. If this equipment does
cause interference to radio or television reception, which can be determined by turning
the equipment on and off, the user is encouraged to correct the interference with one
or more of the following measures: (a) Reorient or relocate the receiving antenna.
(b) Increase the separation between the equipment and the receiver. (c) Connect
the equipment to an outlet on a circuit different from that to which the receiver is
connected. (d) Consult the supplier or an experienced radio/TV technician for help.
FCC Compliance Statement (United States)
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested and
found to comply with the limits for a class A computing device in accordance with
the specications in Subpart J of part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area may cause
interference, in which case the user at his own expense will be required to take whatever
measures may be necessary to correct the interference. Changes or modications not
expressly approved by the manufacturer could void the user’s authority to operate the
equipment.
Canadian Department of Communications RFI statement
This equipment does not exceed the class A limits for radio noise emissions from digital
apparatus set out in the radio interference regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le règlement sur le
brouillage radioélectriques publié par le ministère des Communications du Canada.
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
24
Web: www.adder.com
Contact: www.adder.com/contact-details
Support: www.adder.com/support
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
Documentation by:
www.ctxd.com
INDEX
© 2018 Adder Technology Limited
All trademarks are acknowledged.
Part No. MAN-XD150FX-ADDER • Release 1.2
25
Index
A
Audio
receiver 12
transmitter 8
C
CCS4-USB 16
CCS-PRO4 16
Connections
overview 6
D
DDX Matrix
accessing 15
Default mode 19
DHCP 16
Disable High-speed USB 16
E
EDID management 12
F
Firmware upgrade 17
G
Gateway 16
I
Indicators 18
IP Address 16
M
MAC Address 16
N
Net Mask 16
Network port
temporary connection 15
P
Power
receiver 14
transmitter 11
R
Reset button 3
Resetting 19
RS232 9,13
S
Safety information 23
Serial port
receiver 13
transmitter 9
U
USB
receiver 13
V
Video
receiver 12
transmitter 8
W
Warranty 23
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
26
INDEX
Loading...
