AdderView DDX

Experts in

Connectivity

Solutions

Switching

Solutions

User Guide

Introduction

Welcome ................................................................................................................ 2

Cable type and distance rules......................................................................2

Access permissions ........................................................................................ 3

Port designations ............................................................................................ 4

Supplied items ....................................................................................................... 5

Optional extras .....................................................................................................7

Installation

Locations ................................................................................................................ 8

Connections .......................................................................................................... 9

Computer connections: Video ..................................................................... 9

Computer connections: USB .......................................................................9

Computer connections: Data link ..............................................................9

Switch connections: Computer links .......................................................10

Switch connections: User console links ..................................................10

Switch connections: Network link............................................................11

Switch connections: Options port ............................................................11

Switch connections: Power ........................................................................12

Console connections: Video .......................................................................13

Console connections: USB .........................................................................13

Console connections: Audio ......................................................................14

Console connections: Data link ................................................................14

Console connections: Options port ........................................................14

Console connections: Power .....................................................................15

Conguration

Accessing DDX Matrix .....................................................................................16

Using DDX Matrix .............................................................................................17

The Dashboard page ...................................................................................17

Quick guide to creating a new installation .............................................18

The Control page .........................................................................................19

The Congure pages ...................................................................................20

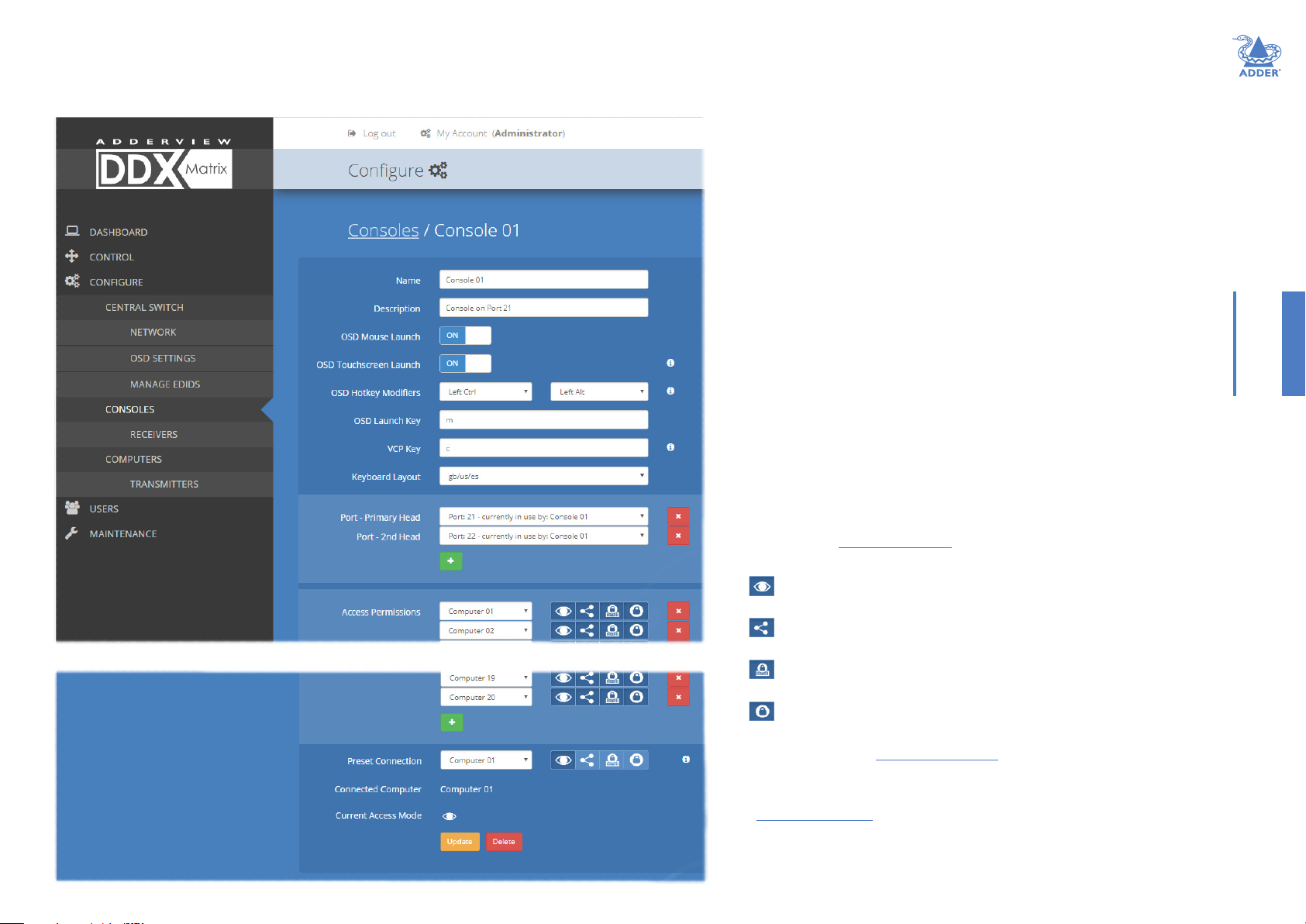

Congure > Consoles ...........................................................................24

Congure > Consoles > Receivers ....................................................27

Congure > Computers .......................................................................28

Congure > Computers > Transmitters ...........................................30

Reallocating ports ...................................................................................31

The Users page .............................................................................................32

The Maintenance pages ...............................................................................33

Maintenance > Diagnostics ..................................................................33

Maintenance > System Operations ....................................................34

Maintenance > Settings .........................................................................35

Resetting and recovering .................................................................................36

Operation

Viewing the OSD................................................................................................37

Using the Virtual Control Panel to adjust VGA inputs .........................38

USB Improvements ............................................................................................38

Using Audio .........................................................................................................39

Indicators .............................................................................................................40

Further information

Getting assistance ..............................................................................................42

Appendix 1 - Link cable interference protection ........................................43

Appendix 2 - Firmware upgrades for basic extender installations .........44

Appendix 3 - Open source licenses ...............................................................44

Warranty and Safety information ...................................................................49

Radio frequency energy ....................................................................................50

Index

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

WELCOME

Thank you for choosing the AdderView DDX system. This adaptive system makes sharing numerous host computers among multiple users straightforward and exible. Every computer is linked, via its USB and video ports, to a compact DDX-CAM

module while each set of peripherals are connected to a DDX-USR module (to form Consoles).

The various computers and consoles are then linked, via CAT6a or CAT7 cable with S/FTP, S/STP or PiMF shielding (see Appendix 1 for details), to a central

DDX switch. Each user can then, subject to the privileges granted by the admin, gain

quick access to any of the required computers.

If required, computers and consoles can be individually connected in order to take advantage of the DDX extender properties

without the switching.

IMPORTANT: Always ensure you are using shielded cables.

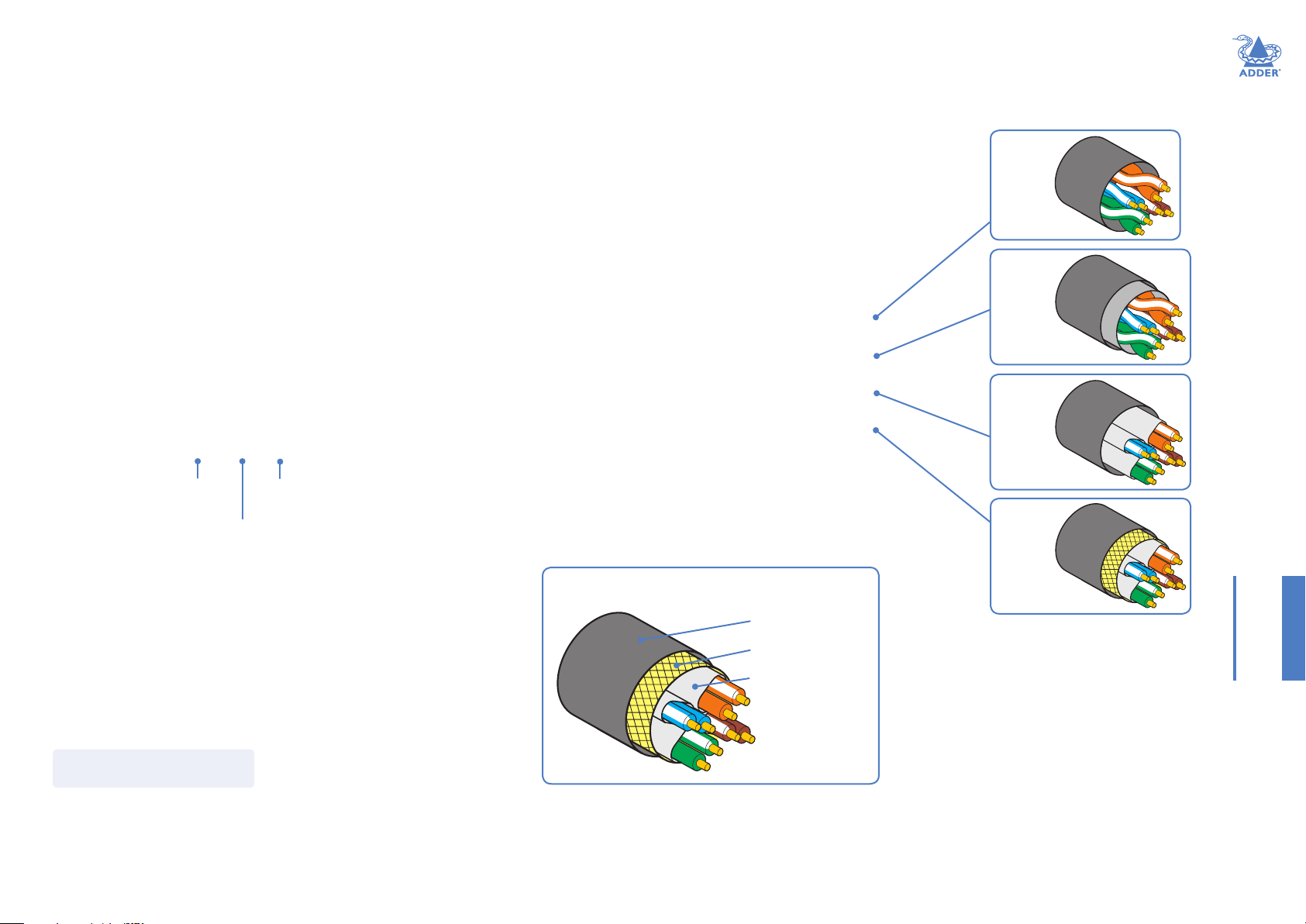

Cable type and distance rules

• Cable screening/shielding is required. The best cable shielding specications for use with the DDX system are: S/FTP, S/STP or PiMF.

• Extension distances up to 50m are supported with single uninterrupted runs of

recommended cable (shielded CAT6a or CAT7 cable).

• CAT5 or CAT5e cables must NOT be used with this product.

• Overall cable runs must be reduced by 5m for each additional cable coupling.

• All patch cables should be as short as possible and should be no longer than 2m.

• It is recommended that Adder shielded CAT7 cables are used for maximum

performance.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

An integral part of DDX switches is the DDX Matrix, a browser-based conguration and management tool that allows one or more remote admin user(s) to monitor and maintain all aspects of operation.

INDEX

Access permissions

The DDX switch uses a system of hierarchal Access permissions to mediate between numerous consoles and multiple computers. Each console is granted the use of up to

four types of access permissions to each computer, most of which inuence how other users can gain simultaneous access to the same computer. The four access permissions,

and their effects on other console users are as follows:

INSTALLATION

VIEW ONLY

The console user

can view the chosen

computer’s output but

cannot control it.

Once selected,

other consoles can simultaneously use

VIEW ONLY,

SHARED ACCESS or

EXCLUSIVE

for the same computer.

Note: The hierarchy of permissions shown here increases from left to right.

SHARED ACCESS

The console user can

view and control the

chosen computer’s

output.

Once selected,

other consoles can simultaneously use

VIEW ONLY or

SHARED ACCESS

for the same computer.

EXCLUSIVE

The console user can

view and control the

chosen computer’s

output.

Once selected,

other consoles can simultaneously use

VIEW ONLY

for the same computer.

PRIVATE

The console user can

view and control the

chosen computer’s

output.

Once selected, all

other consoles are

completely locked

out from the same

computer.

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

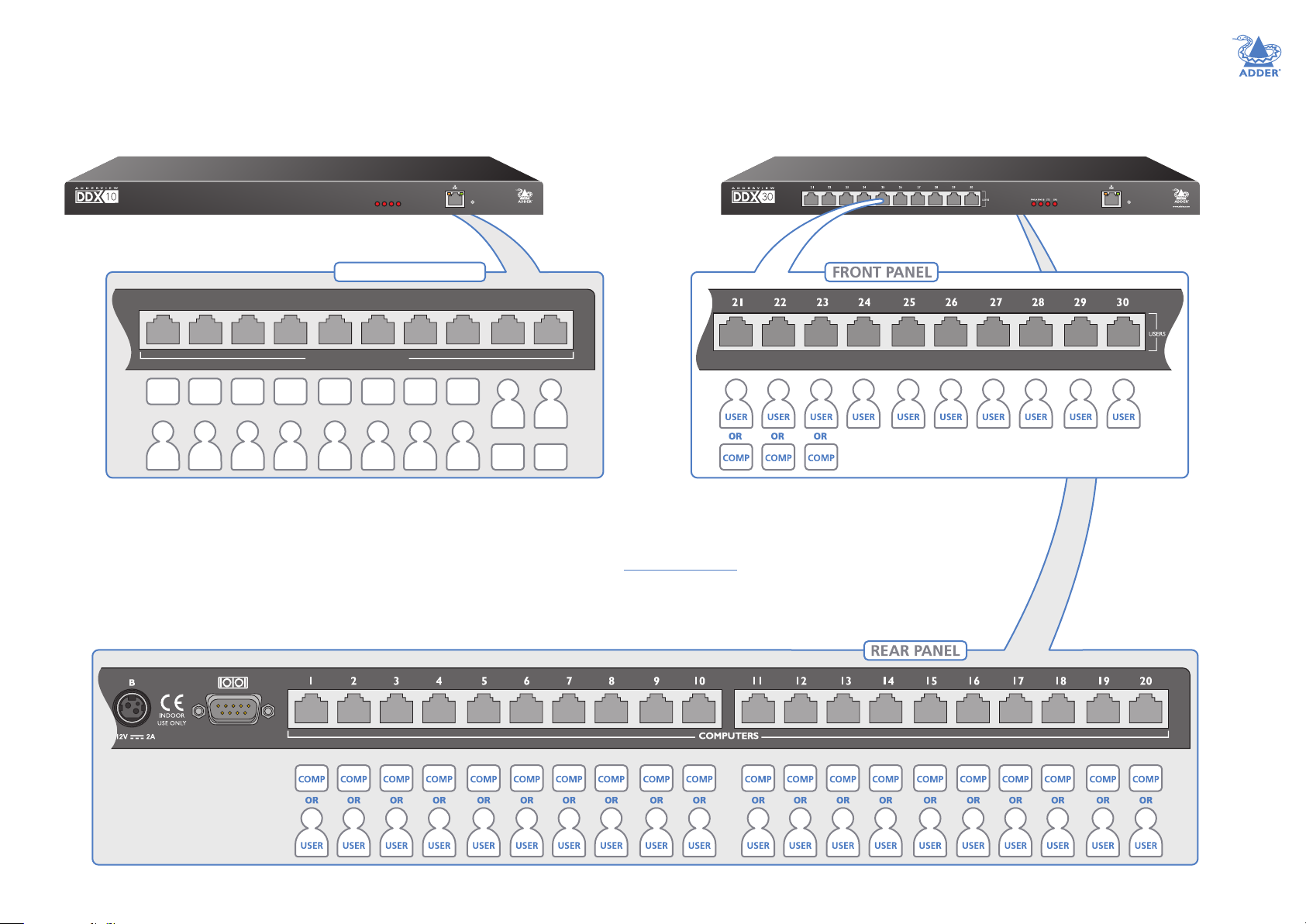

Port designations - DDX10

12 34 56 78 910

COMPUTERS/USERS

By default the DDX10 switch provides 8 computer ports (1 to 8) and 2 user console ports (9 to 10), all on its rear panel, however, these designations are not xed. If your installation requires a greater number of consoles, you can alter the

allocation of these standard ports to suit:

Port designations - DDX30

By default the DDX30 switch provides 10 user console ports on its front panel and 20 computer ports along its rear panel, however, these designations are not xed. If your installation requires a greater number of computers or has a need for more user consoles, you can alter the allocation of these standard ports to

suit:

COMP

USER

COMP

USER

COMP

USER

COMP

USER

PWRAPWRB STS ERR

DDX10 REAR PANEL

COMP

USER

COMP

USER

COMP

USER

www.adder.com

COMP

USER USER

OR OR

COMP COMP

USER

For more details, please see Reallocating ports.

INSTALLATION

CONFIGURATIONOPERATION

Ports 21 to 23 can be reallocated as computer ports.

Any of the 20 rear panel computer ports can be reallocated as user console ports

FURTHER

INFORMATION

INDEX

SUPPLIED ITEMS

DDX switch package

AdderView DDX10 switch

PWRA PWRB STS ERR

www.adder.com

Power adapter with locking connector and country-

specic power cord

INSTALLATION

CONFIGURATIONOPERATION

AdderView DDX30 switch

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

19” rack mount brackets and four screws

FURTHER

INFORMATION

INDEX

DDX-USR package

DDX-USR module

DDX-CAM DisplayPort option

DDX-CAM module with USB

and DisplayPort connections

Part number: DDX-CAM-DP

DDX-CAM DVI option

DDX-CAM module with USB

and DVI-D connections

Part number: DDX-CAM-DVI

INSTALLATION

CONFIGURATIONOPERATION

Power adapter with locking connector and country-

specic power cord

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

DDX-CAM VGA option

DDX-CAM module with USB

and VGA connections

Part number: DDX-CAM-VGA

FURTHER

INFORMATION

INDEX

OPTIONAL EXTRAS

USB cable 2m (type A to B)

Part number: VSC24

DVI-D 2m cable

Part number: VSCD1

CAT7 shielded cable

Part number: VSCAT7-3M

10m

Part number: VSCAT7-10M

30m

Part number: VSCAT7-30M

50m

Part number: VSCAT7-50M

Audio cable 3m (3.5mm stereo jacks)

Part number: VSC22

Replacement power adapter with locking

connector for DDX-USR module

Part number: PSU-IEC-12VDC-1.5A

Country-specic power cords

CAB-IEC-AUS (Australia) CAB-IEC-EURO (Central Europe) CAB-IEC-UK (United Kingdom) CAB-IEC-USA (United States) CAB-IEC-JAPAN (Japan)

Additional or replacement power adapter

with locking connector for DDX switch

Part number: PSU-IEC-12VDC-5A

Country-specic power cords

CAB-IEC-AUS (Australia) CAB-IEC-EURO (Central Europe) CAB-IEC-UK (United Kingdom) CAB-IEC-USA (United States) CAB-IEC-JAPAN (Japan)

INSTALLATION

CONFIGURATIONOPERATION

Dual DDX-USR rack mount bracket plus four retaining clamps and bolts

Part number: RMK8

VESA mount kit (plus screws)

Part number: RMK5V

FURTHER

INFORMATION

INDEX

Installation

LOCATIONS

Please consider the following important points when planning the position of the AdderView DDX modules:

• If used, position the DDX switch in a central position that serves the host computer

systems and user modules without exceeding the maximum link lengths. It will also require a source of mains power.

• Situate each DDX-USR module close to the peripherals to which it will be connected and near to a source of mains power.

• Consult the precautions listed within the Safety information section.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INDEX

INFORMATION

CONNECTIONS

Connections do not need to be carried out in the order given within this guide, however,

where possible connect the power in as a nal step. Connections are split into the following three areas:

• Computer connections - a DDX-CAM module links to each host computer.

• Switch connections - when used, a DDX switch unit sits at the heart of the system.

• Console connections - the peripherals (keyboard, display, etc.) connect to DDX-USR modules.

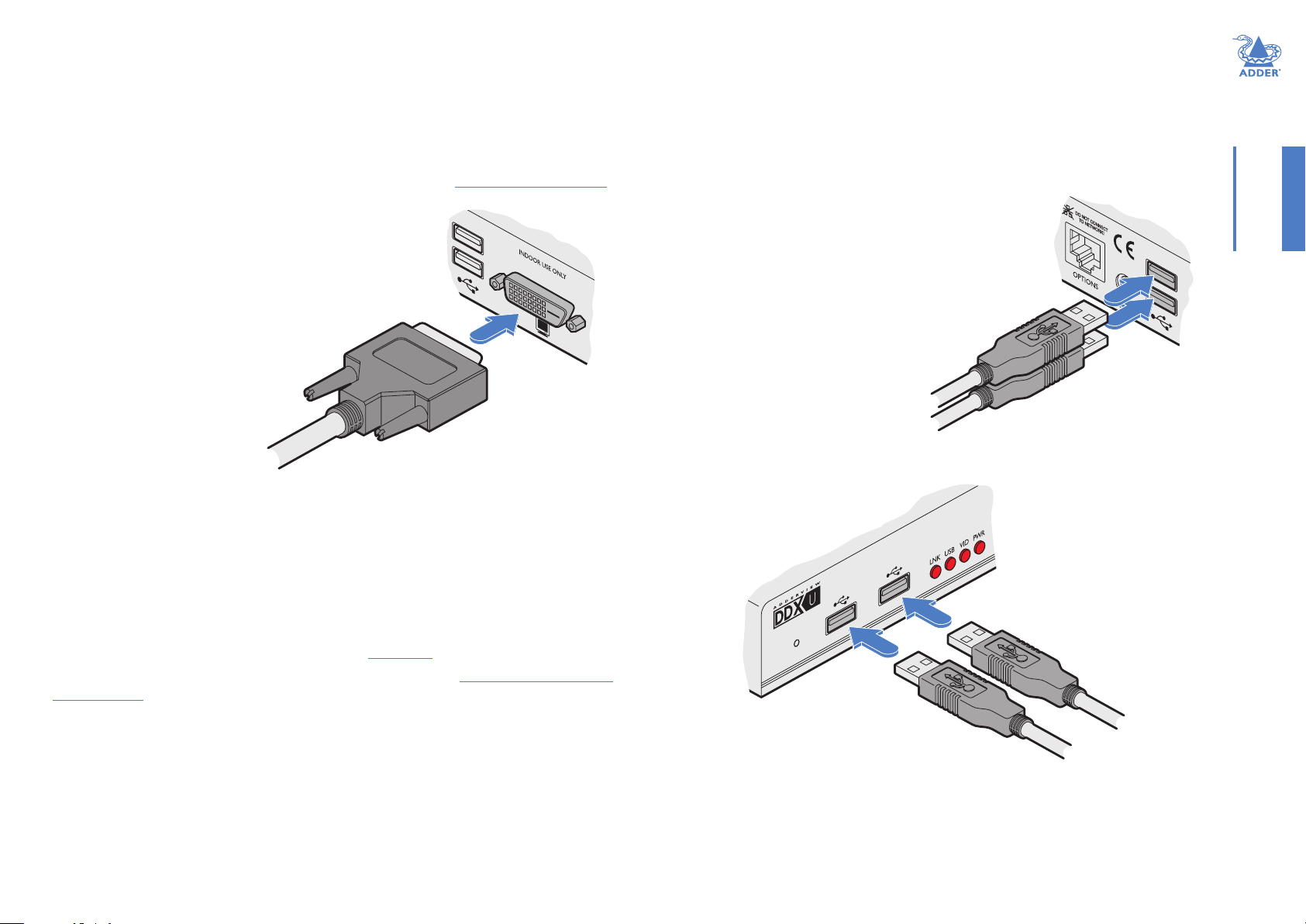

Computer connections: Video

Three types of DDX-CAM modules are available:  DVI-D and USB or DisplayPort and USB or VGA and USB. If a computer has more than one video output, use additional DDX-CAM modules to

separately link the additional video stream(s) with other ports on the DDX switch.

To connect the video port

1 Connect the video lead of the DDX-CAM

to the DVI-D, DisplayPort or VGA video port of the host computer.

DVI-D video lead from the DDX-CAM

 OR

DisplayPort on the host computer

DVD-D video port on the host computer

Computer connections: USB

Each DDX-CAM module requires a single USB connection to the computer. This

provides essential power for the DDX-CAM module in addition to the USB signals. Each DDX-USR module acts as a USB 2.0 hub and thus provides four sockets for peripherals.

To connect the USB port

1 Connect the USB cable of the DDX-CAM module

to a vacant USB socket on your host computer.

INSTALLATIONCONFIGURATIONOPERATION

USB lead from the DDX-CAM

Computer connections: Data link

Each DDX-CAM module is linked via a shielded (S/FTP or S/STP) CAT6a or CAT7 cable either to a central DDX switch module or directly to a DDX-USR module (for a single system installation).

Maximum link cable lengths:

• DDX-CAM to DDX switch - 10 metres (32 feet) maximum.

• DDX-CAM to DDX-USR module - 50 metres (164 feet) maximum.

To link the DDX-CAM module

1 Connect the RJ-45 plug of the link cable to the

socket located at the end of the DDX-CAM module.

DisplayPort video lead from the DDX-CAM

VGA video lead from the DDX-CAM

 OR

VGA video port on the host computer

Shielded CAT6a or CAT7 link from DDX switch or DDX-USR module

FURTHER

INFORMATION

INDEX

IMPORTANT: Always ensure you are using shielded cables.

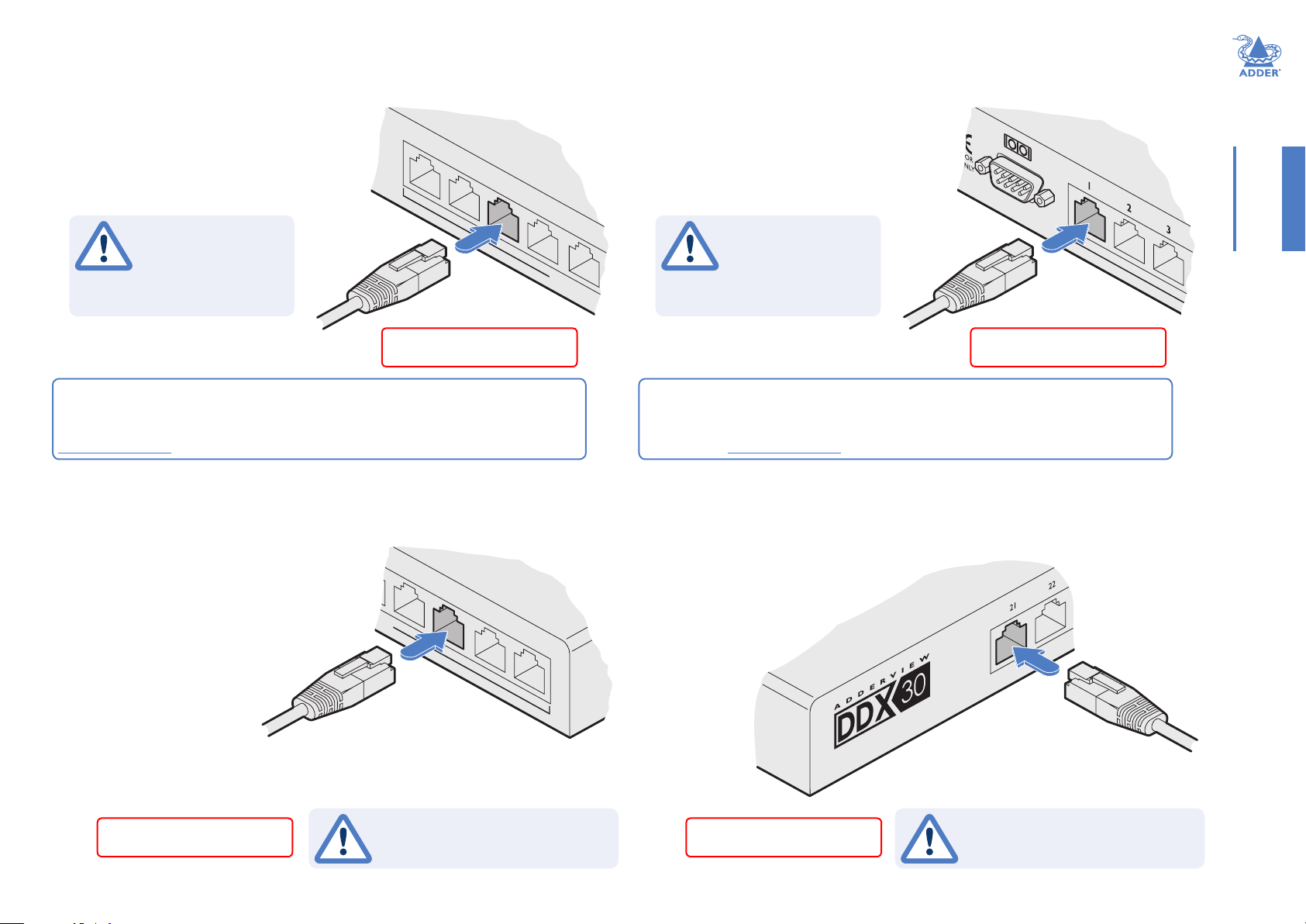

Switch (DDX10) connections: Computer links

1 2 3 4 5

COMPUTERS /

The host computer links are made to the sockets on the rear panel of the DDX switch.

Switch (DDX30) connections: Computer links

The host computer links are made to the sockets on the rear panel of the DDX switch.

To connect a computer link

1 Connect a shielded (S/FTP or S/STP) CAT6a

or CAT7 cable (10m maximum) from the remote DDX-CAM computer module to a

vacant RJ-45 socket (sockets 1 to 8, by default)

on the rear panel of the DDX10 switch.

These are NOT Ethernet/network ports and must NEVER be connected to any networking equipment.

Shielded CAT6a or CAT7 link from a

remote DDX-CAM computer module

IMPORTANT: Always ensure you are using shielded cables.

Reallocating ports

By default the DDX10 switch provides 8 computer ports and 2 user ports along its rear panel. If necessary, these standard arrangements can be changed. See

Reallocating ports.

Switch (DDX10) connections: User console links

The user console links are made via the sockets on the rear panel of the DDX switch.

To connect a user console link

1 Connect a shielded (S/FTP or S/STP)

CAT6a or CAT7 cable (50m maximum) from the remote DDX-USR module to a

vacant RJ-45 socket (sockets 9 and 10, by

default) on the rear panel of the DDX10 switch.

To connect a computer link

1 Connect a shielded (S/FTP or S/STP) CAT6a

or CAT7 cable (10m maximum) from the remote DDX-CAM computer module to a vacant RJ-45 socket on the rear panel of the DDX30 switch.

These are NOT Ethernet/network ports and must NEVER be connected to any networking equipment.

Shielded CAT6a or CAT7 link from a

remote DDX-CAM computer module

IMPORTANT: Always ensure you are using shielded cables.

Reallocating ports

By default the DDX30 switch provides 20 computer ports along its rear panel and 10 user ports along its front panel. If necessary, these standard arrangements can be

changed. See Reallocating ports.

Switch (DDX30) connections: User console links

The user console links are made via the sockets at the front of the DDX switch.

To connect a user console link

1 Connect a shielded (S/FTP or S/STP)

CAT6a or CAT7 cable (50m maximum) from the remote DDX-USR module to a

vacant RJ-45 socket

on the front panel of the DDX30 switch.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

Shielded CAT6a or CAT7 link from

a remote DDX-USR module

IMPORTANT: Always ensure you are using shielded cables.

These are NOT Ethernet/network

ports and must NEVER be connected

to any networking equipment.

IMPORTANT: Always ensure you are using shielded cables.

Shielded CAT6a or CAT7 link from

a remote DDX-USR module

These are NOT Ethernet/network

ports and must NEVER be connected

to any networking equipment.

INDEX

Switch connections: Network link

All system conguration is carried out via an Ethernet link, allowing adjustments to be made by authorized admin users located next to the DDX unit, or anywhere. The autosensing network port can determine between 10, 100Mbps or 1Gbps links and can also adjust to straight or cross-over cables.

To connect a network link

1 Connect the CATx cable from an Ethernet switch or from

a local computer.

From a network switch

or nearby computer

Switch connections: Options port

The options port is reserved for future use.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Switch connections: Power

Each DDX switch is supplied with a single power adapter but offers the facility to use

a second input in order to provide operational redundancy. The DDX unit can operate

perfectly well from a single power adapter operating alone. When two adapters are

connected, the unit will spread its load between them; should one power input fail, 100%

of the load will be transferred to the other power adapter without a break in operation.

Remote checking of the power inputs is possible at any time via the browser interface -

see Maintenance > Diagnostics for details.

There is no on/off switch on the DDX unit, so operation begins as soon as power is

applied at either port.

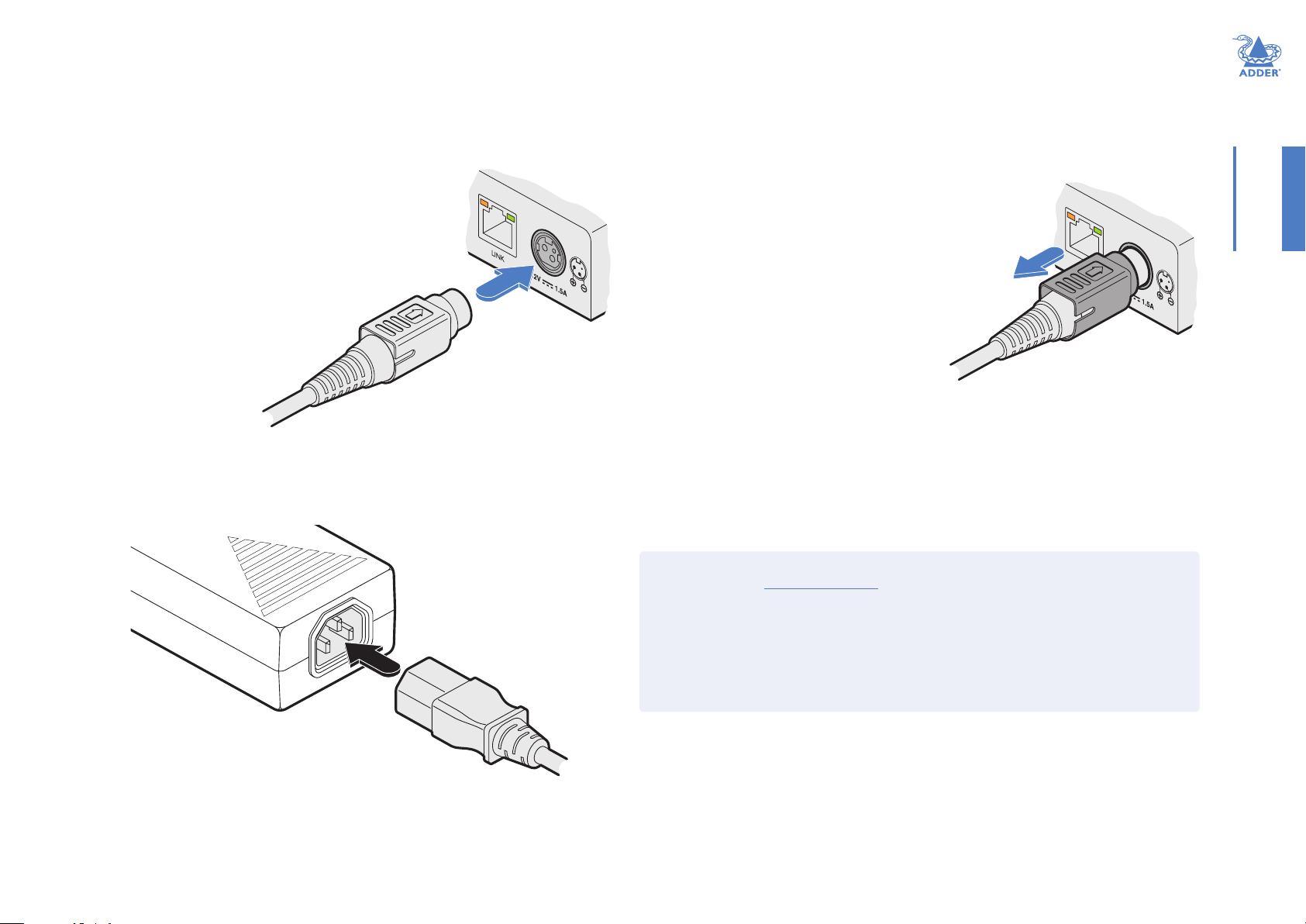

To connect the power adapter

1 Attach the output plug of the supplied power adapter to

either power input socket on the left side of the rear panel.

From the

power adapter

2 Connect the IEC connector of the supplied country-specic power cord to the socket

of the power adapter.

To disconnect the power adapter

1 Isolate the power adapter from the

mains supply.

 Note: If you are replacing one of dual

power adapters during operation, it is not necessary to also remove power from the other adapter.

2 Grasp the outer body of the power

adapter plug where it connects with the module.

3 Gently pull the body of the outer

plug away from the module. As the

body of the plug slides back, it will

Gently pull back the plug outer

body to release the lock

release from the socket and you can fully withdraw the whole plug.

IMPORTANT: Please read and adhere to the electrical safety information given within the Safety information section of this guide. In particular, do not use an unearthed power socket or extension cable.

Note: Both the modules and the power supplies generate heat when in operation and will become warm to the touch. Do not enclose them or place them in locations where air cannot circulate to cool the equipment. Do not operate the equipment in ambient temperatures exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose surface temperature exceeds 40 degrees Centigrade.

INSTALLATIONCONFIGURATIONOPERATION

3 Connect the power cord to a nearby main supply socket. 4 Where power redundancy is required, repeat steps 1 to 3 for a second power adapter.

FURTHER

INFORMATION

INDEX

Console connections: Video

A Single Link DVI-D port is provided on the rear panel of the user module. The DDX-USR module supports one video display with pixel clocks up to 165MHz

(equivalent to a maximum resolution of 1920 x 1200 at 60Hz - aka ‘WUXGA’). If a second display is required to support a dual video installation, use another DDX-

USR module to drive the second display, and combine the two user modules into a single Console within the DDX Matrix conguration application - See Congure > Computers.

To connect the video display

1 Connect the DVI-D video cable from your video

display to the video output port on the rear panel

of the user module.

From your video display

Console connections: USB

The DDX-USR module contains a USB hub that can support up to four v1.1 or v2.0 USB devices (in any combination). All four USB sockets, two on the front panel and two on the rear, are identical in operation.

Note: In multi-head installations, the USB devices must be attached only to the DDX-USR module that drives the main display.

To connect USB devices

1 Connect your USB keyboard and mouse to any of

the four sockets distributed on the front and rear panels of the user module.



Rear panel

From USB keyboard and mouse

INSTALLATIONCONFIGURATIONOPERATION

EDID management

The DDX switch provides a number of xed EDID (Extended Display Identication Data) proles that will suit a large number of video display congurations. If additional EDID denitions are required for your installation, you can clone new denitions from connected video displays and add these to the list of available denitions.

For details about cloning EDIDs from displays, see Add EDID. For details about applying an EDID to a particular computer, see Congure > Computers

> Transmitters.

DDX-USR module switches

The two switches on the DDX-USR module are reserved for future use and must both

remain in the OFF position.

Front panel

From USB keyboard and mouse

FURTHER

INFORMATION

INDEX

Console connections: Audio

The DDX-USR module supports stereo speakers, headphones and also a microphone port. All audio devices are presented at the linked host computer as USB audio devices.

Note: In multi-head installations, the audio devices must be attached only to the DDX-USR module that drives the main display.

To connect your speakers

1 Connect your speakers to the audio line out socket on

the user module rear panel.

Console connections: Data link

Each DDX-USR module is linked via shielded (S/FTP or S/STP) CAT6a or CAT7 cable either to a central DDX switch module or directly to a DDX-CAM module (for a single system installation) - do not exceed 50 metres (164 feet).

To link the DDX-USR module

1 Connect a shielded (S/FTP or S/STP) CAT6a or CAT7 cable to the LINK socket on

the rear panel of the DDX-USR module. Connect the other end of the cable to either a DDX switch or directly to a DDX-CAM computer module.

INSTALLATIONCONFIGURATIONOPERATION

IMPORTANT: Always ensure you are using shielded cables.

From your speakers

To connect your headphones/microphone

1 Connect your headphones to the socket labeled on the user module front panel.

2 Connect your microphone to the socket labeled on the user module front panel.

From your microphone

From your headphones

Shielded CAT6a or CAT7 link

from DDX switch or DDX-CAM

This is NOT an Ethernet/network

port and must NEVER be connected

to any networking equipment.

Console connections: Options port

The options port is reserved for future use.

FURTHER

INFORMATION

INDEX

Console connections: Power

There is no on/off switch on the DDX-USR module, so operation begins as soon

as power is applied. The supplied power adapter uses a locking-type plug to help

prevent accidental disconnections; please follow the instructions given right whenever

disconnecting a power adapter.

To connect the power adapter

1 Attach the output plug of the supplied power adapter to

the power input socket on the rear panel of the DDX-USR module.

From the

power adapter

2 Connect the IEC connector of the supplied country-specic power cord to the socket

of the power adapter.

To disconnect the power adapter

1 Isolate the power adapter from the mains supply. 2 Grasp the outer body of the power adapter plug

where it connects with the module.

3 Gently pull the body of the outer plug away from

the module. As the body of the plug slides back,

it will release from the socket and you can fully withdraw the whole plug.

Gently pull back the plug outer

body to release the lock

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

3 Connect the power cord to a nearby main supply socket.

INDEX

Conguration

ACCESSING DDX MATRIX

DDX switches are congured via their network connections using an intuitive browser-based application, called DDX Matrix. This secure, password protected application is accessible by any authorized user, located anywhere. The DDX

switch can also be accessed via cross origin resource sharing (CORS). This allows interaction in a browser from a different web application. The API is served in a YAML format which can be found at http(s)://<ipaddress>/rest-api. The DDX switch

adheres to RESTful and CORS standards.

To access DDX Matrix

1 Use a computer that is directly or indirectly (i.e. via a network switch) connected to the DDX switch. If you need to

make a temporary connection, see right Ü

2 Run a web browser on your computer and enter the IP address of the DDX switch. The DDX switch uses the Universal

Plug and Play (UPnP) protocol for Windows, or Bonjour (mDNS-SD) protocol for Mac and Linux, to contact a valid

DHCP server to determine a suitable IP address. If a DHCP server cannot be located then the switch will automatically fall back to a static IP address of 192.168.1.22. This address selection system can be congured later.

 Whichever method the switch uses, the initial IP address can be discovered either:

• Using the Windows network browser (of a computer connected to the same sub network or directly to the switch),

• In the lower right corner of the OSD screen (of a console connected to one of the user ports) see Viewing the OSD.

 Note: For security, DDX Matrix uses HTTPS by default with a self-signed certicate - Please ignore any warnings that may be

displayed by your web browser.

3 If requested, enter your username and password to log on.  Note: The default username and password are admin and password respectively.  The opening page of the DDX Matrix should be displayed:

INSTALLATIONCONFIGURATIONOPERATION

To temporarily connect a computer to the network port

1 If you need to make a temporary

connection for conguration purposes,

use a standard patch cable (cross-

over or straight connections are both

supported) to link the Ethernet 10/100 network port ( ) on the front panel of the DDX switch to your computer’s network port.

Temporary link from

your computer

FURTHER

INFORMATION

INDEX

USING DDX MATRIX

The Dashboard page

Once you have successfully logged in, DDX Matrix will show the dashboard page to provide a general overview of your DDX installation. You can also re-display this page by

clicking the Dashboard entry in the menu:

INSTALLATIONCONFIGURATIONOPERATION

Information and options are displayed within the main section of the page.

Some items will provide further popup information when you hover your mouse pointer over them.

Click the required menu item to reveal the available page choices.

Colors and symbols are used to provide quick visual feedback:

Operational with a valid video signal

Operational but rmware upgrade suggested

Not useable, rmware upgrade required

Disconnected

Note: An icon showing orange is currently being upgraded

Note: It is not possible to remain logged in for more than 24 hours; after the webUI token has expired, you will need to log in again.

Click a heading to reorder the whole list in ascending or descending order according to the entries within the chosen column.

FURTHER

INFORMATION

Hover your mouse over an icon to see more information:

INDEX

Quick guide to creating a new installation

When creating a new DDX installation there are various conguration tasks that need to be completed within DDX Matrix. This page provides a recommended ‘to do list’ of the stages that you need to perform.

Primary tasks

• Congure the networking details for the DDX switch. See Congure > Central Switch > Network

• Ensure that the EDID denitions are appropriate for your installation. See Congure > Central Switch > Manage EDIDs

If additional EDID denitions are required for your installation, you can clone new denitions from connected video displays and add these to the list of available denitions. See Add EDID

• Add the required consoles (either before or after they are connected). See Congure > Consoles

By default the DDX switch provides 20 computer ports along its rear panel and 10 user ports along its front panel. If necessary, these standard arrangements can be

changed to suit your installation. See Reallocating ports

• Determine the access permissions for each console. See Access permissions

• Add your computers (either before or after they are connected). See Congure > Computers

• Add the users and dene their login details. See The Users Page

Secondary tasks

• Optionally make changes to the OSD settings. See Congure > Central Switch > OSD Settings

• Add description and location details for the switch. See Congure > Central Switch > General

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

The Control page

The Control page provides a Connection map that allows the admin user to view and affect how consoles are connected to the various computers. This page is particularly useful when managing video-only installations.

To connect a console

1 Click the down arrow on the console entry to reveal the list of

computers that it is authorized to access.

2 Click the appropriate connection icon adjacent to the required

computer:

•

View only - console user can view a computer’s

output but not alter it,

•

Shared access - console user can view and

control a computer along with other consoles,

•

Exclusive - multiple console users can view a

computer but only one can control it,

INSTALLATIONCONFIGURATIONOPERATION

Connection preset

You can optionally record and recall connection combinations that you often use

between various transmitters and receivers as a preset.

To record your preset: Set up the required combination of links between

transmitters and receivers (including any preferred Access Permissions), and then click the green Save as Preset’ option.

Note: You can add or amend the connection preferences of any console (that will be enacted whenever this overall ‘Connect to Preset’ option is clicked) within the Add/Edit pages of the required console. See Preset Connection at Congure > Consoles > Add new entry or

Congure > Consoles > Edit an entry.

To use your preset: Click the amber ‘Connect to Preset’ option.

•

Private - console user can view and control the

computer privately while other users are locked out.

 For further details, see Access permissions. 3 You can change the connection method at any time by clicking

the down arrow again and choosing an alternative connection

option.

To disconnect a console

1 Click the button in the lower left corner of the console entry

that you wish to disconnect.

FURTHER

INFORMATION

INDEX

The Congure pages

The Congure menu option expands when clicked to reveal three sub-sections:

• Central Switch - settings related directly to the DDX switch.

• Consoles - settings related to the DDX-USR modules and their connected peripherals.

• Computers - settings related to the DDX-CAM modules and their host computers.

When the Maintenance > Settings > Web UI Mode is set to Advanced, an extra Versions block is displayed below the

General section for diagnostic purposes:

INSTALLATIONCONFIGURATIONOPERATION

This item is shown only when the Maintenance

> Settings > Web

UI Mode is set to

Advanced.

Central Switch > General

Basic settings for the DDX switch. Description/Location are most useful when multiple DDX

installations are being managed; labelling each installation as you go is a good habit to get into:

• System Default EDID - determines the default EDID to use for the installation.

• Ignore Firmware Mismatch - when set to On, this overrides the checks that are made to

ensure all modules are running compatible rmware versions. This override should be used

in exceptional circumstances only.

• Manage Time Automatically – when set to ON the current time and timezone will be

obtained via the congured NTP & DHCP servers.

• Use Current PC Time - when managing time manually, the system time will be synced to that

from the local computer.

• Timezone - when managing time manually or running without DHCP, allows you to declare

which timezone you are in.

• Firmware Ver sion - shows the rmware version of the DDX

switch.

• Recovery Version - shows the version of the DDX switch recovery image.

• Admin UI Version - shows the version of the DDX Matrix

admin user interface.

• Board Ver sion - shows the version of the main DDX

motherboard.

• Datafpga Version - shows the version of the gate array chip

that handles data throughput.

• Videofpga Version - shows the version of the gate array chip that handles video signals.

FURTHER

INFORMATION

INDEX

Central Switch > Network

DHCP

All of the key settings for the network capabilities of the DDX switch are here:

• IP Address - shows the current IP address for the switch.

• Net Mask - shows the current subnet mask to accompany the IP address.

• Gateway - shows the current address for a gateway device.

• DHCP and (Fallback) Address Scheme - using these two options you can determine how the IP

address of the DDX switch should be derived. See below.

• MAC Address - displays the unique (and xed) MAC address for the switch.

• Web Server Protocol - allows a change to the use of insecure HTTP for web admin - switch reboot

required. IMPORTANT: Do not set this option to HTTP when the switch is connected to external networks.

• Network Service Discovery - when set to Disabled, the switch will not announce its presence on the network and will not be discoverable using the Windows network browser on a network-

connected computer.

• Hostname - provides a way to access the DDX Matrix by using this hostname together with the domain name (http(s)://<hostname>.<domain>), removing the need to know the IP address.

• Advertise DHCP Domain Name - when set to Off, the DDX switch will use its locally applied

domain name in order to appear in the Apple® Bonjour (mDNS-SD) service (this is necessary on

some incorrectly congured networks that use the local top-level domain). When set to On, the DDX switch will broadcast its DHCP-supplied name to the Bonjour service.

• DHCP NTP Address - when DHCP is On, this area lists the addresses of time servers being used. This service is only supported if the option 42 NTP server is enabled on the DHCP server. If the alternate timezone option 4 is in use, the IP address of the NTP server will not be displayed.

• Manual NTP Address - allows you to enter the static IP addresses of up to ve NTP servers (an average of the time feeds from the servers is taken).

INSTALLATIONCONFIGURATIONOPERATION

DHCP and (Fallback) Address Scheme

These two options together determine the manner in which the IP address of the DDX

switch is congured. If DHCP is set to ON and is available via the network, then the IP address

will be set by DHCP. If DHCP is set to OFF or is unavailable, then the

(Fallback) Address Scheme setting comes into

play. Whenever the Static option is chosen, you

will be able to enter the required IP Address, Net Mask and Gateway options.

This summary

shows the

combination of

settings and their

effect on the IP

address of the

DDX switch

DHCP

Fallback Address Scheme

OFF

Address Scheme

+ >

Address Scheme

+ >

Link Local

Static

Link Local

Static

DHCP available?

FURTHER

Use DHCP address

Use Static IP address

Use DHCP address

Use Link Local address

Use Static IP address

Use Link Local address

INFORMATION

INDEX

Central Switch > OSD Settings

Options related to the on screen display are presented in this section:

• Thumbnails - when set to Off, this option will hide the thumbnail views of each computer within

each user’s OSD main page.

• Auto Layout - when set to Off, this option will maintain a 5x5 grid for the displayed computers within the OSD main page, regardless of the number of available computers. When set to On, the OSD view grid will be re-scaled accordingly.

• Use Full Grid - when set to On, if you have 4, 9 or 16 computers connected, the OSD will use the bottom right portion of the screen as a square computer thumbnail, instead of reserving it for the

system information. A small tab appears in the top right corner of the OSD if “Show System Info”

is On, showing the IP address and an icon denoting any compatibility issues (green tick for no issues, yellow warning for upgrade recommended and a red warning for upgrade required).

Note: This option will be hidden if Auto Layout is set to Off.

• Display System Info - when set to On, the current IP address and rmware version details for the DDX switch will be shown in the lower right corner of the OSD, or the IP address and rmware

icon in the top right corner of the OSD.

Note: Disabling ‘Display System Info’ will remove the IP address from the OSD. When ‘Use Full Grid’ is

enabled, this option will also suppress all rmware version mismatch warnings.

• Display Date and Time - when set to On, the current date and time are displayed on the OSD

menu.

• Background Brightness - determines the brightness of the OSD thumbnail views when the mouse is not hovering over them. Five settings are available, from 100% down to 20%. If set to 100% then all thumbnails remain at full brightness all of the time. Whereas, at 20% all thumbnails will darken until the mouse hovers over one of them, at which point it will come to full brightness to clearly

highlight it against all the others.

• EDID - optionally allows you to determine a video resolution to use when displaying the OSD. For instance, if you have a 19” monitor that can only display 1024x768 then by changing this setting to 1024x768 you can match the OSD to the screen resolution. Firmware versions below v3.0 will only display the OSD at a resolution of 1920x1080. After this setting has been changed, the

system will reboot automatically.

 WARNING: This is a global setting and will be applied to all the monitors connected to the system. Before

making changes, ensure that all your monitors can support this video resolution. If you have different sized monitors, this option should be set to the video resolution of the smallest monitor to ensure that you can bring up the OSD on all the monitors connected to your system.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

INSTALLATIONCONFIGURATIONOPERATION

Central Switch > Manage EDIDs

This page lists the EDID (Extended Display Identication Data) proles that are currently available:

• EDID - shows the resolutions and refresh rates for all proles

that are currently stored.

• Type - indicates where each EDID prole originated: Fixed EDIDs are included within the switch rmware and cannot be removed. User EDIDs are those that have been cloned from particular video displays attached to DDX-USR modules -

these can be deleted if required. On the main Central Switch

> General page you can select the ‘Default System EDID’

from the list of xed and user EDIDs.

• Originating Port - indicates which switch port supplied each user EDID.

• Active Transmitter Por ts - indicates which transmitters (if any) are currently using each EDID.

Note: The DDX switch will modify the EDID, if a Dual link monitor is connected, to list only the video resolutions that it is capable of supporting.

Add EDID

If additional EDID denitions are required for your installation, you can clone new denitions from connected video displays and add these to the list of available denitions.

Click the [+] icon to begin collecting a new EDID

from a display attached (via a DDX-USR module)

to one of the switch ports. Click the EDID dropdown list and choose the

appropriate receiver (DDX-USR module) from which you wish to clone a new EDID prole. Then

click the Add EDID button. For details about applying an EDID to a particular

computer, see Congure > Computers >

Transmitters.

FURTHER

INFORMATION

INDEX

Congure > Consoles

A Console is a collective term for a set of peripheral devices arranged around one or more DDX-USR modules. This page lists all registered consoles:

Click a heading to reorder the whole list in

ascending or descending order according

to the entries within the chosen column.

In addition to the Name and Description, other columns provide the following details and options for each console entry:

• Ports - each DDX-USR module connects to a single port on the DDX switch. This column lists the port(s) used by the DDX-USR module(s) associated with each console. Two or more DDX-USR modules can be combined to form multi-head

consoles, each connecting to separate ports.

 Note: For consoles with multiple displays (multi-head), additional user console ports are

required. If there are no spare user console ports available then any unused computer ports on the rear panel can be deleted in order to free them up as spares. See Reallocating ports.

• OSD Mouse Launch - when set to On, allows the console user to invoke the on Screen

Display by holding down their center mouse button and then clicking the right button.

• Connected Computer - shows to which computer the console is currently connected.

• Current Access Mode - indicates how the console is currently connected to the listed

computer: = View only, = Shared access, = Exclusive, = Private

• Tick box - Allows you to tick all required console entries and then remove them collectively using the Delete Selected button.

Add new

Click the [+] icon to begin adding a new console, either

before or after connecting the DDX-USR module(s). See Congure > Consoles > Add new entry

Edit

Click an entry to view/edit its details. See Congure > Consoles > Edit an entry

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Consoles > Add new entry

Click the [+] icon within the Congure > Consoles list to display this page and begin adding a new console, either before or after connecting

the DDX-USR module(s):

Add new

• Name - the main identier for the new console.

• Description - a further opportunity to add more information.

• OSD Mouse Launch - when set to On, allows the console user to invoke the on Screen Display

by holding down their center mouse button and then clicking the right button.

• OSD Touchscreen Launch - when set to On (and when a touchscreen is being used at the

console), a translucent launch icon is overlaid onto the primary screen and can be dragged to an appropriate location. When the icon is tapped, the OSD will be launched as normal.

• OSD Hotkey Modiers - allows you to alter the standard hotkey modiers that, together with

the OSD Launch Key cause the OSD to be displayed on the console.

• OSD Launch Key - allows you to alter the standard key that, together with the OSD Hotkey Modiers, causes the OSD to be displayed on the console.

• VCP Key - determines the key that, together with the OSD Hotkey Modiers, causes the Virtual

Control Panel to be displayed. The Virtual Control Panel allows users to adjust various aspects of their video image (when viewing an analog VGA source). See Using the Virtual Control Panel to

adjust VGA inputs.

• Keyboard Layout - determines the overall keyboard layout to use with the console.

• Port - add the port number (located on the main DDX switch) used by the DDX-USR module

associated with this console. For multi-head consoles, ensure that the port used by the primary DDX-USR module (the one that has the primary display and peripherals attached) is the rst one to be dened. If a chosen port is already used, a warning will be displayed, see Reallocating

ports.

• Access Permissions - click the [+] button to select one or more computers that this console will be permitted to access. For each computer choose the appropriate access permissions (see

Access permissions): = View only, = Shared access, = Exclusive, = Private

• Preset Connection - allows you to choose which computer this console should connect with (and which Access Permissions should be used) when the Connect to Preset option is clicked on the Control page. Any changes made here will modify any existing settings for this console

which may already exist within the overall preset.

• Add Console - click to save your settings.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Consoles > Edit an entry

Click on an entry within the Congure > Consoles list to display this page. Here you can edit the conguration details for a chosen console.

Edit

• Name - the main identier for the console.

• Description - a further opportunity to add more information about the

console.

• OSD Mouse Launch - when set to On, allows the console user to invoke

the on Screen Display by holding down their center mouse button and then clicking the right button.

• OSD Touchscreen Launch - when set to On (and when a touchscreen is

being used at the console), a translucent launch icon is overlaid onto the

primary screen and can be dragged to an appropriate location. When the

icon is tapped, the OSD will be launched as normal.

• OSD Hotkey Modiers - allows you to alter the standard hotkey modiers that, together with the OSD Launch Key cause the OSD to be displayed on

the console.

• OSD Launch Key - allows you to alter the standard key that, together with the OSD Hotkey Modiers, causes the OSD to be displayed on the console.

• VCP Key - determines the key that, together with the OSD Hotkey Modiers,

causes the Virtual Control Panel to be displayed. See also page 38.

• Keyboard Layout - determines the overall console keyboard layout.

• Ports - shows the user port number(s) (located on the main DDX switch)

used by the DDX-USR module(s) associated with this console. For multi-head consoles, ensure that the port used by the primary DDX-USR module (the one that has the primary display and peripherals attached) is

the rst one to be dened. If a chosen port is already used, a warning will be displayed, see Reallocating ports.

• Access Permissions - choose which computers this console is permitted to access:

•

 For further details, see Access permissions.

• Preset Connection - allows you to choose which computer this console

should connect with (and which Access Permissions should be used) when the Connect to Preset option is clicked on the Control page. Any changes made here will modify any existing settings for this console which may

already exist within the overall preset.

When you have made your changes, click the Update button.

View only - console user can view a computer’s output but not

alter it,

Shared access - console user can view and control a computer

along with other consoles,

Exclusive - multiple console users can view a computer but only

one can control it, or

Private - console user can view and control the computer

privately while other users are locked out.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Consoles > Receivers

At the heart of each console (the collective term for a set of peripherals connected to the DDX system) is a receiver called a DDX-USR module.

Click a heading to reorder the whole list in

ascending or descending order according

to the entries within the chosen column.

This page shows various details for each DDX-USR module:

• Firmware - the current internal software version for each DDX-USR module.

• Monitor No - an index number for each video display. The rst monitor for any console will be

indexed as ‘1’. Where a console has more than one video display associated with it (by using additional DDX-USR modules), this column will show ‘2’, ‘3’, etc. against the secondary, tertiary, etc.

DDX-USR module(s).

• Monitor model - indicates the video display model as reported to the DDX-USR module to which it is

connected.

• Unique ID - (shown only when the Maintenance > Settings > Web UI Mode is set to Advanced) this column displays the unique identier hardwired into every DDX-USR module.

Click a receiver entry to view the conguration details of the

DDX switch port to which it is connected.

Within this page it is possible to reboot and/or recover a receiver.

Recovering a receiver

This option (shown only when the Maintenance > Settings > Web UI Mode is set to Advanced) is used to reprogram a receiver that has failed during a rmware upgrade. Once the Recover Receiver button is clicked, you will be asked to power cycle the respective receiver, whereupon it will boot up into recovery mode. Then

you will asked to click a Reprogram button to commence the operation.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Computers

This page lists the computer systems that are connected to the DDX switch unit via individual DDX-CAM modules:

Click a heading to reorder the whole list in

ascending or descending order according

to the entries within the chosen column.

In addition to the Name and Description, the columns also provide the following useful details for each computer entry:

• Port(s) - each DDX-CAM module connects to a single port on the DDX switch. This column lists the port(s) used by the DDX-CAM module(s) associated with each computer. Two or more DDX-CAM

modules can be combined to support extra displays (multi-head), each connecting to a separate port. Three of the user console ports (21 to 23) can be changed into computer ports, if there are fewer

user consoles within your installation. See Reallocating ports.

• Thumbnail - indicates whether a thumbnail image of the computer’s video output will be shown on the OSD screen for each user. If disabled (unticked), a black image will be shown in the OSD screen.

• Primary Console - indicates the console that currently has control of the computer.

• Connected Consoles - lists all consoles to which each computer is attached.

• Current Access Mode - indicates how the computer is currently being accessed by the listed console:

= View only, = Shared access, = Exclusive, = Private

• Tick box - Allows you to tick all required computer entries and then remove them collectively using

the Delete Selected button.

Add new

Click the [+] icon to begin adding a new computer,

either before or after connecting the DDX-CAM module(s):

• Name - the main identier for the new computer.

• Description - a further opportunity to add more

information about the computer.

• Computer Number - provides a list of the remaining vacant computer numbers that you can associate

with your new entry. The chosen number will determine the position of this computer in the OSD screen and also the hotkey (Ctrl+Alt+n) used to access it. You can swap the number used with other computers within the edit page.

• Ports - Add one or more port numbers used by the DDX-CAM module(s) associated with this computer.

Edit

Click an entry to view/edit its details and options. See Congure > Computers > Edit an entry

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Computers > Edit an entry

This page allows you to edit the conguration details for a chosen computer.

Edit

• Name - the main identier for the computer.

• Description - a further opportunity to add more information about

the computer.

• Computer Number - displays a list of computer numbers (used and

vacant) that you can associate with this entry. The chosen number

will determine the position of this computer in the OSD screen and also the hotkey (Ctrl+Alt+n) used to access it. If you choose a

computer number that is already used by another computer, then

it and the existing number held by this computer will be swapped

over.

• Port(s) - shows the one or more port numbers used by the DDX- CAM module(s) associated with this computer. For multi-head

computers, ensure that the port used by the primary DDX-CAM

module (the one linked to the primary video output) is the rst one in the list. Three of the user console ports (21 to 23) can be

changed into computer ports, if there are fewer user consoles

within your installation. See Reallocating ports.

• Thumbnail - indicates whether or not a thumbnail view of this computer’s video output should be shown OSD screen for each

user.

• Primary Console - indicates the primary console that is connected to this computer.

• Connected Consoles - indicates other consoles that are also connected to this computer.

• Current Access Mode - indicates the highest level access mode (e.g. View Only, Shared, Exclusive, etc.) that is currently being used for

this computer.

• Transmitters - lists the transmitters (DDX-CAM modules) that are

serving this computer.

When you have made your changes, click the Update button.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Congure > Computers > Transmitters

Each computer connects to a DDX-CAM transmitter module. This page lists each DDX-CAM module and their key details:

Click a heading to reorder the whole list in

ascending or descending order according

to the entries within the chosen column.

INSTALLATIONCONFIGURATIONOPERATION

This page lists various details for each DDX-CAM module:

• Computer Name - the given name for each connected computer.

• Firmware - the current internal software version for each DDX-CAM

module.

• Monitor No - an index number for each video display port. The rst port for any computer will be indexed as ‘1’. Where a computer has more than one video display connected it (by using additional DDX-CAM modules), this column will show ‘2’, ‘3’, etc. against the secondary, tertiary, etc. DDX-CAM

module(s).

• Unique ID - (shown only when the Maintenance > Settings > Web UI Mode is set to Advanced) this column displays the unique identier hardwired into every DDX-CAM module.

Click a transmitter entry to view the conguration details of its port on the DDX switch. Within this page it is possible to reboot and/or recover a transmitter.

Applying a different EDID

If a computer needs to use an EDID prole that

differs from the one being used as the default

System EDID, use these steps:

1 If necessary, clone the required EDID - see

Add EDID.

2 View the Congure > Computers >

Transmitters page and click on the required

computer entry (to show the page above).

3 Select the appropriate entry from the EDID

drop down list.

4 Click the Update button.

Recovering a transmitter

This option (shown only when

the Maintenance > Settings > Web UI Mode is set to Advanced) is

used to reprogram a transmitter

that has failed during a rmware upgrade. Once the Recover Transmitter button is clicked, you

will be asked to power cycle the

respective transmitter, whereupon it will boot up into recovery mode.

Then you will asked to click a Reprogram button to commence the operation.

FURTHER

INFORMATION

INDEX

Reallocating ports

By default the DDX switch provides 10 user console ports on its front panel and 20 computer ports along its rear panel, however, these designations are not xed. If your

installation requires a greater number of computers or has a need for more user

consoles, you can alter the allocation of these standard ports to suit:

• Any of the 20 rear panel computer ports can be reallocated as user console ports, or

• Three of the front panel ports (labeled 21 to 23) can be used as computer ports.

To reallocate a port that is already being used

1 While creating (or editing) a computer or console entry, choose the required port.  If the port is already being used, when you click the Update button, you will be

presented with a warning such as the following:

2 Click the Conrm button. The chosen port will rst be de-allocated from its existing

relationship and then paired to your device. The device that originally used the port

will be left without a port allocation and will need separate attention.

 Note: If you reallocate any port from a multi-head computer/console this will cause all ports

associated with that computer/consoles to be de-allocated.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

The Users page

This page lists all registered users and allows the admin user to add, edit and delete entries, as required.

Note: When changes are made to user details, you are recommended to make a backup le.

INSTALLATIONCONFIGURATIONOPERATION

Add new

Click the [+] icon to begin adding a new user.

Edit

Click a user entry to edit its details.

Note: It is not possible to delete the Administrator account if it is the only administrator account remaining.

FURTHER

INFORMATION

INDEX

The Maintenance pages

The Maintenance section contains three pages: Diagnostics, System Operations and

Settings.

Maintenance > Diagnostics

This page provides important feedback on power inputs (and switch Temperatures). The temperature information is displayed only when the Maintenance > Settings > Web UI Mode is set to Advanced.

INSTALLATIONCONFIGURATIONOPERATION

This section indicates the status of the mains power input(s).

These items are only shown when Settings > Advanced Mode On is chosen.

This section indicates the current temperature readings within the DDX switch for the following:

• The processor core,

• The internal case area,

• The main circuit board,

• The red, green and blue video switches.

This section lists the currently active ports,

their uptime and status.

FURTHER

INFORMATION

INDEX

Maintenance > System Operations

This page provides a selection of important system operations that may be required at various times.

INSTALLATIONCONFIGURATIONOPERATION

Recovering an unresponsive transmitter or receiver

If a rmware upgrade to a transmitter or receiver has failed, the unit may become unresponsive. If so, please follow the advice provided in other

sections of this guide:

• Recovering a transmitter

• Recovering a receiver

Upgrade Firmware

Upgrades the rmwares of the DDX switch and all connected modules to the latest version. Conrmation is

required once this button is clicked.

Note: On a fully populated switch with all the ports in use it will take an additional minute in order to apply the upgrade than a switch with only one or two ports in use.

If the switch is on its link local address and you have

rmware below V3.0 when you upgrade the switch be aware

that after the reboot a new link local address will be assigned.

If the switch has rmware V3.0 or above the same link local

address is used.

Backup

Saves a copy of the DDX Matrix system conguration to a le. Backup les are stored on the computer viewing DDX Matrix.

Sync Tx/Rx Firmware

Upgrades the rmwares of all connected

modules to match that of the main switch.

Conrmation is required once this button is

clicked.

Note: Be sure that the DDX switch has the latest

rmware installed before using this option.

Restore

Restores the DDX Matrix system

conguration from a backup le. A le dialog

will be displayed to allow you to choose the

lename and location.

Note: In order to prevent an incorrect backup

le being uploaded to the switch only backup les created with V3.0 and above rmware are restored on a V3.0 switch. Any backup le taken from a switch with 2.0 or less rmware will not be

restored on a V3.0 switch.

Reboot System

Performs a complete reboot of

the entire DDX system, including

the switch and all modules.

Conrmation is required once

this button is clicked.

FURTHER

INFORMATION

Factory Reset

Returns all DDX system

conguration settings back to

their factory defaults.

INDEX

Maintenance > Settings

This page provides options related to the user interface. When you make a change, you need to click the Update button to save it.

Web UI Mode

When this option is set to Advanced, extra details are shown on certain pages, such as:

• Congure > Central Switch > General

• Congure > Consoles > Receivers

• Congure > Computers > Transmitters

• Maintenance > Diagnostics

Auto Refresh

When this option is set to On, the Dashboard, Control and Diagnostic pages will automatically update their contents every

few seconds.

Update

Click this button to save and enact any changes made to options.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

RESETTING AND RECOVERING

There may be rare occasions when the main switch or a module needs to be given a hard reset. The DDX switch and DDX-USR module both have concealed reset buttons for this purpose. You need to use a narrow implement

(e.g. a straightened-out paper clip) to press-and-hold the recessed reset button on the front panel:

DDX switch

DDX switch > Boot into recovery image

This procedure may be necessary if an attempted rmware upgrade has failed. The switch will load the factory default conguration, requiring you to log-in using the factory

default username/ password and a freshly determined IP address (see Accessing DDX

Matrix). You will be required to accept a new temporary SSL certicate when accessing

the web interface. Note: All conguration data (e.g. users, consoles, computers, networking, etc.) will be retained.

1 Press-and-hold the recessed reset button for ten seconds until the STS (Status)

indicator begins to ash slowly.

2 Release the reset button. The STS indicator will go out and the switch will boot itself

using the recovery image. The STS indicator will now begin to ash again to indicate that it is running from the recovery image (a red banner will also be shown at the top

of the DDX Matrix screen).

3 When you are sure of operating conditions, such as having good power stability,

proceed once again with the rmware upgrade.

DDX switch > Reset

This procedure may be necessary if the switch has become unresponsive. Note: All

conguration data (e.g. users, consoles, computers, networking, etc.) will be retained.

1 Press-and-release the recessed reset button. The switch will reboot.

DDX-USR module

DDX-USR module > Boot into recovery mode

This procedure may be necessary if an attempted rmware upgrade has failed. For such

a situation the DDX-USR module always retains a recovery image that will return the unit

to a working condition, prior to reattempting a rmware upgrade.

1 Press-and-hold the recessed reset button for ten seconds until the PWR indicator

begins to ash quickly.

2 Release the reset button. 3 When you are sure of operating conditions, such as having good power stability,

proceed once again with the rmware upgrade.

DDX-USR module > Reset

This procedure may be necessary if a DDX-USR has become unresponsive.

1 Press-and-release the recessed reset button. The DDX-USR module will reboot.

Recovering an unresponsive transmitter or receiver

If a rmware upgrade to a transmitter or receiver has failed, the unit may become unresponsive. If so, please follow the advice provided in other sections of this guide:

• Recovering a transmitter

• Recovering a receiver

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Operation

The DDX system is designed to be transparent in operation. A simple OSD (On Screen

Display) interface allows each user to view and select from the available host computers.

Note: The default OSD resolution is 1920 x 1080. If your video display does not support this resolution, see Central Switch > OSD Settings to choose a setting that suits your screen.

VIEWING THE OSD

To view the OSD, either:

• From a console keyboard, press CTRL + ALT + M*, or

• From a console mouse, press and hold the center button and then press the right button*,

• From a touchscreen, tap the translucent launch icon (if shown) on the touchscreen*.

The OSD will be displayed:

INSTALLATIONCONFIGURATIONOPERATION

* OSD access settings The precise functions or availability of the keyboard, mouse and/or touchscreen access

methods are dependent on the settings within the Congure > Consoles page. See Congure > Consoles > Add a new entry or Congure > Consoles > Edit an entry.

Thumbnail images

The outputs of the available host computers will be displayed within live thumbnail

images.

Note: If video is not available for a computer, or the Thumbnails option has been set to OFF, a black image will be shown. See Central Switch > OSD Settings.

Switch information

The additional information in the lower right corner, including the current IP address setting, rmware version and any current rmware upgrade warnings/errors, is displayed within the OSD screen, providing the Display System Info option is set to ON.

See Central Switch > OSD Settings.

continued

FURTHER

INFORMATION

INDEX

Choosing a computer

To choose a computer using the mouse

1 Display the OSD from your console using any of the methods shown on the previous

page.

2 Hover the mouse pointer over the required screen image. A set of popup connection

icons will be displayed:

•

 For more details, see Access permissions.

 Note: If an icon is grayed out, that access method is not available.

3 Click the required connection method. The video output from the chosen computer

will be displayed full screen and you can use it as normal.

Note: When viewing the OSD, you can also click outside a computer thumbnail to return to your previous computer (with your last access permissions if still available).

To choose a computer using hotkeys (without viewing the OSD)

• Press and hold Ctrl + Alt and type the number of the required computer. The video output from the chosen computer will be displayed full screen and you can use it as normal.

Note: Shared access mode is always used when the computer choice is made via hotkeys.

View only - you can view a computer’s output but not alter it, Shared access - you can view and control a computer along with other

consoles,

Exclusive - multiple users can view a computer but only one (the rst to

make connection) can control it,

Private - you can view and control the computer privately while other users

are locked out.

Using the Virtual Control Panel to adjust VGA inputs

When video inputs are fed from analog VGA sources (via a DDX-CAM-VGA) it may be necessary to perform minor adjustments to achieve the best possible image; the Virtual

Control Panel allows you to do this.

To adjust the image from an analog VGA input

1 Display the OSD from your console. 2 Select the appropriate computer. 3 Press the following hotkey combination: CTRL + ALT + C to display the Virtual

Control Panel.

4 Then:

• To change position of screen image: Use the keyboard arrow keys.

• To adjust the brightness: Use the + and – keys.

• To adjust the clock phase: Use the < and > keys.

• To reset to the default settings: Press the R key.

5 To return to normal operation: Press the Escape (Esc) key. Any changes made will be

stored for this computer within your console and will be reapplied each time the

computer is revisited.

USB Improvements

Version 2.0 of the DDX Switch rmware has the following improvements in USB support over the original v1.03:

• Touchscreens that advertise compatibility with windows 8 are now supported. Any touchscreens that use proprietary drivers or do not declare windows 8 support are not supported. Multiple touchscreens are now merged into the combined HID device

that the transmitter reports.

• The Adder Free-Flow mouse reported by the CCS-PRO4 is now merged so as only one Free-Flow mouse is reported by the transmitter. Previously, if four receivers were connected to the CCS-PRO4, four different Free-Flow mice would be reported meaning that no other non-emulated USB device could be connected to the receivers.

• Up to ve non-emulated USB HID devices can be connected to the transmitter. The transmitter can support up to seven USB devices, but will always report a combined HID device for keyboard/mouse and touchscreen support, and an Audio device for

speakers and microphone support.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

USING AUDIO

The DDX system fully supports stereo audio, with all audio devices being presented at the linked host computer as USB audio devices. There are slight differences in audio operation between DDX devices acting in a simple extender arrangement (without the

use of a DDX switch) and a full DDX matrix installation.

Using audio in a simple extender installation

The audio is presented to the computer’s operating system as a USB headset with

controls for input level, input mute, input AGC, sidetone level, sidetone mute, output level, output mute and output balance. The audio device is permanently presented to the

computer when the DDX-CAM module powers up. You can adjust the audio features using all of the standard operating system controls.

Note: Due to the architecture of the Codec, adjusting the input (microphone) level or muting the input (microphone) will also affect the sidetone level and mute.

Using audio in a full DDX matrix installation

Audio functionality is enabled by default on all computers. For multi-head computers, audio is only enabled for the primary transmitter, although two audio devices will be presented to the computer, one for each transmitter. For multi-head consoles, audio is only enabled for the primary receiver.

Managing audio in multi-user situations

• In all connection modes, the audio output of the computer is routed to the receiver

from the transmitter.

• In View Only and Shared modes, the receiver input audio is ignored.

• In Exclusive and Private modes, the receiver input audio is routed to the transmitter.

Note: The above is equivalent to routing the output audio as per the video and the input audio as per the USB (except in View Only and Shared modes, where the input audio stream is ignored).

When viewing the OSD selection screen, input and output audio is suppressed. The user who is currently in control of a computer can adjust the audio levels using the

standard operating system audio features; their changes will affect the audio for all other users viewing the same computer. Additional users connected in View Mode, or additional Shared Access users who don’t have control, can listen to the audio but at the volume dictated by the main user. As a user switches between machines, their audio levels are

automatically adjusted to match their current connection.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

INDICATORS

The DDX switches, the DDX-CAM and DDX-USR modules contain various indicators to provide you with status information.

DDX switch - Red front panel status indicators

The red status indicators on DDX switch front panels provide various key power and

operation feedback:

Power input A

This indicator will be on when power is supplied to power socket A

Power input B

This indicator will be on when power is supplied to power socket B

STS (Status)

On: Running primary

rmware image

1Hz ash: Running backup rmware image

2Hz ash: Upgrade

mode engaged

ERR

Flashing: Either,

Power input failed or internal error - refer to the Maintenance >

Diagnostics page for

details

A rmware mismatch

has been detected with one or more

connected devices -

refer to the Dashboard page for details

DDX switch - Green and amber network status indicators

The green and amber status indicators on the network link port provide further

status information:

Amber

Off: 10 or 100Mbps On: 1000Mbps

Green

Off: No link

Flashing: Network activity

On: Quiescent link

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

DDX-USR module - Green and amber status indicators

The green and amber indicators on the link port of each DDX-USR (console/

user) module provide the following status information:

DDX-CAM module - Green and amber status indicators

The green and amber indicators on the link port of each DDX-CAM (computer)

module provide the following status information:

INSTALLATIONCONFIGURATIONOPERATION

Amber

Off: No power

Slow ashing: Power present but

either no video or video not locked

On: Power present and

video locked

Green

Off: No power Flashing: Power present but no data link On: Power present and link established

DDX-USR module - Red front panel status indicators

The red indicators on the front panel of each DDX-USR (console/user) module

provide the following status information:

LNK

Off: No power or no link

Flashing: Switch refused link connection due to incompatible

rmware versions

On: Link established

USB

Off: No power or no active

USB connection

Flashing: USB connection is contended in shared mode

(keyboard LEDs also ash)

On: USB is routed to a

DDX-CAM module, either via the DDX switch or directly, in

a simple extender installation

VID

Off: No power present or the

video is not locked

On: Power present

and video locked

PWR

Off: No power present

Slow ashing: A rmware

upgrade is being forced by the DDX switch

Fast ashing: Receiver in USB recovery mode

On: Power present

Amber

Off: No power

Slow ashing: Power present

but no video

On: Power present

and video locked

Green

Off: No power

Slow ashing: Power present but no data link Fast ashing: A rmware upgrade is being forced by

either the DDX switch or a DDX-USR

On: Power present and link established

Special condition

Amber ashing and Green off: Software fault requiring the DDX-CAM module to be

recovered. See Congure > Computers > Transmitters.

FURTHER

INFORMATION

INDEX

Special condition

PWR on, Amber ashing and Green off: Software fault requiring the DDX-USR module to be

recovered. See Congure > Consoles > Receivers.

Further information

This chapter contains a variety of information, including the following:

• Getting assistance - see right

• Appendix 1 - Link cable interference protection

• Appendix 2 - Firmware upgrades for basic extender installations

• Safety information

• Warranty

• Radio frequency energy statements

GETTING ASSISTANCE

If you are still experiencing problems after checking the information contained within this

guide, then we provide a number of other solutions:

• Online solutions and updates – www.adder.com/support

 Check the Support section of the adder.com website for the latest solutions and

rmware updates.

• Technical support – www.adder.com/contact-support-form

 For technical support, use the contact form in the Support section of the

adder.com website - your regional ofce will then get in contact with you.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

APPENDIX 1 - LINK CABLE INTERFERENCE PROTECTION

While the Category rating (e.g. CAT 5e, CAT 6a, CAT 7, etc.) determines the electrical performance of a cable, another vital part of the overall cable specication is its protection from interference. As cabling distances and data rates increase, so too does the susceptibility to interference, from both external and internal

sources. Proximity to other electromagnetic sources are the main external

threat and these can be subdued using overall screening that surrounds all four of the cable pairs. However, interference is also

possible from neighbouring twisted pairs within the same cable and this can be just as hazardous to data integrity. Such crosstalk is countered by shielding each cable pair separately.

Within each Category rating, you can specify different

combinations of external screening and internal shielding to suit

the environment into which the link is being placed.

Interference protection codes

Interference protection is classied in the following manner:

Name Overall Screening Pair Shielding

U/UTP û û

F/UTP

U/FTP û

U/UTP

INSTALLATIONCONFIGURATIONOPERATION

F/UTP

U/UTP

Overall

screening

shielding

where

U = unshielded F = foil shielding S = braided shielding PiMF = Pairs in Metal Foil

Note: Do not use unshielded cables with the DDX modules.

Pair

Twisted

Pair

S/FTP

or S/STP



or PiMF

General cable anatomy

Outer sheath

Overall screening

Pair shielding

ü

U/FTP

S/FTP S/STP

PiMF

FURTHER

INFORMATION

INDEX

APPENDIX 2 - FIRMWARE UPGRADES FOR BASIC EXTENDER INSTALLATIONS

Extender systems (or individual DDX-USR units) can be upgraded using a USB stick if

required. This is carried out as follows: 1 Connect the DDX-USR to a compatible display and keyboard; optionally connect to a

DDX-CAM module using a Shielded CAT6a or CAT7 data cable to upgrade it at the same time.

2 On the DDX-USR unit, insert a FAT32-formatted USB stick containing the extender

rmware upgrade le into one of the front USB ports. Note: The extender rmware upgrade le must be in the root folder.

3 Apply power to the DDX-USR unit and DDX-CAM modules.  IMPORTANT: Ensure power remains uninterrupted throughout the upgrade process. 4 Press-and-hold the recessed reset button for ten seconds until the PWR indicator

begins to ash quickly, then release the reset button.

5 When prompted, type in the name of the extender rmware upgrade le and press

Enter.

6 Type Y or N as appropriate, when asked if an attached (DDX-CAM) transmitter unit

should also be upgraded. 7 The display will show the upgrade progress and conrmation message. 8 If successful the DDX-USR and DDX-CAM modules will automatically be rebooted

and the USB stick can be removed.

APPENDIX 3 - OPEN SOURCE LICENSES

This product includes binaries that are derived from the open source community. The modules listed below are licenced under the GNU General Public License v2 and must be provided, in source form, on request:

• u-boot

• linux-arm-freescale

• busybox

• termcap

• iproute

This product includes binaries that are derived from the open source community. The modules listed below are licenced under the GNU Lesser General Public License v2.1 and must be provided, in source form, on request:

• libcong

• directfb

• libdaemon

• nss-mdns

• avahi In addition to the GPL modules listed, this product also includes binaries derived from

3rd party open sources that have their own license requirements. Each module is listed

below with their required copyright statement and distribution conditions. Module: iperf

“iperf, Copyright (c) 2014-2016, The Regents of the University of California, through Lawrence Berkeley National Laboratory (subject to receipt of any required approvals from the U.S. Dept. of Energy). All rights reserved.”

Redistribution and use in source and binary forms, with or without modication, are permitted provided that the following conditions are met:

(1) Redistributions of source code must retain the above copyright notice, this

list of conditions and the following disclaimer. (2) Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation and/

or other materials provided with the distribution. (3) Neither the name of the University of California, Lawrence Berkeley

National Laboratory, U.S. Dept. of Energy nor the names of its contributors may be used to endorse or promote products derived from this software without specic prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

• hotplug

• udev

• kobs-ng

• freetype

• i2c-tools

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF

THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

You are under no obligation whatsoever to provide any bug xes, patches, or upgrades to the features, functionality or performance of the source code (“Enhancements”) to anyone; however, if you choose to make your Enhancements available either publicly, or directly to Lawrence Berkeley National Laboratory, without imposing a separate written license agreement for such Enhancements, then you hereby grant the following license: a non-exclusive, royalty-free perpetual license to install, use, modify, prepare derivative works, incorporate into other computer software, distribute, and sublicense such enhancements or derivative works thereof, in binary and source code form.

====

software and associated documentation les (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or

substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND

NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT

HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF

OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

====

This software contains source code (src/net.{c,h}) that is: This software was developed as part of a project at MIT. Copyright (c) 2005-2007 Russ Cox, Massachusetts Institute of Technology Permission is hereby granted, free of charge, to any person obtaining a copy of this

The above copyright notice and this permission notice shall be included in all copies or

substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND

NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT

HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF

OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

==== Contains parts of an earlier library that has:

The authors of this software are Rob Pike, Sape Mullender, and Russ Cox

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in all copies of any software which is or includes a copy or modication of this software and in all copies of the

supporting documentation for such software.

THIS SOFTWARE IS BEING PROVIDED “AS IS”, WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE AUTHORS NOR LUCENT

TECHNOLOGIES MAKE ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

===== This software contains source code (src/queue.h) that is:

permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials

provided with the distribution.

3. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specic prior written

permission. THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS’’

AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR

CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF

THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE. @(#)queue.h 8.5 (Berkeley) 8/20/94

===== This software contains source code (src/tcp_window_size.{c,h}) that is:

---------------------------------------------------------------

Permission is hereby granted, free of charge, to any person obtaining a copy of this software (Iperf) and associated documentation les (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimers.

Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimers in the documentation and/or other materials

provided with the distribution. Neither the names of the University of Illinois, NCSA, nor the names of its contributors

may be used to endorse or promote products derived from this Software without specic prior written permission.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NONINFRINGEMENT. IN NO EVENT SHALL THE CONTRIBUTORS OR

COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE

USE OR OTHER DEALINGS IN THE SOFTWARE. ________________________________________________________________ National Laboratory for Applied Network Research National Center for Supercomputing Applications University of Illinois at Urbana-Champaign http://www.ncsa.uiuc.edu ________________________________________________________________ tcp_window_size.c by Mark Gates <mgates@nlanr.net>

------------------------------------------------------------------set/getsockopt

-------------------------------------------------------------------

===== This software contains source code (src/units.{c.h}) that is:

---------------------------------------------------------------

conditions and the following disclaimers.

Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimers in the documentation and/or other materials

provided with the distribution.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Neither the names of the University of Illinois, NCSA, nor the names of its contributors may be used to endorse or promote products derived from this Software without specic prior written permission.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND

NONINFRINGEMENT. IN NO EVENT SHALL THE CONTIBUTORS OR COPYRIGHT

HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF

OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. ________________________________________________________________ National Laboratory for Applied Network Research National Center for Supercomputing Applications University of Illinois at Urbana-Champaign http://www.ncsa.uiuc.edu ________________________________________________________________

stdio.c

by Mark Gates <mgates@nlanr.net> and Ajay Tirumalla <tirumala@ncsa.uiuc.edu>

------------------------------------------------------------------input and output numbers, converting with kilo, mega, giga

------------------------------------------------------------------=====

This software contains source code (src/portable_endian.h) that is: // “License”: Public Domain

// I, Mathias Panzenböck, place this le hereby into the public domain. Use it at your own risk for whatever you like.

=====

Module: openssl

LICENSE ISSUES ==============

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL

License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.

OpenSSL License =============================================================

permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials

provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the

following acknowledgment:

“This product includes software developed by the OpenSSL Project for use in the

OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse

or promote products derived from this software without prior written permission. For written permission, please contact

openssl-core@openssl.org.

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL”

appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the

OpenSSL Toolkit (http://www.openssl.org/)” THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS’’ AND ANY

EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF

THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE. ============================================================

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

This product includes cryptographic software written by Eric Young (eay@cryptsoft. com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).

This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this

distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms

except that the holder is Tim Hudson (tjh@cryptsoft.com).

Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution

as the author of the parts of the library used. This can be in the form of a textual

message at program startup or in documentation (online or textual) provided with the

package.

Redistribution and use in source and binary forms, with or without modication, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions

and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials

provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the

following acknowledgement: “This product includes cryptographic software written by Eric Young (eay@cryptsoft.

com)” The word ‘cryptographic’ can be left out if the routines from the library being

used are not cryptographic related :-).

4. If you include any Windows specic code (or a derivative thereof) from the apps

directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson (tjh@cryptsoft.com)” THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS’’ AND ANY EXPRESS

OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF

THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

The licence and distribution terms for any publically available version or derivative of this

code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

modication, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials

provided with the distribution.

• Neither name of Intel Corporation nor the names of its contributors may be used to endorse or promote products derived from this software without specic prior

written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN

IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Module: tzdata Original TZdata License

This is the Debian prepackaged version of the Time Zone and Daylight Saving Time Data.

It was downloaded from http://www.iana.org/time-zones Upstream Author: The Internet Assigned Numbers Authority (IANA) Commentary

should be addressed to tz@iana.org Copyright: This database is in the public domain.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

SAFETY INFORMATION

• For use in dry, oil free indoor environments only.

• Warning - live parts contained within power adapter(s).

• No user serviceable parts within power adapter(s) - do not dismantle.

• Plug the power adapter(s) into socket outlets close to the module that they are

powering.

• Do not use an unearthed power socket or extension cable.

• Do not use a power adapter if its case becomes damaged, cracked or broken or if you

suspect that it is not operating properly.

• Replace the power adapter(s) with a manufacturer approved type only.

• If you use a power extension cord with the module, make sure the total ampere rating of the devices plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure that the total ampere rating of all the devices plugged into the

wall outlet does not exceed the wall outlet’s ampere rating.

• Do not attempt to service the modules yourself.

WARRANTY

Adder Technology Ltd warrants that this product shall be free from defects in workmanship and materials for a period of two years from the date of original purchase.

If the product should fail to operate correctly in normal use during the warranty period,

Adder will replace or repair it free of charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s control. Also Adder will not be responsible

for any loss, damage or injury arising directly or indirectly from the use of this product.

Adder’s total liability under the terms of this warranty shall in all circumstances be

limited to the replacement value of this product. If any difculty is experienced in the installation or use of this product that you are

unable to resolve, please see the Getting assistance section.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

RADIO FREQUENCY ENERGY

A Category 5e (or better) twisted pair cable must be used to connect the units in order to maintain compliance with radio frequency energy emission regulations and ensure a

suitably high level of immunity to electromagnetic disturbances.

All cables used with this equipment must be shielded in order to maintain compliance

with radio frequency energy emission regulations and ensure a suitably high level of

immunity to electromagnetic disturbances.

European EMC directive 2004/108/EC

This equipment has been tested and found to comply with the limits for a class A

computing device in accordance with the specications in the European standard EN55032. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions may cause harmful

interference to radio or television reception. However, there is no guarantee that

harmful interference will not occur in a particular installation. If this equipment does

cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to correct the interference with one or more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase the separation between the equipment and the receiver. (c) Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected. (d) Consult the supplier or an experienced radio/TV technician for help.

FCC Compliance Statement (United States)

This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a class A computing device in accordance with the specications in Subpart J of part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when the equipment is operated in a

commercial environment. Operation of this equipment in a residential area may cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference. Changes or modications not expressly approved by the manufacturer could void the user’s authority to operate the

equipment.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

Canadian Department of Communications RFI statement

This equipment does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le règlement sur le brouillage radioélectriques publié par le ministère des Communications du Canada.

INDEX

Web: www.adder.com

Contact: www.adder.com/contact-details

Support: www.adder.com/support

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

Documentation by:

www.ctxd.com

INDEX

Part No. MAN-DDX-ADDER • Release 1.5

Index

Access permissions 3 Add EDID 23 Audio 39 Audio connections

console 14

Auto Refresh 35

Backup 34

Cable types 43 Category rating 43 Computer

choosing 38

Computer link

connecting 10 switch 10

Computers

congure 28

Congure pages 20

Connection preset 19 Consoles

congure 24

Control page 19 Crosstalk 43

Dashboard page 17 Data link

console 14

Data link connection

computer 9 DDX-CAM 9 DDX Matrix

accessing 16 DDX-USR switches 13 Diagnostics 33 DisplayPort 9 DVI-D 9

EDID

applying 30 EDID management 13

Exclusive 19

Firmware upgrade

extenders 44

via switch 34

FTP 43

Gateway 21

Headphone connection 14 Hotkeys 38 HTTPS 16

HTTP Server 21

IEC connector 12 Ignore Firmware Mismatch 20 Indicators 40

modules 41 switch 40

Interference

protection 43

IP Address 21

MAC Address 21 Maintenance pages 33 Manage EDIDs 23 Microphone connection 14 Mode switches 16

Net Mask 21 Network link

connecting 11 switch 11

Network port

temporary connection 16

Network settings 21

OSD

viewing 37

OSD Settings 22

Password

default 16 PiMF 43 Port

designations 4

reallocation 31 Power connection

console 15

switch 12 Power disconnect 12

Preset Connection 25,26 Primary console 25,26,28,29 Private 19

Reallocating ports 31 Reboot System 34

Receivers

congure 27 Recover

failed upgrade 36

receiver 27

transmitter 30

Recovering a receiver 27

Resetting 36 Restore 34 RJ-45 socket 10

Safety information 49 Screening 43 Settings 35 Shared access 19 Shielding 43 STP 43

Switches

DDX-USR 13 Sync Tx/Rx Firmware 34 System Default EDID 20 System Operations 34

Thumbnails 22,28

Touchscreen 37 Transmitters

congure 30

Unique ID 27,30 Upgrade rmware 34,44

UPnP 16 USB

remote module 13 USB connection

computer 9

console 13 User console link

switch 10 Username

default 16 UTP 43

Video

remote module 13 Video connection

computer 9

console 13 View only 19

Virtual Control Panel 25,38

Warranty 49 Web UI Mode 35

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Adder DDX10-US Users Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

WELCOME

Cable type and distance rules

Access permissions

Port designations - DDX10

Port designations - DDX30

SUPPLIED ITEMS

OPTIONAL EXTRAS

Installation

LOCATIONS

CONNECTIONS

Computer connections: Video

Computer connections: USB

Computer connections: Data link

Switch (DDX10) connections: Computer links

Switch (DDX10) connections: User console links

Switch connections: Network link

Switch connections: Options port

Switch connections: Power

Console connections: Video

Console connections: USB

Console connections: Audio

Console connections: Data link

Console connections: Options port

Console connections: Power

ACCESSING DDX MATRIX

INSTALLATIONCONFIGURATIONOPERATION

USING DDX MATRIX

The Dashboard page

Quick guide to creating a new installation

The Control page

Reallocating ports

The Users page

The Maintenance pages

Maintenance > Diagnostics

Maintenance > System Operations

Maintenance > Settings

RESETTING AND RECOVERING

Operation

VIEWING THE OSD

Using the Virtual Control Panel to adjust VGA inputs

USB Improvements

USING AUDIO

INDICATORS

Further information

GETTING ASSISTANCE

APPENDIX 1 - LINK CABLE INTERFERENCE PROTECTION

APPENDIX 2 - FIRMWARE UPGRADES FOR BASIC EXTENDER INSTALLATIONS

APPENDIX 3 - OPEN SOURCE LICENSES

SAFETY INFORMATION

WARRANTY

RADIO FREQUENCY ENERGY

Index
