Adder ALIF3000R-US Users Guide

ADDERLink™ INFINITY 3000 Series

Access Your Virtualized World

adder.com/VirtualizedWorld

Access Your Virtualized World

With the introduction of the ADDERLink™ INFINITY 3000 (ALIF3000),
IT administrators can give users real-time access to unlimited virtual and
physical machines, directly from their own individual user workstation.

The ALIF3000 is ideally suited to meet the
demand for instant switching between unlimited
physical and virtual machines, driven by the rise
in hybrid IT environments. Using standard VDI
protocols, the ALIF3000 delivers real-time access
to legacy machines and virtualized applications
from a single human-machine interface (HMI) ­improving exibility, desktop ergonomics and
eciency.

The ALIF3000 delivers KVM and VM access without
requiring additional hardware or compromise on
KVM functionality. By incorporating VDI protocols
into the receiver, the ALIF3000 allows all operators to
access all machines in a more ecient way. Instead
of adding a new transmitter every time a user needs
access to a new virtual session, an administrator can
easily congure the management system to enable
permissions.

The Rise of Virtual Machine Access

Organizations are increasingly embracing
a hybrid approach to their IT deployment.
According to Forrester (2019), 88% of
businesses are now combining physical and

1

virtual IT environments.

In typical KVM environments, this growth is
being driven by popular software providers
who are now delivering their platforms in
both on-premise and virtualized formats.

1

Mainframe In The Age Of Cloud, AI, and Blockchain report (Forrester, 2019)

The ALIF3000 has been designed to seamlessly
and securely integrate VM access into an existing
ADDERLink INFINITY network without disruption,
downtime or costly replacement fees. By utilizing
the trusted ADDERLink INFINITY Manager (AIM), IT
administrators can clearly dene user access rights
to ensure that target PC’s and virtual sessions can
only be accessed by permitted users - providing
peace of mind and ensuring security is optimized.

VIRTUAL MACHINES

KVM and Virtual Machine Access

As organizations continue to adopt hybrid IT strategies, administrators are looking for ways to
give users real-time access to both physical and virtual machines from a single HMI.

Typically, companies have used KVM to control their physical machines and a thin client to
access their virtualized servers but this requires additional hardware which can be costly and
detrimental to user eciency and workstation ergonomics.

The ALIF3000 is ideal for IT administrators as they look to streamline their hardware deployment,
improve HMI ergonomics and provide their users with instant switching between physical and
virtual machines.

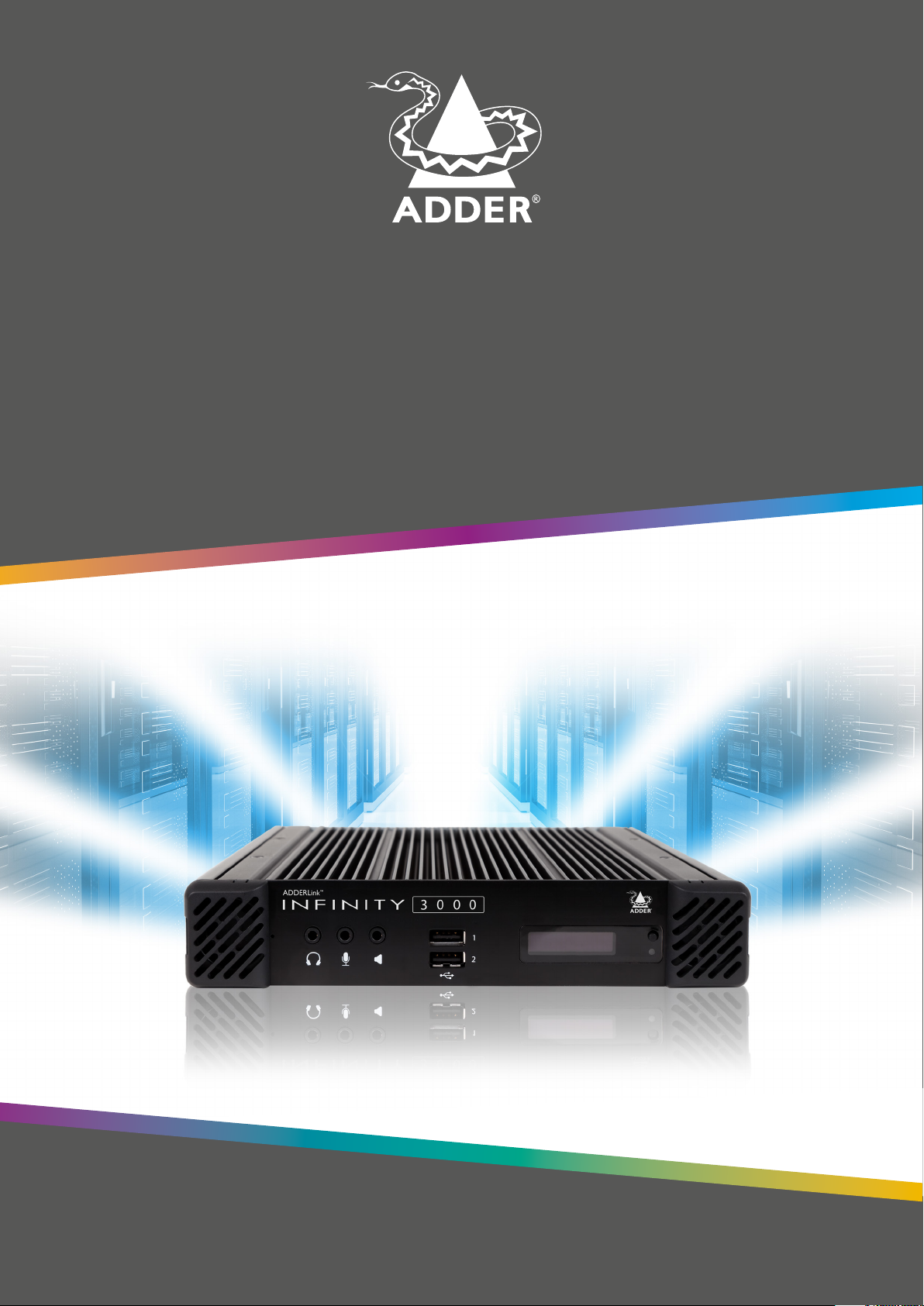

Product Overview

Receiver (RX)

Front

Back

Headphones

Speaker - Line Out

Microphone

USB2.0

OLED Diagnostics Screen

Power

USB 2.0

Performance

Built on Intel®’s successful X-86 architecture, the
ALIF3000 is a robust and resilient solution designed
for use in the most challenging scenarios.

Security

The ALIF3000 is a closed and hardened KVM system
with virtual machine access. Unauthorized software
cannot be loaded onto the units without administrator
approval.

Choice and Compatibility

The ALIF3000 can be added to an existing ADDERLink
INFINITY matrix to deliver real-time KVM and virtual
machine access - with the security, reliability and
exibility benets of traditional IP KVM solutions.

Video

Network Port

Dual 1Gb
SFP Ports

The ALIF3000 Combines:

• Single or dual-head

• Supports resolutions up to
2560x1600

• Unlimited access to virtual and
physical machines

• Pixel-perfect image quality over
1Gb ethernet links

• USB 2.0 with fast switching

• Backwards compatibility with
existing ADDERLink INFINITY
range

ADDERLink INFINITY 3000

Datasheet

Ordering Information

Product In Brief

• Dual-head, video, audio and USB over a single ber connection

• Unlimited access to physical and virtual machines

• Pixel-perfect, color accuracy

• Bi-directional analog audio

• Adder’s USB True Emulation for fast switching

• Backwards compatibility

• Plug and play

Specication

USB

4 Ports of USB2.0 with USB True Emulation to support keyboard,
mouse and touch

Video

Supports 1 x 2560 x 1600 up to maximum refresh rates to 60Hz or 2
x 1920 x 1200.
Can decode all streams from ADDERLink

™

INFINITY transmitter
devices: ALIF100T, ALIF1002T, ALIF2002T, ALIF2020T to a maximum
of one 2560x1600 or two 1920x1200 screens.
The ALIF3000R will only decode 1 x 2560x1600 or 2 x 1920x1200
from an ALIF4021T. Please note the ALIF4021T must be bandwidth
limited to 1GbE per link.

Audio

Analog line in/out 2 channel 16bit 48KHz 1V RMS in/1V RMS out

Technical Specications

Operating/storage conditions

Operating temperature: 0 to 40ºC/32 to 104ºF
Storage temperature: 0 to 60ºC/32 to 140 ºF
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 2000m

Power

External power: 12VDC, 5A
Typical power consumption: 20W
BTU: 68.24BTU/hr

Physical

ALIF3000R-XX ALIF3000 Receiver

XX = Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
CN = China
JPN = Japan
AUS = Australia

Additional Accessories

PSU-IEC-12VDC-5A: Power supply
VSCD10A: 2-meter DisplayPort cables
RMK12: 2 in 1U rack mount kit
RMK12-BP: ½ width blanking plate for RMK12
SFP-MM-LC: Multimode 1GbE bre modules with LC connectors
SFP-SM-LC: Singlemode 1GbE bre modules with LC connectors
SFP-CATX-RJ45: CATX 1GbE module with 8p8c connectors

Ethernet

1GbE (10/100/1000 support)

Packing Box

Dimensions: (L) 285mm/11.2-inch (W ) 245mm/9.6inch (D)
145mm/5.7inch
Weight: RX -2.5kg/5.5lb

Approvals/Compliance

CE and FCC: See the compliance web page for the full list

Cable types recommendations

See manual

Cable length rules

See manual

Global Headquarters

Tel: [phone] | Fax: [phone]
Email: [e-mail]

Dimensions

(L)210mm/8.3” x (W)215mm/8.5” x (D)40mm/1.6”
Weight: 1.8kg /4 lbs

Materials

Aluminium and steel construction

Connectors

Remote Unit - Receiver (RX)

Desk: 2 x DisplayPort™, 5 x USB type A, 3 x 3.5mm audio jack sockets
Ethernet: 1 x 8p8c (RJ45), 2 x SFP+ cages
Power: 3 pin Kycon socket

Americas

Tel: [phone] | Fax: [phone]
Email: [e-mail]

Asia Pacic

Tel: [phone] | Fax: [phone]
Email: [e-mail]

All company names and trademarks™ or registered trademarks™ are acknowledged and are the property of their respective holders.

Use of them does imply any aliation with or endorsement by them.

ADDER Technology Ltd. | 202002_004_alif3000_brochure
