UniPatch® GigE Series
Gigabit Ethernet Patch Panel
ADC has designed a professional broadcast-quality Gigabit (1000 baseT) patching system for
demanding professional environments where frequent patching and higher density is required. The
system features a high-density 32-port normal-through card frame system to ADC KRONE® DirectEdge LSA-PLUS® termination system. Now you can patch Ethernet data properly using reliable
durable military-grade jacks rated for 30,000 insertions/withdrawal cycles. The Cat 6 rated patch
cords are keyed to ensure proper patching.
Compared to other systems employing light duty RJ45 connectors rated at fewer than 500
insertions/withdrawal cycles or bantam jacks that do not switch all signal lines, the UniPatch® GigE
module is a significant advance in Ethernet and machine control patching.
Spec Sheet
The GigE system is a dense pack digital control interface patching system that provides test access,
patch, cross-connect and monitor functions in 100 Ohm balanced transmission systems. It has
a common signal format, bit rate, and operation up to Gigabit Ethernet (1,000 Mbits/sec). The
UniPatch GigE system is the choice for carrier-class Ethernet patching where reliability is critical.
Features:
• Category 5e channel compliant
• High-density modular design, 32 circuits per panel
• Available with normal-through (patch by exception) or straight-through modules
®
• Modular LSA-PLUS
• Keyed and highly reliable military-grade patch cords, rated to 30,000 cycles
• Available with an easily removable wire management bar
• Cable agnostic (works with any Cat 5e/Cat 6 cable)
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
punch down backplane
UniPatch® GigE Series
Gigabit Ethernet Jack Module
Features:
• Dense pack patching
• Minimum of 30,000 patch cycles
• Normal-through patch by exception
• Modular design (can be removed without
disturbing adjacent circuits)
• Gold plated contacts on switches and card
edge connectors
• Keyed opening for proper patch cord orientation
LSA-PLUS® 8-Circuit Backplane Module
Features:
• Patented LSA-PLUS termination system modules can be removed individually for easier wiring
• Number designation labels included
• Designation strip and window included for custom labeling
• Designed for solid or stranded wire
• Eliminates the need for additional connectors and connector labor
DM-GIGE
UniPatch GigE Series
Rear View
6 / 0 7 • 1 0 4 5 3 8 A E
VPRM-GIGE-LSA
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
2
UniPatch GigE Series
UniPatch® GigE Series
Specifications
ELECTRICAL
Characteristic Impedance: 100 Ohms typical
Voltage Rating: 500 Volts AC @ 60 Hz with a trip current of 1 milliamp for 1 minute
NEXT: Category 5e channel compliant
FEXT: Category 5e channel compliant
Contact Resistance: .02 Ohm maximum change post environmental
Insulation Resistance: 5000 Megohms minimum initial
MECHANICAL
Mechanical Durability: 30,000 cycles min (front port: dense pack); 50 cycles min (LSA slot)
Insertion Force: 7 lbs maximum
Withdrawal Force: 2 lbs minimum
Patch Cord Cable Bend and Twist: 500 cycles minimum
Dimensions: 2 rack unit
ENVIRONMENTAL
Thermal Shock: -40°C to 65°C operating; -55°C to 85°C non-operating
Moisture Resistance: 0% to 95%; MIL-STD-202 Method 106
Corrosion (Salt Spray): MIL-STD-202 Method 101, Test Condition B
Flammability: UL 94-VO rated
Vibration: MIL-STD-202 Method 201
Solvent Resistance: MIL-STD-202 Method 215
FINISH
Sheetmetal Panel: .075 CRS w/ protective black finish
Plastic Housings: ABS/PC, deep blue color
Contact Springs: 50 microinch gold plating MIL-G-45204 Type 1
PC Board: FR-4 with gold plated contacts
Card Edge Connector: LSA-PLUS: Krone 17-position termination block
6 / 0 7 • 1 0 4 5 3 8 A E
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
3
O r d e r i n g I n f o r m a t i o n
Description Catalog Number
Gigabit Ethernet patch panel
32-port GigE normalling patch panel VP2232-GIGE
32-port GigE non-normalling patch panel VP2232-GIGE-NN
Gigabit Ethernet jack module
2-port GigE normalling jack module: PCB with green masking DM-GIGE
2-port GigE non-normalling jack module: PCB with black masking DM-GIGE-NN
Gigabit Ethernet LSA-PLUS backplane module
Gigabit Ethernet LSA-PLUS 8-circuit backplane module VPRM-GIGE-LSA
Gigabit Ethernet & RS422 Cat 6 patch cords (length)
1.8 m (6 ft) PC-GIGE-6
1.2 m (4 ft) PC-GIGE-4
0.9 m (3 ft) PC-GIGE-3
0.6 m (2 ft) PC-GIGE-2
Chassis
Empty chassis; color: black VP2232-BK
Empty chassis; color: gray VP2232-G
Accessories
LSA insertion tool and handheld LSA block holder DM-GIGE-TOOL-KIT
Handheld/rack mountable LSA block holder DM-GIGE-TOOL
Cable bar ADCCMR-A

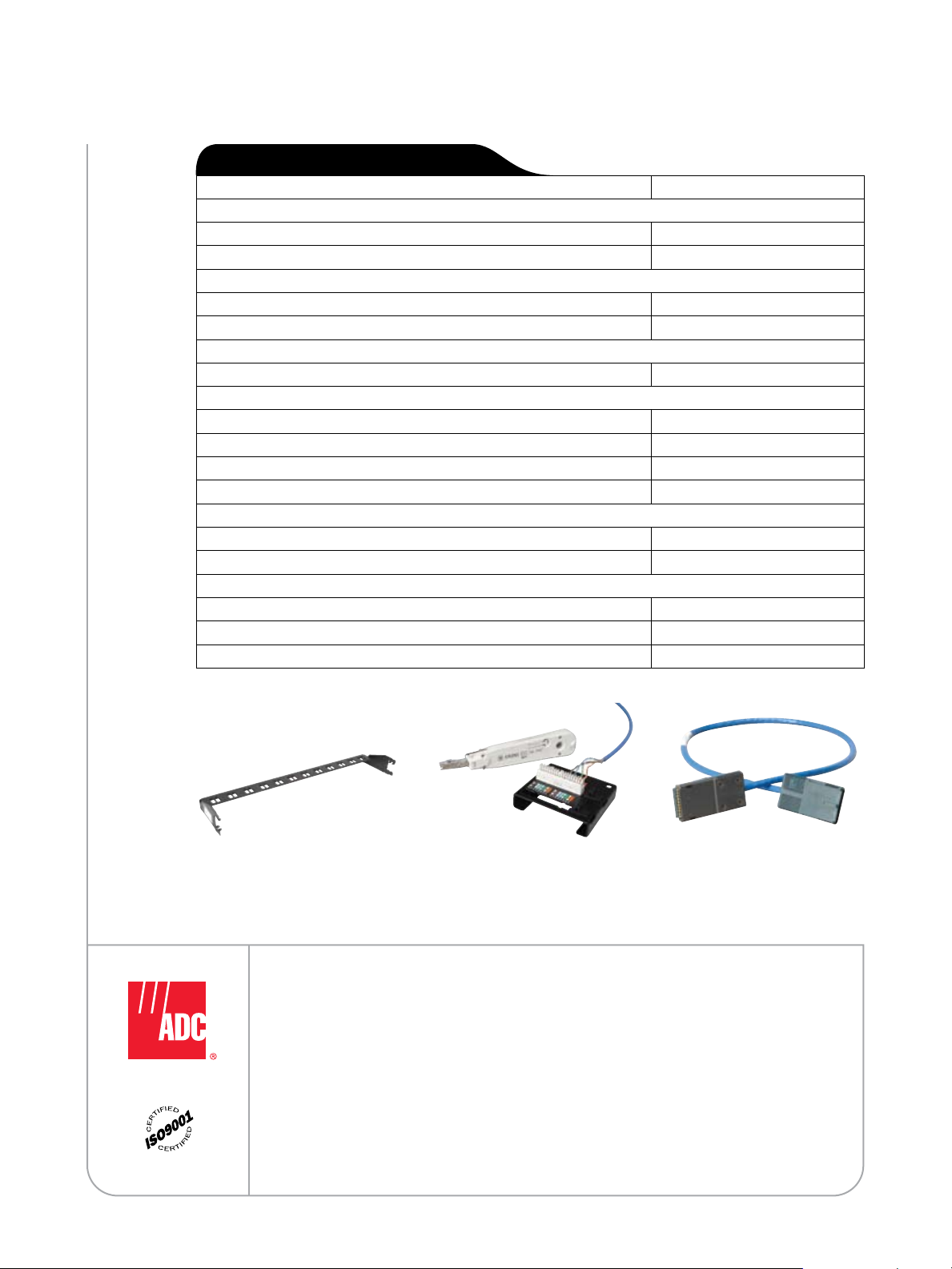

Spec Sheet
ADCCMR-A DM-GIGE-TOOL-KIT PC-GIGE-X
Website: www.adc.com
From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080
Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our website.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
104538AE 6/07 Original © 2007 ADC Telecommunications, Inc. All Rights Reserved
