UltraWAVE CDMA

Next Generation CDMA 2000 Solution

UltraWAVE CDMA

Next Generation CDMA 2000 Solution

Product Highlights

UltraWAVE CDMA is a wireless solution that
supports next generation networks (NGN) for
mobile and fixed applications, based on the
widely deployed CDMA 2000 standard. The
system provides carrier-class telephony and
always-on data for subscribers requiring fixed,
limited or full mobility connections.

Minimizing initial network costs, its IP-based
architecture, combined with a distributed
structural design, makes the UltraWAVE CDMA
an unmatched compact infrastructure solution.
A full range of carrier-class telephony services
ensures subscriber satisfaction by delivering
high-quality voice and data services. Value
added services (VAS) such as voicemail, pre-paid

UltraWAVE CDMA, is a future proof, IP-based
CDMA 2000 solution that provides wireless
telephony and always-on data for mobile
and fixed applications.

and SMS are supported. Always-on packet data
up to 153 Kbps is also supported.

The system provides an optimal solution for
small to medium scale networks in urban,
suburban and rural areas. Its distinctive
distributed IP architecture minimizes operators’
initial investment and expedites time-to-market.

Next Generation CDMA 2000 Solution

6/08 • 106330AE

www.adc.com • [phone] • 1-800-366-3891

2

UltraWAVE CDMA

ADC

Next Generation CDMA 2000 Solution

Key Advantages

Low Total Cost of Ownership

Reduces end-users’ deployment costs using •
standard CPEs

Lowers operating costs due to distributed •
and compact architecture

Decreases network complexity through •
voice and data payload convergence

Uses IP backhaul and off-the-shelf IP •
core network equipment

Optimal For Rural Deployments and
Network Extensions

Reduces number of cell sites due to wide •
coverage range

Enables call termination within the local cell for •
reduced satellite backhaul costs

Minimal Initial Investment

Provides a scaleable ‘pay-as-you-grow’ expansion
model due to its distributed architecture:

Grows seamlessly from a self-contained •
network in a single rack to a nationwide,
full-fledged distributed network

Scales from a single carrier, omni directional •
base station into a high-capacity multicarrier,
multi-sector cell

Deployment Flexibility

Supports connection to PSTN over a variety •
of interfaces: V5.2, ISUP SS7 and ISDN PRI

Enables rapid and optimized access for remote •
cells using both terrestrial and VSAT backhaul

Enables both long range macro cells or pico •
indoor cells

Ready For Next Generation
Networks (NGN)

UltraWAVE CDMA aligns closely with the •
development of MMD, IMS and NGN
networks. At the same time it offers seamless
integration with legacy circuit switched
networks via a Media Gateway

Grants new operators a solution establishing •
an IP-based network architecture today

Allows future migration from legacy networks •
as IP architecture enables the reuse of system
building blocks

Future Proof Solution

Supports easy migration from fixed to •
mobile services

Allows for seamless integration of future •
data services (EV-DO and WiMAX)

Next Generation CDMA 2000 Solution

6/08 • 106330AE

www.adc.com • [phone] • 1-800-366-3891

3

UltraWAVE CDMA

Next Generation CDMA 2000 Solution

Applications

UltraWAVE CDMA can be configured to fit
in a variety of applications for mobile and
fixed applications.

Mobile UltraWAVE CDMA Networks

UltraWAVE CDMA can be installed as a
self-contained network for mobile operators
who are looking for a complete network solution.
This solution fully harnesses the scalability and
cost-efficiency of UltraWAVE CDMA to offer
attractive voice and 153 Kbps packet data
services at competitive rates.

The self-contained network serves a variety
of specialty markets, such as military and
government applications and disaster recovery.
In some cases the self-contained network is a
roaming network, e.g. cruise ship applications.

As a revenue generator, UltraWAVE CDMA
offers the operator a variety of value added
services; including, voicemail, prepaid and SMS.
Either ADC VAS servers or the operator’s third
party servers may be used. Also a variety of
supplementary services are available.

Reduced backhaul costs also make UltraWAVE
CDMA an excellent extension to existing mobile
CDMA2000 networks. Network extensions
can be built around self-contained networks
or by interconnecting an existing MSC with
the UltraWAVE CDMA BSC. In both cases
coverage can be provided in areas previously
considered unreachable.

Fixed UltraWAVE CDMA Networks

For ILECs who want to extend their networks
in a cost efficient manner, UltraWAVE CDMA
comes as a pure access solution. Existing local
exchanges (Class 5 switches) can provide existing
services seamlessly over a V5.2 access interface to
new remote areas. In this case, UltraWAVE CDMA
acts as a cost-efficient “pipe” that can turn
unreachable areas into new revenue generators.
The pure access solution eliminates the need for
a mobile switching center (MSC), which reduces
the system complexity, time to market and total
cost of ownership.

CLECs who are looking for a complete solution
should consider a self-contained network
featuring the UltraWAVE CDMA Softswitch and
Value Added Servers. In particular, the scalability
of UltraWAVE CDMA makes it a feasible choice
even in very sparsely populated markets.

Next Generation CDMA 2000 Solution

6/08 • 106330AE

UltraWAVE CDMA Network Conguration

www.adc.com • [phone] • 1-800-366-3891

4

UltraWAVE CDMA

BS Plus

IP Network

Softswitch

CDMA2000

BS Plus

CDMA2000

Next Generation CDMA 2000 Solution

Flexible IP Architecture
for Today and Tomorrow

UltraWAVE CDMA’s distributed architecture
effectively integrates legacy BSC and the BTS into
a single compact unit. As a result, UltraWAVE
CDMA is the ideal solution for rural areas and
sparsely populated towns. This architecture also
minimizes carriers’ initial investment for larger
network roll-outs, while ensuring rapid return on
investment. Taking advantage of the attractive
economics of standard IP-based infrastructure
technologies, UltraWAVE CDMA cuts the total
cost of the network. This design approach also
enhances system flexibility in addressing various
network configurations, including V5.2, SS7 and
PRI as well as combinations of them.

Both new and established fixed carriers
and mobile operators benefit from deploying
UltraWAVE CDMA. The all-IP architecture allows
operators an easier migration path to MMD, IMS,
and NGN. While new operators can immediately
establish next generation networks (NGN),
established carriers can build upon their
legacy systems now with seamless migration
in the future.

Furthermore, the all-IP based architecture
facilitates the introduction of IP transmission
between the RAN and the CN for operators
who are planning ahead for IP-based
multimedia services.

Local Switching

A major part of any operator’s OPEX is the cost
of backhauling traffic from the radio access
network (RAN) to the core network (CN). Due
to UltraWAVE CDMA’s unique capability to
offer local switching, substantial savings can
be achieved. The key benefit is that calls that
are terminated intra cell or inter cells can be
switched locally so that the payload does not
occupy any bandwidth over the backhaul system.
Only the signalling is carried between the RAN
and the CN. The result is significant reductions
in backhaul bandwidth requirements and lower
OPEX (via satellite or leased line) and CAPEX
(via procured terrestrial backhaul).

In addition to cost savings on the backhaul,
the introduction of local switching means
less consumption of switching resources. This
translates into less investment in trunk capacity.

Next Generation CDMA 2000 Solution

6/08 • 106330AE

UltraWAVE CDMA Local Switching Conguration

www.adc.com • [phone] • 1-800-366-3891

5

UltraWAVE CDMA

Next Generation CDMA 2000 Solution

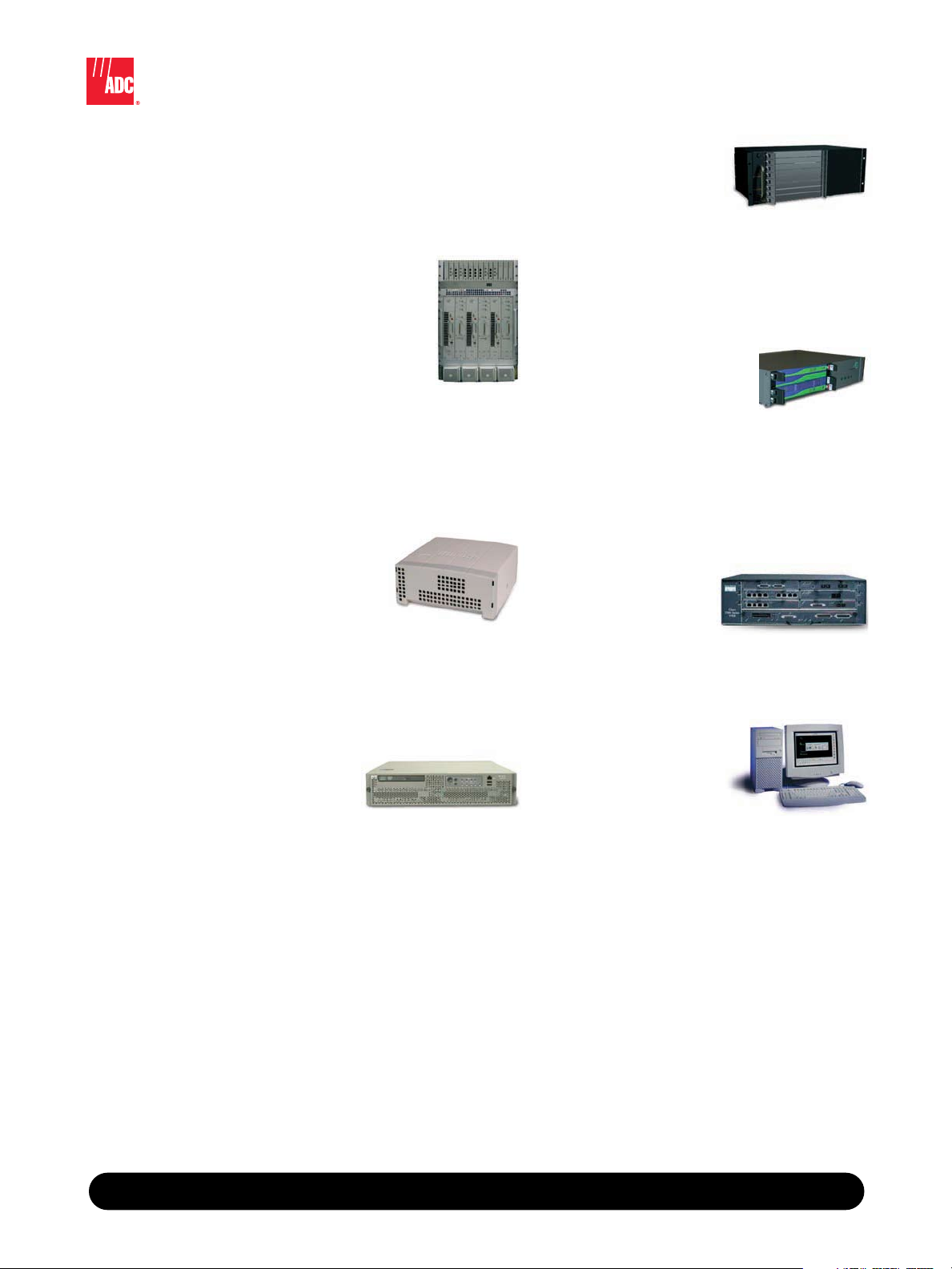

System Elements

Enabling operators to build networks with a
minimal initial investment and expand in relation
to demand, UltraWAVE CDMA is comprised of
the following system elements:

Micro BS Plus - a compact and
modular rack mounted, small
footprint base station. The BS
Plus integrates the BSC and BTS
functions into a single unit and
supports local switching of intra-cell
calls. Seamlessly scaleable in both
frequency carriers and sectors per
cell, it offers maximum coverage and optimal
capacity. Eliminating the need for a central BSC
results in outstanding cost effectiveness for
deployments of small to medium networks.
Micro BS Plus is available in all standard
CDMA2000 frequency bands: 450, 850,
1900, and 2100 MHz.

Pico BS Plus - a flexible
indoor platform: Ideal for
in-building environments or
to fill-in shadowed areas.
The pico BS Plus integrates
the BSC and BTS functions
into a single unit and supports local switching of
intracell calls. Its compact form makes it suitable
for pole or wall mounting. The unit supports
voice and data over 1 or 2 carriers. Pico BS Plus
is available in all standard CDMA2000 frequency
bands: 850, 1900, and 2100 MHz.

Softswitch - an IP call
server, manages the radio
access network (RAN)

Next Generation CDMA 2000 Solution

and the trunk gateways
enabling significant savings on backhaul by
providing local termination of intracell phone
calls. The call server is a small rack mounted
unit that supports full redundancy. It is centrally
located in the network regardless of the voice
traffic path and economically fits networks of
all sizes up to 100,000 subscribers. The call
server supports interconnection for both PRI and
SS7 and enables least-cost-call routing among
multiple trunk gateways.

Trunk Gateway -
a modular and scaleable,
rack mounted signaling
and media gateway that
communicates with the
PSTN and PLMN over SS7 or PRI links. Multiple
trunk gateways that are geographically distributed
can be managed by a single soft-switch, reducing
the cost of interconnection to the network.
Various trunk gateway sizes are available from 2
E1/T1s 1U compact unit up to 72 E1s/T1s.

Access Gateway - a modular
and scaleable, rack mounted
signaling and media gateway.
Located at either the class 5
switch or a remote site, the access gateway
connects to one or many base stations (BS Plus)
over an IP network. In this way, traffic for an
entire service area is efficiently aggregated from
many base station sites over a backhaul link into
one central V5.2 gateway. Two sizes of access
gateways are available: Small, supporting 2 - 12
E1s or Large, supporting 18 - 36 E1s.

PDSN - an optional
rack-mounted unit, used
as a service node for
packet data transmission
for always on data access. Centrally located, the
PSDN efficiently aggregates the data traffic from
the radio network and communicates with the
operator’s AAA server.

OMC - an easy-to-use
and comprehensive
network management
system. The OMC enables
remote monitoring,
alarm management and
configuration, which translates to savings in both
maintenance time and expenses.

6/08 • 106330AE

www.adc.com • [phone] • 1-800-366-3891

6

UltraWAVE CDMA

Next Generation CDMA 2000 Solution

Specifications

TELEPHONY SERVICES
Voice coding: EVRC or QCELP
Extended services: Full transparency over V5.2 for: TAX Metering (12/16KHz), Reverse Polarity,

CLASS 5 supplementary services

Always-On Data Services: 153.6kbps packet Data

MICRO BS PLUS
Frequency bands: 450, 850, 1900, 2100MHz
Air protocol: CDMA-1X RTT 3GPP2 Release 0, IS-95
Sectors: 1 to 3
Carriers per sector: 1 carrier
Transmit power: 20 Watt at Antenna port per carrier per sector
IP network interface: 100BaseT
Environmental: 0 to +50°C, indoor
Rack Dimensions (WxHxD): 42cm x 62.5cm x 36cm
Compliance: FCC Part 15 and 22; UL 60950

PICO BS PLUS
Frequency bands: 850, 1900, 2100MHz
Air protocol: CDMA-1X RTT 3GPP2 Release 0, IS-95
Sectors: 1
Carriers per sector: 1-2 carriers
Transmit power: 100mW at Antenna port per carrier per sector
IP network interface: 100BaseT
Environmental: 0 to +50°C, indoor
Rack Dimensions (WxHxD): 32cm x 30.5cm x 13cm
Compliance: FCC Part 15 and 22; UL 60950

SOFTSWITCH
Management Interface: SNMP MIBs Web browser
IP network interface: 100BaseT
Capacity: Call Processing 150,000 BHCA
Capacity: Traffic 2,500 Erlangs
Capacity: VLR 100,000 subscribers
Capacity: HLR 100,000 subscribers

ACCESS GATEWAY
PSTN: Interface V5.2
Capacity: 2 to 36 E1

Next Generation CDMA 2000 Solution

IP network interface: 100BaseT

TRUNK GATEWAY
PSTN interface: ISUP SS7 / ISDN PRI
Capacity: 2 to 72 E1/T1
IP network interface: 100BaseT

Value Added Service: VMS, SMS, PPS, AC

OPERATION, MAINTENANCE & CONTROL (OMC)
Platform: Linux/SUN based (Window PC optional)
Protocols: SNMP, Web based

6/08 • 106330AE

www.adc.com • [phone] • 1-800-366-3891

7

Next GeNeratioN CDMa 2000 SolutioN

Website: www.adc.com

From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: [phone]

Fax: [phone] • For a listing of ADC’s global sales office locations, please refer to our website.

ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

106330AE 6/08 Original © 2008 ADC Telecommunications, Inc. All Rights Reserved
