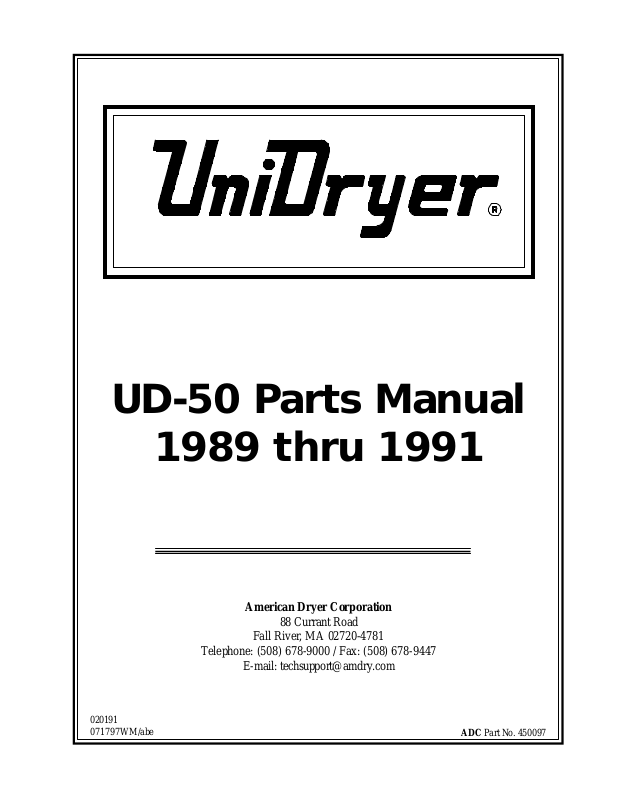

ADC UD-50 User Manual

UD-50 Parts Manual

1989 thru 1991

American Dryer Corporation

88 Currant Road

Fall River, MA 02720-4781

Telephone: [phone] / Fax: [phone]

E-mail: [e-mail]

020191
071797WM/abe

ADC Part No. 450097

Retain This Manual In A Safe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble-free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation/operator's manual
included with the dryer.

The following “FOR YOUR SAFETY ” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.

Important

For your convenience, log the following information:

DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________

DISTRIBUTOR’S NAME ___________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

UD-50

________________________________________________________________________________________

Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your orders directly to the ADC Parts Department at
[phone]. Please specify the dryer model number and serial number in addition to the description and part number, so
that your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite from
the various dryer models. Be sure to check descriptions of the parts thoroughly before ordering.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.

Table of Contents

High Security Control Door Assembly ..................................................................................................... 3

Phase 3 OPL Microprocessor Control Panel Assembly ........................................................................... 4

Phase 3 OPL Microprocessor Control Box Assembly ............................................................................. 5

Phase 4 OPL Non-Reversing Control Panel Assembly............................................................................. 6

Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly ..................................................... 7

Phase 4 OPL Reversing Control Panel Assembly ..................................................................................... 8

Phase 4 OPL Reversing Microprocessor Control Box Assembly.............................................................. 9

Phase 4 OPL UniSport® Microprocessor Control Panel Assembly ......................................................... 10

Phase 4 OPL Microprocessor Control Box Assembly ............................................................................11

Dual Timer Control Panel Assembly ................................................................................................ 12, 13

Dual Timer Control Box Assembly ................................................................................................. 14, 15

Main Door Assembly ........................................................................................................................... 16

Front Panel Assembly ........................................................................................................................... 17

Basket (Tumbler)/Support Assemblies............................................................................................. 18, 19

Drop Lint Door Assembly ..................................................................................................................... 20

Lint Trap Assembly ............................................................................................................................... 21

Basket (Tumbler) Bearing Assembly................................................................................................ 22, 23

Idler Bearing Assembly ................................................................................................................... 24, 25

Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly ........................... 26, 27

Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly ................................... 28, 29

Sensor Bracket Assemblies ............................................................................................................. 30, 31

Standard (Non-Hi/Lo) Burner Assembly

for Globar® Ignition Models ONLY......................................................................................... 32, 33

Hi/Lo Computerized Burner Assembly

for Globar® Ignition Models ONLY........................................................................................ 34, 35

Direct Spark Ignition (DSI) Burner Assembly .................................................................................. 36, 37

Sail Switch/Hi-Limit Assemblies

for Globar® and Direct Spark Ignition (DSI) Models ONLY ................................................. 38, 39

Replacement Coils for 3/8” Non-Hi/Lo Gas Valve

for Globar® and Direct Spark Ignition (DSI) Models ONLY ....................................................... 40

Replacement Coils for 3/8” Hi/Lo Gas Valve

for Globar® Ignition Models ONLY............................................................................................... 41

Electric Oven Assembly .................................................................................................................. 42, 43

Electric Oven Component Application Chart ......................................................................................... 44

Steam Coil/Valve Assembly................................................................................................................... 45

Microprocessor Reversing Control Assembly

Telemecanique ................................................................................................................................ 46

Dual Timer Reversing Control Assembly

Telemecanique ................................................................................................................................ 47

Microprocessor Reversing Control Assembly

Struthers-Dunn................................................................................................................................ 48

Dual Timer Reversing Control Assembly

Struthers-Dunn................................................................................................................................ 49

3-Phase (3ø) Motor, Electric Relay Panel Assembly

Telemecanique ................................................................................................................................ 50

3-Phase (3ø) Motor, Electric Relay Panel Assembly

Furnas.............................................................................................................................................. 51

Control/Heat Step Down Transformer

for Globar® and High Pressure Motorized Steam Valve Models ONLY............................... 52

Outer Top/Back Guard Assembly ......................................................................................................... 53

Heat Reclaimer Assembly ..................................................................................................................... 54

Arc Suppressor (A.S.) Relay Board Listing ........................................................................................... 55

Globar® Burner Assembly Specifications ............................................................................................... 56

Direct Spark Ignition (DSI) Burner Assembly Specifications .................................................................. 57

Additional Parts Available ..................................................................................................................... 58

High Security Control Door Assembly

3

Illus. No. Part No. Qty. Description

1 160017 1 Special Dummy Lock ONLY
2 160016 1 Lock Cam ONLY
3 112312 1 UniDryer

112337 1 UniSport® Logo ONLY
870011 1 Logo Double Tape Kit

4 800021* 1 High Security Control Door Assembly Less Lock

(includes illus. nos. 4 through 7)

800142 1 High Security Stainless Steel Control Door Assembly Less Lock

(includes illus. nos. 4 through 7)
5 180202 1 Top Trim Strip with Lock Hole
6 102307 3 Trim Bumper Gasket (sold by the foot)
7 150201 6 #10-32 x 1/4” Phillips Round Head Machine Screw
8 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw
9 102600 1 Control Door Rod Support Catch
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod

* Specify color when ordering.

®

Logo ONLY

4

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Phase 3 OPL Microprocessor Control Panel Assembly

Illus. No. Part No. Qty. Description

1 112535 1 OPL English Keyboard Label Assembly

112276 1 OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1 OPL Stick-on Labels

(Spanish, Italian, and Hebrew) ... Not Illustrated

112277 1 3-Language OPL Stick-on Labels

(English, Spanish, and Hebrew) ... Not Illustrated

112278 1 5-Language OPL Stick-on Labels

(Italian, Dutch, French, German, and Chinese) ... Not Illustrated

2 800057 1 Microprocessor Control Panel ONLY

800164 1 Microprocessor Control Panel ONLY with Battery Bracket
800161 1 Phase 3 OPL Non-Reversing Microprocessor Control Panel Assembly Complete

(includes illus. nos. 1 through 5)

800163 1 Phase 3 OPL Non-Reversing Microprocessor Control Panel Assembly

Complete with Battery Option

(includes illus. nos. 1 through 5)
865088* 1 Phase 3 OPL Reversing Microprocessor Control Panel Assembly Complete
865089* 1 Phase 3 OPL Reversing Microprocessor Control Panel Assembly Complete

with Battery Option

(includes illus. nos. 1 through 5)

3 137092 1 Phase 3 OPL Non-Reversing Controller (computer) ONLY

137093 1 Phase 3 OPL Non-Reversing Controller (computer) ONLY

with Battery Clip
137094* 1 Phase 3 OPL reversing controller (computer) ONLY
137095* 1 Phase 3 OPL Reversing Controller (computer) ONLY with Battery Clip

4 152001 4 #8-32 Hex Nut
5 160005 1 Spring Turn Latch (2-piece)

* Used on dryer models with reversing option ONLY.

IMPORTANT : Check label on computer chip to verify correct part number for controller (computer).
NOTE: OPL controllers listed are suitable for ALL voltage applications.

Phase 3 OPL Microprocessor Control Box Assembly

5

Illus. No. Part No. Qty. Description

1 137021 13 or 15 Microprocessor Socket ONLY
2 137020 1 15-Pin Microprocessor Connector ONLY

122800 1 Microprocessor (female) Pin Extraction Tool
3 150315 1 #6 x 3/8” Phillips Pan Head “B” Screw
4 137022 1 15-Pin Strain Relief ONLY
5 137013 8 Nylon Standoff
6 -------- 1 Arc Suppressor (A.S.) Relay Board

(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)

137061 1 Arc Suppressor (A.S.) Board ONLY (without relay)
7 131916 1 or 2 P.C.B. (electromechanical) Relay ONLY - 120 Volt

131930 1 or 2 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
8 140150 1 Diode Logic Board ONLY
9 136052 1 or 2 4-Amp Fuse ONLY
10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
11 131030 1 Steam Valve Relay - 120 Volt

(for high pressure steam models Only)

131031 1 Steam Valve Relay - 208/230 Volt

(for high pressure steam models Only)
12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
13 120709 1 8-Position Terminal Strip
14 151000 2 #6-32 Pal Nut

6

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Phase 4 OPL Non-Reversing Control Panel Assembly

Illus. No. Part No. Qty. Description

1 112535 1 OPL English Keyboard Label Assembly

112276 1 OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1 OPL Stick-on Labels

(Spanish, Italian, and Hebrew) ... Not Illustrated

112277 1 3-Language OPL Stick-on Labels

(English, Spanish, and Hebrew) ... Not Illustrated

112278 1 5-Language OPL Stick-on Labels

(Italian, Dutch, French, German, and Chinese) ... Not Illustrated

2 800057 1 Microprocessor Control Panel ONLY

800164 1 Microprocessor Control Panel ONLY with Battery Bracket
800171 1 Phase 4 OPL Non-Reversing Microprocessor Control

Panel Assembly Complete
(includes illus. nos. 1 through 8)

865095 1 Phase 4 OPL Non-Reversing Microprocessor Control Panel Assembly

Complete with Battery Option
(includes illus. nos. 1 through 8)

3 137125 1 Phase 4 OPL Non-Reversing Controller (computer) ONLY

137126 1 Phase 4 OPL Non-Reversing Controller (computer) ONLY

with Battery Clip
4* 306052 1 Electrostatic Shield
5 150108* 4 #8-32 x 1/2” Phillips Pan Head Machine Screw

152001 4 #8-32 Hex Nut
6* 153000 4 #8 Steel Burr
7* 137011 4 1/4” Aluminum Standoff
8 160005 1 Spring Turn Latch (2-piece)

* Used on gas dryer models with the Direct Spark Ignition (DSI) system manufactured prior to March 13, 1989.

IMPORTANT : Check label on computer chip to verify correct part number for controller (computer).

Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly

7

Illus. No. Part No. Qty. Description

1 137021 12 Microprocessor Socket ONLY
2 137020 1 15-Pin Microprocessor Connector ONLY

122800 1 Microprocessor (female) Pin Extraction Tool
3 150315 1 #6 x 3/8” Phillips Pan Head “B” Screw
4 137022 1 15-Pin Strain Relief ONLY
5 137013 4 Nylon Standoff
6 --------- 1 Arc Suppressor (A.S.) Relay Board

(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)

137061 1 Arc Suppressor (A.S.) Board ONLY (without relay)
7 136052 1 or 2 4-Amp Fuse ONLY
8 131916 1 P.C.B. (electromechanical) Relay ONLY - 120 Volt

131930 1 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
10 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer

(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
12 131030 1 Steam Valve Relay - 120 Volt

(for high pressure steam models Only)

131031 1 Steam Valve Relay - 208/230 Volt

(for high pressure steam models Only)
13 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
14 120715 1 30-Position Terminal Block
15 151000 2 #6-32 Pal Nut
16 136008 * Fuse Block/Strip ONLY
17 150301 * #8 x 7/16” Self Drilling Screw
18 136057 * 1/2-Amp (slo blo) Fuse ONLY

* As required.

8

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Phase 4 OPL Reversing Control Panel Assembly

Illus. No. Part No. Qty. Description

1 112535 1 OPL English Keyboard Label Assembly

112276 1 OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1 OPL Stick-on Labels

(Spanish, Italian, and Hebrew) ... Not Illustrated

112277 1 3-Language OPL Stick-on Labels

(English, Spanish, and Hebrew) ... Not Illustrated

112278 1 5-Language OPL Stick-on Labels

(Italian, Dutch, French, German, and Chinese) ... Not Illustrated

2 800057 1 Microprocessor Control Panel ONLY

800164 1 Microprocessor Control Panel ONLY with Battery Bracket
865092 1 Phase 4 OPL Reversing Microprocessor Control Panel Assembly Complete

(includes illus. nos. 1 through 8)

865096 1 Phase 4 OPL Reversing Microprocessor Control Panel Assembly Complete

with Battery Option
(includes illus. nos. 1 through 8)

3 137127 1 Phase 4 OPL Reversing Controller (computer) ONLY

137128 1 Phase 4 OPL Reversing Controller (computer) ONLY with Battery Clip
4* 306052 1 Electrostatic Shield
5 150108* 4 #8-32 x 1/2” Phillips Pan Head Machine Screw

152001 4 #8-32 Hex Nut
6* 153000 4 #8 Steel Burr
7* 137011 4 1/4” Aluminum Standoff
8 160005 1 Spring Turn Latch (2-piece)

* Used on gas dryer models with the Direct Spark Ignition (DSI) system manufactured prior to March 13, 1989.

IMPORTANT : Check label on computer chip to verify correct part number for controller (computer).

Phase 4 OPL Reversing Microprocessor Control Box Assembly

9

Illus. No. Part No. Qty. Description

1 137021 14 Microprocessor Socket ONLY
2 137020 1 15-Pin Microprocessor Connector ONLY

122800 1 Microprocessor (female) Pin Extraction Tool
3 150315 1 #6 x 3/8” Phillips Pan Head “B” Screw
4 137022 1 15-Pin Strain Relief ONLY
5 137013 4 Nylon Standoff
6 --------- 1 Arc Suppressor (A.S.) Relay Board

(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)

137061 1 Arc Suppressor (A.S.) Board ONLY (without relay)
7 136052 1 or 2 4-Amp Fuse ONLY
8 131930 1 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
10 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer

(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
12 131031 1 Steam Valve Relay - 208/230 Volt

(for high pressure steam models Only)
13 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
14 120715 1 30-Position Terminal Block
15 151000 2 #6-32 Pal Nut
16 136008 * Fuse Block/Strip ONLY
17 150301 * #8 x 7/16” Self Drilling Screw
18 136057 * 1/2-Amp (slo blo) Fuse ONLY

* As required.

10

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Phase 4 OPL UniSport® Microprocessor Control Panel Assembly

Illus. No. Part No. Qty. Description

1 800057 1 OPL Microprocessor Control Panel ONLY

865106 1 Phase 4 OPL UniSport

®

Direct Spark Ignition (DSI) Non-Reversing Control
Panel Assembly Complete
(includes illus. nos. 1 through 8)

865105 1 Phase 4 OPL UniSport

®

Direct Spark Ignition (DSI) Reversing Control
Panel Assembly Complete
(includes illus. nos. 1 through 8)

2* 306052 1 Electrostatic Shield
3 150108* 4 8-32 x 1/2” Pan Head Machine Screw

152001 4 8-32 Hex Nut
4* 153000 4 #8 Steel Burr
5* 137011 4 8/32” Aluminum Standoff
6 160005 1 Turn Latch (2-piece)
7 137125 1 Phase 4 OPL Non-Reversing Controller ONLY

137127 1 Phase 4 OPL Reversing Controller ONLY
8 112523 1 UniSport

* Used on UniSport

®

dryers manufactured prior to March 13, 1989.

®

OPL Keyboard Label Assembly

IMPORTANT : When ordering a replacement Phase 4 OPL microprocessor controller (computer) from the

ADC factory for UniSport® option dryers, please advise the customer service representative

that the replacement microprocessor controller (computer) is to be preprogrammed with the
special UniSport® parameters (programs).

Phase 4 OPL Microprocessor Control Box Assembly

11

Illus. No. Part No. Qty. Description

1 137021 12 or 14 Microprocessor Socket ONLY
2 137020 1 15-Pin Microprocessor Connector ONLY

122800 1 Microprocessor (female) Pin Extraction Tool
3 150315 1 #6 x 3/8” Phillips Pan Head “B” Screw
4 137022 1 15-Pin Strain Relief ONLY
5 137013 4 Nylon Standoff
6 --------- 1 Arc Suppressor (A.S.) Relay Board

(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)

137061 1 Arc Suppressor (A.S.) Board ONLY (without relay)
7 136052 1 or 2 4-Amp Fuse ONLY
8 131916 1 P.C.B. (electromechanical) Relay ONLY - 120 Volt

131930 1 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9 150300 1 #10-16 x 1/2” Hex Washer TEK Screw
10 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer

(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
12 120715 1 30-Position Terminal Strip
13 151000 2 #6-32 Pal Nut
14 136008 * Fuse Block/Strip ONLY
15 150301 * #8 x 7/16” Self Drilling Screw
16 136057 * 1/2-Amp (slo blo) Fuse ONLY

* As required.

12

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Dual Timer Control Panel Assembly

Dual Timer Control Panel Assembly

Illus. No. Part No. Qty. Description

1 123000 1 Red Indicator Light - 120 Volt

123001 1 Red Indicator Light - 230 Volt
2 122400 1 Rocker Heat Selector Switch
3 824015 1 Dual Timer Control Panel Assembly Complete - 120 Volt

(includes illus. nos. 1 through 21)

824015 1 Dual Timer Control Panel Assembly Complete - 230 Volt

(includes illus. nos. 1 through 21)

800051 1 Dual Timer Control Panel ONLY
4 131812 1 Push-to-Start Relay - 120 Volt

131813 1 Push-to-Start Relay - 230 Volt
5 150207 2 #10-24 x 1/2” Phillips Round Head Machine Screw
6 154001 2 #10-24 Speed Nut
7 152000 2 #6-32 Hex Nut
8 153010 2 #6 Star Washer
9 120713 1 18-Position Terminal Block

(for models mfd. as of May 3, 1989)

120708 1 3-Position Terminal Block

(for models mfd. prior to May 3, 1989)
10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
11 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
12 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw
13 131030 1 Dual Timer Relay - 120 Volt

131031 1 Dual Timer Relay - 230 Volt
14 151000 2 #6-32 Pal Nut
15 112050 1 Dual Timer Label ONLY
16 160005 1 Spring Turn Latch (2-piece)
17 124103 2 Arrow Timer Knob
18 124020 1 60-Minute Timer - 120 Volt

124021 1 60-Minute Timer - 230 Volt
19 124032 1 15-Minute Timer - 120 Volt

124023 1 60-Minute Timer - 230 Volt
20 122602 1 9-Pin Connector ONLY
21 122700 8 Pin Terminal ONLY

--- 122801 1 Pin/Socket Extraction Tool

13

14

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Dual Timer Control Box Assembly

Dual Timer Control Box Assembly

Illus. No. Part No. Qty. Description

1 122603 1 9-Pin Socket Connector ONLY
2 122701 9 Socket Terminal ONLY

122801 1 Pin/Socket Extraction Tool
3 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
4 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer

(for use on gas models with Direct Spark Ignition [DSI] Only)
5 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
6 131030 1 Steam Valve Relay (High Pressure Steam Only) - 120 Volt

131031 1 Steam Valve Relay (High Pressure Steam Only) - 208/230 Volt

7 131814 1 Motor Control Relay ONLY

(120 Volt controls Only)
8 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
9 875250 2 In-Line Fuse Holder Assembly ONLY

(model application varies)
10* 136052 ** 4-Amp Fuse ONLY

136054 ** 15-Amp (Slo Blo) Fuse ONLY
136056 ** 20-Amp (Slo Blo) Fuse ONLY

11 136002 1 or 2 Panel Mount Fuse Holder Assembly ONLY

(model application varies)
12* 136052 ** 4-Amp Fuse ONLY

136054 ** 15-Amp (slo blo) Fuse ONLY

136056 ** 20-Amp (slo blo) Fuse ONLY
13 137013 4 Nylon Standoff
14*** 140150 1 Diode Logic Board
15 152002 2 #6-32 x 1” Phillips Round Head Machine Screw
16 120715 1 30-Position Terminal Block

120709 1 8-Position Terminal Strip
17 151000 2 #6-32 Pal Nut

15

* Check fuse rating for verification.
** As applicable.
*** For use on Globar® dryer models ONLY.

16

American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

Main Door Assembly

Illus. No. Part No. Qty. Description

1* 800136 1 Main Door Assembly Complete

(includes illus. nos. 1 through 12)

800133 1 Main Door Assembly Less Accessories

(includes illus. nos. 1, 2, and 3)

800134 1 Main Door with Glass and Gasket ONLY

(includes illus. nos. 1, 2, 3, 5, and 6)
2 103050 1 12-1/2” Stainless Steel Main Door Hinge
3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw
4 152014 4 1/4-20 Free Spin Wash Nut
5 102350 1 68-1/2” Main Door Gasket
6 102210 1 20-7/16” Door Glass
7 150002 2 6-32 x 1” Phillips Round Head Machine Screw
8 102105 2 Magnet Holder ONLY
9 152013 2 #6-32 Hex Nut
10 306802 6 Magnet Keeper ONLY
11 102102 4 Door Magnet (.215)
12 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw
13 800131 2 Cast Aluminum Magnet Holder Assembly Complete

(includes illus. nos. 7 through 11)

--- 170730 1 Main Door Gasket/Glass Adhesive (10.3 oz. cartridge)

* ALL

model dryers manufactured as of June 1, 1989 are built with a lightweight main door assembly.

Front Panel Assembly

17

Illus. No. Part No. Qty. Description

1 800367* 1 Right Hand Front Panel Assembly Complete

(includes illus. nos. 1 through 4)

800373* 1 Right Hand Insulated Front Panel Assembly Complete

(includes illus. nos. 1 through 4)

800355 1 Stainless Steel Right Hand Front Panel Assembly Complete

(includes illus. nos. 1 through 4)
2 313903 2 3-1/2” Stainless Steel Striker Pad
3 154200 4 5/32” Pop Rivet
4 121405 1 Rubber Grommet
5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw
6 137003 1 Door Switch ONLY

(includes illus. nos. 6, 7, and 8)
7 401551 1 or 2 Door Switch Spacer/Washer
8 152003 1 #3/8-32 x 1/2 x 1/16” Door Switch Nut
9 870010 1 Door Switch Housing Assembly Complete

(includes illus. nos. 6 through 9)

313209 1 Door Switch Housing ONLY
10 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
11 150300 1 #10-16 x 1/2” Hex Washer TEK Screw

* Specify color when ordering.
