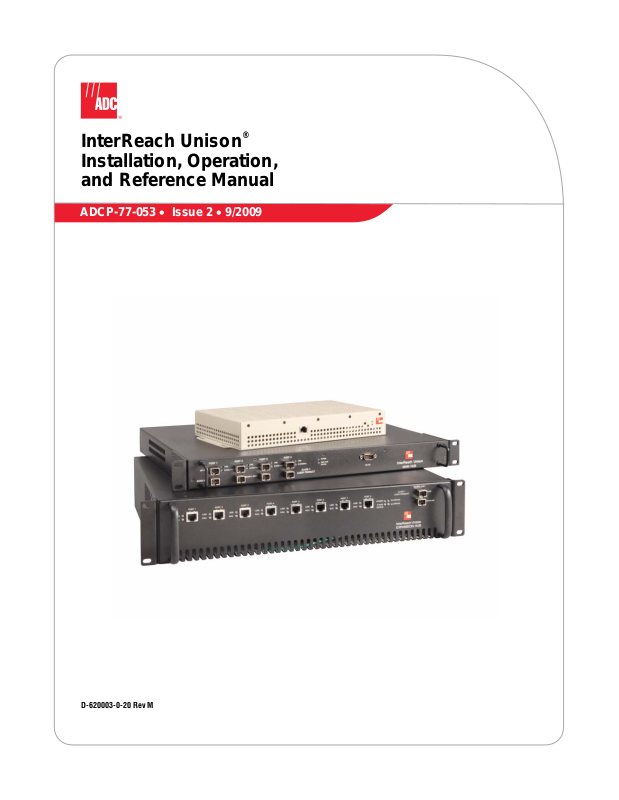

ADC U0559 011 Users Manual

InterReach Unison®
Installation, Operation,
and Reference Manual

ADCP-77-053 • Issue 2 • 9/2009

D-620003-0-20 Rev M

ADCP-77-053 • Issue 2 • 9/2009 • Preface

COPYRIGHT

© 2009, ADC Telecommunications, Inc.
All Rights Reserved

REVISION HISTORY

ISSUE DATE REASON FOR CHANGE

1 7/2008 First ADC release

2 9/2009 Add Unison 700 LTE product content

LIST OF CHANGES

The technical changes incorporated into this issue are listed below.

PAGE IDENTIFIER DESCRIPTION OF CHANGE

- Add Unison 700 LTE product content

TRADEMARK INFORMATION

ADC is a registered trademark and InterReach, InterReach Unison, InterReach Fusion, WAVEXchange, FlexWave are registered
trademarks and trademarks of ADC Telecommunications, Inc. All other products, company names, service marks, and trademarks
mentioned in this document or website are used for identification purposes only and may be owned by other companies.

DISCLAIMER OF LIABILITY

Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no
event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further
disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of
liability applies to all products, publications and services during and after the warranty period.

This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476
(in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [e-mail].

Page ii

ADC Telecommunications, Inc.

ADC Telecommunications, Inc.
541 E. Trimble Road, San Jose, California 95131-1224 USA

P.O. Box 1101, Minneapolis, Minnesota 55440-1101

In U.S.A. and Canada: 1-800-530-9960

In U.S.A. and Canada: 1-800-366-3891

Outside U.S.A. and Canada: 1-408-952-2400

Outside U.S.A. and Canada: [phone]

Fax: [phone]

Fax: [phone]

Table of Content s

SECTION 1 General Information . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.4 Acronyms in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1.5 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1.6 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

SECTION 2

SECTION 3 Unison Main Hub . . . . . . . . . . . . . . . . . . . . . . . . 3-1

InterReach Unison System Description . . . . . . 2-1

2.1 System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.2 System OA&M Capabil ities . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.2.1 OA&M Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.2.2 Using Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

2.3 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2.4 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2.5 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

2.5.1 InterReach Unison Wavelen gth and Laser Power . . . . . . . . . 2-14

2.5.2 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2-14

2.5.3 Operating Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

2.5.4 RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

3.1 Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.1.1 Optical Fiber Uplink/Downlink Ports . . . . . . . . . . . . . . . . . . . 3-3

3.1.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . 3-3

3.1.3 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3.2 Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3.2.1 Main Hub Rear Panel Connectors . . . . . . . . . . . . . . . . . . . . . . 3-8

3.3 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

3.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . 3-10

3.4.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

InterReach Unison Installation, Operation, and Reference Manual i

D-620003-0-20 Rev M CONFIDENTIAL

3.4.2 View Pr eference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

SECTION 4 Unison Expansion Hub . . . . . . . . . . . . . . . . . . . . 4-1

4.1 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.1.1 RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.1.2 Optical Fiber Uplink/Downlink Connectors . . . . . . . . . . . . . . 4-3

4.1.3 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.2 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.3 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 4-7

4.4 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . 4-8

SECTION 5

SECTION 6

Unison Remote Access Unit . . . . . . . . . . . . . . . 5-1

5.1 Remote Access Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . 5-4

5.1.1 SMA Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

5.1.2 RJ-45 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

5.2 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

5.3 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 5-6

5.4 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . 5-6

5.5 RAUs in a Dual Band System . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Designing a Unison Solution . . . . . . . . . . . . . . . 6-1

6.1 Maximum Output Power Per Carrier at RAU . . . . . . . . . . . . . 6-3

6.1.1 700 MHz LTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

6.1.2 800 MHz Cellular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

6.1.3 800 MHz iDEN/SMR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

6.1.4 900 MHz GSM and EDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

6.1.5 1800 MHz DCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.1.6 1900 MHz PCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.1.7 2.1 GHz UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.1.8 1.7/2.1 GHz AWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.1.9 700 MHz Public Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

6.2 Estimating RF Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

6.2.1 Path Loss Equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

6.2.2 Coverage Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

6.2.3 Examples of Design Estimates . . . . . . . . . . . . . . . . . . . . . . . 6-21

6.3 System Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

6.3.1 System Gain (Loss) Relative to ScTP Cable Length . . . . . . . 6-25

6.4 Link Budget Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26

6.4.1 Elements of a Link Budget for Narrowband Standards . . . . . 6-26

6.4.2 Narrowband Link Budget Analysis

for a Microcell Application . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29

6.4.3 Elements of a Link Budget for CDMA Standards . . . . . . . . . 6-31

6.4.4 CDMA Link Budget Analysis for a Microcell Application . 6-34

6.4.5 Considerations for Re-Radiation (Over-the-Air) Systems . . . 6-37

6.5 Optical Power Budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

ii InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

6.6 Connecting a Main Hub to a Base Station . . . . . . . . . . . . . . 6-39

6.6.1 Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-40

6.6.2 Uplink Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-41

6.6.3 RAU Attenuation and ALC . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43

6.7 Designing for a Neu tral Host System . . . . . . . . . . . . . . . . . . 6-46

SECTION 7

Installing Unison . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.1 Component Location Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.2 Cable and Connector Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.3 Multiple Operator System Recommendations . . . . . . . . . . . . 7-2

7.1.4 Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

7.2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.2.1 Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.2.2 General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.2.3 Fiber Port Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

7.3 Preparing for System Installation . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.1 Pre-Installation Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.3 Tools and Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

7.3.4 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

7.4 Unison Component Installation Procedures . . . . . . . . . . . . . 7-11

7.4.1 Installing a Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

7.4.2 Installing Expansion Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

7.4.3 Installing RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

7.4.4 Installing a Dual-Band RAU Configuration . . . . . . . . . . . . . 7-27

7.4.5 Using a Cat-5 Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29

7.4.6 Configuring the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30

7.5 Splicing Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33

7.5.1 Fusion Splices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33

7.6 Interfacing a Main Hub to a Base Station

or a Roof-top Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35

7.6.1 Connecting Multiple Main Hubs . . . . . . . . . . . . . . . . . . . . . . 7-38

7.7 Connecting Contact Alarms to a Unison System . . . . . . . . . 7-42

7.7.1 Alarm Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43

7.7.2 Alarm Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46

7.7.3 Alarm Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49

7.8 Alarm Monitoring Connectivity Options . . . . . . . . . . . . . . . 7-51

7.8.1 Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51

7.8.2 Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52

7.8.3 RS-232 Port Expander Connection . . . . . . . . . . . . . . . . . . . . 7-53

7.8.4 POTS Line Sharing Switch Connection . . . . . . . . . . . . . . . . 7-54

7.8.5 Ethernet and ENET/RS-232 Serial Hub Connection . . . . . . 7-55

7.8.6 Network Interface Unit (NIU) . . . . . . . . . . . . . . . . . . . . . . . . 7-56

InterReach Unison Installation, Operation, and Reference Manual iii

D-620003-0-20 Rev M CONFIDENTIAL

SECTION 8 Replacing Unison Components . . . . . . . . . . . . . 8-1

8.1 Replacing an RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

8.2 Replacing an Expansion Hub . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

8.3 Replacing a Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

SECTION 9

APPENDIX A

APPENDIX B

Maintenance, Troubleshooting,

and Technical Assistance . . . . . . . . . . . . . . . . . 9-1

9.1 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

9.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

9.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

9.3.1 Troubleshooting using AdminManager . . . . . . . . . . . . . . . . . . 9-4

9.3.2 Troubleshooting using LEDs . . . . . . . . . . . . . . . . . . . . . . . . . 9-27

9.4 Troubleshooting CAT-5/5E/6 . . . . . . . . . . . . . . . . . . . . . . . . 9-31

9.5 Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-33

Cables and Connectors . . . . . . . . . . . . . . . . . . . A-1

A.1 CAT-5E/6 Cable (ScTP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

A.2 Fiber Optical Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

A.3 Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

A.4 Standard Modem Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

A.5 DB-9 to DB-9 Null Modem Cable . . . . . . . . . . . . . . . . . . . . .A-4

A.6 DB-25 to DB-9 Null Modem Cable . . . . . . . . . . . . . . . . . . . .A-5

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

B.1 Unison System Approval Status . . . . . . . . . . . . . . . . . . . . . . .B-1

B.2 Human Exposure to RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3

APPENDIX C

APPENDIX D

iv InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

Changes and New Capabilities . . . . . . . . . . . . . C-1

C.1 New in Rev. M of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

C.2 New in Rev. L of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

C.3 New in Rev. K of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

C.4 New in Rev. J of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

C.5 New in Rev. H. of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .C -2

C.6 New in Rev. G of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

C.7 New in Rev. F of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

C.8 New in Rev. E of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

C.9 New in Rev. D of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-3

C.10 New in Rev. C of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .C-3

C.11 New in Rev. B of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .C-3

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-1

List of Figures

Figure 2-1 Unison System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2-2 OA&M Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Figure 2-3 Local System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . . . 2-7

Figure 2-4 Remote System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . . 2-8

Figure 2-5 Alarm Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Figure 2-6 Alarm Sense. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Figure 2-7 Unison’s Double Star Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Figure 2-8 Downlink (Base Station to Wireless Devices) . . . . . . . . . . . . . . . . . . . 2-12

Figure 2-9 Uplink (Wireless Devices to Base Station) . . . . . . . . . . . . . . . . . . . . . 2-12

Figure 3-1 Main Hub in a Unison System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Figure 3-2 Main Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Figure 3-3 Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Figure 3-4 Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Figure 4-1 Expansion Hub in a Unison System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Figure 4-2 Expansion Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Figure 4-3 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Figure 4-4 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Figure 5-1 Remote Access Unit in a Unison System . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Figure 5-2 Remote Access Unit Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Figure 5-3 Dual-Port Antenna Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Figure 6-1 Determining Path Loss between the Antenna and the Wireless Device 6-13

Figure 6-2 Connecting Main Hubs to a Simplex Base Station . . . . . . . . . . . . . . . 6-39

Figure 6-3 Main Hub to Duplex Base Station or Repeater Connections . . . . . . . . 6-40

Figure 6-4 ALC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43

Figure 7-1 Mounting Bracket Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

Figure 7-2 Mounting Bracket Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Figure 7-3 800 MHz Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24

Figure 7-4 Guideline for Unison RAU Antenna Placement . . . . . . . . . . . . . . . . . 7-24

InterReach Unison Installation, Operation, and Reference Manual v

D-620003-0-20 Rev M CONFIDENTIAL

Figure 7-5 Dual Band RAU Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28

Figure 7-6 Dual-Port Antenna Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29

Figure 7-7 Simplex Base Station to a Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35

Figure 7-8 Duplex Base Station to a Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36

Figure 7-9 Connecting a Main Hub to Multiple Base Stations . . . . . . . . . . . . . . . 7-37

Figure 7-10 Connecting Two Main Hubs to a Simplex Repeater or Base Station . . 7-39
Figure 7-11 Connecting Two Main Hubs to a Duplex Repeater or Base Station . . 7-41

Figure 7-12 Connecting FlexWave to Unison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43

Figure 7-13 Using a BTS to Monitor Unison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44

Figure 7-14 Using a BTS and OpsConsole to Monitor Unison . . . . . . . . . . . . . . . . 7-45

Figure 7-15 Connecting LGCell to Unison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46

Figure 7-16 Alarm Sense Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46

Figure 7-17 5-port Alarm Daisy-Chain Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49

Figure 7-18 Alarm Sense Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50

Figure 7-19 OA&M Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51

Figure 7-20 OA&M Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52

Figure 7-21 OA&M Connection using an RS-232 Port Expander . . . . . . . . . . . . . . 7-53

Figure 7-22 OA&M Connection using a POTS Line Sharing Switch . . . . . . . . . . . 7-54

Figure 7-23 Cascading Line Sharing Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54

Figure 7-24 OA&M Connection using Ethernet and ENET/232 Serial Hub . . . . . . 7-55

Figure 7-25 Network Interface Unit (NIU) Configuration Options . . . . . . . . . . . . . 7-56

Figure 7-26 Multiple Unison Systems Monitored

by a Single Network Management System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57

Figure A-1 Wiring Map for Cat-5E/6 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2

Figure A-2 Standard Modem Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

Figure A-3 DB-9 Female to DB-9 Female Null Modem Cable Diagram . . . . . . . .A-4

Figure A-4 DB-25 Male to DB-9 Female Null Modem Cable Diagram . . . . . . . . .A-5

vi InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

List of Tables

Table 1-1 Type Style Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Table 2-1 AdminManager and OpsConsole Functional Differences . . . . . . . . . . 2-5

Table 2-2 AdminManager and OpsConsole Connectivity Differences . . . . . . . . . 2-6

Table 2-3 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

T able 2-4 InterReach Unison Wavelength and Laser Power . . . . . . . . . . . . . . . . 2-14

Table 2-5 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Table 2-6 Operating Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Table 2-7 Cellular RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

T able 2-8 iDEN RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Table 2-9 GSM/EGSM RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . 2-17

Table 2-10 DCS RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

T able 2-11 PCS RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Table 2-12 UMTS RF End-to-End Performance** . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Table 2-13 AWS RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Table 2-14 Public Safety 700 MHz RF End-to-End Performance . . . . . . . . . . . . 2-19

T able 2-15 700 MHz (Upper C) RF End-to-End Performance . . . . . . . . . . . . . . . 2-20

Table 3-1 Main Hub Status LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Table 3-2 Main Hub Port LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Table 3-3 9-pin D-sub Connector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Table 3-4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Table 4-1 Expansion Hub Unit Status and DL/UL Status LED States . . . . . . . . . 4-4

Table 4-2 Expansion Hub Port LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Table 4-3 DB-9 Pin Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Table 4-4 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Table 5-1 Frequency Bands covered by Unison RAUs . . . . . . . . . . . . . . . . . . . . . 5-3

Table 5-2 Remote Access Unit LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Table 5-3 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Table 6-1 700 MHz Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

InterReach Unison Installation, Operation, and Reference Manual vii

D-620003-0-20 Rev M CONFIDENTIAL

Table 6-2 Cellular Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Table 6-3 iDEN/SMR Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Table 6-4 GSM and EDGE Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Table 6-5 DCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

Table 6-6 PCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

Table 6-7 UMTS Power per Carrier** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

Table 6-8 AW S Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

Table 6-9 Public Safety 700 MHz Power per Carrier . . . . . . . . . . . . . . . . . . . . . 6-11

Table 6-10 900 MHz Paging/SMR/iDEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Table 6-11 800 MHz Cellular/1900 MHz PCS Power per Carrier . . . . . . . . . . . .6-12

Table 6-12 Coaxial Cable Losses (Lcoax) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13

Table 6-13 Average Signal Loss of Common Building Materials . . . . . . . . . . . . .6-14

T able 6-14 Estimated Path Loss Slope for Different In-Building Environments . 6-15
Table 6-15 Frequency Bands and the Value of the first Term in Equation (3) . . . 6-16
Table 6-16 Approximate Radiated Distance from Antenna

for 700 MHz LTE Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-16

Table 6-17 Approximate Radiated Distance from Antenna

for 800 MHz Cellular Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-17

Table 6-18 Approximate Radiated Distance from Antenna

for 800 MHz iDEN Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-17

Table 6-19 Approximate Radiated Distance from Antenna

for 900 MHz GSM Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-17

Table 6-20 Approximate Radiated Distance from Antenna

for 900 MHz EGSM Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-17

Table 6-21 Approximate Radiated Distance from Antenna

for 1800 MHz DCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-22 Approximate Radiated Distance from Antenna

for 1800 MHz CDMA (Korea) Applications . . . . . . . . . . . . . . . . . . .6-19

Table 6-23 Approximate Radiated Distance from Antenna

for 1900 MHz PCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-24 Approximate Radiated Distance from Antenna

for 2.1 GHz UMTS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-25 Approximate Radiated Distance from Antenna

for 1.7/2.1 GHz AWS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

Table 6-26 Approximate Radiated Distance from Antenna

for 700 MHz Public Safety Applications . . . . . . . . . . . . . . . . . . . . . .6-20

T able 6-27 System Gain (Loss) Relative to ScTP Cable Length . . . . . . . . . . . . . . 6-25

Table 6-28 Link Budget Considerations for Narrowband Systems . . . . . . . . . . . .6-27

Table 6-29 Narrowband Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . .6-29

Table 6-30 Narrowband Link Budget Analysis: Uplink . . . . . . . . . . . . . . . . . . . .6-30

viii InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

Table 6-31 Distribution of Power within a CDMA Signal . . . . . . . . . . . . . . . . . . 6-31

Table 6-32 Additional Link Budget Considerati ons for C DMA . . . . . . . . . . . . . . 6-32

Table 6-33 CDMA Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . . . . . . 6-34

Table 6-34 CDMA Link Budget Analysis: Uplink . . . . . . . . . . . . . . . . . . . . . . . . 6-36

Table 6-35 Frequency Bands Adjacent to System Configured Bands . . . . . . . . . 6-45

Table 6-36 Unison Capacity: Equal Coverage Areas . . . . . . . . . . . . . . . . . . . . . . 6-48

Table 7-1 Unison Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Table 7-2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Table 7-3 Tools and Materials Required for Component Installation . . . . . . . . . . 7-9

Table 7-4 Optional Accessories for Component Installation . . . . . . . . . . . . . . . . 7-9

Table 7-5 Troubleshooting Main Hub LEDs During Installation . . . . . . . . . . . . 7-16

Table 7-6 Troubleshooting Expansion Hub LEDs During Installation . . . . . . . . 7-22

Table 7-7 Troubleshooting RAU LEDs During Installation . . . . . . . . . . . . . . . . 7-26

Table 7-8 Maximum/Minimum Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30

Table 7-9 Alarm Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42

Table 7-10 Pin Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47

T able 7-11 Input Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47

T able 7-12 Output Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48

Table 9-1 Faults Reported by the Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Table 9-2 Faults Reported by the Expansion Hub . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Table 9-3 Faults Reported by the RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16

Table 9-4 Warnings Reported by the Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . 9-17

Table 9-5 Warnings Reported by the Expansion Hub . . . . . . . . . . . . . . . . . . . . . 9-20

Table 9-6 Warnings Reported by the RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-21

Table 9-7 Status Messages Reported by the Main Hub . . . . . . . . . . . . . . . . . . . . 9-22

Table 9-8 Status Messages Reported by the Expansion Hub . . . . . . . . . . . . . . . 9-24

Table 9-9 Status Messages Reported by the RAU . . . . . . . . . . . . . . . . . . . . . . . . 9-26

Table 9-10 Troubleshooting Main Hub Port LEDs During Normal Operat ion . . . 9-27
Table 9-11 Troubleshooting Main Hub Status LEDs During Normal Operation . 9-28
Table 9-12 Troubleshooting Expansion Hub Port LEDs

During Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-29

Table 9-13 Troubleshooting Expansion Hub Status LEDs

During Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-30

Table 9-14 Summary of Cat-5/5E/6 Cable Wiring Problems . . . . . . . . . . . . . . . . 9-31

Table A-1 CAT-5E/6 Twisted Pair Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Table A-2 DB-9 Female to DB-9 Female Null Modem Cable Pinout . . . . . . . . . .A-4

Table A-3 DB-25 Male to DB-9 Female Null Modem Cable Pinout . . . . . . . . . . .A-5

InterReach Unison Installation, Operation, and Reference Manual ix

D-620003-0-20 Rev M CONFIDENTIAL

This page is intentionally left blank.

x InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

SECTION 1 General Information

This section contains the following subsections:

• Section 1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

• Section 1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

• Section 1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

• Section 1.4 Acronyms in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

• Section 1.5 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

• Section 1.6 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

InterReach Unison Installation, Operation, and Reference Manual 1-1

D-620003-0-20 Rev M CONFIDENTIAL

Firmware Release

1.1 Firmware Release

For the latest Firmware Release and associated documentation, access the ADC cus­tomer portal at adc.com.

1.2 Purpose and Scope

This document describes the InterReach Unison system components.

• Section 2 InterReach Unison System Description
This section provides an overview of the Unison hardware and OA&M capabili-

ties. It also contains system specifications and RF end-to-end performance tables.

• Section 3 Unison Main Hub
This section illustrates and describes the Main Hub. This section also includes con-

nector and LED descriptions, communication cable (serial and null modem) pin
outs, and unit specifications.

• Section 4 Unison Expansion Hub
This section illustrates and describes the Expansion Hub, as well as connector and

LED descriptions, and unit specifications.

• Section 5 Unison Remote Access Unit
This section illustrates and describes the Remote Access Unit, as well as connector

and LED descriptions, and unit specifications.

• Section 6 Designing a Unison Solution
This section provides tools to aid you in designing your Unison system, including

tables of the maximum output power per carrier at the RAU and formulas and
tables for calculating path loss, coverage distance, and link budget.

• Section 7 Installing Unison
This section contains installation procedures, requirements, safety precautions, and

checklists. The installation procedures include guidelines for troubleshooting using
the LEDs as you install the units.

• Section 8 Replacing Unison Components
This section provides installation procedures and considerations when you are

replacing a Unison component in an operating system.

• Section 9 Maintenance, Troubleshooting, and Technical Assistance
This section contains contact information and troubleshooting tables.

1-2 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

• Appendix A Cables and Connectors
This appendix contains connector and cable descriptions and requirements, as well

as cable pin outs and diagrams.
Appendix B Compliance
This appendix lists safety and Radio/EMC approvals.

• Appendix C Changes and New Capabilities
This appendix contains a hardware/firmware/software compatibility.

• Appendix D Glossary
The Glossary provides definitions of commonly-used RF and wireless networking

terms.

1.3 Conventions in this Manual

Table 1-1list s th e ty pe style conventions used in this manual.

Conventions in this Manual

1

Table 1-1 Type St yle Conventions

Convention Description

bold Used for emphasis

BOLD CAPS

MALL CAPS AdminManager window buttons

S

Labels on equipment

Measurements are listed first in metric units, followed by U.S. Customary System of
units in parentheses. For example:

0° to 45°C (32° to 113°F)

The following symbols highlight certain information as described.

NOTE: This format emphasizes text with special significance or impor­tance, and provides supplemental information.

1. For Japan, refer to the separate addendum: Japan Specification Document

Help Hot Line (U.S. only): 1-800-530-9960 1-3

D-620003-0-20 Rev M CONFIDENTIAL

Acronyms in this Manual

CAUTION: This format is used when a given action or omitted

action can cause or contribute to a hazardous condition. Damage to
the equipment can occur.

WARNING: This format is used when a given action or omitted action
can result in catastrophic damage to the equipment or cause injury to
the user.

Procedure

This format highlights a procedure.

1.4 Acronyms in this Manual

Acronym Definition

AGC automatic gain control
ALC automatic level control
AMPS Advanced Mobile Phone Service
AWS Advanced Wireless Services
BTS base transceiver station
Cat-5/6 Category 5 or Category 6 (twisted pair cable)
CDMA code division multiple access
CDPD cellular digital packet data
DAS distributed antenna system
dB decibel
dBm decibels relative to 1 milliwatt
DC direct current
DCS Digital Communications System
DL downlink
EDGE Enhanced Data Rates for Global Evolution
EGSM Extended Global S tandard for Mobile Communications
EH Expansion Hub
GHz gigahertz
GPRS General Packet Radio Service

1-4 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

Acronyms in this Manual

Acronym Definition

GSM Groupe Speciale Mobile (now translated in English as Global Standard

for Mobile Communications)
Hz hertz
IF intermediate frequency
iDEN Integrated Digital Enhanced Network (Motorola variant of TDMA

wireless)
LAN local area network
LO local oscillator
LTE Long Term Evolution
mA milliamps
MBS microcellular base station
MH Main Hub
MHz megahertz
MMF multi-mode fiber
MTBF mean time between failures
NF noise figure
nm nanometer
OA&M operation, administration, and maintenance
PCS Personal Communication Services
PLL phase-locked loop
PLS path loss slope
PS Public Safety
RAU Remote Access Unit
RF radio frequency
RSSI received signal strength indicator
SC/APC fiber optic connector complying with NTT SC standard, angle-polished
SMA sub-miniature A connector (coaxial cable connector type)
SMF single-mode fiber
ST straight tip (fiber optic cable connector type)
ScTP screened twiste d pair
TDMA time division multiple access
UL uplink; Underwriters Laboratories
uW microwatts
UMTS Universal Mobile Telecommunications System
UPS uninterruptable power supply
Wwatt
WCDMA wideband code division multiple access

Help Hot Line (U.S. only): 1-800-530-9960 1-5

D-620003-0-20 Rev M CONFIDENTIAL

Standards Conformance

1.5 Standards Conformance

• Utilizes the TIA/EIA 568-A Ethernet cabling standards for ease of installation.

• Refer to Appendix B for compliance information.

1.6 Related Publications

• AdminManager User Manual, ADC part number 8810-10

• OpsConsole User Manual; ADC part number 8800-10

• FlexWave Focus Configuration, Installation, and Reference Manual; ADC part
number 8500-10

• LGCell Version 4.0 Installation, Operation, and Reference Manual; ADC part
number 8100-50

• Neutral Host System Planning Guide; ADC part number 9000-10

• Unison Release 5.1 Field Note, ADC FN03-007 (formerly, FN-024)

• Unison Release 5.4 Field Note, ADC FN04-002

• Unison Release 5.5 Field Note, ADC FN04-004

• Unison Release 5.6 Field Note, ADC FN05-001

• Unison Release 5.7.1 Field Note, ADC FN06-001

• Unison Release 5.8 Field Note, ADC FN08-001

• Cat-5/5E/6 Cabling Requirements for Unison Family Field Note, ADC FN04-001.

1-6 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

SECTION 2 InterReach Unison System

Description

InterReach Unison is an intelligent fiber optic/Cat-5/5E/6 wireless networking system
designed to handle both wireless voice and data communications and provide
high-quality, ubiquitous, seamless access to the wireless network in any public or pri­vate facility, including:

• Campus environments

• Airports

• Office buildings

• Shopping malls

• Hospitals

• Subways

• Public facilities (convention centers, sports venues, and so on.)

Unlike other wireless distribution alternatives, Unison is an intelligent, active system,
using microprocessors to enable key capabilities such as software-selectable band set­tings, automatic gain control, ability to incrementally adjust downlink/uplink gain,
end-to-end alarming of all components and the associated cable infrastructure, and a
host of additional capabilities.

The Unison system supports major wireless standards and air interface protocols in
use around the world, including:

• Frequencies: 700 MHz, 800 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz,
2100 MHz

• Voice Protocols: AMPS, TDMA, CDMA, GSM, iDEN, LTE

• Data Protocols: CDPD, EDGE, GPRS, WCDMA, CDMA2000, 1xRTT, EV-DO,
LTE, and Paging

InterReach Unison Installation, Operation, and Reference Manual 2-1

D-620003-0-20 Rev M CONFIDENTIAL

Key System Features

• Superior RF performance, particularly in the areas of IP3 and noise figure.

• High downlink composite power and low uplink noise figure for support of a
large number of channels and larger coverage footprint per antenna.

• Software configurable Main and Expansion Hubs. Thus, the frequency band can
be configured in the field.

• Either single-mode or multi-mode fiber can be used, supporting flexible cabling
alternatives (in addition to standard Cat-5, Cat-5E, or Cat-6 screened twisted pair
[ScTP]). You can select the cabling type to meet the resident cabling infrastructure
of the facility and unique building topologies.

• Extended system “reach.” Using single-mode fiber, fiber runs can be as long as
6 kilometers (creating a total system “wingspan” of 12 kilometers). Alternately,
with multi-mode fiber, fiber runs can be as long as 1.5 kilometers. The Cat-5/5E/6
ScTP cable run can be up to 100 meters recommended maximum, or up to 170
meters when using a Cat-5 Extender.

• Flexible RF configuration capabilities, including:

• System gain:
– Ability to manually set gain in 1 dB steps, from 0 to 15 dB, on both down-

link and uplink.

•RAU:
– RAU uplink and downlink gain can be independently attenuated 10 dB.
– Uplink level control protects the system from input overload and can be

optimized for either a single operator or multiple operators/protocols.

– VSWR check on RAU reports if there is a disconnected antenna (all RAUs

except UMTS-1).

• Firmware Updates are downloaded (either locally or remotely) to operating sys-

tems when any modifications are made to the product, including the addition of
new software capabilities/services.

• Extensive OA&M capabilities, including fault isolation to the field replaceable

unit, automatic reporting of all fault and warning conditions, and user-friendly
graphical-user interface OA&M software packages.

2-2 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

2.1 System Hardware

The InterReach Unison system consists of three modular components:

• 19" rack-mountable Main Hub (connects to up to 4 Expansion Hubs)

• RF signal conversion to optical on the downlink; optical to RF on the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Software configurable band

• Simplex interface to RF source

• System master – periodically polls all downstream units (Expansion
Hubs/RAUs) for system status, and automatically reports any fault or warning
conditions

• 19" rack-mountable Expansion Hub (connects to up to 8 Remote Access Units)

• Optical signal conversion to electrical on the downlink; electrical to optical on
the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Software configurable band (based on command from Main Hub)

• Supplies DC power to RAU

System Hardware

• Remote Access Unit (RAU)

• Electrical signal conversion to RF on the downlink; RF to electrical on the
uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Protocol/band specific units

The minimum configuration of a Unison system is one Main Hub, one Expansion
Hub, and one RAU (1-1-1). The maximum configuration of a system is one Main
Hub, four Expansion Hubs, and 32 RAUs (1-4-32). You can combine multiple sys­tems to provide larger configurations.

Figure 2-1 Unison System Hardware

Help Hot Line (U.S. only): 1-800-530-9960 2-3

D-620003-0-20 Rev M CONFIDENTIAL

System OA&M Capabilities

2.2 System OA&M Capabilities

The InterReach Unison is microprocessor controlled and contains firmware which
enables much of the OA&M functionality.

Complete alarming, down to the field replaceable unit (that is, Main Hub, Expansion
Hub, Remote Access Unit) and the cabling infrastructure, is available. All events
occurring in a system, defined as a Main Hub and all of its associated Expansion
Hubs and Remote Access Units, are automatically reported to the Main Hub. The
Main Hub monitors system status and communicates that status using the following
methods:

• Normally closed (NC) or normally open (NO) alarm contacts can be tied to stan­dard alarm monitoring systems or directly to a base station for alarm monitoring.

• The Main Hub’s front panel serial port connects directly to a PC (for local access)
or to a modem (for remote access).

Figure 2-2 OA&M Communications

Use AdminManager to configure
or monitor a local Unison system.
Remotely, Admin Manager can only
check system status. It cannot
receive modem calls.

Use OpsConsole to monitor
and receive communications from
remote or local Unison systems.

PC/Laptop
running
AdminManager
or OpsConsole

RS-232 Ethernet

RS-232

SC/APC

Fiber

SC/APC

Expansion Hub

RJ-45

Cat-5/6

RJ-45

Remote Access Unit

RS-232

Main Hub

TCP/IP

Modem

ENET/232

Converter

RS-232

Main Hub

Main Hub

PSTN

Modem

Main Hub

2-4 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

System OA&M Capabilities

ADC offers two OA&M packages: AdminManager and OpsConsole. Both run on a
PC/laptop.

• AdminManager communicates with one Main Hub, and its downstream units, at a
time. Using AdminManager connected locally or remotely, you can configure a
newly installed system, change system parameters, perform an end-to-end system
test, or query system status.

Refer to the AdminManager User Manual (PN 8810-10) for information about
installing and using the AdminManager software.

• OpsConsole lets you manage, monitor, and maintain multiple sites and systems
from a centralized remote location. This software is described in the OpsConsole
User Guide (PN 8800-10).

Table 2-1 lists the functional differences between AdminManager and OpsConsole.

Table 2-1 AdminManager and OpsConsole Functional Differences

Feature AdminManager OpsConsole

Installation Wizard Yes No
Local System Configuration Yes Yes
Remote System Configuration Yes Yes
Local Firmware Updating Yes No
Save unit information in a database No Yes
Network view of installed systems Yes Yes
Send dispatch message No Yes
Monitor multiple units No Yes
Scheduled polling No Yes
Windows-based GUI application Yes Yes
Runs on Windows 98 SE Yes No
Runs on Windows 2000 Yes Yes
Installation and configuration tool Yes No
Operation, Administration, and Management tool No Yes

Help Hot Line (U.S. only): 1-800-530-9960 2-5

D-620003-0-20 Rev M CONFIDENTIAL

System OA&M Capabilities

Table 2-2 lists connectivity differences between AdminManager and OpsConsole.

Table 2-2 AdminManager and OpsConsole Connectivity Differences

Connectivity AdminManager OpsConsole

Direct RS-232 Yes (COM1 through

COM16)

RS-232 Expansion Board Yes, if the expansion port

is in the range of COM1

through COM16
Modem (including RF modem) Yes Yes
Ethernet/232 serial hub Yes, if the remote COM

port is in the range of

COM1 through COM16

Line Sharing Switch after POTS Yes Yes

Yes

Yes

Yes

2-6 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

System OA&M Capabilities

2.2.1 OA&M Software

2.2.1.1 Configuring, Maintaining, and Monitoring Unison Locally

Each Main Hub, Expansion Hub, and RAU in the system constantly monitors itself
and its downstream units for internal fault and warning conditions. The results of this
monitoring are stored in memory and compared against new results.

The Expansion Hubs monitor their RAUs and store their status in memory. The Main
Hub monitors its Expansion Hubs and stores their status and the status of the RAUs in
its memory. When a unit detects a change in status, a fault or warning is reported.
Faults are indicated locally by red status LEDs, and both faults and warnings are
reported to the Main Hub and displayed on a PC/laptop, using the Main Hub’s serial
port, that is running the AdminManager software. Passive antennas connected to the
RAUs are not monitored automatically. Perform the System Test in order to retrieve
status information about antennas.

Using AdminManager locally, you can install a new system or new components,
change system parameters, and query system status. Figure 2-3 illustrates how the
system reports its status to AdminManager.

PC/Laptop

running

AdminManager

Use AdminMan­ager to query units
for their status or to
get current fault or
warning conditions.

Figure 2-3 Local System Monitoring and Reporting

The Main Hub checks its own status and queries each
Expansion Hub for its status, which includes RAU status.

Main

Hub

The Main Hub queries
status of each Expansion Hub
and each RAU and compares
it to previously stored status.

• If a fault is detected, LEDs
on the front panel turn red.

The Expansion Hub queries its own status
and polls each RAU for its status.

Expansion

Hub

The Expansion Hub queries status
of each RAU and compares it to
previously stored status.

• If a fault is detected, LEDs on
the front panel turn red.

RAU

RAU

Each RAU passes its status to
the Expansion Hub.

• If a fault is detected, the
ALARM LED is red. If no fault
is detected, the LED is green.

Help Hot Line (U.S. only): 1-800-530-9960 2-7

D-620003-0-20 Rev M CONFIDENTIAL

System OA&M Capabilities

2.2.1.2 Monitoring and Maintaining Unison Remotely

• Using AdminManager Remotely

You can use AdminManager remotely to call into the Main Hub and query current
status, change parameters, or command system end-to-end test. You cannot use
AdminManager to continuously monitor system state changes.

• Using OpsConsole Remotely

When monitoring the system remotely, any change of state within the system
causes the Main Hub to initiate an automatic call-out and report the system status
to the OpsConsole. The Main Hub calls out three times, each with a 45 second
interval. If the call is not acknowledged in these three tries, the Main Hub waits 15
minutes and continues the above sequence until the call is acknowledged.

Refer to the OpsConsole User Manual (PN 8800-10) for more information about
using OpsConsole for remote system monitoring.

Figure 2-4 illustrates how the system reports its status to AdminManager and the
OpsConsole.

Figure 2-4 Remote System Monitoring and Reporting

The Main Hub checks its own status and queries each
Expansion Hub for its status, which includes RAU status.

PSTN

Modem

PC

running

OpsConsole

Use OpsConsole to com­municate with one or more
remotely or locally installed
systems.

If a fault or warning condi­tion is reported, the
OpsConsole graphical user
interface indicates the
problem. OpsConsole can
also send an e-mail and/or
page notification to desig­nated recipients.

Modem

The Main Hub queries
status of each Expansion
Hub and each RAU and
compares it to previously
stored status.

• If a fault is detected,
LEDs on the front panel
turn red.

Main

Hub

The Expansion Hub queries its own status
and polls each RAU for its status.

Expansion

Hub

The Expansion Hub queries
status of each RAU and com­pares it to previously stored
status.

• If a fault is detected, LEDs on
the front panel turn red.

RAU

RAU

Each RAU passes its status to
the Expansion Hub.

• If a fault is detected, the
ALARM LED lights red. If no
fault is detected, the LED is
green.

2-8 InterReach Unison Installation, Operation, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

2.2.2 Using Alarm Contacts

You can connect the DB-9 female connector on the rear panel of the Main Hub to a
local base station or to a daisy-chained series of Unison, LGCell, and/or FlexWave
Focus systems.

• When you connect FlexWave Focus or a BTS to Unison, the Unison Main Hub is
the output of the alarms (alarm source) and FlexWave Focus or the BTS is the
input (alarm sense). This is described in Section 7.7.1 on page 7-43. The following
figure shows using FlexWave Focus as the input of Unison contact closures.

Figure 2-5 Alarm Source

Unison Main Hub

System OA&M Capabilities

FlexWave

Focus

RFM

RF OUT

DOWNLINK

9-pin Adapter

FIBER

RF IN

UPLINK

Alarm
Source

Alarm
Source

5-port Alarm Daisy-Chain Cable

Alarm

ALARM

Sense

RS-232C

• When you connect LGCell to Unison, the Unison Main Hub is the input of the
alarms (alarm sense) and LGCell is the output (alarm source). This is described in
Section 7.7.2 on page 7-46

UPLINK
DOWNLINK

Help Hot Line (U.S. only): 1-800-530-9960 2-9

D-620003-0-20 Rev M CONFIDENTIAL

System OA&M Capabilities

Figure 2-6 Alarm Sense.

Up to 5 LGCell Main HubsUnison Main Hub

Alarm
Sense

Alarm Sense
Adapter Cable

5-port Alarm Daisy-Chain Cable

Alarm
Source

Alarm
Source

2-10 InterReach Unison Installation, Op eration, and Reference Manual

CONFIDENTIAL D-620003-0-20 Rev M

2.3 System Connectivity

The double star architecture of the Unison system, illustrated in Figure 2-7, provides
excellent system scalability and reliability. The system requires only one pair of
fibers for eight antenna points. This makes any system expansion, such as adding an
extra antenna for additional coverage, potentially as easy as pulling an extra twisted
pair.

Figure 2-7 Unison’s Double Star Architecture

PORT 1 PORT 2 PORT 3 PORT 4

System Connectivity

RS-232

Main Hub

Fiber

Expansion Hub

Expansion Hub

Expansion Hub

Cat-5/5E/6Cat-5/5E/6 Cat-5/5E/6

RAU RAU RAU

up to 8 RAUs per Expansion Hub

Expansion Hub

Help Hot Line (U.S. only): 1-800-530-9960 2-11

D-620003-0-20 Rev M CONFIDENTIAL

System Operation

2.4 System Operation

Figure 2-8 Downlink (Base Station to Wireless Devices)

The Main Hub receives downlink RF signals
from a base station using coaxial cable.

Main Hub

The Main Hub converts the RF signals to IF, then
to optical signals and sends them to Expansion
Hubs (up to four) using optical fiber cable.

The Expansion Hub converts the optical sig-

Expansion Hub

nals to electrical signals and sends them to
RAUs (up to eight) using Cat-5/5E/6 ScTP

RAU

The RAU converts the IF signals
to RF and sends them to passive
antennas using coaxial cable.

Main Hub

The Main Hub sends
uplink RF signals to a
base station via coaxial
cable.

Figure 2-9 Uplink (Wireless Devices to Base Station)

Expansion Hub

The Expansion Hub
receives the IF signals

The Main Hub receives
the optical signals from
the Expansion Hubs (up
to four) via optical fiber
cable and converts
them to RF signals.

from the RAUs (up to
eight) via Cat-5/5E/6
ScTP cable and con­verts them to optical

RAU

The RAU receives uplink RF
signals from the passive
antenna via coaxial cable and
converts them to IF signals.

2-12 InterReach Unison Installation, Op eration, and Reference Manual
