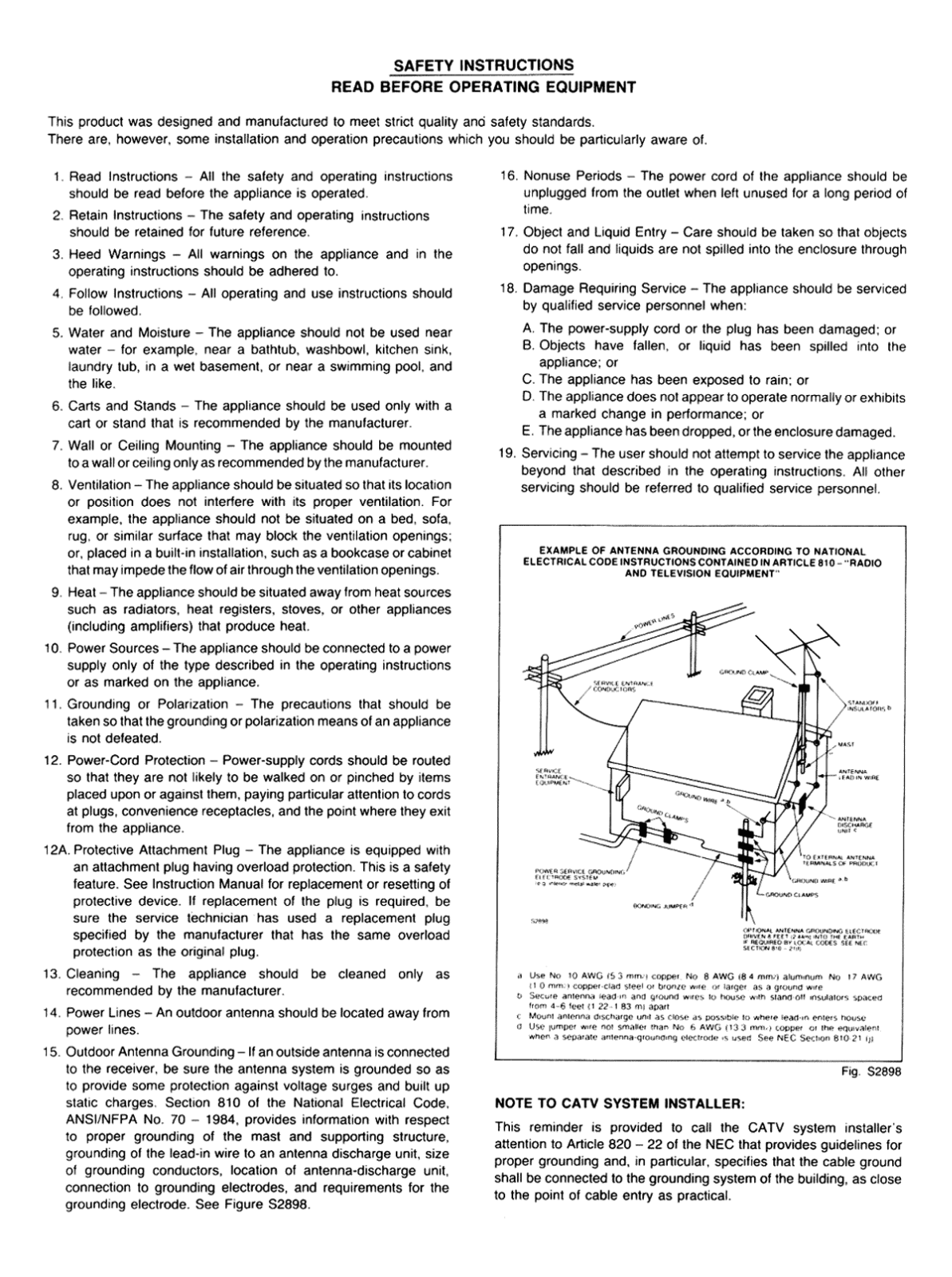

ADC SS-325X User Manual
Specifications and Main Features
- Model: SS-325X.
- Type: Equalizer/ Analyzer for Computer Memory Frequency.
- Range of control: +12 dB.
- Frequency response: 5 to 100 kHz plus or minus 1 dB.
- Control Frequencies: 25, 40, 63, 100, 160, 250, 500, 1k, 2k, 4k, 8k, 16k ( Hz).
- Gain (SET FLAT pressed): +1 dB unity.
- Max input/output/ level: 4V rms.
- Distortion Harmonique: 0.008% at 0.5V output (20Hz to 20kHz).
- Distorsion d’ Intermodulation, 60 Hz: 7 kHz = 4:1: 0.008% at 0.5V output.
- Hum and Noise A (weighted): -100 dBV.
- Load impedance: Greater or equal to 10 kohm.
- Subsonic Filter: -18 dB/octave, 15 Hz.
- Impedance input 1KHz: 47 kohm.
- Impedance output 1kHz: 470ohm.
- Center Frequencies: 25, 40, 63, 100, 160, 250, 500, 1k, 2k, 4k, 8k, 16k (Hz) for analyzer.
- Display accuracy: over 16 to 1kKHz ±10%, over 2k to 20 kHz ±5%.
- Frequency response from LINE IN: 16 to 16 KHz ±0.5 dB.
- Frequency response from Calibrated MIC: 29 to 16 KHz ±3 dB.
- Impedance input at MIC Jack: 2.2 Kohm at frequency of 1kHz.
- Sensitivity input at MIC Jack: 200 uV.
- Sensitivity input at LINE IN: 150 mV.
Frequently Asked Questions
Q: Per frequency band, how much boost or cut can be implemented?
A: The max amp cut or boost that could be applied contains a limit of +12 dB per band.
Q: Is a microphone included with the SS-325X?
A: Yes sure, SS-325X comes along with a microphone that is used for calibration.
Q: Is it possible to skip the use of an equalizer when using the device?
A: You can use the unit with no EQ applied as it was constructed to provision 'unity gain', in the event that every band is adjus ted to 0 (flat) the signal is allowed to pass through without any alterations.
Q: What is the voltage that your device works on?
A: Working on the frequency range of 50-60 Hz, the SS-325X operates under the conditions of Ac 100-120V/220-240V and has a maximum power consumption of 25W.
Q: Is there a means to recover previously saved equalization curves?
A: Saving equalization curves uses a Lithium battery, which can last for up to five years depending on usage.
Q: What is the procedure to fully reset the frequency bands back to zero?
A: To efficiently shift the equalizers bands back to the center positions (0 dB), simply press the SET FLAT button.
