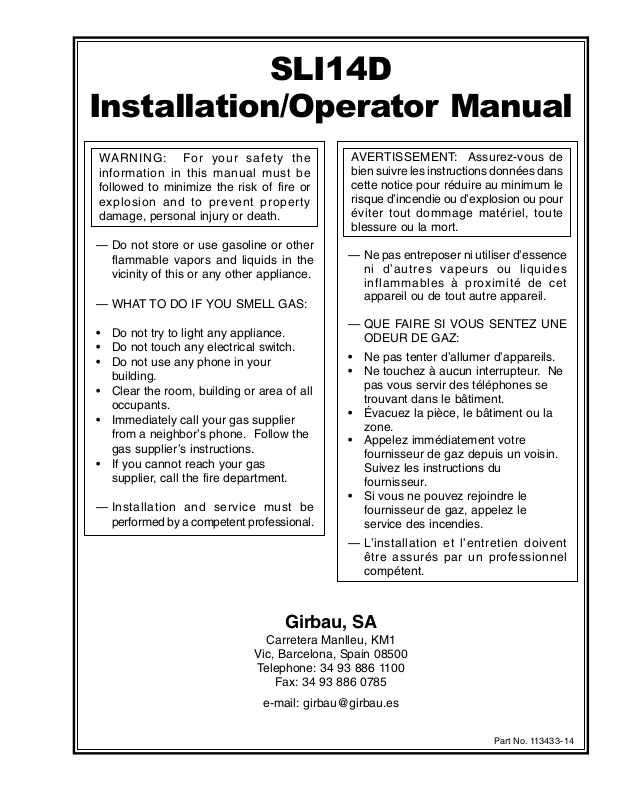

SLI14D

Installation/Operator Manual

WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury or death.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be

performed by a competent professional.

AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

— Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

— QUE FAIRE SI VOUS SENTEZ UNE

ODEUR DE GAZ:

• Ne pas tenter d’allumer d’appareils.

• Ne touchez à aucun interrupteur. Ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Évacuez la pièce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incendies.

— L’installation et l’entretien doivent

être assurés par un professionnel compétent.

Girbau, SA

Carretera Manlleu, KM1

Vic, Barcelona, Spain 08500

Telephone: 34 93 886 1100

Fax: 34 93 886 0785

e-mail: girbau@girbau.es

Part No. 113433-14

Retain This Manual in a Safe Place for Future Reference

This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation.

Only qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation

manual included with the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

IMPORTANT

For your convenience, log the following information:

DATE OF PURCHASE ______________________________________________________ MODEL NO. ________________

RESELLER’S NAME __________________________________________________________________________________

Serial Number(s) _____________________________________________________________________________________

____________________________________________________________________________________________________

SLI14D

____________________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the Girbau, SA factory. When ordering replacement parts from the factory, you can FAX your order to 34 93 886 0785 or telephone your order to 34 93 886 1100. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.

These instructions are only valid if the following country code is on the appliance… If this code is not present on the appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the modification of the appliance to the condition of use for the country.

In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:

GB United Kingdom IE Ireland

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer.

2 Girbau, SA 113433- 14

IMPORTANT

You must disconnect and lockout the electric supply and the gas supply or the steam supply before any covers or guards are removed from the machine to allow access for cleaning, adjusting, installation, or testing of any equipment per OSHA standards.

Please observe all safety precautions displayed on the equipment and/or specified in the installation manual included with the dryer.

Before installation, check that the local distribution conditions, nature of gas and pressure, and adjustment of the appliances are compatible.

CAUTION

Dryer(s) should never be left unattended while in operation.

“Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper operation.”

«Attention: Lor des opérations d’entretien des commandes étiqueter tous fils avant de les déconnecter. Toute erreur de câblage peut étre une source de danger et de panne.»

Table of Contents ____________

Safety Precautions.......................... 4

Specifications ................................. 6

Installation Procedures .................. 8

Location Requirements .................................... 8

Unpacking / Setting Up .................................... 8

Dryer Enclosure Requirements ........................ 8

Fresh Air Supply Requirements ....................... 9

Exhaust Requirements..................................... 9

Electrical Information ..................................... 11

Gas Information ............................................. 14

Converting from One Family

of Gas to Another ........................................... 16

Gas Pressure Testing..................................... 18

Steam Information.......................................... 19

Water Information .......................................... 20

Preparation for Operation / Start-Up .............. 21

Preoperational Test ........................................ 21

Preoperational Instructions ............................ 22

Shutdown Instructions .................................... 22

WARNING

Children should not be allowed to play on or near the dryer(s). Children should be supervised if near dryer(s) in operation.

Under no circumstances should the dryer door switch(es), lint door/drawer switch(es), or heat safety circuit(s) ever be disabled.

Do not modify this appliance. The dryer must never be operated with any of the

back guards, outer tops, or service panels removed. Personal injury or fire could result.

The dryer must never be operated without the lint filter/screen in place, even if an external lint collection system is used.

If the hi-limit switch trips, a service call is required to investigate the reason and resolve the issue.

FOR YOUR SAFETY

Do not dry mop heads in the dryer. Do not use dryer in the presence of dry cleaning fumes.

The dryers must not be installed or stored in an area where it will be exposed to water and/or weather.

The wiring diagram for the dryer is located behind the control panel.

Service / Parts Information .......... 22

Service ........................................................... 22

Parts............................................................... 22

Routine Maintenance .................... 23

Cleaning .........................................................23

Adjustments ................................................... 23

Data Label Information ................. 24

List of Acronyms ___________________

HVAC Heating, Ventilating, and Air-Conditioning in WC Inches of Water Column L.C.D. Liquid Crystal Display L.P. Liquid Propane OSHA Occupational Safety and Health Administration UL Underwriters Laboratory

113433-14 girbau@girbau.es 3

Safety Precautions ____________________

!

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury, or loss of life.

The dryer must never be operated with any of the back guards, outer tops, or service panels removed. Personal injury or fire could result.

Failure to properly install, maintain, and/or operate dryer according to this manual and operator’s manuals included with dryer may result in conditions, which can cause serious injury, death and/or property damage.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Do not spray aerosols in the vicinity of this appliance while it is in operation.

Purchaser and user should consult the local gas supplier for proper instructions to be followed in the event the user smells gas. The instructions should be posted in a prominent location.

What To Do If You Smell Gas:

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or gas supplier.

Dryers must be exhausted to the outdoors. Although the manufacturer produces a very versatile dryer,

there are some articles that, due to fabric composition or cleaning method, should not be dried in it.

!

WARNING

Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber materials. Drying in a heated tumbler may damage plastics or rubber and also may be a fire hazard.

The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce damage to the machine and harmful fumes.

A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork, and area around the back of the dryer. The frequency of inspection and cleaning can best be determined from experience at each location.

Do not operate steam dryers with more than 150 psi (10.34 bar) steam pressure. Excessive steam pressure can damage the steam coil and/or harm personnel.

Replace leaking flexible hoses or other steam fixtures immediately. Do not operate the dryer with leaking flexible hoses. Personal injury may result.

!

WARNING

The collection of lint in the burner area and exhaust ductwork can create a potential fire hazard.

For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

NOTE: Failure to electrically ground the dryer properly will void the warranty.

!

WARNING

Personal injury or fire could result should the dryer door switch, lint door/drawer, or heat safety circuit ever be disabled.

!

WARNING

Dry only water washed fabrics. Do not dry articles spotted or washed in dry cleaning solvents, combustible detergents, industrial chemicals, or “all purpose” cleaner. Explosion could result.

Do not dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint, or wax. Explosion could result.

Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer.

Do not dry mop heads. Contamination by wax or flammable solvents will create a fire hazard.

4 Girbau, SA 113433- 14

Remove articles from the dryer as soon as the drying cycle has been completed.

!

WARNING

Articles left in the dryer after the drying and cooling cycles have been completed can create a fire hazard.

For safety, proper operation, and optimum performance, the dryer must not be operated with a load less than 66% of its rated capacity.

!

WARNING

You must disconnect and lockout the electric supply and the gas supply or the steam supply before any covers or guards are removed from the machine to allow access for cleaning, adjusting, installation, or testing of any equipment per OSHA standards.

NOTES _____________________________________________________

____________________________________________________________

IMPORTANT: The dryer must be installed in a location/ environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

The operation of this appliance may affect the operation of other types of gas appliances, which take their air for safe combustion from the same room. If in doubt, consult the appliance manufacturer(s).

Use this dryer only for its intended purpose, drying fabrics. The “Cool Down” Cycle of tumble dryers should be used to

reduce the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while hot.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity, unless this practice is specifically recommended by the manufacturer of the fabric softener or product.

!

WARNING

To reduce the risk of personal injury, install lockable doors to prevent public access to the rear of the dryers.

Exhaust duct outlet should be checked periodically for blockages, and if any found, removed.

____________________________________________________________

IMPORTANT: A means of restraint must be used to prevent straining of the gas supply when the appliance is moved.

An external means of power removal (disconnect device) must be provided by the installer.

CE ONLY

IMPORTANT: This appliance must only be installed and operated in the country of destination indicated on the dryer’s data plate. If the appliance is to be installed and operated in a country other than the one indicated on the data plate, a data plate amendment must be obtained from Girbau.

IEC335 applies.

!

WARNING

This appliance must only operate with the gas type indicated on the dryer’s data plate. If the appliance is converted (gas type is changed), a data plate amendment must be obtained from Girbau.

This appliance may cause spillage of products of combustion from an open-flue appliance fitted in the same room, and that such an appliance shall be tested for clearance of products with the appliance in operation and all windows and doors closed.

____________________________________________________________

113433-14 girbau@girbau.es 5

Specifications _____________________________________________________________________

MAXIMUM CAPACITY

(DRY WEIGHT) PER POCKET

30 lb TUMBLER DIAMETER 30” TUMBLER DEPTH 27” TUMBLER VOLUME TUMBLER/DRIVE MOTOR BLOWER/FAN MOTOR DOOR OPENING DOOR SILL HEIGHT

PER POCKET

(DIAMETER)

TOP POCKET / BOTTOM POCKET

11.04 cu ft 1/4 hp 1/2 hp

19-3/8”

54-11/16” / 14-7/8”

WATER CONNECTION 3/4”-11.5 NH

3/4” B.S.P.T.

(Outside North America)

13.61 kg

76.20 cm

68.58 cm

312.62 L

0.19 kW

0.37 kW

49.21 cm

138.91 cm / 37.78 cm

(North America)

DRYERS PER 20’/40’ CONTAINER 12 / 28 DRYERS PER 48’/53’ TRUCK 34 / 3 8

VOLTAGE AVAILABLE 120-240V 1ø 2w 50/60 Hz APPROXIMATE NET WEIGHT 550 lb APPROXIMATE SHIPPING WEIGHT 580 lb AIRFLOW

PER POCKET

60 Hz 50 Hz

HEAT INPUT

GASELECTRICSTEAM

EXHAUST CONNECTION

PER POCKET

(DIAMETER) PER POCKET

55,000 Btu/hr

360 cfm 300 cfm

6”

249.48 kg

263.08 kg

10.19 cmm

8.49 cmm

13,860 kcal/hr

15.24 cm

COMPRESSED AIR CONNECTION N / A COMPRESSED AIR VOLUME N / A INLET PIPE CONNECTION

PER POCKET

3/8” M.B.S.P.T.

1/2” M.N.P.T.

(CE and Australia Only)

VOLTAGE AVAILABLE 200-416V 1,3ø 2,3,4w 50/60 Hz APPROXIMATE NET WEIGHT 550 lb APPROXIMATE SHIPPING WEIGHT 580 lb AIRFLOW

PER POCKET

EXHAUST CONNECTION

60 Hz 50 Hz

(DIAMETER) PER POCKET

360 cfm 300 cfm

6”

249.48 kg

263.08 kg

10.19 cmm

8.49 cmm

15.24 cm

COMPRESSED AIR CONNECTION N / A COMPRESSED AIR VOLUME N / A

OVEN SIZE

kW Btu/hr

7.9 26,962

8.3 28,327

9.0 30,716

11.3 38,566

12.4 42,320

12.5 42,661

13.5 46,074

PER POCKET

kcal/hr

6,794 7,138 7,740

9,719 10,665 10,751 11,611

VOLTAGE AVAILABLE 120-240V 1ø 2w 50/60 Hz APPROXIMATE NET WEIGHT 580 lb APPROXIMATE SHIPPING WEIGHT 610 lb AIRFLOW

PER POCKET

STEAM CONSUMPTION

60 Hz 50 Hz

PER POCKET

360 cfm 300 cfm

63 lb/hr OPERATING STEAM PRESSURE 150 psi max EXHAUST CONNECTION

(DIAMETER) PER POCKET

6”

263.08 kg

276.69 kg

10.19 cmm

8.49 cmm

28.58 kg/hr

10.34 bar

15.24 cm

COMPRESSED AIR CONNECTION N / A COMPRESSED AIR VOLUME N / A BOILER HORSEPOWER

Shaded areas are stated in metric equivalents 9/30/05

(NORMAL LOAD) PER POCKET

1.75 Bhp

NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

6 Girbau, SA 113433- 14

Specifications _____________________________________________________________________

NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

113433-14 girbau@girbau.es 7

Installation Procedures ______________

Installation should be performed by competent professional in accordance with local, state, and country codes. In the absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/ CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections).

Location Requirements _______________

Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/ CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing).

The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be removed from the floor area that the dryer is to rest on.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply Requirements section).

Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer Enclosure Requirements section).

Provisions must be made for adequate clearances for servicing and for operation as noted in this manual (refer to Dryer Enclosure Requirements section).

The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual (refer to Exhaust Requirements section).

The dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual (refer to Exhaust Requirements section).

IMPORTANT: The dryer should be located where a minimum amount of exhaust ducting will be necessary.

The dryer must be installed with adequate clearance for air openings into the combustion chamber.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6 months, inspect the exhaust ducting and remove any lint buildup.

IMPORTANT: The dryer must be installed in a location/

environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

Unpacking / Setting Up ________________

Remove protective shipping material (i.e., plastic wrap and optional shipping box) from the dryer.

IMPORTANT: Dryer must be transported and handled in an upright position at all times.

The dryer can be moved to its final location while still attached to the skid or with the skid removed. To remove the skid from the dryer, locate and remove the 2 bolts securing the base of the dryer to the wooden skid. One is located at the center rear and the other is at the center front.

With the skid removed, use caution and assure all four leveling legs are fully retracted, if the dryer is to be slid into its final position.

Leveling Dryer

The dryer is equipped with 4 leveling legs, 1 at each corner of the base. For optimum performance the dryer should be level front-to-back and side-to-side.

Dryer Enclosure Requirements _______

Bulkheads and partitions should be made of noncombustible material.

NOTE: Allowances must be made for opening the control door.

A The requirement to allow the door to open completely is

33-inches (83.8 cm).

B A minimum overhead clearance of 6-inches (15.24 cm)

is required.

C Dryer should be positioned a minimum of 12-inches

(30.48 cm) away from the nearest obstruction. 24-inches (60.96 cm) is recommended for ease of installation,

maintenance, and service. D 1/16” (1.5875 mm) minimum is required. E Flooring should be level or below dryer cabinet for ease

of removing panels during maintenance. F Dryers may be positioned sidewall to sidewall, however

a 1/16” (1.5875 mm) minimum allowance must be made

for the opening and closing of the control door, along

with the removal of panels during maintenance.

8 Girbau, SA 113433- 14

Fresh Air Supply Requirements ______

This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in the national installation regulations.

When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail switch “fluttering” problems may result, as well as premature motor failure from overheating. The dryer must be installed with provisions for adequate combustion and make-up air supply.

Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. As a general rule, an unrestricted air entrance from the outdoors of 110 inch 1 inch

It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to all the dryers.

2

(710 cm2) is required for each dryer. (Based on

2

[6.5 cm2] per 1,000 Btu [252 kcal].)

Exhaust Requirements ________________

Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure, which results in slow drying, increased use of energy, and shutdown of the burner by the airflow (sail) switch, burner hi-limits, or lint chamber hi-limit protector thermostat. The dryer must be installed with a proper exhaust duct connection to the outside.

The design of the flue system shall be such that any condensate formed when operating the appliance from cold shall either be retained and subsequently re-evaporated or discharged.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.

Improperly sized or installed exhaust ductwork can create a potential fire hazard.

The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. There should be a minimum 6-inch (15.24 cm) clearance between the back guard and the first bend in the ductwork for ease of servicing. Single or independent dryer venting is recommended. It is suggested that the use of 90° turns be avoided; use 30° and/or 45° bends instead. The radius of the elbows should preferably be 1-1/2 times the diameter of the duct. All ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, overlap the duct being connected. All ductwork joints must be taped to prevent moisture and lint from escaping into the building. Back draft dampers must be installed in all commonly ducted systems. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint from the ductwork.

A = 14-inches (35.56 cm) B = 16-inches (40.64 cm)

EXAMPLE: For a bank of 4 dryers, 2 unrestricted openings measuring 14-inches by 16-inches (35.56 cm by 40.64 cm) are acceptable.

To compensate for the use of registers or louvers used over the openings, this area must be increased by approximately 33%. Make-up air openings should not be located in an area directly near where exhaust vents exit the building.

Allowances must be made for remote or constricting passageways or where dryers are located at high altitudes or predominantly low pressure areas.

IMPORTANT: Make-up air must be free of dry cleaning solvent fumes. Make-up air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.

NOTE: Component failure due to dry cleaning solvent fumes will void the warranty.

IMPORTANT: Exhaust back pressure measured by a manometer/magnehelic in the exhaust duct must be no less than 0 and must not exceed 0.6 in WC (1.5 mb) with both tumblers operating.

NOTE: It is recommended that exhaust or booster fans not be used in the exhaust ductwork system except where necessary to maintain exhaust back pressure (in the exhaust duct) between zero and 0.6 inch water column with both tumblers operating. Where employed, booster fans must not activate the dryer airflow proving switch (sail switch) when the dryer is not in operation.

When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

As per the National Fuel Gas Code, “Exhaust ducts for type 2 clothes dryers shall be constructed of sheet metal or other noncombustible material. Such ducts shall be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than 26 gauge (0.0195-inches [0.50 mm]) thick.”

The ductwork for this appliance must be suitable for the appliance category in accordance with national installation regulations of the country of destination.

113433-14 girbau@girbau.es 9

Outside Ductwork Protection

To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least twice the diameter of the duct between the duct opening and the nearest obstruction (refer to the diagram).

IMPORTANT: Do not use screens, louvers, or caps on the outside opening of the exhaust ductwork.

Single Dryer Venting

IMPORTANT: For extended ductwork runs, the crosssectional area of the ductwork can only be increased to an extent. When the ductwork approaches the maximum limits as noted in this manual, a professional HVAC firm should be consulted for proper venting information.

The length of the ductwork from the dryer to the outside exhaust outlet, must not exceed 12 feet (3.66 meters). The

minimum diameter of this ductwork must be at least 8-inches (20.32 cm) even though the dryer exhaust duct connection is smaller. Including tumbler/dryer elbow

connections or elbows used for outside protection from the weather, no more than 4 90° elbows should be used in the exhaust duct run. If more than the equivalent of 4 90° elbows are used, the cross-sectional area of the ductwork must be increased.

Multiple Dryer (Common) Venting

IMPORTANT: For extended ductwork runs, the crosssectional area of the ductwork can only be increased to an extent. When the ductwork approaches the maximum limits as noted in this manual, a professional HVAC firm should be consulted for proper venting information.

If it is not feasible to provide separate exhaust ducts for each dryer, ducts from individual dryers may be channeled into a “common main duct.” The individual ducts should enter the bottom or side of the main duct at an angle not more than 45º in the direction of airflow. The main duct should be tapered, with the diameter increasing before each individual duct is added. The minimum diameter of the individual ductwork must be at least 8-inches (20.32 cm).

IMPORTANT: No more than four dryers should be connected to one main common duct.

A = 12 feet (3.66 meters) B = 8-inches (20.32 cm)

NOTES _____________________________________________________

____________________________________________________________

NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)

larger than the duct (all the way around). The duct must be centered within this opening.

NOTE 2 Distance should be 2 times the diameter of the duct to the nearest

obstruction.

____________________________________________________________

10 Girbau, SA 113433- 14

The illustration below shows the minimum cross-sectional area for multiple dryer round or square venting. These figures must be increased if the main duct run from the last dryer to where it exhausts to the outdoors is longer than 12 feet (3.656 meters) or has more than 1 elbow in it.

Multiple Dryer Venting with 8-Inch (20.32 cm) Diameter

720 cfm (20.39 cmm) Exhaust Connections at Common Duct

NUMBER OF DRYERS 4 3 2 1

MINIMUM CROSS-

SECTIONAL AREA

MINIMUM ROUND DUCT DIAMETER

SQ IN 164 120 80 54

SQ CM 1058 774.2 516.1 348.4

IN 14 12 10 8

CM 35.56 30.48 25.4 20.32

Each pocket should be connected to an independently protected branch circuit. The dryer must be connected with copper wire only. Do not use aluminum wire, which could cause a fire hazard. The copper conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes for making all service connections.

NOTE: The use of aluminum wire will void the warranty. An individual ground circuit must be provided to each

pocket, do not daisy chain. Component failure due to improper voltage application will

void the warranty. The manufacturer reserves the right to make changes in

specifications at any time without notice or obligation.

A = 8-inches (20.32 cm) B = 12 feet (3.656 meters)

NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)

larger than the duct (all the way around). The duct must be centered within this opening.

NOTE 2 Distance should be 2 times the diameter of the duct to the nearest

obstruction.

Electrical Information _________________

Electrical Requirements

All electrical connections must be made by a properly licensed and competent electrician. This is to ensure that the electrical installation is adequate and conforms to local, state, and national regulations or codes of the country of origin. In the absence of such codes, all electrical connections, materials, and workmanship must conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

IMPORTANT: A separate protected circuit must be provided to each pocket.

It is necessary to have a power disconnect for each pocket. These disconnects must be located within 9 meters of the unit and also be identified as being one of two power sources supplying a dryer.

The dryer must be connected to the electric supply shown on the data label. In the case of 208 VAC or 240 VAC, the supply voltage must match the electric service specifications of the data label exactly.

The wire size must be properly sized to handle the related current.

!

WARNING

208 VAC and 240 VAC are not the same. Any damage done to dryer components due to improper voltage connections will automatically void the warranty.

!

WARNING (Gas Models Only)

Dryers built for use with a voltage between 200 and 240 must verify the input voltage during installation. If the nominal voltage is outside of the medium tolerances shown on the diagram below, adjust the autotransformers, located near the burner assemblies. To adjust the autotransformer wiring, place the red wire on the appropriate tap (HIGH, MED, LOW) of the autotransformer. For additional wiring details, refer to the electrical diagram located on the inside of the control panel.

IMPORTANT: Failure to comply with these codes or

ordinances, and/or the requirements stipulated in this manual can result in personal injury or component failure.

TER M

NOTE: Component failure due to improper installation will

void the warranty.

HIGH

MED

LOW

113433-14 girbau@girbau.es 11

LINE VOLTAGE

50 Hz 60 Hz

260 226

239 208

217 189

283 249

260 230

236 208

Electrical Service Specifications Gas and Steam Models Only

ELECTRICAL SERVICE SPECIFICATIONS

IMPORTANT:

NOTES

B.

C.

SERVICE

VOLTAGE

120 1ø 2 10.3 200 1ø 2 8.7 8.8 15 208 1ø 2 8.4 220 1ø 2 8.1 8.1 15 230 1ø 2 240 1ø 2 7.7 7.0 15

120 1ø 2 9.3 208 1ø 2 6.2 6.0 15 220 1ø 2 5.6 5.5 15 230 1ø 2 5.3 5.4 15 240 1ø 2 5.1 4.5 15

208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering, specify exact voltage.

When fuses are used they must be dual element, time delay, current

: A.

limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse

value, by applying either local and/or National Electrical Codes to listed appliance amp draw data. Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used. Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.

GAS

APPROX.

AMP DRAW

60 Hz 50 Hz

—

7.4 15

—

PHASE

WIRE

SERVICE

STEAM

CIRCUIT

BREAKER

15

11/7/14

Electric Models Only

All electrically heated dryers must be connected to the electric service shown on the dryer’s data label. The connecting wires must be properly sized to handle the rated current.

ELECTRICAL SERVICE SPECIFICATIONS

IMPORTANT:

NOTES

B.

C.

SERVICE

VOLTAGE

208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering, specify exact voltage.

: A.

When fuses are used they must be dual element, time delay, current

limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse

value, by applying either local and/or National Electrical Codes to listed appliance amp draw data. Circuit breakers are thermal-magnetic (industrial) type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used. Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.

PHASE

200 1ø 2 12.5 68.4 67.7 90 208 1ø 2 7.9 43.8 208 1ø 2 13.5 70.7 220 1ø 2 7.5 36.9 220 1ø 2 11.3 230 1ø 2 8.3 230 1ø 2 12.4 240 1ø 2 9.0 42.7 240 1ø 2 13.5 61.5 208 3ø 3 13.5 43.3 220 3ø 3 11.3 35.3 230 3ø 3 12.4 240 3ø 3 13.5 37.7 380 3ø 4 11.3 22.8 22.6 40 400 3ø 4 12.4 416 3ø 4 13.5

WIRE

SERVICE

OVEN

kW

APPROX.

AMP DRAW

60 Hz 50 Hz

—

56.8 80

—

41.3 60

—

59.1 80

—

36.5 50

—

23.1 40

—

23.7 40

CIRCUIT

BREAKER

60 90 40

60 80 60 50

50

11/7/14

Grounding

A ground (earth) connection must be provided and installed in accordance with local, state, and national regulations or codes of the country of origin. In the absence of these codes, grounding must conform to applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground connection may be to a proven earth ground at the location service panel.

For added personal safety, when possible, it is suggested that a separate ground wire (size per local codes) be connected from the ground connection of the dryer to a grounded cold water pipe. Do not ground to a gas pipe or hot water pipe. The grounded cold water pipe must have metal-to-metal connection all the way to the electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic, rubber, or other insulating connectors, they must be jumped out with a wire (size per local codes) and securely clamped to bare metal at both ends.

IMPORTANT: For personal safety and proper operation, the dryer must be grounded.

Provisions are made for ground connection in each dryer at the electrical service connection area.

Electrical Connections

A wiring diagram is located behind the control panel for connection data.

If local codes permit, power to the dryer can be made by the use of a flexible UL listed power cord/pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker panel. In both cases, a strain relief must be installed where the wiring enters the dryer.

For CE Models Only

The means for disconnection from the supply must be incorporated into wiring having a minimum contact separation of 3.0 mm in all poles.

Single-Phase (1ø) Wiring Connections / Hookup

The electrical input connections are made into the rear service box located at the upper right area of the dryer. The ground connection is made to the copper lug, also provided in this box. To gain access, the service box cover must be removed.

12 Girbau, SA 113433- 14

Gas and Steam Models Only 120-240V Application with Neutral

208-240V Application without Neutral

Electric Models Only

Single-Phase (1ø) Wiring Connections / Hookup

3-Phase (3ø) Wiring Connections / Hookup

CAUTION: The dryer must be grounded. A ground lug has been provided for this purpose.

Input connection wiring must be sized properly to handle the dryer’s current draw. This information is printed on the dryer’s data label.

IMPORTANT: A strain relief must be used where the input wiring enters the oven assembly.

Electrically Heated Models Only

The electrical input connections are made at the rear service box located at the right upper section of the dryer. The ground connection is made to a copper lug also provided in this area. To gain access, remove rear service cover.

The only electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, L3, and sometimes neutral) and ground. Single-phase (1ø) power for the control circuit and for any single-phase (1ø) motors (if present) is done internally to the dryer by the factory at the oven contactor. No single-phase (1ø) input connection is required on a 3-phase (3ø) dryer.

The neutral will only be used on 4-wire service. This is typical for 380-416V, 50 Hz.

CAUTION: The dryer must be grounded. A ground lug has been provided for this purpose.

Input connection wiring must be sized properly to handle the dryer’s current draw. This information is printed on the dryer’s data label.

NOTES _____________________________________________________

____________________________________________________________

113433-14 girbau@girbau.es 13

Gas Information _______________________

It is your responsibility to have all plumbing connections, materials, and workmanship conform to local and state regulations or codes of the country of destination. In the absence of such codes, all plumbing connections, materials, and workmanship must conform to the applicable local requirements. In the USA this is the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (L.P. Gas) or LATEST EDITION.

In Australia, the fuel gas code is AS/NZS5601, local authority, gas, electricity, and any other relevant statutory regulations.

It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of all the appliance Btu being supplied.

IMPORTANT: If connection to this appliance is made with a flexible hose, it must be suitable for the appliance category in accordance with national installation regulations of the country of destination, and if in doubt the installer must contact the supplier. The manufacturer of this appliance does not recommend the use of flexible gas supply line/hose. An external gas supply shutoff must be provided.

CE Dryers

There are 2 N.P.T. to B.S.P.T. adaptors included with each dryer, which must be installed to the gas inlets. The adaptors are shipped in the upper tumbler.

IMPORTANT: Pipe joint compounds that resist the action of natural, propane, and butane gases must be used.

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this manual, can result in personal injury and improper operation of the dryer.

For ease of service, the individual gas supply line of each dryer must have its own manual shutoff valve.

Failure to isolate or disconnect the dryer from supply as noted can cause irreparable damage to the gas valve, voiding the warranty.

The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa) for non-CE dryers or 50 mb for CE dryers.

NOTE: The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa) for nonCE dryers or 50 mb for CE dryers.

!

WARNING

Fire or explosion could result due to failure of isolating or disconnecting the gas supply as noted.

!

WARNING (CE Dryers Only)

This appliance must only be operated with the gas type indicated on the dryer’s data plate. If the appliance is converted (gas type changed), a data plate amendment must be obtained from Girbau for CE approved units.

Gas Connections

Inlet connection ............1/2” N.P.T. (non-CE dryers)

3/8” B.S.P.T. (CE dryers)

Inlet supply size ............1/2” Diameter Pipe (minimum)

NOTES _____________________________________________________

____________________________________________________________

NOTE: Undersized gas piping will result in ignition

____________________________________________________________

problems, slow drying, increased use of energy, and can create a safety hazard.

The dryer must be connected to the type of heat/gas indicated on the data label and pressure must be confirmed. If this information does not agree with the type of gas available, do not operate the dryer. Contact the reseller who sold the dryer or contact the manufacturer.

The input ratings shown on the data label are for elevations up to 2,000 feet (610 meters), unless elevation requirements of over 2,000 feet (610 meters) were specified at the time the dryer order was placed with the factory. The adjustment or conversion of dryers in the field for elevations over 2,000 feet (610 meters) is made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or contact the manufacturer.

14 Girbau, SA 113433- 14

____________________________________________________________

Heat Input / Gas Consumption / Orifice (Injector) Data

Gas Specifications for Dryers Going to CE Countries**

Gas Type and

Nominal H eating Value

Btu/ft

Natural (I

) 1,000

2H/I2E

) 830

2L

) 830

2ELL

1,000

*Natural (I

*Butane (I

*Propane (I

Butane (I

Propane (I

Shaded areas are stated in metric equivalents

* Gas valve’s internal regulator disabled.

** Information is per pocket/tumbler.

*** Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.

**** Nominal supply pressure.

)

2E+

) 3,175

3+

) 2,500

3+

) 3,175

3B/P

) 2,500

3P

830

Supply

Pressure****

3

28-30/50

**Gross

Heat Input

mb Btu/hr kW DMS mm mb

15-30

20-35

15-30

20

25

28-30

37

55,000

16.12 1.557 M3/H

16.12 1.876 M3/H

16.12 1.557 M3/H

16.12 1.876 M3/H

16.12 1.162 kg/H

**Fuel

Consumption

Orifice Size

22

31

48

44

3.988

3.048

1.930

2.184

**Orifice

(Injector) Quantity

1

Burner

Pressure

6.9

9.5

—

18.1

24.9

Gas Specifications for Dryers Going to Australia*

Gas

Typ e

Natural

Propane

Shaded areas are stated in metric equivalents

* Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.

Supply

Pressure

kPa MJ/h DMS mm kPa

1.5-3.0 58.03

2.74 58.03

Gros s

Heat Input

Orifice S ize

22

44

Gas Specifications for Dryers Going to Rest of the World***

Gas Type and

Nominal H eating Value

Btu/ft

Natural 1,000 7.0-13.0 55,000

*Liquid Propane 2,500 11.0 55,000

Shaded areas are stated in metric equivalents

* Gas valve’s internal regulator disabled. ** Information is per pocket/tumbler. *** Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.

Supply

Pressure

3

in WC Btu/hr kW DMS mm in WC

**Gross

Heat Input

16.12

3.988

2.184

Orifice Size

20

44

Orifice (Injector) Quantity

1

4.089

2.184

Burner

Pressure

0.69

2.49

**Orifice

(Injector)

Burner

Pressure

Quan tity

13.0

1 10.0

113433-14 girbau@girbau.es 15

Piping / Connections

The dryer is provided with two 3/8” N.P.T. (3/8” B.S.P.T. for CE dryers) inlet pipe connections (1 for each tumbler) at the rear of the dryer. If a separate feed is provided for each tumbler from the main supply line (header), then a 1/2” (12.7 mm) line connection is sufficient. However, if the top and bottom tumbler connections are connected together, the supply from the header must be increased to 3/4-inch (19.05 mm). There should be a minimum 6-inch (15.24 cm) clearance between the back guard and the first bend in the gas piping for ease of servicing. It is recommended that a gas shutoff valve be provided to the gas supply line of each dryer for ease in servicing.

Installer within Australia – refer to AS/NZS5601.1 for guidance on gas supply pipe sizing required for this appliance installation.

The size of the main gas supply line (header) will vary depending on the distance this line travels from the gas meter or, in the case of L.P. gas, the supply tank, other gas-operated appliances on the same line, etc. Specific information regarding supply line size should be determined by the gas supplier.

NOTE: Undersized gas supply piping can create a low or inconsistent pressure, which will result in erratic operation of the burner ignition system.

TYPICAL NATURAL GAS INSTALLATION

IMPORTANT: Pipe joint compounds that resist the action of natural, L.P., and butane gases must be used.

Test all connections for leaks by brushing on a soapy water solution (liquid detergent works well).

!

WARNING

Never test for leaks with a flame!!!

Converting from One Family of Gas to Another _____________________

!

WARNING (CE Dryers)

This appliance must only be operated with the gas type indicated on the dryer’s data plate. If the appliance is converted (gas type changed), a data plate amendment must be obtained from Girbau (dryer’s serial number is required to purchase a conversion kit).

IMPORTANT: Any burner changes or conversions must be

made by a qualified professional. The dryers manufactured for Belgium, Luxemburg, Greece,

Estonia, Slovak Republic, Iceland, Malta, Poland and Cyprus cannot be converted from one family of gas to another.

TYPICAL L.P. GAS INSTALLATION

Consistent gas pressure is essential at all gas connections. It is recommended that a 3/4-inch (19.05 mm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 13.0 in WC (32.34 mb) pressure.

A plugged tap, accessible for a pressure gauge connection, must be installed in the main gas supply line immediately upstream of the dryers.

Conversion from Natural Gas to Propane or Butane Gas

The following conversion allows the dryer to be operated with either propane, butane, or LPG. The use of gas valve kit (P/N 140414) disables the internal regulator of the gas valve. Therefore, the gas supply is ungoverned and an external regulator must be provided at the source of the supply (example L.P. tank) or the gas supply line to the dryer. The L.P. kit supplied will depend on the country the dryer is installed in.

Parts Required for Conversion:

Description P/N Qty

Unregulated Gas Conversion Kit*** 140414 2*

OR Regulated L.P. Gas Conversion Kit**** 140416 2* Burner Orifice (Injector) ** 2* L.P. Conversion Label 114515 2*

* This includes 1 for each pocket/tumbler. ** Refer to page 15 for orifice (injector) size. *** Required for unregulated propane or butane only. **** Required for regulated LPG or propane only.

Instructions

Disconnect electrical power to the dryer. Close all shutoff valves (for both top and bottom tumbler) in

dryer’s gas supply line.

IMPORTANT: The following procedures must be performed on both top and bottom tumblers.

Open the panels located just below each loading door.

16 Girbau, SA 113433- 14

Locate the gas train and disconnect the union, 3 electrical plugs, and the gas train mounting screws from the burner. Carefully slide the gas train out of the gas train enclosure. (The carbon ignitor located at the far end of the gas train is very fragile.)

Remove 2 burner tube mounting screws and remove burner tube in order to gain access to the orifice.

Using a 3/8” wrench or socket, remove the existing orifice and replace it with an orifice from the kit.

IMPORTANT: Use extreme care when removing and replacing orifice (injector). This orifice (injector) is made of brass, which is easily damaged.

Reinstall the burner tube onto the burner base. Use a flat screwdriver to remove the regulator vent cap.

• For unregulated L.P. gas (most countries): install blocking pin (P/N 140414).

• For regulated L.P. gas (some countries): remove the white plastic regulator adjustment screw (under vent cap). Remove spring under screw and replace with spring from kit (P/N 140416). Replace regulator adjustment screw.

Install the gas train back into the dryer gas train enclosure. Be sure the tab at the rear of the gas train engages into the mounting slot.

Connect the union and the 3 electrical plugs. Repeat these steps for the other burner. Affix L.P. Conversion Label (P/N 114515) to the dryer’s data

label. Complete L.P. Kit Conversion Confirmation Label (P/N

114083) and affix this label as close as possible to the dryer’s

existing dryer rating (data) label/plate.

Unregulated Gas Valve

Regulate (govern) gas externally (refer to “Supply Pressure” in chart on page 15) to the correct gas pressure for the gas being used. Operate dryer through one complete cycle to ensure proper operation.

Regulated Gas Valve

Refer to “Gas Pressure Adjustment” on page 18 to adjust the gas valve to the appropriate burner pressure listed on page

15. The supply pressure must also match what is listed on page 15 for the type of gas to be used.

IMPORTANT: Conversions done improperly can result in a fire or explosion!

Conversion from Propane or Butane Gas to Natural Gas

The following conversion allows the dryer to be operated with natural gas.

Parts Required for Conversion:

Description P/N Qty

Vent Cap and Spring 140415 2* Burner Orifice (Injector) ** 2*

* This includes 1 for each pocket (tumbler). ** Refer to page 15 for orifice (injector) size.

Instructions

Disconnect electrical power to the dryer. Close all shutoff valves (for both top and bottom tumblers) in

dryer’s gas supply line.

IMPORTANT: The following procedures must be performed on both top and bottom tumblers.

Non-CE Dryers

Affix L.P. Conversion Rating Label Addendum (P/N 114090) as close as possible to the dryer’s existing dryer rating (data) label/plate.

CE Dryers

Affix new data plate label that came with the conversion kit. Open all shutoff valves, reconnect electrical power to the

dryer, and test for leaks.

IMPORTANT: Never test for leaks with an open flame!!! Use a soapy water solution or product intended for that purpose.

Open the panels located just below each loading door. Locate the gas train and disconnect the union, 3 electrical

plugs, and the gas train mounting screws from the burner. Carefully slide the gas train out of the gas train enclosure. (The carbon ignitor located at the far end of the gas train is very fragile.)

Remove 2 burner tube mounting screws and remove burner tube in order to gain access to the orifice.

Using a 3/8” wrench or socket, remove the existing orifice and replace it with an orifice from the kit.

IMPORTANT: Use extreme care when removing and replacing orifice (injector). This orifice (injector) is made of brass, which is easily damaged.

Reinstall the burner tube onto the burner base.

113433-14 girbau@girbau.es 17

Select from the following 3 options, the conversion to be performed:

• Converting from unregulated L.P. to regulated natural gas: use a flat screwdriver to remove the cap with blocking pin and install the regulator vent cap from the kit (P/N 140415).

• Converting from unregulated L.P. to unregulated natural gas: no change to the regulator is required.

• Converting from regulated L.P. to regulated natural gas: remove the white plastic regulator adjustment screw (under vent cape). Remove spring under screw and replace with spring from kit (P/N 140415). Replace regulator adjustment screw.

Install the gas train back into the dryer gas train enclosure. Be sure the tab at the rear of the gas train engages into the mounting slot.

Connect the union and the 3 electrical plugs. Repeat these steps for the other burner. Open all shutoff valves, reconnect electrical power to the

dryer, and test for leaks. Operate the dryer through 1 complete cycle to ensure proper

operation. With dryer operating, check the manifold (burner) pressure

at the tap on the gas valve to ensure proper operating pressure (refer to chart on page 15).

Gas Pressure Adjustment

Disconnect electrical power to the dryer.

IMPORTANT: The following procedures must be performed on both top and bottom tumblers.

To adjust gas valve’s internal regulator, remove the regulator vent cap with the regulator adjustment tool, which is located on the back guard between the gas inlet and exhaust outlet (refer to the illustration below for proper use of adjustment tool). Be sure to use one of the wide ends of the adjustment tool for removal of the vent cap. Once vent cap is removed, the narrow end of the adjustment tool can be used to turn the plastic adjustment screw in the valve. Turn the screw clockwise to raise pressure and counterclockwise to lower pressure.

Gas (burner) pressures are measured with the burner in operation for all burner adjustment conditions. Therefore once the necessary adjustments have been made, the dryer must be operated in a heating cycle to verify that the pressure is correct. If it is not correct, you must discontinue the power to the unit and make further adjustments. Repeat these steps as many times as necessary to achieve the correct burner pressure. Once the adjustment of the valve is complete, the vent cap must be replaced and sealed with, for example, paint to prevent maladjustment by the user.

Edge #1 for vent cap Edge #2 for adjustment screw

!

WARNING (CE Dryers)

This appliance must only be operated with the gas type indicated on the dryer’s data plate. If the appliance is converted (gas type changed), a data plate amendment must be obtained from Girbau.

Conversions done improperly can result in a fire or explosion!

Gas Pressure Testing _________________

For proper operation, the gas pressure must be correct, consistent and maintained at the gas pressure rates shown on page 15. Provisions are made at the gas valve for taking gas pressure readings.

There are two types of devices used to measure gas pressure. They are the spring/mechanical type gauge and the manometer. The use of the spring/mechanical type gauge is not recommended because they are very easily damaged and are not always accurate. The preferred type of gauge is the manometer because it is a simple device to use and is highly accurate. A manometer is simply a glass or transparent plastic tube with a scale graduated in inches or millibars. When it is filled with water and pressure is applied, the water in the tube rises, showing the exact gas pressure.

Gas Pressure Test Procedure

Turn gas cock in gas supply line to “OFF” position. 50 Hz dryers: Back out miniature screw inside pressure tap

and attach manometer (refer to the illustration on page 17). 60 Hz dryers: Install pressure tap and attach manometer (refer

to the illustration on page 17). Turn gas cock to “ON” position. Start the dryer in Heat Mode and wait for ignition. Gas

manifold pressure should be as shown on page 15. If the gas pressure needs to be adjusted, refer to “Gas

Pressure Adjustment” on this page. Once test is complete, turn gas cock to “OFF” position.

Remove manometer. Tighten screw inside the pressure tap or install plug.

Turn gas cock to “ON” position and check for leaks with soap solution with main burner “ON.”

18 Girbau, SA 113433- 14

Steam Information ____________________

It is your responsibility to have all plumbing connections made by a qualified professional to ensure that the steam plumbing installation is adequate and conforms with local, state, and country regulations or codes.

Care must be exercised when leveling steam dryers into final position. After leveling the dryer, check the downward pitch of the heat exchanger from front to rear with a level. Likewise, check the downward pitch of the return condensate manifold toward its outlet part. Absence of these downward pitches will result in probable water hammer and premature heat exchanger fracture and leakage.

The presence of condensate in the steam will cause water hammer and subsequent heat exchanger failure. The steam supply connection must be taken from the top of a well-dripped steam main. If the supply run-out to the dryer exceeds 25 feet (7.6 meters), it should be dripped just before the control valve with a proper trap and dirt pocket.

IMPORTANT: Failure to comply with the requirements stipulated in this manual can result in component failure, which will void the warranty.

Steam Coil pH Level

The normal pH level for copper type steam coils must be maintained between a value of 8.5 to 9.5. For steel type steam coils the pH level must be maintained between a value of 9.5 to 10.5. These limits are set to limit the acid attack of the steam coils.

IMPORTANT: Coil failure due to improper pH level will void the warranty.

Steam Requirements – High Pressure

Operating Steam Pressure

Maximum 150 psig* Heat Input (Normal Load) 1.75 Consumption (Approximate)

@ 125 psi (8.6 bar)

Shaded areas are stated in metric equivalents

* The minimum operating pressure for optimum results is 100 psig (689.47

kPa).

63 lb/hr

Installation Instructions

To ensure an adequate supply of steam is provided, be sure that the steam supply lines and steam return lines are sized and laid out as stipulated in this manual. Inadequate steam supply lines and steam return lines or improper steam plumbing will result in poor performance and can cause component failure. Clean, dry steam must be provided to the dryer.

IMPORTANT: Steam coil failure due to water hammer by wet steam will void the warranty.

The presence of condensate in the steam supply line will cause water hammer and subsequent heat exchanger (steam coil) failure. The steam supply connection into the main supply line must be made with a minimum 10-inch (25.4 cm) riser. This will prevent any condensate from draining towards the dryer.

The steam supply line to the dryer must include a 12-inch (30.48 cm) riser along with a drip trap and check valve. This will prevent any condensate from entering the steam coil.

1.0 MPa

Bhp

28.58 kg/hr

113433-14 girbau@girbau.es 19

Flexible hoses or couplings must be used. The dryer vibrates slightly when it runs and this will cause the steam coil connections to crack if they are hard piped to the supply and return mains.

Shutoff valves for each dryer should be installed in the supply line, return line, and drip trap return line. This will allow the dryer to be isolated from the supply main and the return main if the dryer needs maintenance work.

Install an inverted bucket steam trap and check valve at least 12-inches (30.48 cm) below the steam coil as close to the coil as possible. A trap with a minimum capacity of 100 lb (45.35 kg) of condensate per hour at 125 psi (8.62 bar) is needed for each unit. (Based on 2 times the steam consumption per hour.)

The supply line and the return line should be insulated. This will save energy and provide for the safety of the operator and maintenance personnel.

Water pockets in the supply line, caused by low points, will provide wet steam to the coil possibly causing steam coil damage. All horizontal runs of steam supply piping should be pitched 1/4-inch (6.35 mm) for every 1 foot (0.31 meters) back towards the steam supply header causing the condensate in the line to drain to the header. Install a bypass trap in any low point to eliminate wet steam.

IMPORTANT: Flexible hoses/couplings must be used. Coil failure due to hard plumbing connections will void the warranty.

Water Information _____________________

Before You Start Check Local Codes and Permits

Call your local water company or the proper municipal authority for information regarding local codes.

IMPORTANT: It is your responsibility to have all plumbing connections made by a qualified professional to ensure that the plumbing installation is adequate and conforms to local, state, and federal regulations or codes.

It is the installer’s or owner’s responsibility to see that the required water pressure, pipe size, or connections are provided. The manufacturer assumes no responsibility if the fire suppression system is not connected, installed, or maintained properly.

Installation Water Supply

The fire suppression system must be supplied with a minimum water pipe size of 1/2-inch (12.7 mm) and be provided with 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar) of pressure.

If the rear area of the dryer or the water supply is located in an area where it will be exposed to cold/freezing temperatures, provisions must be made to protect these water lines from freezing.

NOTES _____________________________________________________

____________________________________________________________

!

WARNING

If the water in the supply line or water solenoid valve freezes, the fire suppression system will be inoperative!!

Water Connections

The water connection is made to the 3/4”-11.5 NH hose adaptor, which is shipped in the tumbler and must be installed to the 1/2” N.P.T. water connection, located at the upper rear of the dryer. A flexible supply line/coupling must be used in an effort to avoid damaging the electric water solenoid valve.

NOTE: The 3/4”-11.5 NH is a standard hose coupling screw thread. It is not to be confused with 3/4” N.P.T. The sealing of an NH connection is made with a washer opposed to the mating threads of an N.P.T. assembly. The two thread designs are not compatible.

It is recommended that a filter or strainer be installed in the water supply line.

IMPORTANT: Flexible supply line/coupling must be used. Solenoid valve failure due to hard plumbing connections will void warranty.

The dryer is to be connected to the water mains using a new hose set and the old hose set should not be reused.

____________________________________________________________

20 Girbau, SA 113433- 14

Optional Manual Bypass

Provisions are made in the dryer’s fire suppression system for the installation of an optional manual bypass. The connections for the manual bypass are made at the “cross” or “four way” fitting located in the outlet supply side of the water solenoid valve. The manual ball cock shutoff valve must be located outside of the dryer at a distance from the dryer where it is easily accessible. The use and connection of this manual bypass is at the option or discretion of the owner.

The water connection for the manual bypass is made to the “cross” or “four way” fitting, which has a 3/8” F.N.P.T. and a coupling must be used to provide the minimum 1/2-inch (12.7 mm) supply (feed) line.

Electrical Requirements

No independent external power source or supply connection is necessary. The 24-volt power to operate the fire suppression system is accomplished internally in the dryer (from the dryer controls).

!

WARNING

Electrical power must be provided to the dryer at all times. If the main electrical power supply to the dryer is disconnected, the fire suppression system is inoperative!!

Preoperational Test ___________________

All dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit or due to marginal location (installation) conditions. Installer must instruct the user on how to correctly operate the dryer before leaving.

Turn on electric power to the dryer. Refer to the Operating Instructions for starting your particular

model dryer.

Gas Dryers

Open all shutoff valves. When a gas dryer is first started (during initial start-up), it

has a tendency not to ignite on the first ignition attempt. This is because the gas supply piping is filled with air, so it may take a few minutes for the air to be purged from the lines.

NOTE: During the purging period, check to be sure that all gas shutoff valves are open.

A gas pressure test should be taken at the gas valve pressure tap of each dryer to ensure that the water column pressure is correct and consistent.

NOTE: Water column pressure requirements (measured at the pressure tap of the gas valve body) must be verified.

Preparation for Operation / Start-Up _

The following items should be checked before attempting to operate the dryer:

• Read all “CAUTION,” “WARNING,” and “DIRECTION” labels attached to the dryer.

• Check incoming supply voltage to be sure that it is the same as indicated on the data label. In the case of 208 VAC or 240 VAC, the supply voltage must match the electric service exactly.

• GAS MODELS – Check to ensure that the dryer is connected to the type of heat/gas indicated on the dryer data label.

• GAS MODELS – Be sure that all gas shutoff valves are in the open position.

• Be sure all back panels (guards) and electric box covers are in place.

• Be sure the service doors are closed and securely in place.

• Be sure the lint door/drawer is securely in place.

• Rotate the tumbler (drum) by hand to be sure it moves freely.

• Check bolts, nuts, screws, terminals, and fittings for tightness and security.

• Check that the vent is connected to the dryer and is exhausted to the outdoors.

• STEAM MODELS – Check to ensure all steam shutoff valves are open.

IMPORTANT: In most cases there is no regulator provided in an L.P. dryer. The water column pressure must be regulated at the source (L.P. tank), or an external regulator must be added to each dryer.

Electrical Dryers

Check to ensure that electric oven/contactor assembly is activating.

Safety Related Circuits

Make a complete operational check of all safety related circuits:

• Door Switch(es)

• Hi-Limit Thermostats

• Sail Switch Make a complete operational check of all operating controls.

Tumbler Coating

The tumbler is treated with a protective coating. We suggest dampening old garments or cloth material with a solution of water and nonflammable mild detergent and tumbling them in the tumbler to remove this coating.

Microprocessor Programs/Selections

Each microprocessor controller (computer) has been preprogrammed by the factory with the most commonly used parameter (program) selections. If computer program changes are required, refer to the computer programming manual, which was shipped with the dryer.

113433-14 girbau@girbau.es 21

Preoperational Instructions __________

IMPORTANT: For more detailed information regarding the microprocessor controller (computer), refer to the microprocessor user’s manual included with the dryer.

Coin Models

Microprocessor Controller (Computer)

When the microprocessor controller (computer) is in the ready state, the L.C.D. screen will display “Ready, Insert $XX.XX (amount) to Start”.

Insert coin(s). Once the correct “Amount to Start” has been inserted, the L.C.D. will display “Select Temperature”.

Select temperature by pressing “HI,” “MED,” or “LO.” The cycle will start and the L.C.D. will display the Dry Cycle selected and the remaining time.

The dryer will continue through the drying and cooling cycles, until the vended time has expired.

NOTE: To stop the dryer, open main door. Continuation of the cycle will resume only after the door has been closed and any one of the 3 temperature selections is pressed.

Non-Coin Models

Microprocessor Controller (Computer)

The L.C.D. display reads “SELECT CYCLE” (no cycle in progress).

Scroll up or down to the desired cycle using the “▲” or “▼” arrow key. Press the “✓” key and the highlighted cycle will start (tumbler, blower, then the heat).

The L.C.D. display will read the name of the selected cycle and the approximate remaining minutes.

NOTE: The dryer can be paused or stopped at any time. Press the “X” key (Pause/Stop) once to pause the cycle.

✓

Press the “ again to cancel the cycle in progress and return to the “SELECT CYCLE” state. If nothing is done, the cycle will restart automatically in 20 seconds.

When the programmed drying time has expired, the computer will proceed into the Cool Down part of the cycle. The L.C.D. display will read “COOL DOWN” and the remaining minutes. During the cycle, the dryer will shut off the heat and continue the fan and tumbler until the Cool Down Time or Temperature has been reached.

At the end of the cycle the L.C.D. display will read “Cycle Done”. Opening the main door will put the computer back into the “Select Cycle” state.

” key to restart the cycle, or press the “X” key

Shutdown Instructions ________________

If the dryer is to be shutdown (taken out of service) for a period of time, the following must be performed:

Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.

Discontinue the heat supply: Gas Models – Discontinue the gas supply. Shut off external gas supply shutoff valve. Shut off internal gas supply shutoff valve located in the gas

valve burner area. Steam Models – Discontinue the steam supply. Shut off external (location furnished) shutoff valves.

Service / Parts Information ___________

Service

Service must be performed by a qualified trained technician. If service is required, contact the reseller from whom the equipment was purchased. If the reseller cannot be contacted or is unknown, contact the Service Department for a reseller in your area.

NOTE: When contacting the Service Department, be sure to give them the correct model number and serial number so that your inquiry is handled in an expeditious manner.

Parts

Replacement parts should be purchased from the reseller from whom the equipment was purchased. If the reseller cannot be contacted or is unknown, contact the Parts Department for a reseller in your area. Parts may be purchased directly from the factory by calling the Parts Department at 34 93 886 1100 or you may FAX in your order at 34 93 886 0785.

NOTE: When ordering replacement parts from the reseller or the manufacturer, be sure to give them the correct model number and serial number so that your parts order can be processed in an expeditious manner.

22 Girbau, SA 113433- 14

Routine Maintenance _________________

Cleaning

A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from experience at each location. Maximum operating efficiency is dependent upon proper airflow. The accumulation of lint can restrict this airflow. If the guidelines in this section are met, the dryer will provide many years of efficient, trouble free, and most importantly, safe operation.

!

WARNING

Lint from most fabrics is highly combustible. The accumulation of lint can create a potential fire hazard. Keep dryer area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

NOTE: Suggested time intervals shown are for average

usage, which is considered 6 to 8 operational (running) hours per day.

IMPORTANT: Dryer produces combustible lint and must be exhausted to the outdoors. Every 6 months, inspect the exhaust ducting and remove any lint buildup.

Suggested Cleaning Schedule Every Third or Fourth Load

Clean the lint screen every third or fourth load. A clogged lint screen will cause poor dryer performance. The lint door/ drawer is located just below the loading door of the dryer. Open the lint door/drawer, brush the lint off the lint screen, and remove the lint. Inspect lint screen and replace if torn.

NOTE: To remove the lint drawer from the dryer, pull drawer out approximately halfway. Press the lint door/ drawer stop downward and pull the drawer out.

IMPORTANT: The frequency of cleaning the lint screen can best be determined from experience at each location.

Weekly

Clean lint accumulation from lint chamber, thermostat, and microprocessor temperature sensor area.

!

WARNING

To avoid the hazard of electrical shock, discontinue electrical supply to the dryer.

Steam Dryers

Clean the steam coil fins. It is suggested that compressed air and a vacuum cleaner with brush attachment be used.

!

WARNING

When cleaning steam coil fins, be careful not to bend the fins. If fins are bent, straighten by using a fin comb, which is available from local air-conditioning supply houses.

90 Days

Remove lint from gas valve burner area with a dusting brush or vacuum cleaner attachment.

Clean any lint accumulation in and around the motor(s) casing opening.

NOTE: To prevent damage, avoid cleaning and/or touching ignitor/flame-probe assembly.

Every 6 Months

Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryer’s internal exhaust ducting.

NOTE: To remove the lint drawer from the dryer, pull the drawer out until it stops. There are two T-20 torx screws on each side of the lint drawer holding down the lint drawer catch brackets which must be removed. Once they are removed the drawer will be able to be pulled completely out of the machine. To reinstall put the lint drawer back into the machine, line up the lint drawer catch brackets with the screws and tighten them down.

The accumulation of lint in the exhaust ductwork can create a potential fire hazard.

Do not obstruct the flow of combustion and ventilation air. Check back draft dampers in the exhaust ductwork. Inspect and remove any lint accumulation, which can cause the damper to bind or stick.

A back draft damper that is sticking partially closed can result in slow drying and shutdown of heat circuit safety switches or thermostats.

If the hi-limit switch trips, a service call is required to investigate the reason and resolve the issue.

When cleaning the dryer cabinet(s), avoid using harsh abrasives. A product intended for the cleaning of appliances is recommended.

Adjustments 7 Days After Installation

and Every 12 Months Thereafter

Inspect bolts, nuts, screws, setscrews, grounding connections and nonpermanent gas connections (unions, shutoff valves, and orifices). Belts should be examined. Cracked or seriously frayed belts should be replaced. Complete an operational check of controls and valves. Complete an operational check of all safety devices (lint door/drawer switch, door switches, sail switch, and hi-limit thermostats).

113433-14 girbau@girbau.es 23

Data Label Information _______________

Standard Label

CE Label

When contacting Girbau, the information on the data label is required to ensure proper service/parts assistance. The data label is located at the upper left rear of the dryer behind the back guard.

1. Model Number – This describes the style of dryer and type of heat (gas, electric, or steam).

2. Serial Number – Allows the manufacturer to gather information on your particular dryer.

3. Type of Heat – This describes the type of heat for your particular dryer, gas (either natural gas or L.P. gas), electric, or steam.

4. Heat Input (For Gas Dryers) – This describes the heat input in British thermal units per hour (Btu/hr) or kilowatts (kW).

5. Orifice Size (For Gas Dryers) – Gives the number drill size used.

6. Electric Service – This describes the voltage and current rating for a particular model.

7. Gas Manifold Pressure (For Gas Dryers) – This describes the manifold pressure taken at the gas valve tap.

AGA Label

24 Girbau, SA 113433- 14

NOTES __________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

113433-14 girbau@girbau.es 25

Part No. 113433 14 - 04/25/16

ADC SLI-41D Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Service

Parts

Cleaning
