ADC Network Unit User Manual

Ethernet Network Interface Unit (ENIU)

User Manual

Product Catalog:

Document Number:

20383-A1

CLEI:

ENI-EGXXEGXX1B AIWN-UM-7001-01

IPUIAY5F~~

REVISION HISTORY

The Revision History provides a summary of any changes in this manual. Please make sure you are using the latest revision of this manual.

August 7, 2006

Revision Release Date Revisions Made

01 August 7, 2006 Initial release with new format.

Replaces ADCP-92-061 (Issue 1) (1315502).

This manual is available online at ADC’s website (www.adc.com/documentationlibrary/) or you can order copies of the manual by contacting your sales representative. Please ask for document AIWN-UM-7001-01.

Copyright

Trademark Information

ADC is a register ed tr ademark of ADC Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark.

Other product names mentioned in this practice are used for identification purposes only and may be trademarks or registered trademarks of their respective companies.

Disclaimer of Liability

Information contained in this document is company private to ADC Telecommunications, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC.

Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This d isclaimer of liability applies to all products, publications and services during and after the warranty period.

Table of Contents

Chapter 1: Overview ....................................................................................................... 1-1

Product Description .................................................................................................................. 1-1

Front Panel ...............................................................................................................................1-2

Chapter 2: Installation .................................................................................................... 2-1

Desktop Installation .................................................................................................................. 2-1

Surface Mount Installation ........................................................................................................ 2-1

Power and Ground Connections .............................................................................................. 2-2

Ground Connection ............................................................................................................2-2

Power Connection .............................................................................................................. 2-3

Cabling .....................................................................................................................................2-4

RJ-45 Ethernet Cables ....................................................................................................... 2-4

Optical Cables .................................................................................................................... 2-5

DB-9 Communications Cable ............................................................................................. 2-6

Chapter 3: Command-Line Interface (CLI) ................................................................... 3-1

Command Prompt .............................................................................. ...................................... 3-1

Set-Up ......................................................................................................................................3-1

Commands Overview ...............................................................................................................3-2

Security ....................................................................................................................................3-2

Initial Set-up ............................................................................................................................. 3-2

Commands List ........................................................................................................................3-2

Help Commands ................................................................................................................3-2

Configuration ......................................................................................................................3-3

OAM Configuration ............................................................................................................. 3-5

Performance and Alarms ................................................................................................... 3-7

System Commands ............................................................................................................ 3-8

Appendix A: Specifications .........................................................................................A-1

Appendix B: Product Support .....................................................................................B-1

Glossary ......................................................................................................................GL-1

AIWN-UM-7001-01 iii

Table of Contents August 7, 2006

iv AIWN-UM-7001-01

List of Figures

Figure 1-1. ENIU with SFPs ................................................................................................1-1

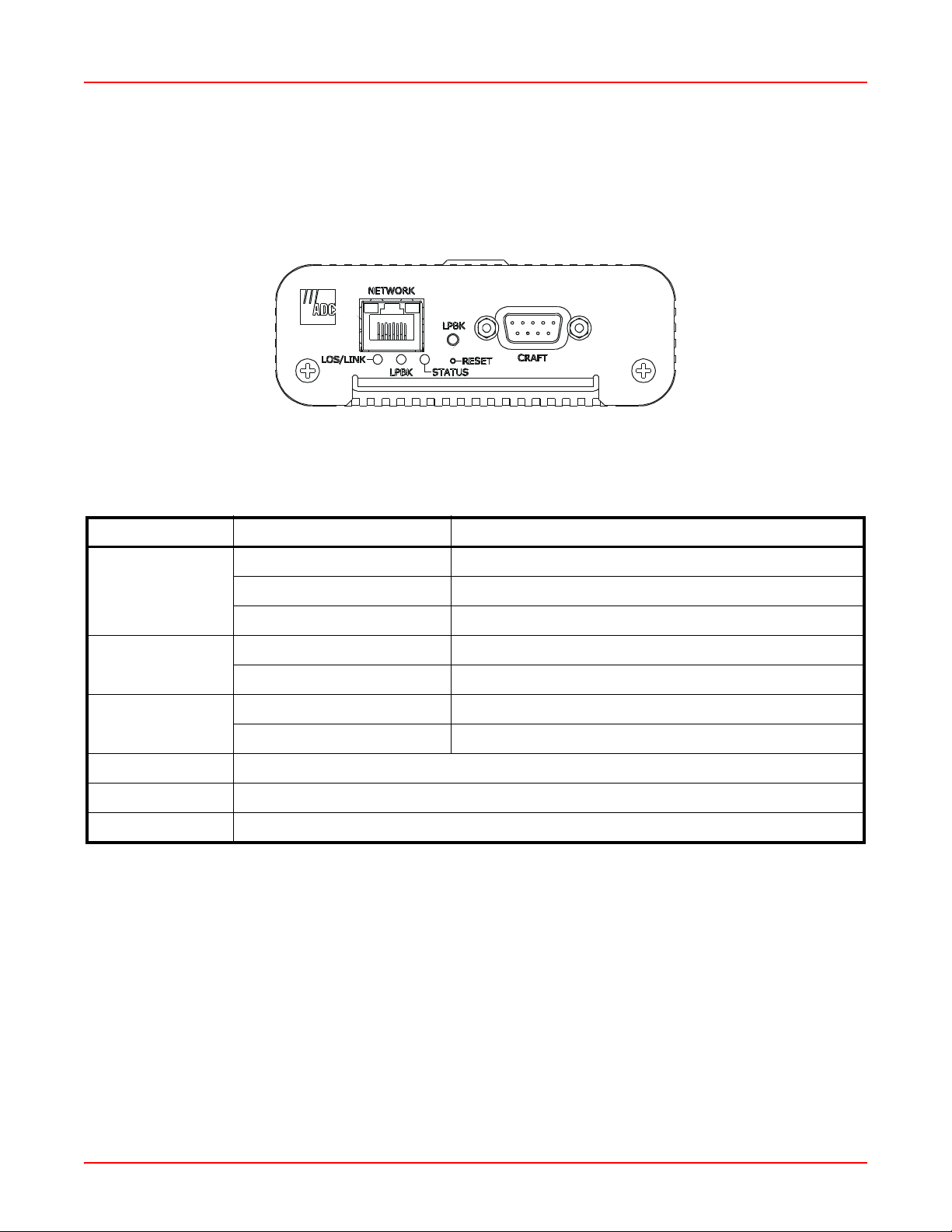

Figure 1-2. ENIU Front View ...............................................................................................1-2

Figure 2-1. Inserting ENIU into Mounting Bracket ..............................................................2-2

Figure 2-2. ENIU Rear View with RJ-45 Connector ............................................................2-3

Figure 2-3. Four-Pin Power Plug Wiring Diagram ..............................................................2-3

Figure 2-4. ENIU Front View with RJ-45 Connector ...........................................................2-4

Figure 2-5. RJ-45 Connector Wiring ........................................................... .............. ..........2-4

Figure 2-6. 9-Pin D-Sub Connector ....................................................................................2-6

AIWN-UM-7001-01 v

List of Figures August 7, 2006

vi AIWN-UM-7001-01

List of Tables

Table 1-1.ENIU LED Indicators and Controls ......................................................................1-2

Table 2-1.10/100 Mbps Ethernet RJ-45 Connector .............................................................2-5

Table 2-2.1000BaseT Ethernet RJ-45 Connector ...............................................................2-5

Table 2-3.EIA-232 DCE Control Connector (Female 9-Pin D-Sub) ....................................2-6

Table 2-4.EIA-232 Serial Port Default Settings ...................................................................2-6

Table 3-1.CLI Command Prompts .......................................................................................3-1

Table A-1.Ethernet NIU Specifications ................................................................................A-1

AIWN-UM-7001-01 vii

List of Tables August 7, 2006

viii AIWN-UM-7001-01

ABOUT THIS MANUAL

INTRODUCTION

This manual applies to ADC’s Ethernet Network Interface Unit (ENIU) card ( hereafter referred to as the “ENIU”).

ORGANIZATION

This manual includes the following chapters:

Chapter Description

Chapter 1: Overview Summarizes the features and functionality provided with the

ENIU card.

Chapter 2: Installation Provides procedures for installing an ENIU card. Chapter 3: Command-Line Interface (CLI) Lists the commands used to operate an ENIU card. Appendix A: Specifications Provides physical specifications for the ENIU, including power,

mechanical, environmental, and electrical requirements.

Appendix B: Product Support Provides information on how to contact the ADC Technical

Support group.

INTENDED AUDIENCE

This manual is intended for anyone needing to operate, administer, or maintain ADC’s line of ENIU cards.

CONVENTIONS

The following style conventions and terminology are used throughout this guide.

Element Meaning

Bold font Text that you must input exactly as shown (e.g., type 1 for card 1), menu buttons

(e.g., ACCEPT SHELF OPTIONS) or menu screen options (e.g., ALARMS screen) that

you must select Italic font Variables that you must determine before inputting the correct value (e.g., Password ) Monospace font References to screen prompts (e.g., Invalid Password...Try Again:.)

Reader Alert Meaning

Alerts you to supplementary information

IMPORTANT

Alerts you to supplementary information that is essential to the completion of a task

Alerts you to possible equipment damage from electrostatic discharge

ATTENTION

CAUTION

AIWN-UM-7001-01 ix

Alerts you to possible data loss, service-affecting procedures, or other similar type

problems

About This Manual August 7, 2006

Reader Alert Meaning

WARNING

DANGER

Alerts you that failure to take or avoid a specific action might result in hardware damage or

loss of service

Alerts you that failure to take or avoid a specific action might result in personal harm

INSPECTING YOUR SHIPMENT

Upon receipt of the equipment:

• Unpack each container and visually inspect the content s for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC. Order replacement equipment, if necessary.

• Check the packing list to ensure complete and accurate shipment of each listed item. If the shipment is short or irregular, contact ADC as described in Appendix B: Product Support on page B-1. If you must store the equipment for a prolonged period, store the equipment in its original co ntainer .

x AIWN-UM-7001-01

Chapter

OVERVIEW

PRODUCT DESCRIPTION

Delivering a comprehensive set of Ethernet services requires an intelligent Ethernet network interface unit (ENIU) to serve as the service demarcation point at the edge of the customer's network. A critical component of a carrier-class Ethernet access system, the ENIU defines the edge of the carrier's management domain. Once in place, the ENIU serves an important function by collecting local performance and error data on both the access loop and the customer's network.

Operations Administration and Maintenance (OAM), sub-layer defined by IEEE 802.3ah is intended to facilitate management of Ethernet for subscriber access networks. The ENIU is designed to allow the carrier to segregate, isolate and troubleshoot network problems remotely through use of the OAM Protocol Data Units (PDU). The ENIU provides the following capabilities:

• One Ethernet Network Port

• One Ethernet Subscriber Port

• Full 802.3ah OAM functionality

• Enhanced OAM features provided via organization spe cific extension OAM PDU's

• Firmware that provides: – Bandwidth Allocation – Daily performance history log access – 15 minute performance history log access

• One RS-232 console port to provide a command line interface to all of the management, status, and maintenance functions of the ENIU

• Local and Remote Field Software download

The ENIU provides interfaces for Central Office (Network) and Subscriber Ethernet through Small Form-factor Pluggable (SFP) modules and/or RJ-45 connectors. RS-232 craft port interface is provided through a DB-9 connector. Power is supplied through a connector located on the rear. A front and rear view of the ENIU with SFPs is shown in Figure 1-1.

FRONT REAR

VIEWVIEW

21060-A1

Figure 1-1. ENIU with SFPs
