FL1000 Series Fiber Optic Wall Box
Description
One or two door wall box solution offering excellent fiber protection and
technician-friendly cable routing. Termination, termination/splice or splice-only
boxes available
Number of fibers,
future growth
potential
12, 24, 48, 72
Flexibility/
ability to grow
Modular growth design
Demarcation
Yes
All-front-access
Yes
Accommodates
in box splicing
Yes. Built-in
Accommodates
out of box splicing
Yes. IFC cable and assembly available
Recommended
Applications
Ideal for small to medium fiber counts within communication closets or
demarcation points
Customer premises
application
Ideal
Wall mount
Yes
Optimum jumper
storage location
Slack storage built-in
VAM capabilites
No

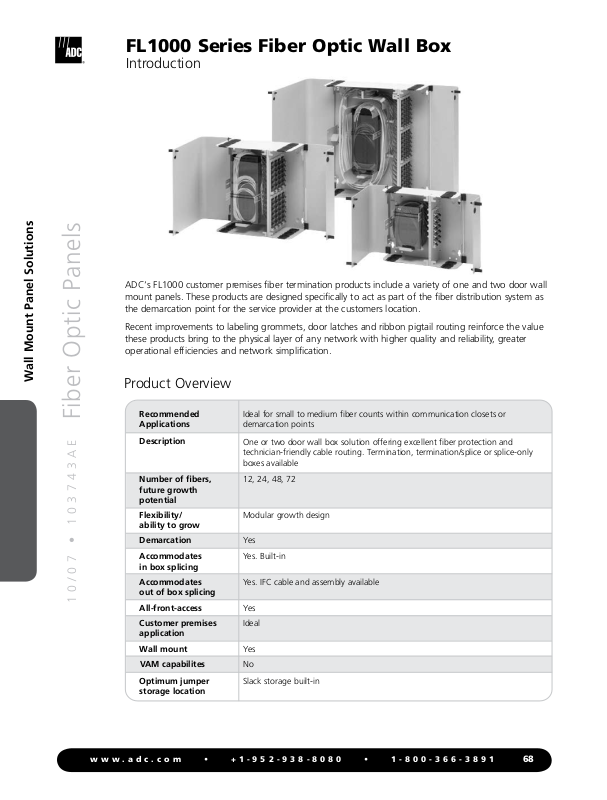

Introduction
ADC‘s FL1000 customer premises fiber termination products include a variety of one and two door wall
mount panels. These products are designed specifically to act as part of the fiber distribution system as
the demarcation point for the service provider at the customers location.
Recent improvements to labeling grommets, door latches and ribbon pigtail routing reinforce the value
these products bring to the physical layer of any network with higher quality and reliability, greater
operational efficiencies and network simplification.
Wall Mount Panel Solutions
Fiber Optic Panels
10/07 • 103743AE
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Product Overview
68
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door)
Features
• Numerous cable tie points within the boxes
• Ability to accept locks
• Acceptance of cable clamps at each corner
• Grounding screws, mounting screws and
dust caps are included with each panel. More
accessories are available on page 78
Wall Box
(One Door)
12-Position Termination/Splice Wall Box
305 mm
(12")
91 mm
(3.6")
330 mm
(13")
Fiber Optic Panels
24-Position Termination/Splice Wall Box
10/07 • 103743AE
259 mm
(10.2")
91 mm
(3.6")
381 mm
(15")
330 mm
(13")
356 mm
(14")
Wall Mount Panel Solutions
See ordering information on following page.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
69
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door)
How to order
1. Select wall box type
2. Select 6pak adapters (with or without fiber)
3. Select 6pak adapter/connector type (choose placement in the wall box)
4. Select splice tray with chip
5. Select quantity of cable clamps (0–9)
6. Select quantity of compression fittings (0–9)
7. Select quantity of bonding grounding kits (0–9)
Catalog Number
FL1- __ __ __ __ __ __ N N __ - __ __ __ 0
A B C D
Wall Mount Panel Solutions
10/07 • 103743AE
Wall Box Type
A 12-position termination/splice
B 24-position termination/splice
C 48-position splice-only
6pak Adapters
3 Adapters with pigtails
4 Adapter-only
6 Singlemode or multimode
Fiber Optic Panels
9 Singlemode or multimode
I Multimode 50/125 µm
62.5/125 µm 6-fiber stranded
softwall bundle (12-fiber
for LC)
62.5/125 µm 12-fiber ribbon
stranded softwall bundle
6pak Adapter/
Connector Type
Multimode
N None/NA
9 SC
3
6 LC
Singlemode
N None/NA
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish
Z LC angled polish
1, 2
Accessories
(Enter the desired
quantity 0–9 above the
corresponding accessory.)
Cable clamp
Compression fittings
Bonding grounding kit
Splice Tray with Chip
3
3
1 Bare fusion
2 Heat shrink
(single fiber fusion)
3 Mechanical (mass fusion)
N None
1
For a fully loaded 12-position wall box,
fill in spaces A & B with 6pak adapter/
connector type. Populate fields C & D
with ”N”.
2
For a fully loaded 24-position wall box,
fill in spaces A, B, C & D with 6pak
adapter/connector type.
3
LC connectors and adapters double the
capacity of the panel by terminating two
fibers at each adapter.
* For FTTX wall box applications, please refer to the OmniReach™ FTTX Solutions for Multi-Dwelling
Unit Applications Catalog #102761AE.
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
70
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (Two Door)
Features
• Uses 6pak adapters with angled retainers
• Multiple, configurable locking options that allow users
and service providers separate access for security
• Acceptance of strength member tie-off hardware
• Acceptance of cable clamps at each corner
• Grounding screws, mounting screws and dust caps are
included with each panel. Additional accessories
are available on page 78.
24-Position Termination/Splice Wall Box
330 mm
(13")
Wall Box
(Two Door)
Fiber Optic Panels
10/07 • 103743AE
381 mm
(15")
97 mm
(3.8")
Wall Mount Panel Solutions
See ordering information on following page.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
71
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (Two Door)
How to order:
1. Select wall box type
2. Select 6pak adapters (with or without fiber)
3. Select 6pak adapter/connector type (choose placement in the wall mount box)
4. Select splice tray with chip
5. Select quantity of cable clamps (0–9)
6. Select quantity of compression fittings (0–9)
7. Select quantity of bonding grounding kits (0–9)
8. Select quantity of strength member tie-off kits (each wall box accepts 2, maximum) (0–9)
9. Select lock type
Catalog Number
Wall Mount Panel Solutions
10/07 • 103743AE
Wall Box Type
G 12-position termination/splice
H 24-position termination/splice
J 48-position termination/splice
P 72-position termination/splice
6pak Adapters
3 Adapters with pigtails
Fiber Optic Panels
4 Adapter-only
6 Singlemode or multimode
9 Singlemode or multimode
I Multimode 50/125 µm
1
Use the guides on the next page for placement of 6paks. Place the desired connector or adapter type above the
corresponding location designation of A, B, C, D or E. The diagram on the following page illustrates the location of each
6pak within the bulkhead.
2
LC connectors and adapters double the capacity of the panel by terminating two fibers at each adapter.
FL1- __ __ __ __ __ __ __ __ - __ __ __ __ __
62.5/125 µm 6-fiber stranded
softwall bundle installed
(12-fiber for LC)
62.5/125 µm 12-fiber ribbon
stranded softwall bundle
A B C D E
6pak Adapter/
Connector Type
Multimode
N None/NA
9 SC
2
6 LC
Singlemode
N None/NA
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish
Z LC angled polish
Splice Tray with Chip
1 Bare fusion
2 Heat shrink
(single fiber fusion)
3 Mechanical (mass fusion)
N None
1
2
Accessories
(Enter the desired
quantity 0–9 above the
corresponding accessory.)
Cable clamp
Compression fittings
Bonding grounding kit
2
Strength member tie-off
Lock Type
N None
A (2) A keys
B (2) B keys
C (1) A key, (1) B key
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
72
FL 1000 Series Fiber Optic Wall Box
BA
12-Position
Wall Mount
Wall Mount Side
(Rear of Box)
Door Side
CA
24-Position
Wall Mount
Wall Mount Side
(Rear of Box)
Door Side
CB
ED
48-Position
Wall Mount
Wall Mount Side
(Rear of Box)
Door Side
ED
C
C
A
B
D
72-Position
Wall Mount
Wall Mount Side
(Rear of Box)
Door Side
D
D
D
B
C
D
D
C
A
A
B
Wall Mount Boxes (Two Door)
Placement of 6paks
Fiber Optic Panels
Type G Box
(Viewed from Side of Box)
Type H Box
(Viewed from Side of Box)
Wall Mount Panel Solutions
Type J Box
(Viewed from Side of Box)
10/07 • 103743AE
Type P Box
(Viewed from Side of Box)
Note: All configured wall boxes will have adapter packs loaded starting from the wall side.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
73
FL 1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) with Multifiber Cable
How to order:
1. Select wall box type
2. Select near end/far end connector and adapter type
3. Select cable size
4. Select cable type (IFC or OSP)
5. Select entrance point
6. Select cable length
7. Select locking options
Catalog Number
Wall Mount Panel Solutions
10/07 • 103743AE
Wall Box Type
A 12-position, 1 door wall box
B 24-position, 1 door wall box
G 12-position, 2 door wall box
H 24-position, 2 door wall box
J 48-position, 2 door wall box
P 72-position, 2 door wall box
Near End (A)/Far End (B)
Connector and Adapter Type
Multimode
Fiber Optic Panels
9 SC
6 LC
Singlemode
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish
Z LC angled polish
Cable Size
1 12
2 24
4 48
7 72
9 96 (48-position panel using
A 144 (72-position panel using
1
LC connectors and adapters double the capacity of
the panel by terminating two fibers at each adapter.
1
LC connectors)
LC connectors)
F L 1 - __ __ / __ __ ____ __ - __ __ __ __
1
1
A B
Lock Type
N None
A (2) A keys
B (2) B keys
C (1) A key, (1) B key
Cable Length
008 8 m (25')
016 16 m (50')
023 23 m (75')
031 31 m (100')
039 39 m (125')
046 46 m (150')
061 61 m (200')
077 77 m (250')
092 92 m (300')
122 122 m (400')
153 153 m (500')
Entrance Point
1 Bottom left
2 Top left
Cable Type
Multimode
NC IFC stranded
62.5/125 µm riser
Singlemode
NA IFC stranded riser
NS IFC ribbon riser
NR OSP armored ribbon
(24-fibers or more)
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
74
FL 1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) Empty Chassis
One Door Wall Mount Chassis
Allows single door access.
310 mm
(12.2")
330 mm
(13")
Description
Empty termination/splice chassis
12-position
24-position
Empty splice-only chassis
48-position
Fiber Optic Panels
12-Position Termination/Splice
One Door Wall Box
FL1-A
O r d e r i n g I n f o r m a t i o n
Catalog Number
FL1-A
FL1-B
FL1-C
279 mm
(11")
86 mm
(3.4")
24-Position Termination/Splice
One Door Wall Box
FL1-B
381 mm
(15")
91 mm
(3.6")
Wall Mount Panel Solutions
10/07 • 103743AE
All empty chassis’ use ADC FL1000 and FL2000 6pak adapters.
Please see pages 64–65 and 77–78 for ordering information.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
75
FL1000 Series Fiber Optic Wall Box
Wall Mount Boxes (One Door or Two Door) Empty Chassis
Two Door Wall Mount Chassis
Allows separate customer and provider access.
Wall Mount Panel Solutions
Fiber Optic Panels
361 mm
(14.2")
24-Position Termination/Splice
Two Door Wall Box
FL1-H
483 mm
(19")
72-Position Termination/Splice
Two Door Wall Box
FL1-P
381 mm
(15")
99 mm
(3.9")
546 mm
(21.5")
152 mm
(6")
437 mm
(17.2")
48-Position Termination/Splice
Two Door Wall Box
FL1-J
452 mm
(17.8")
158 mm
(6.2")
O r d e r i n g I n f o r m a t i o n
Description
Empty termination/splice chassis
12-position
24-position
48-position
72-position
10/07 • 103743AE
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Empty splice-only chassis
144-position
Catalog Number
FL1-G
FL1-H
FL1-J
FL1-P
FL1-Q
76
FL1000 Series Fiber Optic Wall Box
Wall Box Accessories
6pak Adapter — Adapters and Pigtails
Features
• Can be purchased and installed as
growth necessitates
• Available with preterminated three- or
five-meter pigtails
• Pigtails consist of a single outer jacket
containing six color-coded 900 µm fibers
• One end of pigtail terminated with chosen
connector style and installed into the
6pak adapter
• Saves installation time
Stranded Multimode Pigtails and Adapters
Catalog Number
6pak Adapter
(With SC Adapters and Pigtails)
Connector and Adapter Type
Fiber Optic Panels
9 SC
A FC
6 LC
Fiber Type
B Multimode 62.5/125 µm
C Multimode 50/125 µm
1
LC 6paks are loaded with 12-fiber pigtails.
Stranded Singlemode Pigtails and Adapters
10/07 • 103743AE
Connector and Adapter Type
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish
B LC angled polish
1
LC 6paks are loaded with 12-fiber pigtails.
FL2 - 6P __ __ C 6 __ __ __
Wall Mount Panel Solutions
Pigtail Length
03W 3 m pigtail
1
Catalog Number
FL2 - 6P __ S C 6 __ __ __
1
1
05R 5 m pigtail
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
77
Wall Mount Panel Solutions
10/07 • 103743AE
FL1000 Series Fiber Optic Wall Box
Wall Box Accessories
Miscellaneous
Description
Multimode 6pak
adapter-only
SC
FC
LC*
Singlemode 6pak
adapter-only
SC ultra polish
SC angled polish
FC ultra polish
LC ultra polish*
LC angled polish*
Compression fitting
Compression fitting
with plate
Fiber Optic Panels
Strength member tie-off kit
Cable clamp
Bonding grounding kit
Lock and key type A
Lock and key type B
Mini-splice tray
(used only in 12-position,
wall-mount box)
Bare fusion
Heat shrink
(single fiber fusion)
Mechanical (mass fusion)
Standard splice tray
Bare fusion
Heat shrink
(single fiber fusion)
Mechanical (mass fusion)
6pak Adapter-Only
(Without Fiber)
O r d e r i n g I n f o r m a t i o n
Catalog Number
1
1
FL2-6PMMSC
FL2-6PMMFC
FL2-6PMMLC
FL2-6PSMSC
FL2-6PSMASC
FL2-6PSMFC
FL2-6PSMLC
FL2-6PSMALC
FL1-ACC001
FL1-ACC006
FL1-ACC003
FL1-ACC011
FL1-ACC004
IPA-K1
IPA-K2
FST-M-FT
FST-M-HS
FST-M-MT
FST-FT
FST-HS
FST-MT
*Includes 12 fibers
1
For 6paks with fiber, see the previous page.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
78
Loading...
