ADC F0691 111 User Guide

®

InterReach Fusion

Installation, Operation, and Reference Manual

®

D-620610-0-20

Rev B

D-620610-0-20 Help Hot Line (U.S. only): 1-800-530-9960

Rev B CONFIDENTIAL

This manual is produced for use by LGC Wireless personnel, licensees, and customers. The
information contained herein is the property of LGC Wireless. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical,
for any purpose, without the express written permission of LGC Wireless.

LGC Wireless reserves the right to make changes, without notice, to the specifications and
materials contained herein, and shall not be responsible for any damages caused by reliance
on the material as presented, including, but not limited to, typographical and listing errors.

Your comments are welcome – they help us improve our products and documentation.
Please address your comments to LGC Wireless, Inc. corporate headquarters in San Jose,
California:

Address 2540 Junction Avenue

San Jose, California
95134-1902 USA

Attn: Marketing Dept.
Phone [phone]
Fax [phone]
Help Hot Line 1-800-530-9960 (U.S. only)

[phone] (International)
Web Address http://www.lgcwireless.com
e-mail [e-mail]

[e-mail]

Copyright © 2007 by LGC Wireless, Inc. Printed in USA. All rights reserved.

Trademarks

All trademarks identified by ™ or ® are trademarks or registered trademarks of LGC
Wireless, Inc. All other trademarks belong to their respective owners.

D-620610-0-20 Help Hot Line (U.S. only): 1-800-530-9960

Rev B CONFIDENTIAL

Limited Warranty

Seller warrants articles of its manufacture against defective materials or w orkmanship fo r a
period of one year from the date of shipment to Purchaser, except as provided in any warran ty
applicable to Purchaser on or in the package containing the G ood s (which warr anty takes
precedence over the following warranty). The liability of Seller under the foregoing warranty
is limited, at Seller’s option, solely to repair or r eplacement wit h equivalent Go ods, or an
appropriate adjustment not to exceed the sales price to Purchaser, provided that (a)Seller is
notified in writing by Purchaser, within the one year warranty period, pr omptly upon
discovery of defects, with a detailed description of such defects, (b) Purchaser has obtained a
Return Materials Authorization (RMA) from Seller, which RMA Seller agrees to provide
Purchaser promptly upon request, (c) the defective Goods are returned to Seller,
transportation and other applicable charges prepaid by the Purchaser, and (d) Seller’s
examination of such Goods discloses to its reasonable satisfaction that defects were not
caused by negligence, misuse, improper installation, improper maintenance, accident or
unauthorized repair or alteration or any othe r cause outside the scope of Purchaser’s warranty
made hereunder. Notwithstanding the foregoing, Seller shall have the opt ion to repair any
defective Goods at Purchaser’s facility. The original warranty peri od for any Goods that have
been repaired or replaced by seller will not thereby be extended. In addition, all sales will be
subject to standard terms and conditions on the sales contract.

Licensed Operators

LGC Wireless’ equipment is designed to operate in the licensed frequency bands of mobile,
cellular, and PCS operators. In the USA, the EU, and most countries this equipment may
only be used by the licensee, his authorized agents or those with written authorization to do
so. Similarly, unauthorized use is illegal, and subjects the owner to the corresponding legal
sanctions of the national jurisdiction involved. Ownership of LGC Wireless equipment
carries no automatic right of use.

InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

Table of Content s

SECTION 1 General Information . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

SECTION 2

InterReach Fusion

System Description 2-1

2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . 2-5

2.3.1 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . 2-6

2.3.2 Using Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

2.6.1 RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

SECTION 3 Fusion Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1 Fusion Main Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Fusion Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3.2.1 Optical Fiber Uplink/Downlink Ports . . . . . . . . . . . . . . . . . . . 3-5

3.2.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . 3-5

3.2.3 Main Hub LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.3 Fusion Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.3.1 Fusion Main Hub Rear Panel Connectors . . . . . . . . . . . . . . . . 3-8

3.3.1.1 9-pin D-sub Connector . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.3.1.2 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9

3.4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.5 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . 3-11

InterReach Fusion Installation, Operation, and Reference Manual 1

D-620610-0-20 Rev B CONFIDENTIAL

CONFIDENTIAL

3.5.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.5.2 View Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

SECTION 4 Fusion Expansion Hub . . . . . . . . . . . . . . . . . . . . 4-1

4.1 Expansion Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.2.1 75 Ohm T ype F Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.2.2 Manufacturing RS-232 Serial Connector . . . . . . . . . . . . . . . . 4-4

4.2.3 Optical Fiber Uplink/Downlink Connectors . . . . . . . . . . . . . . 4-4

4.2.4 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.3 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 4-9

4.5 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . 4-10

SECTION 5

SECTION 6

Remote Access Unit . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1 RAU Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Remote Access Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.2.1 50 Ohm Type-N Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.2.2 75 Ohm Type-F Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.3 RAU LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

5.4 Faults and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

5.5 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . 5-7

Designing a Fusion Solution . . . . . . . . . . . . . . . 6-1

6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.2 Downlink RSSI Design Goal . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

6.3 Maximum Output Power per Carrier . . . . . . . . . . . . . . . . . . . 6-4

6.3.1 850 MHz Cellular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

6.3.2 800 MHz or 900 MHz SMR . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

6.3.3 900 MHz EGSM and EDGE . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

6.3.4 1800 MHz DCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.3.5 1900 MHz PCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.3.6 2.1 GHz UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.4 System Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

6.5 Estimating RF Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

6.5.1 Path Loss Equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

6.5.2 RAU Coverage Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

6.5.3 Examples of Design Estimates . . . . . . . . . . . . . . . . . . . . . . . 6-21

6.6 Link Budget Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

6.6.1 Elements of a Link Budget for Narrowband Standards . . . . . 6-25

6.6.2 Narrowband Link Budget Analysis

for a Microcell Application . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28

6.6.3 Elements of a Link Budget for CDMA Standards . . . . . . . . . 6-30

6.6.4 CDMA Link Budget Analysis for a Microcell Application . 6-33

2 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

CONFIDENTIAL

6.6.5 Considerations for Re-Radiation (Over-the-Air) Systems . . 6-36

6.7 Optical Power Budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37

6.8 Connecting a Main Hub to a Base Station . . . . . . . . . . . . . . 6-38

6.8.1 Uplink Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

6.8.2 RAU Attenuation and ALC . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39

6.8.2.1 Using the RAU 10 dB Attenuation Setting . . . . . . . . . 6-40

6.8.2.2 Using the Uplink ALC Setting . . . . . . . . . . . . . . . . . . 6-41

SECTION 7 Installing Fusion . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.1 Component Location Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.2 Cable and Connector Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.3 Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2.1 Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2.2 General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.2.3 Fiber Port Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.3 Preparing for System Installation . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.1 Pre-Installation Inspectio n . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.3 Tools and Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

7.3.4 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

7.4 Fusion Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . 7-10

7.4.1 Installing a Fusion Main Hub . . . . . . . . . . . . . . . . . . . . . . . . 7-11

7.4.2 Installing Expansion Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

7.4.3 Installing RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32

7.4.3.1 Troubleshooting Using RAU LEDs

During Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35

7.4.3.2 Installing RAUs in a Multiple Operator Syste m . . . . . 7-36

7.4.4 Configuring the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36

7.5 Splicing Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42

7.6 Interfacing the Fusion Main Hub to an RF Source . . . . . . . . 7-44

7.6.1 Connecting a Single Fusion Main Hub to an RF Source . . . 7-44

7.6.2 Connecting Multiple Fusion Main Hubs to an RF Source . . 7-49

7.7 Connecting Contact Alarms to a Fusion System . . . . . . . . . 7-54

7.7.1 Alarm Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55

7.7.2 Alarm Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58

7.7.3 Alarm Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60

7.8 Alarm Monitoring Connectivity Options . . . . . . . . . . . . . . . 7-62

7.8.1 Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62

7.8.2 Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63

7.8.2.1 Setting Up Fusion Modem Using AdminBrowser . . . 7-63

7.8.2.2 Setting Up a PC Modem Using Windows . . . . . . . . . . 7-64

7.8.3 100 BASE-T Port Expander Connection . . . . . . . . . . . . . . . . 7-72

7.8.4 POTS Line Sharing Switch Connection . . . . . . . . . . . . . . . . 7-73

7.8.5 Ethernet LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75

D-620610-0-20 Rev B

InterReach Fusion Installation, Operation, and Reference Manual 3

CONFIDENTIAL

7.8.6 SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76

SECTION 8 Replacing Fusion Components . . . . . . . . . . . . . 8-1

8.1 Replacing an RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

8.2 Replacing a Fusion Expansion Hub . . . . . . . . . . . . . . . . . . . . 8-3

8.3 Replacing a Fusion Main Hub . . . . . . . . . . . . . . . . . . . . . . . . 8-4

SECTION 9

APPENDIX A

APPENDIX B

Maintenance, Troubleshooting, and Technical

Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

9.1 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

9.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

9.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

9.3.1 Troubleshooting Using AdminBrowser . . . . . . . . . . . . . . . . . . 9-4

9.3.1.1 Troubleshooting Recommendations . . . . . . . . . . . . . . . 9-4

9.3.1.2 Fault/Warning/Status Indi cations . . . . . . . . . . . . . . . . . . 9-5

9.3.2 Troubleshooting Using LEDs . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

9.4 Troubleshooting CATV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

9.5 Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Cables and Connectors . . . . . . . . . . . . . . . . . . . A-1

A.1 75 Ohm CATV Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

A.2 Fiber Optical Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-8

A.3 Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A -8

A.4 Standard Modem Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

A.5 TCP/IP Cross-over Cable . . . . . . . . . . . . . . . . . . . . . . . . . . .A-10

A.6 DB-25 to DB-9 Null Modem Cable . . . . . . . . . . . . . . . . . . .A-11

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

B.1 Fusion System Approval Status . . . . . . . . . . . . . . . . . . . . . . .B-1

B.2 Human Exposure to RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3

APPENDIX C

Faults, Warnings, Status Tables . . . . . . . . . . . . C-1

C.1 Faults Reported by Fusion Main/SingleStar Hubs . . . . . . . . .C-1

C.2 Faults Reported for System CPU . . . . . . . . . . . . . . . . . . . . . .C-5

C.3 Faults for Fusion Expansion Hubs . . . . . . . . . . . . . . . . . . . . .C-6

C.4 Faults for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C -9

C.5 Warning/Status Messages

for Fusion Main/SingleStar Hubs . . . . . . . . . . . . . . . . . . . . .C-10

C.6 Warning/Status Messages for System CPUs . . . . . . . . . . . .C-15

C.7 Warning/Status Messages for Fusion Expansion Hubs . . . .C-16

C.8 Warning /Status Messages for RAUs . . . . . . . . . . . . . . . . . .C-19

4 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

CONFIDENTIAL

List of Figures

Figure 2-1 Fusion System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Figure 2-2 Fusion One Port System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Figure 2-3 Three Methods for OA&M Communicatio ns . . . . . . . . . . . . . . . . . .2-5

Figure 2-4 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

Figure 2-5 Fusion’s Double Star Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

Figure 2-6 Downlink (Base Station to Wireless Devices) . . . . . . . . . . . . . . . . . .2-8

Figure 2-7 Uplink (Wireless Devices to Base Station) . . . . . . . . . . . . . . . . . . . .2-8

Figure 3-1 Main Hub in a Fusion System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Figure 3-2 Main Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Figure 3-3 Fusion Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Figure 3-4 Fusion Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

Figure 3-5 Preferences Check Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

Figure 4-1 Expansion Hub in a Fu si on System . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

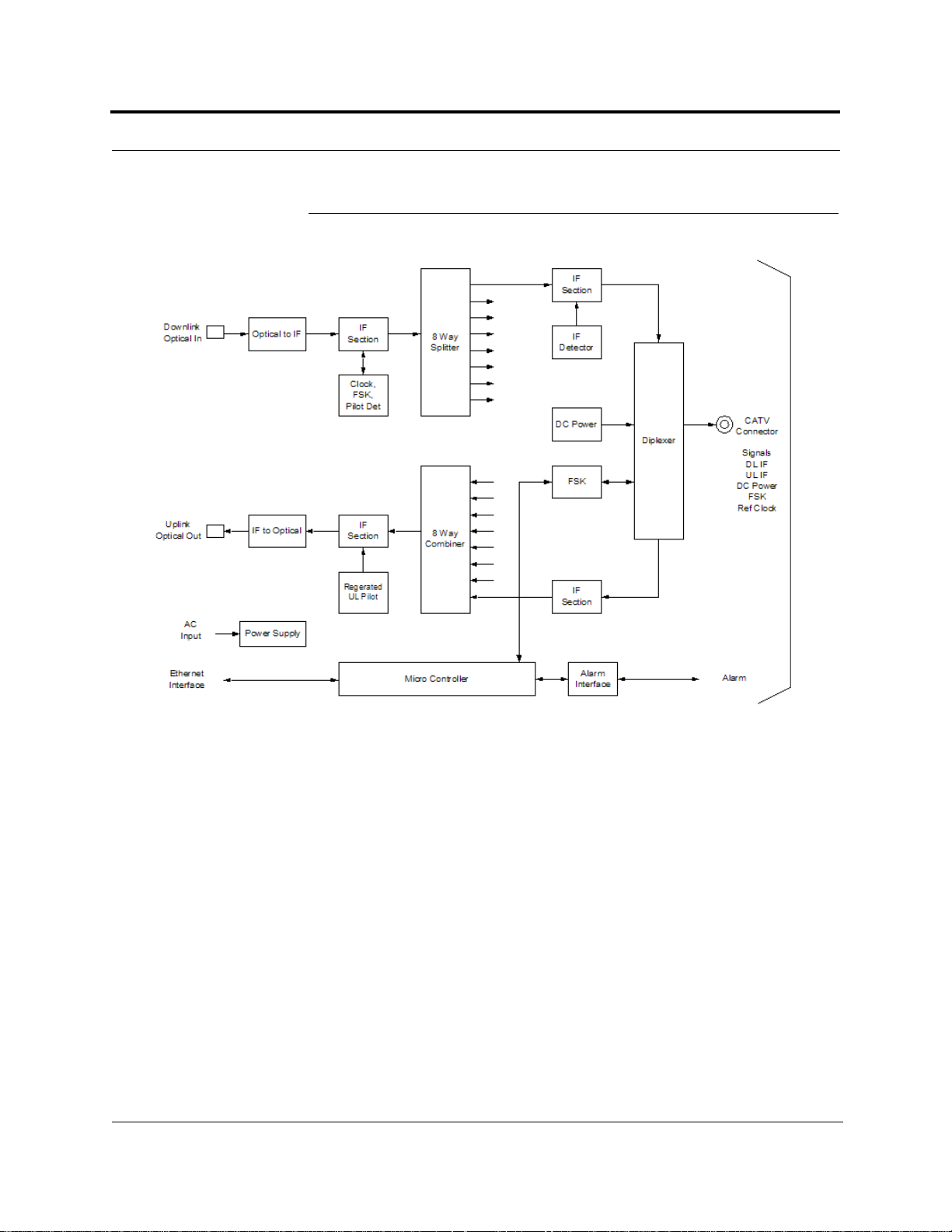

Figure 4-2 Expansion Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Figure 4-3 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Figure 4-4 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Figure 5-1 Remote Access Unit in a Fusion System . . . . . . . . . . . . . . . . . . . . . .5-2

Figure 5-2 Remote Access Uni t Block Diagram (Multiband) . . . . . . . . . . . . . . .5-2

Figure 6-1 Determining APL between the Antenna and the Wireless Device .6-14

Figure 6-2 ALC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-40

Figure 7-1 Flush Mounting Bracket Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12

Figure 7-2 Bracket Detail For Wall Mount Rack (PN 4712) . . . . . . . . . . . . . . .7-13

Figure 7-3 Installing Directly to the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-14

D-620610-0-20 Rev B

InterReach Fusion Installation, Operation, and Reference Manual 1

CONFIDENTIAL

Figure 7-4 Using Hub Rack-Mounting Brackets for Direct Wall Installation . 7-15

Figure 7-5 Protective Ground Wire Connection . . . . . . . . . . . . . . . . . . . . . . . 7-18

Figure 7-6 DC Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Figure 7-7 Power Screw Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Figure 7-8 Pan Head Screw Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Figure 7-9 Recommended Hub Wire Routing . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Figure 7-10 Compression Lug and Mounting Screw Locations . . . . . . . . . . . . 7-21

Figure 7-11 Grounding Wire Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Figure 7-12 Power Wires and Studs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Figure 7-13 Wire Polarity Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

Figure 7-14 DC Illustration Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

Figure 7-15 Flush Mounting Bracket Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

Figure 7-16 Bracket Detail For Wall Mount Rack (PN 4712) . . . . . . . . . . . . . . 7-26

Figure 7-17 Using Hub Rack-Mounting Brackets for Direct Wall Installation . 7-27

Figure 7-18 Installing Directly to the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28

Figure 7-19 800/850 MHz Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33

Figure 7-20 Guideline for Unison RAU Antenna Placement . . . . . . . . . . . . . . 7-33

Figure 7-21 Internet Protocol (TCP/IP) Properties Window . . . . . . . . . . . . . . . 7-37

Figure 7-22 Local Area Connection Properties Window . . . . . . . . . . . . . . . . . . 7-38

Figure 7-23 Set Time and Date Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39

Figure 7-24 AdminBrowser Configuration Window . . . . . . . . . . . . . . . . . . . . . 7-39

Figure 7-25 AdminBrowser Configuration Window (continued) . . . . . . . . . . . 7-40

Figure 7-26 Simplex Base Station to a Fusion Main Hub . . . . . . . . . . . . . . . . . 7-45

Figure 7-27 Duplex Base Station to a Fusion Main Hub . . . . . . . . . . . . . . . . . 7-46

Figure 7-28 Connecting a Fusion Main Hub to Multiple Base Stations . . . . . . 7-47

Figure 7-29 Connecting a Fusion Main Hub to a Roof-top Antenna . . . . . . . . . 7-48

Figure 7-30 Connecting Two Fusion Main Hub’s RF Band Ports

to a Simplex Repeater or Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51

Figure 7-31 Connecting Two Fusion Main Hub’s RF Band Ports

to a Duplex Repeater or Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53

Figure 7-32 Connecting MetroReach to Fusion . . . . . . . . . . . . . . . . . . . . . . . . 7-55

Figure 7-33 Using a BTS to Monitor Fusion . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56

Figure 7-34 Using a BTS and AdminBrowser to Monitor Fusion . . . . . . . . . . . 7-57

Figure 7-35 Using Fusion to Monitor Unison . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58

Figure 7-36 Alarm Sense Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59

Figure 7-37 5-port Alarm Daisy-Chain Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60

Figure 7-38 Alarm Sense Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-61

Figure 7-39 OA&M Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62

Figure 7-40 OA&M Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63

2 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

CONFIDENTIAL

Figure 7-41 Default Dial-in Settings (Fusion Hub) . . . . . . . . . . . . . . . . . . . . . . .7-64

Figure 7-42 Network Connections Window . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-65

Figure 7-43 New Connection Wizard - Welcome Window . . . . . . . . . . . . . . . . .7-65

Figure 7-44 New Connection Wizard - Network Connection Type Window . . .7-66

Figure 7-45 New Connection Wizard - Network Connection Window . . . . . . .7-66

Figure 7-46 New Connection Wizard - Connection Name Window . . . . . . . . . .7-67

Figure 7-47 New Connection Wizard - Phone Number to Dial Window . . . . . .7-67

Figure 7-48 New Connection Wizard - Connection Availability Window . . . . .7-68

Figure 7-49 New Connection Wizard - Completing New Connection Window .7-68

Figure 7-50 Connect Fusion Hub Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-69

Figure 7-51 Fusion Hub Properties Win dow . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-69

Figure 7-52 Modem Configuration Window . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-70

Figure 7-53 Fusion Hub Properties - Security Tab Window . . . . . . . . . . . . . . . .7-70

Figure 7-54 Fusion Hub Properties - Networking Tab Window . . . . . . . . . . . . .7-71

Figure 7-55 Internet Protocol Properties Window . . . . . . . . . . . . . . . . . . . . . . . .7-71

Figure 7-56 OA&M Connection using a 232 Port Expander . . . . . . . . . . . . . . .7-72

Figure 7-57 OA&M Connection Using a POTS Line Sharing Switch . . . . . . . .7-73

Figure 7-58 Cascading Line Sharing Switches . . . . . . . . . . . . . . . . . . . . . . . . . .7-74

Figure 7-59 OA&M Connection Using Ethernet and ENET/232 Serial Hub . . .7-75

Figure 7-60 Fusion SNMP Configuration Options . . . . . . . . . . . . . . . . . . . . . . .7-76

Figure A-1 CommScope 2065V for RG-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Figure A-2 CommScope 2279V for RG-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Figure A-3 CommScope 2293K for RG-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Figure A-1 Standard Modem Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Figure A-2 Wiring Map for TCP/IP Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10

Figure A-3 DB-9 Female to DB-9 Female Null Modem Cable Diagram . . . . . A-11

D-620610-0-20 Rev B

InterReach Fusion Installation, Operation, and Reference Manual 3

CONFIDENTIAL

4 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

List of Tables

Table 2-1 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Table 2-2 Wavelength and Laser Power Specifications . . . . . . . . . . . . . . . . . . . 2-10

Table 2-3 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Table 2-4 Frequency Bands Covered by Fusion RAUs . . . . . . . . . . . . . . . . . . . . 2-10

T able 2-5 850 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Table 2-6 1900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-12

T able 2-7 900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Table 2-8 1800 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-13

T able 2-9 900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Table 2-10 2100 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-14

Table 2-11 800 MHz (SMR) RF End-to-End Performance . . . . . . . . . . . . . . . . . . 2-14

Table 2-12 900 MHz (SMR) RF End-to-End Performance . . . . . . . . . . . . . . . . . . 2-15

Table 2-13 1900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-15

Table 2-14 2100 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-15

Table 3-1 Fusion Hub Status LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Table 3-2 Fusion Hub Port LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Table 3-3 9-pin D-sub Pin Connector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Table 3-4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Table 4-1 Expansion Hub Unit Status and DL/UL Status LED States . . . . . . . . . 4-5

Table 4-2 Fusion Expansion Hub Port LED States . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Table 4-3 9-pin D-sub Pin Connector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Table 4-4 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Table 5-1 Frequency Bands Covered by Fusion RAUs . . . . . . . . . . . . . . . . . . . . . 5-3

Table 5-2 System Gain (Loss) Relative to CATV Cable Length

(All RAUs except 800/900/1900) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Table 5-4 Remote Access Unit LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Table 5-5 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Table 6-1 Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

InterReach Fusion Installation, Operation, and Reference Manual 1

D-620610-0-20 Rev B CONFIDENTIAL

CONFIDENTIAL

Table 6-2 GSM/EGSM and EDGE Power per Carrier . . . . . . . . . . . . . . . . . . . . .6-7

Table 6-3 DCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

Table 6-4 PCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

Table 6-5 UMTS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

T able 6-6 System Gain (Loss) Relative to CATV Cable Length

(All RAUs except 800/900/1900) . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

T able 6-7 System Gain (Loss) Relative to CATV Cable Length

for 800/900/1900 RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13

Table 6-8 Coaxial Cable Losses (Lcoax) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-14

Table 6-9 Average Signal Loss of Common Building Materials . . . . . . . . . . . . .6-15

Table 6-10 Frequency Bands and the Value of the First Term in Equation (3) . . . 6-16
T able 6-11 Estimated Path Loss Slope for Different In-Building Environments .6-17
Table 6-12 Approximate Radiated Distance from Antenna

for 800 MHz SMR Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-18

Table 6-13 Approximate Radiated Distance from Antenna

for 850 MHz Cellular Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-18

Table 6-14 Approximate Radiated Distance from Antenna

for 900 MHz SMR Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-18

Table 6-15 Approximate Radiated Distance from Antenna

for 900 MHz EGSM Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-16 Approximate Radiated Distance from Antenna

for 1800 MHz DCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-17 Approximate Radiated Distance from Antenna

for 1900 MHz PCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Table 6-18 Approximate Radiated Distance from Antenna

for 2.1 GHz UMTS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

Table 6-19 Link Budget Considerations for Narrowband Systems . . . . . . . . . . . . 6-26

Table 6-20 Narrowband Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . .6-28

Table 6-21 Narrowband Link Budget Analysis: Uplink . . . . . . . . . . . . . . . . . . . .6-29

Table 6-22 Distribution of Power within a CDMA Signal . . . . . . . . . . . . . . . . . .6-30

Table 6-23 Additional Link Budget Considerations for CDMA . . . . . . . . . . . . . .6-31

Table 6-24 CDMA Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . . . . . .6-33

Table 6-25 CDMA Link Budget Analysis: Uplink . . . . . . . . . . . . . . . . . . . . . . . .6-35

Table 7-1 Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

Table 7-2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-6

Table 7-3 Tools and Materials Required for Component Installation . . . . . . . . . .7-8

Table 7-4 Optional Accessories for Component Installation . . . . . . . . . . . . . . . . .7 -9

Table 7-5 Troubleshooting Main Hub LEDs During Installation . . . . . . . . . . . .7-24

Table 7-6 Troubleshooting Expansion Hub LEDs During Installation . . . . . . . .7-31

Table 7-7 Troubleshooting RAU LEDs During Installation . . . . . . . . . . . . . . . .7-35

2 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

CONFIDENTIAL

Table 7-8 Alarm Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54

Table 9-1 Troubleshooting Main Hub Port LEDs During Normal Operation . . . . 9-6

Table 9-2 Troubleshooting Main Hub Status LEDs During Normal Operation . . 9-7
Table 9-3 Troubleshooting Expansion Hub Port LEDs During Normal Operation 9-8
Table 9-4 Troubleshooting Expansion Hub Status LEDs

During Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

Table 9-5 Summary of CATV Cable Wiring Problems . . . . . . . . . . . . . . . . . . . . 9-10

Table C-2 Faults for System CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-5

Table C-4 Faults for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-9

Table C-5 Warnings/Status Messages for Fusion Main/SingleStar Hubs . . . . . .C-11

Table C-6 Warning/Status Messages for System CPUs . . . . . . . . . . . . . . . . . . . .C-15

Table C-8 Warning/Status Messages for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . .C-19

D-620610-0-20 Rev B

InterReach Fusion Installation, Operation, and Reference Manual 3

CONFIDENTIAL

4 InterReach Fusion Installation, Operation, and Reference Manual

D-620610-0-20 Rev B

SECTION 1 General Information

This section contains the following subsections:

• Section 1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

• Section 1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

• Section 1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

• Section 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

• Section 1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.1 Firmware Release

For the latest Software and Firmware Release and associated documentation, access
the LGC Wireless Customer Portal at lgcwireless.com.

1.2 Purpose and Scope

This document describes the InterReach Fusion system.

• Section 2 InterReach Fusion System Description

This section provides an overview of the Fusion hardware and OA&M capabilities.
This section also contains system specifications and RF end-to-end performance
tables.

• Section 3 Fusion Main Hub

This section illustrates and describes the Fusion Main Hub. This section includes
connector and LED descriptions, and unit specifications.

InterReach Fusion Installation, Operation, and Reference Manual 1-1

D-620610-0-20 Rev B CONFIDENTIAL

Conventions in this Manual

• Section 4 Fusion Expansion Hub

This section illustrates and describes the Expansion Hub, as well as connector and
LED descriptions, and unit specification.

• Section 5 Remote Access Unit

This section illustrates and describes the Remote Access Unit. This section also
includes connector and LED descriptions, and unit specifications.

• Section 6 Designing a Fusion Solution

This section provides tools to aid you in designing your Fusion system, including
tables of the maximum output power per carrier at the RAU and formulas and
tables for calculating path loss, coverage distance, and link budget.

• Section 7 Installing Fusion

This section provides installation procedures, requirements, safety precautions,
and checklists. The installation procedures include guidelines for troubleshooting
using the LEDs as you install the units.

• Section 8 Replacing Fusion Components

This section provides installation procedures and considerations when you are
replacing an Fusion component in an operating system.

• Section 9 Maintenance, Troubleshooting, and Technical Assistance

This section provides contact information and troubleshooting tables.

• Appendix A Cables and Connectors

This appendix provides connector and cable descriptions and requirements. It also
includes cable strapping, connector crimping tools, and diagrams.

• Appendix B Compliance

This section lists safety and radio/EMC approvals.

• Append ix C Faults, Warnings, Status Tables

This section lists all system alarm messages.

1.3 Conventions in this Manual

The following table lists the type style conventions used in this manual.

Convention Description

bold Used for emphasis

BOLD CAPS

MALL CAPS Software menu and window selections

S

Labels on equipment

1-2 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

Standards Conformance

This manual lists measurements first in metric units, and then in U.S. Customary Sys­tem of units in parentheses. For example:

0° to 45°C (32° to 113°F)

This manual uses the following symbols to highlight certain information as described.

NOTE: This format emphasizes text with special significance or impor­tance, and provides supplemental information.

CAUTION: This format indicates when a given action or omitted
action can cause or contribute to a hazardous condition. Damage
to the equipment can occur.

WARNING: This format indicates when a given action or omitted
action can result in catastrophic damage to the equipment or cause
injury to the user.

Procedure

This format highlights a procedure.

1.4 Standards Conformance

• Fusion uses the TIA-57 0-B cabling standards for ease of installation.

• Refer to Appendix B for compliance information.

1.5 Related Publications

• AdminBrowser User Manual, LGC Wireless part number D-620607-0-20 Rev. A

• MetroReach Focus Configuration, Installation, and Reference Manual; LGC
Wireless part number 8500-10

• InterReach Unison Installation, Operation, and Reference Manual; LGC Wireless
part number 8700-50

Help Hot Line (U.S. only): 1-800-530-9960 1-3

D-620610-0-20 Rev B CONFIDENTIAL

Related Publications

1-4 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

SECTION 2 InterReach Fusion

System Description

This section contains the following subsections:

• Section 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

• Section 2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

• Section 2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . . . . 2-5

• Section 2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

• Section 2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

• Section 2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

2.1 System Overview

InterReach Fusion is an intelligent fiber optics/CATV, multi-band (frequencies) wire­less networking system designed to handle both wireless voice and data communica­tions over licensed frequencies. It provides high-quality, ubiquitous, seamless access
to the wireless network in smaller buildings.

Fusion provides RF characteristics designed for large public and private facilities
such as campus environments, airports, shopping malls, subways, convention centers,
sports venues, and so on. Fusion uses microprocessors to enable key capabilities such
as software-selectable band settings, automatic gain control, ability to incrementally
adjust downlink/uplink gain, end-to-end alarming of all componen ts and the asso ci­ated cable infrastructure, and a host of additional capabilities.

The Fusion system supports major wireless standards and air interface protocols in
use around the world, including:

• Frequencies: 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

• Voice Protocols: AMPS, TDMA, CDMA, GSM/EGSM,WCDMA, iDEN

• Data Protocols: CDPD, EDGE, GPRS, WCDMA, CDMA2000, 1xRTT, EV-DO,
and Paging

InterReach Fusion Installation, Operation, and Reference Manual 2-1

D-620610-0-20 Rev B CONFIDENTIAL

System Overview

The Fusion system supports three configurable bands:

• Band 1 in 35 MHz and can be configured for 850 MHz, or 900 MHz.

• Band 2 in 75 MHz and can be configured for 1800 MHz, 1900 MHz, or 2100 MHz

Both bands support all protocols.
Fusion remote access units contain combinations of Band 1, Band 2, and Band 3

frequencies to support various world areas, that is 800 MHz/900 MHz/1900MHz
for North America or 900 MHz/2100 MHz and 900 MHz/1800 MHz for Europe
and Asia. Refer to Figure 2-7 on page 2-8 for a specific list of these RAU fre­quency combinations.

• Band 3 (only used for the North Ameri can FSN-8090 19-1 RAU) whose Band 3 is
a 6 MHz sub-band of the 35 MHz Band with Band 1 being an 18 MHz sub-band of
the 35 MHz Band.

Key System Features

• Multi-Band, supports two or more full band frequencies for spectrum growth.

• Superior RF performance, particularly in the areas of IP3 and noise figure.

• High downlink composite power and low uplink noise figure enables support of
a large number of channels and larger coverage footprint per antenna.

• Software configurable Main and Expansion Hubs allow the frequency bands to
be configured in the field.

• Either single-mode or multi-mode fiber can be used, supporting flexible cabling
alternatives (in addition to standard CATV 75 Ohm cabling). You can select the
cabling type to met the resident cabling infrastructure of the facility and unique
building topologies.

• Extended system “reach.” Using single-mode fiber, fiber runs can be a long as 6
kilometers (creating a total system “wingspan” of 12 kilometers). Alternatively,
with multi-mode fiber, fiber runs can be as long as 500 meters.

• Standard 75 Ohm CATV cable, can be run up to 150 meters for RG-59 cable
(170 meters for RG-6; 275 meters for RG-11 using CommScope 2065V, 2279V,
and 2293K cables).

• Flexible RF configuration capabilities, including:

• System gain:
– Ability to manually set gain in 1 dB steps, from 0 to 15 dB, on both down-

link and uplink.

•RAU:
– RAU uplink and downlink gain can be independently attenuated 10 dB in 1

dB steps.

– Uplink level control protects the system from input overload and can be

optimized for either a single operator or multiple operators/protocols.

2-2 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

– VSWR check on RAU reports if there is a disconnected antenna.

• Firmware Updates are downloaded (either locally or rem otely) to the system

when any modifications are made to the product, including the addition of new
software capabilities and services.

• OA&M capabilities, including fault isolation to the field replaceable unit, report-

ing of all fault and warning conditions, and user-friendly web browser user inter­face OA&M software package.

2.2 System Hardware Description

The InterReach Fusion system consists of three modular components:

• 19" rack-mountable Main Hub (connect s to up to 4 Expansion Hubs, except for

the One Port Main Hub configuration that supports 1 Expansion Hub)

• Converts RF signals to optical IF on the downlink; optical IF-to-RF on the
uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Auto-configurable bands

• Simplex interface to RF source

• Periodical ly polls all downstream RAUs for system status, and automatically
reports any fault or warning conditions

System Hardware Description

• 19” rack mountable Expansion Hub (connects to up to 8 Remote Access Units)

• Optical signal conversion to electrical on the downlink; electrical to optical on
the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Software configurable band (based on com man ds from the Main Hub)

• Supplies DC power to RAUs over CATV cable.

• Remote Access Unit (RAU)

• Converts IF signals to RF on the downlink; RF-to-IF on the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Multi-band protocol independent, frequency specific units

The minimum configuration of a Fusion system is one Main Hub, one Expansion
Hub, and one RAU (1-1-1). The maximum configuration of a system is one Main
Hub, four Expansion Hubs, and 32 RAUs (1-4-32). Multiple systems can be com­bined to provide larger configurations.

NOTE: The Fusion One Port Main Hub (PN: FSN-1-MH-1P) configuration
is a cost reduced version of the Fusion Main Hub and supports only one

Help Hot Line (U.S. only): 1-800-530-9960 2-3

D-620610-0-20 Rev B CONFIDENTIAL

System Hardware Description

Expansion Hub (up to 8 RAUs).

The Fusion One Port Main Hub is “software locked” to 1 port 2 fiber ports.
Additional ports are disabled internally. Please do not attempt to remove the
front panel fiber port plate, since doing so will void the product warranty.

Figure 2-1 Fusion System Hardware

Figure 2-2 Fusion One Port System Hardware

2-4 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

System OA&M Capabilities Overview

2.3 System OA&M Capabilities Overview

InterReach Fusion is microprocessor controlled and contains firmware to enable much of
the operations, administration, and maintenance (OA&M) functionality .

Complete alarming, down to the field replaceable unit (that is, Fusion Main Hub,
Expansion Hub, and Remote Access Unit) and the cabling infrastructure, is available.
All events occurring in a system, defined as a Fusion Main Hub and all of its associ­ated Expansion Hubs and Remote Access Units, are automatically reported to the
Main Hub. The Main Hub monitors system status and communicates that status using
the following methods:

• Normally closed (NC) alarm contact closures can be tied to standard NC alarm
monitoring systems or directly to a base station for basic alarm monitoring.

• Connection Methods:

• The Main Hub’s front panel RJ-45 port connects directly to a PC (for local
Ethernet access).

• The Main Hub’s front panel RS-232 serial port connects directly to a modem
(for remote access).

• Remote access is also available with an optional 100BASE-T LAN switch con­nections to the RJ-45 port.

Use AdminBrowser to configure
or monitor a local or a remote
Fusion system.

Figure 2-3 Three Methods for OA&M Communications

PC/Laptop
running a
Standard Browse r

RS-232 Ethernet

RS-232
Modem

Fusion Main Hub

F-conn.

RS-232

R-J-45
Ethernet

t

Admin Browser

Modem

2

TCP/IP

1

3

LAN

Switch

Ethernet

Fusion Main Hub

Fusion Main Hub

PSTN

Modem

Fusion Main Hub

AdminBrowser OA&M software runs on the Fusion Main Hub microprocessor and
communicates to its downstream Expansion Hubs and associated RAUs. Using
AdminBrowser, you can perform the following from any standard web browser
(Internet Explorer) running on your PC/laptop system:

• Configure a newly instal led system

• Change sy stem parameters

Help Hot Line (U.S. only): 1-800-530-9960 2-5

D-620610-0-20 Rev B CONFIDENTIAL

System OA&M Capabilities Overview

• Perform an end-to-end system test

• Query system status
Refer to the AdminBrowser User Manual (D-620607-0-20 Rev A) for information

about installing and using AdminBrowser software.

2.3.1 System Monitoring and Reporting

Each Fusion Main Hub in the system constantly monitors itself, its Expansion Hubs,
and their downstream RAUs for internal fault and warning conditions. The results of
this monitoring are stored in memory and compared against new results.

When a Main or Expansion Hub detects a change in status, it reports a fault or warn­ing alarm. Faults are also indicated locally by red status LEDs. Both faults and warn­ings are reported to AdminBrowser software and displayed on a PC/laptop connected
to the Main Hub’s RJ-45 port. Passive antennas connected to the RAUs are not moni­tored automatically. Perform a System Test to retriev e status info rm ation about
antennas.

Using AdminBrowser, you can install a new system or new components, change sys­tem parameters, and query system status. Figure 2-4 illustrates how the system
reports its status to AdminBrowser.

PC/Laptop

running a

standard

web browser

Use a standard
browser to communi­cate with remotely or
locally installed Fusion
systems running
AdminBrowser.

If a fault or warning
condition is reported,
the AdminBrowser
graphical user inter­face indicates the prob­lem on your standard
PC browser.

2.3.2 Using Alarm Contacts

Figure 2-4 System Monitoring and Reporting

Fusion Main

Hub

AdminBrowser

The Main Hub queries
status of each Expan­sion Hub and each
RAU and compares it
to previously stored
status.

If a fault is detected,
LEDs on the front panel
turn red.

You can connect the DB-9 female connector on the rear panel of the Fusion Main
Hub to a local base station or to a daisy-chained series of Fusion and/or MetroReach
Focus systems.

Fusion

Expansion

Hub

AdminBrowser

The Expansion Hub queries
the status of each RAU and
compares it to the previously
stored status.

If a fault is detected, LEDs on
the front panel turn red.

RAU

RAU

Each RAU passes its status to
the Hub.

If a fault is detected, the
ALARM LED is red. If no fault
is detected, the LED is green.

2-6 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

When you connect MetroReach Focus or a BTS to the Fusion, the Fusion Main Hub
outputs the alarms (alarm source) and MetroReach Focus or the BTS receives the
alarms (alarm sense). This is described in Section 7.7.1 on page 7-55.

2.4 System Connectivity

The double star architecture of the Fusion system, illustrated in Figure 2-5, provides
excellent system scalability and reliability. The system requires only one pair of
fibers for eight antenna points. This makes any system expansion, such as adding an
extra antenna for additional coverage, potentially as easy as pulling an extra CATV
cable.

Figure 2-5 Fusion’s Double Star Architecture

PORT 1 PORT 2 PORT 3 PORT 4

RS-232

System Connectivity

RJ-45

Main Hub

Fiber

Expansion Hub

Expansion Hub

CATVCATV (RG-59, 6, or 11) CATV

RAU RAU RAU

up to 8 RAUs per Expansion Hub

Expansion Hub

Expansion Hub

Help Hot Line (U.S. only): 1-800-530-9960 2-7

D-620610-0-20 Rev B CONFIDENTIAL

System Operation

2.5 System Operation

Figure 2-6 Downlink (Base Station to Wireless Devices)

The Main Hub receives downlink RF signals from

a base station using 50 Ohm coaxial cable.

Main Hub

The Main Hub converts the RF signals to IF, then
to optical signals and sends them to Expansion
Hubs (up to four) using optical fiber cable.

The Expansion Hub converts the optical sig-

Expansion Hub

nals to electrical signals and sends them to
RAUs (up to eight) using 75 Ohm CATV cable.

RAU

The RAU converts the IF signals
to RF and sends them to passive
antennas using 50 Ohm coaxial
cable.

Main Hub

The Main Hub sends
uplink RF signals to a
base station using
50 Ohm coaxial cable.

Figure 2-7 Uplink (Wireless Devices to Base Station)

Expansion Hub

The Expansion Hub
receives the IF signals

The Main Hub receives
the optical signals from
the Expansion Hubs (up
to four) using optical
fiber cable and con­verts them to RF sig­nals.

from the RAUs (up to
eight) using CATV cable
and converts them to
optical signals.

RAU

The RAU receives uplink RF
signals from the passive
antenna using 50 Ohm coaxial
cable and converts them to IF
signals.

2-8 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B

System Specifications

2.6 System Specifications

Table 2-1 Physical Specifications

Parameter Main Hub Expansion Hub Remote Access Unit

IF/RF Connectors 6-type “N”, female (50 Ohm),

1 Downlink/Uplink pair per band

External Alarm Connector

One, 9-pin D-sub, female One, 9-pin D-sub, female —

(contact source)
ADMIN/LAN Interface

Connectors

One RJ-45, female
One 9-pin D-sub, male for

optional modem
Fiber Connectors*
LED Alarm and Status

Indicators

4 pair, SC/APC One pair, SC/APC —

Unit Status (One pair):

•Power

• Main Hub Status

Downstream Unit Status

(One per fiber port):

• Expansion Hub/RAU

Power (AC Option)

Rating: 100–240V AC, 1A,

50–60 Hz

Operating Range: 90–132V

AC/170-250V AC auto-ranging
Power (DC Option)

Rating: 38–64V DC, 2.5A
Power Consumption (W) 30 4 RAUs: 305 typical

Enclosure Dimensions†

× width × depth)

(height

89 mm × 438 mm × 381 mm

(3.5 in. × 17.25 in. × 15 in.) (2U)

Weight < 5.5 kg (< 12 lbs.) < 6.6 kg (< 14.5 lbs.) < 2.1 kg (< 4.6 lbs.)

8-type “F”, female (CA TV
75 Ohm)

One RJ-45, female
One 9-pin D-sub, male

Unit Status (One pair):

•Power

• Expansion Hub Status
Fiber Link Status (One

pair):

•DL Status

•UL Status
Port Status:

• One per F connector port

•Link/RAU
Rating: 100–240V AC,

6A, 50–60 Hz
Operating Range:

90–132V AC/170-250V
AC auto-ranging

8 RAUs: 530 typical
89 mm × 438 mm × 381

mm
(3.5 in. × 17.25 in. × 15

in.) (2U)

One F, female (CAT V -75
Ohm)

One N, female (coaxial - 50
Ohm)

—

Unit Status (One pair):

•Link

•Alarm

—

—

54 mm x 286 mm x 281 mm
(2.13 in. × 11.25 in. × 11.13

in.)

*It is critical to system performance that only SC/APC fiber connectors are used throughout the fiber network, including fiber distribution pan-

els.

†Excluding angle-brackets for 19'' rack mounting of hub.
Note: The Fusion Main Hub’s typical power consumption assumes that the CATV RG-59 cable length is no more than 150 meters, the RG-6

cable length is no more than 170 meters, and RG-11 cable length is no more than 275 meters using CommScope 2065V, 2279V, and 2293K
cables.

Help Hot Line (U.S. only): 1-800-530-9960 2-9

D-620610-0-20 Rev B CONFIDENTIAL

System Specifications

Table 2-2 Wavelength and Laser Power Specifications

Measured Output Power

Wavelength Main Hub Expansion Hub

1310 nm +

Table 2-3 Environmental Specifications

20 nm 890 uW 3.8 mW

Parameter Main Hub and Expansion Hub RAU

Operating Temperature 0° to +45°C (+32° to +113°F) –25° to +45°C (–13°

to +113°F)

Non-operating Tempera­ture

Operating Humidity;

–20° to +85°C (–4° to +185°F) –25° to +85°C (–13°

to +185°F)

5% to 95% 5% to 95%

non-condensing

Table 2-4 Frequency Bands Covered by Fusion RAUs

RF Passband

MAIN

RAU
Band­width

Fusion
RAU Part Number

Fusion
Band

Downlink
(MHz)

Uplink
(MHz)

HUB/
RAU
Band

850/1900 FSN-8519-1 850 869–894 824–849 1 25 MHz

1900 1930–1990 1850–1910 2 60 MHz

900//1800 FSN-9018-1 900 925–960 880–915 1 35 MHz

1800 1805–1880 1710–1785 2 75 MHz

900/2100 FSN-9021-1 900 925–960 880–915 1 35 MHz

2100 2110–2170 1920–1980 2 60 MHz

2-10 InterReach Fusion Installation, Operation, and Reference Manual

CONFIDENTIAL D-620610-0-20 Rev B
