ADC F0691 312, F0684 112 Users Manual

Download

InterReach Fusion® Wideband

Installation, Operation, and Reference Manual

ADCP-77-044  Issue 5  June 2012

D-620616-0-20 Rev F

ADCP-77-044 • Issue 5 • June 2012 • Preface

ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717

TE Connectivity 541 E. Trimble Road, San Jose, California 95131-1224 USA In U.S.A. and Canada: 1-800-530-9960 Outside U.S.A. and Canada: 1-408-952-2400 Fax: 1-408-952-2410

REVISION HISTORY

ISSUE DATE REASON FOR CHANGE

1 7/2008 First release 2 10/2008 Add Fusion Wideband 1900/AWS product content 3 8/2009 Add Fusion Wideband 700/AWS and 700 MIMO product content 4 5/2010 Add Fusion Wideband 700 (Lower ABC) MIMO product content 5 6/2012 Add Fusion Wideband 2600 MIMO product content

LIST OF CHANGES

The technical changes incorporated into this issue are listed below.

PAGE IDENTIFIER DESCRIPTION OF CHANGE

-Add Fusion Wideband 2600 MIMO product content

TRADEMARK INFORMATION

TE is a registered trademark and InterReach, InterReach Unison, InterReach Fusion, WAVEXchange, FlexWave are registered trademarks and trademarks of TE Connectivity. All other products, company names, service marks, and trademarks mentioned in this document or website are used for identification purposes only and may be owned by other companies.

DISCLAIMER OF LIABILITY

Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period.

This publication may be verified at any time by contacting TE’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to WirelessSupport@te.com.

Table of Content s

SECTION 1 General Information . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

SECTION 2

InterReach Fusion Wideband

System Description . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . 2-5

2.3.1 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . 2-6

2.3.2 Using Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

2.6.1 RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

SECTION 3 Fusion Wideband Main Hub . . . . . . . . . . . . . . . . 3-1

3.1 Fusion Wideband Main Hub Overview . . . . . . . . . . . . . . . . . 3-1

3.2 Fusion Wideband Main Hub Front Panel . . . . . . . . . . . . . . . . 3-4

3.2.1 Optical Fiber Uplink/Downlink Ports . . . . . . . . . . . . . . . . . . . 3-5

3.2.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . 3-5

3.2.3 Main Hub LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.3 Fusion Wideband Main Hub Rear Panel . . . . . . . . . . . . . . . . 3-8

3.3.1 Fusion Wideband Main Hub Rear Panel Connectors . . . . . . . 3-8

3.3.1.1 9-pin D-sub Connector . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.3.1.2 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9

3.4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.5 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . 3-11

InterReach Fusion Wideband Installation, Operation, and Reference Manual 1

D-620616-0-20 Rev F CONFIDENTIAL

CONFIDENTIAL

3.5.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.5.2 View Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

SECTION 4 Fusion Wideband Expansion Hub . . . . . . . . . . . 4-1

4.1 Expansion Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.2.1 75 Ohm T ype F Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.2.2 Manufacturing RS-232 Serial Connector . . . . . . . . . . . . . . . . 4-4

4.2.3 Optical Fiber Uplink/Downlink Connectors . . . . . . . . . . . . . . 4-4

4.2.4 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.3 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 4-9

4.5 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . 4-10

SECTION 5

SECTION 6

Remote Access Unit . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1 RAU Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Remote Access Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.2.1 50 Ohm Type-N Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.2.2 75 Ohm Type-F Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.3 RAU LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5.4 Faults and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

5.5 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . 5-7

Designing a

Fusion Wideband Solution . . . . . . . . . . . . . . . . . 6-1

6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.2 Downlink RSSI Design Goal . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

6.3 Maximum Output Power per Carrier . . . . . . . . . . . . . . . . . . . 6-4

6.3.1 700 MHz (for 700/AWS RAU) . . . . . . . . . . . . . . . . . . . . . . . . 6-5

6.3.2 700 MHz (Upper C) MIMO RAU . . . . . . . . . . . . . . . . . . . . . . 6-6

6.3.3 700 MHz (Lower ABC) MIMO RAU . . . . . . . . . . . . . . . . . . . 6-6

6.3.4 800 MHz SMR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

6.3.5 850 MHz Cellular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.3.6 1800 MHz DCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.3.7 1900 MHz PCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.3.8 2100 MHz AWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 1

6.3.9 2.1 GHz UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

6.3.10 2.1 GHz UMTS High Power . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

6.3.11 2500 MHz WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

6.3.12 2600 MHz MIMO RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

6.4 System Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

6.5 Estimating RF Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

6.5.1 Path Loss Equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

6.5.2 RAU Coverage Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18

6.5.3 Examples of Design Estimates . . . . . . . . . . . . . . . . . . . . . . . 6-22

2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

CONFIDENTIAL

6.6 Link Budget Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 4

6.6.1 Elements of a Link Budget for Narrowband Standards . . . . 6-24

6.6.2 Narrowband Link Budget Analysis

for a Microcell Application . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27

6.6.3 Elements of a Link Budget for CDMA Standards . . . . . . . . 6-29

6.6.4 CDMA Link Budget Analysis for a Microcell Application . 6-32

6.6.5 Considerations for Re-Radiation (Over-the-Air) Systems . . 6-35

6.7 Optical Power Budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3 6

6.8 Connecting a Main Hub to a Base Station . . . . . . . . . . . . . . 6-37

6.8.1 Uplink Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-37

6.8.2 RAU Attenuation and ALC . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

6.8.2.1 Using the RAU 10 dB Attenuation Setting . . . . . . . . . 6-39

6.8.2.2 Using the Uplink ALC Setting . . . . . . . . . . . . . . . . . . 6-40

SECTION 7 Installing Fusion Wideband . . . . . . . . . . . . . . . . 7-1

7.1 Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.1 Component Location Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.2 Cable and Connector Requirements . . . . . . . . . . . . . . . . . . . . 7-2

7.1.3 Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2.1 Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

7.2.2 General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.2.3 Fiber Port Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

7.3 Preparing for System Installation . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.1 Pre-Installation Inspectio n . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

7.3.3 Tools and Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

7.3.4 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

7.4 Fusion Wideband Installation Procedures . . . . . . . . . . . . . . 7-10

7.4.1 Installing a Fusion Wideband Main Hub . . . . . . . . . . . . . . . . 7-11

7.4.2 Installing Expansion Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

7.4.3 Installing RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32

7.4.3.1 Troubleshooting Using RAU LEDs

During Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35

7.4.4 Configuring the Fusion Wideband System . . . . . . . . . . . . . . 7-36

7.5 Splicing Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44

7.6 Interfacing the Fusion Wideband Main Hub

to an RF Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46

7.6.1 Connecting a Single Fusion Wideband Main Hub to an RF

Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46

7.6.2 Connecting Multiple Fusion Wideband Main Hubs to an RF

Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51

7.7 Connecting Contact Alarms to a Fusion Wideband System . 7-56

7.7.1 Alarm Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57

7.7.2 Alarm Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60

7.7.3 Alarm Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62

D-620616-0-20 Rev F

InterReach Fusion Wideband Installation, Operation, and Reference Manual 3

CONFIDENTIAL

7.8 Alarm Monitoring Connectivity Options . . . . . . . . . . . . . . . 7-63

7.8.1 Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63

7.8.2 Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64

7.8.2.1 Setting Up Fusion Wideband Modem (USR Modem)

Using AdminBrowser . . . . . . . . . . . . . . . . . . . . . . . . . 7-64

7.8.2.2 Setting Up a PC Modem Using Windows . . . . . . . . . . 7-65

7.8.3 100 BASE-T Port Expander Connection . . . . . . . . . . . . . . . . 7-73

7.8.4 POTS Line Sharing Switch Connection . . . . . . . . . . . . . . . . 7-74

7.8.5 Ethernet RF Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75

7.8.6 Ethernet LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76

7.8.7 SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77

SECTION 8 Replacing Fusion Wideband Components . . . . 8-1

8.1 Replacing an RAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

8.2 Replacing a Fusion Wideband Expansion Hub . . . . . . . . . . . . 8-3

8.3 Replacing a Fusion Wideband Main Hub . . . . . . . . . . . . . . . . 8-4

SECTION 9

APPENDIX A

APPENDIX B

Maintenance, Troubleshooting, and Technical Assistance 9-1

9.1 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

9.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

9.3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

9.3.1 Troubleshooting Using AdminBrowser . . . . . . . . . . . . . . . . . . 9-4

9.3.1.1 Troubleshooting Recommendations . . . . . . . . . . . . . . . 9-4

9.3.1.2 Fault/Warning/Stat us Indications . . . . . . . . . . . . . . . . . . 9-5

9.3.2 Troubleshooting Using LEDs . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

9.4 Troubleshooting CATV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

9.5 Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Cables and Connectors . . . . . . . . . . . . . . . . . . . A-1

A.1 75 Ohm CATV Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

A.2 Fiber Optical Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-6

A.3 Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

A.4 Standard Modem Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

A.5 TCP/IP Cross-over Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-8

A.6 DB-9 to DB-9 Null Modem Cable . . . . . . . . . . . . . . . . . . . . .A-9

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

B.1 Fusion Wideband System Approval Status . . . . . . . . . . . . . .B-1

B.2 Human Exposure to RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4

4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

CONFIDENTIAL

APPENDIX C Faults, W arnings, St atus T ables for Fusion, Fusion

Wideband, Fusion SingleStar . . . . . . . . . . . . . . A-1

C.1 Faults Reported by Main Hubs . . . . . . . . . . . . . . . . . . . . . . .A-1

C.2 Faults Reported for System CPU . . . . . . . . . . . . . . . . . . . . . .A-5

C.3 Faults for Expansion Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

C.4 Faults for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-9

C.5 Messages for Main Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . .A-10

C.6 Messages for System CPUs . . . . . . . . . . . . . . . . . . . . . . . . .A-15

C.7 Messages for Expansion Hubs . . . . . . . . . . . . . . . . . . . . . . .A-16

C.8 Messages for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-19

D-620616-0-20 Rev F

InterReach Fusion Wideband Installation, Operation, and Reference Manual 5

CONFIDENTIAL

6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

CONFIDENTIAL

List of Figures

Figure 2-1 Fusion Wideband System Hardware . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Figure 2-2 Fusion Wideband One Port System Hardware . . . . . . . . . . . . . . . . . .2-4

Figure 2-3 Three Methods for OA&M Communications . . . . . . . . . . . . . . . . . .2-5

Figure 2-4 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

Figure 2-5 Fusion Wideband’s Double Star Architecture . . . . . . . . . . . . . . . . . .2-7

Figure 2-6 Downlink (Base Station to Wireless Devices) . . . . . . . . . . . . . . . . . .2-8

Figure 2-7 Uplink (Wireless Devices to Base Station) . . . . . . . . . . . . . . . . . . . .2-8

Figure 3-1 Main Hub in a Fusion Wideband System . . . . . . . . . . . . . . . . . . . . .3-2

Figure 3-2 Main Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Figure 3-3 Fusion Wideband Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . .3-4

Figure 3-4 Fusion Wideband Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . .3-8

Figure 3-5 Preferences Check Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

Figure 4-1 Expansion Hub in a Fusion Wideband System . . . . . . . . . . . . . . . . .4-1

Figure 4-2 Expansion Hub Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Figure 4-3 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Figure 4-4 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8

Figure 5-1 Remote Access Unit in a Fusion Wideband System . . . . . . . . . . . . .5-2

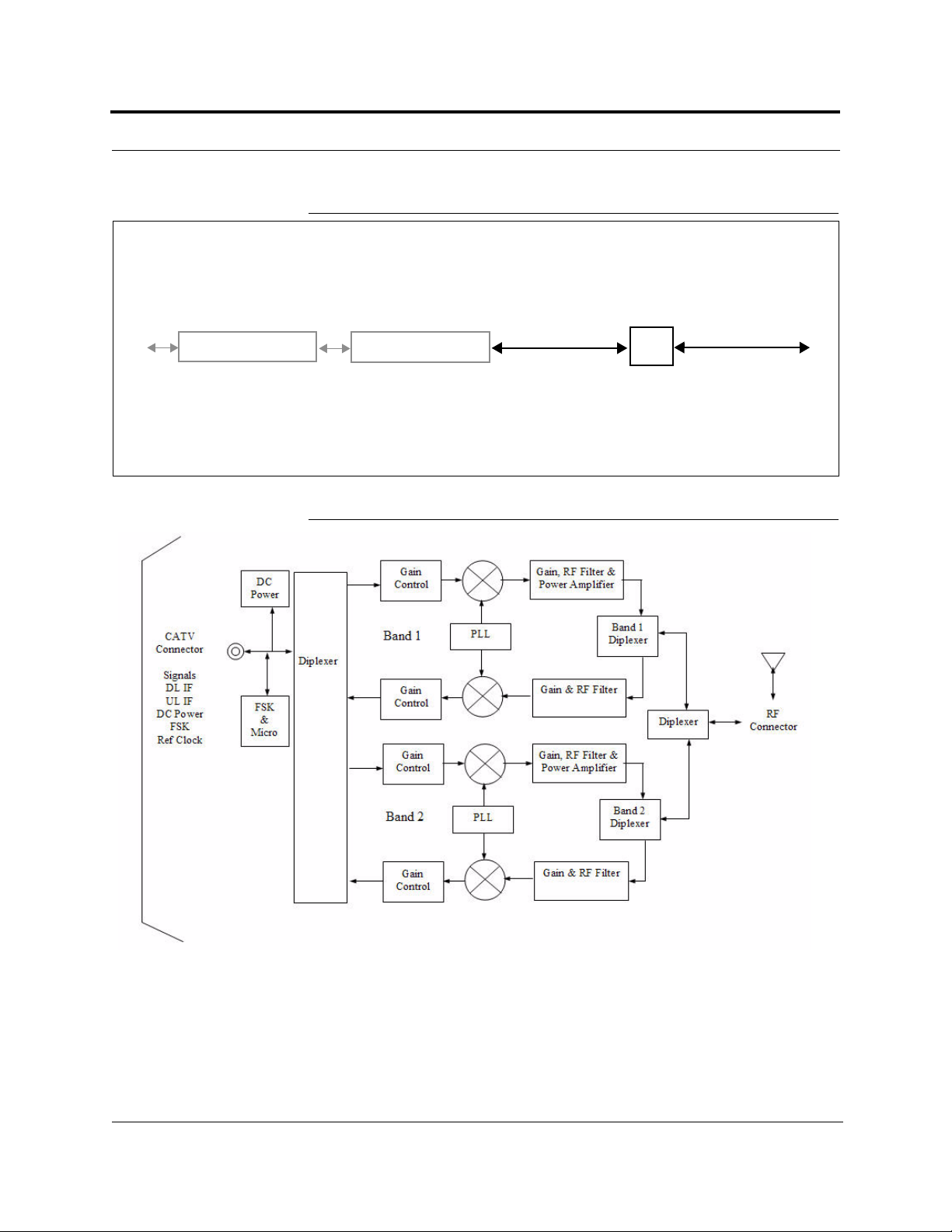

Figure 5-2 Remote Access Unit Block Diagram (Multiband) . . . . . . . . . . . . . . .5-2

Figure 6-1 Determining APL between the Antenna and the Wireless Device .6-16

Figure 6-2 ALC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-39

Figure 7-1 Flush Mounting Bracket Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12

Figure 7-2 Bracket Detail For Wall Mount Rack (PN 4712) . . . . . . . . . . . . . . .7-13

Figure 7-3 Installing Directly to the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-14

D-620616-0-20 Rev F

InterReach Fusion Wideband Installation, Operation, and Reference Manual 1

CONFIDENTIAL

Figure 7-4 Using Hub Rack-Mounting Brackets for Direct Wall Installation . 7-15

Figure 7-5 Protective Ground Wire Connection . . . . . . . . . . . . . . . . . . . . . . . 7-18

Figure 7-6 DC Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Figure 7-7 Power Screw Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Figure 7-8 Pan Head Screw Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Figure 7-9 Recommended Hub Wire Routing . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Figure 7-10 Compression Lug and Mounting Screw Locations . . . . . . . . . . . . 7-21

Figure 7-11 Grounding Wire Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Figure 7-12 Power Wires and Studs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Figure 7-13 Wire Polarity Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

Figure 7-14 DC Illustration Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

Figure 7-15 Flush Mounting Bracket Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

Figure 7-16 Bracket Detail For Wall Mount Rack (PN 4712) . . . . . . . . . . . . . . 7-26

Figure 7-17 Using Hub Rack-Mounting Brackets for Direct Wall Installation . 7-27

Figure 7-18 Installing Directly to the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28

Figure 7-19 800/850 MHz Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33

Figure 7-20 Fusion Wideband 800/850/1900 MHz RAU Antenna

Placement Guideline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33

Figure 7-21 Internet Protocol (TCP/IP) Properties Window . . . . . . . . . . . . . . . 7-37

Figure 7-22 Local Area Connection Properties Window . . . . . . . . . . . . . . . . . . 7-38

Figure 7-23 Set Time and Date Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39

Figure 7-24 AdminBrowser Configuration Window . . . . . . . . . . . . . . . . . . . . . 7-40

Figure 7-25 AdminBrowser Configuration Window for Non WiMAX . . . . . . 7-41

Figure 7-26 AdminBrowser Configuration Window WiMAX ONLY . . . . . . . 7-41

Figure 7-27 Simplex Base Station to a Fusion Wideband Main Hub . . . . . . . . 7 -47

Figure 7-28 Duplex Base Station to a Fusion Wideband Main Hub . . . . . . . . . 7-48

Figure 7-29 Connecting a Fusion Wideband Main Hub

to Multiple Base Stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49

Figure 7-30 Connecting a Fusion Wideband Main Hub to a Roof-top Antenna 7-50 Figure 7-31 Connecting Two Fusion Wideband Main Hub’s RF Band Ports

to a Simplex Repeater or Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53

Figure 7-32 Connecting Two Fusion Wideband Main Hub’s RF Band Ports

to a Duplex Repeater or Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55

Figure 7-33 Connecting FlexWave to Fusion Wideband . . . . . . . . . . . . . . . . . 7-57

Figure 7-34 Using a BTS to Monitor Fusion Wideband . . . . . . . . . . . . . . . . . . 7-58

Figure 7-35 Using a BTS and AdminBrowser to Monitor Fusion Wideband . . 7-59

Figure 7-36 Using Fusion Wideband to Monitor Unison . . . . . . . . . . . . . . . . . 7-60

Figure 7-37 Alarm Sense Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-61

Figure 7-38 5-port Alarm Daisy-Chain Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62

2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

CONFIDENTIAL

Figure 7-39 OA&M Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-63

Figure 7-40 OA&M Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-64

Figure 7-41 Default Dial-in Settings (Fusion Wideband Hub) . . . . . . . . . . . . . .7-65

Figure 7-42 Network Connections Window . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-66

Figure 7-43 New Connection Wizard - Welcome Window . . . . . . . . . . . . . . . . .7-66

Figure 7-4 4 New Connection Wizard - Network Connection Type Window . . .7-67

Figure 7-45 New Connection Wizard - Network Connection Window . . . . . . .7-67

Figure 7-46 New Connection Wizard - Connection Name Window . . . . . . . . . .7-68

Figure 7-47 New Connection Wizard - Phone Number to Dial Window . . . . . .7-68

Figure 7-48 New Connection Wizard - Connection Availability Window . . . . .7-69

Figure 7-49 New Connection Wizard - Completing New Connection Window .7-69

Figure 7-50 Connect Fusion Wideband Hub Window . . . . . . . . . . . . . . . . . . . .7-70

Figure 7-51 Fusion Wideband Hub Properties Window . . . . . . . . . . . . . . . . . . .7-70

Figure 7-52 Modem Configuration Window . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-71

Figure 7-53 Fusion Wideband Hub Properties - Security Tab Window . . . . . . .7-71

Figure 7-54 Fusion Wideband Hub Properties - Networking Tab Window . . . .7-72

Figure 7-55 Internet Protocol Properties Window . . . . . . . . . . . . . . . . . . . . . . . .7-72

Figure 7-5 6 OA&M Connection using a 232 Port Expander . . . . . . . . . . . . . . .7-73

Figure 7-57 OA&M Connection Using a POTS Line Sharing Switch . . . . . . . .7-74

Figure 7-58 Cascading Line Sharing Switches . . . . . . . . . . . . . . . . . . . . . . . . . .7-75

Figure 7-59 OA&M Connection Using Ethernet and ENET/232 Serial Hub . . .7-76

Figure 7-60 Fusion Wideband SNMP Configuration Options . . . . . . . . . . . . . .7-77

Figure A-1 CommScope 2065V for RG-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Figure A-2 CommScope 2279V for RG-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Figure A-3 CommScope 2293K for RG-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Figure A-1 Standard Modem Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

Figure A-2 Wiring Map for TCP/IP Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Figure A-3 DB-9 Female to DB-9 Female Null Modem Cable Diagram . . . . . A-9

D-620616-0-20 Rev F

InterReach Fusion Wideband Installation, Operation, and Reference Manual 3

CONFIDENTIAL

4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

List of Tables

Table 2-1 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Table 2-2 Wavelength and Laser Power Specifications . . . . . . . . . . . . . . . . . . . 2-10

Table 2-3 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Table 2-4 Frequency Bands Covered by Fusion Wideband RAUs . . . . . . . . . . . 2-10

Table 2-5 2100 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-12

Table 2-6 1800 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-12

Table 2-7 2100 MHz High Power RF End-to-End Performance . . . . . . . . . . . . 2-12

Table 2-8 1900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-13

Table 2-9 AWS RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

T able 2-10 800 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . 2-13

T able 2-11 850 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Table 2-12 1900 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-14

T able 2-13 700 MHz (Lower ABC) RF End-to-End Performance . . . . . . . . . . . . 2-14

T able 2-14 700 MHz (Upper C) RF End-to-End Performance . . . . . . . . . . . . . . . 2-15

Table 2-15 AWS RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

T able 2-16 700 MHz (Upper C) RF End-to-End Performance . . . . . . . . . . . . . . . 2-15

T able 2-17 700 MHz (Lower ABC) RF End-to-End Performance . . . . . . . . . . . . 2-16

Table 2-18 2500 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-16

Table 2-19 2600 MHz RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . 2-16

Table 3-1 Fusion Wideband Hub Status LED States . . . . . . . . . . . . . . . . . . . . . . . 3-6

Table 3-2 Fusion Wideband Hub Port LED States . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Table 3-3 9-pin D-sub Pin Connector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Table 3-4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Table 4-1 Expansion Hub Unit Status and DL/UL Status LED States . . . . . . . . . 4-5

Table 4-2 Fusion Wideband Expansion Hub Port LED States . . . . . . . . . . . . . . . 4-7

Table 4-3 9-pin D-sub Pin Connector Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Table 4-4 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Table 5-1 Frequency Bands Covered by Fusion Wideband RAUs . . . . . . . . . . . . 5-3

InterReach Fusion Wideband Installation, Operation, and Reference Manual 1

D-620616-0-20 Rev F CONFIDENTIAL

CONFIDENTIAL

Table 5-2 System Gain (Loss) Relative to CATV Cable Length . . . . . . . . . . . . . .5-4

Table 5-3 Remote Access Unit LED States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

Table 5-4 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Table 6-1 700 MHz (Lower A, B, C) Power per Carrier . . . . . . . . . . . . . . . . . . . .6-5

Table 6-2 700 MHz (Upper C) Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Table 6-3 AWS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Table 6-4 700 MHz (Lower ABC) Power per Carrier . . . . . . . . . . . . . . . . . . . . . . 6-6

Table 6-5 Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Table 6-6 Cellular Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

Table 6-7 DCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

Table 6-8 PCS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

Table 6-9 AWS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

Table 6-10 UMTS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

Table 6-11 UMTS Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

Table 6-12 WiMAX Power per Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

Table 6-13 System Gain (Loss) Relative to CATV Cable Length . . . . . . . . . . . . . 6-15

Table 6-14 Coaxial Cable Losses (Lcoax) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-16

Table 6-15 Average Signal Loss of Common Building Materials . . . . . . . . . . . . .6-17

Table 6-16 Frequency Bands and the Value of the First Term in Equation (3) . . . 6-18 T able 6-17 Estimated Path Loss Slope for Different In-Building Environments . 6-18 Table 6-18 Approximate Radiated Dist ance from Ant enna

for 800 MHz SMR Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-19 Approximate Radiated Dist ance from Ant enna

for 850 MHz Cellular Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Table 6-20 Approximate Radiated Dist ance from Ant enna

for 1800 MHz DCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

Table 6-21 Approximate Radiated Dist ance from Ant enna

for 1900 MHz PCS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Table 6-22 Approximate Radiated Dist ance from Ant enna

for 2.1 GHz UMTS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21

Table 6-23 Approximate Radiated Dist ance from Ant enna

for 1.7/2.1 GHz AWS Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21

Table 6-24 Approximate Radiated Dist ance from Ant enna

for 2.5 GHz WiMAX Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21

Table 6-25 Link Budg et Consid erations for Narrowband Systems . . . . . . . . . . . . 6-25

Table 6-26 Narrowband Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . .6-27

Table 6-27 Narrowband Link Budget Analysis: Uplink . . . . . . . . . . . . . . . . . . . .6-28

Table 6-28 Distribution of Power within a CDMA Signal . . . . . . . . . . . . . . . . . .6-29

Table 6-29 Additional Link Budget Considerations for CDMA . . . . . . . . . . . . . .6-30

Table 6-30 CDMA Link Budget Analysis: Downlink . . . . . . . . . . . . . . . . . . . . . .6-32

2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

CONFIDENTIAL

Table 6-31 CDMA Link Budget Analysis: Upli nk . . . . . . . . . . . . . . . . . . . . . . . . 6-34

Table 7-1 Distance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Table 7-2 Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Table 7-3 Tools and Materials Required for Component Installation . . . . . . . . . . 7-8

Table 7-4 Optional Accessories for Component Installation . . . . . . . . . . . . . . . . 7-9

Table 7-5 Troubleshooting Main Hub LEDs During Installation . . . . . . . . . . . . 7-24

Table 7-6 Troubleshooting Expansion Hub LEDs During Installation . . . . . . . . 7-31

Table 7-7 Troubleshooting RAU LEDs During Installation . . . . . . . . . . . . . . . . 7-36

Table 7-8 Alarm Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56

Table 9-1 Troubleshooting Main Hub Port LEDs During Normal Operation . . . . 9-6

Table 9-2 Troubleshooting Main Hub Status LEDs During Normal Operation . . 9-7 Table 9-3 Troubleshooting Expansion Hub Port LEDs During Normal Operation 9-8 Table 9-4 Troubleshooting Expansion Hub Status LEDs

During Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

Table 9-5 Summary of CATV Cable Wiring Problems . . . . . . . . . . . . . . . . . . . . 9-10

Table C-2 Faults for System CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-5

Table C-4 Faults for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-9

Table C-5 Warnings/Status Messages for Main Hubs . . . . . . . . . . . . . . . . . . . . .A-11

Table C-6 Warning/Status Messages for System CPUs . . . . . . . . . . . . . . . . . . . .A-15

Table C-8 Warning/Status Messages for RAUs . . . . . . . . . . . . . . . . . . . . . . . . . .A-19

D-620616-0-20 Rev F

InterReach Fusion Wideband Installation, Operation, and Reference Manual 3

CONFIDENTIAL

4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

D-620616-0-20 Rev F

SECTION 1 General Information

This section contains the following subsections:

• Section 1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

• Section 1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

• Section 1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

• Section 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

• Section 1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.1 Firmware Release

For the latest Software and Firmware Release and associated documentation, access the TE Customer Portal at http://www.te.com/adc.

1.2 Purpose and Scope

This document describes the InterReach Fusion Wideband system.

• Section 2 InterReach Fusion Wideband System Description

This section provides an overview of the Fusion Wideband hardware and OA&M capabilities. This section also contains system specifications and RF end-to-end performance tables.

• Section 3 Fusion Wideband Main Hub

This section illustrates and describes the Fusion Wideband Main Hub. This section includes connector and LED descriptions, and unit specifications.

InterReach Fusion Wideband Installation, Operation, and Reference Manual 1-1

D-620616-0-20 Rev F CONFIDENTIAL

Conventions in this Manual

• Section4 Fusion Wideband Expansion Hub

This section illustrates and describes the Expansion Hub, as well as connector and LED descriptions, and unit specification.

• Section 5 Remote Access Unit

This section illustrates and describes the Remote Access Unit. This section also includes connector and LED descriptions, and unit specifications.

• Section 6 Designing a Fusion Wideband Solution

This section provides tools to aid you in designing your Fusion Wideband system, including tables of the maximum output power per carrier at the RAU and formulas and tables for calculating path loss, coverage distance, and link budget.

• Section 7 Installing Fusion Wideband

This section provides installation procedures, requirements, safety precautions, and checklists. The installation procedures include guidelines for troubleshooting using the LEDs as you install the units.

• Section8 Replacing Fusion Wideband Components

This section provides installation procedures and considerations when you are replacing an Fusion Wideband component in an operating system.

• Section 9 Maintenance, Troubleshooting, and Technical Assistance

This section provides contact information and troubleshooting tables.

• Appendix A Cables and Connectors

This appendix provides connector and cable descriptions and requirements. It also includes cable strapping, connector crimping tools, and diagrams.

• AppendixB Compliance

This section lists safety and radio/EMC approvals.

• Appendix C Faults, Warnings, Status Tables

This section lists all system alarm messages.

1.3 Conventions in this Manual

The following table lists the type style conventions used in this manual.

Convention Description

bold Used for emphasis

BOLD CAPS

MALL CAPS Software menu and window selections

Labels on equipment

1-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Standards Conformance

This manual lists measurements first in metric units, and then in U.S. Customary System of units in parentheses. For example:

0° to 45°C (32° to 113°F)

This manual uses the following symbols to highlight certain information as described.

NOTE: This format emphasizes text with special significance or importance, and provides supplemental information.

CAUTION: This format indicates when a given action or omitted action can cause or contribute to a hazardous condition. Damage to the equipment can occur.

WARNING: This format indicates when a given action or omitted action can result in catastrophic damage to the equipment or cause injury to the user.

Procedure

This format highlights a procedure.

1.4 Standards Conformance

• Fusion Wideband uses the TIA-570-B cabling standards for ease of installation.

• Refer to Appendix B for compliance information.

CAUTION: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Help Hot Line (U.S. only): 1-800-530-9960 1-3

D-620616-0-20 Rev F CONFIDENTIAL

Related Publications

1.5 Related Publications

• AdminBrowser User Manual; TE part number D-620607-0-20

• FlexWave Focus Configuration, Installation, and Reference Manual; TE part num- ber 8500-10

• InterReach Unison Installation, Operation, and Reference Manual; TE part number 8700-50

1-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SECTION 2 InterReach Fusion Wideband

System Description

This section contains the following subsections:

• Section 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

• Section 2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

• Section 2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . . . . 2-5

• Section 2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

• Section 2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

• Section 2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

2.1 System Overview

InterReach Fusion Wideband is an intelligent fiber optics/CATV, multi-band (frequencies) wireless networking system designed to handle both wireless voice and data communications over licensed frequencies. It provides high-quality, ubiquitous, seamless access to the wireless network in larger buildings.

Fusion Wideband provides RF characteristics designed for large public and private facilities such as campus environments, airports, shopping malls, subways, convention centers, sports venues, and so on. Fusion Wideband uses microprocessors to enable key capabilities such as software-selectable band settings, automatic gain control, ability to incrementally adjust downlink/uplink gain, end-to-end alarming of all components and the associated cable infrastructure, and a host of additional capabilities.

The Fusion Wideband system supports major wireless standards and air interface protocols in use around the world, including:

• Frequencies: 700 MHz, 800 MHz, 850 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 2600 MHz.

• Voice Protocols: AMPS, TDMA, CDMA, GSM/EGSM, WCDMA, LTE, WiMAX

InterReach Fusion Wideband Installation, Operation, and Reference Manual 2-1

D-620616-0-20 Rev F CONFIDENTIAL

System Overview

• Data Protocols: CDPD, EDGE, GPRS, WCDMA, CDMA2000, 1xRTT, EV-DO, LTE, Paging, and WiMAX

The Fusion Wideband system supports three configurable bands:

• Band 1 in 60 MHz and can be configured for 700 MHz, 800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, or 2600 MHz

• Band 2 in 75 MHz and can be configured for 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, or 2600 MHz

Both bands support all protocols. Fusion Wideband remote access units (RAUs) contain combinations of Band 1,

Band 2, and Band 3 frequencies to support various world areas. These frequencies are 1800 MHz/2100 MHz for Europe, the Middle East, and Asia, or 800 MHz/850 MHz/1900 MHz for North America. Refer to Table 2-4 for a specific list of supported RAUs.

• Band 3 (only used for North America: FSN-W2-808519-1, FSN-W2-7021-1, FSN-W2-7070-1, and FSN-W2-7575-1). For example, the FSN-W2-808519-1 RAU Band 3 is a 25 MHz sub-band of the 60 MHz Band and Band 1 is an 18 MHz sub-band of the 60 MHz Band.

Key System Features

• Multi-Band, supports two or more full band frequencies for spectrum growth.

• Superior RF performance, particularly in the areas of IP3 and no ise figure.

• High downlink composite power and low uplink noise figure enables support of a large number of channels and larger coverage footprint per antenna.

• Softwar e configurable Main and Expansion Hubs allow the frequency bands to be configured in the field.

• Either single-mode or mult i-mode fibe r can be used, supporting flexible cabling alternatives (in addition to standard CATV 75 Ohm cabling). You can select the cabling type to met the resident cabling infrastructure of the facility and unique building topologies.

• Extended system “reach.” Using single-mode fiber, fiber runs can be a long as 6 kilometers (creating a total system “wingspan” of 12 kilometers). Alternatively, with multi-mode fiber, fiber runs can be as long as 500 meters.

• Standard 75 Ohm CATV cable, can be run up to 130 meters for RG-59 cable; 140 meters for RG-6; 235 meters for RG-11 using CommScope 2065V , 2279V, and 2293K cables.

• Flexib le RF configuration capabilities, including:

• System gain: – Ability to manually set gain in 1 dB steps, from 0 to 15 dB, on both down-

link and uplink.

2-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

•RAU: – RAU uplink and downlink gain can be independently attenuated 0 or 10 dB. – Uplink level control protects the system from input overload and can be

optimized for either a single operator or multiple operators/protocols.

– VSWR check on RAU reports if there is a disconnected antenna.

• Firmware Updates are downloaded (either locally or remotely) to the system

when any modifications are made to the product, including the addition of new software capabilities and services.

• OA&M capabilities, including fault isolation to the field replaceable unit, report-

ing of all fault and warning conditions, and user-friendly web browser user interface OA&M software package.

2.2 System Hardware Description

The InterReach Fusion Wideband system consists of three modular components:

System Hardware Description

• 19" rack-mountable Main Hub (connects to up to 4 Expansion Hubs, except for

the One Port Main Hub configuration that supports 1 Expansion Hub)

• Converts RF signals to optical IF on the downlink; optical IF-to-RF on the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Auto-configurable bands

• Simplex interface to RF source

• Periodically polls all downstream RAUs for system status, and automatically reports any fault or warning conditions

• 19” rack mountable Expansion Hub (connects to up to 8 Remote Access Units)

• Optical signal conversion to electrical on the downlink; electrical to optical on the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Software configurable band (based on commands from the Main Hub)

• Supplies DC power to RAUs over CATV cable.

• Remote Access Unit (RAU)

• Converts IF signals to RF on the downlink; RF-to-IF on the uplink

• Microprocessor controlled (for alarms, monitoring, and control)

• Multi-band protocol independent, frequency specific units

The minimum configuration of a Fusion Wideband system is one Main Hub, one Expansion Hub, and one RAU (1-1-1). The maximum configuration of a system is

Help Hot Line (U.S. only): 1-800-530-9960 2-3

D-620616-0-20 Rev F CONFIDENTIAL

System Hardware Description

one Main Hub, four Expansion Hubs, and 32 RAUs (1-4-32). Multiple systems can be combined to provide larger configurations.

NOTE: The Fusion Wideband One Port Main Hub (PN: FSN-W1-MH-1P and FSN-W2-MH-1P) configuration is a cost reduced version of the Fusion Wideband Main Hub and supports only one Expansion Hub (up to 8 RAUs).

The Fusion Wideband One Port Main Hub is “software locked” to 1 port 2 fiber ports. Additional ports are disabled internally. Please do not attempt to

remove the fr ont panel fiber port plate, since doing so will void the product warranty.

Figure 2-1 Fusion Wideband Syst em Hardware

Figure 2-2 Fusion Wideband One Port System Hardware

2-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

System OA&M Capabilities Overview

PSTN

RS-232

RS-232 Ethernet

PC/Laptop running a

Modem

Fusion Wideband Main Hub

Modem

Fusion Wideband Main Hub

Ethernet

LAN

Switch

F-conn.

Fusion Wideband Main Hub

Standard Browse r

Use AdminBrowser to configure or monitor a local or a remote Fusion Wideband system.

TCP/IP

RJ-45

Ethernet

Admin Browser

RS-232 Modem

2.3 System OA&M Capabilities Overview

InterReach Fusion Wideband is microprocessor controlled and contains firmware to enable much of the operations, administration, and maintenance (OA&M) functionality.

Complete alarming, down to the field replaceable unit (that is, Fusion Wideband Main Hub, Expansion Hub, and Remote Access Unit) and the cabling infrastructure, is available. All events occurring in a system, defined as a Fusion Wideband Main Hub and all of its associated Expansion Hubs and Remote Access Units, are automatically reported to the Main Hub. The Main Hub monitors system status and communicates that status using the following methods:

• Normally closed (NC) alarm contact closures can be tied to standard NC alarm monitoring systems or directly to a base station for basic alarm monitoring.

• Connection Methods:

• The Main Hub’s front panel RJ-45 port connects directly to a PC (for local Ethernet access).

• The Main Hub’s front panel RS-232 serial port connects directly to a modem (for remote access).

• Remote access is also available with an optional 100BASE-T LAN switch connections to the RJ-45 port.

D-620616-0-20 Rev F CONFIDENTIAL

Figure 2-3 Three Methods for OA&M Communications

AdminBrowser OA&M software runs on the Fusion Wideband Main Hub microprocessor and communicates to its downstream Expansion Hubs and associated RAUs. Using AdminBrowser, you can perform the following from any standard web browser (Internet Explorer) running on your PC/laptop system:

• Configure a newly installed system

• Change system parameters

Help Hot Line (U.S. only): 1-800-530-9960 2-5

System OA&M Capabilities Overview

Each RAU passes its status to the Hub.

If a fault is detected, the ALARM LED is red. If no fault is detected, the LED is green.

The Expansion Hub queries the status of each RAU and compares it to the previously stored status.

If a fault is detected, LEDs on the front panel turn red.

Fusion Wideband

Main Hub

AdminBrowser

RAU

Use a standard browser to communicate with remotely or locally installed Fusion Wideband systems running AdminBrowser.

If a fault or warning condition is reported, the AdminBrowser graphical user interface indicates the problem on your standard PC browser.

web browser

Fusion Wideband

Expansion

Hub

PC/Laptop

running a

standard

The Main Hub queries status of each Expansion Hub and each RAU and compares it to previously stored status.

If a fault is detected, LEDs on the front panel turn red.

AdminBrowser

• Perform an end-to-end system test

• Query system status Refer to the AdminBrowser User Manual (D-620607-0-20) for information about

installing and using AdminBrowser software.

2.3.1 System Monitoring and Reporting

Each Fusion Wideband Main Hub in the system constantly monitors itself, its Expansion Hubs, and their downstream RAUs for internal fault and warning conditions. The results of this monitoring are stored in memory and compared against new results.

When a Main or Expansion Hub detects a change in status, it reports a fault or warning alarm. Faults are also indicated locally by red status LEDs. Both faults and warnings are reported to AdminBrowser software and displayed on a PC/laptop connected to the Main Hub’s RJ-45 port. Passive antennas connected to the RAUs are not monitored automatically. Perform a System Test to retrieve status information about antennas.

Using AdminBrowser, you can install a new system or new components, change system parameters, and query system status. Figure 2-4 illustrates how the system reports its status to AdminBrowser.

2-6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

2.3.2 Using Alarm Contacts

Figure 2-4 System Monitoring and Reporting

You can connect the DB-9 female connector on the rear panel of the Fusion Wideband Main Hub to a local base station or to a daisy-chained series of Fusion and/or FlexWave Focus systems.

When you connect FlexWave Focus or a BTS to the Fusion Wideband, the Fusion

Main Hub

RS-232

PORT 1 PORT 2 PORT 3 PORT 4

Expansion Hub

Fiber

Expansion Hub

CATVCATV (RG-59, 6, or 11) CATV

up to 8 RAUs per Expansion Hub

RAU RAU RAU

RJ-45

Wideband Main Hub outputs the alarms (alarm source) and FlexWave Focus or the BTS receives the alarms (alarm sense). This is described in Section 7.7.1 on page 7-57.

2.4 System Connectivity

The double star architecture of the Fusion Wideband system, illustrated in Figure 2-5, provides excellent system scalability and reliability. The system requires only one pair of fibers for eight antenna points. This makes any system expansion, such as adding an extra antenna for additional coverage, potentially as easy as pulling an extra CATV cable.

Figure 2-5 Fusion Wideband’s Double Star Architecture

System Connectivity

Help Hot Line (U.S. only): 1-800-530-9960 2-7

D-620616-0-20 Rev F CONFIDENTIAL

System Operation

Main Hub

RAU

The Main Hub receives downlink RF signals from

a base station using 50 Ohm coaxial cable.

The Main Hub converts the RF signals to IF, then to optical signals and sends them to Expansion Hubs (up to four) using optical fiber cable.

The Expansion Hub converts the optical signals to electrical signals and sends them to RAUs (up to eight) using 75 Ohm CATV cable.

The RAU converts the IF signals to RF and sends them to passive antennas using 50 Ohm coaxial cable.

Expansion Hub

Main Hub

RAU

The Main Hub sends uplink RF signals to a base station using 50 Ohm coaxial cable.

The Main Hub receives the optical signals from the Expansion Hubs (up to four) using optical fiber cable and converts them to RF signals.

The Expansion Hub receives the IF signals from the RAUs (up to eight) using CATV cable and converts them to optical signals.

The RAU receives uplink RF signals from the passive antenna using 50 Ohm coaxial cable and converts them to IF signals.

Expansion Hub

2.5 System Operation

Figure 2-6 Downlink (Base Station to Wireless Devices)

2-8 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Figure 2-7 Uplink (Wireless Devices to Base Station)

2.6 System Specifications

System Specifications

Table 2-1

Parameter Main Hub Expansion Hub

IF/RF Connectors

4-type N, female 1 Downlink/Uplink pair per band

Physical Specifications

(50 Ohm),

8-type F, female (CATV 75 Ohm) One F, female

Remote Access Unit

(CATV -75 Ohm) One N, female

(antenna - 50 Ohm)

External Alarm Connector

One, 9-pin D-sub, female One, 9-pin D-sub, female —

(contact source) ADMIN/LAN Interface

Connectors

One RJ-45, female One 9-pin D-sub, male for

One RJ-45, female One 9-pin D-sub, male

—

optional modem

Fiber Connectors

LED Alarm and Status Indicators

4 pair, SC/APC Unit Status (One pair):

•Power

• Main Hub Status Downstream Unit Status

(One per fiber port):

• Expansion Hub/RAU

One pair, SC/APC — Unit Status (One pair):

Power and Expansion Hub Status

Fiber Link Status (One pair):

DL Status and UL Status

Unit Status (One pair):

•Link

•Alarm

Port Status:

One per F connector port and Link/RAU

Power (AC Option) Rating: 100–240V AC, 1A,

50–60 Hz Operating Range: 90–132V

AC/170-250V AC auto-ranging

Rating: 100–240V AC, 6A, 50–60 Hz

Operating Range: 90–132V AC/170-250V AC auto-ranging

—

Power (DC Option) Rating: 38–64V DC, 2.5A Rating: 38-64V DC, 14A — Power Consumption (W) 30 4 RAUs: 240 typical, 310 Max.

—

8 RAUs: 400 typical, 530 Max.

89 mm × 438 mm × 381 mm

Enclosure Dimensions (H

WD) (Excluding

(3.5 in. × 17.25 in. × 15 in.) (2U) angle- brackets for 19'' rack mounting of hub)

Weight < 5.5 kg (< 12 lbs.)

89 mm × 438 mm × 381 mm (3.5 in. × 17.25 in. × 15 in.) (2U)

< 6.6 kg (< 14.5 lbs.)

54 mm x 286 mm x 281 mm

(2.13 in. × 11.25 in. × 11.13 in.)

< 2.1 kg (< 4.6 lbs.)

a. 6-type N, female connectors for FSN-W2-MH-1, FSN-W2-MH-2, and FSN-W 2 -MH -3 Main Hub . b. 2-type N, female connectors for FSN-W1-1921-1, FSN-W2-808519-1, FSN-W2-7575-1, FSN-W2-7070-1, FSN-W3-2626-1, and

FSN-2500-2-WMAX RAUs. c. It is critical to system performance that only SC/APC fiber connectors are used throughout the fib er network , inclu ding f iber dis tribu tion pan els. d. FSN-W1-MH-1P and FSN-W2-MH-1P support only one pair , SP/APC fibers. e. Excluding angle-brackets for 19” rack mounting of hub.

Note: The Fusion Wideband Main Hub’s typical power consumption assumes that the CATV RG-59 cable length is no more than 130 meters,

the RG-6 cable length is no more than 140 meters, and RG-11 cable length is no more than 235 meters using CommScope 2065V, 2279V, and

2293K cables.

Help Hot Line (U.S. only): 1-800-530-9960 2-9

D-620616-0-20 Rev F CONFIDENTIAL

System Specifications

Table 2-2 Wavelength and Laser Power Specifications

Measured Output Power

Wavelength Main Hub Expansion Hub

1310 nm +

Table 2-3 Environmental Specifications

20 nm 890 uW 3.8 mW

Parameter Main Hub and Expansion Hub RAU

Operating Temperature 0° to +45°C (+32° to +113°F) –25° to +45°C (–13°

to +113°F)

Non-operating Temperature

Operating Humidity;

–20° to +85°C (–4° to +185°F) –25° to +85°C (–13°

to +185°F)

5% to 95% 5% to 95%

non-condensing

Table 2-4 Frequency Bands Covered by Fusion Wideband RAUs

RF Passband

Fusion Wideband RAU Part Number

Fusion Wideband Band

Downlink (MHz)

Uplink (MHz)

MAIN HUB/ RAU Band

RAU Bandwidth

2100/1800 FSN-W1-2118-1 2100 2110-2170 1920-1980 1 60 MHz

1800 1805-1880 1710-1785 2 75 MHz

2100 High

FSN-W1-21HP-1 2100 2110-2170 1920-1980 1 60 MHz Power (single-band RAU)

1900/AWS FSN-W1-1921-1 1900

1930-1990 1850-1910 1 60 MHz

(A-F) AWS 2110-2155 1710-1755 2 45 MHz

800/850/1900 FSN-W2-808519-1 800 851-869 806-824

850 869-894 824-849

1900

1930-1990 1850-1910 2 60 MHz

1 (sub-band 1A)

3 (sub-band 1B)

18 MHz

25 MHz

(A-F)

2-10 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

System Specifications

Table 2-4 Frequency Bands Covered by Fusion Wideband RAUs (continued)

RF Passband

Fusion Fusion Wideband RAU Part Number

Wide-

band

Band

700/AWS FSN-W2-7021-1 700

(Upper C)

700

(Lower

ABC)

Downlink (MHz)

Uplink (MHz)

746-757 776-787

728-746 698-716

MAIN HUB/ RAU Band

1 (sub-band 1A)

3 (sub-band 1B)

RAU Bandwidth

11 MHz

18 MHz

AWS 2110-2155 1710-1755 2 45 MHz 700/700

MIMO (Upper C)

700/700 MIMO (Lower ABC)

FSN-W2-7575-1 700

(Upper C)

700

(Upper C)

FSN-W2-7070-1 700

(Lower

ABC)

700

(Lower

ABC)

746-757 776-787 1 (sub-

band 1A)

746-757 776-787 3 (sub-

band 1B)

728-746 698-716 1 (sub-

band 1A)

728-746 698-716 3 (sub-

band 1B)

11 MHz

18 MHz

2500/2500 FSN-2500-2-WMAX 2500 2496-2690 2496-2690 1 30 MHz

2500 2496-2690 2496-2690 2 30 MHz 2600/2600 FSN-W3-2626-1 2600 2620-2690 2500-2570 1 70 MHz

2600 2620-2690 2500-2570 2 70 MHz

2.6.1 RF End-to-End Performance

The following tables list the RF end-to-end performance of each protocol.

NOTE: The system gain is adjustable in 1 dB steps from 0 to 15 dB, and the gain of each RAU can be attenuated 0 or 10 dB.

Help Hot Line (U.S. only): 1-800-530-9960 2-11

D-620616-0-20 Rev F CONFIDENTIAL

System Specifications

2100/1800 RAU

Table 2-5 2100 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 5 5 Output IP3 (dBm) 38 Input IP3 (dBm) -5 Output 1 dB Compression Point (dBm) 26 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

Table 2-6 1800 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 4.5 5 Output IP3 (dBm) 38 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 26 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

2100 High Power RAU

Table 2-7 2100 MHz High Power RF End-to-End Performance

Typical

Parameter Downlink Uplink

A verage gain with 130 m RG-59 at 25°C (77°F) (dB) * †

Ripple with 130 m RG-59 (dB) 4.5 5 Output IP3 (dBm) 44 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 33 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

* The system Downlink gain is adjustable in 1 dB steps from 7 to 22 dB (the High Power RAU adds 7

dB of Downlink gain).

2-12 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

22 15

† The system Uplink gain is adjustable in 1 dB steps from 0 to 15 dB.

1900/AWS RAU

System Specifications

Table 2-8

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 3.5 4 Output IP3 (dBm) 38 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 26 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

Table 2-9 AWS RF End-to-End Performance

Parameter Downlink Uplink

1900 MHz RF End-to-End Performance

Typical

800/850/1900 RAU

Table 2-10 800 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 2.5 3 Output IP3 (dBm) 37 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 25 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

Help Hot Line (U.S. only): 1-800-530-9960 2-13

D-620616-0-20 Rev F CONFIDENTIAL

System Specifications

Table 2-11 85 0 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

Table 2-12 1900 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

700/AWS RAU

Table 2-13 700 MHz (Lower ABC) RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 2.5 3 Output IP3 (dBm) 34 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 22 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 20 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 26

2-14 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

System Specifications

Table 2-14 700 MHz (Upper C) RF End-to-End Performance

Typical

Parameter Downlink Uplink

Table 2-15 AWS RF End-to-End Performance

Typical

Parameter Downlink Uplink

700/700 (Upper C) MIMO RAU

Table 2-16 700 MHz (Upper C) RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 2.5 3 Output IP3 (dBm) 38 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 26 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

Help Hot Line (U.S. only): 1-800-530-9960 2-15

D-620616-0-20 Rev F CONFIDENTIAL

System Specifications

700/700 (Lower ABC) MIMO RAU

Table 2-17 700 MHz (Lower ABC) RF End-to-End Performance

Typical

Parameter Downlink Uplink

2500/2500 RAU

Table 2-18 2500 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

Average gain with 130 m RG-59 at 25°C (77°F) (dB) 15 15 Ripple with 130 m RG-59 (dB) 4.5 4.5 Output IP3 (dBm) 42.5 Input IP3 (dBm) –5 Output 1 dB Compression Point (dBm) 32 Noise Figure 1 MH, 1 EH, 8 RAUs (dB) 17 Noise Figure 1 MH, 4 EH, 32 RAUs (dB) 23

2600/2600 RAU

Table 2-19 2600 MHz RF End-to-End Performance

Typical

Parameter Downlink Uplink

2-16 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SECTION 3 Fusion Wideband Main Hub

This section contains the following subsections:

• Section 3.1 Fusion Wideband Main Hub Overview . . . . . . . . . . . . . . . . . . . . 3-1

• Section 3.2 Fusion Wideband Main Hub Front Panel . . . . . . . . . . . . . . . . . . . 3-4

• Section 3.3 Fusion Wideband Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . 3-8

• Section 3.4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

• Section 3.5 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . . 3-11

3.1 Fusion Wideband Main Hub Overview

The Fusion Wideband Main Hub (shown in Figure 3-1) distributes up to three individual (Band 1, 2, and 3) downlink RF signals from a base station, repeater, or FlexW ave Focus system to up to four Expansion Hubs, which in turn distribute the signals to up to 32 Remote Access Units. The Main Hub also combines uplink signals from the associated Expansion Hubs.

Fusion Wideband is a multi-band system. One RF source (Band 1 or RF1) goes to the 60 MHz band and the other RF source (Band 2 or RF2) goes to the 75 MHz band. Band 3 (or RF3) goes to a 25 MHz sub-band of the 60 MHz band and is functional only with the 800/850/1900, 700/AWS, 700/700 (Upper C) MIMO, and 700/700 (Lower ABC) MIMO RAU. The system installs in a 19" equipment rack and is usually co-located with the RF source in a telecommunications closet.

InterReach Fusion Wideband Installation, Operation, and Reference Manual 3-1

D-620616-0-20 Rev F CONFIDENTIAL

Fusion Wideband Main Hub Overview

Fusion Wideband Main Hub

Fusion Wideband Expansion Hub RAU

Downlink Path: The Main Hub receives up to 3 individual (Band1, 2, and 3) downlink RF signals from a base station,

repeater, or FlexWave Focus system using 50 Ohm coaxial cable. It converts the signals to IF then to optical and sends them to up to four Expansion Hubs using fiber optic cable.

The Main Hub also sends OA&M communication to the Expansion Hubs using the fiber optic cable. The Expansion Hubs, in turn, communicate the OA&M information to the RAUs using CATV cable.

Uplink Path: The Main Hub receives uplink optical signals from up to four Expansion Hubs using fiber optic cables. It converts the signals to IF then to RF and sends them to the respective Band1, 2, and 3 base station, repeater, or FlexWave Focus system using 50 Ohm coaxial cable.

The Main Hub also receives status information from the Expansion Hubs and all RAUs using the fiber optic cable.

Downlink to Main Hub

Uplink from Main Hub

Downlink from Main Hub

Uplink to Main Hub

RF1, 2, and 3

Figure 3-1 Main Hub in a Fusion Wideband System

Figure 3-2 shows a detailed view of the major RF and optical functional blocks of the Main Hub.

3-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Figure 3-2 Main Hub Block Diagram

CAL Tone

Fusion Wideband Main Hub Overview

Help Hot Line (U.S. only): 1-800-530-9960 3-3

D-620616-0-20 Rev F CONFIDENTIAL

Fusion Wideband Main Hub Front Panel

InterReach

Wideband Fusion

Main Hub

3.2 Fusion Wideband Main Hub Front Panel

Figure 3-3 Fusion Wideband Main Hub Front Panel

1. Four fiber optic ports (labeled PORT 1, PORT 2, PORT 3, PORT 4)

• One standard female SC/APC connector per port for MMF/SMF input (labeled

UPLINK)

• One standard female SC/APC connector per port for MMF/SMF output (labeled

2. Four sets of fiber port LEDs (one set per port)

DOWNLINK)

• One LED per port for port link status and downstream unit status

3. One set of unit status LEDs

• One LED for unit power status (labeled

• One LED for unit status (labeled

4. One 9-pin D-sub male connector for system remote dial-up communication and

diagnostics using a modem (labeled

5. One RJ-45 female connector for system communication and diagnostics using a

PC/laptop with direct connect or using a LAN switch (labeled

6. Power switch

POWER)

MAIN HUB STATUS)

MODEM)

ADMIN/LAN)

NOTE: The Fusion Wideband One Port Main Hub (PN: FSN-W1-MH-1P

and FSN-W2-MH-1P) configuration is a cost reduced version of the Fusion Wideband Main Hub and supports only one Expansion Hub (up to 8 RAUs).

3-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

3.2.1 Optical Fiber Uplink/Downlink Ports

The optical fiber uplink/downlink ports transmit and receive optical signals between the Main Hub and up to four Expansion Hubs using industry-standard SMF or MMF cable. There are four fiber ports on the front panel of the Main Hub; one port per Expansion Hub. Each fiber port has two female SC/APC connectors:

• Optical Fiber Uplink Connector

This connector (labeled an Expansion Hub.

• Optical Fiber Downlink Connector

This connector (labeled nals to an Expansion Hub.

CAUTION: To avoid damaging the Main Hub’s fiber connector ports, use only SC/APC fiber cable connectors when using either single-mode

or multi-mode fiber. Additionally, it is critical to system performance that only SC/APC fiber connectors are used throughout the fiber network, including fiber distribution panels.

UPLINK) is used to receive the uplink optical signals from

DOWNLINK) is used to transmit the downlink optical sig-

Fusion Wideband Main Hub Front Panel

3.2.2 Communications RS-232 Serial Connector

Remote Monitoring

Use a standard serial cable to connect a modem to the 9-pin D-sub male serial connector for remote monitoring or configuring. The cable typically has a DB-9 female and a DB-9 female connector. Refer to Appendix A.6 on page A-9 for the cable pinout diagram.

Remote monitoring is also available by connecting the RJ-45 (ADMIN/LAN) port to a LAN switch for remote Ethernet LAN access or direct dial-up router access.

Local Monitoring

Use a crossover Ethernet cable (PN-4069-ADB) to connect a laptop or PC to the RJ-45 female connector for local monitoring or configuring using the AdminBrowser resident software. The cable typically has a RJ-45 male connector on both ends. Refer to Appendix A.5 on page A-8 for the cable pinout.

3.2.3 Main Hub LED Indicators

The unit’s front panel LEDs indicate faults and commanded or fault lockouts. The LEDs do not indicate warnings or whether the system test has been performed. Use the LEDs to provide basic information only, or as a backup when you are not usin g AdminBrowser.

Help Hot Line (U.S. only): 1-800-530-9960 3-5

D-620616-0-20 Rev F CONFIDENTIAL

Fusion Wideband Main Hub Front Panel

POWER STATUS

Upon power up, the Main Hub goes through a 20-second test to check the LED lamps. During this time, the LEDs blink through the states shown in Table 3-1, letting you visually verify that the LED lamps and the firmware are functioning properly. Upon completion of initialization, the LEDs stay in one of the first two states shown in Table 3-1.

The Main Hub automatically sends the program bands command to all connected RAUs. A mismatched band causes a fault message to be displayed in AdminBrowser and places the RAU in a disabled condition.

NOTE: Refer to Section 9.3.2 for troubleshooting using the LEDs.

NOTE: AdminBrowser should be used for troubleshooting the system.

Only use LEDs for backup or confirmation. However, if there are communication problems within the system, the LEDs may provide additional information that is not available using AdminBrowser.

Unit Status LEDs

The Main Hub has one pair of status LEDs, labeled POWER and STATUS, which can be in one of the states shown in Table 3-1. These LEDs can be:

steady green steady red off - no color (valid only during 90 second power cycle)

flashing red (60 ppm)

There is no off state when the unit’s power is on.

Table 3-1 Fusion Wideband Hub Status LED States

LED State Indicates

Green Green

Green Red

Green Green

(60-ppm)

• The Main Hub is connected to power and all power supplies are operating.

• The Main Hub is not reporting a fault; however, the system test may ne ed to be performed or a warning condition may exist. Use AdminBrowser to determine this.

• The Main Hub is connected to power and all power supplies are operating. Use AdminBrowser to power status.

• The Main Hub is reporting a fault.

• The Main Hub is connected to power and all power supplies are operating. Use Admin Browser to determine power status.

• The Main Hub is reporting a lockout condition.

3-6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Fusion Wideband Main Hub Front Panel

POWER STATUS

PORT

Table 3-1 Fusion Wideband Hu b Status LED States (continued)

LED State Indicates

Green Red

• The Main Hub is connected to power and all power supplies are operating.

• The Main Hub DL input signal level is too high.

(60-ppm) Red

• One or more power supplies are out-of-specification.

Red Green Red/Green

(alternating)

• After the System CPU is rebooted, the MH status LED blinks red/green while the system tree data is built, power up system test is executed, and all units have their current status updated.

• Should the MH status LED blink red/green after initial power up, either the System CPU has rebooted or a component of the software has reset.

Fiber Port LEDs

The Main Hub has one fiber port LED for each of the four fiber ports. The LED can be in one of the states shown in Table 3-2. This LED can be:

off steady green steady red flashing red (60 ppm)

Table 3-2 Fusion Wideband Hub Port LED States

LED State Indicates

Off • The Expansion Hub is not connected.

• The Expansion Hub is connected.

Green Red

• There are no faults from the Expansion Hub or any connected RAU.

• There was a loss of communications with the Expansion Hub.

(60 PPM)

Red (Steady)

Green

• The Expansion Hub is disconnected.

• The Expansion Hub or any connected RAU reported a fault.

• The Expansion Hub or any connected RAU reported a lockout condition.

(60-ppm)

Help Hot Line (U.S. only): 1-800-530-9960 3-7

D-620616-0-20 Rev F CONFIDENTIAL

Fusion Wideband Main Hub Rear Panel

Band 1

Band 2

Band 3

UL1 UL2

UL3

DL1

DL2

DL3

AC Power

Alarms

3.3 Fusion Wideband Main Hub Rear Panel

Figure 3-4 Fusion Wideband Main Hub Rear Panel

1. AC power cord connector

2. Two air exhaust vents

3. Three N-type, female connectors for each band (Band 1, Band 2, and Band 3):

4. One 9-pin D-sub female connector for contact alarm monitoring (labeled

5. Ground lug for connecting unit to frame ground (labeled GROUND)

• Uplink (labeled

UL1, UL2, and UL3)

• Downlink (labeled

ALARMS)

DL1, DL2, and DL3)

3.3.1 Fusion Wideband Main Hub Rear Panel Connectors

3.3.1.1 9-pin D-sub Connector

The 9-pin D-sub connector (labeled ALARMS) provides a contact alarm for fault and warning system alarm monitoring.

Table 3-3 lists the function of each pin on the 9-pin D-sub connector.

Table 3-3 9-pin D-sub Pin Connector Functions

Pin Function

1 Alarm Sense Input (DC Ground) 2 Alarm Sense Input 3 3 Alarm Sense Input 2 4 Warning Source Contact (positive connection)

3-8 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Table 3-3 9-pin D-sub Pin Connector Functions

Pin Function

5 Warning Source Contact (negative connection) 6 DC Ground (common) 7 Fault Source Contact (positive connection) 8 Alarm Sense Input 1 9 Fault Source Contact (negative connection)

This interface can both generate two source contact alarms (Fault and Warning) and sense 3 single external alarm contacts (Alarm Sense Input 1 through 3).

3.3.1.2 N-type Female Connectors

There are two 50 Ohm N-type connector pairs for each of the 3 bands on the rear panel of the Hub:

• The

DOWNLINK connector receives downlink RF signals from a repeater, local

base station, or FlexWave Focus system.

• The

UPLINK connector transmits uplink RF signals to a repeater, local base sta-

tion, or FlexWave Focus system.

Fusion Wideband Main Hub Rear Panel

CAUTION:The UPLINK and DOWNLINK ports cannot handle a DC power

feed from the local base station. If DC power is present, a DC block must be used or the Fusion Wideband hub may be damaged.

Help Hot Line (U.S. only): 1-800-530-9960 3-9

D-620616-0-20 Rev F CONFIDENTIAL

Main Hub Specifications

Specification Description

Enclosure Dimensions (H Weight <5.5 kg (<12 lb) Operating Temperature 0° to +45°C (+32° to +113°F) Non-operating T e mperature –20° to +85°C (–4° to +185°F) Operating Humidity, non-condensing 5% to 95% External Alarm Connector

(contact closure)

ADMIN/LAN Interface Connector 1 RJ-45, female

Fiber Connectors RF Connectors LED Fault and Status Indicators Unit Status (1 pair):

AC Power Rating 100/240V AC, 1A, 50-60 Hz

Power Consumption (W) 30 MTBF 133,829 hours

3.4 Main Hub Specifications

Table 3-4 Main Hub Specifications

 W  D)

89 mm x 438 mm x 381 mm (3.5 in. x 17.25 in. x 15 in.) 2U

1 9-pin D-sub, female Maximum: 40 mA @ 40V DC Typical: 4 mA @ 12V DC

1 9-pin D-sub, male for optional modem 4 Pair, SC/APC

, female (50 Ohm), 1 Downlink/Uplink pair per band

4 N

•Power

• Main Hub Status Downstream Unit/Link Status (1 per fiber port):

• Link/E-Hub/RAU

Operating Range: 90-132V AC/170-250V AC auto-ranging

a. Excluding angle brackets for the 19” rack mounting of the Hub. b. It is critical to system performance that only SC/APC fiber connectors are used throughout the fiber network, including

fiber distribution panels.

c. 6 N, female connectors for FSN-W2-MH-1, FSN-W2-MH-2, and FSN-W2-MH-3

NOTE: The Fusion Wideband One Port Main Hu b (PN: FSN-W1-MH-1P and FSN-W2-MH-1P) configuration is a cost reduced version of the Fusion Wideband Main Hub and supports only one Expansion Hub (up to 8 RAUs).

3-10 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Faults, Warnings, and Status Messages

3.5 Faults, Warnings, and Status Messages

3.5.1 Description

The Fusion Wideband Main Hub monitors and reports changes or events in system performance to:

• Ensure that fiber receivers, amplifiers and IF/RF paths are functioning properly.

• Ensure that Expansion Hubs and Remote Access Units are connected and functioning properly.

An event is classified as fault, warning, or status message.

• Faults are service impacting.

• Warnings indicate a possible service impact.

• Status and informational messages are generally not service impacting.

The Fusion Wideband Main Hub periodically queries attached Expansion Hub and Remote Access Units for their status. Both faults and warnings are reported to a connected PC/laptop running a standard browser communicating with the AdminBrowser software. Only faults are indicated by the faceplate LEDs.

For more information regarding the events, refer to:

• Appendix C for Main Hub faults.

• Appendix C for Main Hub warnings.

• Appendix C for Main Hub status messages.

• Section 9 for troubleshooting Main Hub LEDs.

Help Hot Line (U.S. only): 1-800-530-9960 3-11

D-620616-0-20 Rev F CONFIDENTIAL

Faults, Warnings, and Status Messages

3.5.2 View Preference

AdminBrowser 1.0 or higher enables you to select (using the screen shown in Figure 3-5) the type of events to be displayed.

Figure 3-5 Preferences Check Boxes

T o modify the setting, using AdminBrowser, select Alarms  Set Alarm Preference and select the desired choice. After you click

OK, AdminBrowser refreshes and

updates the tree view according to the new setting.

NOTE: The setting is strictly visual and only in AdminBrowser. There is no affect on the hardware itself. By default, the event filtering is set to “Enable viewing of Faults only”.

The only exception to when the event filtering is ignored is during the Install/Configure command. All events are displayed regardless of the event filtering setting. This ensures a smooth installation.

3-12 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SECTION 4 Fusion Wideband

Fusion Wideband Expansion Hub

Fusion Wideband Main Hub

RAU

Downlink Path: The Expansion Hub receives downlink (Band 1, 2, and 3) optical signals from the Main Hub using fiber

optic cable. It converts the signals to electrical and sends them to up to eight Remote Access Units (RAUs) using CATV cables. The Expansion Hub also receives configuration information from the Main Hub using the fiber optic cable and relays it to the RAUs using CATV cable.

Uplink Path: The Expansion Hub receives uplink (Band 1, 2, and 3) IF signals from up to eight RAUs using CATV cables. It converts the signals to optical and sends them to a Main Hub using fiber optic cable.

The Expansion Hub also receives RAU status information using CATV cable and sends it and its own status information to the Main Hub using the fiber optic cable.

Downlink to Expansion Hub

Uplink from Expansion Hub

Downlink from Expansion Hub

Uplink to Expansion Hub

Expa nsion Hub

This section contains the following subsections:

• Section 4.1 Expansion Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

• Section 4.2 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

• Section 4.3 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

• Section 4.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . . . 4-9

• Section 4.5 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.1 Expansion Hub Overview

The Expansion Hub acts an interface between the Main Hub and the Remote Access Unit(s) by converting optical signals to electrical signals and vice versa, as shown in Figure 4-1. It also supplies control signals and DC power to operate the Remote Access Unit(s) as well as passing status information from the RAUs to the Main Hub.

Figure 4-1 Expansion Hub in a Fusion Wideband System

InterReach Fusion Wideband Installation, Operation, and Reference Manual 4-1

D-620616-0-20 Rev F CONFIDENTIAL

Expansion Hub Overview

Figure 4-2 Expansion Hub Block Diagram

4-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

4.2 Expansion Hub Front Panel

1 2 3 4 5

Figure 4-3 Expa nsion Hub Front Panel

Expansion Hub Front Panel

1. One port LED per type F connector port for link status and downstream RAU sta-

tus (8 pair total).

2. Eight CATV cable, type F connectors (labeled PORT 1, 2, 3, 4, 5, 6, 7, 8)

3. One pair of unit status LEDs

• One LED for unit power status (labeled

• One LED for unit status (labeled

4. One set of fiber connection status LEDs

• One LED for fiber downlink status (labeled

• One LED for fiber uplink status (labeled

5. One fiber optic port which has two connectors

POWER)

E-HUB STATUS)

DL STATUS)

UL STATUS)

• One standard female SC/APC connector for MMF/SMF output (labeled

UPLINK)

• One standard female SC/APC connector for MMF/SMF input (labeled

DOWNLINK)

6. One 9-pin D-sub male connector for TE factory testing (labeled CONSOLE)

7. One RJ-45 female connector for system communication and diagnostics using a

PC/laptop with direct connect or using a LAN switch (labeled

8. Power Switch

ADMIN/LAN)

Help Hot Line (U.S. only): 1-800-530-9960 4-3

D-620616-0-20 Rev F CONFIDENTIAL

Expansion Hub Front Panel

4.2.1 75 Ohm Type F Connectors

4.2.2 Manufacturing RS-232 Serial Connector

The eight type F connectors on the Expansion Hub are for the CATV cables used to transmit and receive signals to and from RAUs. Use only 75 ohm type F connectors on the CATV cable.

The CATV cable also delivers DC electrical power to the RAUs. The Expansion Hub’s DC voltage output is 54V DC nominal. A current limiting circuit protects the Hub if any port draws excessive power.

NOTE: For system performance, it is important to use only low loss solid copper center conductor CATV cable with quality type F connectors that use captive centerpin connectors. Refer to Appendix A for approved cables and connectors.

Console Port

This console port is only used by TE manufacturing test purposes. DO NOT CONNECT ANYTHING TO IT.

Local Monitoring

Use a crossover Ethernet cable (PN-4069-ADB) to directly connect a laptop or PC to the RJ-45 female connector for local monitoring or configuring the Expansion Hub and associated RAUs using the AdminBrowser-EH resident software. The cable typically has a RJ-45 male connector on both ends. Refer to Appendix A.5 on page A-8 for the cable pinout and the AdminBrowser manual.

4.2.3 Optical Fiber Uplink/Downlink Connectors

The optical fiber uplink/downlink port transmits and receives optical signals between the Expansion Hub and the Main Hub using industry-standard SMF or MMF cable. The fiber port has two female SC/APC connectors:

• Optical Fiber Uplink Connector

This connector (labeled to the Main Hub.

• Optical Fiber Downlink Connector

This connector (labeled nals from the Main Hub.

CAUTION: To avoid damaging the Expansion Hub’s fiber connector ports, use only SC/APC fiber cable connectors. Additionally, use only

UPLINK) is used to transmit (output) uplink optical signals

DOWNLINK) is used to receive (input) downlink optical sig-

4-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SC/APC fiber connectors throughout the fiber network, including fiber distribu-

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

tion panels. This is critical for ensuring system performance.

4.2.4 LED Indicators

The unit’s fr ont panel LEDs indicat e fault condition s and commanded or fault lockouts. The LEDs do not indicate warnings or whether the system test has been performed. Only use the LEDs to provide basic information or as a b ackup when you are not usi ng AdminBrowser.

Upon power up, the Expansion Hub goes through a five-second test to check the LED lamps. During this time, the LEDs blink through the states shown in Table 4-2, letting you visually verify that the LED lamps and the firmware are functioning properly.

NOTE: Refer to Section 9 for troubleshooting using the LEDs.

Unit Status and DL/UL Status LEDs

The Expansion Hub unit status and DL/UL status LEDs can be in one of the states shown in Table 4-1. These LEDs can be:

Expansion Hub Front Panel

steady green steady red off

Table 4-1 Expansion Hub Unit Status and DL/UL Status LED States

LED State Indicates

Green / Green Green / Green

Green / Green Red / Green

• The Expansion Hub is connected to power and all power supplies are operating.

• The Expansion Hub is not reporting a fault or lockout condition; but the system test may need to be performed or a warning condition could exist (use AdminManager to determine this).

• Optical power received is above minimum (the Main Hub is connected) although the cable optical loss may be greater than recommended maximum.

• Optical power transmitted (uplink laser) is normal and communications with the Main Hub are normal.

• Optical power received is above minimum (the Main Hub is connected) although the cable optical loss may be greater than recommended maximum.

• Optical power transmitted (uplink laser) is normal and communications with the Main Hub are normal.

• The Expansion Hub is reporting a fault.

Help Hot Line (U.S. only): 1-800-530-9960 4-5

D-620616-0-20 Rev F CONFIDENTIAL

Expansion Hub Front Panel

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

POWER

EH STATUS

DL STATUS UL STATUS

Table 4-1 Expansion Hub Unit Status and DL/UL S tatus LED States (continued)

LED State Indicates

Green / Green Green / Green

(60-ppm)

• Optical power received is above minimum (the Main Hub is connected) although the cable optical loss may be greater than recommended maximum.

• Optical power transmitted (uplink laser) is normal and communications with the Main Hub are normal.

• The Expansion Hub is reporting a commanded lockout.

Green / Red Red / Green Green / Red

(60-ppm)

• A fault condition was detected, optical power received is below minimum.

• The Main Hub is not connected, is not powered, or the Main Hub’ s downlink laser has failed, or the downlink fiber is disconnected or damaged.

• An optical signal was detected, but there has been no valid communication from the MH in the preceeding 90 seconds.

Green / Green Red / Red Red / Red

(60-ppm)

• The Expansion Hub is reporting a fault condition.

• Optical power received is above minimum (Main Hub is connected) although the cable optical loss may be greater than recommended maximum.

• Optical power transmitted is below minimum (Expansion Hub uplink laser has failed; unable to communicate with Main Hub).

UL STATUS

LED state must be checked within the first 90 second s after power on. If initially green, then red after 90 seconds, it means that there is no communication with the Main Hub. If red on power up, replace the Expansion Hub.

• No optical faults have been detected, but no valid message was received from the MH in the preceeding 90 seconds.

Green / Red Red / Red

• Optical power received is below minimum (the Main Hub is not connected, is not powered, or the Main Hub’s downlink laser has failed, or the downlink fiber is disconnected or damaged.)

• Optical power transmitted is below minimum (the Expansion Hub uplink laser has failed; is unable to communicate with the Main Hub).

UL STATUS LED state must be checked within the first 90 seconds

after power on. If initially green, then red after 90 seconds, it means that there is no communication with the Main Hub. If red on power up, the uplink laser has failed, replace the Expansion Hub.

Green /Off

• Expansion Hub is in factory test mode, return it to the factory.

Green / Off Red/ Don’t

Care

• One or more power supplies are out of specification. The hub needs to be replaced.

Red/ Don’t Care

Green/ Red

• Expansion Hub failure. The Hub must be replaced.

Off/ Off

4-6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Expansion Hub Front Panel

PORT

RJ-45 Port LEDs

The Expansion Hub has a port LED, labeled PORT, for each of the eight 75 Ohm, Type F ports. The port LEDs can be in one of the states shown in Table 4-2. These LEDs can be:

off steady green steady red flashing red (60 pulses per minute [PPM])

Table 4-2 Fusion Wideband Expansion Hub Port LED States

LED State Indicates

Off • The RAU is not connected.

• The RAU is connected.

Green Red

(60 PPM)

• No faults from the RAU.

• The RAU was disconnected.

• The RAU is not communicating.

Red (Steady)

Green (60-ppm)

• The RAU port power is tripped.

• The RAU is disconnected.

• The RAU is reporting a fault.

• The RAU is disconnected.

• The RAU is reporting a lockout condition.

Help Hot Line (U.S. only): 1-800-530-9960 4-7

D-620616-0-20 Rev F CONFIDENTIAL

Expansion Hub Rear Panel

4.3 Expansion Hub Rear Panel

Figure 4-4 Expansion Hub Rear Panel

1. AC power cord connector

2. Two air exhaust vents

3. One 9-pin D-sub female connector for contact alarm monitoring (labeled ALARMS)

4. Ground lug for connecting unit to frame ground (labeled GROUND)

Table 4-3 9-pin D-sub Pin Connector Functions

Pin Function

1 Alarm Sense Input (DC Ground) 2 Alarm Sense Input 3 3 Alarm Sense Input 2 4N/C 5N/C 6 DC Ground (common) 7N/C 8 Alarm Sense Input 1 9N/C

This interface can monitor three single external alarm contacts (Alarm Sense Input 1 This interface monitors the output contact closures from a Universal Power Supply (UPS). Verify the output contact closure state (normally closed or normally open) of the UPS, and set the appropriate contact definition using AdminBrowser.

• Faults are service impacting.

4-8 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Faults, Warnings, and Status Messages

• Warnings indicate a possible service impact.

• Status messages are generally not service impacting.

4.4 Faults, Warnings, and Status Messages

Both fault and warning conditions of the Expansion Hub and attached RAUs are reported to the Main Hub. Only faults are indicated by LEDs.

For more information, refer to Appendix C, “Faults, Warnings, Status Tables,” on page C-1.

NOTE: You can select what type of events AdminBrowser displays. Refer to Section 3.5.2 View Preference 3-12.

Help Hot Line (U.S. only): 1-800-530-9960 4-9

D-620616-0-20 Rev F CONFIDENTIAL

Expansion Hub Specifications

4.5 Expansion Hub Specifications

Specification Description

Enclosure Dimensions (H

Weight < 6.6 kg (< 14.5 lb.) Operating Temperature Non-operating Temperature

Operating Humidity, non-condensing 5% to 95% CATV Connectors Fiber Connectors

LED Alarm and Status Indicators Unit Status (1 pair):

External Alarm Connector (contact sense monitor)

AC Power (Volts) (47–63 Hz) Rating: 100/240V AC, 6A, 50-60 Hz

Power Consumption (W) 4 RAUs: 275 typical, 335 max.

MTBF 54,539 hours

Table 4-4 Expansio n Hu b Specifications

 W  D) 89 mm x 438 mm x 381 mm

(3.5 in. x 17.25 in. x 15 in.) 2U

0° to +45°C (+32° to +113°F) –20° to +85°C (–4° to +185°F)

8 F, female (CATV - 75 Ohm) 1 Pair, SC/APC

•Power

• E-Hub Status Fiber Link Status (1 pair):

•DL Status

•UL Status Port Status (1 pair per CATV port):

• Link/RAU 1 9-pin D-sub, female

Operating Range: 90-132V AC/170-250V AC auto-ranging

8 RAUs: 475 typical, 585 max.

a. It is important that you use only recommended CATV 75 Ohm cable with quality F connectors. b. It is critical to system performance that only SC/APC fiber connectors are used throughout the fiber network, including

fiber distribution panels.

4-10 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SECTION 5 Remote Access Unit

This section contains the following subsections:

• Section 5.1 RAU Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

• Section 5.2 Remote Access Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

• Section 5.3 RAU LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

• Section 5.4 Faults and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

• Section 5.5 Remote Access Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . 5-7

5.1 RAU Overview

The Remote Access Unit (RAU) is an active transceiver that connects to an Expansion Hub using industry-standard CATV cable, which delivers RF signals, configuration information, and electrical power to the RAU.

An RAU passes converted IF to RF (Downlink) and converted RF to IF (Uplink) signals between an Expansion Hub and an attached passive antenna where the signals are transmitted to wireless devices as shown in Figure 5-1.

InterReach Fusion Wideband Installation, Operation, and Reference Manual 5-1

D-620616-0-20 Rev F CONFIDENTIAL

RAU Overview

Fusion Wideband Expansion Hub

RAU

Downlink Path: The RAU receives downlink IF signals from a Fusion Wideband Hub using 75 Ohm CATV cable. It con-

verts the signals to RF and sends them to a passive RF antenna using 50 Ohm coaxial cable. Also, the RAU receives configuration information from the Fusion Wideband Hub using the 75 Ohm CATV cable.

Uplink Path: The RAU receives uplink RF signals from a passive RF antenna using 50 Ohm coaxial cable. It converts the signals to IF and sends them to a Fusion Wideband Hub using 75 Ohm CATV cable. Also, the RAU sends its status information to the Fusion Wideband Hub using CATV cable.

The RAU receives 54VDC power from the Fusion Wideband Hub port through the 75 Ohm CATV cable center pin.

Downlink to RAU

Uplink from RAU

Fusion Wideband Main Hub

Downlink to antenna

Uplink from antenna

, 3*

Figure 5-1 Remote Access Unit in a Fusion Wideband System

Figure 5-2 Remote Access Unit Block Diagram (Multiband)

* For FSN-W2-808519-1 RAU when Band 3 is active.

5-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

RAU Overview

The Fusion Wideband RAUs are manufactured to a specific set of bands: one 60 MHz Band 1 (split into two sub-bands 1A and 1B for the FSN-W2-808519-1 RAU), and one 75 MHz Band 2. Table 5-1 lists the Fusion Wideband RAUs, the Fusion Wideband Band, and the frequency bands they cover.

Table 5-1 Frequency Bands Covered by Fusion Wideband RAUs

RF Passband

Fusion Wideband RAU Part Number

Fusion Wideband Band

Downlink (MHz)

Uplink (MHz)

MAIN HUB/ RAU Band

RAU Bandwidth

2100/1800 FSN-W1-2118-1 2100 2110-2170 1920-1980 1 60 MHz

1800 1805-1880 1710-1785 2 75 MHz

2100 High

FSN-W1-21HP-1 2100 2110-2170 1920-1980 1 60 MHz Power (single-band RAU)

1900/AWS FSN-W1-1921-1 1900

1930-1990 1850-1910 1 60 MHz

(A-F) AWS 2110-2155 1710-1755 2 45 MHz

800/850/1900 FSN-W2-808519-1 800 851-869 806-824

850 869-894 824-849

1900

1930-1990 1850-1910 2 60 MHz

1 (sub-band 1A)

3 (sub-band 1B)

18 MHz

25 MHz

(A-F)

700/AWS FSN-W2-7021-1 700

(Upper C)

700

(Lower ABC)

746-757 776-787

728-746 698-716

1 (sub-band 1A)

3 (sub-band 1B)

11 MHz

18 MHz

AWS 2110-2155 1710-1755 2 45 MHz

700/700 MIMO (Upper C)

700/700 MIMO (Lower ABC)

FSN-W2-7575-1 700

(Upper C)

700

(Upper C)

FSN-W2-7070-1 700

(Lower ABC)

700

(Lower ABC)

746-757 776-787 1 (sub-

band 1A)

746-757 776-787 3 (sub-

band 1B)

728-746 698-716 1 (sub-

band 1A)

728-746 698-716 3 (sub-

band 1B)

11 MHz

18 MHz

Help Hot Line (U.S. only): 1-800-530-9960 5-3

D-620616-0-20 Rev F CONFIDENTIAL

RAU Overview

Table 5-1 Frequency Bands Covered by Fusion Wideband RAUs (continued)

RF Passband

MAIN HUB/ RAU Band

RAU Bandwidth

Fusion Wideband RAU Part Number

Fusion Wideband Band

Downlink (MHz)

Uplink (MHz)

2500/2500 FSN-2500-2-WMAX 2500 2496-2690 2496-2690 1 30 MHz

2500 2496-2690 2496-2690 2 30 MHz

2600/2600 FSN-W3-2626-1 2600 2620-2690 2500-2570 1 70 MHz

2600 2620-2690 2500-2570 2 70 MHz

Table 5-2 System Gain (Loss) Relative to CATV Cable Length

Distance RF is 10dB Below Input RF (meters)

Cable Type

CommScope Part Number

Plenum Rated

Solid Copper Conductor

Copper Clad Conductor

Zero-loss RF Maximum Length (meters)

RG-59

2065V Yes X 130 180 2022V Yes X 100 100* 5572R No X 95 95* 5565 No X 130 180

RG-6

2279V Yes X 140 190 2275V Yes X 140 150* 5726 No X 140 140* 5765 No X 140 190

RG-11

2293K Yes X 235 320 2285K Yes X 235 300* 5913 No X 235 300*

* Exceeding the distance of copper-clad cable will result in the attached RAU becoming non-functional. If the distance of a cable run is at its maximu m and is of conce rn, TE recommends the use of solid copper cable to ensure successful operation.

5-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

5.2 Remote Access Unit Connectors

5.2.1 50 Ohm Type-N Connector

The RAU has one female type-N connector (two female type-N connectors for FSN-W1-1921-1, FSN-W2-808519-1, FSN-W2-7070-1, FSN-W2-7575-1, and FSN-2500-2-WMAX RAUs). The connector is a duplexed RF input/output port that connects to a standard 50 passive antenna using coaxial cable.

5.2.2 75 Ohm Type-F Connector

The RAU has one type-F female connector that connects it to a Fusion Wideband Hub using CATV 75 Ohm cable. Use RG-59, 6, or 11 solid copper center conductor cables.

Remote Access Unit Connectors

NOTE: For system performance, it is important that you use only low loss,

solid copper center conductor CATV cable with quality F connectors that use captive centerpin conductors. Refer to Appendix A for specific information.

5.3 RAU LED Indicators

Upon power up, the RAU goes through a two-second test to check the LED lamps. During this time, the LEDs blink green/green red/red, letting you visually verify that the LED lamps and the firmware are functioning properly.

NOTE: Refer to Section 9 for troubleshooting using the LEDs.

Status LEDs

The RAU status LEDs can be in one of the states shown in Table 5-3. These LEDs can be:

off steady green steady red

There is no off state when the unit’s power is on.

Help Hot Line (U.S. only): 1-800-530-9960 5-5

D-620616-0-20 Rev F CONFIDENTIAL

Faults and Warnings

LINK ALARM

Table 5-3 Remote Access Unit LED States

LED Stat e Indicates

Off

• The RAU is not receiving DC power.

Off Green

Green

• The RAU is powered and is not indicating a fault condition. Communication with the Fusion Wideband Hub is normal; however, the system test may need to be performed or a warning condition may exist (use AdminBrowser to determine this).

Green Red

• The RAU is indicating a fault or lockout condition, but communication with the Fusion Wideband Hub is normal.

Red Red

Green (60-ppm) Green (60-ppm)

• The RAU is reporting a fault and is not able to communicate with the Fusion Wideband Hub

• The RAU is reporting a lockout condition, but communication with the Fusion Wideband Hub is normal.

5.4 Faults and Warnings

Both fault and warning conditions are reported to the Fusion Wideband Hub where they are stored. Only faults are indicated by the faceplate LEDs.

For more information, refer to Appendix C.

5-6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Remote Access Unit Specifications

5.5 Remote Access Unit Specifications

Table 5-4 Remote Access Unit Specifications

Specification Description

Dimensions (H  W  D)

Weight < 2.1 kg (< 4.6 lb.) Operating Temperature –25° to +45°C (–13° to +113°F) Non-operating Temperature –25° to +85°C (–13° to +185°F) Operating Humidity, non-condensing 5% to 95% RF Connectors One Type-F, female (CATV - 75 ohms)

LED Alarm and Status Indicators Unit Status (1 pair):

Maximum Heat Dissipation (W) 50 typical, 64 max (from the Hub) MTBF 202,684 hours

54 mm × 286 mm × 281 mm (2.13 in. × 11.25 in. × 11.13 in.)

One Type-N, fema le

• Link

• Alarm

(coaxial 50 ohms)

a. Two type N female connector s for FSN-W1-1921-1, FSN-W2-808519-1, FSN-W2-7070-1,

FSN-W2-7575-1, FSN-W3-2626-1, and FSN-2500-2-WMAX RAUs.

NOTE: For system performance, it is important that you use only low loss, solid copper center conductor CATV cable with quality F connectors that use captive centerpin conductors. Refer to Appendix A for more information.

Help Hot Line (U.S. only): 1-800-530-9960 5-7

D-620616-0-20 Rev F CONFIDENTIAL

Remote Access Unit Specifications

5-8 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

SECTION 6 Designing a

Fusion Wideband Solution

This section contains the following subsections:

• Section 6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

• Section 6.2 Downlink RSSI Design Goal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

• Section 6.3 Maximum Output Power per Carrier . . . . . . . . . . . . . . . . . . . . . . 6-4

• Section 6.4 System Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

• Section 6.5 Estimating RF Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

• Section 6.6 Link Budget Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

• Section 6.7 Optical Power Budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-36

• Section 6.8 Connecting a Main Hub to a Base Station . . . . . . . . . . . . . . . . . 6-37

6.1 Overview

Designing a Fusion Wideband solution is a matter of determining coverage and capacity needs. This requires the following steps:

1. Determine the wireless service provider’ s r equir ements: Refer to Section 6.2,

“Downlink RSSI Design Goal,” on page 6-3.

The following information is typically provided by the service provid er:

• Frequency (for example, 1900 MHz)

• Band (for example, “A-F” band in the PCS spectrum)

• Protocol (for example, CDMA, GSM, 1xRTT, GPRS, and so on)

• Number of sectors and peak capacity per sector (translates to the number of RF carriers that the system will have to transmit)

• Downlink RSSI design goal (RSSI, received signal strength at the wireless handset, for example, –85 dBm)

InterReach Fusion Wideband Installation, Operation, and Reference Manual 6-1

D-620616-0-20 Rev F CONFIDENTIAL

Overview

The design goal is always a stronger signal than the mobile phone needs. It includes inherent factors which affect performance.

• RF source (base station or bidirectional amplifier or repeater), type of equipment if possible.

2. Determine the downlink power per carrier from the RF source through the

DAS: Refer to Section 6.3, “Maximum Output Power per Carrier,” on page 6-4.

The maximum power per carrier is a function of modulation type, the number of RF carriers, signal quality issues, regulatory emissions requirements, and Fusion Wideband’s RF performance. Power per carrier decreases as the number of carriers increases.

3. Develop an RF link budget: Refer to Section 6.5, “Estimating RF Coverage,”

on page 6-16.

Knowing both the power per carrier and RSSI design goal, you can develop an RF downlink link budget which estimates the allowable path loss from an RAU’s antenna to the wireless handset.

allowable path loss = power per carrier + antenna gain – design goal

Satisfactory performance can be expected as long as path loss is below this level.

4. Determine the in-building envir onment: Refer to Section 6.5, “Estimating RF

Coverage,” on page 6-16.

• Determine which areas of the building require coverage (entire building, public areas, parking levels, and so on.)

• Obtain floor plans to determine floor space of building and the wall layout of the proposed areas to be covered. Floor plans are also useful when you are selecting antenna locations.

• If possible, determine the building’s construction materials (sheetrock, metal, concrete, and so on.)

• Determine the type of environment: – Open layout (for example, a convention center) – Dense, close walls (for example, a hospital) – Mixed use (for example, an office building with hard wall offices and cubi-

cles)

5. Determine the appropriate estimated path loss slope that corresponds to the

type of building and its layout, and estimate the coverage distance for each RAU: Refer to Section 6.5, “Estimat ing RF Coverage,” on page 6-16.

Use the path loss slope (PLS), which gives a value to the RF propagation characteristics within the building, to convert the RF link budget into an estimate of the coverage distance per antenna. This helps establish the quantities of Fusion Wi deband equipment you need. The actual path loss slope that corresponds to the specific RF environment inside the building can also be determined empirically by performing an RF site-survey of the building. This involves transmitting a cali-

6-2 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Downlink RSSI Design Goal

brated tone for a fixed antenna and making measurements with a mobile antenna throughout the area surrounding the transmitter.

6. Determine the items required to connect to the base station: Refer to

Section 6.8, “Connecting a Main Hub to a Base Station,” on page 6-37.

Once you know the quantities of Fusion Wideband equipment to be used, you can determine the accessories (combiners/dividers, surge suppressors, repeaters, attenuators, circulators, and so on.) required to connect the system to the base station.

The individual elements that must be considered in designing a Fusion Wideband solution are explained in the following sections.

NOTE: Access the TE Customer Portal at http://www.te.com/adc for on-line dimensioning and design tools.

6.2 Downlink RSSI Design Goal

Wireless service providers t ypically provide a minimum downlink signal level and an associated confidence factor when specifying coverage requirements. These two figures of merit are a function of wireless handset sensitivity and margins for fading and body loss. Wireless handset sensitivity is the weakest signal that the handset can process reliably and is a combination of the thermal noise in the channel, noise figure of the handset receiver front end and minimum required SNR. Fade margins for multipath fading (fast or small-scale) and log-normal shadow fading (slow or large-scale) are determined by the desired confidence factor, and other factors. Downlink RSSI design goal calculations for the GSM protocol are shown below for a 95% area coverage confidence factor.

Noise Power

10 Log (KT)+10 Log (200 KHz); K=1.38X10

Wireless Handset Noise Figure 8 dB Required SNR 9 dB Multipath Fade Margin

95% Reliability for Rician K=6 dB

Log-normal Fade Margin

95% Area/87% Edge Reliability for 35 dB PLS and 9 dB Sigma

Body Attenuation + 3 dB Downlink RSSI Design Goal (P

Signal level received by wireless handset at edge of coverage area

–23

, T=300 degrees Kelvin

DesignGoal

–121 dBm

6dB

10 dB

)

–85 dBm

Help Hot Line (U.S. only): 1-800-530-9960 6-3

D-620616-0-20 Rev F CONFIDENTIAL

Maximum Output Power per Carrier

Downlink design goals on the order of –85 dBm are typical for protocols, such as GSM. Wireless service providers may choose a higher level to ensure that in-building signal dominates any macro signal that may be leaking into the building.

6.3 Maximum Output Power per Carrier

The following tables show the recommended maximum power per carrier out of the RAU 50 Ohm Type-N connector for different frequencies, protocols, and numbers of carriers. These maximum levels are dictated by RF signal quality and regulatory emissions issues. In general, as the number of RF carrier increases, the maximum power per carrier decreases. If these levels are exceeded, signal quality will be degraded and/or regulator requirements will be violated. The maximum input power to the Hub is determined by subtracting the system gain from the maximum output power of the RAU. System gain is software selectable from 0 dB to 15 dB in 1 dB steps. Additionally, both the uplink and downlink gain of each RAU can be attenuated 0 or 10 dB.

When connecting a Hub to a base station or repeater, attenuation on the downlink is typically required to avoid exceeding Fusion Wideband’s maximum output power recommendations.

WARNING: Exceeding the maximum input power may cause permanent damage to the Hub. Do not exceed the maximum composite input power of 1W (+30 dBm) to the Hub at any time.

NOTE: These specifications are for downlink power at the RAU output (excluding antenna).

6-4 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

6.3.1 700 MHz (for 700/AWS RAU)

Table 6-1 700 MHz (Lower A, B, C) Power per Carrier

Power per Carrier

(dBm)

No. of

Carriers

1 14.0 14.0

2 3 4 5

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Table 6-2 700 MHz (Upper C) Power per Carrier

WCDMA LTE

11.0 11.0

9.0 9.0

8.0 8.0

7.0 7.0

Maximum Output Power per Carrier

Power per Carrier (dBm)

No. of

Carriers

1 14.0

2 3 4 5

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Table 6-3 AWS Power per Carrier

LTE

11.0

9.0

8.0

7.0

Power per Carrier

(dBm)

No. of

Carriers

1 18.0 18.0

2 3 4 5

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

WCDMA LTE

15.0 15.0

13.0 13.0

12.0 12.0

11.0 11.0

Help Hot Line (U.S. only): 1-800-530-9960 6-5

D-620616-0-20 Rev F CONFIDENTIAL

Maximum Output Power per Carrier

6.3.2 700 MHz (Upper C) MIMO RAU

700 MHz (Upper C) Power per Carrier

6.3.3 700 MHz (Lower ABC) MIMO RAU

Table 6-4 700 MHz (Lower ABC) Power per Carrier

Number of Carriers Power per Carrier (dBm)

LTE

1 18.0

2 3 4 5

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

15.0

13.0

12.0

11.0

Number of Carriers Power per Carrier (dBm)

1 18.0 18.0

2 3 4 5

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

6.3.4 800 MHz SMR

Table 6-5 Power per Carrier

No. of

Carriers

1 18.0 18.0 16.5 24.0 21.0 24.0

2 3 4 5

WCDMA LTE

15.0 15.0

13.0 13.0

12.0 12.0

11.0 11.0

Power per Carrier (dBm) - 800MHz

APCO

CDMA

2000 LTE iDEN Analog FM

15.0 15.0 13.0 19.0 16.0 18.5

13.0 13.0 10.5 15.5 13.5 15.0

12.0 12.0 9.0 12.5 11.5 12.5

11.0 11.0 8.0 1 1.0 10.0 10.5

CQPSK

APCO

C4FM

6-6 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Table 6-5 Power per Carrier (continued)

Power per Carrier (dBm) - 800MHz

Maximum Output Power per Carrier

APCO

No. of

Carriers

6 7 8 9

11 12 13 14 15 16

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

CDMA

2000 LTE iDEN Analog FM

10.0 - 7.0 9.5 8.5 9.0

9.5 - 6.0 8.5 8.0 8.0

9.0 - 5.5 7.5 7.0 7.5

8.5 - 5.0 7.0 6.5 6.5

8.0 - 4.5 6.0 6.0 6.0

7.5 - 4.0

7.0 - 3.5

7.0 - 3.0

6.5 - 3.0

6.0 - 2.5

6.0 - 2.0

CQPSK

APCO

C4FM

Help Hot Line (U.S. only): 1-800-530-9960 6-7

D-620616-0-20 Rev F CONFIDENTIAL

Maximum Output Power per Carrier

6.3.5 850 MHz Cellular

Table 6-6 Cellular Power per Carrier

No. of

Carriers

1 16.5 16.5 18.0 18.0 18.0

2 3 4 5 6 7 8 9

11 12 13 14 15 16 20 30

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Power per Carrier

GSM EDGE CDMA 2000 WCDMA LTE

13.5 13.5 15.0 15.0 15.0

11.5 11.5 13.0 13.0 13.0

10.0 10.0 12.0 12.0 12.0

9.0 9.0 11.0 11.0 11.0

8.5 8.5 10.0

8.0 8.0 9.5

7.5 7.5 9.0

7.0 7.0

6.5 6.5

6.0 6.0

6.5 5.5

5.5 5.5

5.0 5.0

4.5 4.0

3.0 2.0

6-8 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

6.3.6 1800 MHz DCS

Table 6-7 DCS Power per Carrier

Power per Carrier (dBm)

No. of

Carriers

1 16.5 16.5

2 14.5 14.5 3 12.5 12.5 4 11.5 11.5 5 10.5 10.5

69.5 9.5

79.0 9.0

88.5 8.0

98.0 7.5 10 7.5 7.0 11 7.0 6.5 12 6.5 6.0 13 6.5 6.0 14 6.0 5.5 15 5.5 5.0 16 5.5 5.0 20 4.5 4.0 30 2.5 2.0

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Maximum Output Power per Carrier

GSM EDGE

Help Hot Line (U.S. only): 1-800-530-9960 6-9

D-620616-0-20 Rev F CONFIDENTIAL

Maximum Output Power per Carrier

6.3.7 1900 MHz PCS

Table 6-8 PCS Power per Carrier

Power per Carrier (dBm)

No. of

Carriers

1 16.5 16.5 18.0 18.0 18.0

2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 20 30

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

GSM EDGE

15.5 15.5 15.0 15.0 15.0

13.5 13.5 13.0 13.0 13.0

12.0 12.0 12.0 12.0 12.0

11.0 10.5 11.0 11.0 11.0

10.5 9.5 10.0

10.0 9.0 9.5

9.0 8.0 9.0

8.5 7.5

8.0 7.0

7.5 6.5

7.0 6.0

6.5 6.0

6.5 5.5

6.0 5.0

5.5 5.0

4.5 4.0

3.0 2.0

CDMA

2000 WCDMA LTE

6-10 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

6.3.8 2100 MHz AWS

Table 6-9 AWS Power per Carrier

Maximum Output Power per Carrier

Power per Carrier (dBm)

No. of

Carriers

1 16.5 16.5 18.0 18.0 18.0

9 10 11 12 13 14 15 16 20 30

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

GSM EDGE

15.5 15.5 15.0 15.0 15.0

13.5 13.5 13.0 13.0 13.0

12.0 12.0 12.0 12.0 12.0

11.0 10.5 11.0 11.0 11.0

10.5 9.5 10.0

10.0 9.0 9.5

9.0 8.0 9.0

8.5 7.5

8.0 7.0

7.5 6.5

7.0 6.0

6.5 6.0

6.5 5.5

6.0 5.0

5.5 5.0

4.5 4.0

3.0 2.0

CDMA

2000 WCDMA LTE

Help Hot Line (U.S. only): 1-800-530-9960 6-11

D-620616-0-20 Rev F CONFIDENTIAL

Maximum Output Power per Carrier

6.3.9 2.1 GHz UMTS

Table 6-10 UMTS Power per Carrier

No. of

Power per

Carrier (dBm)

Carriers

211.0

38.0

46.5

55.0

64.0

73.0

Note: Measurements were taken with no baseband clipping. Note: Operation at or above these output power levels may prevent Fusion Wideband

from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

6.3.10 2.1 GHz UMTS High Power

Table 6-11 UMT S Power per Carrier

No. of

Carriers

1 2 18.0 3 15.0 4 13.5 5 12.0

611.0 7 10.0

Note: Measurements taken with no baseband clipping. Note: Operation at or above these output power levels may prevent Fusion Wideband

from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Power per

Carrier (dBm)

WCDMA

15.0

WCDMA

22.0

6.3.11 2500 MHz WiMAX

Table 6-12 WiMAX Power per Carrier

No. of

Carriers

Note: Measurements taken with no baseband clipping. Note: Operation at or above these output power levels may prevent Fusion Wideband

from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

6-12 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Power per

Carrier (dBm)

WiMAX

20.0

6.3.12 2600 MHz MIMO RAU

2600 MHz Power per Carrier

Number of Carriers Power per Carrier (dBm)

1 15.0

2 11.0

38.0

46.5

55.0

Note: Operation at or above these output power levels may prevent Fusion Wideband from meeting RF performance specifications or FCC Part 15 and EN55022 emissions requirements.

Designing for Capacity Growth

Fusion Wideband systems are deployed to enhance in-building coverage and/or to off-load capacity from a macro cell site. In many instances, subscriber usage increases with time and the wireless provider responds by increasing the load on the installed Fusion Wideband system. For example, the initial deployment might only require two RF carriers, but four RF carriers may be needed in the future based on capacity growth forecasts. There are two options for dealing with this scenario:

Maximum Output Power per Carrier

WCDMA LTE

15.0

11.0

8.0

6.5

5.0

1. Design the initial coverage with a maximum power per carrier for four RF carri-

ers. This will likely result in additional RAUs.

2. Design the initial coverage for two RF carriers, but reserve RAU ports on the Hub

for future use. These ports can be used to fill potential coverage holes once the power per carrier is lowered to accommodate the two additional carriers.

Help Hot Line (U.S. only): 1-800-530-9960 6-13

D-620616-0-20 Rev F CONFIDENTIAL

System Gain

6.4 System Gain

The system gain of the Fusion Wideband defaults to 0 dB or can be set up to 15 dB in 1 dB increments. In addition, uplink and downlink gains of each RAU can be independently attenuated by 0 or 10 dB usin g AdminBrowser.

The recommended maximum lengths of CATV cable are as follows:

• For RG-59 cable 130 meters for CommScope PN 2065V.

• For RG-6 cable 140 meters for CommScope PN 2279V.

• For RG-11 cable 235 meters for CommScope PN 2293K. If the maximum distance is not required, then copper-clad over steel center -conductor

cable may be use to reduce cable costs. If the CATV cable is longer than the recommended distance per cable type, the gain

of the system will decrease, as shown in Table 6-13.

6-14 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

System Gain

Table 6-13

Cable Type

RG-59

RG-6

RG-11

System Gain (Loss) Relative to CATV Cable Length

Distance Where

Zero-loss CommScope Part Number

Plenum Rated

Solid Copper Conductor

Copper Clad Conductor

Maximum

Length

(meters)

2065V Yes X 130 180 2022V Yes X 100 100* 5572R No X 95 95* 5565 No X 130 180

2279V Yes X 140 190 2275V Yes X 140 150* 5726 No X 140 140* 5765 No X 140 190

2293K Yes X 235 320 2285K Yes X 235 300* 5913 No X 235 300*

RF is 10dB Below Input RF (meters)

* Exceeding the distance of copper-clad cable will result in the attached RAU becoming non-functional. If the distance of a cable run is at its maximum and is of concern, TE recommends the use of solid copper cable to ensure successful operation.

Help Hot Line (U.S. only): 1-800-530-9960 6-15

D-620616-0-20 Rev F CONFIDENTIAL

Estimating RF Coverage

RAU

P = power per

Distance = d

G = Antenna Gain

RSSI = power at the wireless device

carrier from the RAU

coax

= Coaxial cable loss

6.5 Estimating RF Coverage

The maximum output power per carrier (based on the number and type of RF carriers being transmitted) and the minimum acceptable received power at the wireless device (that is, the RSSI design goal) essentially establish the RF downlink budget and, consequently, the maximum allowable path loss (APL) between the RAU’s antenna and the wireless device. Since in-building systems, such as the Fusion Wideband, are generally downlink-limited, this approach is applicable in the majority of deployments.

Figure 6-1 Determining APL between the Antenna and the Wireless Device

APL = (P – L

+ G) – RSSI (1)

coax

where:

• APL = the maximu m a ll o wab le path loss in dB

• P = the power per carrier transmitted by the RAU in dBm

•L

= the coaxial cable loss between the RAU and passive antenna in dB

coax

• G = the gain of the passive antenna in dBi

Coaxial cable is used to connect the RAU to an antenna. T able6-14 lists coaxial cable loss for various cable lengths.

Table 6-14 Coaxial Cable Losses (

Length of Cable (.195 in. diameter)

0.9 m (3 ft) 0.6 0.8

1.8 m (6 ft) 1.0 1.5

3.0 m (10 ft) 1.5 2.3

Loss at 850 MHz (dB)

coax)

Loss at 1900 MHz (dB)

You can calculate the distance, d, corresponding to the maximum allowable path loss using equations introduced in the following sections.

6-16 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

6.5.1 Path Loss Equation

In-building path loss obeys the distance power law1 in equation (2):

Estimating RF Coverage

PL = 20log

(4d0f/c) + 10nlog10(d/d0) + 

where:

• PL is the path loss at a distance, d, from the antenna

• d = the distance expressed in meters

•d

= free-space path loss distance in meters

• f = the operating frequency in Hertz.

• c = the speed of light in a vacuum (3.0 × 10

m/sec).

• n = the path loss exponent and depends on the building “clutter” and frequency of operation

•



= a normal random variable that depends on partition material and geome-

tries inside the building and is accounted for by the log-normal fade margin used in the downlink RSSI design goal calculation

As a reference, T able6-15 provides estimates of signal loss for some RF barriers

Table 6-15 Average Signal Loss of Common Building Materials

Partition Type Loss (dB) Frequency (MHz)

Metal wall 26 815 Aluminum siding 20 815 Foil insulation 4 815 Cubicle walls 1.4 900 Concrete block wall 13 1300 Concrete floor 10 1300 Sheetrock 1 to 2 1300 Light machinery 3 1300 General machinery 7 1300 Heavy machinery 11 1300 Equipment racks 7 1300 Assembly line 6 1300 Ceiling duct 5 1300 Metal stairs 5 1300

(2)

1. Rappaport, Theodore S. W ireless Communications, Principles, and Practice. Prentice Hall PTR, 1996.

Help Hot Line (U.S. only): 1-800-530-9960 6-17

D-620616-0-20 Rev F CONFIDENTIAL

Estimating RF Coverage

6.5.2 RAU Coverage Distance

Use equations (1) and (2), on pages 6-16 and 6-17, respectively, to estimate the distance from the antenna to where the RF signal decreases to the minimum acceptable level at the wireless device.

With d

set to one meter and path loss slope (PLS) defined as 10n, Equation (2) can

be simplified to:

PL(d) = 20log

Table 6-16 gives the value of the first term of Equation (3) (that is., (20log

(4f/c) + PLS·log10(d) (3)

(4f/c))

for various frequency bands.

Table 6-16 Frequency Bands and the Value of the First Term in Equation (3)

Band (MHz)

Frequency

800 MHz SMR 806-824 851-869 838 30.9 850 MHz Cellular 824-849 869-894 859 31.1 1800 MHz DCS 1710-1785 1805-1880 1795 37.5 1900 MHz PCS 1850-1910 1930-1990 1920 38.1

2.1 GHz UMTS 1920–1980 2110–2170 2045 38.7

1.7/2.1 GHz AWS 1710-1755 2110-2155

2.5 GHz WiMAX 2496-2690 2496-2690 2595 40.7

a. Due to the wide frequency spread between the Uplink and Downlink bands, the mid-band frequency

of the Downlink band was chosen for 1.7/2.1 GHz AWS.

Uplink Downlink

Mid-Band Frequency (MHz)

2132.5

20log

39.0

(4f/c)

T able 6-17 shows estimated PLS for various environments that have different “clutter” (that is, objects that attenuate the RF signals, such as walls, partitions, stairwells, equipment racks, and so.).

Table 6-17 Estimated Path Loss Slope for Different In-Building Environments

Environment Type Example

Open Environment

very few RF obstructions

Moderately Open Environment

low-to-medium amount of RF obstructions

Mildly Dense Environment

medium-to-high amount of RF obstructions

Parking Garage, Convention Center

Warehouse, Airport, Manufacturing

Retail, Office Space with approximately 80% cubicles and 20% hard walled offices

PLS for 850/900 MHz

33.7 30.1

35 32

36.1 33.1

PLS for 1800/1900/ 2100/2500 MHz

6-18 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Estimating RF Coverage

Table 6-17 Estimated Path Loss Slope for Different In-Building Environments

Environment Type Example

Moderately Dense Environment

medium-to-high amount of RF obstructions

Dense Environment

large amount of RF obstructions

Office Space with approximately 50% cubicles and 50% hard walled offices

Hospital, Office Space with approximately 20% cubicles and 80% hard walled offices

By setting the path loss to the maximum allowable level (PL = APL), equation (3) can be used to estimate the maximum coverage distance of an antenna connected to an RAU, for a given frequency and type of in-building environment.

d = 10^((APL - 20log

For reference, T ables 6-19 through 6-24 show the distance covered by an antenna for various in-building environments. The following assumptions were made:

• Path loss Equation (4)

• 6 dBm output per carrier at the RAU output

• 3 dBi antenna gain

• RSSI design goal = –85 dBm (typical for narrowband protocols, but not for spread-spectrum protocols)

PLS for 850/900 MHz

37.6 34.8

39.4 38.1

(4f/c))/PLS) (4)

PLS for 1800/1900/ 2100/2500 MHz

Table 6-18 Approximate Radiated Distance from Antenna

for 800 MHz SMR Applications

Distance from Antenna

Environment Type

Open Environment 75 244 Moderately Open Environment 64 208 Mildly Dense Environment 56 184 Moderately Dense Environment 48 156 Dense Environment 40 131

Table 6-19 Approximate Radiated Distance from Antenna

Meters Feet

for 850 MHz Cellular Applications

Distance from Antenna

Environment Type

Open Environment 73 241 Moderately Open Environment 63 205

Meters Feet

Help Hot Line (U.S. only): 1-800-530-9960 6-19

D-620616-0-20 Rev F CONFIDENTIAL

Estimating RF Coverage

Table 6-19 Approximate Radiated Distance from Antenna

for 850 MHz Cellular Applications

Distance from Antenna

Environment Type

Meters Feet

Mildly Dense Environment 55 181 Moderately Dense Environment 47 154 Dense Environment 39 129

Table 6-20 Approximate Radiated Distance from Antenna

for 1800 MHz DCS Applications

Distance from Antenna

Facility

Meters Feet

Open Environment 75 246 Moderately Open Environment 58 191 Mildly Dense Environment 50 166 Moderately Dense Environment 42 137 Dense Environment 30 100

Table 6-21 Approximate Radiated Distance from Antenna

for 1900 MHz PCS Applications

Distance from Antenna

Facility

Open Environment 72 236 Moderately Open Environment 56 183 Mildly Dense Environment 49 160 Moderately Dense Environment 40 132 Dense Environment 29 96

Meters Feet

6-20 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Table 6-22 Approximate Radiated Distance from Antenna

for 2.1 GHz UMTS Applications

Distance from Antenna

Estimating RF Coverage

Facility

Meters Feet

Open Environment 69 226 Moderately Open Environment 54 176 Mildly Dense Environment 47 154 Moderately Dense Environment 39 128 Dense Environment 28 93

Table 6-23 Approximate Radiated Distance from Antenna

for 1.7/2.1 GHz AWS Applications

Distance from Antenna

Facility

Meters Feet

Open Environment 67 220 Moderately Open Environment 52 172 Mildly Dense Environment 46 150 Moderately Dense Environment 38 125 Dense Environment 28 91

Table 6-24 Approximate Radiated Distance from Antenna

for 2.5 GHz WiMAX Applications

Distance from Antenna

Facility

Meters Feet

Open Environment 59 194 Moderately Open Environment 47 152 Mildly Dense Environment 41 134 Moderately Dense Environment 35 112 Dense Environment 25 83

Help Hot Line (U.S. only): 1-800-530-9960 6-21

D-620616-0-20 Rev F CONFIDENTIAL

Estimating RF Coverage

6.5.3 Examples of Design Estimates

Example Design Estimate for an 1900 MHz CDMA Application

1. Design goals:

• PCS (1920 MHz = average of the lowest uplink and the highest downlink frequency in 1900 MHz PCS band)

• CDMA provider

• 8 CDMA carriers in the system

• –85 dBm design goal (to 95% of the building) — the mini mum received power at the wireless device

• Base station with simplex RF connections

2. Power Per Carrier: The tables in Section 6.3, “Maximum Output Power per Car-

rier,” on page 6-4 provide maximum power per carrier information. The 1900 MHz CDMA table indicates that Fusion Wideband can support eight carriers with a recommended maximum power per carrier of 6.5 dBm. The input power should be set to the desired output power minus the system gain.

3. Building information:

• 16 floor building with 9,290 sq. meters (100,000 sq. ft.) per floor; total 148,640 sq. meters (1,600,000 sq. ft.).

• Walls are sheetrock construction, suspend ed ceiling tiles.

• Antennas used are omni-directional, ceiling mounted.

• Standard office environment, 80% hard wall offices and 20% cubicles.

4. Link Budget: In this example, a design goal of –85 d Bm is used. Suppose 3 dBi

omni-directional antennas are used in the design. Then, the maximum RF propagation loss should be no more than 94.5 dB (6.5 dBm + 3 dBi + 85 dBm) over 95% of the area being covered. It is important to note that a design goal such as

–85 dBm is usually derived taking into account multipath fading and log-normal shadowing characteristics. Thus, this design goal will only be met “on average” over 95% of the area being covered. At any given point, a fade may bring the signal level underneath the design goal.

Note that this method of calculating a link budget is only for the downlink path. For information to calculate link budgets for both the downlink and uplink paths, refer to Section 6.6 on page 6-24.

5. Path Loss Slope: For a rough estimate, Ta ble 6-17, “Estimated Path Loss Slope for

Different In-Building Environments” o n page 6-18, shows that a building with 80% hard wall offices and 20% cubicles, at 1920 MHz, has an approxi mate p ath loss slope (PLS) of 38.1. Given the RF link budget of 94.5 dB, the distance of coverage from each RAU will be 30.2 meters (99 ft). This corresponds to a coverage area of 2,868 sq. meters (30,854 sq. ft.) per RAU (refer to Secti o n 6 . 5 . 1 for detail s on path loss estimation). For this case we assumed a circular radiation patt ern, thoug h the actual area covered depends up on the pattern of the antenna and the obstru ctions in the facility .

6-22 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Estimating RF Coverage

6. Equipment Required: Since you know the building size, you can now estimate

the Fusion Wideband equipment quantities needed. Before you test any RF levels in the building, you can estimate that four antennas per level will be needed. This assumes no propagation between floors. If there is propagation, you may not need antennas on every floor.

a. 4 antennas per floor × 16 floors = 64 RAUs b. 64 RAUs ÷ 8 (maximum 8 RAUs per Expansion Hub) = 8 Expansion Hubs c. 8 Expansion Hubs ÷ 4 (maximum 4 Expansion Hubs per Main Hub) = 2 Main

Hubs

Check that the fiber and CATV cable distances are as recommended. If the distances differ, use the tables in Section 6.4, “System Gain,” on page 6-14 to determine system gains or losses. The path loss may need to be recalculated to assure adequate signal levels in the required coverage distance.

The above estimates assume that all cable length requirements are met. If Expansion Hubs cannot be placed so that the RAUs are within the distance requirement, additional Expansion Hubs may need to be placed closer to the required RAUs locations.

An RF Site Survey and Building Evaluation is required to accurately establish the Fusion Wideband equipment quantities required for the building. The site survey measures the RF losses within the building to determine the actual PLS, used in the final path loss formula to determine the actual requirements of the Fusion Wideband system.

Help Hot Line (U.S. only): 1-800-530-9960 6-23

D-620616-0-20 Rev F CONFIDENTIAL

Link Budget Analysis

6.6 Link Budget Analysis

A link budget is a methodical way to account for the gains and losses in an RF system so that the quality of coverage can be predicted. The end result can often be stated as a “design goal” in which the coverage is determined by the maximum distance from each RAU before the signal strength falls beneath that goal.

One key feature of the link budget is the maximum power per carrier explained in Section 6.3. While the maximum power per carrier is important as far as emissions and signal quality requirements are concerned, it is critical that the maximum signal into the Main Hub never exceed 1W (+30 dBm). Composite power levels above this limit will cause damage to the Main Hub.

WARNING: Exceeding the maximum input power of 1W (+30 dBm) could cause permanent damage to the Main Hub.

NOTE: Visit the TE customer portal at http://www.te.com/adc for the on-line Link Budget Tool.

6.6.1 Elements of a Link Budget for Narrowband Standards

The link budget represents a typical calculation that might be used to determine how much path loss can be afforded in a Fusion Wideband design. This link budget analyzes both the downlink and uplink paths. For most configuratio ns, the downlink requires lower path loss and is therefore the limiting factor in the system design. It is for this reason that a predetermined “design goal” for the downlink is sufficient to predict coverage distance.

The link budget is organized in a simple manner: the transmitted power is calculated, the airlink losses due to fading and body loss are summed, and the receiver sensitivity (minimum level a signal can be received for acceptable call quality) is calculated. The maximum allowable path loss (in dB) is the difference between the transmitted power, less the airlink losses, and the receiver sensitivity. From the path loss, the maximum coverage distance can be estimated using the path loss formula presented in Section 6.5.1.

Table 6-25 provides link budget considerations for narrowband systems.

6-24 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Link Budget Analysis

Protocol

Signal Bandwidth

Thermal Noise

TDMA 30 kHz –129 dBm GSM 200 kHz –121 dBm iDEN 25 kHz –130 dBm

Table 6-25 Link Budget Considerations for Narrowband Systems

Consideration Description

BTS Transmit Power The power per carrier transmitted from the base station output Attenuation between

BTS and Fusion Wideband

This includes all losses: cable, attenuator, splitter/combiner, and so forth. On the downlink, attenuation must be chosen so that the maximum power per carrier going into the

Main Hub does not exceed the levels given in Section 6.3. On the uplink, attenuation is chosen to keep the maximum uplink signal and noise level low enough

to prevent base station alarms but small enough not to cause degradation in the system sensitivity. If the Fusion Wideband noise figure minus the attenuation is at least 10 dB higher than the BTS

noise figure, the system noise figure is approximately that of Fusion Wideband alone. Refer to Section 6.8 for ways to independently set the uplink and downlink attenuations between the base station and Fusion Wideband.

Antenna Gain The radiated output power includes antenna gain. For example, if you use a 3 dBi antenna at the

RAU that is transmitting 0 dBm per carrier, the ef fect ive radiated power (relative to an isotropic radiator) is 3 dBm per carrier.

BTS Noise Figure This is the effective noise floor of the base station input (usually base station sensitivity is this effec-

tive noise floor plus a certain C/I ratio).

Fusion Wideband Noise Figure

This is Fusion Wideband’s uplink noise figure, which varies depending on the number of Expansion Hubs and RAUs, and the frequency band. Fusion Wideband’s uplink noise figure is specified for a 1-1-8 configuration. Thus, the noise figure for a Fusion Wideband system (or multiple systems whose uplink ports are power combined) is NF(1-1-8) + 10*log(# of Expansion Hubs). This represents an upper-bound because the noise figure is lower if any of the Expansion Hub’s RAU ports are not used.

Thermal Noise This is the noise level in the signal bandwidth (BW).

Thermal noise power = –174 dBm/Hz + 10Log(BW).

Required C/I ratio For each wireless standard, a certain C/I (carrier to interference) ratio is needed to obtain acceptable

demodulation performance. For narrowband systems, (TDMA, GSM, EDGE, iDEN, AMPS) this level varies from about 9 dB to 20 dB.

Mobile Transmit

The maximum power the mobile can transmit (power transmitte d at highest power level setting).

Power Multipath Fade

Margin

This margin allows for a certain level of fading due to multipath interference. Inside buildings there is often one or more fairly strong signals and many weaker signals arriving from reflections and diffraction. Signals arriving from multiple paths add constructively or destructively. This ma rgin accounts for the possibility of destructive multipath interference. In RF site surveys the effect s of multipath fading are typically not accounted for because such fading is averaged out over power level samples taken over many locations.

D-620616-0-20 Rev F CONFIDENTIAL

Help Hot Line (U.S. only): 1-800-530-9960 6-25

Link Budget Analysis

Table 6-25 Link Budget Considerations for Narrowband Systems (continued)

Consideration Description

Log-normal Fade Margin

This margin adds an allowance for RF shadowing due to objects obstructing the direct pa th between the mobile equipment and the RAU. In RF site surveys, the effects of shadowing are partially

accounted for since it is characterized by relatively slow changes in power level. Body Loss This accounts for RF attenuation caused by the user’s head and body. Minimum Received

Signal Level

This is also referred to as the “design goal”. The link budget says that you can achieve adequate cov-

erage if the signal level is, on average, above this level over 95% of the area covered, for example.

6-26 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Link Budget Analysis

6.6.2 Narrowband Link Budget Analysis for a Microcell Application

Table 6-26 Narrowband Link Budget Analysis: Downlink

Line Downlink

Transmitter

a. BTS transmit power per carrier (dBm) 33 b. Attenuation between BTS and Fusion Wideband (dB) –23 c. Power into Fusion Wideband (dBm) 10 d. Fusion Wideband gain (dB) 0 e. Antenna gain (dBi) 3 f. Radiated power per carrier (dBm) 13

Airlink

g. Multipath fade margin (dB) 6 h. Log-normal fade margin with 9 dB std. deviation, 95% area coverage,

87% edge coverage

i. Body loss (dB) 3 j. Airlink losses (not including fac ili ty path loss) 19

Receiver

k. Thermal noise (dBm/30 kHz) –129 l. Mobile noise figure (dB) 7 m. Required C/I ratio (dB) 17 n. Minimum received signal (dBm) –105

p. Maximum path loss (dB) +99

• c = a + b

• f = c + d + e

• j = g + h + i

• n = k + l + m

• k: in this example, k represents the thermal noise for a TDMA signal, which has a bandwidth of 30 kHz

• p = f – j – n

Help Hot Line (U.S. only): 1-800-530-9960 6-27

D-620616-0-20 Rev F CONFIDENTIAL

Link Budget Analysis

sys

= F1 + + + ....

– 1

F3 – 1

G1G

where

F = 10

(See Rappaport, Theodore S. Wireless Communications, Principles, and Practice. Prentice Hall PTR, 1996.)

(Noise Figure/10)

G = 10

(Gain/10)

Table 6-27 Narrowband Link Budget Analysis: Uplink

Line Uplink

Receiver

a. BTS noise figure (dB) 4 b. Attenuation between BTS and Fusion Wideband (dB) –10 c. Fusion Wideband gain (dB) 0 d. Fusion Wideband noise figure (dB) 1-4-32 22 e. System noise figure (dB) 22.6 f. Thermal noise (dBm/30 kHz) –129 g. Required C/I ratio (dB) 12 h. Antenna gain (dBi) 3 i. Receive sensitivity (dBm) –97.4

Airlink

j. Multipath fade marg in (dB) 6 k. Log-normal fade margin with 9 dB std. deviation, 95% area coverage,

87% edge coverage

l. Body loss (dB) 3 m. Airlink losses (not including facility path loss) 19

Transmitter

n. Mobile transmit power (dBm) 28

p. Maximum path loss (dB) 106.4

• e: enter the noise figure and gain of each system component (a, b, c, and d) into the standard cascaded noise figure formula

• i = f + e + g – h

• m = j + k + l

• p = n – m – i

Therefore, the system is downlink limited but the downlink and uplink are almost balanced, which is a desirable condition.

6-28 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

6.6.3 Elements of a Link Budget for CDMA Standards

A CDMA link budget is slightly more complicated because you must consider the spread spectrum nature of CDMA. Unlike narrowband standards such as TDMA and GSM, CDMA signals are spread over a relatively wide frequency band. Upon reception, the CDMA signal is de-spread. In the de-spreading process the power in the received signal becomes concentrated into a narrow band, whereas the noise level remains unchanged. Hence, the signal-to-noise ratio of the de-spread signal is higher than that of the CDMA signal before de-spreading. This increase is called processing gain. For IS-95 and J-STD-008, the processing gain is 21 dB or 19 dB depending on the user data rate (9.6 Kbps for rate set 1 and 14.4 Kbps for rate set 2, respectively). Because of the processing gain, a CDMA signal (comprising one Walsh code channel within the composite CDMA signal) can be received at a lower level than that required for narrowband signals. A reasonable level is –95 dBm, which results in about –85 dBm com po site as shown below.

An important issue to keep in mind is that the downlink CDMA signal is composed of many orthogonal channels: pilot, paging, sync, and traffic. The composite power level is the sum of the powers from the individual channels. Table 6-28 shows an example.

Table 6-28 Distribution of Power within a CDMA Signal

Link Budget Analysis

Channel Walsh Code Number Relative Power Level

Pilot 0 20% –7.0 dB Sync 32 5% –13.3 dB Primary Paging 1 19% –7.3 dB Traffic 8–31, 33–63 9% (per traffic channel) –10.3 dB

This table assumes that there are 15 active traffic channels operating with 50% voice activity (so that the total power adds up to 100%). Notice that the pilot and sync channels together contribute about 25% of the power. When measuring the power in a CDMA signal you must be aware that if only the pilot and sync channels are active, the power level will be about 6 to 7 dB lower than the maximum power level you can expect when all voice channels are active. The implication is that if only the pilot and sync channels are active, and the maximum power per carrier table says that you should not exceed 10 dBm for a CDMA signal, for example, then you should set the attenuation between the base station and the Main Hub so that the Main Hub receives 3 dBm (assuming 0 dB system gain).

An additional consideration for CDMA systems is that the uplink and downlink paths should be gain and noise balanced. This is required for proper operation of soft-handoff to the outdoor network as well as preventing excess interference that is caused by mobiles on the indoor system transmitting at power levels that are not coordinated with the outdoor mobiles. This balance is achieved if the power level transmitted by the mobiles under close-loop power control is similar to the power level transmitted under open-loop power control.

Help Hot Line (U.S. only): 1-800-530-9960 6-29

D-620616-0-20 Rev F CONFIDENTIAL

Link Budget Analysis

The open-loop power control equation is

+ PRX = –73 dBm (for Cellular, IS-95)

+ PRX = –76 dBm (for PCS, J-STD-008)

where P mobile.

The power level transmitted under closed-loop power control is adjusted by the base station to achieve a certain E

ence between these power levels,  ated from the RAU, P

It’s a good idea to keep –12 dB <  Table 6-29 provides link budget considerations for CDMA systems.

Table 6-29 Additional Link Budget Considerations for CDMA

Consideration Description

Multipath Fade Margin

Power per carrier, downlink

Information Rate This is simply

The multipath fade margin can be reduced (by at least 3 dB) by using different lengths of optical fiber (this is called “delay diversity”). The delay over fiber is approximately 5µS/km. If the difference in fiber lengths to Expansion Hubs with overlapping coverage areas produces at least 1 chip (0.8µS) delay of one path relative to the other , then the mu ltipat hs’ signa ls can be resolved and pro cessed independently by the base station’s rake receiver. A CDMA signal traveling through 163 meters of MMF cable is delayed by approximately one chip.

This depends on how many channels are active. For example, the signal is about 7 dB lower if only the pilot, sync, and paging channels are active compared to a fully-loaded CDMA signal. Furthermore, in the CDMA forward link, voice channels are turned off when the user is not speaking. On average this is assumed to be about 50% of the time. So, in the spreadsheet, both the power per Walsh code channel (representing how much signal a mobile will receive on the Walsh code that it is de-spreading) and the total power are used.

The channel power is needed to determine the maximum path loss, and the total power is needed to determine how hard the Fusion Wideband system is being driven.

The total power for a fully-loaded CDMA signal is given by (approximately):

total power = = voice channel power + 10 dB

10log

(9.6 Kbps) = 40 dB for rate set 1

10log10(14.4 Kbps) = 42 dB for rate set 2

is the mobile’s transmitted power and PRX is the power received by the

(explained in Table 6-29 on page 6-30). The differ-

b/N0

, can be estimated by comparing the power radi-

, to the minimum received signal, P

downink



= P



= P

downink

+ P + P

+ 73 dBm (for Cell ular)

uplink

+ 76 dBm (for PCS)

uplink

< 12 dB.

voice channel power + 13 dB + 10log

(50%)

, at the RAU:

uplink

6-30 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Link Budget Analysis

Table 6-29 Additional Link Budget Considerations for CDMA (continued)

Consideration Description

Process Gain The process of de-spreading the desired signal boosts that signal relative to the noise and interference.

This gain needs to be included in the link budget. In the following formulas, PG = process gain:

PG = 10log10(1.25 MHz / 9.6 Kbps) = 21 dB rate set 1

= 10log10(1.25 MHz / 14.4 Kbps) = 19 dB rate set 2

Note that the process gain can also be expressed as 10log

(CDMA bandwidth) minus the information

rate.

Eb/No This is the energy-per-bit divided by the received noise and interfe rence. It’s the CDMA equivalent of sig-

nal-to-noise ratio (SNR). This figure depends on the mobile’s receiver and the multipath environment. For example, the multipath delays inside a building are usually too small for a rake receiver in the mobile (or base station) to resolve and coherently combine multipath components. However , if artificial delay can be introduced by, for instance, using different lengths of cable, then the required E

is lower and the mul-

b/No

tipath fade margin in the link budget can be reduced in some cases. If the receiver noise figure is NF (dB), then the receive sensitivity (dBm) is given by:

= NF + Eb/No + thermal noise in a 1.25 MHz band – P

sensitivity

= NF + E

– 113 (dBm/1.25 MHz) – P

b/No

Noise Rise On the uplink, the noise floor is determined not only by the Fusion Wideband system, but also by the num-

ber of mobiles that are transmitting. This is because when the base station attempts to de-spread a particular mobile’s signal, all other mobile signals appear to be noise. Because the noise floor rises as more mobiles try to communicate with a base station, the more mobiles there are, the more power they have to transmit. Hence, the noise floor rises rapidly:

noise rise = 10log

(1 / (1 – loading))

where loading is the number of users as a percentage of the theoretical maximum number of users. Typically, a base station is set to limit the loading to 75%. This noise ratio must be included in the link

budget as a worst-case condition for uplink sensitivity. If there are less users than 75% of the maximum, then the uplink coverage will be better than predicted.

Hand-off Gain CDMA supports soft hand-off, a process by which the mobile communicates simultaneously with more

than one base station or more than one sector of a base station. Soft hand-off provides improved receive sensitivity because there are two or more receivers or transmitters involved. A line for hand-off gain is included in the CDMA link budgets worksheet although the gain is set to 0 dB because the in-building system will probably be designed to limit soft-handoff.

Other CDMA Issues

• Never combine multiple sectors (more than one CDMA signal at the same frequency) into a Fusion Wideband system. The combined CDMA signals will interfere with each other.

• Try to minimize overlap between in-building coverage areas that utilize different sectors, as well as in-building coverage and outdoor coverage areas. This is important because any area in which more than one dominant pilot signal (at the same frequency) is measured by the mobile will result in soft-handoff. Soft-handoff decreases the overall network capacity by allocating multiple channel resources to a single mobile phone.

Help Hot Line (U.S. only): 1-800-530-9960 6-31

D-620616-0-20 Rev F CONFIDENTIAL

Link Budget Analysis

6.6.4 CDMA Link Budget Analysis for a Microcell Application

Table 6-30 CDMA Link Budget Analysis: Downlink

Line Downlink

Transmitter

a. BTS transmit power per traffic channel (dBm) 30.0 b. Voice activity factor 50% c. Composite power (dBm) 40.0 d. Attenuation between BTS and Fusion Wideband (dB) –24 e. Power per channel into Fusion Wideband (dBm) 9.0 f. Composite power into Fusion Wideband (dBm) 16.0 g. Fusion Wideband gain (dB) 0.0 h. Antenna gain (dBi) 3.0 i. Radiated power per channel (dBm) 12.0 j. Composite radiated power (dBm) 19.0

Airlink

k. Handoff gain (dB) 0.0 l. Multipath fade margin (dB) 6.0 m. Log-normal fade margin with 9 dB std. deviation, 95% area cover-

10.0

age, 87% edge coverage n. Additional loss (dB) 0.0 o. Body loss (dB) 3.0 p. Airlink losses (not including facility path loss) 19.0

Receiver

q. Mobile noise figure (dB) 7.0 r. Thermal noise (dBm/Hz) –174.0 s. Receiver interference density (dBm/Hz) –167.0 t. Information ratio (dB/Hz) 41.6 u. Required Eb/(N

)7.0

o+lo

v. Minimum received signal (dBm) –118.4 w. Maximum path loss (dB) +99.4

6-32 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

Link Budget Analysis

• b and c: see notes in Table 6-29 regarding power per carrier, downlink

• e = a + d

• f = c + d

• i = e + g + h

• j = f + g + h

• p = –k + l + m + n + o

• s = q + r

• v = s + t + u

• w = j – p – v

• x = j (downlink) + m (uplink) + P where

P = Ptx + Prx = –73 dB for Cellular

–76 dB for PCS

Help Hot Line (U.S. only): 1-800-530-9960 6-33

D-620616-0-20 Rev F CONFIDENTIAL

Link Budget Analysis

Table 6-31 CDMA Link Budget Analysis: Uplink

Line Uplink

Receiver

a. BTS noise figure (dB) 3.0 b. Attenuation between BTS and Fusion Wideband (dB) –30.0 c. Fusion Wideband gain (dB) 0.0 d. Fusion Wideband noise figure (dB) 22.0 e. System noise figure (dB) 33.3 f. Thermal noise (dBm/Hz) –174.0 g. Noise rise 75% loading (dB) 6.0 h. Receiver interference density (dBm/Hz) –134.6 i. Information rate (dB/Hz) 41.6 j. Required Eb/(N

)5.0

o+lo

k. Handoff gain (dB) 0.0 l. Antenna gain (dBi) 3.0 m. Minimum received signal (dBm) –91.1

Airlink

n. Multipath fade margin (dB) 6.0 o. Log-normal fade margin with 9 dB std. deviation, 95% area cover-

10.0

age, 87% edge coverage p. Additional loss (dB) 0.0 q. Body loss (dB) 3.0 r. Airlink losses (not including facility path loss) 19.0

Transmitter

s. Mobile transmit power (dBm) 28.0

t. Maximum path loss (dB) 100.1

6-34 InterReach Fusion Wideband Installation, Operation, and Reference Manual

CONFIDENTIAL D-620616-0-20 Rev F

ADC F0691 312, F0684 112 Users Manual

Specifications and Main Features

Frequently Asked Questions
