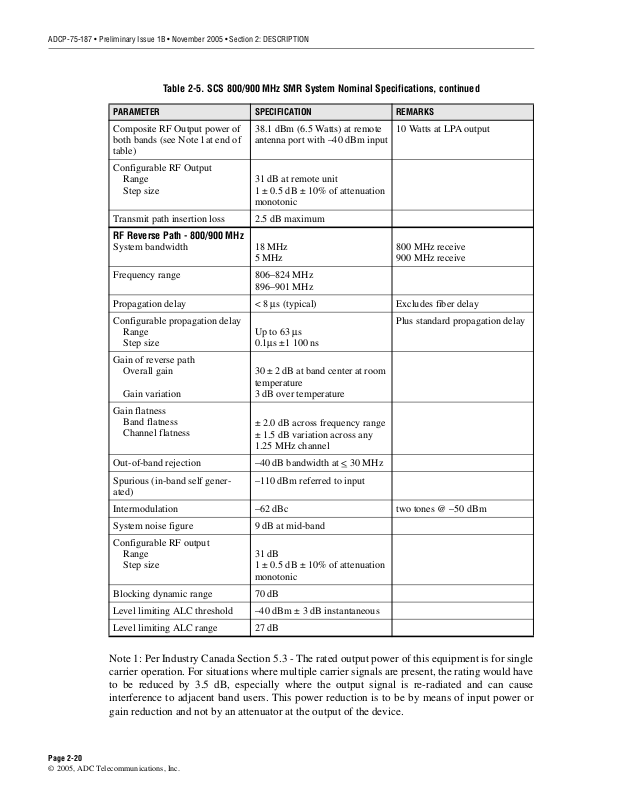

Table 2-5. SCS 800/900 MHz SMR System Nominal Specifications, continued

PARAMETER SPECIFICATION REMARKS

Composite RF Output power of
both bands (see Note 1at end of

38.1 dBm (6.5 Watts) at remote
antenna port with –40 dBm input

table)

Configurable RF Output
Range
Step size

31 dB at remote unit
1 ± 0.5 dB ± 10% of attenuation
monotonic

Transmit path insertion loss 2.5 dB maximum

RF Reverse Path - 800/900 MHz

System bandwidth 18 MHz

5 MHz

Frequency range 806–824 MHz

896–901 MHz

Propagation delay < 8 µs (typical) Excludes fiber delay

Configurable propagation delay
Range
Step size

Up to 63 µs

0.1µs ±1 100 ns

Gain of reverse path
Overall gain

30 ± 2 dB at band center at room
temperature

Gain variation

3 dB over temperature

10 Watts at LPA output

800 MHz receive
900 MHz receive

Plus standard propagation delay

Gain flatness
Band flatness
Channel flatness

± 2.0 dB across frequency range
± 1.5 dB variation across any

1.25 MHz channel

Out-of-band rejection –40 dB bandwidth at <

Spurious (in-band self gener-

–110 dBm referred to input

30 MHz

ated)

Intermodulation –62 dBc two tones @ –50 dBm

System noise figure 9 dB at mid-band

Configurable RF output
Range
Step size

31 dB
1 ± 0.5 dB ± 10% of attenuation
monotonic

Blocking dynamic range 70 dB

Level limiting ALC threshold –40 dBm ± 3 dB instantaneous

Level limiting ALC range 27 dB

Note 1: Per Industry Canada Section 5.3 - The rated output power of this equipment is for single
carrier operation. For situations where multiple carrier signals are present, the rating would have
to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause
interference to adjacent band users. This power reduction is to be by means of input power or
gain reduction and not by an attenuator at the output of the device.
