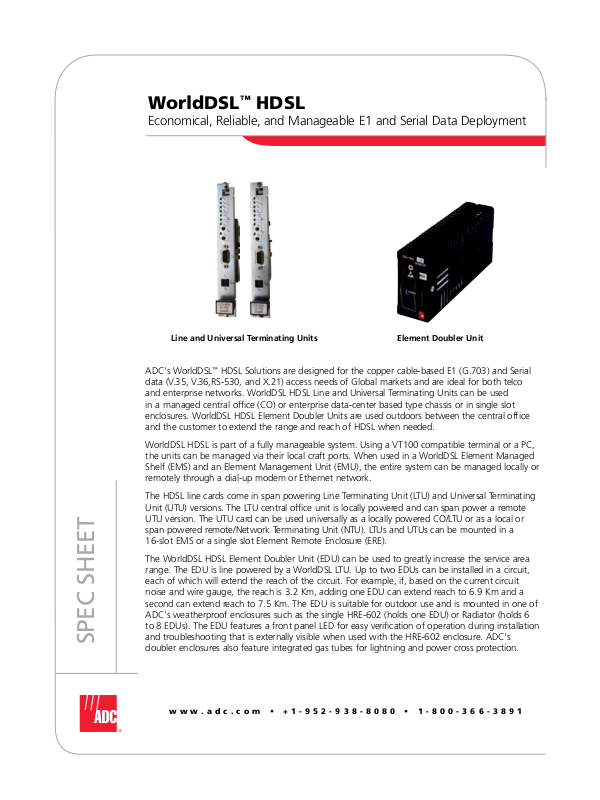

WorldDSL™ HDSL

Economical, Reliable, and Manageable E1 and Serial Data Deployment

Element Doubler UnitLine and Universal Terminating Units

ADC's WorldDSL™ HDSL Solutions are designed for the copper cable-based E1 (G.703) and Serial
data (V.35, V.36,RS-530, and X.21) access needs of Global markets and are ideal for both telco
and enterprise networks. WorldDSL HDSL Line and Universal Terminating Units can be used
in a managed central office (CO) or enterprise data-center based type chassis or in single slot
enclosures. WorldDSL HDSL Element Doubler Units are used outdoors between the central office
and the customer to extend the range and reach of HDSL when needed.

WorldDSL HDSL is part of a fully manageable system. Using a VT100 compatible terminal or a PC,
the units can be managed via their local craft ports. When used in a WorldDSL Element Managed
Shelf (EMS) and an Element Management Unit (EMU), the entire system can be managed locally or
remotely through a dial-up modem or Ethernet network.

The HDSL line cards come in span powering Line Terminating Unit (LTU) and Universal Terminating
Unit (UTU) versions. The LTU central office unit is locally powered and can span power a remote
UTU version. The UTU card can be used universally as a locally powered CO/LTU or as a local or
span powered remote/Network Terminating Unit (NTU). LTUs and UTUs can be mounted in a
16-slot EMS or a single slot Element Remote Enclosure (ERE).

The WorldDSL HDSL Element Doubler Unit (EDU) can be used to greatly increase the service area
range. The EDU is line powered by a WorldDSL LTU. Up to two EDUs can be installed in a circuit,
each of which will extend the reach of the circuit. For example, if, based on the current circuit
noise and wire gauge, the reach is 3.2 Km, adding one EDU can extend reach to 6.9 Km and a
second can extend reach to 7.5 Km. The EDU is suitable for outdoor use and is mounted in one of
ADC's weatherproof enclosures such as the single HRE-602 (holds one EDU) or Radiator (holds 6
to 8 EDUs). The EDU features a front panel LED for easy verification of operation during installation

Spec Sheet

and troubleshooting that is externally visible when used with the HRE-602 enclosure. ADC's
doubler enclosures also feature integrated gas tubes for lightning and power cross protection.

www.adc.com • [phone] • 1-800-366-3891

0.91 mm0.40 mm 0.51 mm 0.64 mm

1

0

2

3

4

5

6

7

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

9

8

Wire Gauge (mm)

Figure 1

Single Span Reach

0.91 mm0.40 mm 0.51 mm 0.64 mm

1

0

2

3

4

5

6

7

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

9

8

Wire Gauge (mm)

Figure 1

Single Span Reach

0.91 mm0.40 mm 0.51 mm 0.64 mm

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

4

2

6

8

10

12

14

16

20

18

Wire Gauge (mm)

Figure 2

2 Span Single Doubler Reach

0.91 mm0.40 mm 0.51 mm 0.64 mm

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

Wire Gauge (mm)

Figure 1

0.91 mm0.40 mm 0.51 mm 0.64 mm

4

2

6

8

10

12

14

16

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

20

18

Wire Gauge (mm)

Figure 3

3 Span Two Doublers Reach

0.91 mm0.40 mm 0.51 mm 0.64 mm

RANGE (KILOMETERS)

MAXIMUM
TYPICAL
MINIMUM

Wire Gauge (mm)

Figure 2

HDSL

™

WorldDSL™ HDSL

Economical, Reliable, and Manageable E1 and Serial Data Deployment

Features

Fiber optic quality (BER 10•

LTUs can provide line powering for up to two •
doublers for very long reach loops

LTUs can provide wetting current to reduce •
corrosion of connections

Point-to-multipoint configurations where a single •
central office card can operate two 1 Mbps
remote NTUs each via a single twisted pair to
reduce system costs

-10

)

User software selectable dataport interface•

Single pair mode where the unit uses only one pair •
at a maximum rate of 1Mbps

Timeslot priority mode where, if one of the two •
HDSL pairs fails, the FAS, signaling and first 15 voice
channels are switched to the operating pair

WorldDSL

11/08 • 106805AE

www.adc.com • [phone] • 1-800-366-3891

G.703

120/75Ω

Serial

V.35/V.36/RS-530/X.21

LTU or

UTU

3.2 Km on 0.4 mm

UTU*

G.703

120/75Ω

Serial

V.35/V.36/RS-530/X.21

5.3 Km on 0.64 mm

Typical Single Span Applications

E1 (G.703)

120/75Ω

Serial

V.35/V.36/RS-530/X.21

EDU EDU

UTU**LTU

V.35/V.36/RS-530/X.21

7.5 Km on 0.4 mm

12.5 Km on 0.64 mm

Typical 3-Span Extended Reach with doublers line powered and remote UTU locally powered

* Can be line powered from LTU or AC or DC local powered
** AC or DC local power required

E1 (G.703)

120/75Ω

Serial

2

WorldDSL™ HDSL

Economical, Reliable, and Manageable E1 and Serial Data Deployment

Specifications

HDSL Interface
Line Code: 2B1Q
Line Rate: 1168 kbps on each pair
Output: 13.5 dBm ± 0.5 dB
Maximum Provisioning Loss: 35 dB at 292 kHz
Range: See Figures 1, 2 and 3
HDSL Connector: See specific enclosure for external DSL interface connection type
Secondary Protection: Provided on LTU, UTU, and EDU
LTU/UTU Protection Compliance: ITU-T K.20 and K.21 compliant when used in

EDU Protection Compliance: ITU-T K.17
EDU Primary Protection: Integrated gas discharge tubes when used in EDU enclosures
EDU Protection Compliance: ITU-T K.17 when used in ADC enclosures
Other Compliances: ETSI TS101135 and ITU-T G.991.1

HDSL

™

WorldDSL

E1 Interface
Line Code: HDB3
Data Rate: 2048 kbps
Operation: Full or fractional
Blocking: Per 64 kbps channel
Idle Code Insertion: User selectable word
Impedance: 120 Ω balanced or 75 Ω unbalanced
Framing: Structured with or without CRC-4 or unstructured
Connectors: Both D15F (balanced) and BNC (unbalanced)
Timing: G.703 or external
Compliance: ITU-T G.703, G.704, G.706, G.821, G.823, CTR12

Data Interface
User software selectable as: V.35, V.36, RS-530, X.21
Connector: D25F (adapters available)
Timing: Internal, external, Nx64k, HDSL
Compliance: Net 2

Performance Monitoring
HDSL: Noise margin, pulse attenuation, ES, UAS
E1: ITU-T G.821
Alarms: Form C relay contacts
HDSL Loopbacks: LTU or UTU local or remote towards Network or Customer EDU

E1 and Serial Data Loopbacks: Local or remote towards Network or Customer
Test Pattern: PRBS generator and BER meter

ADC Chassis and Enclosures

towards Network

Power
Input Power: - 36 to -72VDC for LTU and UTU when locally powered

75VDC to 120VDC Tip to Ring for UTU or EDU when

11/08 • 106805AE

www.adc.com • [phone] • 1-800-366-3891

Power Consumption: 5W for line or locally powered UTU

Physical
LTU and UTU Dimensions (HxWxD): 6.89" x 0.925" x 8.45" (175 mm x 24 mm x 215 mm)
Weight
LTU: 0.81 lbs. (0.37 Kg)
UTU: 0.61 lbs. (0.28 Kg)
EDU Dimensions (HxWxD): 2.6" x 1.46" x 6.5" (66 mm x 37 mm x 165 mm)
EDU Weight: 1.8 lbs. (0.82 kg)

span powered from LTU

5W for LTU with line powering off
15W for LTU with line powering on

2.5W for line powered EDU

3

LTU Chassis and Enclosures: EMS-830 L2 or EMS-832 L2 Central Office 16 slot shelf

ERE-811 L5 single slot desktop enclosure
EDU Outdoor Enclosures: HRE-602 L1 above ground, hold one EDU
RAD-AG30-8 above ground, vented, holds 4-6 EDUs
RAD-BA30-8 below ground, pressurized, holds 4-6 EDUs
RAD-AG30-16 above ground, vented, holds 8 EDUs
RAD-BA30-16 below ground, pressurized, holds 8 EDUs
Note: All Have Integrated Gas Discharge Tube protection

Environmental
Operating Temperature: -5º C to +50º C (LTU and UTU), -40º C to +65º C (EDU)
Storage Temperature: -40º C to +85º C
Humidity: Up to 95% RH non-condensing

Regulatory
CE marked
Safety: EN60950
Emissions and Immunity: EN 300386-2

Ordering Information

Description Catalog Number

Line Terminating Unit, locally with span powering, E1+serial

(G.703+V.35, V.36, RS-530, X.21)

Universal Terminating Unit, locally or span powered by LTU, E1+serial
(G.703+V.35, V.36, RS-530, X.21)

Element Doubler/Regenerator Unit, span powered by LTU, double-wide 239 mechanics EDU-840 L3

LTU-804 L1C

UTU-804 L1C
