ADC ADG-758 User Manual

ADG-758

(Gas - DSI)

Parts Manual

American Dryer Corporation

88 Currant Road

Fall River, MA 02720-4781

Telephone: [phone] / Fax: [phone]

e-mail: [email protected]

www.amdry.com

081999MFM/abe ADC Part No. 450419

Retain This Manual In A Safe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

Important

For your convenience, log the following information:

DATE OF PURCHASE ___________________________ MODEL NO. __________________________________________

RESELLER’S NAME ______________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

ADG-758

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.

Table of Contents

Control Door Assembly Without Trim .................................................................................................. 2

Control Door Assembly With Trim ...................................................................................................... 3

Phase 5 OPL Microprocessor Control Panel Assembly......................................................................... 4

Phase 5 Coin Microprocessor Control Panel Assembly ......................................................................... 5

Phase 5 Coin and OPL Microprocessor Control Box Assembly ............................................................ 6

Coin Vault Assembly .......................................................................................................................... 7

Dual Timer “Tap Touch” Controls

For Models Mfd. as of November 3, 2000 .................................................................................... 8

Dual Timer Control Panel Assembly

For Models Mfd. prior to November 3, 2000 ................................................................................ 9

Dual Timer Control Box Assembly .................................................................................................... 10

Front Panel Assembly for Plastic Door .............................................................................................. 11

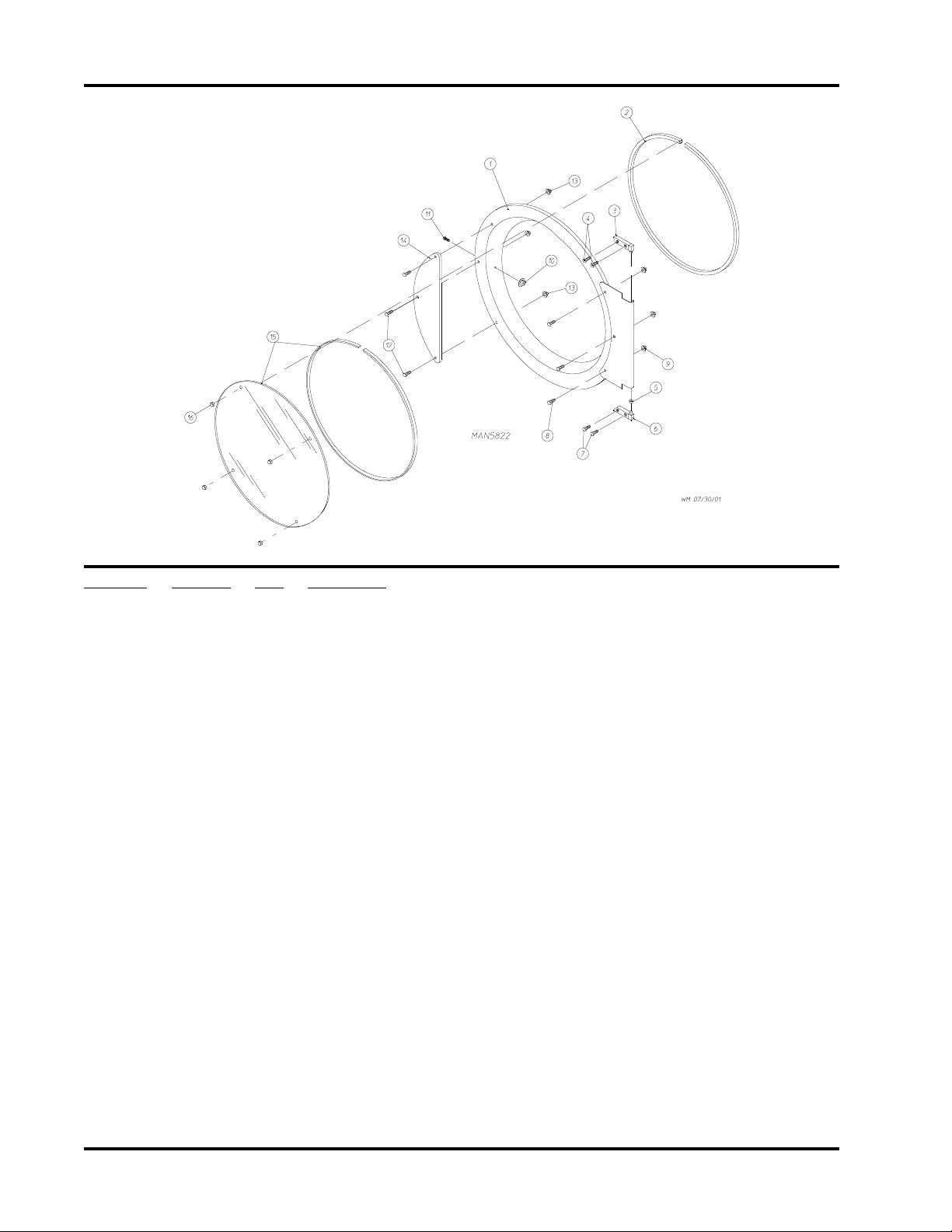

“Plastic” Main Door Assembly .......................................................................................................... 12

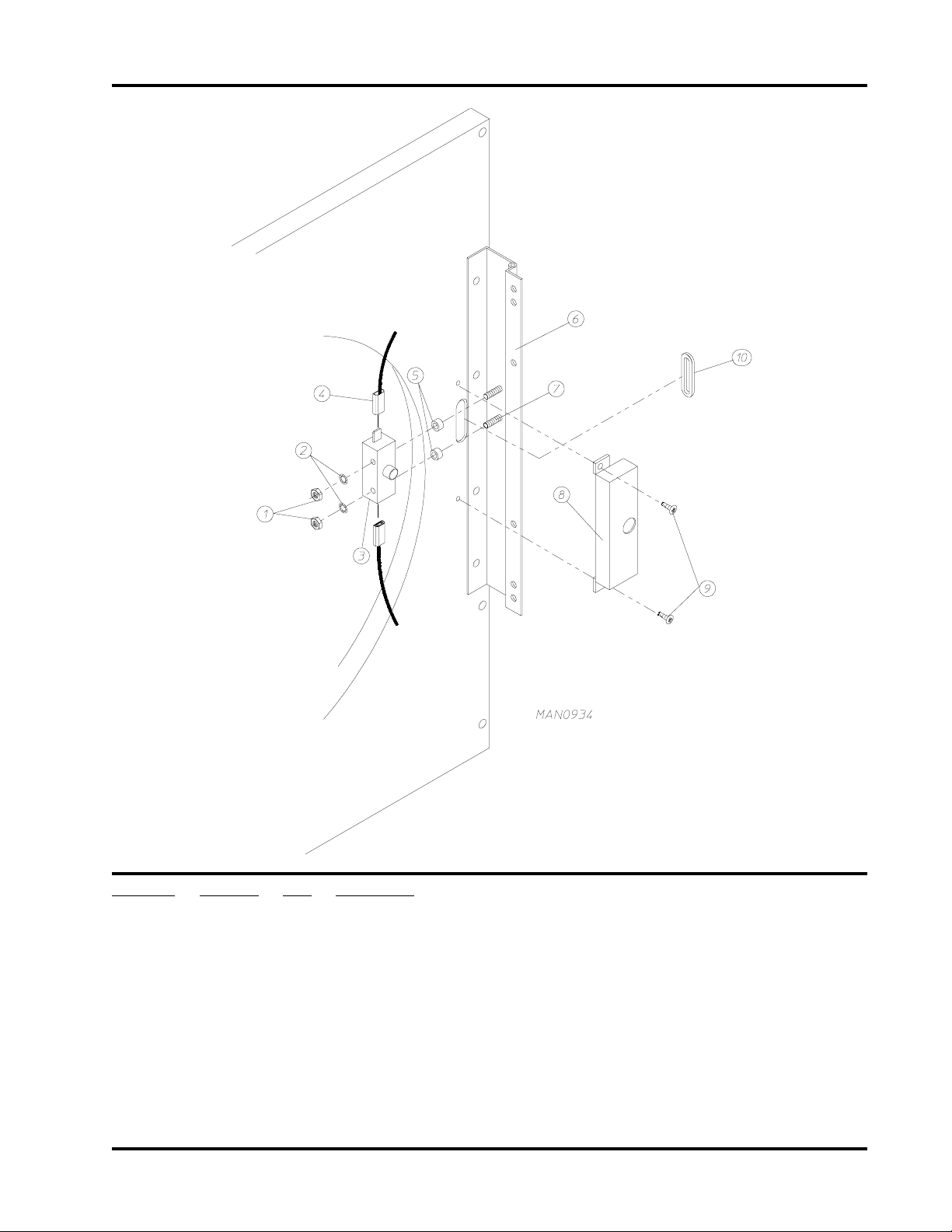

Main Door Switch Housing for Plastic Door ...................................................................................... 13

Main Door “Cold Rolled Steel (CRS)” Assembly ............................................................................... 14

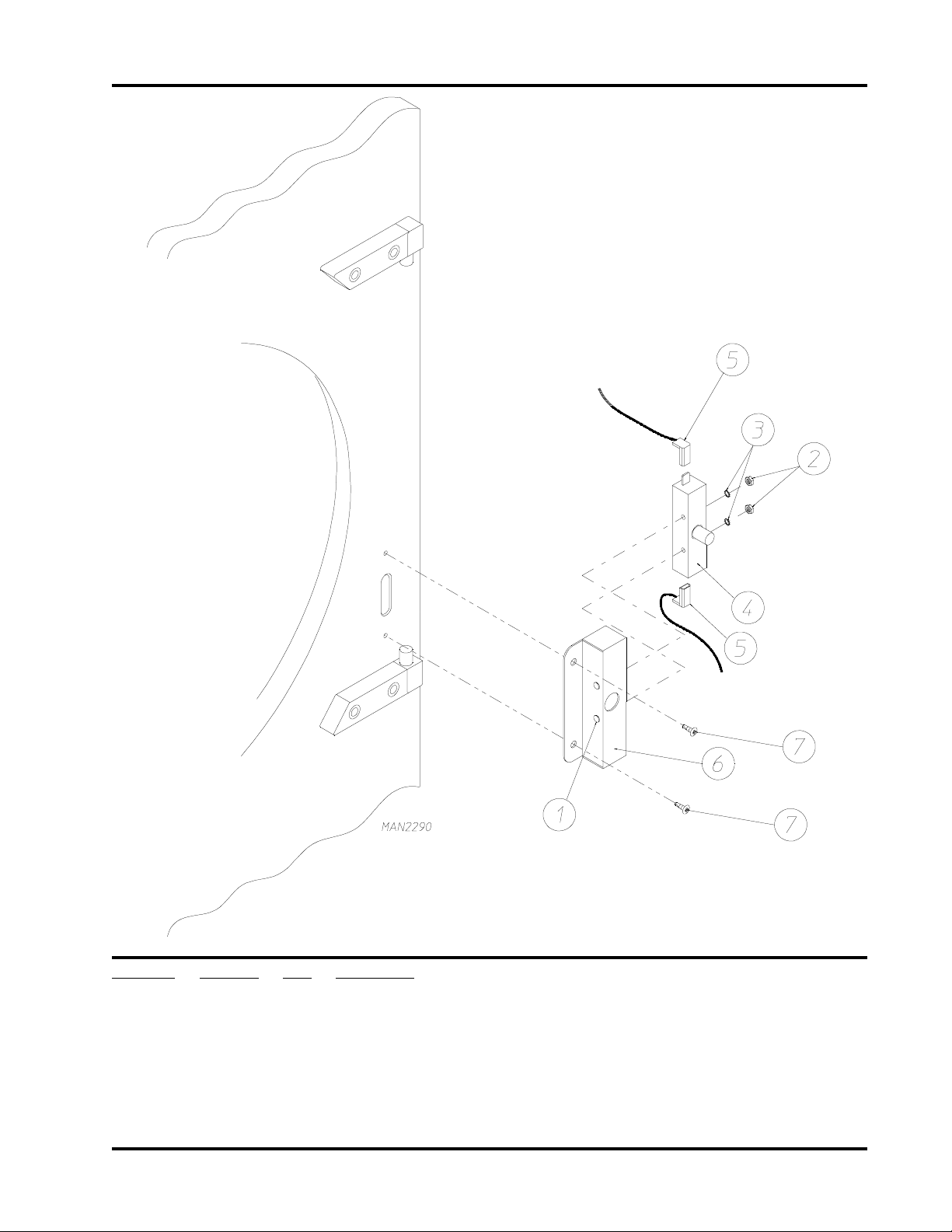

Main Door Switch Assembly Cold Rolled Steel (CRS) Door .............................................................. 15

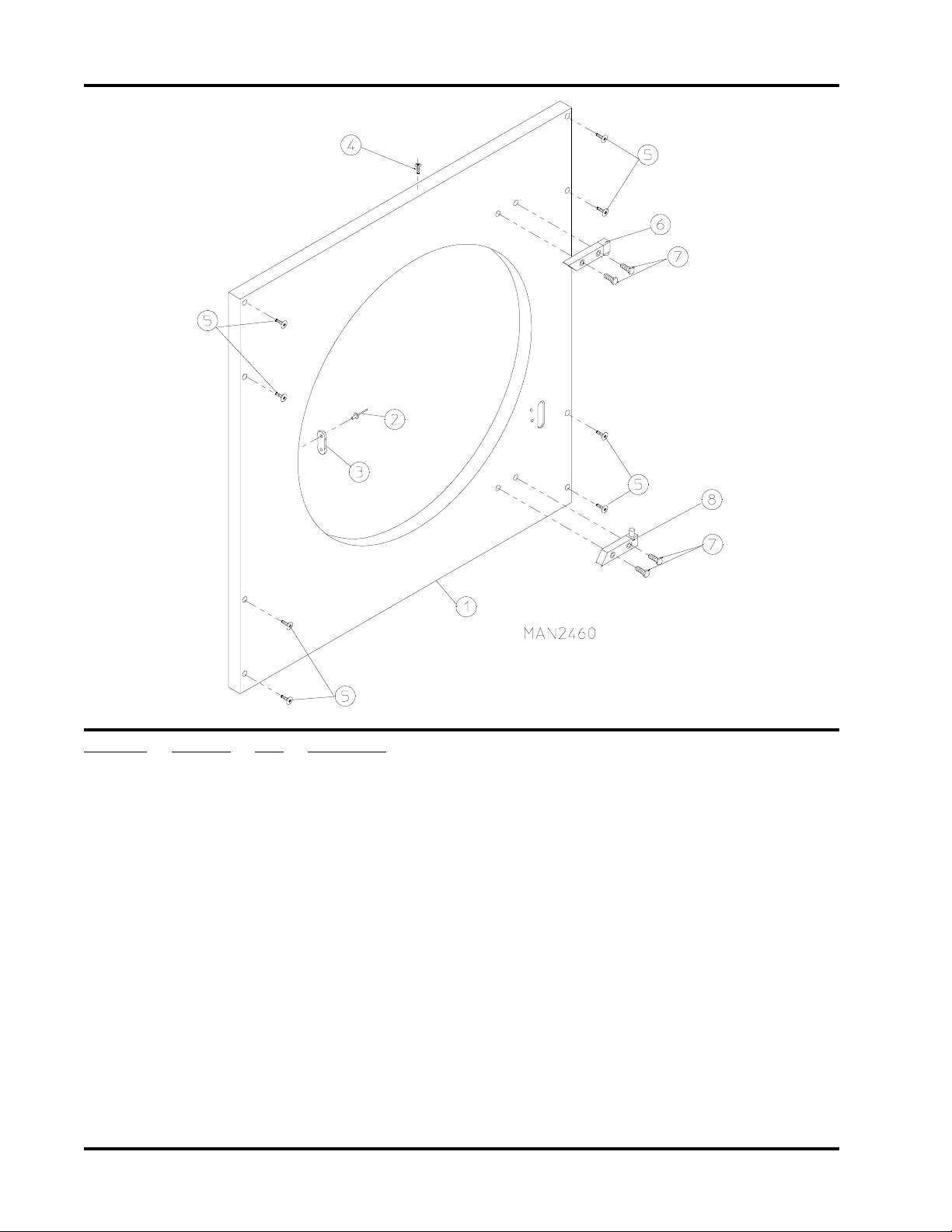

Cold Rolled Steel (CRS) Door Front Panel ....................................................................................... 16

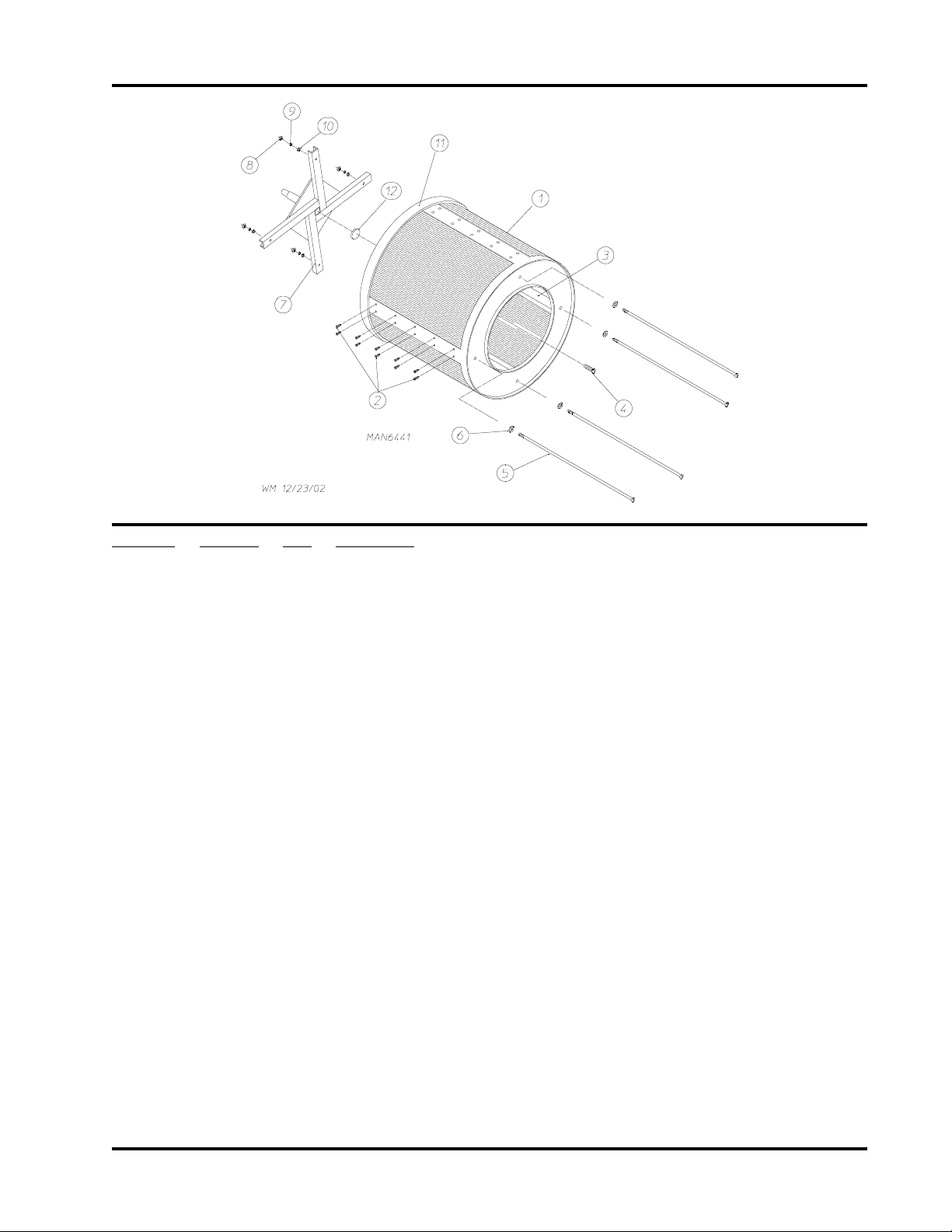

Basket (Tumbler)/Support Assemblies ............................................................................................... 17

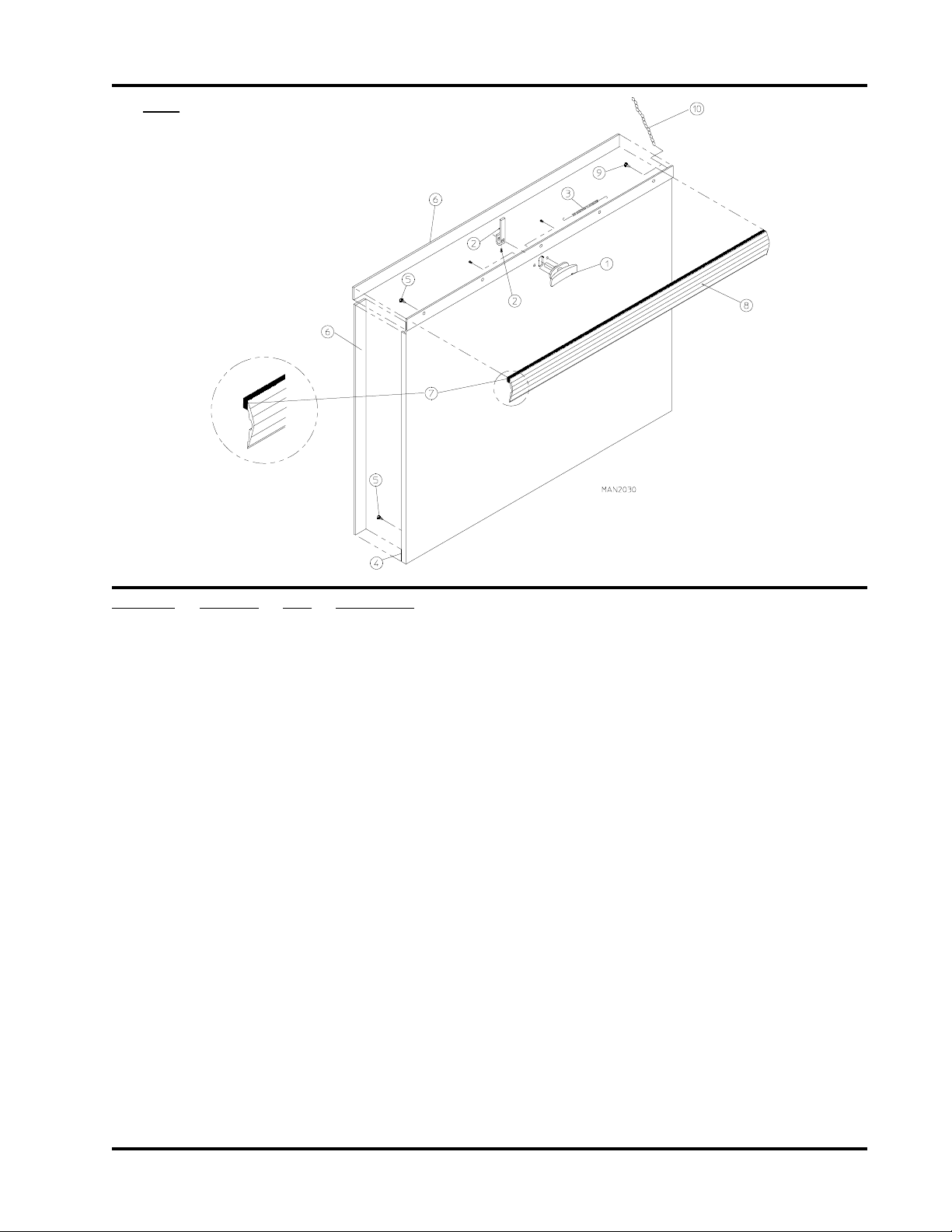

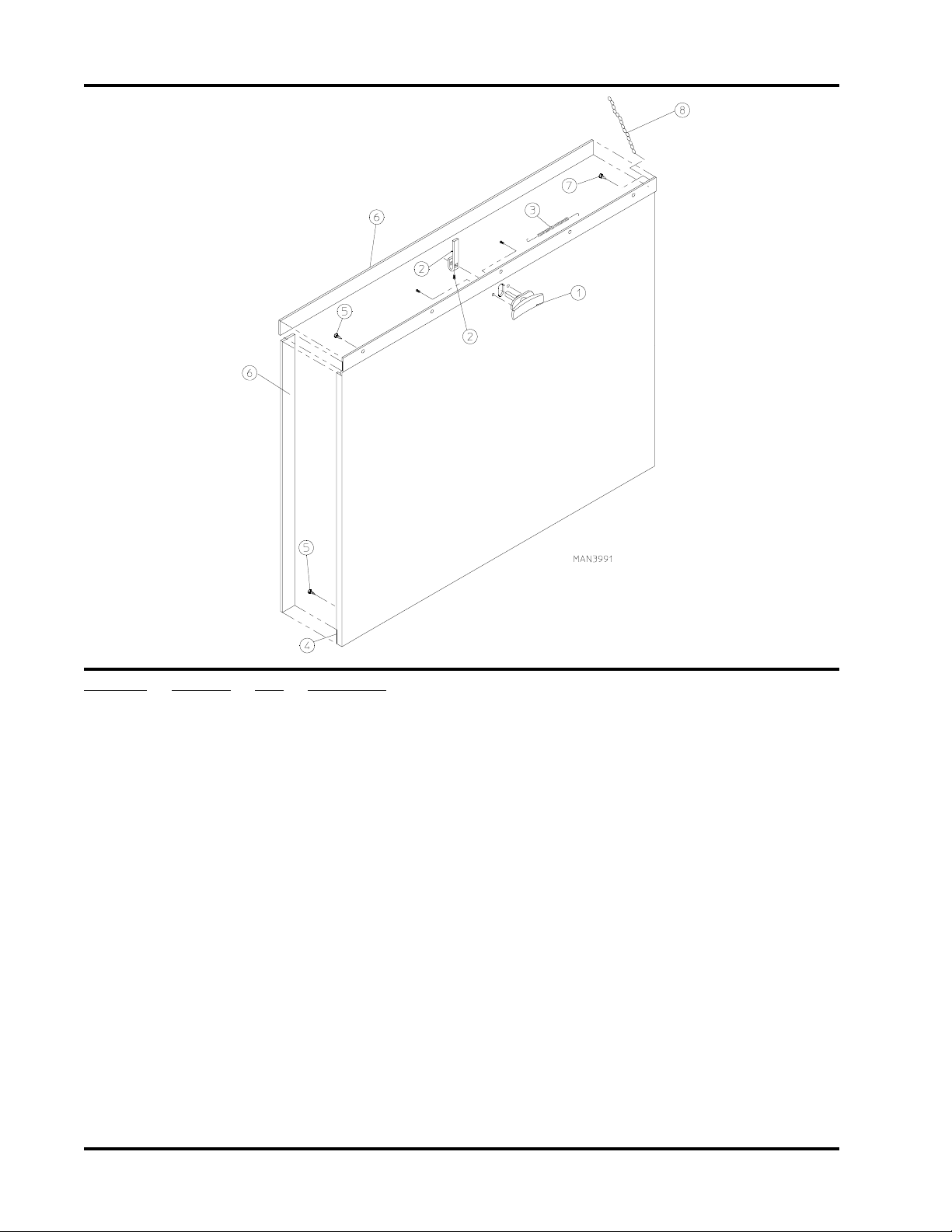

Drop Lint Door Assembly Without Trim ............................................................................................. 18

Drop Lint Door Assembly With Trim

For All Coin Models .................................................................................................................. 19

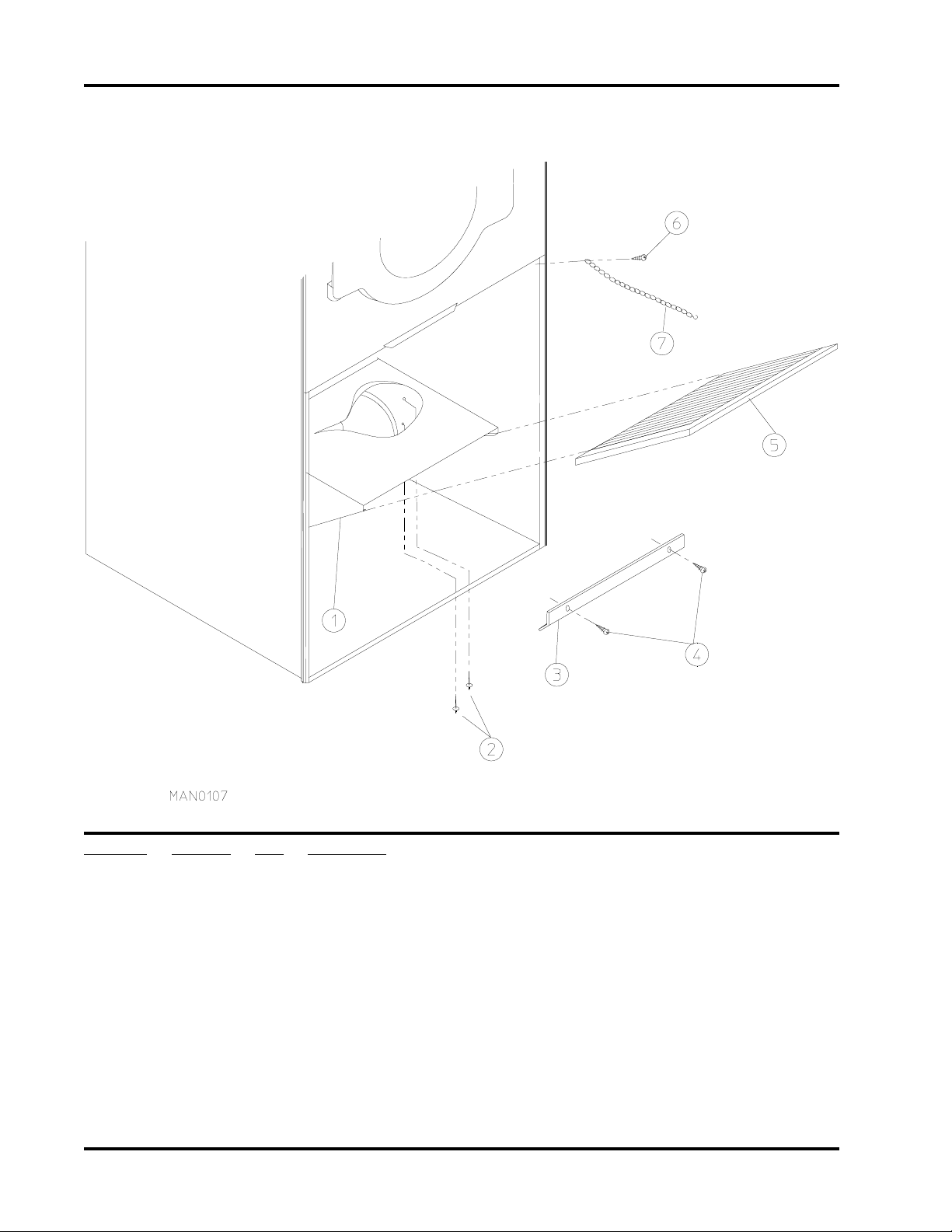

Lint Trap Assembly .......................................................................................................................... 20

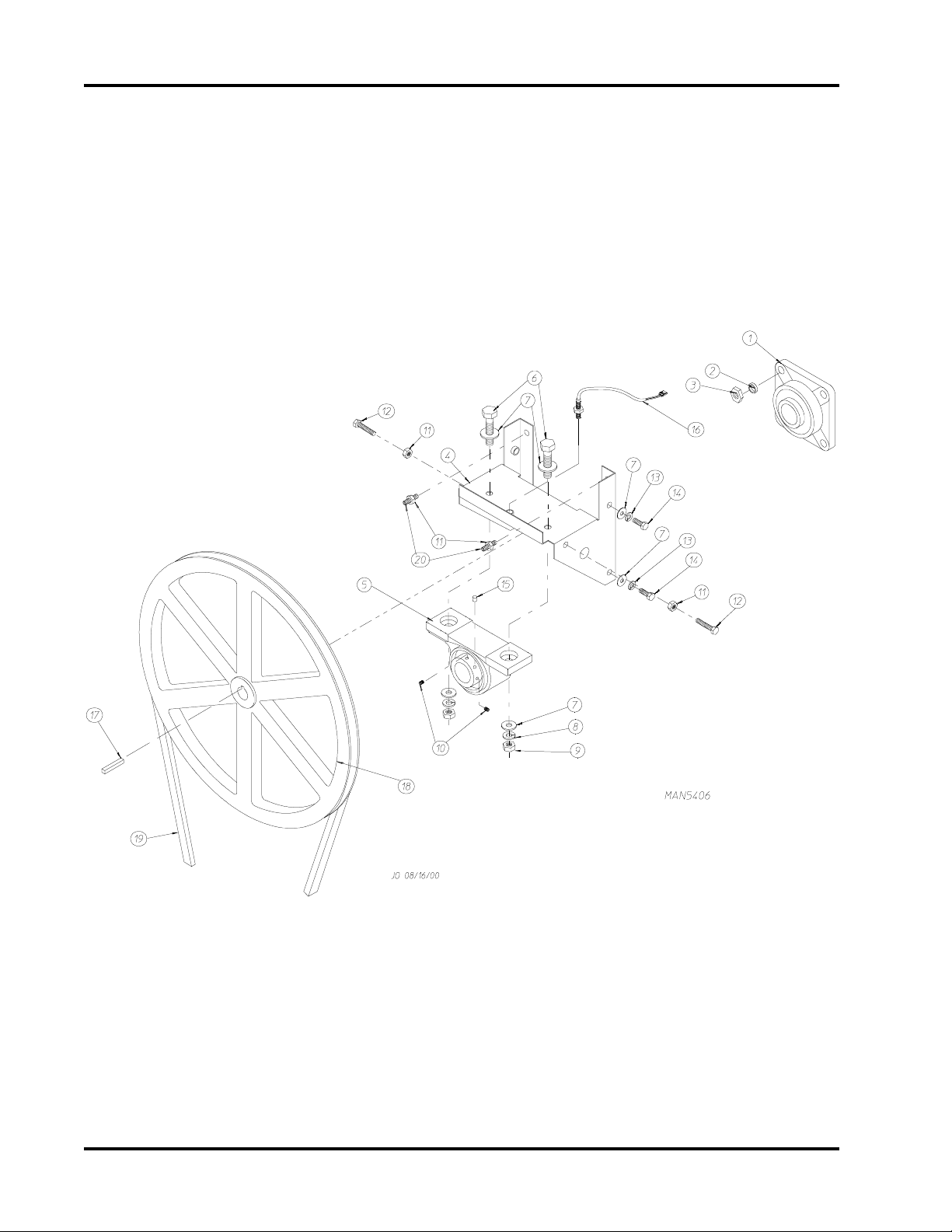

Idler Bearing Assembly .................................................................................................................... 21

Basket (Tumbler) Bearing Assembly ............................................................................................ 22, 23

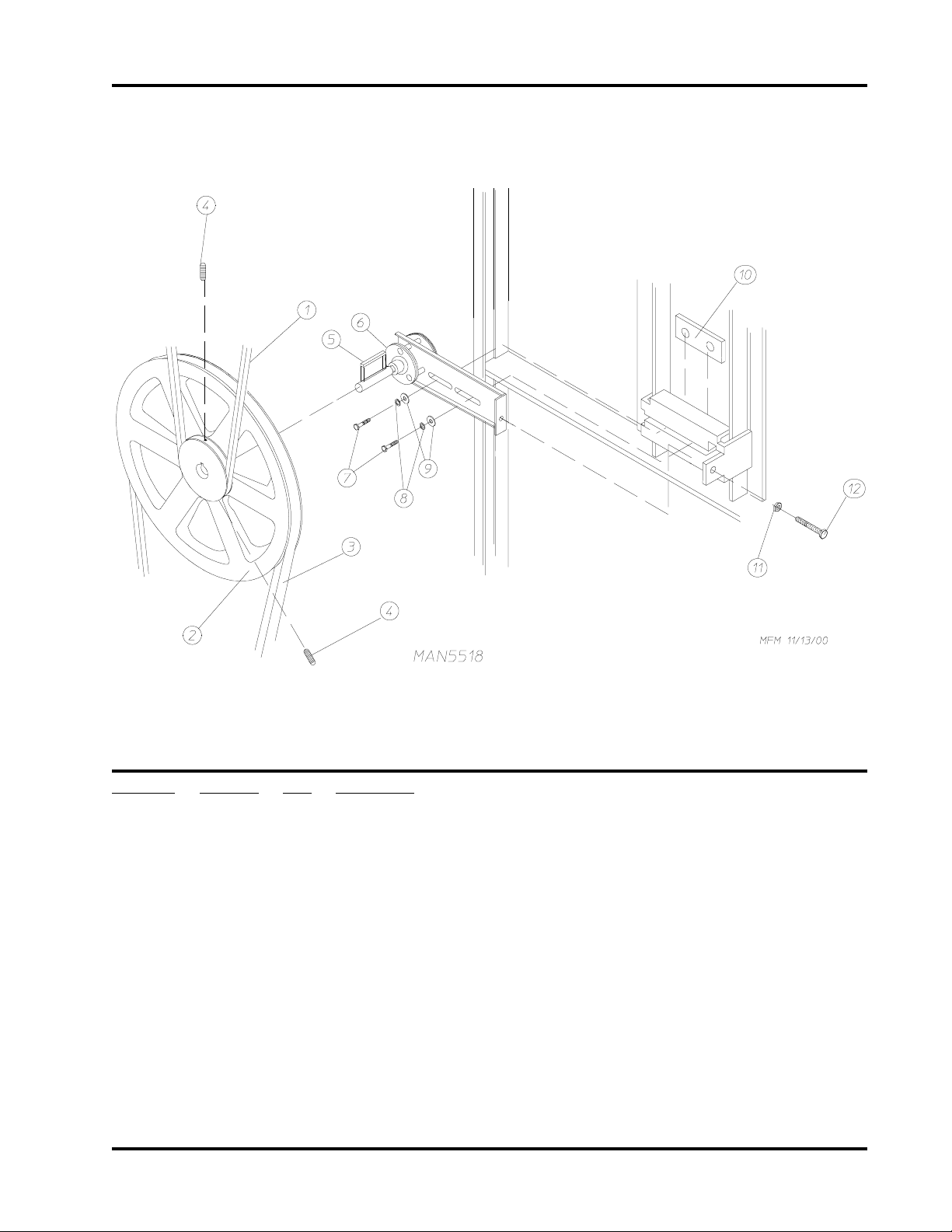

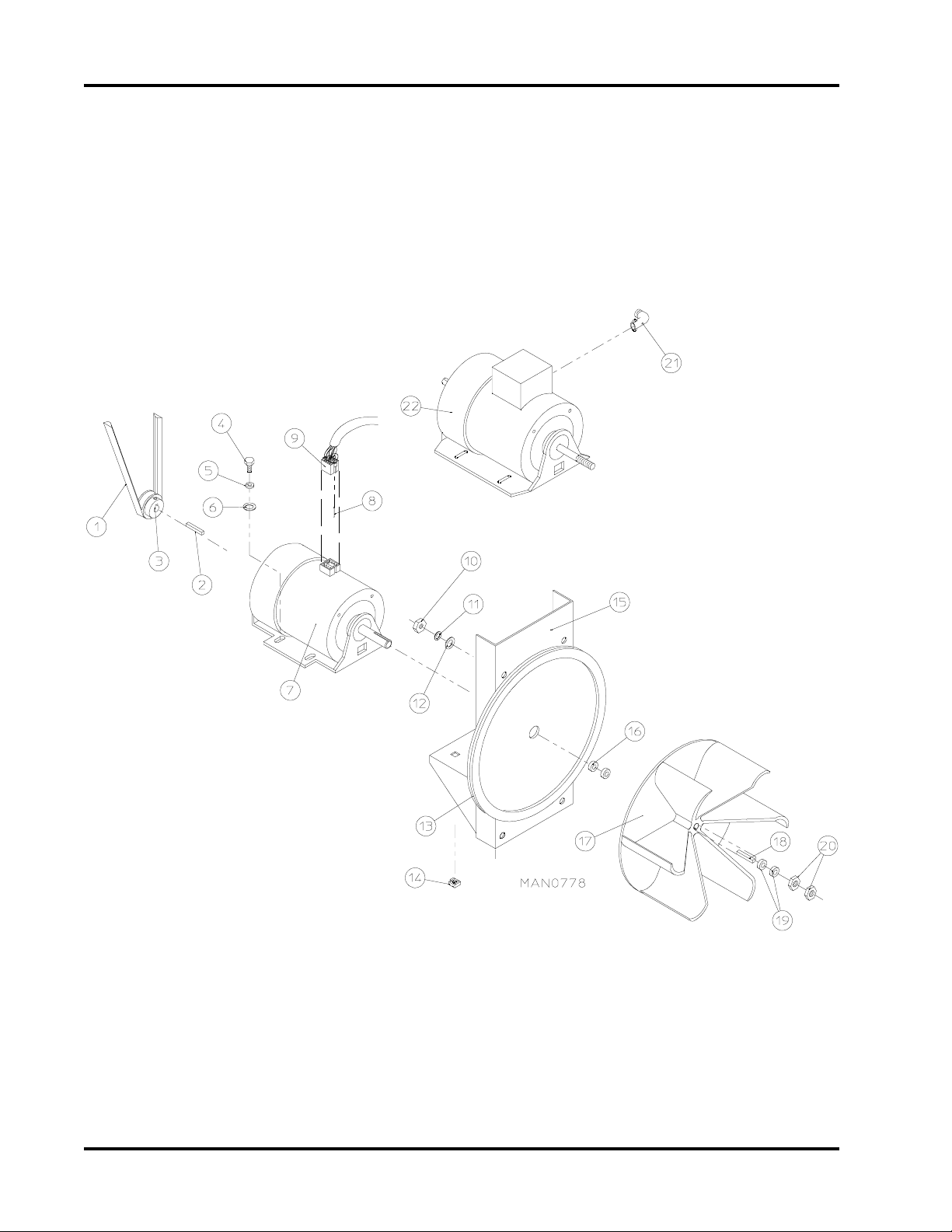

Non-Reversing T.E.F.C. Motor Mount Assembly ......................................................................... 24, 25

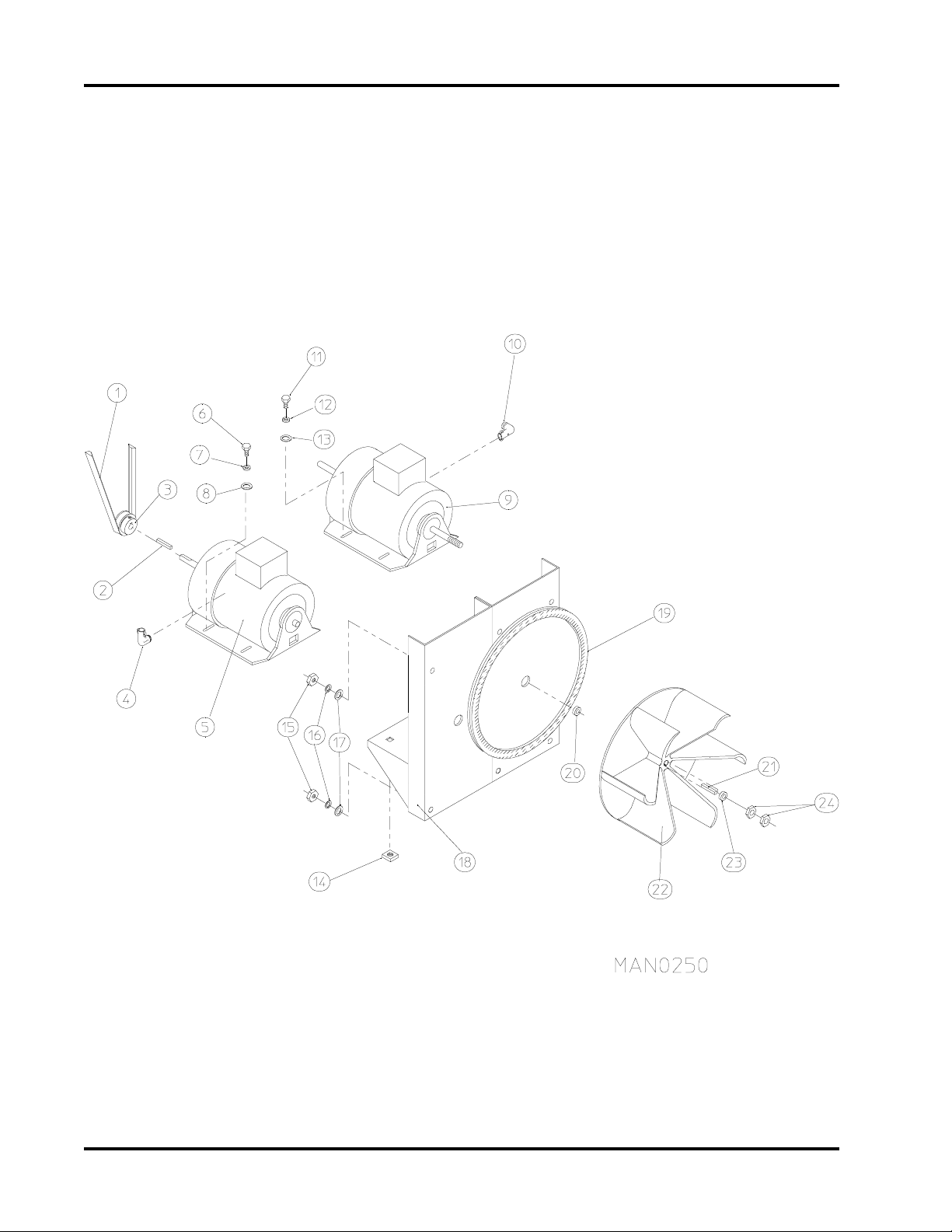

Reversing T.E.F.C. Motor Mount Assembly ................................................................................. 26, 27

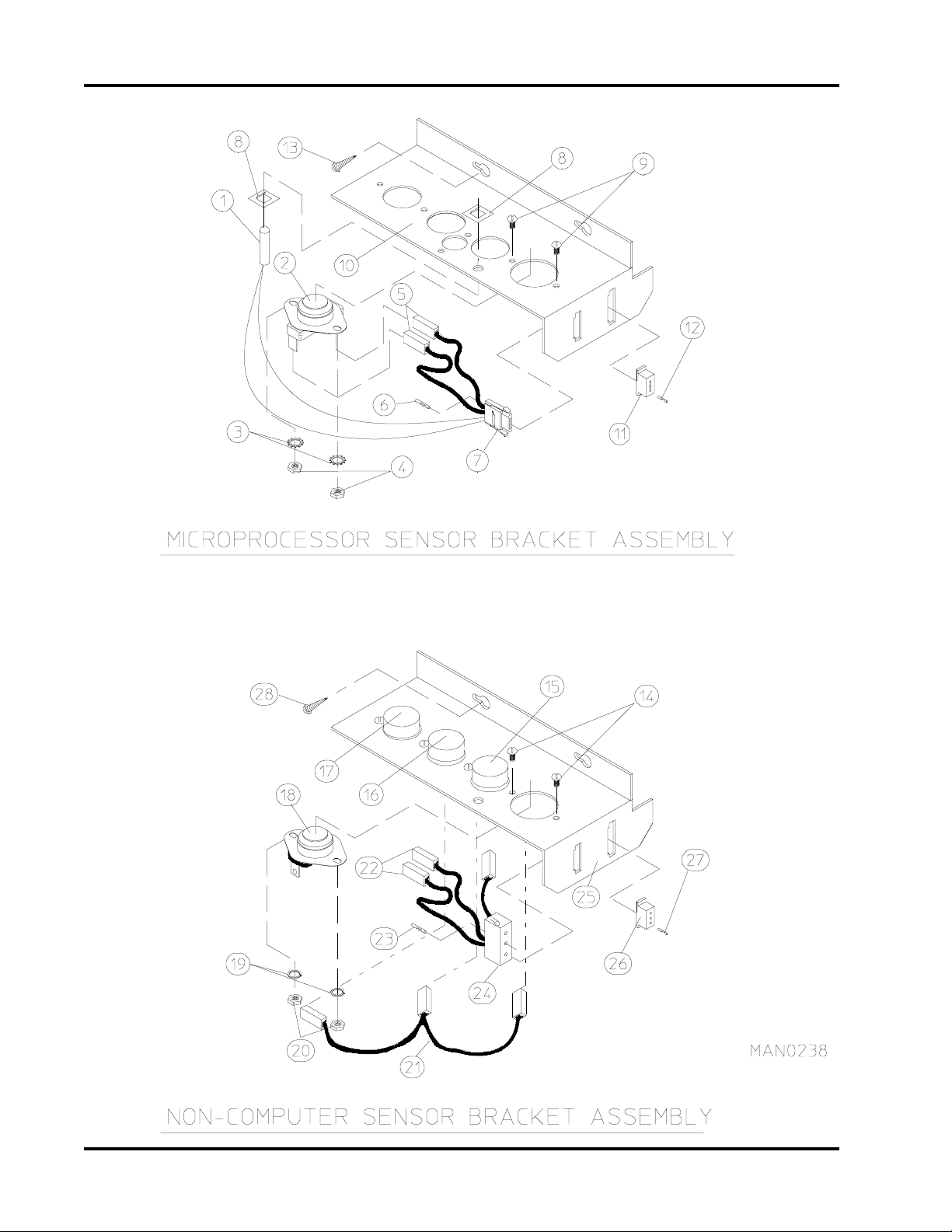

Sensor Bracket Assemblies ........................................................................................................ 28, 29

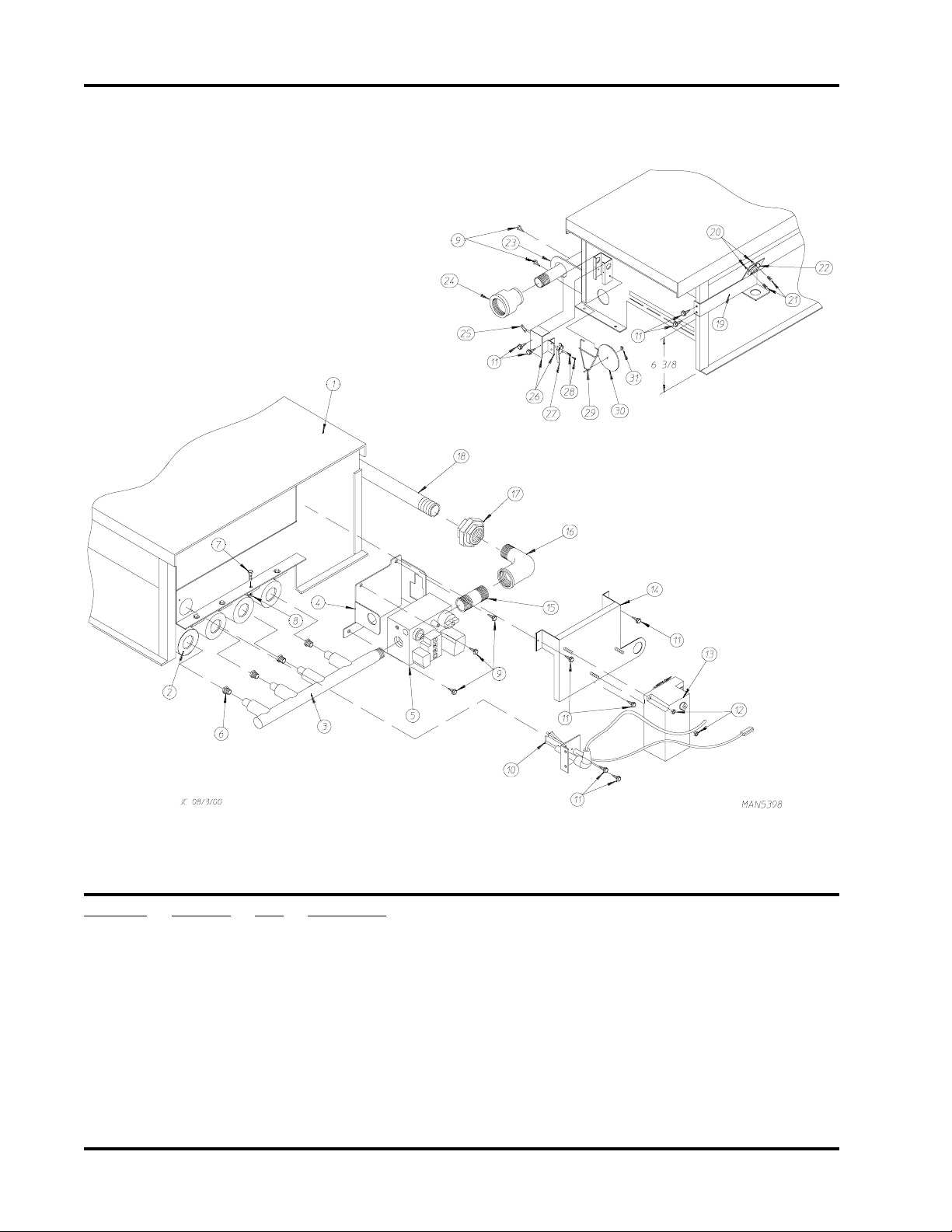

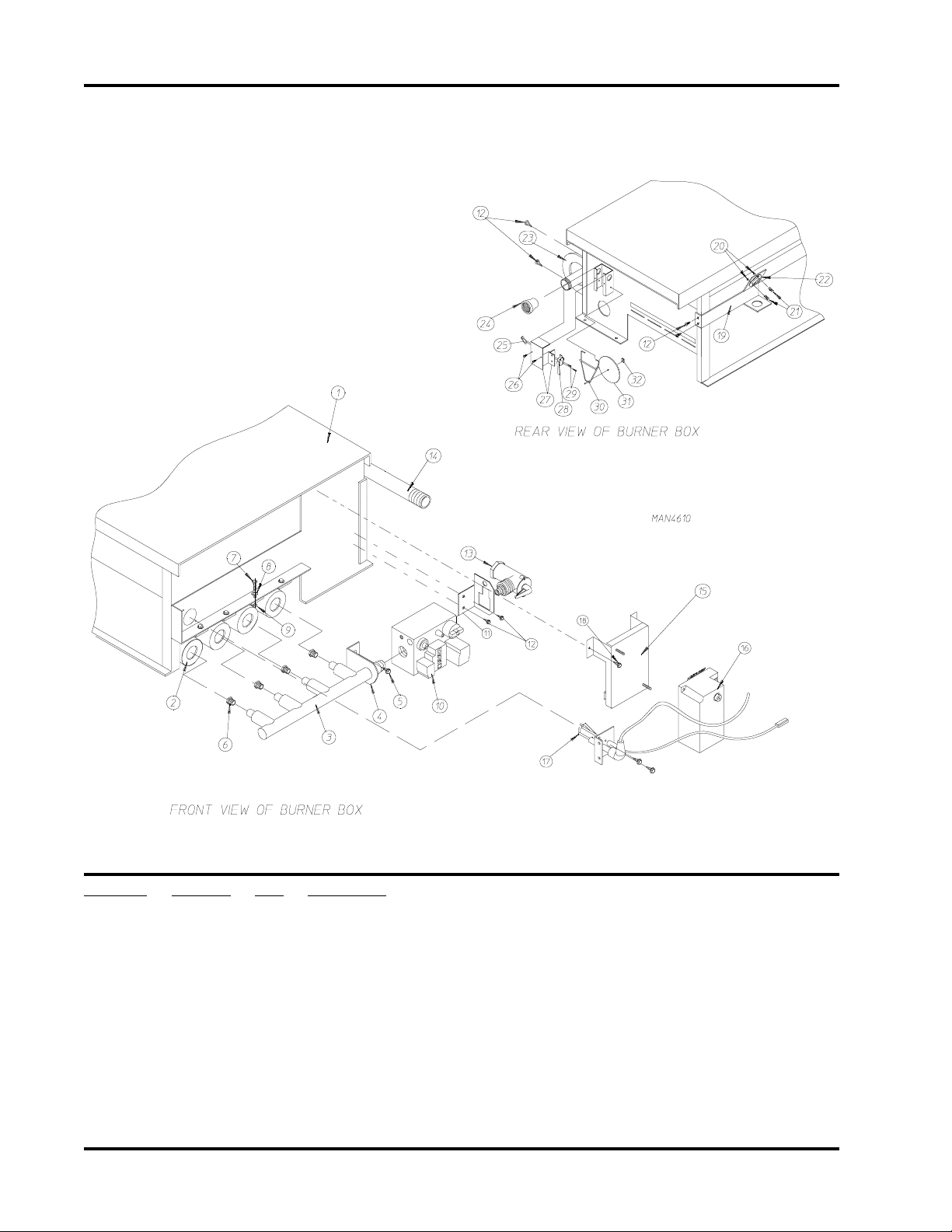

Direct Spark Ignition (DSI) Burner Assembly

For Models Mfd. as of April 15, 2000................................................................................... 30, 31

Direct Spark Ignition (DSI) Burner Assembly

For Models Mfd. prior to April 15, 2000 ............................................................................... 32, 33

Single-Phase (1Ø) Motor, Electric Relay Panel Assembly ................................................................... 34

3-Phase (3Ø) Motor, Electric Relay Panel Assembly .......................................................................... 35

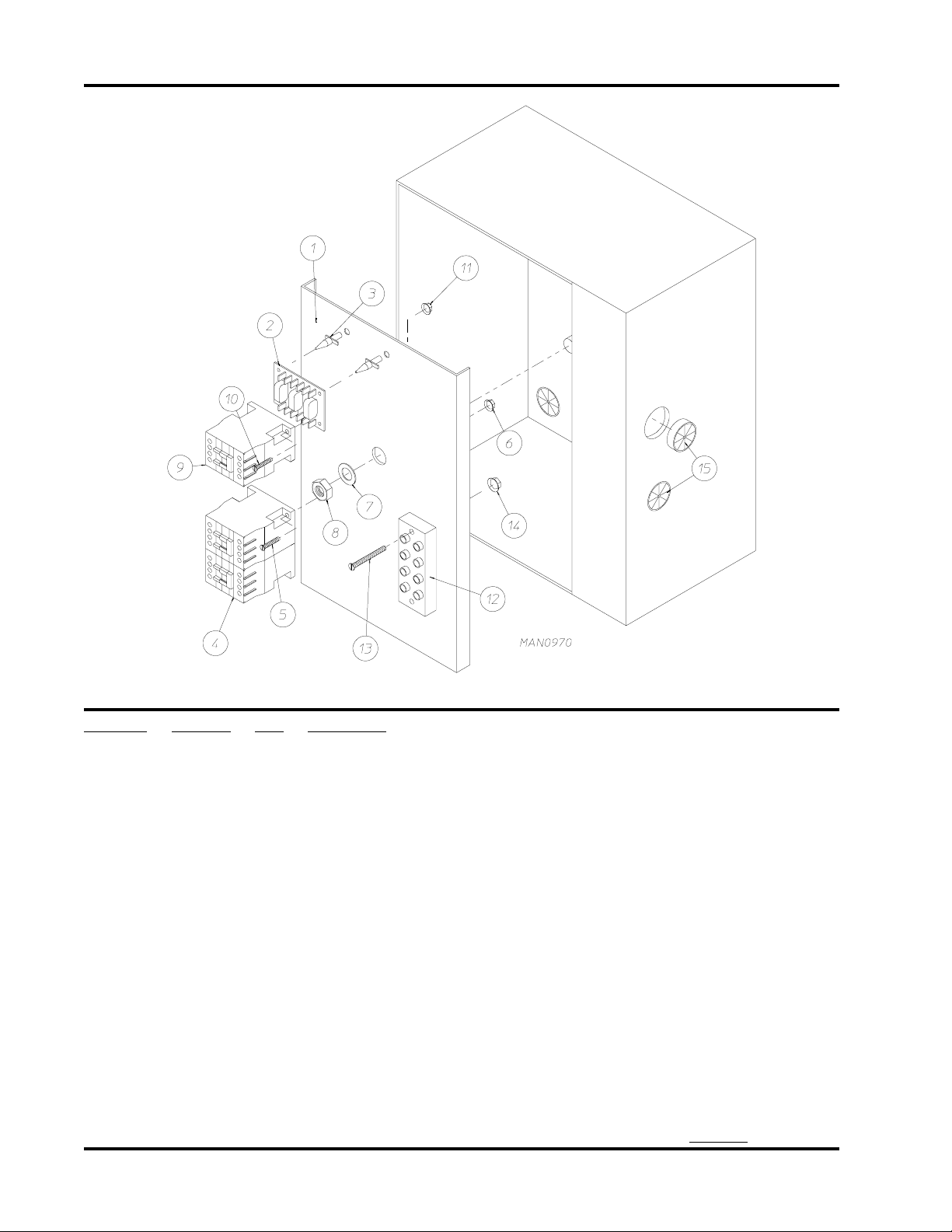

Microprocessor Reversing Rear Control Box Assembly ...................................................................... 36

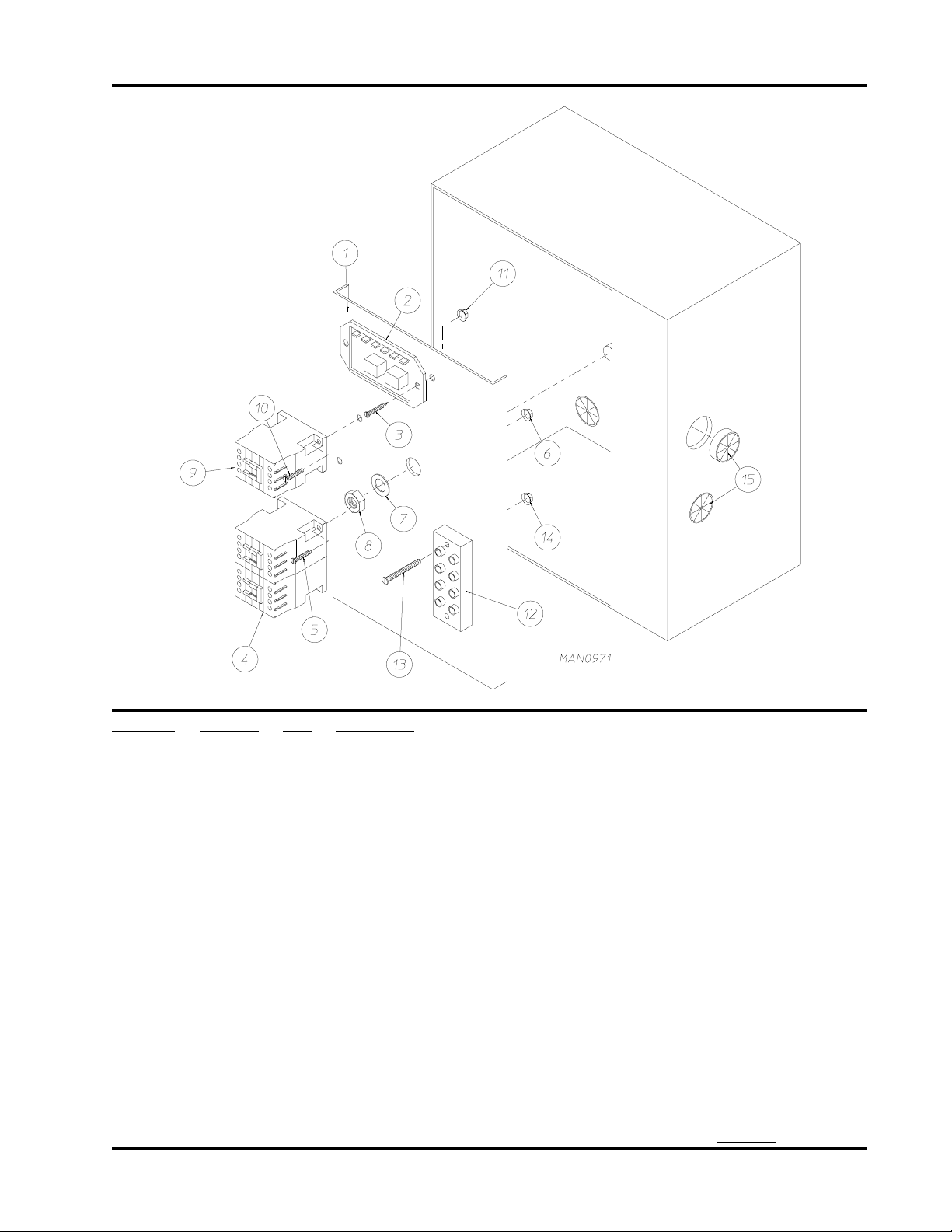

Dual Timer Reversing Rear Control Box Assembly ............................................................................. 37

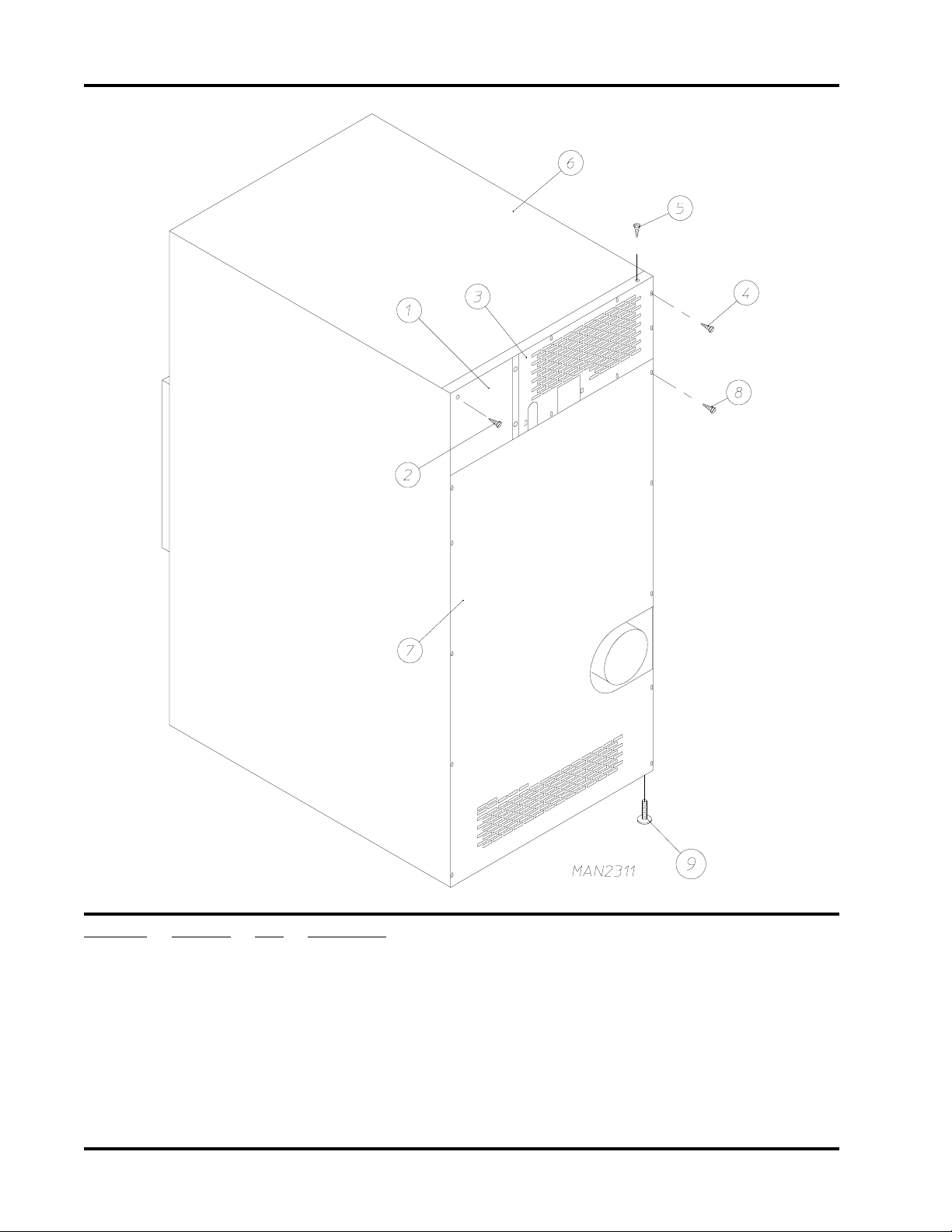

Outer Top/Back Guard Assemblies ................................................................................................... 38

Microprocessor Coin Acceptors Listing ............................................................................................. 39

Step Down Transformer Usage Listing ............................................................................................... 40

Additional Parts Available ................................................................................................................. 41

2

Control Door Assembly W ithout Trim

Illus. No. Part No. Qty. Description

1 881053 1 ADC Logo ONLY

870011 1 Logo Double Adhesive Tape Kit ONLY

2 881045* 1 Control Door

(includes illus. nos. 2, 3, and 8)

881046 1 Stainless Steel Control Door

(includes illus. nos. 2, 3, and 8)
3 117604 4 Neoprene Sponge Tape (sold by the foot)
4 150300 4 #10-16 x 1/2” Hex Washer TEK Screw
5 102600 1 Control Door Rod Support Catch
6 102601 1 Control Door Retainer Clip
7 102502 1 Control Door Rod
8 160005 2 Turn Latch

* Specify color when ordering.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Control Door Assembly W ith Trim

3

Illus. No. Part No. Qty. Description

1 160015 1 High Security MK-100 Lock Assembly with Key (for coin models Only)

160017 1 Special Dummy Lock (for non-coin models Only)
160104 1 MK-100 Key

2 160016 1 Lock Cam
3 881053 1 ADC Logo

870011 1 Logo Double Tape Kit

4 800020* 1 High Security Control Door Assembly

(includes illus. nos. 4 through 7)

800144 1 Stainless Steel High Security Control Door Assembly

(includes illus. nos. 4 through 7)
5 180202 1 Top Trim Strip (gray) with Lock Hole (38-1/4” length)
6 117603 3 Suppressor Tape/Gasket (sold by the foot)
7 150201 6 #10-32 x 1/4” Phillips Round Head Machine Screw
8 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw
9 102600 1 Control Door Rod Support Catch
10 102601 1 Control Door Rod Retainer Clip
1 1 102502 1 Control Door Support Rod

* Specify color when ordering.

T elephone: [phone] Fax: [phone]

4

Phase 5 OPL Micr opr ocessor Contr ol Panel Assembly

Illus. No. Part No. Qty. Description

1 112535 1 O PL English Keyboard Label Assembly

112276 1 OPL Stick-On Labels (English Only)...Not Illustrated
112275 1 3-Language OPL Stick-On Labels...Not Illustrated

(Spanish, Italian, and Hebrew)

112277 1 3-Language OPL Stick-On Labels...Not Illustrated

(English, Spanish, and Hebrew)

112278 1 5-Language OPL Stick-On Labels...Not Illustrated

(Italian, Dutch, French, German, and Chinese)

2 801255 1 Phase 5 Microprocessor Control Panel

801256 1 Phase 5 Microprocessor Control Panel ONLY with Battery Bracket
801206 1 Phase 5 OPL Non-Reversing Microprocessor Control Panel Assembly

Complete
(includes illus. nos. 1 through 6)

801207 1 Phase 5 OPL Reversing Microprocessor Control Panel Assembly Complete

(includes illus. nos. 1 through 6)

3 137222 1 Phase 5 OPL Non-Reversing Microprocessor Controller (computer) ONLY

137231 1 Phase 5 OPL Reversing Microprocessor Controller (computer) ONLY

824998 1 Phase 5 Battery Clip
4 153010 2 #6 S tar Washer
5 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
6 150429 1 #10-16 x 1/2” TORX Head Crimptite Screw

150433 1 TORX Hand Driver (for removal of TORX head screw)
7 136048 1 1/8-Amp (Slo-Blo) Fuse

IMPORT ANT: Check label on computer chip to verify correct part number for controller (computer).

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Phase 5 Coin Micropr ocessor Contr ol Panel Assembly

5

Illus. No. Part No. Qty. Description

1 112526 1 Coin Keyboard Label Assembly
2 801213 1 Phase 5 Coin Control Panel Assembly

(includes illus. nos. 1, 2, and 4 through 6)

801229 1 Phase 5 Coin Control Panel Assembly with Battery Option

(includes illus. nos. 1, 2, and 4 through 6)
801259 1 Coin Control Panel
801258 1 Coin Control Panel ONLY with Battery Bracket

3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Microprocessor Controller (computer)

824998 1 Phase 5 Battery Clip

5 153010 2 #6 S tar Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 -------- 1 Coin Acceptor

(refer to Microprocessor Coin Acceptors Listing on page 39)

8 137056* 1 Optic Switch
9 137023* 1 Optic Switch Connector
10 137021* 3 Microprocessor Socket ONLY

880772 1 Single Coin Optical Switch Harness
824080 1 Dual Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool

1 1 136048 1 1/8-Amp (Slo-Blo) Fuse

* For dual coin models double the quantity shown.

IMPORT ANT: Check label on computer chip to verify correct part number of controller (computer).

T elephone: [phone] Fax: [phone]

6

Phase 5 Coin and OPL Micr oprocessor Control Box Assembly

Illus. No. Part No. Qty. Description

1 141403 1 Transformer - 24 VAC
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 120715 1 30-Position T erminal Block
4 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
5 151000 2 #6-32 Pal Nut
6 136057 * 1/2-Amp (Slo-Blo) Fuse
7 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw
8 136008 * Fuse Block/Strip
9 122641 1 15-Pin Microprocessor Connector
10 122706 * Socket

112801 1 Pin/Socket Extraction Tool...Not Illustrated

* As required.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Coin Vault Assembly

7

Illus. No. Part No. Qty. Description

1 802112 1 Microprocessor Coin V ault Assembly Complete

(includes illus. nos. 1 through 6)
802117 1 Microprocessor Coin Vault ONL Y

2 160028 1 Cam for 1/4 Turn Lock
3 875061 1 1/4 Turn Lock with Key and Cam

160105* 1 1/4 Turn Mer-Pel Key ONLY

4 802020 1 1/4 T urn Coin Box Assembly

(includes illus. nos. 2 through 5)
802019 1 1/4 T urn Coin Box ONLY without Faceplate
125915 1 High Security (Greenwald) Coin Box ONLY with Key

5 802018 1 1/4 Turn Coin Box Faceplate
6 152014 4 1/4-20 Free Spin Wash Nut
7 102502 1 Control Door Support Rod
8 102601 1 Control Door Rod Retainer Clip
9 102600 1 Control Door Rod Catch

* Specify key number when ordering.

T elephone: [phone] Fax: [phone]

8

Dual Timer “Tap Touch” Controls

For Models Mfd. as of November 3, 2000

Illus. No. Part No. Qty. Description

1 124030 1 15 Minute Timer - 24 VAC
2 124025 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Light - 24 VAC
4 122301 1 “Tap Touch” Switch
5 131932 3 Relay SPST 24v
6 120730 1 30-Position T erminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual T imer Panel Complete

(includes illus. nos. 1 through 15)

850392 - Dual Timer Panel ONLY
9 153010 2 #6 S tar Washer
10 152000 3 #6-32 Hex Nut
11 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touch Knob with Red Pointer
15 124105 1 Pure Touch Knob with Blue Pointer

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Dual T imer Contr ol Panel Assembly

For Models Mfd. prior to November 3, 2000

9

Illus. No. Part No. Qty. Description

1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824015 1 Dual Timer Control Panel Assembly Complete - 24 VAC

(includes illus. nos. 1 through 21)

800051 1 Dual Timer Control Panel ONLY
4 131917 1 Push-To-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Round Head Machine Screw
6 154001 2 #10-24 Speed Nut
7 152000 2 #6-32 Hex Nut
8 153010 2 #6 S tar Washer
9 120730 1 30-Position T erminal Block
10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
1 1 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
12 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw
13 131931 1 Dual Timer Relay - 24 VAC
14 151000 2 #6-32 Pal Nut
15 112050 1 Dual Timer Label
16 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
17 124103 2 Arrow Timer Knob
18 124025 1 60-Minute T imer - 24 VAC
19 124030 1 15-Minute T imer - 24 VAC
20 122602 1 9-Pin Connector ONLY
21 122700 8 Pin T erminal ONLY

-- 122801 1 Pin/Socket Extraction T ool...Not Illustrated

T elephone: [phone] Fax: [phone]

10

Dual T imer Contr ol Box Assembly

Illus. No. Part No. Qty. Description

1 122603 1 9-Pin Socket Connector
2 122701 8 Socket T erminal

122801 1 Pin/Socket Extraction T ool
3 315010 1 9-Pin Connector Bracket
4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
5 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
6 141403 1 Transformer - 24 VAC
7 136008 * Fuse Block/Strip
8** 136057 * 1/2-Amp (Slo-Blo) Fuse
9 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw
10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
1 1 120715 1 30-Position Terminal Block
12 151000 2 #6-32 Pal Nut

* As required.
** Check fuse rating for verification.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Front Panel Assembly for Plastic Door

11

Illus. No. Part No. Qty. Description

1 875302* 1 Right Hand Insulated Front Panel Assembly Complete

(includes illus. nos. 1 through 3 and 6)

875313 1 Stainless Steel Right Hand Insulated Front Panel Assembly Complete

(includes illus. nos. 1 through 3 and 6)
2 154215 2 1/4” Pop Rivet
3 170330 1 Friction Door Latch
4 150300 1 #10-16 x 1/2” Hex Washer TEK Screw
5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw
6 121405 1 Rubber Grommet

* Specify color when ordering.

T elephone: [phone] Fax: [phone]

12

“Plastic” Main Door Assembly

Illus. No. Part No. Qty. Description

1 881421 1 Gray Plastic Main Door Assembly Complete with Mechanical Fasteners

(includes illus. nos. 1 and 5 through 9)
2 800448 4 12-1/2” Stainless Steel Main Door Hinge Assembly
3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw
4 152014 1 1/4-20 Free Spin Wash Nut
5 102349 1 Main Door Gasket
6 102212 1 20-7/16” Door Glass with 4 Holes

170730 1 Main Door Glass Adhesive (10.3 oz. cartridge)
7 150448 4 1/2” Stainless Steel Flat Head Allen Screw
8 170319 4 Door Glass (nylon) Spacer
9 150431 1 Main Door Latch Screw (#10 x 7/16” dome hex head)

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Main Door Switch Housing for Plastic Door

13

Illus. No. Part No. Qty. Description

1 152013 2 #6-32 Hex Nut
2 153008 2 #6 Lock Washer
3 137005 1 Single-Pole Door Switch
4 121028 2 Insulated Female T erminal
5 154281 2 3/8” Standard Nylon Spacer
6 800448 1 12-1/2” Stainless Steel Main Door Hinge Assembly

(includes illus. nos. 6 and 7)
7 153565 2 #6-32 x 1” Self Clinching Stud
8 313218 1 Main Door Switch Housing
9 150201 2 #10-32 x 1/4” Phillips Pan Head Screw
10 121405 1 Rubber Grommet

T elephone: [phone] Fax: [phone]

14

Main Door “Cold Rolled Steel (CRS)” Assembly

Illus. No. Part No. Qty. Description

1 8 8 1 1 5 0 1 Black Main Door Assembly Complete

(includes illus. nos. 1, 2, and 8 through 15)

2 102354 1 Door Gasket

170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)

3 8 8 1152 1 Black Top Hinge Block Assembly

(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 8 8115 1 1 Black Bottom Hinge Block Assembly

(includes illus. nos. 5 through 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew

150443 2 1/4-20 x 3/4” Stainless Steel Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/4-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/4-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle
15 102218 1 20-7/16” Door Glass

102360 1 Glass/Door Gasket Tape

(for models mfd. as of February 9, 2001)

170731 1 Black Glass Adhesive (10.3 oz. cartridge)

(for models mfd. prior to February 9, 2001)

16 151013 4 #10-32 Black Nylon Acorn Nut

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Main Door Switch Assembly Cold Rolled S teel (CRS) Door

15

Illus. No. Part No. Qty. Description

1 153566 2 #6-32 x 7/8” Clinch Stud
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 S tar Washer
4 137005 1 Single-Pole Door Switch
5 122636 2 Flag T erminal
6 881211 1 Main Door Switch Housing
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

T elephone: [phone] Fax: [phone]

16

Cold Rolled Steel (CRS) Door Front Panel

Illus. No. Part No. Qty. Description

1 881270* 1 Right Hand Front Panel Assembly (cold rolled steel [CRS] door)

(includes illus. nos. 1 through 3)

881288 1 Stainless Steel Front Panel Assembly (cold rolled steel [CRS] door)

(includes illus. nos. 1 through 3)

881996* 1 Left Hand Front Panel Assembly (cold rolled steel [CRS] door)

(includes illus. nos. 1 through 3)
2 154215 2 1/4” Pop Rivet
3 170330 1 Friction Door Latch
4 150300 1 #10-16 x 1/2” Hex Washer TEK Screw
5 150309 8 #10-16 x 1/2” Phillips Hex Head TEK Crimptite Screw
6 8 8 1152 1 Black Top Hinge Block Assembly

881208 1 Stainless Steel Top Hinge Block Assembly

7 150445 4 1/4-20 x 7/8” Black Cap Head Setscrew

150443 4 1/4-20 x 7/8” Stainless Steel Cap Head Setscrew

8 8 8115 1 1 Black Bottom Hinge Block Assembly

881209 1 Stainless Steel Bottom Hinge Assembly

* Specify color when ordering.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Basket (T umbler)/Support Assemblies

17

Illus. No. Part No. Qty. Description

1* 800708 1 Basket (tumbler) ONLY without Felt Collar

800857 1 Stainless Steel Basket (tumbler) ONLY without Felt Collar
800816 1 Non-Reversing Basket (tumbler) and Support Assembly Complete

(includes illus. nos. 1 through 10)

800819 1 Reversing Basket (tumbler) and Support Assembly Complete

(includes illus. nos. 1 through 10)

800873 1 Stainless Steel Non-Reversing Basket (tumbler) and Support Assembly

Complete
(includes illus. nos. 1 through 10)

800876 1 Stainless Steel Reversing Basket (tumbler) and Support Assembly Complete

(includes illus. nos. 1 through 10)

2 150413 40 #10-16 x 1/2” TORX Head Crimptite Screw

150429 1 TORX Hand Driver (for removal of TORX head screw)

3 301308 4 Basket (tumbler) Rib ONLY

301408 4 Stainless Steel Basket (tumbler) Rib ONLY
4 150500 1 5/16-18 x 3/4” Socket Button Head Screw
5 100905 4 3/8-16 x 37” T ie Rod
6 153004 4 3/8” Flat Washer
7 800613 1 Non-Reversing Basket (tumbler) Support ONLY

800615 1 Reversing Basket (tumbler) Support ONLY
8 152005 4 3/8” Hex Nut
9 153005 4 3/8” Lock Washer
10 153004 4 3/8” Flat Washer
11 116000 1 Felt Collar ONLY

-- 401010 1 #847 Adhesive for Felt Collar
12 115986 1 1/4” x 2” Basket (tumbler) Pad

* Felt collar is not included and must be ordered separately.

T elephone: [phone] Fax: [phone]

18

Drop Lint Door Assembly Without T rim

Illus. No. Part No. Qty. Description

1 800150 1 Knob Latch Kit Assembly

(includes illus. nos. 1 and 2)
160200 1 Knob Latch ONLY with 2 Screws (without cam)
160003 1 Dummy Lock ONLY (for non-coin models)
160104 1 MK-100 Key ONLY (for dummy lock)

2 160008 1 Lock Cam for AD-100 and Dummy Lock

160009 1 Knob Latch Adjustable Cam ONLY
150425 1 #12-24 x 3/8” Round Head Machine Screw ONLY

(screw for knob latch adjustable cam)

3 157000 1 Drop Lint Door Spring
4 802104* 1 Insulated Drop Lint Door Assembly

(includes illus. nos. 4 through 8)
882106 1 Stainless Steel Insulated Drop Lint Drawer Assembly

(includes illus. nos. 4 through 8)

5 150201 6 #10-32 x 1/4” Phillips Pan Head TEK Screw
6 117604 7 Neoprene Sponge Tape (sold by the foot)
7 150419 2 #6 x 1/2” Tamperproof TEK Screw

150418 1 Tamperproof Screw Hand Driver

8 108120 1 Chain for Drop Lint Door (10-1/2” length)

* Specify color when ordering.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Drop Lint Door Assembly W ith Trim

For ALL Coin Models

19

Illus. No. Part No. Qty. Description

1 160001 1 AD-100 Lock Assembly with Key (for coin models Only)

160103 1 AD-100 Key ONLY
800150 1 Knob Latch Kit Assembly

(includes illus. nos. 1 and 2)
160200 1 Knob Latch ONLY with 2 Screws (without cam)
160003 1 Dummy Lock ONLY (for non-coin models)
160104 1 MK-100 Key ONLY (for dummy lock)

2 160008 1 Lock Cam for AD-100 and Dummy Lock

160009 1 Knob Latch Adjustable Cam ONLY
150425 1 #12-24 x 3/8” Round Head Machine Screw ONLY

(screw for knob latch adjustable cam)

3 157000 1 Drop Lint Door Spring
4 800237* 1 Insulated Drop Lint Door Assembly

(includes illus. nos. 4 through 8)
880229 1 Stainless Steel Insulated Drop Lint Drawer Assembly

(includes illus. nos. 4 through 8)

5 150201 6 #10-32 x 1/4” Phillips Pan Head TEK Screw
6 117604 7 Neoprene Sponge Tape (sold by the foot)
7 117603 3 Noise Suppressor Tape (sold by the foot)
8 180212 1 Mid T rim/Kick Plate - Gray (8-1/4” length)
9 150419 2 #6 x 1/2” Tamperproof TEK Screw

150418 1 Tamperproof Screw Hand Driver

10 108120 1 Chain for Drop Lint Door (10-1/2” length)

* Specify color when ordering.

T elephone: [phone] Fax: [phone]

20

Lint T rap Assembly

Illus. No. Part No. Qty. Description

1 800472 1 Non-Reversing Lint Trap Assembly Complete

(includes illus. nos. 1 and 3 through 5)

800473 1 Reversing Lint T rap Assembly Complete

(includes illus. nos. 1 and 3 through 5)
850187 1 Non-Reversing Lint T rap ONLY
850188 1 Reversing Lint Trap ONLY

2 154200 7 5/32” Pop Rivet
3 304101 1 Lint Screen Holder
4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
5 800506 1 Lint Screen
6 150419 2 #6 x 1/2” Tamperproof TEK Screw
7 108120 1 Chain for Drop Lint Door (10-1/2” length)

- 150418 1 Tamperproof Screw Hand Driver

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Idler Bearing Assembly

21

Illus. No. Part No. Qty. Description

1 100165 1 5L-610 V-Belt (idler to basket [tumbler]) for Non-Reversing Models ONLY

100106 1 5L-690 V-Belt (idler to basket [tumbler]) for Reversing Models ONLY
2 1 0 1 1 4 0 1 14” x 3” Compound Pulley
3 100166 1 4L-790 V-Belt (idler to motor) 60 Hz (for non-reversing models Only)

100167 1 4L-800 V-Belt (idler to motor) 50 Hz (for non-reversing models Only)

100109 1 4L-650 V-Belt (idler to motor) 50/60 Hz (for reversing models Only)
4 154301 2 5/16-18 x 1” Allen Setscrew
5 100705 1 3/16” x 3/16” x 1-3/8” Key
6 882576 1 Idler Bearing Assembly Complete

(includes illus. nos. 5 through 12)
7 150617 2 3/8-16 x 1” Hex Head Machine Bolt
8 153005 2 3/8” Lock Washer
9 153004 2 3/8” Flat Washer
10 801009 1 Idler Square Washer
11 152004 1 5/16-18 Hex Nut
12 150509 1 5/16-18 x 3” Hex Head Machine Bolt

T elephone: [phone] Fax: [phone]

22

Basket (T umbler) Bearing Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Basket (T umbler) Bearing Assembly

Illus. No. Part No. Qty. Description

1 880220 1 1-3/8” Flange Bearing
2 153005 4 3/8” Lock Washer
3 152005 4 3/8-16 Hex Nut
4 882544 1 Pillow Block Bearing Assembly Complete

(includes illus. nos. 4 through 14 and 20)

882545 1 Bearing Assembly Complete with Rotational Sensor

(includes illus. nos. 4 through 16 and 20)

882542 1 Bearing Support ONLY
882543 1 Bearing Support ONLY (with rotational sensor)

5 880202 1 1-3/8” Pillow Block Bearing ONLY

880779 1 1-3/8” Pillow Block Bearing Assembly (with rotational sensor)
6 150601 2 3/8-16 x 2” Hex Bolt
7 153004 8 3/8” Flat Washer
8 153005 2 3/8” Lock Washer
9 152005 2 3/8-16 Hex Nut
10 154326 2 5/16-24 x 3/8” Setscrew (black)
11 152004 4 5/16-18 Hex Nut
12 150621 2 5/16-18 x 1-1/2” Tap Bolt
13 153002 4 5/16” Lock Washer
14 150501 4 5/16-18 x 3/4” Tap Bolt
15 102120 1 Sintered 8 Magnet

401010 1 #847 Construction Mastic
16 824807 1 Rotational Sensor Assembly
17 100713 1 1/4” x 1/4” x 7/8” Key
18 1 01 1 00 1 18” Pulley
19 100106 1 5L-690 V-Belt
20 150610 2 5/16-18 x 1-1/2” Allen Setscrew

23

T elephone: [phone] Fax: [phone]

24

Non-Reversing T .E.F.C. Motor Mount Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Non-Reversing T .E.F.C. Motor Mount Assembly

Illus. No. Part No. Qty. Description

1 100117 1 4L-620 V -Belt (motor to idler)
2 100701 1 3/16” x 3/16” x 1” Key
3 1 0 113 3 1 5/8” x 2-1/4” Motor Pulley (for 60 Hz models Only)

10 1130 1 5/8” x 2-1/2” Motor Pulley (for 50 Hz models Only)
4 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
5 153002 4 5/16” Lock Washer
6 153001 4 5/16” Flat Washer
7 100069* 1 3/4 HP 120/208/230v 1ø Totally Enclosed, Fan-Cooled (T .E.F.C.) Motor

with Plug (56Z frame) for 60 Hz Models ONLY

181016 1 3/4 HP 230v 1ø (with 3/4” shaft) Totally Enclosed, Fan-Cooled (T.E.F.C.)

Motor with Plug (56Z frame) for 50 Hz Models ONLY

8 122701 8 Socket T erminal ONLY

122801 1 Pin/Socket Extraction T ool
9 137030 1 8-Pin Housing Connector
10 152004 4 5/16-18 Hex Nut
11 153002 4 5/16” Lock Washer
12 153001 4 5/16” Flat Washer
13 117604 4 Neoprene Sponge Tape (sold by the foot)
14 154000 4 5/16-18 Tinnerman Nut
15 850018 1 Non-Reversing Motor Mount ONLY (56Z frame)

804019* 1 3/4 HP 120/230v 1ø Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount

Assembly with Plug Complete for 60 Hz Models ONLY
(includes illus. nos. 2 through 7 and 13 through 20)

882492 ** 3/4 HP 230v 1ø Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)

Motor Mount Assembly Complete for 50 Hz Models ONLY

(includes illus. nos. 2 through 6 and 13 through 22)
16 153051 1 3/4” S.A.E. Flat Washer
17 100603 1 16” Impellor with 3/4” Bore (for 50 Hz models Only)
18 100714 1 3/16” x 3/16” x 1-7/8” Key
19 153050 2 1/2” S.A.E. Flat Washer
20 152006 2 1/2-20 Left Hand Jam Nut
21 120200 1 3/8” x 90° Connector
22 100007 1 1/2 HP 208/460v 50/60 Hz Motor (for 3-phase [3ø] models Only)

25

* Specify voltage when ordering.
** Contact factory for information.

T elephone: [phone] Fax: [phone]

26

Reversing T .E.F.C. Motor Mount Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Reversing T .E.F.C. Motor Mount Assembly

Illus. No. Part No. Qty. Description

1 100114 1 4L-630 V -Belt (to idler assembly)
2 100701 1 3/16” x 3/16” x 1” Key
3 1 0 113 0 1 5/8” x 2-1/2” Motor Pulley (for 60 Hz models Only)

10 1139 1 5/8” x 2-3/4” Motor Pulley (for 50 Hz models Only)

4 120200 1 3/8” x 90° Connector
5 181003 1 1/2 HP 208/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled

(T.E.F.C.) Motor (56Z frame)
6 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
7 153002 4 5/16” Lock Washer
8 153001 4 5/16” Flat Washer
9 100007* 1 1/2 HP 220/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled

(T.E.F.C.) Motor (56Z frame)
10 120200 1 3/8” x 90° Connector
1 1 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
12 153002 4 5/16” Lock Washer
13 153001 4 5/16” Flat Washer
14 154000 8 5/16” Tinnerman Nut
15 152004 7 5/16” Hex Nut
16 153002 7 5/16” Lock Washer
17 153001 7 5/16” Flat Washer
18 850021 1 Reversing Motor Mount ONLY (56Z frame)

804026** 1 60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount

Assembly Complete

(includes illus. nos. 2 through 14 and 18 through 24)

-------- ** * 50 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F .C.) Motor Mount
Assembly Complete
(includes illus. nos. 2 through 14 and 18 through 24)

19 117604 4 Neoprene Sponge Tape (sold by the foot)
20 153051 1 3/4” S.A.E. Flat Washer
21 100714 1 3/16” x 3/16” x 1-7/8” Key
22 100604 1 12-1/2” Impellor
23 153050 **** 1/2” S.A.E. Flat Washer
24 152006 2 1/2-20 Left Hand Jam Nut

27

* Check part number on motor data label to verify correct motor.
** Specify voltage when ordering.
** * Contact factory for information.
****As required.

T elephone: [phone] Fax: [phone]

28

Sensor Bracket Assemblies

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Sensor Bracket Assemblies

Illus. No. Part No. Qty. Description

1 880251 1 1/4” Temperature Sensor Probe Assembly

(includes illus. nos. 1 and 5 through 8)

2 130103 1 225° F Manual Reset Thermostat
3 153010 2 #6 S tar Washer
4 152000 2 #6-32 Hex Nut
5 121028 2 Insulated T erminal ONL Y
6 122701 4 Socket T erminal ONLY

112801 1 Pin/Socket Extraction Tool
7 122605 1 4-Pin Socket Connector ONLY
8 154007 2 1/4” Tinnerman Push On Fastener
9 150005 2 #6-32 x 1/4” Round Head Machine Screw
10 801425 1 Microprocessor Sensor Bracket Assembly Complete

(includes illus. nos. 1 through 10)

305007 1 Universal Sensor Bracket ONLY
11 122604 1 4-Pin Connector ONLY
12 122700 4 Pin T erminal ONLY
13 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
14 150005 * #6-32 x 1/4” Phillips Round Head Machine Screw
15 130111 1 130° F Thermostat
16 130100 1 150° F Thermostat
17 130301 1 225° Manual Reset Thermostat
18 130101 1 180° F Thermostat
19 153010 * #6 S tar Washer
20 152000 * #6-32 Hex Nut
21 840065 1 Sensor Jumper ONLY
22 121028 * Insulated T erminal ONL Y
23 122701 * Socket T erminal ONLY
24 122605 1 4-Pin Socket Connector ONLY

840062 1 Sensor Bracket Harness Assembly

(includes illus. nos. 22 through 24)

25 801418 1 Non-Computer Sensor Bracket Assembly Complete (includes thermostats)

(includes illus. nos. 14 through 25)

305007 1 Universal Sensor Bracket ONLY
26 122604 4-Pin Connector ONLY
27 122700 * Pin T erminal ONLY

122801 1 Pin/Socket Extraction T ool
28 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

29

* As required.

T elephone: [phone] Fax: [phone]

30

Direct Spark Ignition (DSI) Burner Assembly

For Models Mfd. as of April 15, 2000

Illus. No. Part No. Qty. Description

1* 882898 1 Natural Gas Burner Assembly Complete

For Models Mfd. with Natural Gas ONLY
(includes illus. nos. 1 through 31)

882899 1 Liquid Propane (L.P.) Gas Burner Assembly Complete

For Models Mfd. with Liquid Propane (L.P.) Gas ONLY
(includes illus. nos. 1 through 31)

814832 1 Burner Box ONLY
2 141105 4 Large Burner Tube
3 141210 1 3/4” Direct Spark Ignition (DSI) Manifold (4-port)
4 318714 1 Bracket for Horizontal Facing Gas Valve

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Direct Spark Ignition (DSI) Burner Assembly (continued)

For Models Mfd. as of April 15, 2000

Illus. No. Part No. Qty. Description

5 128927 1 1/2” 24 VAC Redundant (natural gas) Gas Valve

880960 1 1/2” 24 VAC Direct Spark Ignition (DSI) Liquid Propane (L.P.)

Gas Valve Assembly

882230* 1 ADG-758 Direct Spark Ignition (DSI) Liquid Propane (L.P.) Conversion Kit

6 140819* 4 #30 Burner Orifice (natural gas)

140803* 4 #49 Burner Orifice (liquid propane [L.P.] gas)
7 150103 4 #8-32 x 1/2” Pan Head Machine Screw
8 151001 4 #8-32 Pal Nut
9 150300 5 #10-16 x 1/2” Hex Washer TEK Screw
10 809309 1 Ignitor Probe Assembly with 19” Leads
1 1 150309 9 #10-16 x 1/2” Hex Head TEK Crimptite Screw
12 152013 2 #6-32 Hex Nut
13 128935 1 Direct Spark Ignition (DSI) Module with 3 T ries
14 817027 1 Johnson Controls Direct Spark Ignition (DSI) Module Mounting Bracket
15 142707 4 1/2” x 1-1/2” Long Black Nipple
16 142506 1 1/2” Street Elbow
17 142600 1 1/2” Black Union
18 142809 1 1/2” x 29-1/8” Nipple
19 319704 1 Hi-Limit Mounting Bracket
20 151000 2 #6-32 Pal Nut
21 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw
22 130201 1 330º Hi-Limit Manual Reset
23 318700 1 Pipe Bracket (bent)
24 143000 1 3/4” to 1/2” Reducing Coupling
25 154004 1 Twin Speed Nut
26 802799 1 Sail Switch Box Cover and Bracket ONLY
27 122200 1 Sail Switch ONLY
28 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
29 105500 1 Sail Switch Actuator Rod
30 319202 1 Sail Switch Damper (flat)
31 154002 1 1/8” Push On Fastener
** 882772 1 Steam to Gas Interface Plate...Not Illustrated

31

* Consult factory for elevations over 2,000 feet.
** Needed when converting from steam to gas heat.

T elephone: [phone] Fax: [phone]

32

Direct Spark Ignition (DSI) Burner Assembly

For Models Mfd. prior to April 15, 2000

Illus. No. Part No. Qty. Description

1 882483* 1 Natural Gas Burner Assembly Complete Less Orifices

For Models Mfd. with Natural Gas ONLY
(includes illus. nos. 1 through 5 and 7 through 32)

882484* 1 Liquid Propane (L.P.) Gas Burner Assembly Complete Less Orifices

For Models Mfd. with Liquid Propane (L.P.) Gas ONLY

(includes illus. nos. 1 through 5 and 7 through 32)
814832 1 Burner Box ONLY
882230** 1 ADG-758 Direct Spark Ignition (DSI) Liquid Propane (L.P.) Conversion Kit

2 141105 4 Large Burner Tube
3 141210 1 4-Port Manifold
4 323737 1 Pipe Bracket

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Direct Spark Ignition (DSI) Burner Assembly (continued)

For Models Mfd. prior to April 15, 2000

Illus. No. Part No. Qty. Description

5 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
6 140819** 4 #30 Burner Orifice (natural gas)

140803** 4 #49 Burner Orifice (liquid propane [L.P.] gas)
7 150103 4 #8-32 x 1/2” Phillips Round Head Machine Screw
8 153000 4 #8 Steel Burr
9 151001 4 #8-32 Pal Nut
10 128927 1 1/2” 24 VAC Redundant (natural gas) Gas Valve

880960 1 1/2” 24 VAC Liquid Propane (L.P.) Gas Valve Assembly

140411 1 24 VAC Gas Valve Liquid Propane (L.P.) Conversion Kit
1 1 318712 1 Pipe Bracket
12 150309 7 #10-16 x 1/2” Hex Head TEK Crimptite Screw
13 881367 1 1/2” Union Shutoff with Tail Piece
14 142809 1 1/2” x 29-1/8” Nipple
15 810030 1 Direct Spark Ignition (DSI) Module Mounting Bracket
16 128935 1 Direct Spark Ignition (DSI) Module with 3 T ries
17 809309 1 Ignitor Assembly with High Voltage (HV) Wire
18 150309 3 #10-16 x 1/2” Hex Head TEK Crimptite Screw
19 319704 1 Hi-Limit Mounting Bracket
20 151001 2 #8-32 Pal Nut
21 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw
22 130201 1 330º F Manual Reset Hi-Limit
23 318700 1 Pipe Bracket
24 143000 1 3/4” to 1/2” Reducing Coupling
25 154004 1 Twin Speed Nut
26 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
27 802799 1 Sail Switch Cover and Bracket
28 122200 1 Sail Switch ONLY

881706 1 Sail Switch Box Assembly Complete

(includes illus. nos. 26 through 32)
29 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
30 105500 1 Sail Switch Actuator Rod
31 319202 1 Sail Switch Damper (flat)
32 154002 1 1/8” Push On Fastener

33

* Burner orifices are not included and must be ordered separately.
** Consult factory for elevations over 2,000 feet.

T elephone: [phone] Fax: [phone]

34

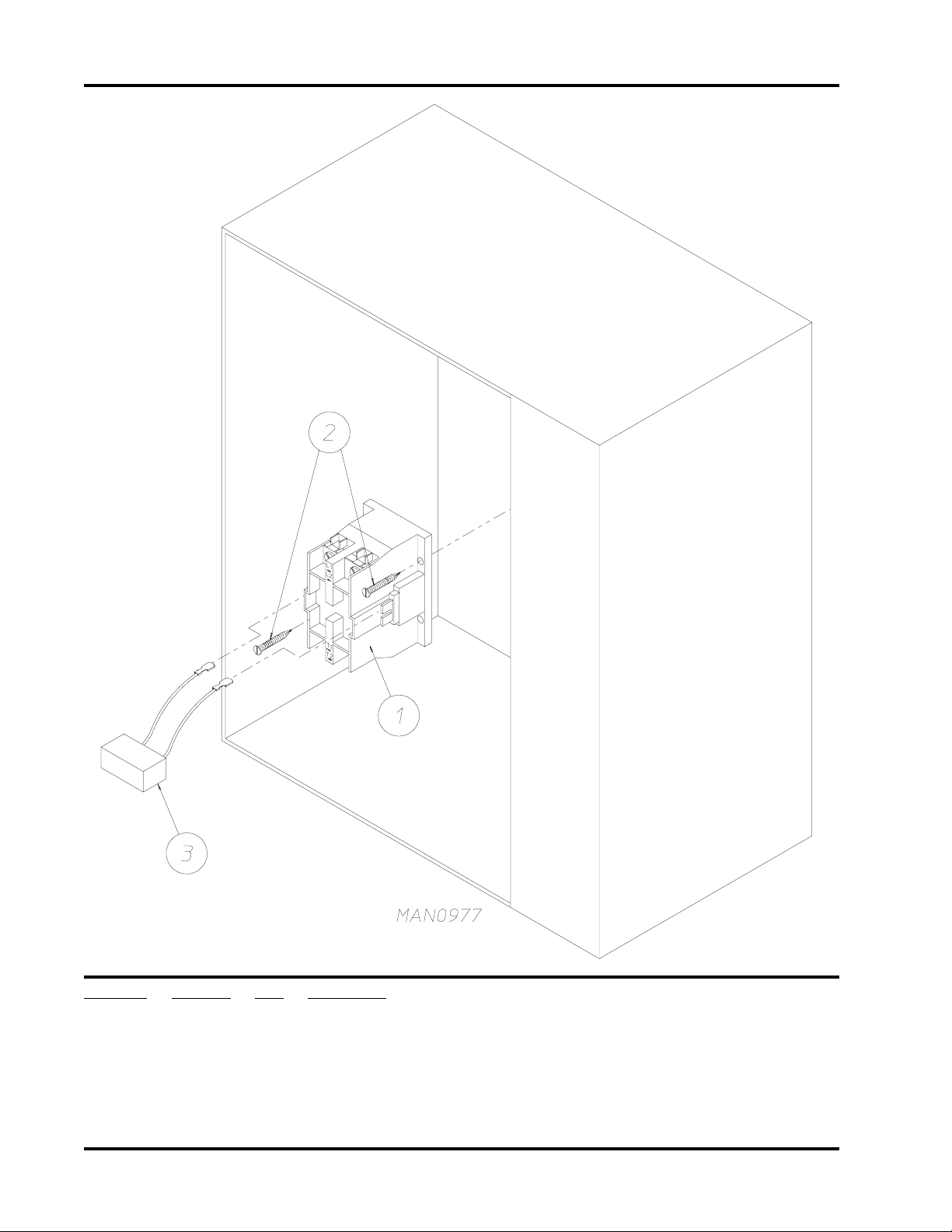

Single-Phase (1Ø) Motor, Electric Relay Panel Assembly

Illus. No. Part No. Qty. Description

1 132475 1 2-Pole Contactor - 24 VAC
2 150299 2 #10 x 1” Hex Washer TEK Screw
3 824828 1 RC Network with Connectors

(for microprocessor controller [computer] models Only)

- 322809 1 Back Electrical Box Cover...Not Illustrated

- 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw...Not Illustrated

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

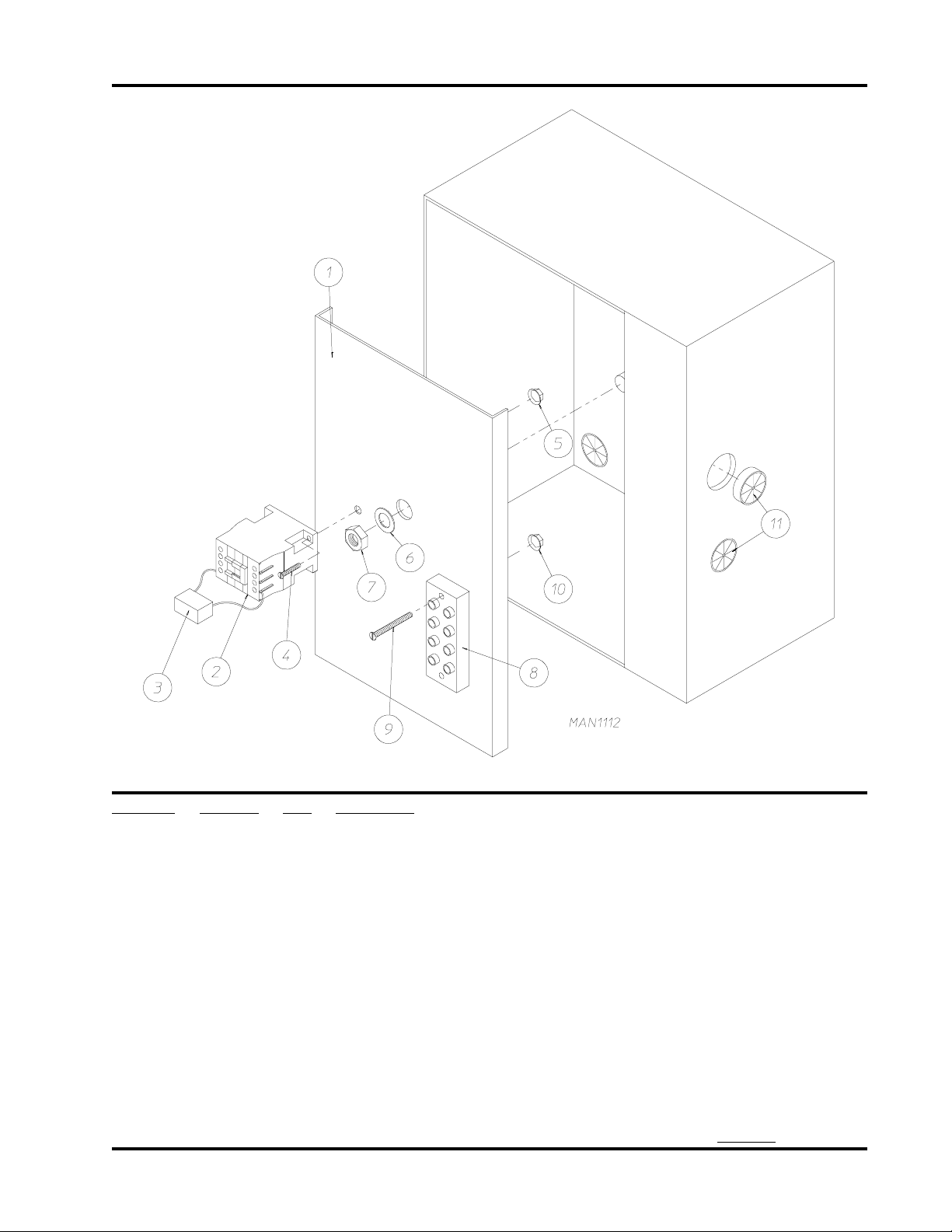

3-Phase (3Ø) Motor, Electric Relay Panel Assembly

35

Illus. No. Part No. Qty. Description

1 322812 1 Back Electrical Box Component Plate
2 132430 1 Impellor Contactor (208/230/240v , 50/60 Hz) 24 VAC
3 137015 1 RC Network (for microprocessor controller [computer] models Only)
4 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
5 151001 2 #8-32 Pal Nut
6 153002 1 5/16” Lock Washer
7 152004 1 5/16-18 Hex Nut
8 120701 1 4-Position T erminal Block
9 150008 2 #6-32 x 1-1/4” Slotted Round Head Machine Screw
10 151000 2 #6-32 Pal Nut
11 121300 3 Open/Closed Bushing

--- 322809 1 Back Electrical Box Cover...Not Illustrated

--- 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw...Not Illustrated

--- -------- 1 Transformer

(refer to Step Down Transformer Usage Listing on page 40)

T elephone: [phone] Fax: [phone]

36

Micropr ocessor Reversing Rear Contr ol Box Assembly

Illus. No. Part No. Qty. Description

1 322812 1 Back Electrical Box Component Plate
2 137060 1 Arc Suppressor (A.S.) Board
3 137013 4 Nylon Standoff
4 882386 1 Reversing Contactor (208/230/240v, 50/60 Hz) 24 VAC
5 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
6 151001 2 #8-32 Pal Nut
7 153002 1 5/16” Lock Washer
8 152004 1 5/16-18 Hex Nut
9 132430 1 Impellor Contactor (208/230/240v , 50/60 Hz) 24 VAC
10 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
1 1 151001 2 #8-32 Pal Nut
12 120701 1 4-Position T erminal Block
13 150008 2 #6-32 x 1-1/4” Slotted Round Head Machine Screw
14 151000 2 #6-32 Pal Nut
15 121300 3 Open/Closed Bushing

--- 322809 1 Back Electrical Box Cover...Not Illustrated

--- 150301 4 #8-18 x 7/16” Phillips Round Head TEK Screw...Not Illustrated

--- -------- 1 Transformer

(refer to Step Down Transformer Usage Listing on page 40)

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Dual T imer Reversing Rear Control Box Assembly

37

Illus. No. Part No. Qty. Description

1 322812 1 Back Electrical Box Component Plate
2 132198 1 Reversing Timer (50/60 Hz) 24 VAC
3 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 882386 1 Reversing Contactor (208/230/240v, 50/60 Hz) 24 VAC
5 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
6 151001 2 #8-32 Pal Nut
7 153002 1 5/16” Lock Washer
8 152004 1 5/16-18 Hex Nut
9 132430 1 Impellor Contactor (208/230/240v , 50/60 Hz) 24 VAC
10 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
1 1 151001 2 #8-32 Pal Nut
12 120701 1 4-Position T erminal Block
13 150008 2 #6-32 x 1-1/4” Slotted Round Head Machine Screw
14 151000 2 #6-32 Pal Nut
15 121300 3 Open/Closed Bushing

--- 322809 1 Back Electrical Box Cover...Not Illustrated

--- 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw...Not Illustrated

--- -------- 1 Transformer

(refer to Step Down Transformer Usage Listing on page 40)

T elephone: [phone] Fax: [phone]

38

Outer Top/Back Guard Assemblies

Illus. No. Part No. Qty. Description

1 322809 1 Rear Electrical Box Cover
2 150301 5 #8-18 x 7/16” Phillips Pan Head TEK Screw
3 323738 1 Top Back Guard
4 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw
5 150301 8 #8-18 x 7/16” Phillips Pan Head TEK Screw
6 312527 1 Outer Top Guard
7 314514 1 Lower Back Guard
8 150301 10 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 103500 4 Leveling Leg

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Micropr ocessor Coin Acceptors Listing

NOTE: Coin acceptors listed include optical switch (ADC Part No. 137056 Greenwald).

Coin acceptors listed include optical switch (ADC Part No. 881 143 Hanke).

Single Coin*

ADC Part No. Nation Description

882689 United States 25¢ Hanke Optic Coin Acceptor

(for models mfd. as of July 26, 2000)

125100 U.S. and Canada 25¢ Greenwald Optic Coin Acceptor

(for models mfd. prior to July 26, 2000)
125107 Australia 20¢ Greenwald Australian Optic Coin Acceptor
881768 Australia $1 Hanke Australian Optic Coin Acceptor
881604 Japan 100 Yen Hanke Optic Coin Acceptor
125103 --- 0.882 Greenwald Token Optic Coin Acceptor
125121 --- 0.800 Greenwald Token Optic Coin Acceptor
125133 Hong Kong $1 Hong Kong Optic Coin Acceptor

39

Dual Coin*

ADC Part No. Nation Description

881508 U.S. and Canada 10¢/25¢ Hanke Dual Optic Coin Acceptor
881842 Canada 25¢/$1 Hanke Dual Optic Coin Acceptor
881542 United Kingdom 1£/20 Pence Hanke Dual Optic Coin Acceptor
881846 France 2/5 French Franc Hanke Dual Optic Coin Acceptor
881541 Netherlands 25¢/1 Hanke Guilder Dual Optic Coin Acceptor

* Consult factory for coin acceptors not listed.

T elephone: [phone] Fax: [phone]

40

Step Down Transformer Usage Listing

STEP DOWN TR ANSFORMER

USAGE LISTING

Hea t Voltage

380 3 132059
380 4 132059
416 3 132062

GAS

416 4 132062
460/480 3 132053
460/480 4 132053

575 3 132050

Wire

Service

Transformer

Part No.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Additional Parts Available

Part No. Description

112039 “Black/White/Green Ground” Label
112280 “ Clean Lint Screen” Label
112534 “Phase 5 OPL Program Location Summary” Label
114001 “CAUTION - Exhaust/Lint Screen” Label
114006 “WARNING - Fire Hazards” Label
114095 “MOP HEAD WARNING” Label
117505 Aluminum Duct T ape (sold by the foot)
120100 3/8” Straight (BX) Connector
120300 3/8” x 45° (BX) Connector
120400 3/8” Red Jacket (BX) Insulator
120500 3/8” Jiffy Clip (BX retainer clip)
120600 3/8” Greenfield (BX)
120800 1/4” In-Line Connector
120802 Red Butt Connector
120902 #74B W ire Nut
120903 Crimp-On W ire Nut
121014 1/4” Insulated (female) Terminal
121499 5-1/2” Harness Tie
121500 8” Harness Tie
121503 Harness T ie Mounting Clip
122804 Manometer (hydro gauge) for Measuring Gas Pressure
404500 Almond Brush-In-Cap Bottle Touch-Up Paint
404502 White Brush-In-Cap Bottle Touch-Up Paint
404506 Beige Brush-In-Cap Bottle Touch-Up Paint
404507 Cornflower Blue Brush-In-Cap Bottle Touch-Up Paint
410001 1/2” Allen Wrench (for removal of shutoff valve tail piece)
880884 Basket (tumbler) Bearing Puller

41

T elephone: [phone] Fax: [phone]

ADC 450419 1 - 12/17/99-30 2* 08/22/01-25 3-09/04/02-5

4*01/08/03-20
