Advantage
Pulse Oximeter
Directions for Use
ADC®2200
TM
Fingertip
1
ADC®Fingertip Pulse Oximeter
Thank you for purchasing an ADC ADvantage™ Fingertip Pulse Oximeter. We’re proud of the care
and quality that goes into the manufacture of every product that bears our name. The ultra-portable
Advantage™ 2200 will give you information about oxygen saturation (the amount of oxygen in the
blood) and pulse rate at your fingertip. The 2200 is easy to use and needs no routine maintenance
except battery replacement. This User’s Guide explains how to use and care for your Advantage™
2200.
Contents of this Package
• Advantage™ 2200 • Two “AAA” batteries
• Lanyard • User Guide
Intended use
The Advantage™ 2200 is intended to measure blood oxygen saturation (%SpO2) – the amount of oxygen
in your blood - and pulse rate. It is designed for use on fingers (not the thumb) with a thickness
of 8mm to 20mm (.31” to .79”), this is the distance between the fingernail (top) and finger pad
(bottom). The index finger is most recommended. This device is intended for sport and aviation
purposes only.
Contraindications:
• The patient suffers from significant levels of dysfunctional hemoglobins (such as
carbonxy-hemoglobin or methemoglobin).
• Intravascular dyes such as indocyanine green or methylene blue have been injected
into the patient.
• Used in the presence of high ambient light (ie, direct sunlight). Shield the sensor area
with a surgical towel if necessary.
• There is excessive patient movement.
• The patient experiences venous pulsations.
• The patient has hypotension, severe vasoconstriction, severe anemia, or hypothermia.
• The patient is in cardiac arrest or is in shock.
• Patients have fingernail polish or false fingernails as they may cause inaccurate SpO2
readings.
2
SpO2
Symbol Definitions
The following symbols are associated with your Advantage™ 2200
Symbol Definition
The equipment type is BF
Refer to user manual
before use
Hemoglobin saturation
Heart Rate (BPM)
PR BPM
Beats per Minute
General Warnings
!
WARNING: Keep the Advantage™ 2200 away from young children. Small items such as the
!
Symbol Definition
Low Power Indication
Manufacturing Date
Not for continuous
monitoring
battery cover, battery, and lanyard are choking hazards.
!
WARNING: Certain activities may pose a risk of injury, including strangulation if the lanyard
should become wrapped around your neck. Use the lanyard with caution.
WARNING: Explosion hazard: Do not use the pulse oximeter in an explosive (oxygen enriched)
!
environment.
CAUTION: Only a healthcare professional is qualified to interpret SpO
!
measurements. This de-
2
vice is NOT intended to replace regular medical checkups.
CAUTION: It is recommended that your physician review your procedure for using this device.
!
CAUTION: SpO
!
readings obtained by this device should be verified before prescribing or mak-
2
ing adjustments to any medications. Under no circumstances should YOU alter the dosages of
any drugs prescribed by your doctor.
CAUTION: Excessive movement of the Advantage™ 2200 during measurement may cause in-
!
accurate readings. Limit finger movement as much as possible when using the device.
CAUTION: The Advantage™ 2200 is not intended for continuous monitoring.
!
CAUTION: Do not place the Advantage™ 2200 on the same hand/arm when using a blood
!
pressure monitor.
!
CAUTION: The Advantage™ 2200 has NO alarms. It will not sound if the amount of oxygen in
your blood is low or if the pulse rate is too high or too low.
3
!
CAUTION: The Advantage™ 2200 readings may be adversely affected in the presence of high ambient light. Shield the device if necessary.
CAUTION: Do not immerse the Advantage™ 2200 in liquid or clean with agents that are not
!
listed in this User’s Guide.
CAUTION: Any of the following conditions may reduce the performance of the Advantage™
!
2200:
• Very bright or flickering light
• Weak pulse
• Low hemoglobin
• Arterial catheters
• Nail polish and/or artificial nails
• Any tests recently performed on you that required the injection of
intravascular dyes
CAUTION: The Advantage™ 2200 may not function if you have poor circulation. Rub your fin-
!
gers to increase circulation or try an alternate finger if you are having trouble obtaining readings.
!
CAUTION: Batteries can leak or explode if used or disposed of improperly. Remove the battery if
the Advantage™ 2200 will not be used for more than 30 days.
!
CAUTION: Do not use the Advantage™ 2200 outside the specified operating and storage temperature ranges.
CAUTION: Do not use the Advantage™ 2200 for more than 30 minutes without relocating the
!
device to another finger.
CAUTION: Do not tamper with the Advantage™ 2200.
!
CAUTION: Radios, cell phones or other similar devices may affect the Advantage™ 2200 and
!
should be kept at least 7 feet away from the device.
CAUTION: Use in emergency vehicles with communication systems may affect the accuracy of
!
the Advantage™ 2200.
CAUTION: Field strengths from fixed transmitters (radio, phone base stations, AM/FM radio or
!
TV broadcast towers) may affect the accuracy of the Advantage™ 2200.
CAUTION: Follow local ordinances and recycling instructions regarding disposal or recycling
!
of the Advantage™ 2200 including batteries.
CAUTION: The Advantage™ 2200 is a precision electronic instrument and must be serviced by
!
ADC’s service department.
!
WARNING: This product may contain a chemical known to the state of California to cause cancer, birth defects, or other reproductive harm.
4
SpO
2
%
PR BPM
99
56
SpO
2
%
PR BPM
99
56
Battery Installation (figure 1)
1
Sp
0
2
P
u
lse Oxime
t
e
r
Power
2
x
1.5V AAA
SN:
Model: 2200
1. Slide off battery cover in direction of arrow.
2. Put the two AAA batteries into battery compartment by observing correct polarity.
3. Slide the battery cover on by reversing Step #1.
(Figure 1)
Note:
• Battery polarity should be observed to prevent damage to the device.
• When battery is low, the battery indicator symbol on the display will flash. Replace low battery
as soon as possible. Remove battery if the device will not be used for more than 30 days.
Strap Installation (figure 2)
1. Thread thinner end of the strap through the loop.
2. Thread thicker end of the strap through the threaded end before pulling it tightly.
(Figure 2)
1.
5
2.
Operation Instructions (figure 3)
SpO
2
%
PR BPM
99
56
1. Hold the Advantage™ 2200 with the display screen facing toward you as shown in Figure 3.
Gently squeeze the hinged end and insert one finger into the device fully. Release hinged end to
allow device to clamp down onto finger. Be sure finger is fully inserted.
serted into the device, your nail surface must be facing the same side as the display.)
2. Press the power button on the front panel once.
3. Remain still while taking a measurement and avoid applying pressure to the clamped device
while in use.
4. The device will display a reading once it has had a moment to begin measurement.
(Figure 3)
Note:
• The rubber inside the Oximeter that touches the finger maybe cleaned with alcohol.
• For best results, keep the AdvantageTM2200 at heart or chest level.
• The index (pointer) finger is recommended.
• While on the finger, do not press the Advantage
TM
2200 against any surface and do not
squeeze it or hold the device.
• The internal spring provides the correct pressure. Additional pressure may affect
readings.
(When your finger is in-
6
Reading Your Results
SpO
2
%
PR BPM
99
56

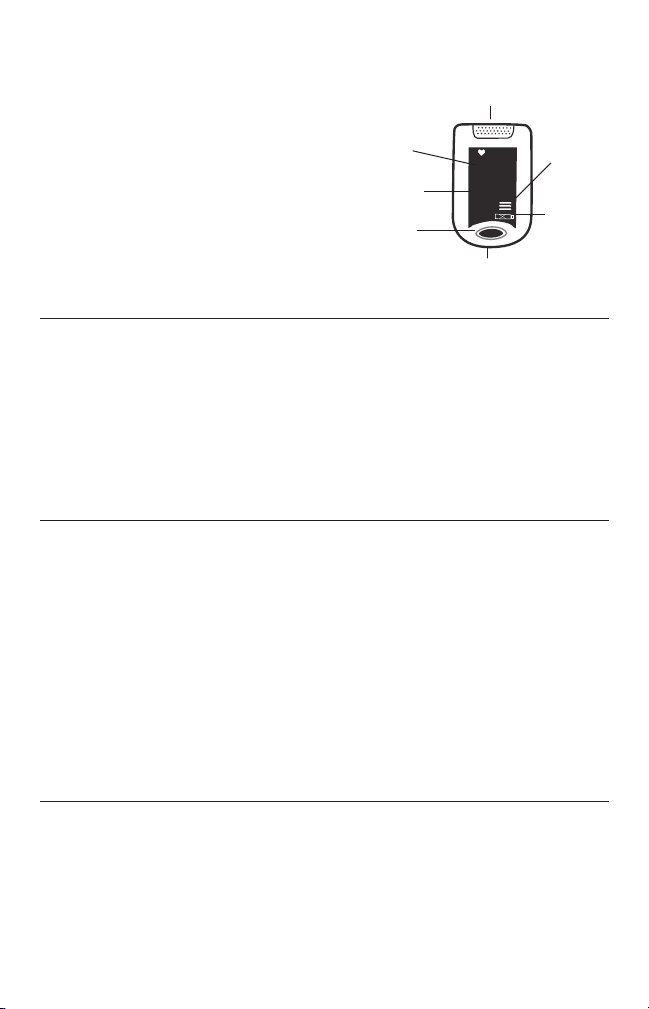

After measurement begins, you will see three pieces
of information displayed on your pulse oximeter:
• A pulse bar graph display corresponding with
your pulse beat will be shown. The height of the
bar graph shows your pulse strength.
• Your pulse rate will be displayed as BPM or
beats per minute.
• The amount of oxygen in your blood will be
displayed as SpO
%.
2
Pulse
Rate
Oxygen
Saturation
Power
Button
Press Here
to Open
Finger Enters
Here
Pulse Bar
Graph
Low Power
Indicator
Changing Directions of the Display
When you first power on the unit, the display will orient it with the numbers facing the person
wearing the device. The display can be re-orientated to face the other direction, if desired.
1. To change the direction of the display, press the power button while the unit is displaying
a reading.
Note:
By default, the unit will always display the readout facing the wearer.
Maintenance and Storage
1. When the low power indicator comes on, you must replace the batteries.
2. The surface of the pulse oximeter that comes into contact with your finger should be kept
clean.
3. When storing the pulse oximeter for more than 30 days, remove the batteries.
4. When storing the pulse oximeter, ensure that the temperature is between -13°F to 158°F
(-25°C to 70°C) with a relative humidity greater than or equal to 93%.
5. Store the pulse oximeter in a dry environment. Exposure to moisture may decrease the
lifespan of your device.
6. Batteries should be disposed of in accordance with local and state laws.
Cleaning the Pulse Oximeter
Clean the rubber touching the finger inside of the device with a soft dampened cloth with 70% isopropyl
alcohol, and clean the test finger using alcohol before and after each test. Do not pour or spray any liquids onto the Oximeter, and do not allow any liquids to enter any openings in the device. Allow the
device to dry thoroughly before reusing.
7
Detailed Description of Product Functions
1. Display Type: LED
:
2. SpO
2
Measurement
range: 70-100%
Accuracy: 70%-100%, ±2%;
69% no definition.
3. Pulse Rate:
Measure range: 30bpm~250bpm
Accuracy: 30~99BPM, ±2BPM;
100bpm~250bpm
Pulse Intensity: Bar Graph Indicator
4. Power Requirements:
Two (2) AAA alkaline Batteries
Low power indication:
Battery Life: Two AAA 1.5V,
1200mAh Alkaline.
Could continuously operate for 18 hrs.
5. Dimensions:
Length: 2.19”
(5.5cm)
Width: 1.13” (2.9cm)
Height: 1” (2.5cm)
Weight: 1.76oz. (50g)
(including two AAA batteries)
6. Environment Requirements:
Operation Temperature:
41°F-104°F
Storage Temperature:
-13°F to 158°F (-25°C to 70°C)
Ambient Humidity:
Power consumption:
Less than 40mA
Operation: 15%～93%
no condensation
in operation
Storage: 93% no condensation
in storage/transport
Troubleshooting
Problems Possible reason(s) Solution(s)
SpO2or
pulse rate
cannot be
shown
normally
or
SpO
2
pulse rate is
shown
unstably
The Oximeter
cannot be
powered on
Display
suddenly
powers off.
“Error7”
1. Finger is not inserted
correctly
2. Oxyhemoglobin value is too
low to be measured
1. Finger might not be inserted
deep enough
2. Excessive movement during
measurement
1. Low battery strength
2. Batteries installed incorrectly
3. The Oximeter might be damaged
1. The product is automatically
powered off when no signal is
detected for longer than 8 seconds
2. Low battery strength
1. Low power
2. Oximeter is damaged
1. Re-insert/re-position finger
2. Ensure that sensor is clean and not
blocked
3. Try taking a reading on a different finger
or warm your finger by rubbing
1. Re-insert/re-position finger
2. Remain still during measurement
1. Replace batteries
2. Reinstall the batteries
3. Contact warranty center for service
1. Re-insert/re-position finger
2. Replace the batteries
1. Replace batteries
2. Contact warranty center for service
(5°C - 40°C)
8
Limited Warranty
American Diagnostic Corporation (ADC®) warrants its products against defects in materials and workmanship
under normal use and service as follows:
1. Warranty service extends to the original retail purchaser only and commences with the date of delivery.
2. Your Pulse Oximeter is warranted for one (1) year from date of purchase (all parts).
What is Covered: Replacement of parts, and labor.
What is Not Covered: Transportation charges to and from ADC
misuse, accident, or negligence. Incidental, special, or consequential damages. Some states do
not allow the exclusion or limitation of incidental, special, or consequential damages, so this limitation may not apply to you.
To Obtain Warranty Service: Send item(s) postage paid to ADC
merce Dr., Hauppauge, NY 11788. Please include your name and address, phone no., proof of
purchase, and a brief note explaining the problem.
Implied Warranty: Any implied warranty shall be limited in duration to the terms of this warranty
and in no case beyond the original selling price (except where prohibited by law).
This warranty gives you specific legal rights and you may have other rights which vary from state
to state.
Declaration: This product complies with the IEC60601-1-2 standard. The user-contacting materials
are non-toxic and comply with ISO10993-1, ISO10993-5 and ISO10993-10.
Guidance and manufacturer’s declaration - electromagnetic
emissions for all EQUIPMENT and SYSTEMS
Guidance and manufacturer’s declaration - electromagnetic emission
Pulse Oximeter
The
the user of the
is intended for use in the electromagnetic environment specified below. The customer or
Pulse Oximeter
should assure that it is used in such an environment
®
. Damages caused by abuse,
®
, Attn: Repair Dept., 55 Com-
Emission Test Compliance Electromagnetic Environment Guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Group 1
Class B
The Pulse Oximeter uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
The Pulse Oximeter is suitable for use in all establishments, including
domestic establishments and those directly connected to the public
low-voltage power supply network that supplies buildings used for domestic purposes.
9
Beijing Choice
Electronic Technology Co., Ltd.
Room 4104, No. A12 Yuquan Road
Haidian District, 100043
Beijing, P.R. China
Shanghai International
Holding Corp. GmbH (Europe)
EiffestraBe 80, 20537
0123
Distributed by: ADC
55 Commerce Drive
Hauppauge, NY 11788
Inspected in the U.S.A.
Made in China
tel: 631-273-9600
1-800-232-2670
fax: 631-273-9659
www.adctoday.com
®
IB p/n 93-2200-00 rev 6 Printed in China
10
Loading...
