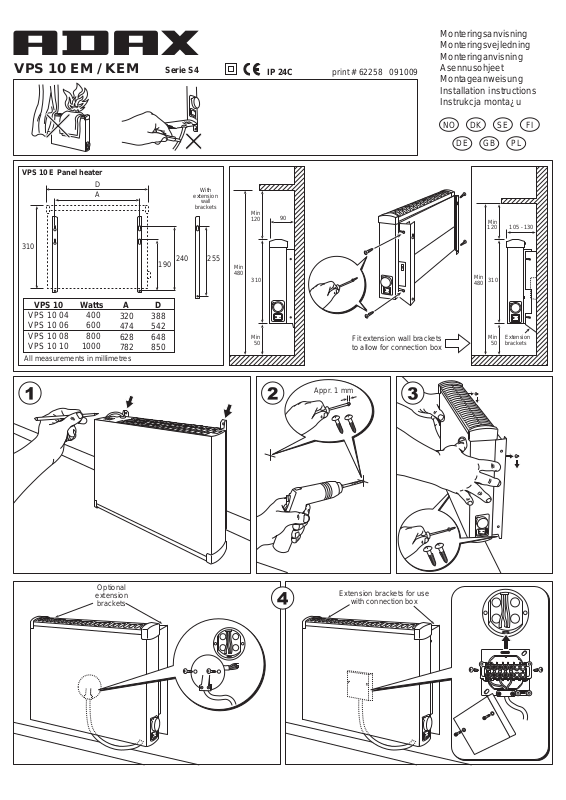

VPS 10 EM / KEM
VPS 10 E Panel heater
D
A
310
Serie S4
240
190
With
extension
wall
brackets
255
Min
480
Min
120
310
IP 24C
90
print # 62258 091009
Monteringsanvisning
Monteringsvejledning
Monteringanvisning
Asennusohjeet
Montageanweisung
Installation instructions
Instrukcja monta¿u
NO DK SE FI
DE GB PL
Min
105 - 130
120
Min
310
480

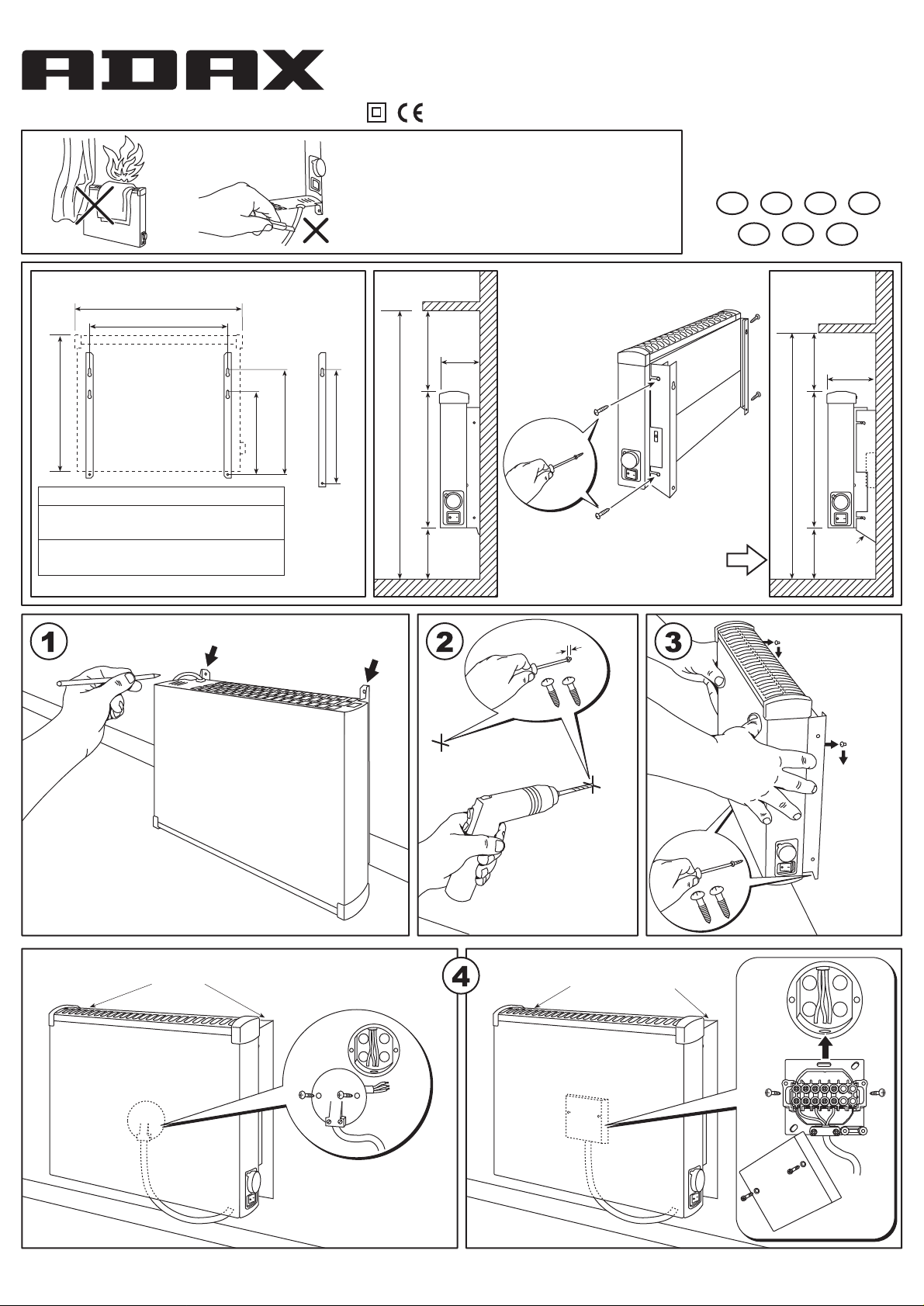

VPS 10
VPS 10 04
VPS 10 06
VPS 10 08
VPS 10 10
All measurements in millimetres
Watts
400
600
800
1000
A D
320
474
628
782
388
542
648
850
Min
Extension
50
Appr. 1 mm
Fit extension wall brackets
to allow for connection box
Min
50
brackets
Optional
extension
brackets
Extension brackets for use
with connection box
Page 2
St
N L St N L St N L
Bu (N)
(L) (400 V)
Bk (L)
N
L
1
L
2
L
3
230 V
(L) (L)(L)
St N L St N L St N L
N
L
1
L
2
L
3
400 V
Bk(L) Sort Sort Svart Musta Schwarz Black Czarny
Bu(N) Blå Blå Blå Sininen Blau Blue Niebieski
Bn(St) Brun Brun Brun Ruskea Braun Brown Brazowy
Bn (St)
5°C
Elektrisk montasje må bare
utføres av autorisert installatør.
Elektrisk montage må kun udføres
af autoriseret el. installatør.
Elektrisk installation får endast
utföras av behörig installatör.
Sähköasennukset saa suorittaa vain
asennusoikeudet omaava asennusliike.
Anschluß darf nur durch Fachmann
durchgeführt werden.
Electric installation must be carried
out by an authorised electrician.
Podlaczenie do sieci elektrycznej
nalezypowierzyc elektroinstalatorowi.

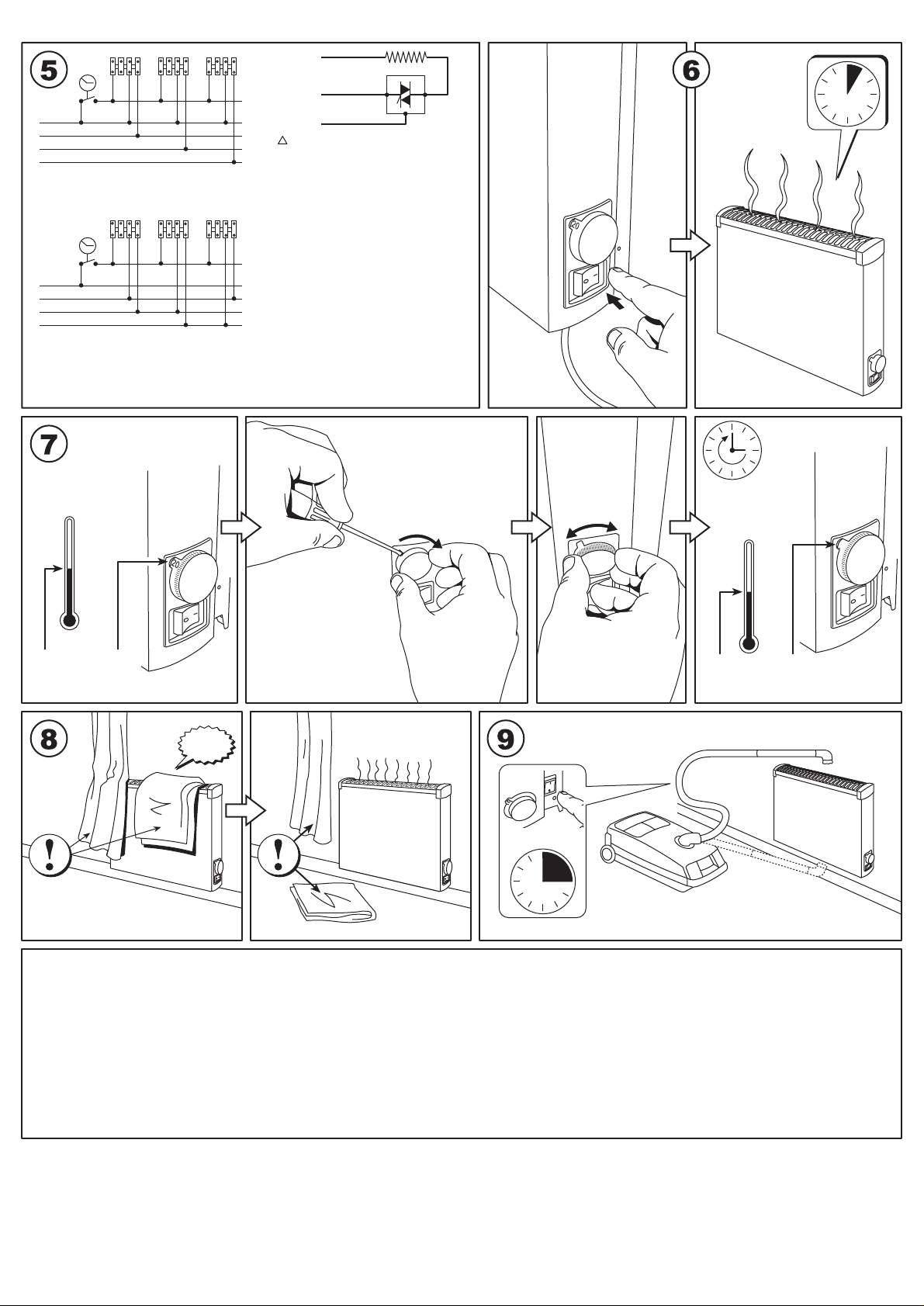

Oil fumes
appr. 5 min.
Calibration
23°C 20°C
= 3°C deviation
CLICK!
Hold
Turn
to 23
Automatic reset
Wait 6–12 hrs
Set to
desired
temp.
Check that setting and
room temp. correspond
15 min.
Safety cut-out
Clean twice yearly
www.adax.no
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
