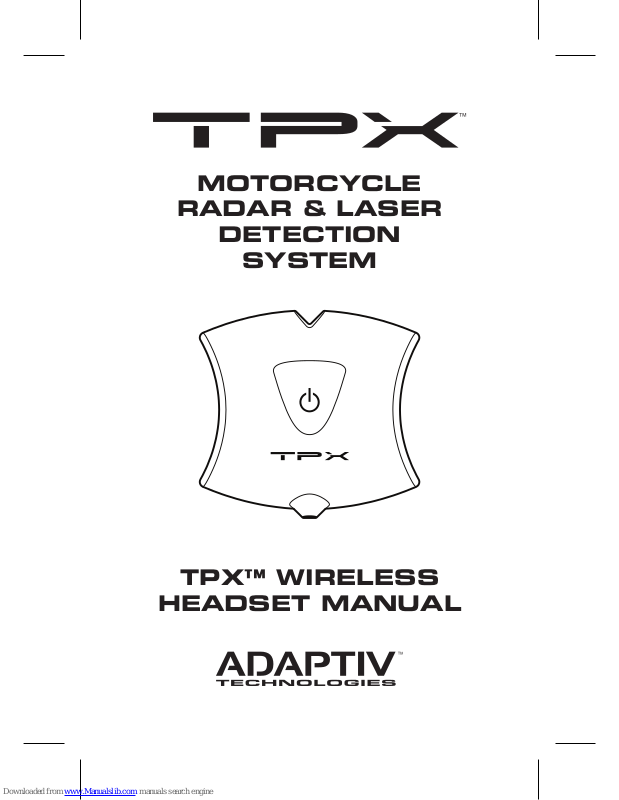

Page 1
TPX™ WIRELESS
HEADSET MANUAL
MOTORCYCLE
RADAR & LASER
DETECTION
SYSTEM
Page 2
Safety Warning ......................................................
Package Contents ..................................................
Product Overview ..................................................
Installing the TPX™
Wireless Headset ................
Mounting the TPX™ Wireless Headset .....
Installing and replacing the battery ...........
Using the TPX™ Wireless Headset ......................
Power ..............................................................
Alerts ...............................................................
Troubleshooting ......................................................
Maintenance and Care ..........................................
Warranty Service ...................................................
Warranty ..................................................................
Specifications ........................................................
Accessories .............................................................
FCC Statement .......................................................
2
2
3
4
4
4
5
5
5
6
7
8
9
11
12
13
TABLE OF CONTENTS
You may register this product online at
www.RadarForBikes.com.
Page 3
PACKAGE CONTENTS
• TPX™ Wireless Headset Receiver Module
with Earphone
• Hook and Loop Fastener
• CR-2450 Lithium Coin Cell Battery
• Screwdriver Keychain
• TPX ™ Wireless Headset Manual
2 3
SAFETY WARNING
When using the TPX™ Motorcycle Radar and
Laser Detection System and its associated
components, it is the sole responsibility of the
operator to install all components properly and
to ensure that they will not interfere with safe
operation of the vehicle, nor will they cause any
personal injury or damage in the event of an
accident. The operator should operate the vehicle
in a safe manner while using the system and its
components. Do not use the system if you find it
distracting. Do not use the system if it is unsafe or
dangerous to do so.
PRODUCT OVERVIEW
The water resistant TPX™ Wireless Headset is
designed to be used in conjunction with the TPX™
Main Console. When mounted on the helmet, it
alerts the rider when the Main Console receives
radar or laser signals.
Figure 1
Power
Button
Receiver
Module
Earphone
Page 4
INSTALLING THE
TPX™
WIRELESS HEADSET
Mounting the TPX™ Wireless Headset
The TPX ™ Wireless Headset is designed to be
installed in a full-face or open-face helmet.
Install the Earphone in the helmet’s ear hole or
near the ear, between the foam lining and the
outer shell of the helmet.
Using the included Hook and Loop Fastener, install
the Receiver Module anywhere on the exterior of
the helmet where it will not interfere with the use
of the helmet.
Tuck in loose wires between the foam lining and
outer shell of the helmet.
Installing and Replacing the Battery
The Wireless Headset is powered by a single 3V,
CR-2450 Lithium Coin Cell Battery.
To install the Battery, remove the four screws in
the back of the unit with the included Screwdriver
Keychain. Remove the back cover and install the
Battery into the metal retainer with the positive
side face up. Replace the back cover and secure it
with the four screws.
USING THE
TPX™
WIRELESS HEADSET
Power
Press the
button on the TPX™ Wireless
Headset to power the unit on/off. When the unit is
on, the
button will flash once every 3 seconds.
Alerts
When the Main Console receives a radar or laser
signal, it transmits the information to the Wireless
Headset. The Earphone will beep with varying
frequencies and tones to indicate the type and
strength of the detected signal similar to that of
the Main Console.
Unless the Alert Off function is activated, the
Wireless Headset will beep every time a button is
pressed on the Main Console.
To control the volume, refer to Main Console
Operation section of TPX™ Main Console Manual.
Verify that the rubber gasket is seated correctly
and the cover is closed tightly to ensure proper
water resistance.
4 5
Page 5
Problem Possible
Causes
Possible
Solutions
No audio
coming
through
Wireless
Headset
Wireless
Headset not
turned on
Wireless
Headset battery
low
Main Console
not turned on
Main Console
and Wireless
Headset not
communicating
properly
Battery installed
upside down
Turn Wireless
Headset on
Replace the
Wireless
Headset battery
Turn Main
Console on
Reset power for
Main Console
and the Wireless
Headset
Install battery
with “+” side up
MAINTENANCE
AND CARE
The TPX™ Wireless Headset is water resistant. It
is designed to withstand temporary exposure to
moisture, such as rain or fog. However, it should
not be exposed to moisture for a prolonged period
of time. Do not leave the Headset out in the rain
when not in use. Do not hose the Headset down.
Do not submerge the Headset as this will void the
warranty.
Clean the Wireless Headset with a damp lint-free
cloth only. Do not use any chemicals as they may
attack the plastic.
Dry the Wireless Headset with a lint-free cloth
after it has been exposed to moisture.
A Special Note About Group Riding:
Under certain group riding circumstances,
multiple TPX™ Systems may interfere with each
other resulting in false alerts. If this occurs, we
recommend increasing following distances or
turning off all but one System.
TROUBLESHOOTING
If your TPX ™ Wireless Headset is not operating
properly, please refer to the following guide:
6 7
Page 6
WARRANTY
Adaptiv Technologies, LLC warrants to the original
purchaser that the TPX™ Wireless Headset will be
free of defects in workmanship and materials for a
period of one year from the date of first consumer
purchase. The TPX™ Wireless Headset consists of
the Wireless Headset assembly and its respective
parts. Adaptiv Technologies will, at its option,
repair or replace a detective TPX™ Wireless
Headset upon delivery to Adaptiv Technologies
accompanied by the original sales receipt or
other proof of first consumer purchase within
the warranty period. You are responsible for all
charges required to ship the product for warranty
WARRANTY SERVICE
If you believe that your TPX ™ Wireless Headset
is not functioning properly please follow the
following procedure:
1. Review the Troubleshooting section.
2. If your problem is not resolved after reviewing
the Troubleshooting section, have your serial
number ready and call us at 646-722-0253. We will
try to resolve your problem over the phone.
Note: The serial number is located inside the
bottom housing.
3. If your system needs to be returned for repair,
we will provide you with a Service Order Number
and a shipping address. Write the Service Order
Number on the outside of the shipping box.
Include the following items in your shipment:
a. The TPX™ Wireless Headset and Battery
b. Copy of sales receipt (originals cannot be
returned)
c. Your name, phone number, address, and
email address (we promise not to spam)
All shipment must be sent prepaid by way of a
traceable carrier, such as UPS, FedEx, USPS
Priority Mail with Tracking, etc., and should be
insured. Adaptiv Technologies is not responsible
for any loss or damage incurred during shipping.
Warranty service will only be honored for units
purchased from authorized agents with a copy of
the sales receipt.
Repairs will not be performed on units without a
readable serial number.
Please allow 4-8 weeks for the return of the unit.
8 9
Page 7
service, but the return charges will be at Adaptiv
Technologies’ expense if the product is repaired or
replaced under warranty. This warranty gives you
specific rights, and you may also have other rights
which vary from state to state.
EXCLUSIONS: This limited warranty does not
apply:
1. To any products sold separately (such as any
mount assemblies);
2. To any defects caused by misuse, abuse,
accidents, modifications, negligence, tampering,
or unauthorized repair;
3. In the State of Virginia, the District of Columbia,
or in any other country or jurisdiction in which
possession of radar detector equipment is illegal;
4. If the serial number label has been altered,
defaced, or removed; or
5. To installation of the unit.
ALL IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
LIMITED IN DURANTION TO THE PERIOD OF THIS
WARRANTY*.
* Some states do not allow limitations on the
duration of implied warranties and/or do not
allow the exclusion or limitation of incidental or
consequential damages, so the above limitations
may not apply to you.
SPECIFICATIONS
Wireless RF Receiver Frequency:
418 MHz
Dimensions:
1.9” x 1.7” x 0.8”
Weight:
2 oz.
Power Requirements:
CR2450 – 3V Lithium coin battery
PATENTS PENDING
10 11
Page 8
FCC STATEMENT
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Warning: Modifications not approved
by Adaptiv Technologies, LLC may
violate FCC rules and void user’s
authority to operate this system.
ACCESSORIES
The following parts and accessories are available
for purchase. For more information, go to www.
RadarForBikes.com or call us at 866-ADAPTIV
(866-232-7848).
TPX™ Radar and Laser Detection System
TPX™ Visual Alert
TPX™ Sportbike Mount 22-27
TPX™ Sportbike Mount 24-30
TPX™ Sportbike Mount 24-32
TPX™ Sportbike Mount 25-36
TPX™ Sportbike Mount 28-35
TPX™ Handlebar Mount
TPX™ Control Mount
TPX™ HC Mount
TPX™ KZ Mount
TPX™ Universal Mount Adapter (For use with RAM
®
or
Techmount®)
TPX™ Automotive Mount
TPX™ Replacement Wiring Harness
12 13
Page 9
Adaptiv Technologies, LLC
1639 11th Street
Suite 156
Santa Monica, CA 90404
ww
w.RadarForBikes.com
866-ADAPTIV
(866-232-7848)
14 4008-00R2
646-722-0253
