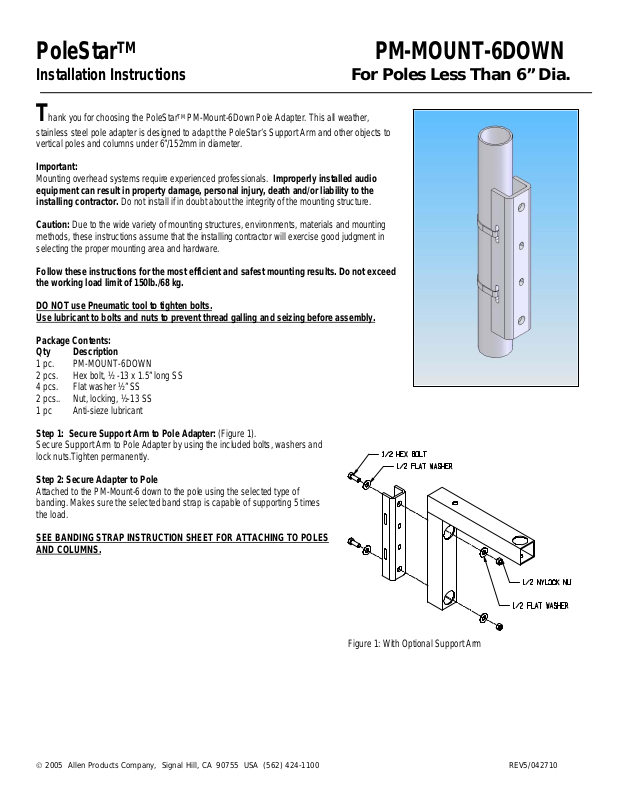

Adaptive Technologies PM-MOUNT-6DOWN User Manual

PoleStarTM PM-MOUNT-6DOWN

Installation Instructions For Poles Less Than 6” Dia.

Thank you for choosing the PoleStar

stainless steel pole adapter is designed to adapt the PoleStar’s Support Arm and other objects to
vertical poles and columns under 6”/152mm in diameter.

Important:
Mounting overhead systems require experienced professionals. Improperly installed audio
equipment can result in property damage, personal injury, death and/or liability to the
installing contractor. Do not install if in doubt about the integrity of the mounting structure.

Caution: Due to the wide variety of mounting structures, environments, materials and mounting
methods, these instructions assume that the installing contractor will exercise good judgment in
selecting the proper mounting area and hardware.

Follow these instructions for the most efficient and safest mounting results. Do not exceed
the working load limit of 150lb./68 kg.

DO NOT use Pneumatic tool to tighten bolts.
Use lubricant to bolts and nuts to prevent thread galling and seizing before assembly.

Package Contents:
Qty Description

1 pc. PM-MOUNT-6DOWN
2 pcs. Hex bolt, ½ -13 x 1.5” long SS
4 pcs. Flat washer ½” SS
2 pcs.. Nut, locking, ½-13 SS
1 pc Anti-sieze lubricant

Step 1: Secure Support Arm to Pole Adapter: (Figure 1).
Secure Support Arm to Pole Adapter by using the included bolts, washers and
lock nuts.Tighten permanently.

Step 2: Secure Adapter to Pole
Attached to the PM-Mount-6 down to the pole using the selected type of
banding. Makes sure the selected band strap is capable of supporting 5 times
the load.

SEE BANDING STRAP INSTRUCTION SHEET FOR ATTACHING TO POLES
AND COLUMNS.

TM

PM-Mount-6Down Pole Adapter. This all weather,

Figure 1: With Optional Support Arm
