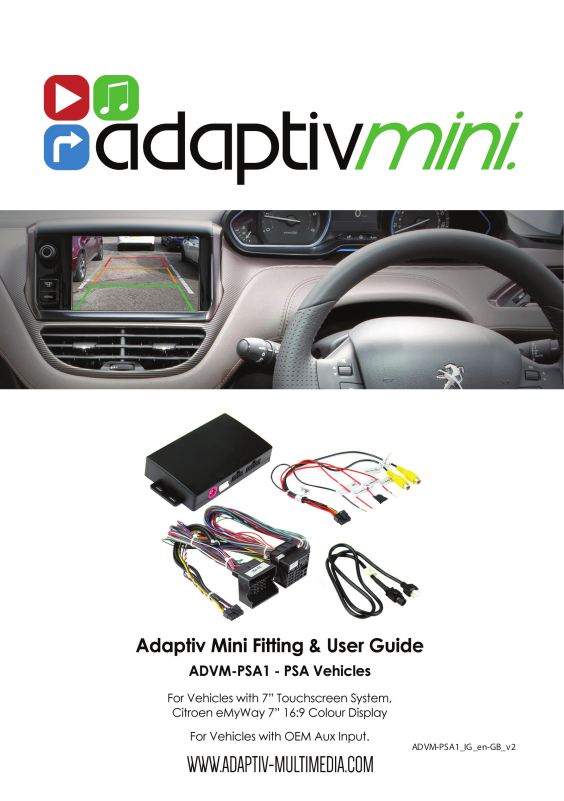

ADVM-PSA1_IG_en-GB_v2
WWW.ADAPTIV-MULTIMEDIA.COM
1
ABOUT
Adaptiv Mini
Adaptiv Mini allows HDMI & Camera input to the OEM screen.
This plug and play Mini interface adds HDMI to
connect your Apple or Android device, allowing
you to mirror your smartphone display on the
vehicle’s original screen. Inputs for front and rear
aftermarket cameras also come as standard.
Application
For vehicles with 7” touchscreen system or Citroen eMyWay 7” 16:9 colour display. For
vehicles with OEM Aux input only
Citroen
C3 Picasso 2012>
C4/C4 Picasso/C4 Grand Picasso 2010>
C4 Cactus 2012 - 2017
C5 (RD/TD)/C5 Tourer (RD/TD) 2012>
DS3 2010 - 2016
DS5 2012>
Peugeot
208 2011>
308 (T9) 2013>
3008 2013 - 2016
508 2014 - 2018
Kit Includes
Adaptiv Interface
Vehicle Harness
Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
The place of installation must be free of moisture and away from heat sources.
Connects2 cannot be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as much
Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
2
PSA VEHICLES - 7” SYSTEMS
CONNECTION DIAGRAM
NOTE:
All connections are made at the
rear of the OEM head unit. No
connections need to be made
directly to the display.
DIP SWITCH SETTINGS
DIP 1
If the vehicle has OEM
reverse camera
( ON: YES OFF: NO )
DIP 2
If the vehicle has aftermarket front camera (
ON: YES OFF:NO )
WWW.ADAPTIV-MULTIMEDIA.COM
DIP 3
If the vehicle has aftermarket reverse camera (
ON: YES OFF: NO )
DIP 4
Citroen C3 2018 - ON
Other Vehicles - OFF
DIP 5
OFF
3
USER GUIDE
Button Conguration
List/Menu Button
HDMI Access
Select Aux In from the OEM source menu.
Hold LIST/MENU Button for 2 seconds to switch between OEM screen and Adaptiv Mini
HDMI screen
Video In Motion Warning - 10 MPH
Double press LIST/MENU Button to disable the video in motion warning message
Rear and Front Camera Access
From either HDMI mode or OEM mode
1. Select reverse gear for reverse camera
2. Deselect reverse gear - will go to after market front camera ( if DIP 2 ON )
To cancel front camera drive over 10 MPH or double press LIST/MENU Button
Front Camera Access
Double press LIST/MENU Button to enter the front camera screen ( if DIP 2 is ON )
Double press LIST/MENU Button to exit front camera
View Version Number
Hold LIST/MENU Button for 8 seconds to enter rmware information screen
4
