AMM-1570/1572 User’s Guide Stock Number: 510526-00 , Rev. B FRONT COVER Print Spec. Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570 /1572

SCSI Audio Host Adapter

User’ s Guide

A

AAAA

A

AMM-1570/1 57 2

SCSI Audio Host Adapter

User’ s Guide

R

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: i Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

A

AAAA

A

Copyright

Copyright © 1994 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Mi lpitas Blvd., Milpitas, CA 95035.

Trademarks

Adaptec and the Adaptec logo are registered trademarks, and AHA is a trademark of Adaptec, Inc.

AT&T is a registered trademark of American Telephone and Telegraph Company. AT, IBM, Micro Channel, and OS/2 are registered trademarks of International

Business Machines Corporation. Bernoulli is a registered trademark of Iomega Corporation. MS, MS-DOS, and Xenix are registered trademarks of Microsoft Corporation. NetWare is a registered trademark of Novell, Inc. SCO is a registered trademark of Santa Cruz Operation, Inc. VL-Bus is a trademark of Video Electronics Standards Association. UNIX is a registered trademark of Unix System Laboratories. All other product names are t rademarks or registered trademarks of their respective

owners.

Changes

The material in this User’s Guide is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this User ’s Guide to assure its accuracy, Adaptec, Inc. assumes no liability resulting from errors or omissions in this User’s Guide, or from the use of the information contained herein.

Adaptec reserves the right to make changes in the product design without reservation and without notification to its users.

Adaptec Technical Support

AMM-1570/1572 host adapters have been specifically developed for easyinstallation and use. We believe that our User’s Guide and the onscreen instructions and help are complete and clear enough to meet your needs. If you need further help, please contact us.

● The Adaptec Electronic B ulletin Board Service (BBS) provides information on

software upgrades, new releases, technical advice, and other topics. The BBS is available 24 hours a day at 408-945-77 27; 1200/2400/9600/14400 baud, 8 da ta bi ts, 1 stop bit, no parity.

● To contact the Adaptec Technical Support Hot Line, call 800-959-SCSI (7274) or

408-945-2550; M–Th: 6:00 a.m. to 5:00 p.m., F: 6:00 a.m. to 3:00 p.m., Pacific Time.

ii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: ii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

A

AAAA

A

Interactive FAX Service

The Adaptec Interactive FAX Service provides the latest online information about Adaptec products and services. The Adaptec Interactive FAX Service is available 23 hours a day, seven days a week, at 408-957-7150.

Ordering Software and Cables

T o order Adaptec software and SCSI cables, call 800-442- SCSI (727 4), M–F: 5:00 a.m. to 6:00 p.m., Pacific Time.

Literature Hotline

To request additional documentation for Adaptec products, call 800-934-2766, M–F: 5:00 a.m. to 6:00 p.m., Pacific Time.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful inter ference in residential installations. This equi pment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Move the equipment away from the receiver

• Plug the equipment into an outlet on a circuit different from that to which the receiver is powered

• If necessary, the user should consult the dealer or an exp eri en ced radio/telev ision te chnician for additional suggestions

CAUTION: Only equipment certified to comply with Class B (computer input/output devices, terminals, printers, etc.) should be attached to this equipment, and must have shielded interface cables.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user ’ s authori ty to operate such equipment.

Each AMM-1570/1572 host adapter is equippe d with an FCC compliance label whi ch shows only the FCC identification number. The full text of the associated label follows:

This device compli es with par t 15 of the FCC rules. Oper ation is subject to t he followi ng two conditions: (1) this device m ay not cause harmful interference and (2) this device must accept any inter ference received, including interference that may cause undesired operation.

iii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: iii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Stock Number: 510526-00, Rev. B Page: iv Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

▼ ▼ ▼ ▼

A

AAAA

A

1 Introduction

Table of Contents

Preface

Inside This User’s Guide xi Conven t ions xiii Adviso ries xiv

About This Chapter 1-1 Overview 1-3 What is the AMM-1570/1572? 1-3 System Requirements 1-4 Board Layout 1-4 Features 1-5

SCSI Module 1-5 Configurat ion Flexibility 1-5

Audio Module 1-6 Adaptec Software 1-7 Avoid Stati c Elect r icit y 1-7 Number and Types of SCSI Devices 1-7 Types of Audio Equipment 1-7 Types of Cables Required 1 -8 Maximum Cable Lengths 1-8 External SCSI Connect o r Mount ing Brac ket 1-8

2 Configuring the AMM-1570/1572

About This Chapter 2-1 Preparing Y our Devic es for Instal l ation 2-3 Termination on the SCSI Bus 2-3

Terminating SCSI Devices 2-6

Terminating the AMM-1570/1572 2-6 SCSI IDs on the SCSI Bus 2-7

Setting the SCSI ID on the AMM-1570/1572 2-8

Setting the SCSI ID on Other SCSI Devices 2-8

v

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: v Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Default Settings 2-8 Configuring the AMM-1570/1572 2-10

Installing and Removing Jumper Connectors 2-10 Jumper Block Locations 2-10 Jumper Block J5 2-11 Jumper Block J6 2-15 Jumper Block J7 (AMM-1572 only) 2-17 Jumper Block J8 2-17 Jumper Block J9 2-17 Jumper Block J17 2 -19

3 Installing the AMM-1570/1572

About This Chapter 3-1 Installation Overview 3-3 Quick Installatio n 3-3 Detailed Installation 3-5

Installing the Host Adapter 3-6 Installing the External SCSI Connec tor

Mounting Bracket 3-8 Cabling the Host Adapter 3-9 Connect ing the SCSI Bus Activit y LED 3-16 Connecting Audio Equipm ent 3-17 Installing Adaptec Software 3-19

Before Restart ing Your System 3-20 Reassemble the System 3-20

4 Troubleshooting

About This Chapter 4-1 SCSI Troubleshoo ting Chec klis t 4-3 Operating Problems 4-4 ASPI Manager Error Messages 4-7

aspi2dos.sys Error Messages 4-7 aspidisk.sys Error Messages 4-7 Other Error Messages 4-8

vi

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: vi Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

A

AAAA

A

A Specifications

About This Appendix A-1 Technical In formation A-3 Product Specifications A-3

Physical Dim ensions A-3 Power Requirements A-3 Environmen tal Req uirem ent s A-3

SCSI Interface A-4

Electrical Interface A-4

Floppy Disk Interface A-7

Standard Electronic and Physical Interface A-7 Connector A-7

Audio Input Connector (J4) Pinout s A-7

B I/O Operating Environment

About This Appendix B-1 Host Adapter Support B-3

DOS/W indo w s B-3 Adaptec EZ-SCSI B-4

Table of Contents

C Optimizing Performance

About This Appendix C-1 Performance Tips C-3

Enabling Synchronous Negotiation C-3 Disabling the Host Adapter BIOS C-3 Enabling SCSI Parity Checking C-3 Setting Enable Disconnec tion C-4 Fast SCSI Operation C-4 DOS/Windows Performance C-4

vii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: vii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

D Disk Drives Over 1 GByte

About This Appendix D-1 Extended Transl ation (Using MS-DOS 5.0) D-3 The DOS 1 GByte Limit D-3 When to Use Extended Translation D-3

With MS-DOS 5.0 and Above D-3 Drives With Mixed Partitions D-4 Using Fdisk D-4

Questions and Answers About Extended

Translation D-4

Glossary Index

viii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: viii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

▼ ▼ ▼ ▼

A

AAAA

A

List of Figures

Figure

1-1 Board Layout 1-4 2-1 Termination With Internal and Exter nal Devic es 2-4

2-2 Termination With Internal Devices Only 2-5 2-3 Termination With External Devices Only 2-5 2-4 Terminators 2-6 2-5 Pin 1 Orientation on the Termin ators 2-7 2-6 Jumper Block Locations 2-10

3-1 Connectors on the Host Adapter 3-5 3-2 Unused Expansion Bus Slot 3-6 3-3 Installing the Hos t Adapter 3-7 3-4 Installing the External Mounting Bracket 3-8 3-5 Connect ing Bracket Ribbo n Cable to the

Host Adapter 3-9

3-6 50-pin SCSI Ribbon Cable to Host Adapter 3-10 3-7 50-pin SCSI Ribbon Cable to Internal SCSI Device 3-11 3-8 Connecting a Second Intern al SCSI Device 3-11 3-9 External Cable to Host Adapter 3-12 3-10 External Cable to External SC SI Device 3-13 3-11 Connecting Multiple External SCSI Devices 3-13 3-12 34-pin Floppy Cable to Host Adapter 3-14 3-13 34-pin Floppy Cable to First Floppy Driv e 3-15 3-14 Connecting a Second Floppy Drive 3-15 3-15 SCSI LED Connecto r 3-16 3-16 Connect ing Aud io Equipm ent to the

Host Adapter 3-17

ix

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: ix Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Stock Number: 510526-00, Rev. B Page: x Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

▼ ▼ ▼ ▼

A

AAAA

A

Preface

Inside This User’s Guide

This User’ s Guide provides complet e inst ruct io ns on how to install and use the Adaptec AMM-1570/1572 SCSI Audio Host Adapter.

Chapter 1 Introduction

provides an overview of the AMM-1570/1572. The system requirements, board layout, features, and general information o n use are also included.

Chapter 2 Configuring the A MM-1570/1572

discusses the importance of termination and SCSI IDs on the SCSI bus. The default settings and instructions on changing termination and configuring the jumper blocks settin gs are also included.

Chapter 3 Installing the AMM-1570/1572

has the information needed to install the host adapter, and connect SCSI devices and audio equipment .

Chapter 4 Troubleshooting

has information to assist you in troubleshooting problems that may occur during con figurat io n, installation, and operation.

Appendix A Specifications

lists technical specifications of the host adapter and its connectors, which may be of use to the advanced user or technicia n.

Appendix B I/O Operating Environment

provides information on using your host adapter with operating systems , such as DOS/Windows. A brief discussion on Adaptec EZ-SCSI and Adaptec EZ-Audio softw are is also inclu ded.

xi

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: xi Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

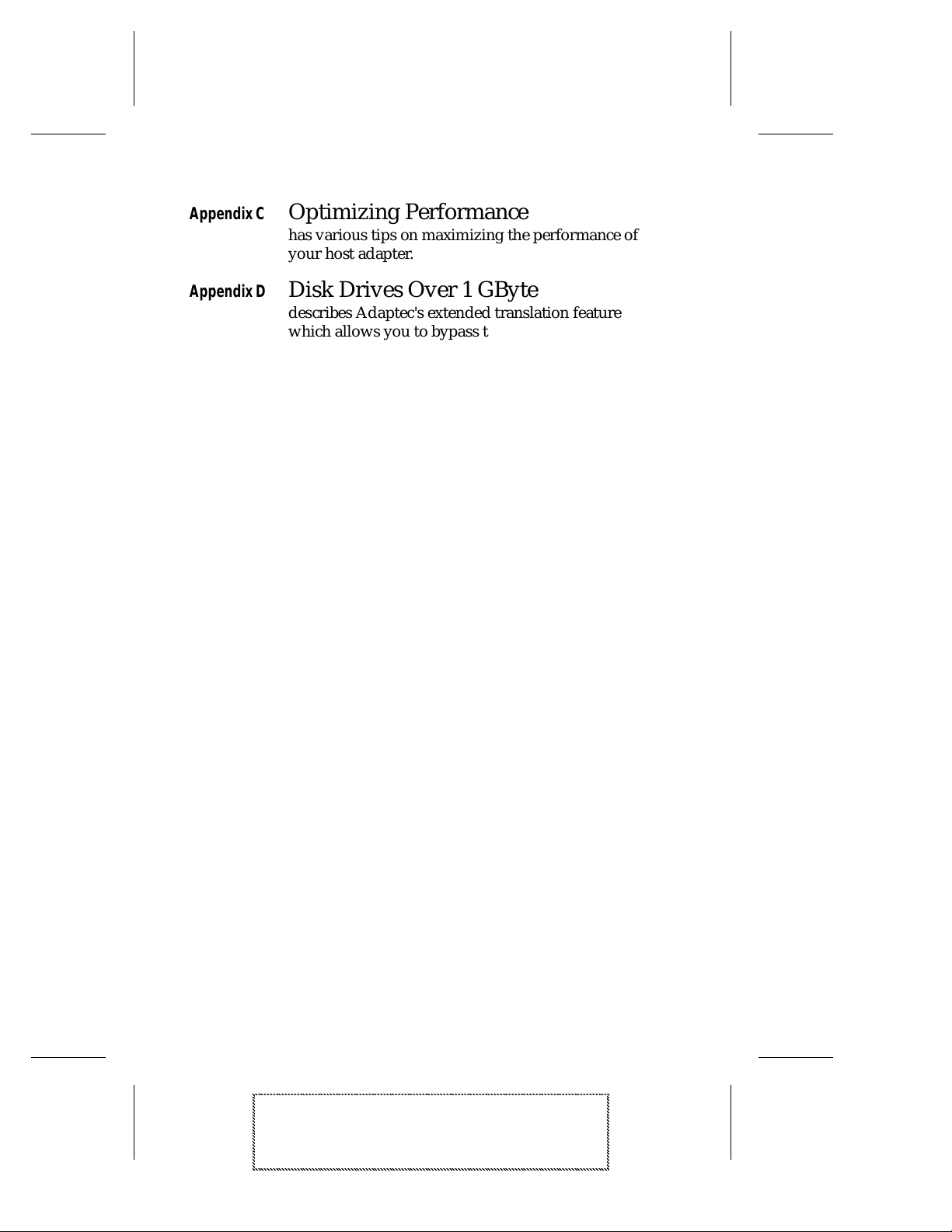

Appendix C Optimizing Performance

has various tips on maximizing the performanc e of your host adapter.

Appendix D Disk Drives Over 1 GByte

describes Adaptec's extended translation feature which allows you to bypass the DOS 1024 cylinder limit, and supports disk drives up to 8 Gigabytes (GBytes) in siz e.

Glossary

has definitions of special terms used in this manual and in SCSI literature in general.

Index

helps you locate specific informat ion quickly.

xii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: xii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Preface

A

AAAA

A

Conventions

The following typographic conventions are used in this man u a l.

bold Used for keystrokes (… press the Enter key …).

Helvetica

Used for operator entry that mus t be typed exactly as shown (… device=c:aspi2dos.sys …) and for messages on the screen (… Enter Password …).

Helvetica Italics

Used as a place holder for text you must determ ine

nn

and type in (… enter program and file names that appear in body text (… the

autoexec.bat

Italics

Used for emphasis (… is only supported …) and for document references (… refer to Chapter 1, Introduction…).

for number …). Also used for

file …).

Hexadecimal Numbers Are followed by an ‘h’, e.g., 330h.

End Mark

❐symbol marks the end of a chapter or other

The section.

xiii

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: xiii Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Advisories

Adviso ries are quick notes that stress an important point or warn of a potential hazard t o your system or your data. This manual uses three kinds of advisories:

Note: Text set off in this way presents

reminders, tips, or suggest ions that may make it easier for you to install, configure, and use Adaptec software products and your host adapter.

Caution: Failure to observe this kind of

advisory could result in loss of data or damage to your system and install ed devic es.

WARNING: Failure to observe this kind of

advisory could result in pers onal injury.

❒

xiv

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page : xiv Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

▼ ▼ ▼ ▼

A

AAAA

A

1

Introduction

About This Chapter

Read this chapter to find out

■ An overview of the AMM-1570/1572

■ The minimum system requirements needed

to install the AM M -1570/1572

■ The location of the major components on

the AMM-1570/1572

■ The features of the AMM-1570/1572

■ General informatio n o n using the

AMM-1570/1572

1-1

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-1 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Stock Number: 510526-00, Rev. B Page: 1-2 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Introduction

A

AAAA

A

▼ ▼ ▼ ▼

1

Overview

This user’s guide provides information on how to install and configure the Adaptec AMM-1570 and AMM-1572 SCSI Audio Host Adapters. The AMM-1572 is identical to the AMM-1570 except that it has an onboard floppy disk cont roller that suppo rts up to two floppy disk drives. In this user’s guide, the AMM-1570 and AMM-1572 are referred to jointly as the AMM-1570/1572.

What is the AMM-1570/1572?

The AMM-1570/1572 provides full SCSI host adapter functionality and superior audio perform ance for your SCSI and multim edia devices. This is accomplished through the integration of two discrete functional modules onto a single board: A SCSI module and an audio module.

The AMM-1570/1572 SCSI module provides a powerful multitasking interface between the ISA bus and the SCSI bus featuring 16-bit transfer capability. Up to seven individually configured SCSI devices can be connected to and supported simultaneously by the AMM-1570/1572.

The AMM-1570/1572 audio module is based on a Digital Signal Processor (DSP) that can off load many com puter intens ive audio and video processing tasks from the host adapter. Through the input and output jacks, a variety of audio equipment can be connected to the AMM-1570/1572. The audio mod u le provides

■ Digital audio recording and playback with com pression

■ Audio synthesis

■ Musical Instrument Digital Interface (MIDI) recording and

playback

■ Joystick game port interface

1-3

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-3 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

(

y)

System Requirements

The following minimum requirements are needed to install the AMM-1570/1572:

■ An 80386SX 25 megahertz (MHz) computer or higher

■ An available 16-bit expansion bus slot

■ Microsoft Windows 3.1 or higher

■ Four megabytes (MByte) or more of RAM

■ A Video Graphics Array (VGA) monitor and VGA display card

■ A hard disk with 10 MByt es or mo re of free space

■ A 3.5-inch, high-density (1.4 4 MByte) floppy disk drive

Board Layout

Figure 1-1 shows the locat ion of the major component s on the host adapter.

LED Connector

J7

J6 J5

Wavetable ROM

Floppy Drive Controller

AMM-1572 Onl

1-4

Floppy Drive

Connector

(AMM-1572 Only)

J9

Internal

SCSI

Connector

Terminators

J8

J17

BIOS

Sound Chip

DSP Chip Bus Interface Chip

AIC-6360 SCSI Protocol Chip

Figure 1-1. Board Layout

External SCSI Connector

J4

CD Audio Input Connector

Headphones/ Speakers

Line Out Line In Microphone

Joystick/ MIDI Port

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-4 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Introduction

A

AAAA

A

Features

SCSI Module Configuration Flexibility

■ One internal 50-pin SCSI connector for connecting standard

8-bit internal SCSI device s

■ One external 50-pin SCSI connect o r for connecting st andard

8-bit external SCSI devices

■ Provides easy installation and use with Adaptec EZ-SCSI and

Adaptec EZ-Audio software

Multiple Device and Applications Support

■ Supports up to seven individually configured SCSI devic es,

simultaneous ly

■ Supports any two floppy drives, includ ing 2.8 8 MByte

■ Supports hard disk drives, removable magneto/optical drives,

CD-ROM drives , and Photo CD

■ Compatibl e with DOS, Windows, third-party softw are, and

SCSI-1 and SCSI-2 periphera ls

■ Supports the extended partitioning capabilities of DOS 5.0 and

above

■ Supports both fixed and removable media devices with capaci-

ties above 1 GByte

■ Operating system suppor t available for DOS and Windows

Data Transfer Rates

■ Up to 10 MBytes/sec max imu m SCSI transfer rat e (Fast SCSI)

■ Up to 5.0 MBytes/sec sy nch ronous burst rate on the SCSI bus

■ Up to 3.0 MBytes/sec dat a rat e on the ISA bus

■ Up to 2.0 MBytes/sec asyn chro no us SCSI data rate

1-5

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-5 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Maximum Off-loading the Host CPU

■ Low SCSI processing overhead

■ Task sched uling and mess age-based communic ation

■ 16-bit host ISA bus data trans fer

■ 32-bit PIO trans fers with 80386 process ors and abov e

Advanced Fast SCSI-2 Implementation

■ Concurrent support of Fast SCSI, synchronous , and

asynchro no us dev ices

■ Single-ended output

■ Scatter/G ath er

■ Disconnect /Reco nnec t

■ Fully multitasking/multithreading

■ Uses the superior SCSI-2 (Alternative 2) external connector

and standard internal ribbon connector

■ Parity checking

Audio Module

■ CD, Line, and Microphone inputs

■ Line outputs

■ Speaker outputs

■ CD-ROM XA Audi o functio nalit y

■ 16-bit quality sound

■ MIDI connectivity

■ Windows Sound System compatibility

■ Sound Blaster compat ibilit y

■ Wavetable synthesis

■ Roland MPU-401 compatible MIDI port

■ Joystick interface

1-6

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-6 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Introduction

A

AAAA

A

■ 16-bit, 8-bit or compres sed 4-bits per sample, IMA Adpcm,

TrueSpeech Adpcm

■ Sampling rates: 8, 11, 22, and 44.1 KHz (selectable)

■ Stereo or mono modes (includ ing pseud o-st ereo and special

effects)

■ Onbo ard to ne co nt rol

■ Onboard stereo speaker amplifier

Adaptec Sof twa re

Like all Adaptec host adapter kits, the A MM-1570/1572 kit is

Install

shipped with the Adaptec EZ-SCSI

program, which allows you to automatically configure your operating environment for SCSI operation. From Adaptec EZ-SCSI you can run the Adaptec

Install

EZ-Audio

program to automatically configure your operating

environment for the audio capabilities of the AM M-1570/1572.

Avoid Static Electricity

The host adapter is sensitive to stat ic electri city; even a mild sho ck can destroy a component on the board. Keep the host adapter in its conductive wrapping until you are ready to install it in your system. Before handling the host adapter, alw ays ground yourself by touching an unpainted surface on the system chass is of your computer.

Number and Types of SCSI Devices

Each AMM-1570/1572 allows you to connect up to a total of seven internal and/or exter nal SCSI devices .

Types of Audio Equipment

You can connect a variety of au dio equipm ent to the AMM-1 570/ 1572, such as headphones, internal/ ext ernal speaker s, tape decks, CD players, joystick and MIDI connector, etc. Refer to Connecting Audio Equipment on page 3-17 for instruc ti on s on conn ect ing yo ur audio equipment.

1-7

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-7 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Types of Cables Required

Before you actually install the host adapter, be sure you have the correct cables for your particular instal latio n. The type of cables required depends on the type of devices you plan to connect to the SCSI bus: either external or internal. The type of connectors attached to the cables also depends on the configuratio n of your ins tallat io n.

Type of Connector on Host Adapter Type of SCSI Cable Type of Connector on SCSI Cable

Internal 50-pin SCSI ribbon cable Uns hrouded 50-pin header, com-

patible with unshielded Alternative 2 connector.

External 50-pin shielded cable Shielded 50-pin Alternative 2

connector.

Maximum Cable Lengths

When the SCSI bus contains a Fast SCSI host adapter, such as the AMM-1570/1572, and one or more Fast SCSI devices, the total length of all cables (internal and exter nal) con nect ed to the bus should not exceed 3 meters to ensure reliable operation. If no Fast SCSI devices are connected, the total length of all cables should not exceed 6 meters.

External SCSI Connector Mounting Bracket

If you are connecting external SCSI devices to the A MM-1570/1572, the external SCSI connector mounting bracket must be installed. This bracket allows you to connec t external SC SI devic es to the AMM-1570/1572. The moun ting bracket is available from Adaptec and is normally included with all AMM-1570/1572 kits. Refer to Installing the External SCSI Connector Mounti ng Brack et on page 3-8 for detailed instructions on installing the bracket.

❒

1-8

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 1-8 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

▼ ▼ ▼ ▼

A

AAAA

A

2

Configuring the AMM-1570/1572

About This Chapter

Read this chapter to find out

■ The import ance of termi natio n on the SCSI

bus and how to configure it on t he AMM-1570/1572

■ The importance of SCSI IDs on the SCSI bus

and how to configure it on the AMM-1570/ 1572

■ The default settings of the AMM-1570/1572

■ How to configure the jumper block settings

on the AMM-1570/1572

2-1

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 2-1 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Stock Number: 510526-00, Rev. B Page: 2-2 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Configuring the AMM-1570/1572

A

AAAA

A

▼ ▼ ▼ ▼

2

Preparing Your Devices for Installation

Before physically installing the AMM-1570/1572 in your system, the AMM-1570/1572 must first be confi gured for oper atio n. Once it is installed in your system , it is difficult to change its configu rati on.

This chapter provides instruct io ns on how to configure the AMM-1570/1572. It discusses th e concepts of termin atio n an d SCSI IDs and explains the importance of properly terminating and assigning SCSI IDs to each SCSI device (including the host adapter) connected to the SCSI bus. In addition, this chapter describes in detail how to configure each of the jumper blocks on the AMM-1 570/1572.

Termination on the SCSI Bus

To prevent line noise from bouncing back through the SCSI bus, the first and last physical SCSI devic es on the SCSI bus must have a set of resistors calledterminators either installed or enabled. If the termi- nators on the first and last SCSI device are not installed or enabled, the signal may echo when it reaches the end of the cable; that echo often seems like a real signal to the SCSI device.

Identify which two SCSI devices will form the physical endpoints of your SCSI bus. These devices at the ends of the SCSI bus must be terminated. All other SCSI devices installed betw een the ends of the SCSI bus must have their terminators eith er removed or disabl ed.

Note:External SCSI devices are connected to an external

SCSI connector mounting bracket that is attached to the AMM-1570/1572. When attach ed, th e mou nti ng bracket becomes a com po nent of the board; it is not a device on the SCSI bus. See Install ing the External SCSI Connector Mounting Bra cket on page 3-8.

2-3

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 2-3 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Internal and External Devices

When both internal and external SCSI devices are connected to the host adapter, the last external device and the last internal device cabled to the host adapter is terminated. Since the host adapter is situated in the middle of the SCSI bus, and does not form a physical endpoint, host adapter termination is disabled.

Host Adapter

Termination

Disabled

Termination

Enabled

No

Termination

No

Termination

No

Termination

Enabled

Figure 2-1. Term ination With Internal and Ext ernal Devices

Internal Devices Only

When only internal devices are connected to the host adapter, the last internal device cabled to the host adapter is termi nated . Since the host adapter is situated at the end of the SCSI bus and forms one of the physical endpoints, host adapter terminat ion is enabled.

2-4

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 2-4 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Configuring the AMM-1570/1572

A

AAAA

A

Host Adapter

Termination

Enabled

No

Termination

Enabled

Figure 2-2. Termination With Internal Devices Only

External Devices Only

When only extern al devic es are connected to the host adapt er, the last external devic e cabled to the host adapter is term inated . Since the host adapter is situated at the end of the SCSI bus and forms one of the physical endpoints, host adapter terminat ion is enabled.

Host Adapter

Termination

Enabled

No

Termination

No

Termination

Enabled

Figure 2-3. Termination With External Devices Only

2-5

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 2-5 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

AMM-1570/1572 User’s Guide

A

AAAA

A

Terminating SCSI Devices

Most SCSI devices use a jumper or a switch locat ed close to their SCSI connector(s) to control termination. On some SCSI devices, you must physically remove or install terminator resistor module(s). Refer to the manufacturer’s documentation to determine how to enable or disable termination on your particul ar SCSI device(s ).

Note: Since the AMM-1570/1572 always supplies termi-

nation power on the SCSI bus, terminat io n power sup plied by other SCSI devices should be disabled.

Terminating the AMM-1570/1572

Host adapter termination is determ ined by the types (inter nal and/or external) of SCSI devices connected to the AMM-1570/1572. The table below describes the possibl e configurati on s for host adapter termination.

Devices Connected To Host Adapter

Termination

Internal and external devices Disabled Internal devices only Enabled External devices on ly Enabled

The factory installed bus terminators on the AMM-1570/1572 are located below the SCSI internal connector and are enabled (Installed) by default. To disable term inati on on the host adapter, remove all three terminators.

Terminators

Figure 2-4. Ter minat ors

Host Adapter

2-6

AMM-1570/1572 User’s Guide Stock Number: 510526-00, Rev. B Page: 2-6 Print Spec Number: 492379-00 Current Date: 3/7/94 ECN Date: 3/8/94

Adaptec AMM-1572, AMM-1570 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
