Adaptec 2120S, 2200S User Manual

Adaptec SCSI RAID

2120S/2200S

Software User’s Guide

R

Copyright

© 2002 Adaptec, Inc. All rights reserved. No part of this pub lication may be
reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of Adaptec, Inc., 69 1 South Milpitas Blvd., Milpitas, CA 95035.

Trademarks

Adaptec and the Adaptec logo are trademarks of Adaptec, Inc., which may be
registered in some jurisdictions.

Windows NT, Windows 2000, Windows.NET and Windows XP are trademarks of
Microsoft Corporation in the US and other countries, used under license.

Linux is trademarked by Linus Torvalds.
Red Hat® Linux® consists of hundreds of software modules, some developed by

Red Hat and many developed by other members of the open source community.
Those authors hold the copyrights in the modules or code they developed. At the
same time, the combined body of work that constitutes Red Hat® Linux® is a
collective work which has been organized by Red Hat, and Red Hat holds the
copyright in that collective work. Red Hat then permits others to copy, modify and
redistribute the collective work. To grant this permission Red Hat usually uses the
GNU General Public License ("GPL") vers ion 2 and Red Hat's own End User Li cense
Agreement. Although software licensed under the GPL is "open source s oftware,"
Red Hat retains ownership of the copyright in its collective work.

Adobe, the Adobe logo, Acrobat, Acrobat Capture, and Distiller are trademarks of
Adobe Systems Incorporated.

Novell and NetWare are trademarks of Novell, Inc.
Open UNIX 8, UnixWare 7, and SCO OpenServer are trademarks of the SCO Gr oup,

Inc.
All other trademarks are the property of their respective owners.

Changes

The material in this document is for information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Adaptec, Inc. assumes n o liability resulting from
errors or omissions in this document, or from the use of the information contained
herein.

Adaptec reserves the right to make changes in the product design without
reservation and without notification to its users.

Disclaimer

IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE
PERMISSION FROM THE COPYRIGHT OWNER OF THE MA TERIALS TO
AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAMAGES OR
OTHER REMEDIES.

ii

1 Introduction

Document Overview 1-1

Organization 1-1
Additional Supplied Documentation 1-2

Supported RAID Types 1-2

RAID-0 1-3
RAID-1 1-3
RAID-5 1-4
RAID-10 1-5
RAID-50 1-6
Simple Volume 1-6
Spanned Volume 1-6
RAID Volume 1-7

Features 1-7

Optimized Disk Utilization 1-7
Array Reconfiguration 1-7
Drive Enclosures 1-8
Hot Spares 1-8

Automatic Rebuild On Replacement 1-9
SCSI Devices Supported 1-9
Supported Controllers 1-9

Contents

iii

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

2 Using Adaptec RAID Configuration

Using the Array Configuration Utility 2-2

Managing Arrays 2-2
Creating Arrays 2-6
Initializing Disk Drives 2-9
Rescanning Disk Drives 2-9

Using the SCSISelect Utility 2-10

Starting and Exiting SCSISelect 2-10

Using the SCSISelect Menus 2-10
Using the Controller Configuration Utility 2-11
Using the SCSI Configuration Utility 2-13
Using the Disk Utilities 2-15
Viewing the Event Log 2-16

3 Adaptec Storage Manager-Browser Edition

About Adaptec Storage Manager 3-2
Login to Adaptec Storage Manager 3-4
Installing a Security Certificate 3-6
Understanding Adaptec Storage Manager 3-7

Pop Up Tool Tips 3-8

Physical Devices 3-8

Logical Devices 3-11
Creating Arrays 3-12

Advanced Options 3-13
Creating and Deleting Hot Spares 3-16

Creating Hot Spares 3-16

Deleting Hot Spares 3-16
Deleting Arrays 3-17
Modifying Arrays 3-17
User Interface Options 3-19
Viewing Events 3-20
Help 3-20
Displaying and Modifying Properties 3-21

Applying Changes 3-21

Controller Properties 3-21

Channel Properties 3-23

iv

Physical Device Properties 3-23
Enclosure Properties 3-25
Logical Device Properties 3-26

Viewing and Creating Tasks 3-27

Task Viewer Tab 3-27
New Tasks Tab 3-28

About Adaptec Storage Manager Notifier Service 3-29

Notifier Service Event Levels 3-29

Enabling and Configuring the Notifier Service 3-31

Controlling ARCPD for Windows 2000 3-31
Controlling ARCPD for Unix and Linux 3-31
Controlling ARCPD for NetWare 3-32
Configuring the Notifier Service 3-32
System Event Log 3-32
Configuring E-mail Notification 3-33
Reconfiguring E-mail Notification 3-34

Contents

v

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

4 Using the Command Line Interface

Introducing the Command Line Interface 4-2
Accessing the Command Line Interface 4-2
Terminology 4-3
Using the CLI 4-4

Opening and Closing a Controller 4-4

Creating Single-Level Arrays 4-4

Deleting Arrays 4-7

Enabling Spares 4-8

Displaying Controller Information 4-9

Displaying Disk Information 4-11

Displaying Array Information 4-13
The CLI Commands 4-16

General Control Commands 4-16

Container (Array) Commands 4-18

Controller Commands 4-29

Diagnostic Commands 4-32

Disk Commands 4-34

Logfile Commands 4-38

Task Commands 4-39

Enclosure Commands 4-40
Using Automated Command Scripts 4-44

A Glossary

vi

1

Introduction

In this Chapter

Document Overview 1-1
Supported RAID Types 1-2
Features 1-7
SCSI Devices Supported 1-9
Supported Controllers 1-9

Document Overview

This section reviews the contents of the Adaptec SCSI RAID Softwar e
User’s Guide and includes an introduction to the major features of

your controller, as well as some of the terminology used.

Organization

Chapter 1, Introduction, briefly describes contents of the guide, the
software supplied with your RAID controller and the capabilities
of the controller.

Chapter 2, Using Adaptec RAID Configuration, introduces ARC, a

BIOS-based utility, that allows you to configure various features of
the RAID controller, as well as create and manage arrays. This
chapter provides step-by-step instructions on how to use ARC.

1-1

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Chapter 3, Adaptec Storage Manager-Browser Edition, provides an in-

depth look at Adaptec Storage Manager, an easy-to-use storage
configuration application that supports both local and remote
management. This chapter describes the user interface, and
provides step-by-step instructions on using Adaptec Storage
Manager to configure and manage your storage subsystem.

Chapter 4, Using the Command Line Interface, introduces the CLI, a

text command line-based interface that supports the full feature se t
of Adaptec storage controllers. This chapter provides an
introduction to using the CLI to manage your storage subsystem.
More detailed coverage is provided in the Software Reference Guide
supplied on the CD with your controller.

Appendix A, Glossary, provides an alphabetical list of terms with

brief definitions.

Additional Supplied Documentation

Other documentation supplied with your controller:

■ Quick Install Guide—A printed booklet that describes

installing your controller and software in commonly used
situations.

■ Installation Guide—Supplied in PDF form on the same CD as

this guide, the Installation Guide provides more detailed
instructions on installing your controller and software, as well
as covering less commonly used configurations.

■ Software Reference Guide—Comprehensive information on

the CLI, and DOS ACU.

Supported RAID Types

RAID is an acronym for either Redundant Array of Independent
Disks or Redundant Array of Inexpensive Disks. The goal of RAID
is to provide higher capacity, performance and/or reliability from
combinations of disk drives than it is practical to achieve with a
single drive.

1-2

Introduction

Adaptec RAID controllers support the following types of array:

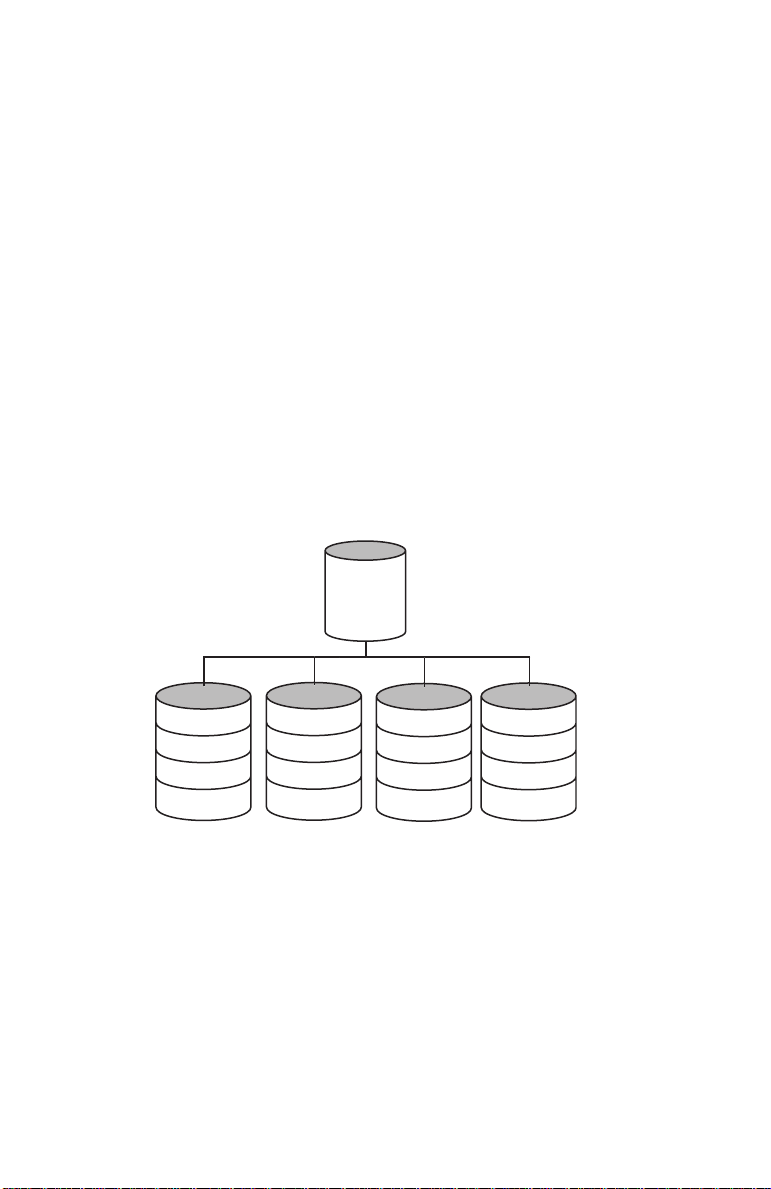

RAID-0

A RAID-0 is created by striping data across two or more disk
drives. Simple striping like this creates no redundancy to protect
the data, but by sharing the load equally across multiple drives, it
does provide the best read and write performance of any RAID
type.

RAID-0

Drive

Data 0

Data 3

Data 6

Data 9

Drive

Data 1

Data 4

Data 7

Data 10

Drive

Data 2

Data 5

Data 8

Data 11

RAID-1

A RAID-1 must contain only two disk drives. All data stored on the
array is written to both drives. This duplication, or mirroring, of
the data provides redundancy, ensuring that if one drive fails no
data loss will occur.

RAID-1

Drive Drive

Data 0

Data 1

Data 2

Data 3

Data 0

Data 1

Data 2

Data 3

1-3

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

The cost of this redundancy is inefficient use of capacity, because
all data is written to both drives, only half of the total capacity is
available.

RAID-1 offers no write performance advantage over a single drive,
but read performance benefits from being able to share the load
between two drives.

RAID-5

A minimum of three drives is required to create a RAID-5. Like a
RAID-0, data is striped across the drives, however in the case of a
RAID-5, the capacity of one drive is used to store parity
information. The controller generates this parity data every time
data is written to the array, and it is distributed in stripes across all
the drives.

In the event of a drive failure, the contents of the failed drive can be
rebuilt from the data and parity on the remaining drives.

RAID-5

Drive

Data 0

Data 3

Data 6

Parity 3

Drive

Data 1

Data 4

Parity 2

Data 9

Drive

Data 2

Parity 1

Data 7

Data 10

Drive

Parity 0

Data 5

Data 8

Data 11

Using parity minimi zes the cap acity cost of redundancy. Since only
one drive is used to store parity, the worst case of a three-drive
RAID-5 only loses one third of the total capacity, for arrays with
more drives the lost capacity is smaller .

RAID-5 write performance is limited by the need to generate parity
data for every write. Read performance is good because the load is
spread equally across all the drives.

1-4

Introduction

RAID-10

A RAID-10 is an example of a dual-level array and is created by
using two or more equal-sized RAID-1s to create a RAID-0.

RAID-10

Drive

Data 0

Data 2

Data 4

Data 6

RAID-1

Data 0

Data 2

Data 4

Data 6

Top-Level Arrays

Drive

Data 0

Data 2

Data 4

Data 6

Drive

Data 1

Data 3

Data 5

Data 7

RAID-1

Data 1

Data 3

Data 5

Data 7

Drive

Data 1

Data 3

Data 5

Data 7

Second-Level Arrays

The top level RAID-0 shares the load among the second level
RAID-1s, improving both read and write performance. Since
second level arrays are RAID-1, only half the total capacity of the
drives in the array is available.

1-5

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

RAID-50

A RAID-50 is a dual-level array created by using two or more
equal-sized RAID-5s to create a RAID-0.

RAID-50

Drive

Data 0

Data 4

Parity A2

Data 12

RAID-5

Data 0 & Data 1

Data 4 & Data 5

Data 8 & Data 9

Data 12 & Data 13

Drive

Data 1

Parity A1

Data 8

Data 13

Top-Level Arrays

Drive

Parity A0

Data 5

Data 9

Parity A3

Drive

Data 2

Data 6

Parity B2

Data 14

RAID-5

Data 2 & Data 3

Data 6 & Data 7

Data 10 & Data 11

Data 14 & Data 15

Drive

Data 3

Parity B1

Data 10

Data 15

Drive

Parity B0

Data 7

Data 11

Parity B3

Second-Level Arrays

The top level RAID-0 shares the load among the second-level
RAID-5s, improving both read and write performance. The second
level RAID-5s use of parity provides efficient redundancy.

Simple Volume

A simple volume consists of a single disk drive.

Spanned Volume

A spanned volume is created by joining two or more disk drives.
The drives do not have to be of equal capacity and are connected
end-to-end. A spanned volume offers no redundancy and no
performance advantage over a single drive.

1-6

Introduction

RAID Volume

A RAID volume is created by joining two or more single-level
arrays of the same RAID type. Unlike dual-level arrays, the arrays
in a RAID volume do not have to be of equal capacity. In direct
contrast to dual-level arrays, the second-level arrays in a RAID
volume are not striped together, instead they are connected end-to­end.

Features

Optimized Disk Utilization

For simplicity the explanations of the various types of array above
describe the arrays in terms of complete drives. Typically arrays
use the same size drives, or if drives of varying capacities are used,
the capacity used on each drive is limited to that of lowest capacity
drive.

For example, a RAID-1 constructed using one 18G and one 9G
drive will only use half of the capacity of the larger drive and the
array will be limited to 9G.

Adaptec’s Optimized Disk Utilization feature allows arrays to be
created using portion of drives. These sections of drives are known
as segments and are created automatically during the array
creation process.

Within a given array each segment will be the same size, but the
segment size does not have to equal the capacity of the smallest
drive.

Any unused capacity on drives is known as available space, and
can be used in another array or arrays.

Adaptec RAID controllers use a small segment at the beginning of
each drive connected to them to store information about the drives
and arrays attached to the controller. This area is known as the
RAID signature.

Array Reconfiguration

Adaptec RAID controllers support modifying existing arrays by
expansion, migration from one array type to another and changing
the stripe size.

1-7

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Table 1-1 lists the RAID type migrations supported by Adaptec

Storage Manager.

Table 1-1 Supported Array Migrations

Current Array Type New Array Type

RAID-0 RAID-5 or 10
RAID-1 RAID-0 or 5 or 10
RAID-5 RAID-0 or 10
RAID-10 RAID-0 or 5
RAID-50 RAID-0 or 5 or 10

See Chapter 3, Adaptec Storage Manager-Browser Edition, for
instructions on modifying arrays.

Some operating systems, for example Windows XP, Windows
2000, Windows NT and Novell Netware, support Online Capacity
Expansion (OCE). That is, on completion of an array expansion, the
additional capacity can be used without rebooting the system.
Refer to your operating system documentation for instructions on
using the additional capacity.

Drive Enclosures

Adaptec RAID controllers support drive enclosures that include
either SES or SAF-TE enclosure management hardware.

Hot Spares

A hot spare is a drive that is reserved to replace a failing drive in a
redundant array. In the event of drive failure, the hot spare will
replace the failing drive and the array will be rebuilt.

Adaptec RAID controllers support two types of hot spares:

■ Global—protects every array that the drive has eno u gh

available capacity to protect.

■ Dedicated—protects only the array that it has been assigned to

protect.

1-8

Introduction

Automatic Rebuild On Replacement

Adaptec RAID controllers support a feature known as Automatic
rebuild on replacement. This may be useful in the event of a drive
failure if no hot spare is available and the failing drive is in an SES
or SAF-TE enabled drive enclosure.

When this feature is enabled (default) a rebuild of any redundant
array that the failed drive was a member of will be triggered
automatically by simply removing the failur e drive and r eplacing it
with a new drive.

SCSI Devices Supported

In addition to SCSI hard disk drives, Adaptec RAID controllers
support a wide range of SCSI devices, from CD-ROMs and tape
drives to scanners and removable media drives.

Supported Controllers

The majority of this chapter and all the other documentation
supplied with your controller describes the capabilities of the
RAID controllers listed in the left column of Table 1-2. Adaptec
Storage Manager-Browser Edition also supports other Adaptec
RAID controllers provided the RAID management software
supplied with those cards, Adaptec Storage Manager or Adaptec
Storage Manager Pro is already installed on the system.

1-9

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Adaptec RAID controllers supported by Adaptec Storage
Manager-Browser Edition ar e listed in Table 1-2.

Table 1-2 Supported Adaptec RAID Controllers

Advanced Feature Set Standard Feature Set

Adaptec SCSI RAID 2200S, 2120S,

1

5400S

Adaptec SCSI RAID 2000S, 2005S,
2010S, 2015S, 2100S, 2210S, 3200S,
3210S, 3400S, 3410S

2

Adaptec ATA RAID 2400A

1

In order for Adaptec Storage Manager - Browser Edition to support an Adaptec

SCSI RAID 5400S controller, Adaptec Storage Manager Pro must be uninstalled
before Adaptec Storage Manager - Browser Edition is installed.

2

In order for Adaptec Storage Manager - Browser Edition to support any controller

in this column, Adaptec Storage Manager or Storage Manager Pro must be
installed. Uninstalling Adaptec Storage Manager or Storage Manger Pro will
remove support for that controller.

Installing Adaptec Storage Manager-Browser Edition on a system
with one of the standard feature set cards installed does not add
any new functionality to the existing controller.

For a detailed description of the capabilities of any controller, refer
to the documentation supplied with that controller.

1-10

2

Using Adaptec RAID Configuration

In this Chapter

Using the Array Configuration Utility 2-2
Using the SCSISelect Utility 2-10
Using the Controller Configuration Utility 2-11
Using the SCSI Configuration Utility 2-13
Using the Disk Utilities 2-15
Viewing the Event Log 2-16

The Adaptec RAID Configuration Utility (ARC) is an embedded
BIOS utility that includes an Array Configuration Utility (ACU)
that allows the creation, configuration, and management of arrays.
Also included are SCSISelect which supports changing SCSI device
and controller settings, and Disk Utilities to low-level format or
verify disk media.

Adaptec also provides a standalone utility to create, configure, and
manage arrays from an MS-DOS prompt. This utility is called
Array Configuration Utility (ACU) for MS-DOS and it is described
in the Adaptec SCSI RAID Software Reference Guide. This chapter
describes only the functionality of the BIOS-based ACU.

To run ARC, when prompted by the following message during the
system boot process press Ctrl+A :

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2-1

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

The Adaptec SCSI RAID Controller menu appears, presenting the
following options:

■ Array Configuration Utility

■ SCSISelect Utility

■ Disk Utilities

To select an option from this menu or from any of the menus
within ARC, move the cursor to the option with the Up/Down
arrow keys and press Enter. In some cases, selecting an option
displays another menu. You can return to the previous menu at
any time by pressing Esc.

The following sections discuss each of these menu options.

Using the Array Configuration Utility

The Array Configuration Utility (ACU) enables you to manage,
create, and delete arrays from the controller’s BIOS. You can also
initialize and rescan drives.

You can use the ACU to create a bootable array for the system. We
recommend that you configure the system to boot from an array
instead of from a single disk to take advantage of the redundancy
and performance features of arrays. For details on creating a
bootable array, see Deleting Arrays on page 2-4.

Note: If you are changing the configuration of a system tha t i s

already in use on a network, log all users off the system and
shut it down in an orderly manner before you start the ACU.

Managing Arrays

Use the Manage Arrays option to view array properties and
members, make an array the boot array, manage failover
assignments, and delete arrays. The following sections describe
these operations in greater detail.

Viewing Array Properties

To view the properties of an existing array:

1 At the BIOS prompt, press Ctrl+A.

2-2

Using Adaptec RAID Configuration

2 From the ARC menu, select Array Configuration Utility.
3 From the ACU menu, select Manage Arrays.
4 From the List of Arrays dialog box, select the array you want to

view information on and press Enter.
The Array Properties dialog box appears, showing detailed

information on the array. The physical disks associated with the
array are displayed here, except in the case of dual-level arrays
(RAID 10 and RAID 50, for example). For dual-level arrays,
highlight the displayed member and press Enter to display the
second level. Press Enter again to display the physical disks
associated with the array.

Note: A failed drive is displayed in a different text color.

5 Press Esc to return to the previous menu.

Making an Array Bootable

You can make an array bootable so that the system boots from the
array instead of from a stand-alone (single) disk.

To make an array bootable:

1 At the BIOS prompt, press Ctrl+A.
2 From the ARC menu, select Array Configuration Utility.
3 From the ACU menu, select Manage Arrays.
4 Select the array you want to make bootable and type Ctrl+B.

This changes the selected array’s number to 00, making it the
controller’s boot array.

5 Reboot the system.

If you are booting from the controller, bear in mind the following:

■ If the controller is not a boot device, you can disable its runtime

BIOS, see page 2-11. When the BIOS is disabled it will not
occupy any of the expansion ROM region of the system’s
memory map. This may be useful if there are several cards with
an expansion ROM (BIOS) in the system.

2-3

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

!

!

■ You cannot make a non-00 array bootable if the array is in a

build/verify or reconfiguration process.

Caution: The controller always uses the lowest numbered

array as its bootable array. If you delete array 00 for any
reason, the next lowest numbered array will become the
bootable array. Use the Ctrl+B option to mark the correct
array as the bootable array (by making it array 00).

If you want to boot from a stand-alone (single) disk drive, first
create a volume on that disk.

The system BIOS provides additional tools to modify the boot
order. For more information, refer to your system documentation.

Deleting Arrays

Caution: Back up the data on an array before you delete it. All

data on the array is lost when you delete the array. Deleted
arrays cannot be restored.

To delete an existing array:

1 At the BIOS prompt, press Ctrl+A.
2 From the ARC menu, select Array Configuration Utility.
3 From the ACU menu, select Manage Arrays.
4 Select the array you wish to delete and press Delete.
5 In the Array Properties dialog box, press Delete again and

press Enter. The following prompt is displayed:

Warning!! Deleting will erase all data from the
array.
Do you still want to continue? (Yes/No):

6 Press Yes to delete the array or No to return to the previous

menu. At the Array Properties dialog box, select Delete again
and press Enter.

7 Press Esc to return to the previous menu.

2-4

Using Adaptec RAID Configuration

Managing Failover Drive Assignments

To assign a hot spare drive to an array:

1 Select Manage Arrays from the Main menu.
2 On the List of Arrays dialog box, select the array you want to

assign a hot spare drive to, and type Ctrl+S. The Hotspare

Management for Array dialog box is displayed, which shows

the drives that can be assigned as hot spare drives.

3 Select a drive and press the Insert key to assign the drive as a

hot spare. The specified drive is displayed in the Assigned

Hotspares drives list.

4 Press Enter to save the hot spare drive assignment. The

following prompt is displayed:

Have you finished managing Hotspare drives?

5 Type Y (yes) to return to the Main menu.

To remove an assigned hot spare drive from an array:

1 Select Manage Arrays from the Main menu.
2 In the List of Arrays dialog box, select the array from which

you want to remove the assigned hot spare drive and type

Ctrl+S. The Hotspare Management for Array dialog box is

displayed, which shows a list of drives that can be assigned as

hot spare drives and a list of drives that are assigned as hot

spare drives.

3 From the Assigned Hotspares drives list, select the drive to

be removed, then press Delete. The specified drive is

displayed in the Select Hotspares drives list.

4 Press Enter to save the removed hot spare drive assignment.

The following prompt is displayed:

Have you finished managing Hotspare drives?

5 Type Y (yes) to return to the Main menu.

2-5

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Creating Arrays

Before creating arrays, make sure the disks for the array are
connected and installed in your system (or enclosure). Note that
any disks with MS-DOS partitions, disks with no usable space, or
disks that are uninitialized appear dimmed and cannot be used for
creating a new array. For information on how to initialize a disk
drive, see page 2-9.

To create an array:

1 Shut down and reboot the system.
2 At the BIOS prompt, press Ctrl+A.
3 From the ARC menu, select Array Configuration Utility.
4 From the ACU menu, select Create Array.
5 Use the Left/Right arrow keys to select a channel.
6 Select the disks for the new array and press Insert. ACU

displays the largest usable space available for each disk. You
can use available space from multiple disks for the new array.

Note: Consult Table 2-1 on page 2-7 for the maximum

number of drives that can be used for each RAID level.

To deselect any disk, highlight the disk and press Delete.

Note: ACU cannot reliably find disks or enclosures that

were powered up after system power-up.

7 Press Enter when all disks for the new array are selected. The

Array Properties menu displays.

If you install a controller into a system that has been powered
down, on startup the BIOS will announce the detected
configuration changes. If the controller does not consider these
changes risky it will present a confirmation prompt and will auto­confirm if there has been no operator input in 30 seconds. If the
controller considers that the changes are risky, you will be
prompted for further action.

2-6

Using Adaptec RAID Configuration

Assigning Array Properties

Note that you cannot change array properties from the ACU once
the array is created. To change array properties once the array is
created, use Adaptec Storage Manager.

To assign properties to the new array:

1 In the Arra y Properties menu, select an array type and press

Enter. Note that only those array types available according to

the number of drives selected are displayed. For a description of
the supported array types, see the installation guide shipped
with your controller.

The physical SCSI limitation for the controller is 15 drives per
channel. The maximum number of drives allowed and
minimum number of drives required depends on the RAID
level. Consult Table 2-1 for a listing of this information.

Table 2-1 RAID Levels and Drives Information

RAID Level Maximum

Drives
Allowed

Volume 32 1
RAID 0 48 2
RAID 1 2 2
RAID 5 16 3
RAID 10 48 4
RAID 50 48 6

Minimum
Drives
Required

2 Type in an optional label for the array and press Enter.
3 Enter the desired array size. The maximum array size available

based on the segments you selected is displayed automatically.
If you want to designate a different array size, type the desired
array size and select MB (megabytes), GB (gigabytes), or TB
(terabytes) from the drop-down list. If the available space from
the selected segments is greater than the size specified, the
remaining space will be available for use in other arrays.

2-7

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

4 Sel e ct the desired stripe size. The allowable stripe sizes are 16,

32, and 64 KB (the default). For RAID 50 arrays, 64 KB is the
only stripe size supported by ACU. The default stripe size gives
the best overall performance in most network environments.

5 Specify whether you want to enable read caching for the array.

This option should always be enabled to optimize performance,
unless your application is doing completely random reads,
which is unlikely.

6 Specify if you want to enable write caching for the array.

Note: By design, some controllers do not allow the use of

write caching. In such cases, the controller will not activate
write caching, regardless of the write cache setting. If this
is the case a message will be displayed that tells you the
settings have been recorded but have no effect.

Write caching options (if supported) consist of the following:

■ Enable when protected—If supported, enables the write

cache only when a battery is present and the battery’s char ge
status is OK.

■ Enable always—If supported, enables the writ e cach e even

if no battery is present or the battery’s charge status is not
OK. Note that setting an array’s write cache property to
Enable always might result in data loss or corruption if
power to the controller is lost when no battery is present or
the battery loses its charge.

■ Disable—Disables use of the write cache.

7 When you are finished, press Done.

2-8

Using Adaptec RAID Configuration

!

Initializing Disk Drives

If an installed disk does not appear in the disk selection list for
creating a new array or if it appears grayed out, you may have to
initialize it before you can use it as part of an array.

Caution: Initializing a disk overwrites the partition table on

the disk and makes any data on the disk inaccessible. If the
drive is used in an array, you may not be able to use the array
again. Do not initialize a disk that is part of a boot array. The
boot array is lowest numbered array (normally 00) in the List
of Arrays dialog box.

See Viewing Array Properties on page 2-2 for information on
determining which disks are associated with a particular
array.

To initialize drives:

1 At the BIOS prompt, press Ctrl+A.
2 From the ARC menu, select Array Configuration Utility.
3 Select Initialize Drives.
4 Use the Right/Left arrow keys to select a channel.
5 Use the up and down arrow keys to highlight the disk you wish

to initialize and press Insert.

6 Repeat step 5 until all the drives to be initialized are selected.
7 Press Enter.
8 Read the warning message and ensure that you have selected

the correct disk drives to initialize. Type Y to continue.

Rescanning Disk Drives

To rescan the drives connected to the controller:

1 At the BIOS prompt, press Ctrl+A.
2 From the ARC menu, select Array Configuration Utility.
3 Select Rescan Drives.

2-9

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Using the SCSISelect Utility

The SCSISelect Utility enables you to change device and controller
settings without opening the system chassis or handling the card. If
you want to view or change the current settings, see Starting and

Exiting SCSISelect on page 2-10. For detailed descriptions of each

setting, see Using the Controller Configuration Utility on page 2-11.

Starting and Exiting SCSISelect

To start SCSISelect:

1 When you turn on or reboot your system, press Ctrl+A to access

the Adaptec RAID Configuration (ARC) utilities when
prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2 If multiple controllers are installed, select the controller you

want to configure and press Enter.

3 From the ARC menu, select SCSISelect Utility.

The Controller Configuration and SCSI Configuration menu
options are displayed.

To exit SCSISelect, press Esc until a message prompts you to exit. (If
you changed any host adapter settings, you are prompted to save
the changes before you exit.) Select Yes to exit and reboot the
system. Any changes you made take effect after the system boots.

Using the SCSISelect Menus

To select a SCSISelect menu option, move the cursor to the option
with the Up/Down arrow keys and press Enter. In some cases,
selecting an option displays another menu. You can return to the
previous menu at any time by pressing Esc.

To restore the original SCSISelect default values, press F6 from the
Configure/View Host Adapter Settings screen.

2-10

Using Adaptec RAID Configuration

!

Using the Controller Configuration Utility

To access the Controller Configuration Utility:

1 When you turn on or reboot your system, press Ctrl+A to access

ARC when prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2 If multiple controllers are installed, select the controller you

want to configure and press Enter.

3 From the ARC menu, select SCSISelect Utility.

The Controller Configuration and SCSI Configuration menu
options are displayed.

4 Select Controller Configuration.

You can modify the following Controller Interface Definitions:

■ Drives Write Cache — Enables or disables the write-back

cache feature of all SCSI disk drives connected to the
controller. If Disabled, the controller will disable the write­back cache of all attached drives. If Enabled, then the
controller will enable the write-back cache of all attached
drives. If Drive Default, then the controller will not change
the write-back cache setting of any attached drives. The
default is Drive Default.

Caution: Disk drives with write-back cache enabled do

not have the benefit of battery protection and could

lose or corrupt data as a result of unexpected power
loss or drive removal.

Certain controllers may not support drives write cache. In
those cases where drives write cache is not supported,
setting the option to Enabled has no effect.

■ Runtime BIOS — Enables or disables the controller’s

runtime BIOS. The BIOS must be enabled if you want to boot
from the controller.

2-11

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

If Runtime BIOS is enabled and the BBS Support and Array­based BBS Support options are disabled, the controller

BIOS is enabled and will post the lowest numbered array
(typically 00) on the first controller found as a legacy Int13h
bootable hard disk drive.

The default is Enabled.

■ Automatic rebuild on replacement — If enabled, this option

lets you replace a failed drive in the same enclosure slot in a
RAID 1, RAID 5, RAID 10 or RAID 50. Then the BIOS
recognizes that the failed drive has been replaced, initializes
the new disk, and immediately initiates a failover. Note that
this option is supported only for disks in SAF-TE enclosures
or backplanes.

The default is Enabled.

■ Array Background Consistency Check — If enabled, this

option forces the controller to constantly check all portions
of disks used by all arrays to see if the disks can return data
from the blocks. On a fully-redundant RAID 5 with no bad
segments, the controller repairs any data that cannot be
read.

The default is Disabled.

■ BBS Support — If the Runtime BIOS option and this option

are enabled and the Array-based BBS Support option is
disabled, the lowest numbered array on each controller is
posted as a BBS (BIOS Boot Specification) device.

The default is Enabled.

■ Array-based BBS Support — If Runtime BIOS, BBS

Support and this option are all enabled, the lowest

numbered three devices (typically 00, 01 and 02) on each
controller in the system are posted as BBS devices.

In a BBS-enabled system with two controllers installed, and
at least three arrays on each controller, if Array based BBS
support is enabled the “Hard drive boot order menu” will
include six entries for arrays connected to the two RAID
controllers.

2-12

Using Adaptec RAID Configuration

The Ctrl-B option in ACU moves any array to be array 00.
Using this option repeatedly allows any boot order to be
chosen.

The default is Disabled.

■ Physical Drives Display during POST— The default is

Disabled.

■ CD-ROM Boot Support — The default is Enabled.

■ Removable Media Devices Support — The default is

Enabled.

■ Alarm Control — The default is Enabled.

You cannot set the following options:

■ NVRAM State — Displays the current status of the NVRAM

cache. This option is available only for controllers that have
a battery and is for display only. In normal operation it will
display Clean.

■ Controller Memory Size — Displays the amount of memory

installed on the controller.

Using the SCSI Configuration Utility

The SCSI Configuration Utility enables you to modify the SCSI
Channel Interface Definitions and SCSI Device Configuration
Options.

To access the SCSI Configuration Utility:

1 When you turn on or reboot your system, press Ctrl+A to access

the Adaptec RAID Configuration (ARC) utilities when
prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2 If multiple controllers are installed, select the controller you

want to configure and press Enter.

3 From the ARC menu, select SCSISelect Utility.

The Controller Configuration and SCSI Configuration menu
options are displayed.

4 Select SCSI Configuration.

2-13

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

5 The Se lect SCSI Channel menu is displayed. Select the

appropriate channel from this menu.
You can modify the following SCSI Channel Interface

Definitions:

■ Controller SCSI Channel ID — Sets the controller’s SCSI

ID. We recommend that you leave the controller set to SCSI
ID 7, which gives it the highest priority on the SCSI channel.

■ SCSI Parity Checking — Determines whether the controller

verifies the accuracy of data transfer on the SCSI channel.
You should disable SCSI Parity Checking on the controller
and all SCSI devices if any SCSI device supported by the
controller does not support SCSI parity; otherwise, leave it
enabled. Most SCSI devices do support SCSI parity. If you
are not sure whether a device supports SCSI parity, consult
the documentation for the device.

■ Controller SCSI Channel Termination — Sets termination

on the controller card. We recommend that you leave the
default setting of Auto Mode.

■ SCSI Device Configuration — For information about these

options, see the section, SCSI Device Configuration Options.

SCSI Device Configuration Options

The SCSI device settings allow you to configur e certain paramete rs
for each device on the SCSI channel. To configure settings for a
specific device, you must know the SCSI ID assigned to that device.
If you are not sure of the SCSI ID, see Using the Disk Utilities on

page 2-15.

■ Maximum Transfer Rate — Determines the maximum data

transfer rate that the SCSI channel supports. The maximum
effective data transfer rate is doubled when Initiate Wide
Negotiation is set to Yes and 16-bit devices are attached. (Initiate
Wide Negotiation has no ef fect with 8-bit devices.)

■ Enable Disconnection — Determines whether the SCSI channel

allows the SCSI device to disconnect from the SCSI channel
(sometimes called Disconnect/Reconnect or Reselection). This
option should be enabled for maximum performance. The
default is yes.

2-14

Using Adaptec RAID Configuration

■ Initiate Wide Negotiation — Determines whether the SCSI

channel attempts 16-bit data transfer instead of 8-bit data
transfer. The effective data transfer rate is doubled when 16-bit
data transfer is used. The default is yes.

■ QAS — Determines whether QAS (Quick Arbitration and

Selection) is used to eliminate overhead and speed up data
transfers on the SCSI bus. The default is yes.

■ Packetized — Determines whether SCSI packetization

(encapsulation) is used to reduce overhead and speed data
transfer. The packetized SCSI protocol provides a method for
transferring command and status information at the maximum
rate. The default is yes.

Using the Disk Utilities

The BIOS-based Disk Utilities enable you to low-level format or
verify the disk media of your SCSI hard disks.

To access the disk utilities:

1 When you turn on or reboot your system, press Ctrl+A to access

the Adaptec RAID Configuration (ARC) utilities when
prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2 If multiple controllers are installed, select the controller you

want to configure and press Enter.

3 From the ARC menu, select Disk Utilities.
4 Select the desired channel and press Enter.

After the option is selected, a list of all SCSI IDs and the devices
at each ID is displayed. After selecting a specific ID and device,
a small menu appears, displaying the following options:

■ Format Disk—Performs a low-level format on a hard disk

drive. Each hard disk drive must be low-level formatted
before you can use your operating system’s partitioning and
file preparation utilities, such as MS-DOS Fdisk and Format.

Most SCSI disk devices are preformatted at the factory and
do not need to be formatted again. The Format Disk option
is compatible with the vast majority of SCSI disk drives.

2-15

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

!

The controller should not be powered of f or rebooted dur ing
a disk format. Doing so may render the disk unusable until
the format is manually restarted and completed.

Caution: A low-level format destroys all data on the

drive. Be sure to back up your data before performing
this operation. Once started, you cannot abort a low­level format.

■ Verify Disk Media — Scans the media of a disk drive for

defects. If the utility finds bad blocks on the media, it
prompts you to reassign them. If you select yes, the utility
remaps the recoverable defects and no longer uses those
blocks. You can press Esc at any time to abort the utility.

Viewing the Event Log

The BIOS-based event log stores all firmware events (configuration
changes, array creation, boot activity, and so on).

To access the event log:

1 When you turn on or reboot your system, press Ctrl+A to access

the ARC when prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility

2 If multiple controllers are installed, select the controller you

want to configure and press Enter.

3 From the ARC menu, press Ctrl+P.
4 The Controller Service Menu appears, including the option

Controller Log Information.

5 Select Controller Log Information and press Enter. The current

log is displayed.

2-16

3

Adaptec Storage Manager­Browser Edition

In this Chapter

About Adaptec Storage Manager 3-2
Login to Adaptec Storage Manager 3-4
Installing a Security Certificate 3-6
Understanding Adaptec Storage Manag er 3-7
Creating Arrays 3-12
Creating and Deleting Hot Spares 3-16
Deleting Arrays 3-17
Modifying Arrays 3-17
User Interface Options 3-19
Viewing Events 3-20
Help 3-20
Displaying and Modifying Proper ties 3-21
Viewing and Creating Tasks 3-27
About Adaptec Storage Manager Notifier Service 3-29
Enabling and Configuring the Notifier Service 3-31

3-1

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

About Adaptec Storage Manager

Adaptec Storage Manager - Browser Edition is a web-based
application that supports managing storage either locally (at the
system in which the storage controller is installed), or remotely
(from another system).

Any system containing an Adaptec storage controller that has
Windows or Linux and a supported browser installed can be
managed locally. Supported browsers are:

■ Windows

■ Internet Explorer (IE) 5.0 or later

■ Netscape 6 or later

■ Linux

■ Adaptec-supplied and installed version of Mozilla

■ Netscape 6 or later

These same Windows and Linux systems can also be managed
remotely. This can be achieved in tw o w ay s:

■ Installing Adaptec Storage Manager on the remote system.

■ Directing the browser on the remote system to the system you

want to manage.

Note: If you want to manage from a Linux system it is

recommended that you install Adaptec Storage Manager on
the remote system and use the Adaptec-supplied version of
Mozilla as the browser.

For Unix and NetWare installations, Adaptec Storage Manager can
only be used to manage the system remotely. Local management is
supported using the CLI.

The following explanation of the software architecture will help
you understand the possible configurations and determine which
one is most appropriate for your application. Installation
instructions are included in the Adaptec SCSI RAID Installation
Guide supplied on the same CD as this document.

3-2

Adaptec Storage Manager-Browser Edition

Adaptec Storage Manager - Browser Edition consists of the three
major components:

■ A supported web browser, which should already be installed

on the system.

■ The Adaptec web service which supplies content displayed on

the web browser.

■ An Adaptec-supplied storage agent.

For a locally managed system, all three components will be
installed on the same system.

To support the remote management configurations described
below, all components must be installed on systems that have a
TCP/IP connection through which the other component(s) can be
accessed.

All communication uses Secure-HTTP (S-HTTP) or SSL protocols
to encrypt all data transmitted and ensure security. Connection
over an Ethernet network, a corporate WAN, or VPN are
supported.

Several remote management configurations are possible:

■ The browser will always be on a remote system.

■ The storage agent will always be installed on the system with

the storage controller installed.

■ The web service can be installed on the same remote system as

the browser, the system with the storage controller installed on
a third system.

The storage agent is supplied for all supported operating systems,
while the web service is available only for Windows and Linux. In
order for Adaptec Storage Manager - Browser Edition to manage
storage on a UNIX or NetWare system, the storage agent must
communicate with the Adaptec web service on a separate
Windows or Linux system.

In this configuration, the Windows or Linux system can either be
used to manage the RAID controller, or act as a server
communicating with a supported browser on a third system.

3-3

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Login to Adaptec Storage Manager

To login to a system with Adaptec Storage Manager installed:

1 Start Adaptec Storage Manager - Browser Edition. In Windows,

you will find the application by clicking Start > Programs >
SMBE > Adaptec Storage Manager - Browser Edition. In
Linux, you will find it by clicking Start > System > Adaptec
Storage Manager.

2 The first screen presented is the Login screen shown below.

Enter the host name or IP address of the system you want to
manage and the username and password you would use to log
into that system.

3 Click Login.

Note: When you run Adaptec Storage Manager for the first

time after installation you will have to install a security
certificate. For instructions see Installing a Security Certificate

on page 3-6.

3-4

Adaptec Storage Manager-Browser Edition

To login from any system with a web browser:

1 Start the web browser application and type the IP address for

the system you want to access in the address bar and press
Enter. Example: https://10.6.3.14:3513/adaptec.

When connection to the remote system is established the
Adaptec Storage Manager Login screen will appear.

Note: If you are using a proxy server to access the internet,

you will need to bypass the proxy server to access the
Adaptec Storage Manager web server. In IE, if you know
the IP address of the system you want to manage
remotely, choose Tools > Internet Options >

Connections>LAN Settings > select Use a proxy server
for your LAN >Advanced, and type the managed

system’s IP address in the Exceptions section.

In Netscape, if you know the IP address of the system you
want to manage remotely, choose Edit> Preferences >

Advanced> Proxies > Manual proxy configuration > No
Proxy For, type the managed system’s IP address.

2 Enter the host name or IP address of the system you want to

manage and the administrative username and password that
you would normally use to log into that system.

3 Click Login.

Note: When you run Adaptec Storage Manager for the first

time after installation you will have to install a security
certificate. For instructions, see Installing a Security Certificate

on page 3-6.

3-5

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Installing a Security Certificate

When using Adaptec Storage Manager for the first time after
installation, you need to create a security certificate. Follow the
steps below to create the certificate:

1 When the Security Alert window appears, click View

Certificate.

2 On the Certificate window that appears, click Install

Certificate.

3 On the Certificate Import wizard window that appears, click

Next.

4 The Certif icate Import wizard window’s contents will change.

Use the default Automatically select the certificate store, click
Next.

5 On the root Certificate Store window, click Yes.
6 An other s mall Certificate Import wizard window will appear

with only an OK button, click OK.

7 You will be returned to the Certificate window from step 2.

Click OK.

8 You will be returned to the Security Alert window from step 1.

Click Yes. This will finish the creation and storage of the
certificate.

3-6

Adaptec Storage Manager-Browser Edition

Understanding Adaptec Storage Manager

Shown below is an example of a typical Adaptec Storage Manager
screen.

.

Note: Depending on your operating system, browser , and

color scheme you may notice some differences between this
illustration and your screen.

At the top of the Adaptec Storage Manager screen is the header
frame. In this area is the name of the system that you are currently
connected to and a number of buttons that perform various actions
or open additional windows.

The action buttons are Logout and Rescan. Selecting Logout will
end your session and return you to the Login screen.

Use the Rescan button to have Adaptec Storage Manager re-read
the configuration of the system. Typically, when a rescan is
required, it will occur automatically, for example, after an array is
created.

It is possible for the system configuration to change without
Adaptec Storage Manager being notified. For example, drives
inserted/removed from a non-intelligent enclosure or an enclosur e
powered on after you logged in to Adaptec Storage Manager.

The remaining buttons: Events, Options, Help, Properties, and
Tasks open additional windows that provide more detailed
information, allow you to perform actions or change settings on a
specific aspect of your storage subsystem.

3-7

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

For detailed instructions on using these buttons, see the sections

Viewing Events on page 3-20, User Interface Options on page 3-19,
Help on page 3-20, Displaying and Modifying Properties on page 3-21,

and Viewing and Creating Tasks on page 3-27.
Immediately following the header frame is a controller information

line including the model number of the first Adaptec storage
controller found in the system and the amount of cache memory
installed on that controller.

Beneath the controller information are Physical Devices and
Logical Devices views that show connected devices and existing
arrays on this controller. Click the button to compress the
information displayed for this controller. Controller information
and device views are repeated for each additional Adaptec storage
controller in the system.

Select the controller by clicking anywhere on the controller
information. When the controller is selected, the Events, Properties
and Tasks buttons change from blue to amber, indicating that
clicking any of them will bring up an additional window with
information and options specific to this controller.

Pop Up Tool Tips

If you position the cursor over a device or button a pop-up tool tip
appears. For buttons, the tips contain helpful information about the
function of the button, while for devices they display additional
information.

Physical Devices

The Physical Devices view displays information about the drives
and enclosures attached to the Adaptec storage controller. The
devices are shown organized by the channel that they are
connected to and shown in numerical order.

The display for each channel includes information on maximum
speed capability, the number of the channel on the controller, and
the number of devices found (excluding the SCSI controller).

Selecting a channel or device will turn the Events, Properties, and
Tasks buttons amber. This indicates that clicking any of these
buttons will bring up an additional window with information and
options specific to that device or channel.

3-8

Adaptec Storage Manager-Browser Edition

At the top of the Physical Devices view, grouped to the right of
View, are three view selection buttons . These buttons

select how Adaptec Storage Manager displays the physical devices
connected to this controller.

Hot Spares

Click the Hot Spare button to configure a drive or drives
as hot spares. Hot spare drives are assigned to protect redundant
arrays in the event of a drive failure. If a drive fails in a redundant
array protected by a hot spare, the array will be rebuilt using the
hot spare to replace the failing drive.

A hot spare can be assigned to protect a single array or all the
arrays on the controller.

Changing How Drives are Displayed

When Adaptec Storage Manager is loaded, the Physical Devices
view will default to display a condensed view of the controller
configuration which hides detailed information about the drives.
More information is available by either positioning the mouse
pointer over the device or clicking on the arrowhead to the left of a
row of devices.

The selected display mode button will appear in a lighter shade of
blue than the other two buttons. The default display is the Text
Description View , but in the condensed view used when
Adaptec Storage Manager is loaded, the display is the same in all
three modes.

If you change the display mode by selecting one of the other view
buttons, a yellow arrow will flash to the left of any devices where
the current condensed display prevents Adaptec Storage Manager
from showing all the information available.

An icon is always the first entry on each device line. The icon is
used to represent a hard disk drive. If a + symbol appears with the
hard disk drive icon , the drive is a hot spare. Different icons are
used to represent other devices.

3-9

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

View

is the default display mode and when expanded, will show the

following information about each device:

■ Capacity of the drive

■ Drive manufacturer and model number

■ SCSI drive ID

When expanded, the Full Size Capacity View button and the
Relative Size Capacity View button represent each drive as a

bar. A drive that is not used as part of any array is shaded blue
surrounded by a dotted line.

displays a full-length bar for each drive, regardless of capacity.

displays a bar for each drive, with the largest capacity drive
full-length and the other drives proportional to the drive capacity,
relative to the largest drive.

Any part of a drive used in an array is shown as a gray segment
within the bar. Selecting any gray segment will highlight it in
amber and, in the Logical Devices view, highlight the array of
which this segment is a member.

In either the Full Size Capacity View or the Relative Size Capacity
View, a small portion at the end of the drive is shown in dark gray.

The segment at the end of the drive may vary in size from drive to
drive because, in addition to the RAID signature, the controller
also limits the usable capacity of each drive to increments of 100
MB.

This is done because hard disk drives of apparently the same
capacity from different manufacturers, or even different models
from the same manufacturer, actually vary slig htly in the true
capacity available. Although, in normal operation this is not an
issue, it can be when assigning hot spares or replacing a failed
drive.

If the controller used the maximum capacity of each drive and a
hot spare or replacement drive was just a few megabytes smaller, it
would not be able to replace the failed drive. By rounding drive
capacities down to the nearest 100 MB, this possibility i s ef fectively
eliminated.

3-10

Adaptec Storage Manager-Browser Edition

Logical Devices

As described earlier, when Adaptec Storage Manager loads, the
Logical Devices view is expanded and you can see the arrays
present on the controller.

At the top of this view are the following buttons: Create, Modify,
and Delete. Each button opens a wizard that wi ll take you thro ugh,
respectively, the steps necessary to create a new array, modify an
existing array, and delete existing arrays on this controller.

Modify allows you to:

■ Change an array from one RAID level to another

■ Expand an array

■ Change the stripe size for a RAID-0, 5, 10 or 50

For detailed instructions on using these buttons, see the sections

Creating Arrays on page 3-12, Deleting Arrays on page 3-17, and
Modifying Arrays on page 3-17.

The main area of the Logical Devices view is used to display the
arrays on this controller. It defaults to a condensed view of top
level arrays. For information on top and second-level arrays, refer
to Supported RAID T ypes on page 1-2.

Note: The Options button allows you to display second-level

arrays if you prefer.

In this condensed view, the RAID level of each device as well as
whether it is protected by a hot spare, is visible.

If a global hot spare exists, all arrays that the hot spare is large
enough to protect will show as protec ted.

In the expanded view, the icons for the arrays are arranged
vertically and alongside them are the capacity, name and type of
array.

Selecting an array by clicking on it will highlight the following in
amber:

■ All the drives or segments that form the array in the Physical

Devices view.

3-11

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

■ Any second-level arrays that form a top-level array in the

Logical Devices view.

■ The Events, Properties, and Tasks buttons in the header frame.

This indicates that selecting any of these three buttons will
bring up an additional window with information and options
specific to that array.

Creating Arrays

Before you use Adaptec Storage Manager to create an array, make
sure that you understand the different types of ar rays supported,
as described in Supported RAID Types on page 1-2, and the type of
arrays that are most appropriate for your application.

Click Create to open the Create Array wizard. This wizard offers
the following options:

■ Create arrays using default settings.

■ Expand the wizard by clicking on Advanced to see additional

options and customize settings.

Using the default settings will create an array of the largest
possible capacity on the selected drives, use the default cache
setting and, if appropriate, the default stripe size.

To create an array using default settings:

1 Open the Create Array wizard by clicking Create for the

controller on which you want to create an array.

2 Select the type of array you want to create in Step 1 of 3 in the

Create Array wizard. Then click Next to move to Step 2 of 3.

3 Click the drives you want to include in the array. Selected

drives will display an amber check mark. When you have
completed your selection click Next to move to Step 3.

Note: The check marks will flash until you have selected

enough drives to create this type of array.

3-12

Adaptec Storage Manager-Browser Edition

!

4 Now you can accept the default name for the new array or enter

one of your choice. The name you choose must be unique, and
can be up to 15 standard ASCII characters in length.

5 When you click Finish, the system will create the new array. Advanced Options

Creating an array by clicking Advanced in the Cr eate Array wizard
follows the same basic process as the previous instructions, but at
each step there are additional options for you to use.

Step 1 of 3 in the Advanced area of the Create Array wizard offers
the following additional options:

■ Spanned Volumes and RAID Volumes—As described in

Chapter 1, Introduction, a spanned volume concatenates segments

from two or more drives to form a volume, while a RAID volume
concatenates two or more arrays of the same type.

■ Enable or Disable Write Caching—When write caching is

enabled, the controller stores the data in cache memory on the
controller and will accept another write to this array as soon as
the data from the previous write is safely stored in the
controller’s memory.

Since writing data to memory is much faster than writing it to
the drives, enabling write caching can significantly improve
performance. All data stored in the cache will be written to the
drives when it is most efficient for the controller.

On controllers fitted with a battery, the additional choice
“Enable when protected by battery” is available. Choosing this
option will enable write caching whenever the battery is
operating correctly, and in the event of a power failure the
battery will protect the data currently in cache.

Caution: Default setting for write cache is enabled. This

setting provides the best performance, but in the event of
power failure there is a risk of data loss.

3-13

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

■ Enable Or Disable Read Caching—When enabled, the

controller will monitor read accesses to this array to try to
predict where future r eads may occur. If it detects a pattern, the
data that seems most likely to be read next will be preloaded
into the controller’s cache memory. Since reading data from
memory on the controller is much faster than reading it fr om
the drives, this can have a significant impact on performance.

This setting defaults to Enabled.

Step 2 of 3 in the Advanced area of the Create Array wizard offers
the following additional options:

■ Limit Array Capacity—This option allows you to choose the

capacity of the array you are creating. The default is to make the
array the largest possible size with the drives selected. To create
multiple arrays on a single set of drives you must use this
option to limit the size of, at a minimum, the first array.

For example, if you have two 18 GB drives, and you wish to use
them to create two 9 GB RAID-1s, you would use this option to
restrict the size of the first array you create.

Note: A RAID-1 uses two drives to create a mirror; that is

all data written to a RAID-1 is written to both drives
limiting the capacity of the array to the capacity of the
smaller drives.

■ Stripe Size—For a RAID-0, 5, 10 or 50 where data is striped

across multiple drives, stripe size determines how much data is
written on each drive for a given stripe.

Note: The default stripe size has been chosen to maximize

performance for most typical applications. Changing the
stripe size is likely to adversely affect performance.

3-14

Adaptec Storage Manager-Browser Edition

For arrays which need to be initialized such as RAID-1 and
RAID-5, advanced options allow you to select which method is
used to initialize the array and set the priority of the initialization
task.

Step 3 in the Advanced area of the Create Array wizard offers the
following initialization options:

■ Build—For a RAID-1, the data from the primary or master

drive is copied to the secondary or slave drive. For a RAID-5,
correct parity is generated for the entire array.

The advantages of building an array are that the array is
immediately available for use, and that when the build is
complete, the array operates at maximum performance. The
disadvantages are that building takes some time, for a large
array possibly many hours, and performance is impacted until
the build completes.

■ Clear—In this case, the contents of all the drives are cleared.

The advantages of clearing an array are that the process is much
faster than building and when completed, the array operates at
maximum performance. The disadvantage is that the array is
not accessible until the clear completes.

■ Quick—In this case the array is immediately available. The

advantage of quick initialization is that the array is immediately
available with no on-going build. The disadvantage is that the
write performance of a RAID-5 or RAID-50 initialized in this
way is impacted until a Verify with fix Task is run on the array.

■ Initialization Priority—This drop-down list allows you to

adjust the priority of the initialization task. The default setting
is high, and initialization will complete as fast as possible. The
other options are medium and low. Depending on what other
tasks are running on the controller, selecting either of these
options may cause the initialization to take significantly longer.

3-15

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Creating and Deleting Hot Spares

Creating Hot Spares

To create a hot spare:

1 Click on the button on the Physical Devices view.
2 In the Phys ical Devices view, select the drive(s) you want to

make hot spares.

Note: You cannot select a drive that is already used in an

array as a hot spare.

3 The advanced option for the Hot Spare button describes how to

dedicate a hot spare to protect a single array.
If you wish to dedicate a hot spare to protect a si ngle array,

select the array you want the hot spare to protect. If you do not
select an array, the hot spare(s) will be global, that is they will
protect all the arrays on the controller that they are large
enough to protect.

4 Click Finish. Deleting Hot Spares

To delete a hot spare:

1 Click the Hot Spare button on the Physical Devices view.
2 In the Physical Devices view select the hot spare(s) you wish to

delete.

3 Click Finish.

3-16

Adaptec Storage Manager-Browser Edition

Deleting Arrays

To delete an array:

1 Click the Delete button on the Logical Devices view.
2 In the Logical Devices view select the array(s) you wish to

delete.

3 Click Finish.

Deleting an array destroys all the data on the array. To help
prevent you from deleting the wrong array, a dialog will pop
up listing the array(s) that you selected in step 2.

4 Check that you selected the correct array(s) before clicking Yes.

Modifying Arrays

Modify allows you to make the following changes to existing
arrays:

■ Migrate an array from one RAID level to another

■ Expand the capacity of an array

■ Change the stripe size

Some operating systems, for example Windows 2000 and W indows
XP, support Online Capacity Expansion (OCE). That is, on
completion of an array expansion, the additional capacity can be
used without rebooting the system. Refer to your operating sys tem
documentation for instructions on using the additional capacity.

Supported RAID level migrations are given in Table 3-1.

Table 3-1 Supported RAID Level Migrations

Current Array T ype New Array T ype

RAID-0 RAID-5 or 10
RAID-1 RAID-0 or 5 or 10
RAID-5 RAID-0 or 10
RAID-10 RAID-0 or 5
RAID-50 RAID-0 or 5 or 10

3-17

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

The following rules apply to migration:

1 The capacity of the new array must match or exceed the

capacity of the current array.

2 If the capacity and/or RAID type of the new array requires

greater total drive capacity than the current array, the
additional capacity must be on drives that are not already used
in the current array.

To modify an array:

1 Click Modify.
2 Select the array that you wish to modify.
3 Select the RAID level that you want to migrate the array to, or if

you want to expand the capacity of the existing array, select the
current RAID level.

Optionally, click Advanced to select the stripe size you want the
new array to use, or that you want to change the existing array
to.

4 If necessary, select the additional drive(s) required for capacity

expansion, or necessary to support the new RAID level.
Optionally, click Advanced to adjust the priority for the task.

5 Click Finish.

3-18

Adaptec Storage Manager-Browser Edition

User Interface Options

Click Options to modify the behavior of some aspects of the
Adaptec Storage Manager user interface. Changes take place
immediately when you make a new selection in one of the drop­down lists.

You can make changes in the following areas:

■ Second-Level Arrays—The default is to hide second-level

arrays in the Logical Devices view. You can choose to display
second-level arrays.

■ Background Update Frequency—This option controls how

frequently Adaptec Storage Manager polls the web server to get
updated configuration information. The default is 30 seconds.
Other choices are 15 seconds, 1 minute, and 5 minutes.

■ Highlight on Mouseover—As you move the cursor around the

Adaptec Storage Manager screen, you may notice that an amber
box surrounds the controller, channel, device, or array.

This highlight is enabled by default and can be disabled by
selecting No in the drop-down list for Highli ght on mo useover.

■ Popup Tool Tips—As you move the mouse cursor around the

screen, you may notice that if you position the cursor over a
device or button a popup tool tip appears. For buttons, the tips
contain helpful information about the function of the button,
although for devices they display additional information.

Tool tips are enabled by default and appear after a brief delay.
You can opt to either disable the tool tips or to have them pop
up immediately.

Close the window by clicking the X in the top right corner.

3-19

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Viewing Events

The Events button allows you to view events for all supported
controllers in the system.

The following information is available for each event:

■ the date and time the event occurred

■ the severity of the event

■ a brief message describing the event.

The default is All which displays all levels of event: Critical,
Warning and Informational.

A drop-down list is provided that lets you choose to view either
critical and warning level events only (Warning), or critical events
only (Critical).

At the bottom of the screen is a button to Clear the event log.

Help

Click Help to open a screen with the following tabs: This
Application, Technical Support, and Sales.

Click This Application tab to view information about the name
and version of the application, as well as a link to the online help.

Click the Technical Support tab for the link to Adaptec’s Technical
Support web site.

Click the Sales tab to find telephone numbers and an e-mail
address for Adaptec Sales, as well as links to Adaptec’s Online
Store and Product Information web sites.

3-20

Adaptec Storage Manager-Browser Edition

Displaying and Modifying Properties

Click Properties to see additional details about many of the
components on the Adaptec Storage Manager screen. To see
properties about a particular controller, chan n el, device, or array,
select that item before clicking Properties.

If Properties is amber, clicking on it will open a window with
further information and options about the item selected. If

Properties is blue, clicking on it will display the hostname of the

system you are connected to.

Applying Changes

Many property windows allow you to make changes. If you have
selected a modifiable field, Apply and Cancel buttons will appear.

Controller Properties

Selecting a controller, then clicking Properties will bring up a
dialog window with the following tabs: General, Alarm, Battery,
and Details.

General Tab

Lists the following information about the selected controller:

■ Model—Adaptec model number. This is also displayed on the

main screen for each controller.

■ Serial number—A number that uniquely identifies this

particular controller.

■ Host bus—The type and the number of the bus to which this

controller is connected.

■ Memory size—The total amount of memory installed on the

controller.

■ Cache size—Most of the controller’s memory is used as data

cache. Cache size is the amount of the controller’s memory used
as data cache. Typically, it will be the majority of the memory
size indicated above.

■ Number of channels—The number of channels (SCSI or ATA)

on this controller.

3-21

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Alarm Tab

Appears for Adaptec RAID controllers equipped with an audible
alarm. The following options are available:

■ Disable—Click this button if you want to disable the alarm,

that is, if you do not want an audible warning of a problem with
this controller. Default is enabled. When Disable is selected it
becomes the Enable button.

■ Test—Use this button to test the alarm. You may want to try

this to establish if the alarm can be heard clearly in your
implementation, or if the volume of the alarm will be too
intrusive.

■ Silence—If the alarm is sounding, clicking on this button will

silence the alarm without disabling it.

Battery Tab

Appears if the controller is fitted with a battery module. This
window lists various components details for this controller:

■ Status—Shows the current status of the battery. A bad battery is

one that does not hold charge and should be replaced. Possible
values are Failed, No Charge, Charging, Active (drawing
power), Unknown.

■ Recalibrate—On some controllers, the battery periodically

needs to be run through a process known as recalibration to
ensure that it remains fully operational.

For controllers where this button does not appear, recalibration
is not required.

If this button is present, then the battery on this controller
should be recalibrated every 6 - 12 months.

3-22

Adaptec Storage Manager-Browser Edition

Details Tab

This window lists details of some components for this controller:

■ Monitor, Kernel, BIOS versions—These are the version

numbers of the different software components loaded on the
controller. For some controllers all three components may not
be present.

■ Hardware version—The revision level of the controller

hardware.

■ Processor type and speed—Information about the processor

fitted on the controller. This information is not available on
some controllers.

Channel Properties

Select a channel and then click Properties to bring up a dialog box
with a single tab containing the following information:

■ Type—Indicates whether the selected channel is SCSI, ATA or

Serial ATA.

■ Max data rate—The highest rate at which this channel can

transfer data, for example, 320 MB/s.

Physical Device Properties

If you select a device on a channel (other than an enclosure) and
then select Properties, a window with General, Capacity, SMART,
and LED tabs will appear .

General Tab

■ Status—This field appears only for disk drives and it indicates

the current status of the drive. Possible values are: Optimal,
Failed, Phantom (not physically found), SMART Warning,
Unknown and Missing.

■ Type—The class of device; for example: disk drive, CD-ROM,

scanner, or printer.

■ Product—The name given to this device by its vendor.

■ Vendor—The manufacturer of this device.

3-23

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

■ Revision—The version number information stored on the

device.

■ Data Rate—The data transfer speed negotiated between the

controller and this device.

■ SCSI ID, LUN—For devices on a SCSI channel the SCSI ID and

LUN of the device are reported. These do not apply for AT A
and Serial ATA devices and will always return 0.

Capacity Tab

The Capacity tab appears only for disk drives and when selected,
displays a summary view listing the reserved, used, available, and
total capacities of the drive.

The capacities are reported in both the number of 512-byte blocks
(shown in both decimal and hexadecimal values) and capacity in
kilobytes, megabytes, or gigabytes.

Selecting the detailed option shows information for all segments on
the drive. In this view, the following information is displayed for
each segment:

■ Number of the segment

■ Start and end blocks

■ Segment size and type

Type indicates how the segment is used. The first and last
segments are always reserved. The beginning of the drive is where
the controller stores the RAID signature. The end of the drive is
where the capacity is rounded down to the nearest 100 MB.

If this segment is a component of an array, type indicates the array
level the segment is used in. If the segment is not used in an array,
and is not a reserved area, it will be shown as available.

Detailed view defaults to displaying the numbers of the start and
end blocks of each segment in decimal values. A drop-down list is
provided to allow you to display these numbers in either
hexadecimal or capacity.

3-24

Adaptec Storage Manager-Browser Edition

SMART Tab

For hard disk drives that support SMART predictive failure
reporting, this additional tab will appear with the following
entries:

■ Enabled—indicates if SMART reporting is enabled on this

device.

■ Predictive failure occurred—indicates if this device has

reported a predictive failure.

LED Tab

The tab appears or hard disk drives, and has two buttons, Blink
LED and Unblink All.

■ Blink LED—Clicking this button will cause the activity LED of

the selected drive to blink. Use this to identify the drive. The
activity LED will continue to blink until you click Unblink All.

■ Unblink All—Clicking this button cancels the effect of the

Blink LED button for all drives.

Enclosure Properties

Selecting an enclosure and clicking Properties will open a screen
with the following tabs: General, Fans, PSU, Temperature,
Devices and Speaker.

General Tab

The General tab includes the following information:

■ Vendor—The manufacturer of the enclosure.

■ Product—The name given to this enclosure by its vendor.

■ Revision—The version number information stored on the

enclosure.

■ Status Summary—This provides an overview of the status of

the fans, PSU(s) and temperature sensors in the enclosure.

Further detail on each component is available on the relevant tab.

3-25

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Fans and PSU Tabs

The Fans and PSU (Power Supply Units) tabs contain a table
listing, by number, all the fans/PSUs in the enclosure and their
status.

Temperature Tab

The Temperature tab contains a table listing all of the temperature
sensors in the enclosure by number. For each sensor the current
temperature and status is displayed.

You can select whether temperatures are displayed in Fahrenheit
or Celsius.

Devices Tab

The Devices tab contains a table listing the slots in the enc losure by
number. For each slot the SCSI ID of any device present is listed,
along with that device’s current status.

Speaker Tab

The Speaker tab indicates whether the enclosure is equipped with
a speaker.

For enclosures with a speaker a Silence Alarm button will also be
present to allow you to turn off the speaker in the event of a failure.

Logical Device Properties

Selecting a logical device and clicking Properties will open a screen
with the following tabs: Logical Drive and Cache Settings.

Logical Drive Tab

The Logical Drive tab includes the following information:

■ Status—Possible values are optimal, quick init, impacted, degraded,

failed, offline.

■ Array name—This is a modifiable field that displays the name

assigned to this array at creation. You can click in the array
name field and rename the array using any unique combination
of up to 15 standard ASCII characters.

■ Type—The RAID level or volume type of the selected array.

3-26

Adaptec Storage Manager-Browser Edition

■ Capacity—The physical capacity of the selected array in

gigabytes with the number of blocks in parenthesis.

■ Stripe Size—Where applicable, the stripe size of the selected

array.

■ Hot spare—Indicates, for redundant arrays, if a hot spare

protects the selected array.

■ Logical drive number—A number assigned to the selected

array by the controller. This number is only used by the
controller.

Note: It is worth noting that if the system is booting from the

controller that this array is connected to, the lowest number
array (typically array 0) is the boot device. ACU provides an
option to select any array and make it the boot device. If you
choose to do so, the array you choose to make the boot device
will become array 0. This action may result in other array(s)
being renumbered.

Cache Settings Tab

The Cache Settings tab duplicates the options presented in the
advanced version of the Create Array wizard. You can choose to
modify the settings for both read and write cache.

W rite cache can be set to disable, enable always, or (if the contr oller
is fitted with a battery) enable when protected.

Read cache can be enabled or disabled.

Viewing and Creating Tasks

The Tasks button has a window which contain two tabs: Task
Viewer and New Task.

Task Viewer Tab

Displays details of current and scheduled tasks for the system or
the selected controller, channel, array or drive.

3-27

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

It is only possible to create tasks for arrays or drives. If you select
Tasks for a channel, controller, or the system, all relevant tasks will
be displayed.

When Adaptec Storage Manager is installed a scheduled task is
created to perform a weekly background consistency check of all
hot spares in the system. This task can be seen by clicking Tasks
when it is blue, that is when nothing is selected.

New Tasks Tab

Allows you to create new tasks for an array or a drive. New Tasks
can either be run immediately, or scheduled to run at a later time.
Available tasks are Verify, Verify with Fix, and Clear. An
explanation of the impact of each task is given below.

■ Drive

■ Verify—Performs a test of the entire drive to ensure that

there are no problems. Any bad blocks found are not
repaired.

■ Verify with Fix—Performs a test of the entire drive to

ensure that there are no pr oblems. Any bad blocks found are
repaired.

■ Clear—Erases all data on the drive. Any data previously on

the drive is not recoverable, and if all or part of the drive is
used in an array, data integrity of the array will be
compromised.

■ Array

■ Verify—Performs a test of the entire array to ensure that

data is consistent. Any inconsistency found is not repaired.

■ Verify with Fix—Performs a test of the entire array to

ensure that data is consistent. Any inconsistency found is
repaired.

■ Clear—Erases all data on the array. Any data previously on

the array is not recove rable.

3-28

Adaptec Storage Manager-Browser Edition

To create a task:

1 Select the array or drive you want the task to run on.
2 Click Tasks.
3 Select the New Tasks tab.
4 Select the type of task from the drop-down list.
5 Select the priority for the task. The default is High.
6 If you want the task to start imm ediately, click OK. Or, if you

want to schedule the task for later, select Schedule.
If you select Schedule, additional options will appear that will

allow you to see the day of week and time you want the task to
start, as well as the time format. Once you have selected the
time and day, click OK.

About Adaptec Storage Manager Notifier Service

Adaptec Storage Manager - Browser Edition includes a notifier
service that enables controller events to be added to the system
event log. This service can notify users, through e-mail, of
controller events.

When you install Adaptec Storage Manager on a syst em equipped
with an Adaptec Advanced RAID controller, the notifier service is
installed and configured to log all events to the system ev ent log.
The default installation has email event notification disabled.

Notifier Service Event Levels

Adaptec Advanced RAID controllers support three event levels:

■ Critical

■ Warning

■ Informational

The level(s) of events entered in the system log and received by
each user is configured independently.

3-29

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

The notifier utility is named slightly differently depending on
which operating system you are using. For all vers ions of Micr osoft
Windows the utility is named notify.exe, while for Novell
NetWare it is named notify.nlm, and for all Linux and Unix
variants it is named anotifyd.

All versions of the utility support the -c switch. This switch runs
the notifier in a configuration mode that leads you through the
steps necessary to configure the system event log and e-mail
notification.

In addition to -c, the Microsoft Windows version of the notifier
supports the switches in Table 3-2.

Table 3-2 Switches

-c Starts the notifier in configuration mode.

-? Lists the switches supported by the notifier.

-i Install - installs the notifier service. The notifier is

installed by default. If the service has been
uninstalled for any reason, this switch will install the
service and set it to start automatically from the next
boot.

-u Uninstall - removes the notifier service.

-v Version - lists the version number of the notifier

service.

-s Start - starts the notifier service.

3-30

Adaptec Storage Manager-Browser Edition

Enabling and Configuring the Notifier Service

Before you begin to configure e-mail notification you need to have
the following information available:

■ The SMTP mail server host name or IP address.

■ The port that SMTP mail server is configured to use. The default

value of 25 was chosen because it is the default for most SMTP
mail server packages. If you are unsure ask your e-mail
administrator.

■ The SMTP e-mail address to which all returned e-mail should

be forwarded. SMTP e-mail addresses take the form
[e-mail].

■ The SMTP e-mail address of all users that need to receive event

notifications.

Before you configure the notifier be sure the notifier service and
ARCPD are stopped.

Controlling ARCPD for Windows 2000

To stop the ARCPD for Windows 2000, right click My Computer >
Manage > Service and Applications > then right click Adaptec
Web Server > Stop > Yes. This will also stop the Adaptec Storage
Manager Notifier.

To restart, repeat the process above for both the Adaptec Web
Server and the Adaptec Storage Manager Notifier and click Start
instead of Stop.

Controlling ARCPD for Unix and Linux

The ARCPD starts automatically in both Unix and Linux. To stop
the ARCPD, in the /opt/Adaptec/SMBE/etc prompt, type Daemon
stop.

To restart, type Daemon restart (as it appears in the list of
selections in /opt/Adaptec/SMBE/etc).

3-31

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Controlling ARCPD for NetWare

To stop the ARCPD using NetWare, type unload arcpd.nlm
then unload notify.nlm.

To restart the ARCPD, type load arcpd.nlm then load
notify.nlm.

Configuring the Notifier Service

To configure the notifier service:

1 Place your cursor at a command prompt in the directory where

Adaptec Storage Manager was installed.

2 Type any of the following commands:

■ For Windows: notify -c > Enter

■ For Unix/Linux: anotifyd -c > Enter

■ For Netware: load notify -c > Enter

System Event Log

The next step in configuring the notifier utility will ask you
whether or not controller events should be added to the system
event log. The default is set to log no events.

To add controller events:

1 Choose Y (yes).
2 Select which level(s) of events you want to log. The list of events

are found in Table 3-3. Each level of event can be enabled or
disabled independently. For example, press 1 to enable logging
of Critical events. Alternatively, to log both Critical and
Warning, press 1 then 2.

3-32

Adaptec Storage Manager-Browser Edition

3 When you have completed all s ele ctions , press 4 to exit.

Table 3-3 Commands for Event Log

Event Commands Event Log Levels

1Critical
2Warning
3 Informational
4Exit

Configuring E-mail Notification

After you have selected the level of events, you will be asked if you
would like to configure e-mail notification. Choosing N (no) exits
the notifier configuration mode.

To configure e-mail notification:

1 Select Y.
2 A prompt is displayed to enter the IP address or hostname of

the SMTP e-mail server on the network. Type in either the
hostname or IP address of the server and press Enter.

3 Next you will be prompted for the port number that the e-mail

server is using. Accept the default if that is correct for your mail
server, or provide the appropriate value and press Enter.

4 Another prompt is displayed, prompting you to enter an e-mail

address that all bounced mail should be forwarded to. Type in
the full SMTP e-mail address and press Enter.

5 The next prompt will enable you to enter the e-mail address of

the first user to be notified. Type in the full SMTP e-mail
address and press Enter.

6 Select the level of events you want the first user to receive. If

you wish to add more users, press Y and repeat the steps above.

7 When you have completed all s ele ctions , press 4.
8 Press Y if you want to add additional recipients or press N to

exit the configuration utility.

9 Restart AR CPD and the notifier.

3-33

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Reconfiguring E-mail Notification

To change the level of events e-mailed to a user, or to stop all
messages from being sent to a user, re-run the notifier in
configuration mode.

At the system event log prompt, press Y. The configured events
you previously selected will be displayed. Press 4 to exit the
display. Press Enter at the IP address, port number, and bounced e­mail prompts to leave these prompts unchanged.

Type the e-mail address for the user you wish to remove, delete, or
modify. Press Enter.

A prompt asks if you want to delete the selected user. Press Y to
remove the user. Press N to modify the level of events the user
receives.

3-34

4

Using the Command Line Interface

In this Chapter

Introducing the Command Line Interface 4-2
Accessing the Command Line Interface 4-2
Terminology 4-3
Using the CLI 4-4
General Control Commands 4-16
Container (Array) Commands 4-18
Controller Commands 4-29
Diagnostic Commands 4-32
Disk Commands 4-34
Logfile Commands 4-38
Task Commands 4-39
Enclosure Commands 4-40
Using Automated Command Scripts 4-44

4-1

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Introducing the Command Line Interface

To configure and manage components running on the controller,
Adaptec provides an easy-to-use graphical user interface (GUI)
called Adaptec Storage Manager as well as a command line
interface (CLI).

The CLI provides an alternative to Adaptec Storage Manager.
Through the CLI, you can perform most of the storage
management tasks that you can perform with Adaptec Storage
Manager and, in addition, some tasks not available in the GUI. To
automate testing or array creation in a production environment,
the CLI enables you to use CLI commands in Windows command
scripts and UNIX/Linux shell scripts.

This chapter describes briefly some of the commands available in
the CLI. For a full description of all the CLI commands see the
Adaptec SCSI RAID Software Reference Guide.

Accessing the Command Line Interface

You can execute the command line interface (CLI):

■ From the Windows XP, Windows 2000 or Windows NT Start

button

Note: The following procedure assumes that you accepted

the default location for the software during installation.

To access the CLI from the Windows XP(basic disk only),
Windows 2000(basic disk only) or Windows NT Start button:

1 Click the Start button and move the mouse cursor to

Programs. Click on Programs.

2 Move the mouse cursor to SMBE. The Adaptec program

group will display.

3 Move the mouse cursor to the CLI icon. Click on CLI.

■ From the NetWare server console

To access the CLI from the NetWare server console, type
aaccli at the prompt. When the system displays the CLI>
prompt, which indicates that you can now use CLI commands.

4-2

Using the Command Line Interface

■ From the UNIX/Linux prompt

To access the CLI from the UNIX/Linux prompt, display a
window and type aaccli in any directory. When the system
displays the CLI> pr ompt, you can use CLI commands. For the
commands to work in any directory, the path in the startup file
(.login or .cshrc) must include the directory where the
software is installed. See your UNIX/Linux documentation for
information on setting up directory paths in the .login and
.cshrc files.

Terminology

For a complete discussion of terminology, see the Glossary in this
guide. Table 4-1 lists and defines some terms used in this chapter
and is presented here for your ease-of-use:

Table 4-1 Terminology Chart

Term Preferred Term Definition

container array A logical disk created from

available space and made up of one
or more segments on one or more
physical disks.

chunk stripe Contiguous set of data written to

one segment before the controller
moves to the next segment.

freespace available space Space on an initialized disk that is

not in use.

partition segment Contiguous area of a physical drive

that makes up some or all of an
array.

failover disk hot spare Drive available to replace a failed

component in an array.

4-3

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Using the CLI

Brief descriptions of many of the CLI commands are provided later
in this chapter.

This section contains some examples of using CLI commands to
perform common tasks.

■ Opening and Closing a Controller

■ Creating Single-Level Arrays

■ Deleting Arrays

■ Enabling Spares

■ Displaying Controller Information

■ Displaying Disk Information

■ Displaying Array Information

Opening and Closing a Controller

Before any command can be sent to a specific controller that
controller must first be opened. Only one controller may be open at
any time.

To open controller AAC0 use the following command.

CLI> open AAC0

When you have finished with the controller close it with the
following command.

AAC0> close

Creating Single-Level Arrays

This section explains how to create and work with single-level
arrays. The RAID software supports four types of single-level
containers:

■ Volume

■ RAID 0

■ RAID 1

■ RAID 5

4-4

Using the Command Line Interface

Before you can work with arrays, you must have previously
opened the controller. In addition, you must have initialized your
disk(s) to prepare for array operations.

The minimum size of an array is 10 MB.
Before creating any array, use the disk show space command

to display information about your disks. In the following example,
the Usage column indicates Free for each disk, which means that
the space on each disk consists of available space.

AAC0> disk show space

Executing: disk show space
Scsi C:ID:L Usage Size

----------- ---------- ------------­2:01:0 Free 64.0KB:8.47GB
2:02:0 Free 64.0KB:8.47GB
2:03:0 Free 64.0KB:8.47GB
2:04:0 Free 64.0KB:8.47GB

After creating an array, use the container list command to
display information about the array. In the following example, the

Num Label column indicates the array ID 0 and the array label
Venus. The Type column indicates a Volume set. The Total Size
column indicates that the array is 100 MB.

AAC0> container list

Executing: container list

Num Total Oth Stripe Scsi Partition

DrLabel Type Size Ctr Size Usage C:ID:L Offset:Size

-- ----- ------ ------ --- ------ ------- ------ -----------

0 Volume 100MB None 2:01:0 64.0KB: 100MB

Venus

Creating a Volume Set

To create a volume set, use the container create volume
command. In the following example, the volume set 0 is created on
SCSI device (2,01,0) from 100MB (megabytes) of available space.
The array’s raw cache is enabled, and the label Venus is specified.

AAC0> container create volume /cache=TRUE /label=Venus
((2,01,0), 100M)

Executing: container create volume /cache=TRUE /
label=Venus ((CHANNEL=2,ID=1,LUN=0),104,857,600)

container 0 created

4-5

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Creating a RAID 0

When creating a RAID 0, you need to determine the stripe size that
is most suitable for your environment. The stripe size attribute
indicates the number of bytes in a stripe, the amount of data
written to a segment before the I/O data stream switches to the
next segment in the stripe. The stripe size can be 16 KB, 32 KB, or
64 KB. The default stripe size is 32 KB. Note that you can use the
container reconfigure command at a later time to change the
stripe size.

To create a RAID 0, use the container create stripe
command. In the following example, the stripe set 0 is created on
SCSI device (2,01,0) from 100 MB of available space. The array’s
raw cache is enabled, and the label Mars is specified.

AAC0> container create stripe /cache=TRUE /label=Mars
((2,01,0), 100M)

Executing: container create stripe /cache=TRUE /
label="Mars" ((CHANNEL=2,ID=1,LUN=0),104,857,600 )

container 0 created

Creating a RAID 1

To create a RAID 1, use the container create new_mirror
command. In the following example, a RAID 1 is created on SCSI
devices (2,2,0), and (2,3,0) using 100 M of available space from each
SCSI device.

AAC0> container create new_mirror ((2,2,0), 100M)
(2,3,0)

Executing: container create new_mirror
((CHANNEL=2,ID=2,LUN=0),104,857,600 )
(CHANNEL=2,ID=3,LUN=0)

4-6

Using the Command Line Interface

Creating a RAID 5

When creating a RAID 5, you need to determine the stripe size that
is most suitable for your environment. See Creating a RAID 0 for
more information about determining the appropriate stripe size for
your environment.

To recreate the data of a failed disk in a RAID 5, you use a form of
redundancy called parity. When you set up parity, you initialize
the parity stripes by using a scrubbing switch (/scrub=TRUE).
Parity is set up in the background, and the disks are available
immediately.

The /scrub switch is not available in UNIX/Linux. For UNIX/
Linux, the RAID 5 is always created by building.

To create a RAID 5, use the container create raid5
command. In the following example, a RAID 5 is created on SCSI
devices (2,1,0), (2,2,0), and (2,3,0) using 100 M of available space
from each SCSI device. The /stripe_size switch specifies that each
stripe is 64 K in size.

AAC0> container create raid5 /stripe_size=64K ((2,1,0),
100M) (2,2,0) (2,3,0)

Executing: container create raid5 /stripe_size=65,536
((CHANNEL=2,ID=1,LUN=0),104,857,600)
(CHANNEL=2,ID=2,LUN=0) (CHANNEL=2,ID=3,LUN=0)

Deleting Arrays

To delete an array, use the container delete command. In the
following example, array 0 is deleted.

AAC0> container delete 0

Executing: container delete 0

After running the container delete command, use the
container list command to verify that the array was deleted.

In the following example, no arrays are found on the controller.

AAC0> container list

Executing: container list
No containers found.

4-7

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

!

Enabling Spares

A spare disk (also called a “hot spare”) is a disk that you configure
to recover data from a failed segment/disk in a redundant array.
To assign one or more spare disks for a single array, use the
container set failover command. To assign one or more
spare disks for all arrays, use the container set
global_failover command. The main characteristic of these
commands is that you must “manually” assign the spare disk to
one or more arrays. In fact, you might consider the previously
described spare mechanism as “manually set spare.”

Note: RAID 1, 5 10 and 50 use the spare assignment if a disk

fails. (RAID 1, 5, 10 and 50 are often referred to as redundant
arrays).

Automatic rebuild on replacement allows you to replace a failed
disk with a replacement disk. The controller automatically assigns
the disk you insert as a hotspare without your having to first assign
it manually using the container set failover or
container set global_failover command.

See the Adaptec SCSI RAID Software Reference Guide for more
information on the container set failover and container
set global_failover commands.

Caution: The controller deletes any data on the replacement

disk when automatic rebuild on replacement is enabled and
you remove the failed disk and insert the replacement disk in
the failed disk’s slot.

Note: The automatic spare feature works only with disks that

reside in an SAF-TE or SES enabled enclosure.

Through the CLI, you can:

■ Display a controller’s automatic rebuild on replacement status

■ Enable automatic rebuild on replacement

4-8

Using the Command Line Interface

To display a controller’s automatic rebuild on replacement status,
use the controller show automatic_failover command.
In the following example, rebuild on replacement is indicated as
DISABLED.

AAC0> controller show automatic_failover

Executing: controller show automatic_failover
Automatic failover DISABLED

To enable automatic spare, use the controller set
automatic_failover command with the /failover switch, as in

the following example:

AAC0> controller set automatic_failover

/failover_enabled=TRUE

Executing: controller set automatic_failover
/failover_enabled=TRUE

After running the controller set automatic_failover
command, use the controller show automatic_failover
command to verify that automatic rebuild on replacement has been
enabled. If necessary, you can now replace a failed disk with a
replacement disk.

Displaying Controller Inf ormation

Controllers exhibit a number of attributes that you can display or
manage using the following CLI commands:

■ controller list

Controller Attribute: Indicates:

controller (adapter) name Name
controller (adapter) type Product name
controller availability Access mode

Example of controller list:

CLI> controller list

Executing: controller list
Adapter Name Adapter Type Availability

------------ ------------ -----------­\\.\AAC0 Adaptec xxxxx read/write

4-9

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

■ controller details

Controller Attribute: Indicates:

controller (adapter) name Name
controller (adapter) type Product name
controller availability Access mode
controller remote computer Name of remote computer on

which an open controller resides

controller serial number Last six hexadecimal characters of

serial number
controller CPU type CPU
number of channels Number of channels
number of devices per channel Maximum number of devices, not

including host controller
controller CPU speed Clock speed (in megahertz)
controller memory Total amount of memory that

programs can use

Example of controller details:

AAC0> controller details

Executing: controller details
Controller Information

----------------------

Controller Serial Number: Last Six Digits = 8A277A

Component Revisions

----------------------

Controller Software: 3.0-0 (Build #5478)

Controller Firmware: (Build #5478)
Controller Hardware: 3.3

Remote Computer: .

Device Name: AAC0

Controller Type: Adaptec xxxxx

Access Mode: READ-WRITE

Number of Channels: 2

Devices per Channel: 15

Controller CPU: 80203

Controller CPU Speed: 100 Mhz

Controller Memory: 64 Mbytes

Battery State: Ok

CLI: 3.0-0 (Build #5478)
API: 3.0-0 (Build #5478)

Miniport Driver: 3.0-0 (Build #5478)

Controller BIOS: 3.0-0 (Build #5478)

4-10

Using the Command Line Interface

Before opening a controller, you may want to use the controller
list command to display a list of controllers. In the following

example, the Adapter Name column indicates that AAC0 is the
name of the controller installed on the computer. The example also
indicates the controller’s path, which is \\.\

CLI> controller list

Executing: controller list

Adapter Name Adapter Type Availability

------------ ------------ -----------­\\.\AAC0 Adaptec xxxxx read/write

Displaying Disk Information

The CLI enables you to monitor or manage disk attributes, prepare
a disk for use by a controller, and detect defects using the following
CLI commands:

■ disk list

Disk Attribute: Indicates:

SCSI device ID An ID number assigned to each SCSI device

attached to a SCSI channel

device type Whether the device is a disk, printer, scanner,

and so on

removable media Whether the media is removable (diskette or

vendor ID Name of a device vendor
product ID Device model number
revision numb er Device revision nu mber
number of blocks Total number of disk block available on a

bytes per block Number of bytes for each block
disk usage Either MS-DOS, Initialized, Not Initialized,

shared channel N/A

CD-ROM, for example)

device

Offline, or Unknown

4-11

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Example of disk list:

AAC0> disk list

Executing: disk list
C:ID:L Device Type Blocks Bytes/Block Usage Shared

------ ----------- -------- ----------- ----------- -----­2:01:0 Disk 17783240 512 Initialized NO
2:02:0 Disk 17783240 512 Initialized NO

■

disk show defects

Disk Attribute: Indicates:

disk defects

■ Total number and location of primary defects

(defects that originate during manufacturing)

■ Total number and location of grown defects

(defects that originate after manufacturing)

Example of disk show defects:

AAC0> disk show defects /full=true (3,1,0)

Executing: disk show defects /full=TRUE

(CHANNEL=3,ID=1,LUN=0)

Number of PRIMARY defects on drive: 5

Defect 1 at cylinder 229, head 7, sector 203

Defect 2 at cylinder 575, head 0, sector 219
Defect 3 at cylinder 576, head 0, sector 55
Defect 4 at cylinder 578, head 0, sector 238
Defect 5 at cylinder 579, head 0, sector 74
Number of GROWN defects on drive: 0

■

disk verify

Disk Attribute: Indicates:

disk defects

■ Total number and location of primary defects

(defects that originate during manufacturing)

■ Total number and location of grown defects

(defects that originate after manufacturing)

Example of disk verify:

AAC0> disk verify

4-12

Using the Command Line Interface

Displaying Array Information

The CLI enables you to display and manage the attributes
(characteristics) of arrays using the following commands:

■ container list

Array Attribute: Indicates:

drive letter Letter associated with an array. Not

automatically assigned when you create an
array.

root special file UNIX/Linux root special file associated

array number ID of an array (number from 0 to 63).
array label Name assigned to an array. Not

array type Whether an array is a volume, RAID 0,

creation date Month, day, and year the array was created.
creation time Hour, minute, and second the array was

total size Number of bytes in an array. The size of an

stripe size Number of bytes in a stripe (amount of data

read only Whether an array is read-only accessible.

read/write Whether an array is read-write accessible.
lock Whether an array is locked into volatile

with the array and created by the operating
system after array creation. Appears in the
Num Label column.

automatically assigned. Appears in the
Num Label column.

RAID 1, RAID 5, RAID 10, RAID 50, or a
reconfigured a rray.

created.

array is the size of the available space when
the array was created, reconfigured, or
extended.

written to a segment before the I/O data
stream switches to the next segment/array).

An array can be set to read-only if not in use
by an application.

memory space on the currently open
controller. Typically, you lock and unlock
arrays only under the direction of technical
support.

4-13

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Array Attribute: Indicates:

resident file system Type of file system, if any, that resides on an

multi-partition
container

netware
environment

UNIX opened There is a mounted file system on the array.
unknown file system There is an unknown file system on the

unmapped
containers

phantom container The RAID controller software cannot

valid container The UNIX/Linux operating system

mirror set create Creation of a RAID 1 (mirror).
mirror set normal The RAID 1 is in the normal state.
reconfiguration copy

container
reconfiguration

destination
container

reconfiguration
RAID-5 set

reconfiguration
source container

reconfiguration
temporary container

RAID-5 set
unprotected

array. Usage column.
That a file system resides on a multi-

partition array (array that has multiple
operating systems or MS-DOS partitions).
Usage column.

The array resides in a NetWare system.
Usage column.

array
The array is unusable and cannot be

mounted.

configure the array or the array is offline.

recognized the array and there has been a
query (such as mount, fdisk, read, or write)
on the array.

An array is being used as a copy (hidden)
array (Copy).

An array is being used as a destination
(hidden) array (Dest).

An array is being used as a RAID 5 (hidden)
array (Raid5).

An array is being used as a source (hidden)
array (Source).

An array is being used as a temporary
(hidden) array (Temp).

Creation of a RAID 5 (Unprot).

4-14

Using the Command Line Interface

Example of container list:

AAC0> container list

Executing: container list

Total Oth Stripe Scsi Partition

Label Type Size Ctr Size Usage C:ID:L Offset:Size

----- ----- ----- --- ------ ------- ----- ------------

0 Volume 30MB None 2:01:0 64KB: 15MB

Venus 2:02:0 64KB: 15MB

■ container show cache

Cache Attribute: Indicates:

global container read
cache size

global container write
cache size

Number of blocks dedicated to the read
cache.

Number of blocks dedicated to the write
cache.

read cache setting Whether the read cache is enabled.

Example of container show cache:

AAC0> container show cache 0
Executing: container show cache 0

Global container Read Cache Size : 5345280
Global container Write Cache Size : 63332352
Read Cache Setting : ENABLE
Write Cache Setting : ENABLE
Write Cache Status : Active, cache enabled

4-15

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

The CLI Commands

For details on the CLI commands, refer to the Command Line
Interface Reference Guide available in PDF format on the distribution

CD-ROM enclosed with your controller.

General Control Commands

Command Summary:

close

Closes the currently opened controller.

exit

Closes the opened controller and exit the CLI.

help [/full] [{command}]

Invokes general or topical help.

Parameters

{command}—If a command has more subcommands, help
lists the subcommands and their functions. If a complete
command is used, such as container list, the CLI help
displays all possible switches

Switches

/full—Displays all relevant commands along with the
command format and all command switches.

history_size {buffer_size}

Sets the size of the history buffer.

Supported on UNIX/Linux only.

Parameters

{buffer_size}—Size of the command history buffer.
Default is 200.

4-16

Using the Command Line Interface

open [/readonly{=boolean}] [/domain{=string}]
{string}

Opens a controller for access by the CLI. The controller must
be open before any command can be targeted at that
controller.

Parameters

{string}—Computer name and the controller to open.

Switches

/readonly{=boolean}—Specifies whether to open the
controller for read-only access. A value of TRUE opens the
controller for read-only access. If opening a controller with
read-only access, you can use only the commands that do
not change the controller configuration.

/domain{=string}—Domain (local or a trusted domain)
in which the computer that contains the controller resides. If
not specified, the CLI assumes the local domain.

Switch supported on Windows XP (basic disk only),
Windows 2000 (basic disk only) and Windows NT.

reset_window

Resets the window.

Supported on UNIX/Linux only.

toggle_more

Turns on or off the <Press any key to continue>
functionality.

Supported on NetWare only.

4-17

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Container (Array) Commands

Before working with arrays, you must have previously opened the
controller. In addition, you must have initialized your disk(s) to
prepare for array operations.

The following commands are used to display, create, and manage
arrays.

Command Summary:

container add_level {container}

Creates a multilevel volume array which contains the array
as its only element.

Parameters

{container}—ID of the array to convert to a multilevel
volume.

container clear [/always{=boolean}]
[/wait{=boolean}] {container}

Clears the array.

Parameters

{container}—ID of the array to clear.

Switches

/always—Specifies whether to clear the array even if it has
data on it. The default is FALSE, meaning that the command
clears the array only if it has no data on it. All user files must
be closed; the /always switch cannot override this
restriction.

/wait—Specifies whether to clear the array synchronously
and not return the command prompt until the clear array
task completes. The default is FALSE, meaning that the
command clears the array asynchronously and the
command prompt returns immediately.

4-18

Using the Command Line Interface

container create mirror [wait{=boolean}]
[/io_delay{=integer}] {container} {scsi_device}

Creates a RAID 1 from a single entry volume.

Parameters

{container}—ID of the array on which to create a RAID 1
(mirror).

{scsi_devices}—ID for the SCSI device whose available
space to use for mirroring the volume specified in the
{container} parameter.

Switches

/wait—Specifies synchronous RAID1 creation.
/io_delay—Number of milliseconds between each I/O

used for the RAID 1 creation.

container create mmirror [/io_delay{=integer}]
[/wait{=boolean}] {container} {scsi_device}
[{scsi_device}...]

Creates a multilevel array of RAID 1s from a multilevel
array of single entry volumes.

Parameters

{container}—ID of the array whose underlying volumes
the command converts to RAID 1s.

{scsi_device}—ID for the SCSI device whose available
space to use to create the multilevel array of RAID 1s.

{scsi_device}...—IDs for additional SCSI devices
whose available space to use to create the multilevel array of
RAID 1s.

Switches

/io_delay—Number of milliseconds between each I/O
used for the RAID 1 create.

/wait—Specifies synchronous RAID 1 creation.

4-19

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

container create mstripe [/stripe_size{=integer}]
[/label{=string}] {container} [{container}...]

Creates a multilevel RAID 0 (stripe).

Parameters

{container}—ID of the array from which to create the
multilevel RAID 0.

{container}...—ID(s) of array(s) from which to create
the multilevel RAID 0.

Switches

/stripe_size—Stripe size for the RAID 0.
/label—Label for the RAID 0.

container create mvolume {container}
[{container}...]

Creates a multilevel volume.

Parameters

{container}—ID of the array from which to create the
multilevel volume.

{container}...—ID(s) of array(s) from which to create
the multilevel volume.

Switches

/label—Label to assign to the multilevel volume.

4-20

Using the Command Line Interface

container create new_mirror [/cache{=boolean}]
[/clear{=boolean}] [/label{=string}]
[</quick_init{=boolean}>] [/scrub{=boolean}]
[/wait{=boolean}] {free_space} [{scsi_device}...]

Creates a RAID 1 (mirror) from two available spaces.

container create raid5 [/cache{=boolean}]
[/stripe_size{=integer}] [/clear{=boolean}]
[/label{=string}] [</quick_init{=boolean}>]
[/scrub{=boolean}] [/wait{=boolean}] {free_space}
[{scsi_device}...]

Creates a RAID 5.

Parameters

{free_space}—SCSI device and its associated available
space used to create the array.

{scsi_device}...—One or more SCSI devices whose
available space to use to create the array.

Switches

/cache—Specifies whether to enable the array’s cache.
/stripe_size—Stripe size for the array (only applies to

RAID 5).
/clear—Specifies whether to clear the entire array during

initialization.

/label—Label to assign to the newly created array.
/quick_init—Specifies to use the Quick Init process,

making the array available immediately.

/scrub—Specifies whether to set up the parity by building.
/wait—Specifies whether the command prompt returns

only after the parity-protect operation completes.

4-21

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

container create stripe [/cache{=boolean}]
[/stripe_size{=integer}] [/label{=string}]
{free_space} [{scsi_device}...]

Creates a RAID 0 (stripe).

Parameters

{free_space}—SCSI device and its associated available
space to use to create the RAID 0.

{scsi_devices}...—One or more SCSI devices.

Switches

/cache—Specifies whether to enable the array’s raw cache
mode.

/stripe_size—Stripe size for the RAID 0. Defaults to
64 KB.

/label—Label to assign to the new RAID 0.

container create volume [/cache{=boolean}]
[/label{=string}] {scsi_device}, {free_space},
{scsi_device}, [{free_space}...]

Creates a volume.

Parameters

{scsi_device}—SCSI device and its associated available
space to use to create the volume.

{free_space}—Available space to use to create the
volume.

{scsi_device}, {free_space}...—Additional SCSI
devices and associated available spaces.

Switches

/cache—Enables the array’s raw array cache.
/label—Label to assign to the new volume.

4-22

Using the Command Line Interface

container delete [/always{=boolean}]
[/unconditional{=boolean}] {container}

Deletes the array.

Parameters

{container}—ID of the array to delete.

Switches

/always—Specifies to delete the array even if it has data <a
file system>. (Cannot override open files.)

/unconditional—Specifies that the array be deleted even
if it has a file system. (Overrides open files.)

container list [/all{=boolean}] [/full{=boolean}]
[{container}]

Lists information about the array(s) on the controller.

Parameters

{array}—ID of the array containing information to
display.

Switches

/all—Specifies whether to list all containers on the system.
/full—Specifies whether to display detailed information.

container lock {container}

Locks an array into volatile memory space.

Parameters

{array}—ID of the array to lock.

container move {container} {container}

Moves the first array number specified to the second array
number specified; in effect, to renumber an array.

Parameters

{container}—ID of the array to renumber.
{container}—ID number to assign to the array specified

in the first array parameter.

4-23

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

container promote {container}

Creates a multilevel volume from a RAID 0 or a single entry
volume.

Parameters

{container}—ID of the array to promote into a multilevel
array.

container readonly {container}

Sets the protection on the array to read-only access.

Parameters

{container}—ID of the array to set to read-only access.

container readwrite {container}

Sets the protection on an array to read-write access.

Parameters

{container}—ID of the array to set to read-write access.

container reconfigure [/stripe_size{=integer}]
[/mirror{=boolean}] [/partition_move{=boolean}]
[/partition_size{=integer}] [/raid5{=boolean}]
[/raid10{=boolean}] [/restart{=boolean}]
[/stripe{=boolean}] [/volume{=boolean}]
[/wait{=boolean}] {container} [{scsi_device}...]

Changes the configuration of an array.

Parameters

{container}—ID number of the array to reconfigure.
{scsi_device}...—One or more SCSI devices.

Switches

/stripe_size—Stripe size of the array.
/mirror—Reconfigure the array into a RAID 1.
/partition_move—Specifies that the array will move

partitions instead of add extra space.

/partition_size—Size of a partition.
/raid5—Reconfigure the array into a RAID 5.

4-24

Using the Command Line Interface

/raid10—Reconfigure the array into a RAID 10 (stripe of
mirrors).

/restart—Restart reconfiguring the array.
/stripe—Reconfigure the array into a RAID 1.
/volume—Reconfigure the array into a volume.
/wait—If specified, waits for reconfiguration to complete

before returning.

container release_cache {container}

Releases the controller’s cache buffers.

Parameters

{container}—Specifies the ID number of the array on
which to release cache buffers.

container remove failover {container}
{scsi_device} [{scsi_device}...]

Removes one or more failover disks.

Parameters

{container}—ID of the array whose assigned failover
disk(s) to remove.

{scsi_device}—ID for the SCSI device to remove as a
failover disk(s).

{scsi_device}...—ID(s) for any other SCSI device(s) to
remove as a failover disk.

container remove global_failover {scsi_device}
[{scsi_device}...]

Removes a global failover assignment.

Parameters

{scsi_device}—ID for the SCSI device to remove as a
failover disk.

{scsi_device}...—ID(s) for any other SCSI device(s) to
remove as a failover disk(s).

4-25

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

container restore RAID5 {container}

Tries to restore a RAID 5 that has a number of dead
segments as members.

Parameters

{container}—ID of the RAID 5 to restore.

container scrub [/io_delay{=integer}]
[/no_repair{=boolean}] [/wait{=boolean}]
{container}

Checks and repairs the consistency of a redundant array (for
example, RAID 5 or mirrors).

Parameters

{container}—ID of the redundant array to build.

Switches

/io_delay—Number of milliseconds the controller waits
between I/Os when building the array.

/no_repair—Specifies whether the build operation be
performed without repairing the error.

/wait—Specifies whether the build operation be performed
synchronously or asynchronously.

container set cache
[/read_cache_enable{=boolean}]
[/unprotected{=boolean}]
[/write_cache_enable{=boolean}] {container}

Sets cache parameters for a specific array. Useful only if a
native operating system's file system resides on the array.

Parameters

{container}—Specifies the ID of the array on which to set
cache parameters.

Switches

/read_cache_enable—Specifies whether to enable the
read-ahead cache.

/unprotected—Specifies whether to set the container's
NVRAM write-back cache to disable, enable when
protected, or enable always. Use this switch in conjunction
with the /write_cache_enable switch.

4-26

Using the Command Line Interface

/write_cache_enable—Specifies whether to set the
container's NVRAM write-back cache to disable, enable
when protected, or enable always. Use this switch in
conjunction with the /unprotected switch.

container set failover {container} {scsi_device}
[{scsi_device}...]

Assigns an automatic failover disk for a single array.

Parameters

{container}—ID of the array on which to assign an
automatic failover disk(s).

{scsi_device}—ID for the SCSI device to assign as a
failover disk.

{scsi_device}...—ID(s) for additional SCSI device(s) to
assign as failover disk(s).

container set global_failover {scsi_device}
[{scsi_device}...]

Assigns an automatic failover disk for all arrays.

Parameters

{scsi_device}—ID for the SCSI device to assign as a
failover disk.

{scsi_device}...—ID(s) for additional SCSI device(s) to
assign as failover disk(s) to all arrays.

container set io_delay {container} {integer}

Sets the I/O delay (in milliseconds).

Parameters

{container}—ID of the array on which to set the I/O
delay.

{integer}—Number of milliseconds the controller waits
between I/O operations.

4-27

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

!

container set label {container} {string}

Assigns a new label to the array.

Parameters

{container}—ID of the array to which to assign a label.
{string}—Specifies the label to assign.

container show cache {container}

Displays caching parameters for an array.

Parameters

{container}—ID of the array whose associated cache
parameters to display.

container show failover [{container}]

Displays an array’s assigned failover disks.

Parameters

{container}—ID of the array whose assigned failover
disk(s) to display.

container unlock {container}

Unlocks the array.

Caution: Use only under the direction of Technical

Support.

Parameters

{container}—ID of the array to unlock.

container unmirror {container}

Changes the RAID 1 (mirror) to a volume and frees the
redundant space.

Parameters

{container}—ID of the RAID 1 to unmirror.

4-28

Using the Command Line Interface

Controller Commands

The following commands are used to display the status of a var iety
of controller attributes and to perform such tasks as pausing and
resuming I/O and enabling or disabling automatic failover.

Command Summary:

controller details

Shows details about the open controller and software.

controller firmware compare [/C{controller_ID}]
[{controller_ID}...] [/D{UFI_file_path}]

Compares the contents of each of the flash components on a
controller to the corresponding image in user flash image
(UFI) files and indicates whether they match.

Switches

/C{controller_ID}—ID representing the set of
controllers on which to perform the firmware comparison.

/D{UFI_file_path}—Location of the UFI files.

controller firmware save [/C{controller_ID}]
[{controller_ID}...] [/D{UFI_file_path}]

Saves the contents of a controller’s flash in user flash image
(UFI) files.

Switches

/C{controller_ID}—ID representing the set of
controllers on which to perform the firmware comparison.

/D{UFI_file_path}—Location of the UFI files.

controller firmware update [/C{controller_ID}]
[{controller_ID}...] [/D{UFI_file_path}]

Updates a controller ’s flash components from the flash
image data in a pair of user flash image (UFI) files.

Switches

/C{controller_ID}—ID representing the set of
controllers on which to perform the firmware comparison.

/D{UFI_file_path}—Path where the pair of UFI files are
located.

4-29

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

controller list [/domain{=string}] [{string}]

Lists all controllers or displays information about the
currently opened controller.

Parameters

{string}—Computer name from which to display a list of
controller or specific information about the open controller.

Switches

/domain—Specifies the domain in which the host to be
searched resides. Supported on Windows XP, Windows

2000 and Windows NT.

controller pause_io [{integer}]

Pauses all I/O activity on the open controller to allow online
manipulation of hardware.

Supported on Windows XP (basic disk only), Windows
2000 (basic disk only), Windows NT and NetWare only.

Parameters

{integer}—Time in secon ds to cause the controller to wait
before resuming I/O.

controller rescan

Rescans the SCSI channels and updates all underlying
structures.

controller reset_scsi_channel {integer}

Resets a specific SCSI channel on the open controller.

Parameters

{integer}—Channel on which to reset this SCSI channel.

controller resume_io

Performs rescan operation and then resumes I/O after
pause_io.

4-30

Using the Command Line Interface

controller set automatic_failover
[/failover_enabled{=boolean}]

Turns on or off automatic failover for the controller.

Switches

/failover_enabled—Specifies whether to turn on or off
automatic failover on the controller. Specify 1 to enable, 0 to
disable. The default is 0.

controller set container_verify
[/verify_enabled{=boolean}]

Turns the container verify task on or off.

Switches

/verify_enabled—Specifies whether to turn on or off the
container verify feature. The command defaults to TRUE,
which means the command turns on the container verify
feature.

controller show automatic_failover

Displays the automatic failover status (enabled or disabled)
for the controller.

controller show channels

Displays all of the channels on the controller with the
characteristics of each channel.

controller show container_verify

Displays the status of the container verify status.

4-31

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Diagnostic Commands

Use the diagnostic commands to provide technical support
personnel with information needed to troubleshoot controller
problems. Use these commands only under the direction of
technical support personnel.

Command Summary:

diagnostic clear boot_parameters

Clears all boot-time parameters.

diagnostic dump structures{string}

Saves internal data structures.

Parameters

{string}—Name of the file to contain the internal data
structures.

diagnostic dump text

Displays diagnostic information.

diagnostic load_containers

When in maintenance mode, allows arrays to be loaded so
they can be verified.

diagnostic moderation set count

Sets the default interrupt count on the controller.

diagnostic moderation set timer {integer}

Sets the default interrupt timer on the controller.

Parameters

{integer}—Value to set as the default interrupt timer.

diagnostic moderation show count

Displays the default interrupt count on the controller.

diagnostic moderation show timer

Displays the default interrupt timer on the controller.

4-32

Using the Command Line Interface

diagnostic set boot_parameter{string} {integer}

Sets the boot-time parameter.

Parameters

{string}—Name of the boot-time parameter.
{integer}—Value for the boot-time parameter.

diagnostic show boot_parameter {string}

Displays the value of the boot-time parameter.

Parameters

{string}—Boot-time parameter character string whose
associated value you want to display.

diagnostic show history [/old{=boolean}]
[/current{=boolean}]

Displays the history buffer contained in the controller’s
NVRAM.

Switches

/old—Specifies that this command use the controller
history buffer from the previous boot.

/current—Specifies that this command use the current
controller history buffer (default).

4-33

Adaptec SCSI RAID 2120S/2200S Software User’s Guide

Disk Commands

Use the disk commands to manage disks connected to a RAID
controller. The CLI enables you to monitor disk characteristics and
parameters, prepare a disk for use, and detect defects.

Command Summary:

disk blink {scsi_device} {integer}

Causes the disk access light to blink.

Parameters

{scsi_device}—ID of the SCSI device to blink.
{integer}—Number of seconds for the SCSI disk to blink.

Zero (0) stops the blinking.

disk initialize [/always{=boolean}]
[/unconditional{=boolean}] {scsi_device}

Initializes a SCSI disk on the currently opened controller.

Parameters

{scsi_device}—ID of the SCSI device to initialize,

Switches

/always—Specifies whether to initialize the disk even if the
disk has existing data. (Cannot override open files.) Default
is FALSE.

/unconditional—Specifies whether to initialize the disk
even if arrays on the disk have open files. Default is FALSE.

disk list [/all{=boolean}] [/full{=boolean}]
[{scsi_device}]

Lists the disks available on the controller.

Parameters

{scsi_device}—Specifies the ID of the SCSI device to
display information.

Switches

/all—List of all SCSI devices on the controller.
/full—Detailed information for devices. Default is FALSE.

4-34
