User’s Guide

S

LIM

SCSI 1450 A

DAPTER

Adaptec, Inc.

691 South Milpitas Boulevard
Milpitas, CA 95035

© 1998, Adaptec, Inc.
All rights reserved. Adaptec and the
Adaptec logo are trademarks of Adaptec,
Inc. which may be registered in some
jurisdictions.

Printed in Singapore

STOCK NO.: 511607-00, Rev. B BKB 12/97

R

▼ ▼ ▼ ▼

SlimSCSI 1450 Adapter

User’s Guide

▼ ▼ ▼ ▼

Contents

Introduction 1

Contents of Kit 1
System Requirements 1

Installing the SlimSCSI 1450 2
Updating the Windows 95 Miniport Driver 5
Using the SlimSCSI 1450 6

Hot Plugging 6
Formatting Removable Media 7

Understanding SCSI 8

SCSI IDs 8
Terminating the SCSI Bus 9
SCSI Connector Types 9

Troubleshooting 10

General Hardware Troubleshooting 10
Windows 95 Troubleshooting 11

Contacting Ada pt e c 15

Electronic Support 15
Technical and Product Support 16
Sales and Ordering Information 16

iii

Introduction

Congratulations on your purchase of Adaptec’s SlimSCSI® 1450,

®

which is designed specifically for use with Microsoft Windows

95.
The SlimSCSI 1450 allows you to connect up to three SCSI devices to
your portable PC, including Zip drives and other kinds of remov­able media drives.

Contents of Kit

■

SlimSCSI 1450 PC Card-to-SCSI Adapter, with permanently
attached 50-pin high-density cable

■

Windows 95 driver diskette

■

SlimSCSI 1450 User’s Guide

■

50-pin-to-DB25 converter

■

Registration card

System Requirements

■

Portable PC with a PC Card Type II, Type III, or Toshiba
Type IV slot

■

Microsoft Windows 95

1

SlimSCSI 1450 Adapter User’s Guide

Installing the SlimSCSI 1450

Follow these steps to install the SlimSCSI 1450 and connect your
SCSI devices to it:

1

Remove the SlimSCSI 1450 from its packaging.

2

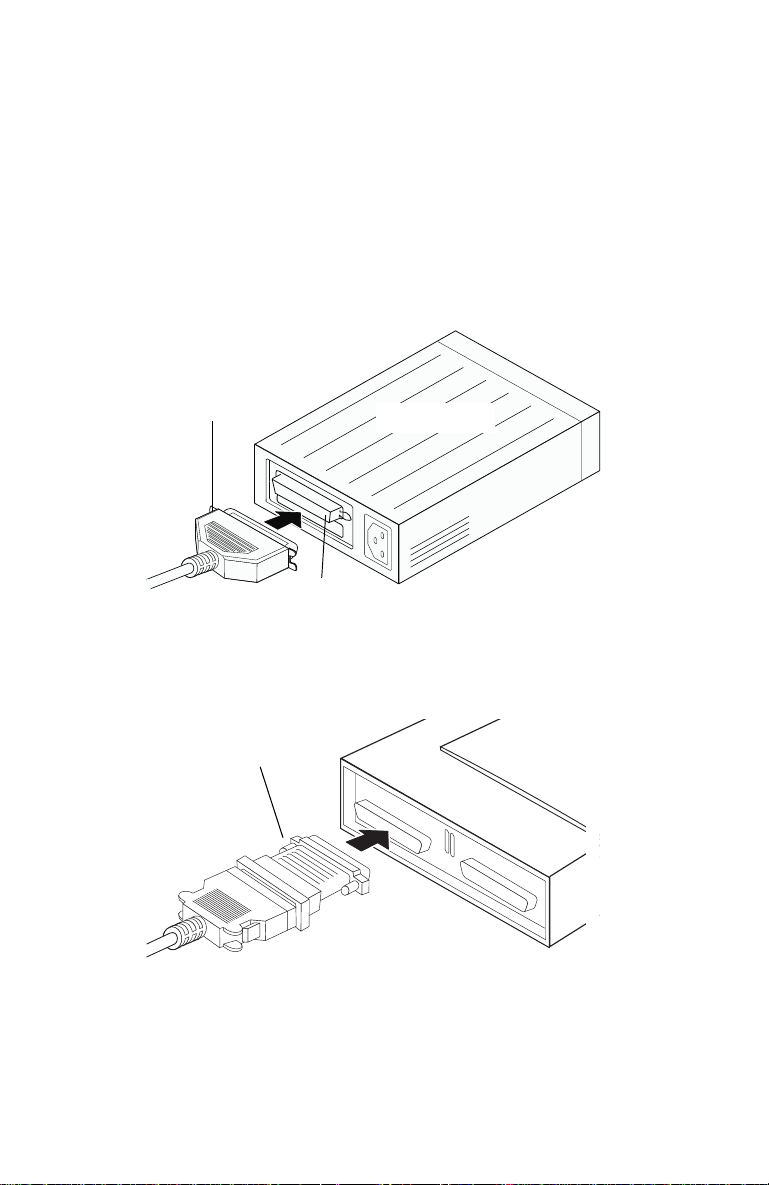

Plug the 50-pin connector into the first (or only) SCSI device, as
shown below. Make sure the SCSI device is not powered.

SCSI Connector

Terminator

If the SCSI device has a DB25 (25-pin) connector, attach the
50-pin-to-DB25 converter, as shown below, and plug it into the
connector on the device.

50-pin-to-25-pin

Converter

SCSI Device

2

Installing the SlimSCSI 1450

3

(Optional) Connect up to two additional SCSI devices by daisy-
chaining them to the first device, as shown below:

SCSI Devices

Terminator

4

Be sure that each SCSI device has a unique SCSI ID ranging
from 0 to 6. If any two devices have the same ID, change the
SCSI ID of one device. This is usually done by changing a
switch on the back of the device. (For more information, see
SCSI IDs on page 8.)

The diagram below shows a typical SCSI device with a select­able SCSI ID switch:

5

Terminate the last (or only) SCSI device connected to the
SlimSCSI 1450. Read the device documentation if you are not
sure how to terminate the device, or refer to Termin ating t he
SCSI Bus on page 9.

3

SlimSCSI 1450 Adapter User’s Guide

6

Be sure that at least one external SCSI device provides SCSI
bus termination power or that the last device on the bus sup­plies termination power to itself. Read the device documenta­tion if you are not sure whether the SCSI device provides
termination power.

7

Connect all power cables to the SCSI device(s). Then power up
the device(s).

8

Insert the SlimSCSI 1450 into one of your portable PC’s
PC Card slots, as shown below:

PCMCIA Type II or Type III Slot
(or Toshiba Type IV Slot)

SlimSCSI Adapter

9

Power up your portable PC.

This completes the physical installation of your SlimSCSI 1450 and
SCSI devices. Next, you need to update the SlimSCSI Windows 95
miniport driver.

4

Updating the Windows 95 Miniport Driver

Updating the Windows 95
Miniport Driver

Windows 95 has built-in software support for the SlimSCSI 1450.
This means that when you install the SlimSCSI 1450, Windows auto­matically finds and installs the driver for it. However, you may be
able to achieve better data I/O performance by installing the
updated driver from the diskette included with the SlimSCSI 1450.
Follow these steps if you wish to do this:

1

If Windows 95 is not already running, start it now.

2

Insert the Windows 95 drivers diskette in the portable PC’s
floppy disk drive.

3

Double-click the

Control Panel

4

Double-click the
Hardware Wizard screen appears.

5

6

7

8

9

10

Next

Click

Next

.

When the next screen appears, select the
and click
see the icon.)

When the next screen appears, click
does not already appear on the screen, and click OK.

When the next screen appears, select

SCSI Host Adapter
Next

When the next screen appears, click

Reboot your PC if Windows 95 prompts you to do so; if there is
no prompt, you do not need to reboot in order to start using
the new driver.

Next

.

My Computer

icon.

Add New Hardware

. When the next screen appears, select No and click

. (You may need to scroll down before you can

, if it is not already highlighted, and click

icon and Double-click the

icon. The Add New

SCSI controllers

Have Disk

APA-1450B PCMCIA

Finish

. Type a: if it

.

icon

5

SlimSCSI 1450 Adapter User’s Guide

Using the SlimSCSI 1450

Hot Plugging

After you install the SlimSCSI 1450 driver in your Windows 95 PC,
you can insert or remove the SlimSCSI 1450 at any time except when
data is being transferred on the SCSI bus. This is called
(You can tell that data is being transferred if the SCSI device activity
light is on.) Follow these steps to remove the SlimSCSI 1450 while
Windows 95 is running:

hot plugging

.

1

Click on the small
corner of the screen. You will see a dialog box similar to the
following:

2
3

Adaptec APA-1425/50/60 PCMCIA SCSI Host Adapter

Select

Click the

Stop

PC Card (PCMCIA)

button.

icon in the lower right

.

4

When you see the message
remove the SlimSCSI 1450 from the slot.

Caution:

before the message appears.

6

Your PC may hang if you remove the adapter

You may safely remove this device

,

Using the SlimSCSI 1450

When you insert the SlimSCSI 1450 adapter while Windows 95 is
running, Windows 95 detects the adapter and the device(s) con­nected to it. (Be sure the devices are powered before you insert the
adapter!)

Formatting Removable Media

Many removable media drives include a formatting utility that you
can use to format removable media. If no utility program was
included with your drive, you can format removable media with the

afdisk

program included on the Win 95 Drivers Diskette.

Caution:

you format it. Do not use the Windows 95 Format command
to format removable media.

Copy the
Command folder in the Windows directory on your hard disk drive.
Then follow these steps to run the

1

2

3
4

5

6

7

afdisk.exe

Insert the media in the drive. (Be sure the drive is connected to
the SlimSCSI adapter and is turned

Click the Start button, select Programs, and select MS-DOS
Prompt.

In the MS-DOS Prompt window, type afdisk and press Enter.

Use the arrow keys to move the highlight to the name of the
removable drive in the Select SCSI Device window, and press
Enter.

Press Ins. A small Create a DOS Partition window appears at
the bottom right of the screen.

Press Esc. When the confirmation prompt appears, select Yes
and press Enter to create the partition.

Press Esc to return to the Select SCSI Device to Partition
window.

All files on the removable media are erased when

file from the Win 95 Drivers Diskette to the

afdisk

program:

ON.)

8

To qu it

afdisk

, press Esc and select Yes.

7

SlimSCSI 1450 Adapter User’s Guide

Understanding SCSI

SCSI

(pronounced “scuzzy”) stands for Small Computer Systems

I

nterface. SCSI is an industry standard computer interface for con­necting SCSI devices (such as hard disk drives, CD-ROM drives, and
scanners) to a common SCSI bus.

SCSI bus

A
(such as the SlimSCSI adapter) installed in a computer and one or
more SCSI devices. SCSI cables are used to connect the devices to the
SCSI card.

For the SCSI bus to function properly, SCSI IDs must be assigned to
the SCSI devices and the SCSI adapter, and the SCSI bus must be
properly terminated.

SCSI IDs

Each device attached to the SlimSCSI 1450 adapter, as well as the
adapter itself, must be assigned a unique SCSI ID number from 0 to

6. A SCSI ID uniquely identifies each SCSI device on the SCSI bus
and determines priority when two or more devices are trying to use
the SCSI bus at the same time.

is an electrical pathway consisting of a SCSI adapter

■

The SlimSCSI 1450 adapter is preset to SCSI ID 7, which gives
it the highest priority on the SCSI bus.

■

In Windows 95, you can use the Device Manager to view the
SCSI ID and other information about each installed SCSI
device.

■

If you installed Adaptec® EZ-SCSI® software, you can use the
SCSI Explorer utility to view the SCSI ID and other informa­tion about each installed SCSI device.

8

Understanding SCSI

Terminating the SCSI Bus

To ensure reliable communication on the SCSI bus, terminators must
be installed (or enabled) on the devices at the physical ends of the
SCSI bus. The terminators on all devices between the physical ends
must be removed (or disabled). Termination on the SlimSCSI 1450 is
permanently enabled, since it is always at one end of the SCSI bus.

There are various methods for terminating disk drives and other
SCSI devices. Read the device documentation if you are not sure
how to do this. Here are some general guidelines for termination:

■

Termination is usually controlled by installing or removing a
SCSI terminator. On some SCSI devices, termination is con­trolled by setting a switch on the back of the device, as shown
in the illustration on page 3.

■

Most SCSI devices come from the factory with termination
enabled.

SCSI Connector Types

Several different types of SCSI connectors are used on SCSI devices,
and each type requires a different kind of cable. The SCSI-2 high­density 50- pin connector shown here is typically used with high­performance CD-ROM drives, hard disk drives, Jaz drives, and Plug
and Play devices:

The DB25 connector shown here is typically used with Iomega ZIP
drives, Syquest EZFlyer, etc.:

If one of your SCSI devices has a DB25 connector, you will need to
use the 50-pin-to-DB25 converter included in the SlimSCSI 1450 kit.

9

SlimSCSI 1450 Adapter User’s Guide

Troubleshooting

Most problems with the SlimSCSI 1450 result from errors in prepar­ing and connecting the SCSI devices to it. If you have problems,
check the items below.

Note:

If you have problems with a specific SCSI device when
other SCSI devices are working correctly, contact the manu­facturer of the problem device for troubleshooting
information.

General Hardware Troubleshooting

■

Be sure all SCSI cables and power cables are properly con­nected and all SCSI devices are powered.

■

Be sure the SlimSCSI 1450 is firmly seated in the PC Card slot.

■

Be sure each SCSI device has a different SCSI ID.

■

Be sure the last (or only) SCSI device on the SCSI bus is
terminated.

■

Be sure at least one SCSI device connected to the SlimSCSI 1450
supplies termination power to the SCSI bus. Otherwise, the
SCSI devices will not work correctly. (Some devices have a
switch to enable or disable termination power. See the device
documentation for more information.)

The SlimSCSI 1450 terminates itself but does not provide ter­mination power to other devices on the SCSI bus (the adapter
would need to draw this power from the portable PC’s battery,
which would not be desirable).

10

Troubleshooting

Windows 95 Troubleshooting

How do I determine i f the Windo ws 95 socket is enabled and i s running
correctl y?

1

Insert the SlimSCSI 1450 in the PC Card slot.

2

Click the Start button and click Settings.

3

Click Control Panel.

4

Double click the System icon, and then select the Device
Manager tab.

5

Double-click SCSI controllers. If A PA-1450/60 PCM CIA is not
listed, double click Other Devices.

6

If PCMCIA Socket is not listed, or if it is listed but has a yellow
exclamation mark or a red “X” next to it, PCMCIA Socket has
not been loaded properly or is not configured properly. See
your Windows 95 documentation for more information.

When I start Windows 95, the system locks up when the Windows logo
is displayed. How can I get the system to start so I can verify that the
SlimSCSI 1450 is functioning normally?

1

Start or restart your PC, and view the onscreen messages.

2

When Starting Windows 95 appears, press and release F8 while
the text is on the screen.

3

From the menu that is displayed, select Safe Mode. (It may
take several minutes for Windows 95 to load.)

4

Verify that the SlimSCSI 1450 software driver is loading prop­erly (see below).

11

SlimSCSI 1450 Adapter User’s Guide

How do I determine if the SlimSCSI Windows 95 miniport driver is
working correctly?

1

Insert the SlimSCSI 1450 into the PC Card slot, if it is not
already inserted.

2

Click the Start button and click Settings.

3

Click Control Panel.

4

Double-click the System icon, then select the Device Manager
tab.

5

Double-click SCSI controllers. The driver for the SlimSCSI
adapter is listed as Adaptec APA-1450/60 PCMCI A SCS I
Adapter .

■

If the driver is listed, this means it is loaded properly.

■

If the driver is listed but has an exclamation mark inside a
yellow circle, it is in a problem state (usually indicating a
conflict with other hardware using the same resources.)

■

If the driver is listed but has an “X” inside a red circle, this
indicates that it is disabled and is not loading.

■

If the SCSI controllers icon or the APA™-1450 driver is not
listed, reinstall the driver (see directions on page 5).

Software upgrades (including downloadable drivers)

Note:

for Adaptec products are available on the Adaptec Web site
at

http://www.adaptec.com

An “X” inside a red circle appears with the SlimSCSI 1450 software
driver in Device Manager. What does this mean?

It means that the software driver is disabled and is not loading.
Follow these steps to enable the driver:

1

Double-click the SlimSCSI 1450 software driver in Device
Manager.

2

Under the General tab, check the Original Configuration
(current) box.

12

Troubleshooting

What if there is no SCSI controllers icon under De vice Manager , or the
SlimSCSI 1450 software driver does not appear under Dev ice
Manager?

If the SCSI controllers icon or the software driver does not appear:

1

Double-click the Add New Hardware icon in the Control
Panel.

2

Select Yes on the second screen of the Add New Hardware
Wizard to have Windows search for the SlimSCSI 1450.

3

Follow the onscreen instructions.

If Windows 95 does not detect the SlimSCSI 1450, run the Add New
Hardware Wizard again:

1

Double-click Add New Hardware in the Control Panel.

2

Select No on the second screen of the wizard.

3

Select SCSI controllers on the next screen.

4

Select the model of your Adaptec SCSI adapter.

If the SlimSCSI 1450 is not listed, you may be able to install the
driver from the Windows 95 CD-ROM. To do this, follow these
steps:

1

Place the Windows 95 CD-ROM in your CD-ROM drive and
run the Add New Hardware wizard.

2

Select No on the second screen of the wizard.

3

Select SCSI controllers on the next screen.

4

Click the Have Disk button, then click the Browse button.

5

Look in the
select the model of your SCSI adapter.

How can I check the status of a resource (for example, IRQ,
Memory, I/O)?

1

Click the Start button, point to Settings, then click Control
Panel.

2

Double-click the System icon, then click the Device Manager
tab.

3

Click Computer, then click Properties.

\drivers\storage

directory of the CD-ROM and

13

SlimSCSI 1450 Adapter User’s Guide

4

On the View Resources tab, click the option button for the type
of resource you want to check. Read the information.

■

If a specific resource is not listed, the resource is not used
by a device.

■

If a resource is listed more than once, the resource is used
by more than one device.

■

If a resource is used by an unknown device, the resource is
used but the device using the resource cannot be detected.

How do I use the Hardware Conflict Troubleshooter in Windows 95?

1

Click the Start button, then click Help.

2

From the Contents tab, double-click Troubleshooting.

3

Double-click If you have a hardware conflict.

4

Follow the step-by-step instructions in the Help topic.

❒

14

Contacting Adaptec

If you have questions about installing or using your Adaptec prod­uct, check this
your questions here. If you need further assistance, please contact
us. We offer the following support and information services:

Electronic Support

Technical information, including product literature, answers to com­monly asked questions, information on software upgrades and other
topics is available electronically through the following:

■

Adaptec World Wide Web (WWW) site at

http://www.adaptec.com

User’s Guide

first—you will find answers to most of

■

File Transfer Protocol (FTP) server at

■

Adaptec USA Bulletin Board Service (BBS); supports up to
28,800 bps (bits per second), 8 data bits, 1 stop bit, no parity.
No product literature is available on the Adaptec BBS.

USA:

[phone]

Belgium:
Germany:
France:
UK:

■

Interactive Fax System available 24 hours a day, 7 days a week.

USA:
Europe:

(32) 2-352-3454

(49) 89-45640618

(33) 1-30609539

(44) 1276-684184

[phone]

(32) 2-352-3869

ftp.adaptec.com

15

Technical and Product Support

■

For technical support and information about many of
Adaptec’s electronic support services, call 800-959-7274 or
408-945-2550, 24 hours a day, 7 days a week.

■

To use the Adaptec Interactive Support System, call
800-959-7274 or 408-945-2550, 24 hours a day, 7 days a week.
The system prompts you with questions regarding your prob­lem and then provides step-by-step troubleshooting
instructions.

■

To speak with a product support representative, call

A.M

408-934-7274, M–F, 6:00

. to 5:00P.M., Pacific Time. After
hours, on weekends, and on holidays, product support is also
available for a fee at 800-416-8066.

■

To speak with a product support representative in Europe call:

French: (32) 2-352-3460
English: (32) 2-352-3470
German: (32) 2-352-3480

Sales and Ordering Information

■

For sales information, call 800-959-7274 or 408-945-2550, M–F,

A.M

6:00

. to 5:00P.M., Pacific Time.

■

To order Adaptec software and SCSI cables, call 800-442-7274

A.M

or 408-957-7274, M–F, 6:00

■

To request additional documentation for Adaptec products,
call 800-934-2766 or 510-732-3829, M–F, 6:00

. to 5:00 P.M., Pacific Time.

A.M

. to 5:00 P.M.,

Pacific Time.

■

For sales information in Europe call:

France: (33) 1-34-523434
Germany: (49) 89-854500
UK: (44) 1276-854500

16

Copyright

© 1997 Adaptec, Inc. All rights reserved. No part of this publication may be repro­duced, stored in a retrieval system, or transmitted in any form or by any means, elec­tronic, mechanical, photocopying, recording or otherwise, without the prior written
consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.

T rademarks

Adaptec, the Adaptec logo, APA, EZ-SCSI, and SlimSCSI are trademarks of Adaptec,
Inc. which may be registered in some jurisdictions. Windows and Windows 95 are
registered trademarks of Microsoft Corporation in the U.S. and other countries used
under license. All other trademarks are owned by their respective owners.

Changes

The material in this document is for information only and is subject to change with­out notice. While reasonable efforts have been made in the preparation of this docu­ment to assure its accuracy, Adaptec, Inc. assumes no liability resulting from errors or
omissions in this document, or from the use of the information contained herein.

Adaptec reserves the right to make changes in the product design without reservation
and without notification to its users.

Disclaimer

IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE PER­MISSION FROM THE COPYRIGHT OWNER OF THE MATERIALS TO AVOID VIO­LATING THE LAW WHICH COULD RESULT IN DAMAGES OR OTHER
REMEDIES.

17

Federal Communications Commission Radio Frequency Interference Statement

WARNING: Changes or modifications to this unit not expressly approved by the party responsi­ble for compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guaran­tee that interference will not occur in a particular installation. However, if this equipment does
cause interference to radio or television equipment reception, which can be determined by turn­ing the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/television technician for help.

Use a shielded and properly grounded I/O cable and power cable to ensure compliance of this
unit to the specified limits of the rules.

This device complies with part 15 of the FCC rules. Operation is subject to the following two con­ditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Adaptec, Inc. APA-1450B

Teste d To Compl y
With FCC Standards

FOR HOME OR OFFICE USE

Canadian Compliance Statement

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial
brouilleur du Canada.

18

Adaptec Software License Agreement

In return for acquiring a license to use the software (“Software”) and related documentation, you
agree to the following terms and conditions:

1 License: This Agreement grants you, the Licensee, a license to:

a use the Software on a single computer system which incorporates an Adaptec SCSI Card,

or in the case of a multi-user or networked system which permits access to the Software by
more than one user at the same time, at a single working location.

b make one copy of the Software in machine readable form solely for back-up purposes pro-

vided you reproduce Adaptec’s copyright notice and any proprietary legends.

2 Restrictions: You may not distribute copies of the Software to others or electronically transfer

the Software from one computer to another over a network. You may not use the Software
from multiple locations of a multi-user or networked system at any one time. The Software
contains trade secrets and in order to protect them you may not decompile, reverse engineer,
disassemble, or otherwise reduce the Software to a human-perceivable form. YOU MAY NOT
MODIFY, ADAPT, TRANSLATE, RENT, LEASE, LOAN, RESELL FOR PROFIT, DISTRIBUTE,
NETWORK OR CREATE DERIVATIVE WORKS BASED UPON THE SOFTWARE OR ANY
PART THEREOF.

3 Ownership of Software: As Licensee, you own the media upon which the software is fixed, but

Adaptec retains title and ownership of the Software recorded on the original media and all
subsequent copies of the Software regardless of the form or media in which or on which the
original and other copies may exist. This license is not a sale of the Software or any copy.

4 Confidentiality: You agree to maintain the Software in confidence and to not disclose the Soft-

ware to any third party without the express written consent of Adaptec. You further agree to
take all reasonable precautions to preclude access of unauthorized persons to the Software.

5 Term: This license is effective until January 1, 2042, unless terminated earlier. You may termi-

nate the license at any time by destroying the Software (including the related documentation)
together with all copies or modifications in any form. Adaptec will have the right to terminate
your license immediately if you fail to comply with any term or condition of this Agreement.
Upon any termination, including termination by you, you must destroy the Software (includ­ing the related documentation) together with all copies or modifications in any form.

6 Limited Warranty: Adaptec warrants only that the media upon which the Software is fur-

nished will be free from defects in material or workmanship under normal use and service for
a period of thirty (30) days from the date of delivery to you. ADAPTEC DOES NOT AND
CANNOT WARRANT THE PERFORMANCE OR RESULTS YOU MAY OBTAIN BY USING
THE SOFTWARE OR DOCUMENTATION. THE FOREGOING STATES THE SOLE AND
EXCLUSIVE REMEDIES ADAPTEC WILL PROVIDE FOR BREACH OF WARRANTY.
EXCEPT FOR THE FOREGOING LIMITED WARRANTY, ADAPTEC MAKES NO WARRAN­TIES, EXPRESS OR IMPLIED, AS TO NONINFRINGEMENT OF THIRD PARTY RIGHTS,
MERCHENTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not
allow the exclusion of implied warranties or limitations on how long an implied warranty may
last, so the above limitations may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state.

7 Limitation of Liability: IN NO EVENT WILL ADAPTEC BE LIABLE TO YOU FOR ANY SPE-

CIAL DAMAGES, INCLUDING ANY LOST PROFITS, LOST SAVINGS OR OTHER INCI­DENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADAPTEC HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
Some states do not allow the exclusion or limitation of special, incidental, or consequential
damages, so the above limitation or exclusion may not apply to you.

8 Limitation of Remedies: Adaptec’s entire liability and your exclusive remedy shall be:

a the replacement of any media not meeting Adaptec’s limited warranty which is returned to

Adaptec; or

b if Adaptec or its distributor is unable to deliver replacement media which is free of defects

in materials or workmanship, you may terminate this Agreement by returning the Soft­ware and your money will be refunded.

19

9 Export: You acknowledge that the laws and regulations of the United States restrict the export

and re-export of the Software. You agree that you will not export or re-export the Software or
media in any form without the appropriate United States and foreign government approval.

10 U.S. Government Restricted Rights Legend for Units of the DoD: Use, duplication or disclo-

sure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the
Rights in Technical Data and Computer Software clause at 252.227-7013. Adaptec, Inc., 691
South Milpitas Boulevard, Milpitas, California 95035.

11 U.S. Government Restricted Rights Legend for Civilian Agencies: Use, reproduction or disclo-

sure is subject to restrictions as set forth in subparagraphs (a) through (d) of the Commercial
Computer Software - Restricted Rights clause at 52.227-19 and the limitations set forth in
Adaptec, Inc.’s standard commercial agreement for this software. Unpublished - rights
reserved under the copyright laws of the United States.

12 General: You acknowledge that you have read this Agreement, understand it, and that by

opening the package you agree to be bound by its terms and conditions. You further agree that
it is the complete and exclusive statement of the agreement between Adaptec and you which
supersedes any proposal or prior agreement, oral or written, and any terms of this Agreement
or any different terms will be enforceable against Adaptec unless Adaptec gives its express
consent, including an express waiver of the terms of this Agreement, in a writing signed by an
officer of Adaptec. You assume full responsibility for the use of the Software and agree to use
the Software legally and responsibly. This Agreement shall be governed by California law
except as to copyright matters which are covered by Federal law. This Agreement is deemed
entered into at Milpitas, California by both parties. Should any provision of this Agreement be
declared unenforceable in any jurisdiction, then such provision shall be deemed to be sever­able from this Agreement and shall not affect the remainder hereof. All rights in the Software
not specifically granted in this Agreement are reserved by Adaptec.

Should you have any questions concerning this Agreement, you may contact Adaptec by writing
to: Adaptec, Inc., Legal Department, 691 South Milpitas Boulevard, Milpitas, California 95035.

20

Limited 5-Year Warranty

Adaptec, Inc. (“Adaptec”) warrants to the purchaser of this product that it will be free from
defects in material and workmanship for a period of five (5) years from the date of purchase. If the
product should become defective within the warranty period, Adaptec, at its option, will repair or
replace the product, or refund the purchaser’s purchase price for the product, provided it is deliv­ered at the purchaser’s expense to an authorized Adaptec service facility or to Adaptec.

Repair or replacement parts or products will be furnished on an exchange basis and will either be
new or reconditioned. All replaced parts or products shall become the property of Adaptec. This
warranty shall not apply if the product has been damaged by accident, misuse, abuse or as a result
of unauthorized service or parts.

Warranty service is available to the purchaser by delivering the product during the warranty
period to an authorized Adaptec service facility or to Adaptec and providing proof of purchase
price and date. The purchaser shall bear all shipping, packing and insurance costs and all other
costs, excluding labor and parts, necessary to effectuate repair, replacement or refund under this
warranty.

For more information on how to obtain warranty service, write or telephone Adaptec at 691 South
Milpitas Boulevard, Milpitas, CA 95035, [phone].

THIS LIMITED WARRANTY DOES NOT EXTEND TO ANY PRODUCT WHICH HAS BEEN
DAMAGED AS A RESULT OF ACCIDENT, MISUSE, ABUSE, OR AS A RESULT OF UNAUTHO­RIZED SERVICE OR PARTS.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES WHICH NOW OR
HEREAFTER MIGHT OTHERWISE ARISE RESPECT TO THIS PRODUCT. IMPLIED WARRAN­TIES, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT SHALL (A) HAVE NO GREATER DURATION THAN 5 YEARS
FROM THE DATE OF PURCHASE, (B) TERMINATE AUTOMATICALLY AT THE EXPIRATION
OF SUCH PERIOD AND (C) TO THE EXTENT PERMITTED BY LAW BE EXCLUDED. IN THE
EVENT THIS PRODUCT BECOMES DEFECTIVE DURING THE WARRANTY PERIOD, THE
PURCHASER’S EXCLUSIVE REMEDY SHALL BE REPAIR, REPLACEMENT OR REFUND AS
PROVIDED ABOVE. INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITH­OUT LIMITATION LOSS OF DATA, ARISING FROM BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ARE NOT THE RESPONSIBILITY OF ADAPTEC AND, TO THE EXTENT PERMIT­TED BY LAW, ARE HEREBY EXCLUDED BOTH FOR PROPERTY DAMAGE, AND TO THE
EXTENT NOT UNCONSCIONABLE, FOR PERSONAL INJURY DAMAGE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, AND SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.

This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.

21
