Adams Rite MS2180-09-121, MS2180-08-130, MS2182-10-000, MS2182-09-000, MS2182-08-000 Specsheet

SWINGING DOOR HARDWARE

Interlock

Mechanism includes device to prevent entry of pivoted
bolt until vertical bolts are locked and to prevent
unlocking of vertical bolts when pivoted bolt is locked.

Monitoring

Monitoring Kit – (MK-2180) Add-on switch kit that signals
when the top and bottom bolts are fully projected and
the MS deadbolt is in the extended and locked position.
More than an easily defeated door position switch, this
provides a tamper-proof indication of the door position
and locked condition. Form C switch.

Top and Bottom Bolts

Hexagonal 3/8“ flat to flat. Stainless steel.
Guides furnished. Bolt ”throw” is .72 inch.
Strike required in metal headers and
thresholds is 1/2” diameter hole. For wood
frame installations order two 4005 strikes
separately.

MS2180 Series

Auto-Release
Two-Point Flushbolt

MS2180 has an hourglass shape for firm
fingergrip. Red lettered indicator shows
“LOCKED” when secure. MS 2181 has
teardrop shaped lever. MS2182 is a limited­access flush turn to comply with IBC
requirement for “no doorknob” actuation.
MS2182 is suplied with actuation tool.

Turn lever/Indicator

MS2180

MS2181

Turn Lever

SW-17

Turn knob or lever 120° counterclockwise to throw
stainless steel bolts into header and threshold and clear
strike opening so pivoted MS bolt can enter from active
door. Clockwise turn retracts vertical bolts and blocks
entry of pivoted bolt.

Operation

SWINGING DOOR HARDWARE

Function

Used instead of code-violating manual (flip­lever) flushbolts in the inactive leaf of door
pairs. One turn pins the inactive leaf in pos­ition. The pivoting MS deadbolt in the active
leaf secures the entire opening. The action of
securing the MS deadlock trips an internal
mechanism in the MS 2180 so that when the
MS deadlock is retracted, the entire opening
releases with only one operation. Not to be

used as a stand-alone locking mechanism!

Function

Turn Height

MS1850 Deadbolt
MS1850S Deadbolt
MS1850S-050 “Hookbolt”
MS1850SN Deadbolt
MS1850SN-050 “Hookbolt”
1850S-020 Shortbolt
MS1950 Deadbolt

Compatible Locks:

Operates in
conjunction
with any MS

pivoting

Deadbolt

For Aluminum Stile Doors

260 Santa Fe Street
Pomona, California 91767
(

800) 872-3267 Fax:[phone]

www.adamsrite.com

MS2182

Flush-Operator

Matches cylinder height of MS

®

lock in active door, adjustable from
34” to 48”.

MS2180 Series Auto-Release Two-Point Flushbolt

©2009 ADAMS RITE MANUFACTURING CO.

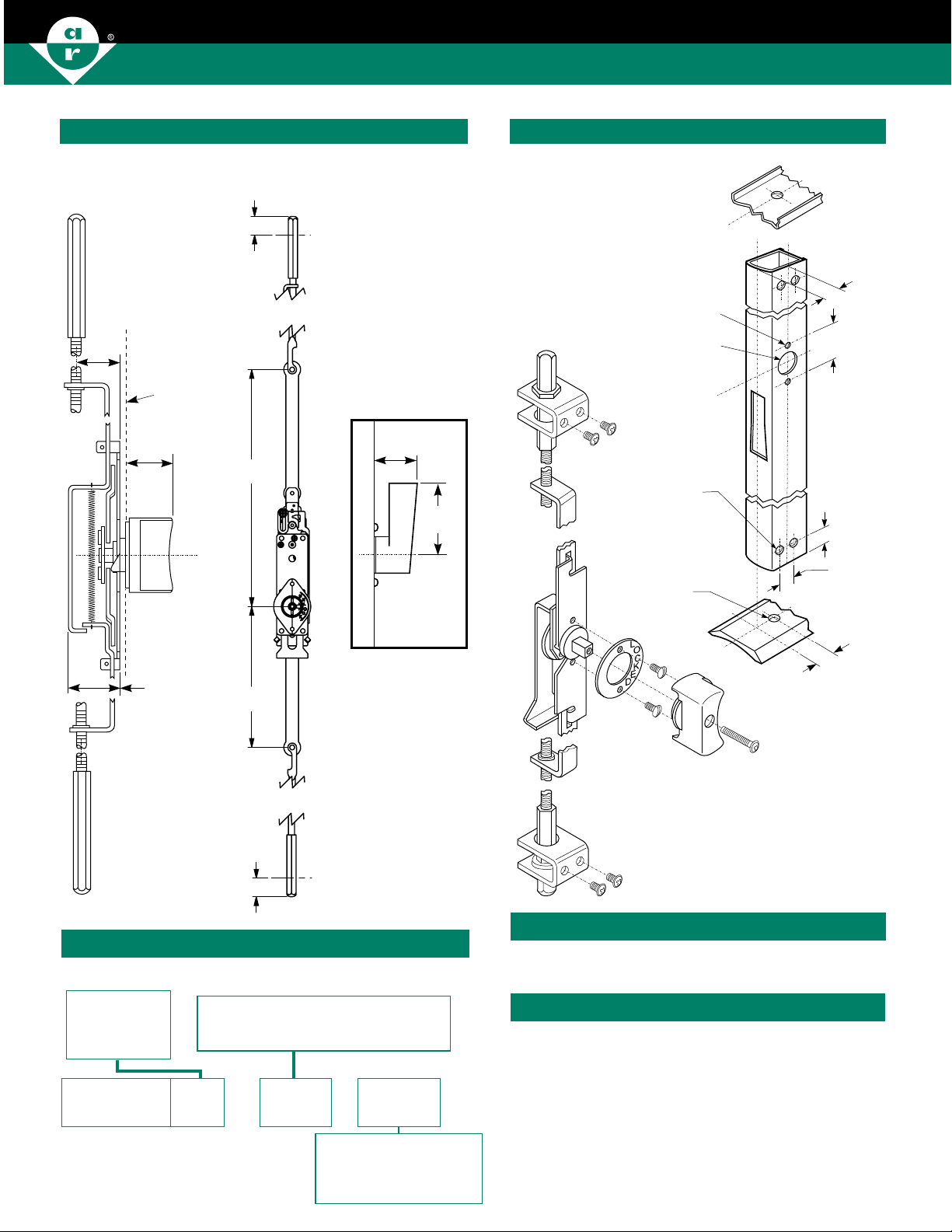

DIMENSIONS

INSTALLATION

HOW TO ORDER

Specify quantity and the following information.

Order related hardware separately.

Nominal, subject to tolerance extremes.

INCHES

MILLIMETERS

Stile

Preparation

MS2180 - 07 - 682

Turn Shape

Door Height

(

From floor to top of door

)

8081

82

Hourglass
Teardrop
Flush

07 Up to 7’ Door
08 Up to 8’ Door

09 Up to 9’ Door
10 Up to 10’ Door

OPTIONS

For wood header or threshold, order 4005 strikes separately.
Monitor Kit – MK-2180

Individually boxed with bolt guides and screws. Shipping
weight: 2 lbs.

STANDARD PACKAGE

MS1880

.75

19.0

1.062

26.97

.94

23.9

FACE OF

STILE

BOTTOM

GUIDE

BRACKET

TOP GUIDE

BRACKET

.50

12.7
(2 PLCS)

DIA.

.938

23.83

(2 PLCS)

1.062

26.97

.938

23.83

.75

19.05

DIA.

.140

3.56

DIA.

.69

17.5

(2 PLCS)

(2 PLCS)

.562

14.27

CYLINDER

ON ACTIVE
DOOR LEAF

C

L

.203

5.16

DIA.

(4 PLCS)

C’SK 82 x

O

DIA.

.375

9.52

MS1881

1.50

38.1

.875

22.2

Finish to Match

628
313
335

Clear Anodized
Dark Bronze Anodized
Black Anodized

4.954

125.83

8.838

224.49

Throw

Throw

0.75

19.05

0.75

19.05
