Adams Rite 4590-01-00-313, 4590-12-00-628, 4590-12-01-313, 4590-12-01-628, 4590-12-02-313 Specsheet

TRIM

4590 DEADLATCH PADDLE

Specifications

T-17

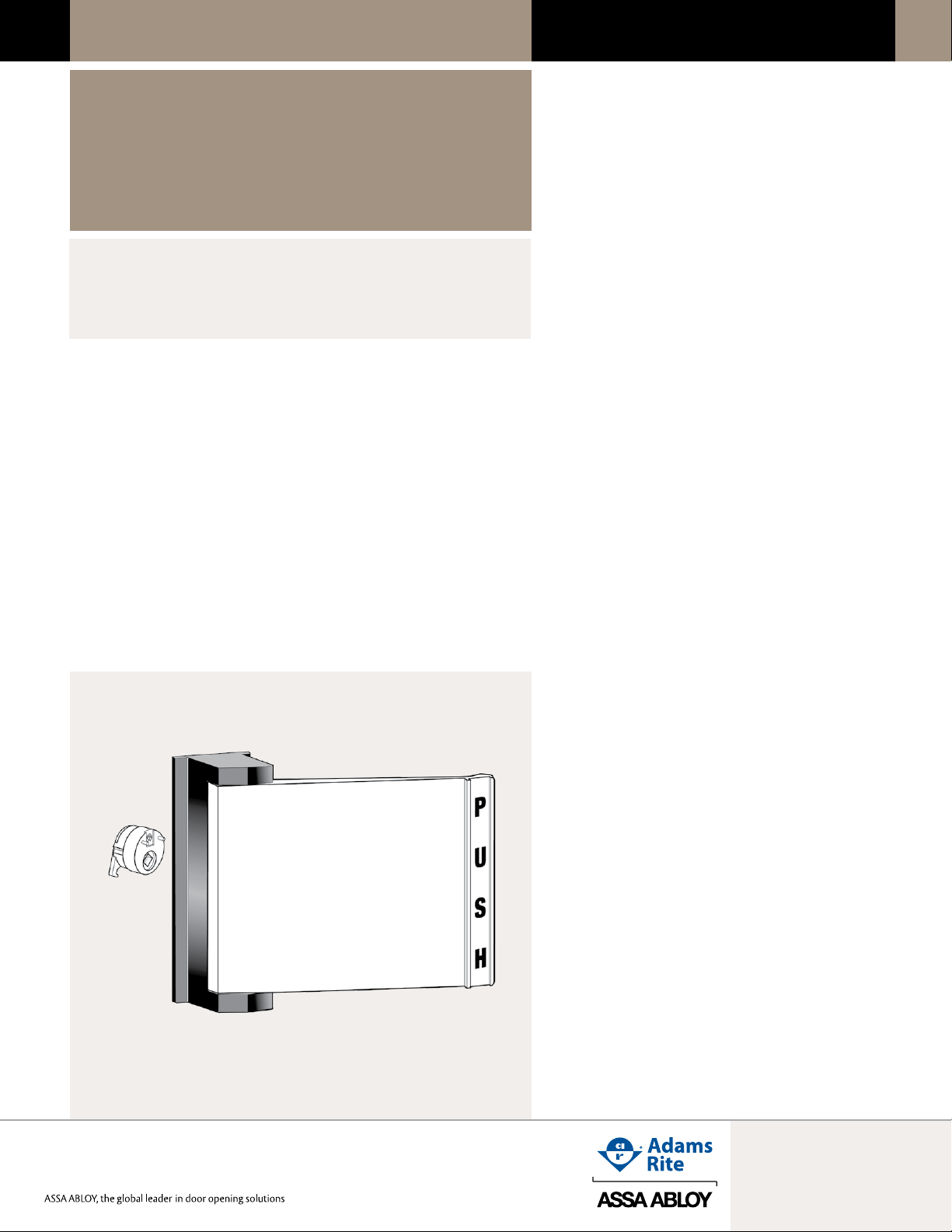

4590 Deadlatch
Paddle

The 4590 Deadlatch Paddle is an ergonomically-friendly
alternative to a knob or lever handle. Operate with a simple
push or pull.

Function

An alternative to knob or lever handles. Makes opening a latched door as
natural as opening an unlatched one – just push or pull in the direction
the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series
Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/
Deadlatch.

Operation

Available in four configurations: push to left, push to right, pull to left,
and pull to right.

PADDLE

• Extruded aluminum, 628 Clear Anodized finish (US28).

313 Dark Bronze Anodized and 335 Black Anodized are
also available.

ESCUTCHEON

• Zinc alloy with black finish. Houses steel operating

mechanism. Secured to door stile with special binder posts
that extend into the escutcheon to rigidly resist torque
loads in any direction.

CAM PLUG

• Furnished for use with 4300, 4500 and 4900 Series

Deadlatches. Cam plug not for use with MS+1890
Deadlock/Latch or 2190/2290 Interconnected Deadbolt/
Deadlatch. Secured in latch body by cylinder setscrew, plug
is also rigidly tied to escutcheon by hardened steel pins.

OPTIONS

• First dash number specified operation (handing) and

compatible latch. Second dash number can be used to
specify non-standard units for doors thicker than 1-3/4"
(see dash table on back of page).

STA NDA RD PACK AGE

• Individually boxed with mounting hardware. Units for

4300, 4500 or 4900 Series Deadlatches include cam plug.
Shipping weight: 1-1/2 lb.

CAM PLUG

ARM-014-9/14

800.872.3267 • Fax [phone]

10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044

www.adamsrite.com

T-18

All measurements are approximate and are provided for informational purposes only. Refer to the product Installation Instructions.

4590 DEADLATCH PADDLE

DimensionsDimensions

5-29/32"

150mm

TRIM

Stile Preparation

For 4500/4900 latches, see MS+1890/2190
for different hole pattern

BACKSET

STILE

9/32"

7.1mm

(2 PLCS)

DIA.

4"

101.6

mm

1-11/32"

34.1

mm

Installation

1

INSTALL
BINDER
POSTS

1/4-28

NUT

FIRST DASH

FOR LATCH SERIES OPPERATION USE

-01 4300/4500/4900

-11 MS+1890/2190

-02 4300/4500/4900

-12 MS+1890/2190

-03 4300/4500/4900

-13 MS+1890/2190

-04 4300/4500/4900

-14 MS+1890/2190

PULL

TO LEFT

PUSH

TO LEFT

PULL

TO RIGH T

PUSH

TO RIGH T

Outside of left hand reverse door or
inside of right hand

Outside of left hand door or inside of right
hand reverse

Outside of right hand reverse door or
inside or left hand

Outside of right hand door or inside of left
hand reverse

1-19/64"

32.9mm

2

INSTALL
LATCH &
CAM PLUG

CAM PLUG

(NOT REQ. WITH

MS+1890/2190)

1"

25.4mm

PUSH*

*SHOWN AT REST.

PADDLE TRAVEL IS:

LH

LHR

PULL*

2-5/16"

58.7

mm

9/16"

14.2

mm

LATCH

1-29/32"

48.4mm

CYL.

3 4

INSTALL
ESCUTCHEON

8-32

SCREWS

-03 OR -13

-02 OR -12

-04 OR -14

-01 OR -11

RH

RHR

INSTALL
PADDLE

-01 OR -11

-04 OR -14

-02 OR -12

-03 OR -13

1-23/32"

43.7mm

1-1/4"

31.8mm

PIVOT PIN

SETSCREW

3"

76.2mm

DIA.

HOW TO ORDER 4590 DEADLATCH PADDLE

Specify quantity and the following information. Order related products separately.

PRODUCT NO. OPERATION DOOR THICKNESS FINISH*

4590 02 -00 -313

See table above For 4300, 4500, 4900 Series Deadlatches For MS+1890, 2190 313 Dark Bronze Anodized

00 1-3/4" 03 2-3/4" to 3" 00 1-3/4" 02 2-5/16" to 2-1/2" 335 Black Anodized

01 1-13/16" to 2" 04 3 -1/4" 01 1-3/4" to 2-1/4" 03 2-9/16" to 2-3/4" 628 Clear Anodized

02 2-1/4" to 2-1/2"

*Paddle only

COMPATIBLE PRODUCTS

This product is compatible with the following products:

Deadlocks Deadlatches

MS+1890 Deadlock/Latch
2190/2290 Interconnected Deadbolt/Deadlatch

4300 eLatch Electrified Deadlatch
4500 Series Standard Duty Deadlatch
4900 Series Heavy Duty Deadlatch
